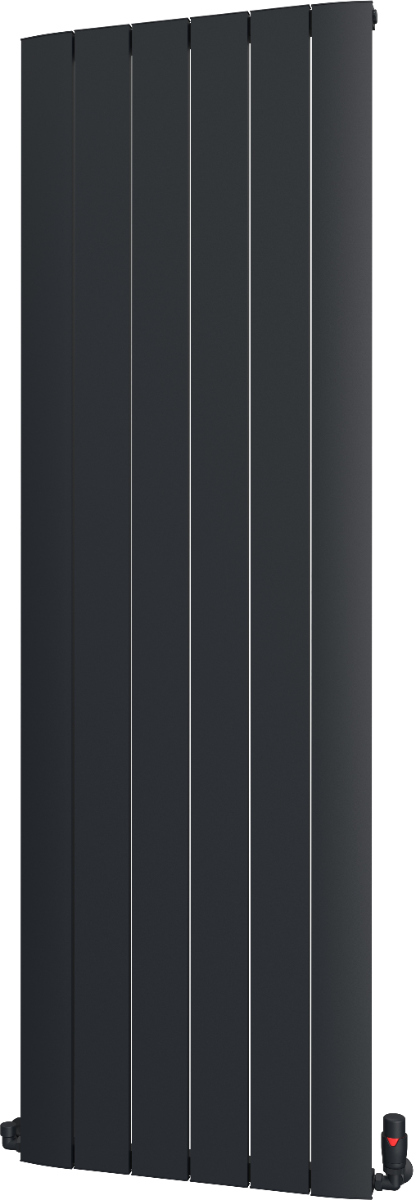

Aleo Vertical Aluminium Radiator
5 Years Guarantee
Material: Aluminium
Central Heating
The Aleo Vertical Aluminium Designer Radiator is a sleek and modern heating solution that blends contemporary style with strong performance. Made from high-quality aluminium, it delivers quick heat-up times and excellent efficiency, while the vertical, space-saving design creates a bold feature in any room. Available in Black, White, and Anthracite finishes, the Aleo radiator complements a wide range of interior styles, from minimalist to modern living spaces. Designed for durability and everyday reliability, it also comes with a 5-year manufacturer’s guarantee, offering added peace of mind while enhancing both comfort and design in your home.
- Available in 3 colours and 4 sizes
- Durable Aluminium Construction
- 5 Years Guarantee
-
anthracite
-
white
-
black
Product Resource Centre
1800mm HEIGHT 375mm WIDTH
1800mm HEIGHT 470mm WIDTH
1800mm HEIGHT 660mm WIDTH
1800mm HEIGHT 565mm WIDTH
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 1800 | 375 | 375 | 35 | 65 | 11.3kg | 4 |
| 1800 | 470 | 470 | 35 | 65 | 13.7kg | 5 |
| 1800 | 660 | 660 | 35 | 65 | 18.3kg | 7 |
| 1800 | 565 | 565 | 35 | 65 | 16.0kg | 6 |
For pipe centre measurement including valves, add 90mm
Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT60°C | Heat Outputs ΔT50°C | Heat Outputs ΔT30°C | |||
|---|---|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | BTU | Watts | ||||
| RV-AL184A | 1800 | 375 | Anthracite |
3779 | 1108 | 2952 | 866 | 1528 | 448 |
| RV-AL184W | 1800 | 375 | White |
3779 | 1108 | 2952 | 866 | 1528 | 448 |
| RV-AL185A | 1800 | 470 | Anthracite |
4724 | 1385 | 3691 | 1082 | 1911 | 560 |
| RV-AL185W | 1800 | 470 | White |
4724 | 1385 | 3691 | 1082 | 1911 | 560 |
| RV-AL187A | 1800 | 660 | Anthracite |
6612 | 1939 | 5166 | 1515 | 2674 | 784 |
| RV-AL187W | 1800 | 660 | White |
6612 | 1939 | 5166 | 1515 | 2674 | 784 |
| RV-AL186A | 1800 | 565 | Anthracite |
5668 | 1663 | 4428 | 1299 | 2292 | 672 |
| RV-AL186W | 1800 | 565 | White |
5668 | 1663 | 4428 | 1299 | 2292 | 672 |
| RV-AL184B | 1800 | 375 | Black |
3779 | 1108 | 2952 | 866 | 1528 | 448 |
| RV-AL185B | 1800 | 470 | Black |
4724 | 1385 | 3691 | 1082 | 1911 | 560 |
| RV-AL186B | 1800 | 565 | Black |
5668 | 1663 | 4428 | 1299 | 2292 | 672 |
| RV-AL187B | 1800 | 660 | Black |
6612 | 1939 | 5166 | 1515 | 2674 | 784 |
