Caldaro Vertical Aluminium Radiator
5 Years Guarantee
Material: Aluminium
Central Heating
Electric
Dual Fuel

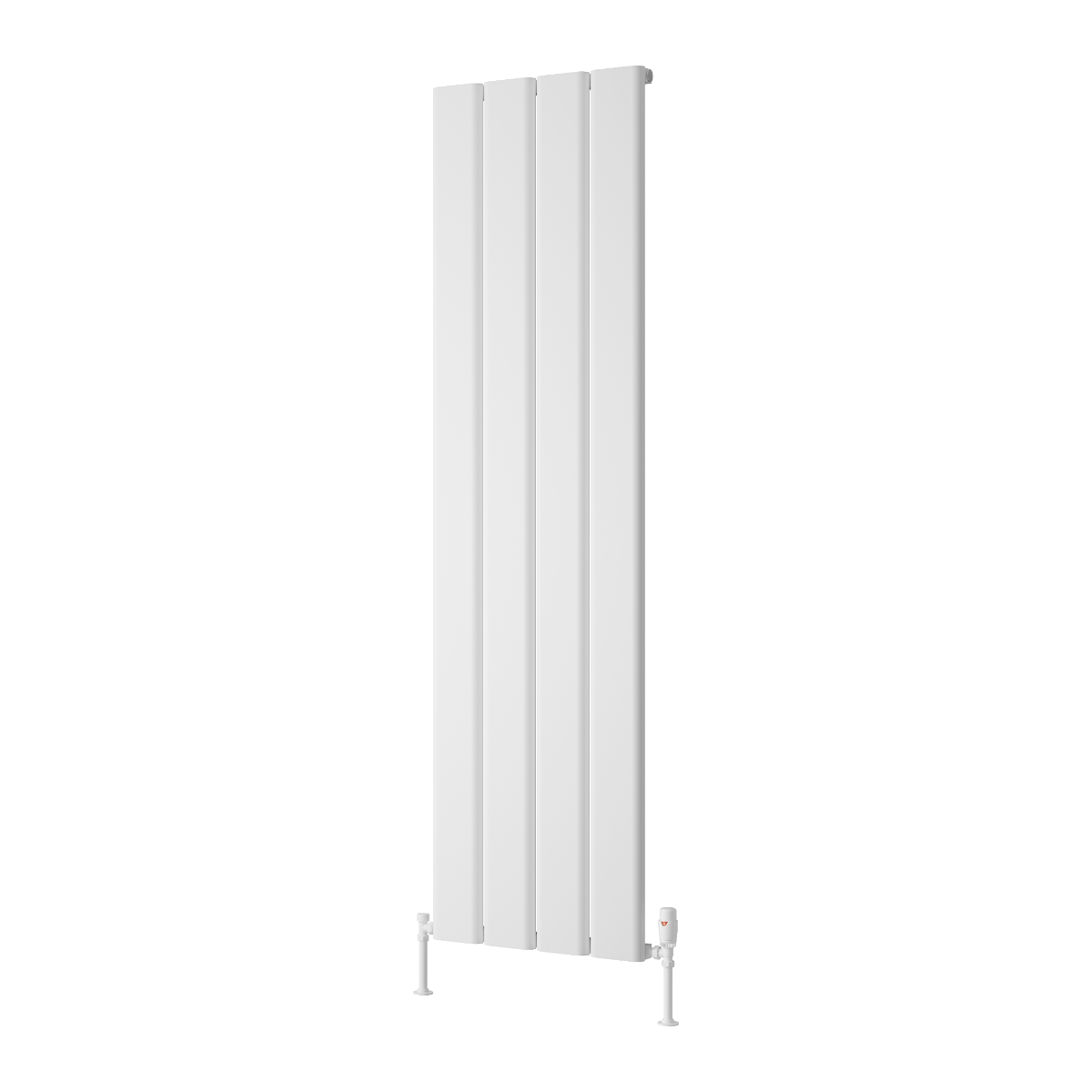

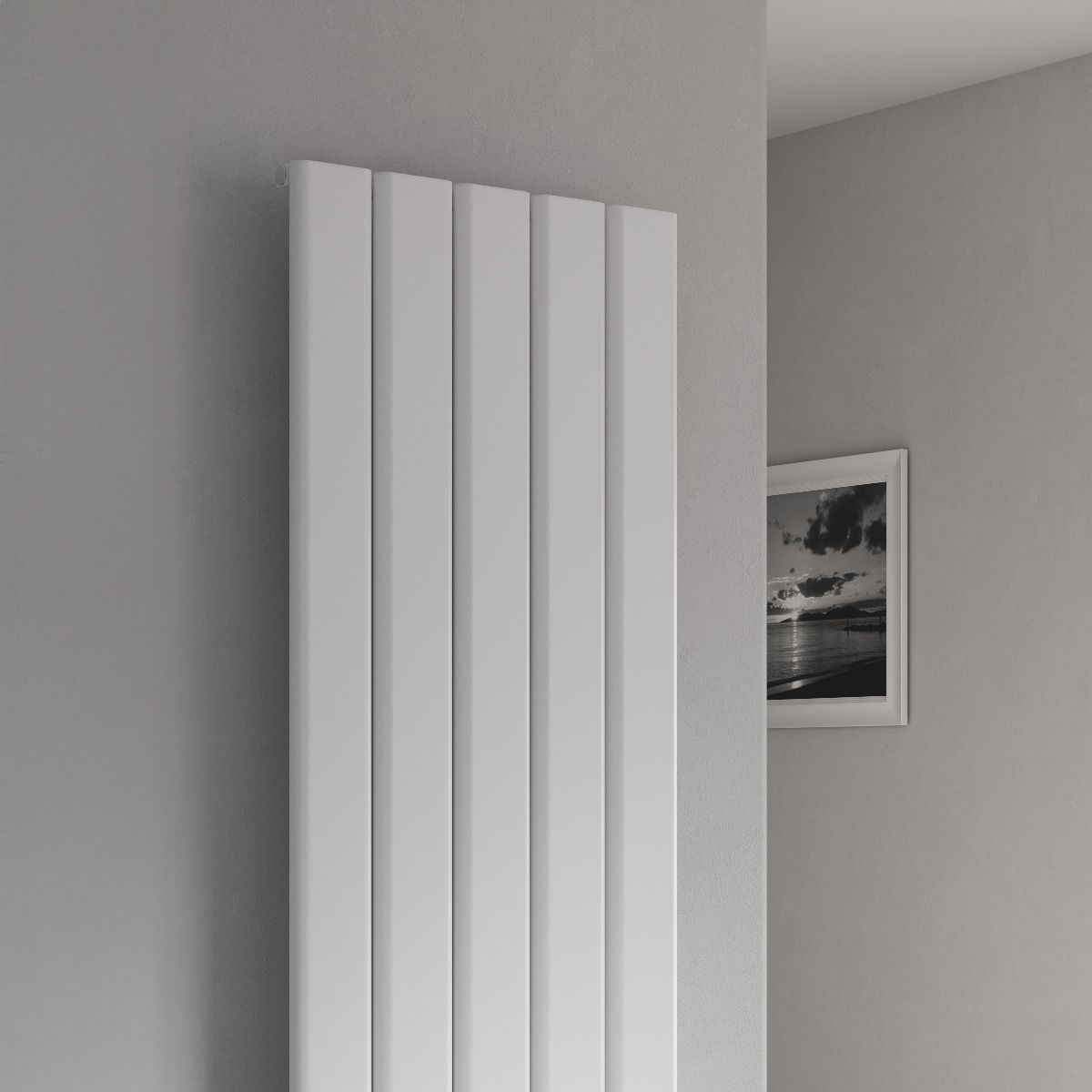

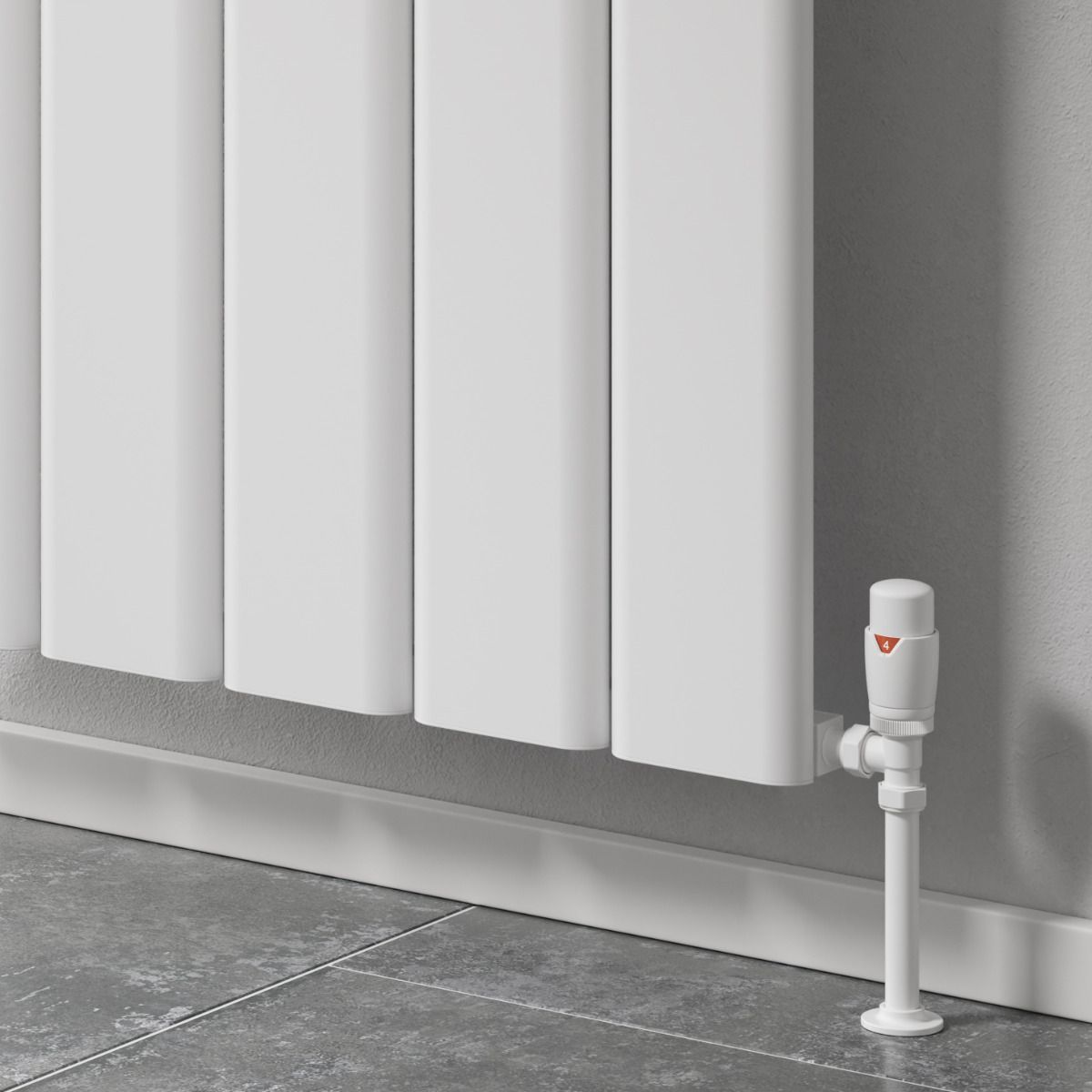

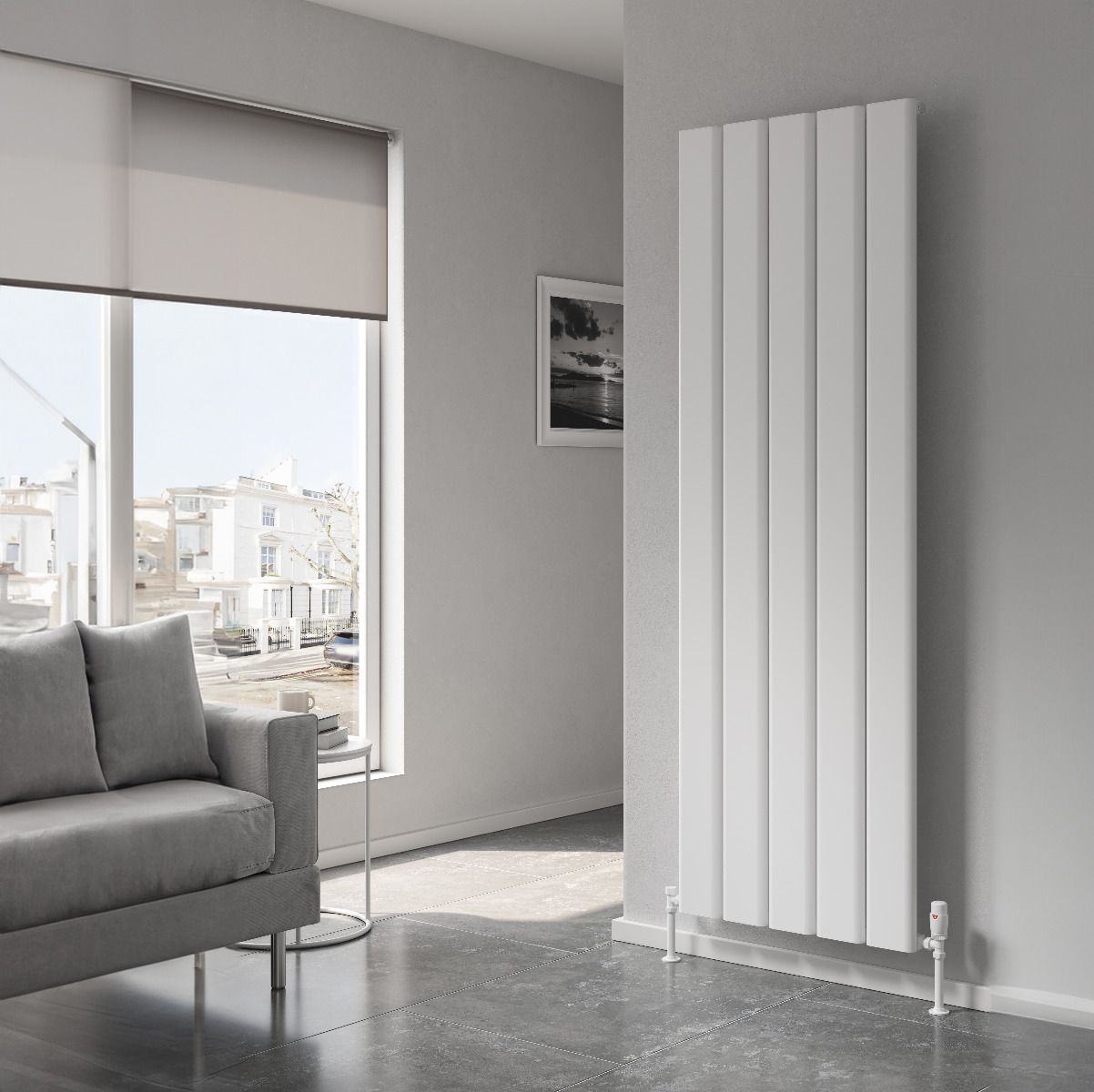

The Caldaro Vertical Radiator is the perfect sleek, column-style radiator to elevate any interior. Made from the highest quality aluminum, it offers exceptional heat output. With a height of 1800mm and widths ranging from 245mm to 620mm, the Caldaro offers a versatile range of sizes, ensuring it fits seamlessly into any room, while enhancing the overall aesthetic of your space.
- Available in 3 colours and 4 sizes
- Durable Aluminium Construction
- 5 Years Guarantee
-
white
-
anthracite
-

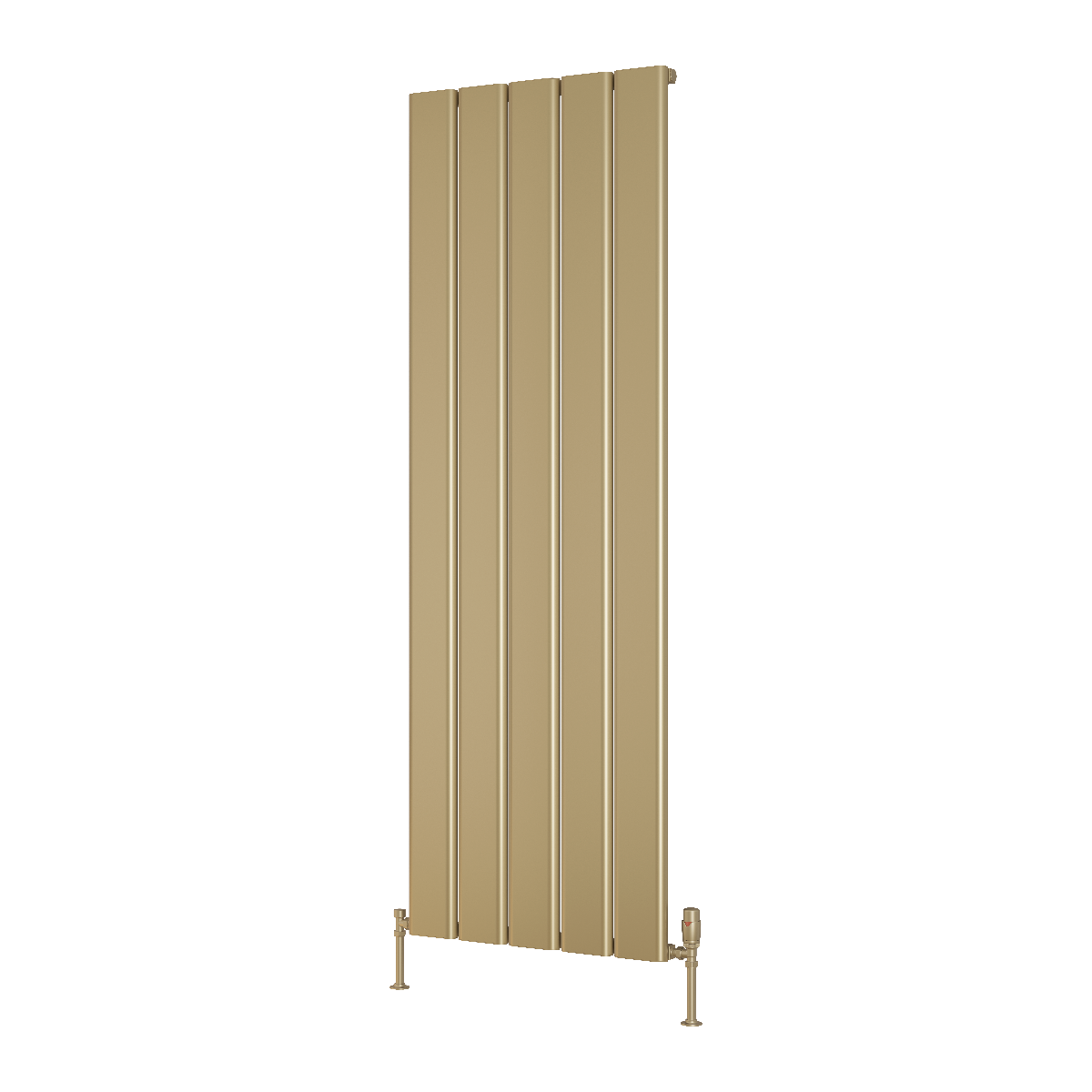

brass
1800mm HEIGHT 245mm WIDTH
1800mm HEIGHT 370mm WIDTH
1800mm HEIGHT 495mm WIDTH
1800mm HEIGHT 620mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 1800 | 245 | 245 | 50 | 90 | - | 2 |
| 1800 | 370 | 370 | 50 | 90 | - | 3 |
| 1800 | 495 | 495 | 50 | 90 | - | 4 |
| 1800 | 620 | 620 | 50 | 90 | - | 5 |
For pipe centre measurement including valves, add 90mm

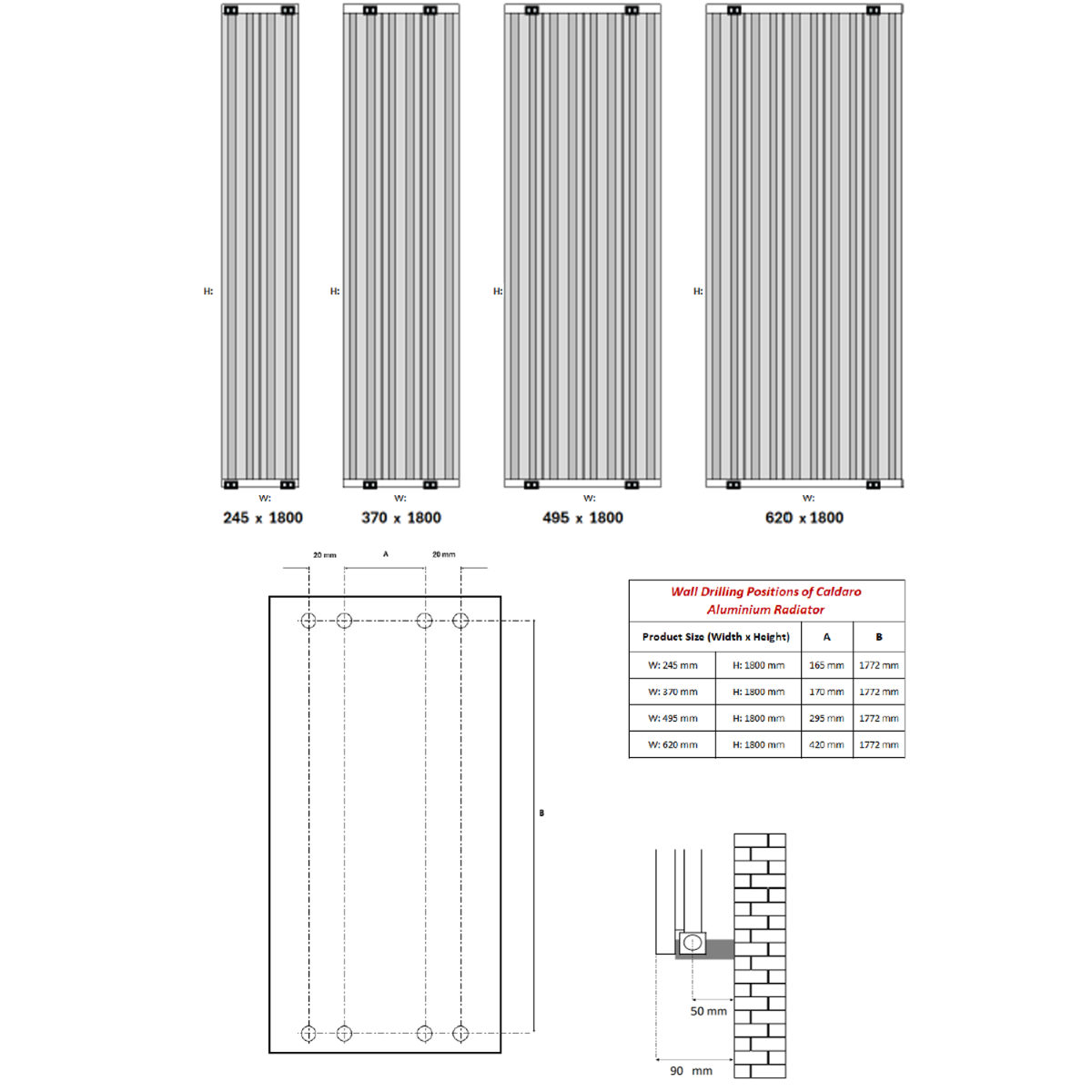

Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| A-CDR180024W | 1800 | 245 | White |
1916 | 562 | 2452 | 719 |
| A-CDR180024A | 1800 | 245 | Anthracite |
1916 | 562 | 2452 | 719 |
| A-CDR180037W | 1800 | 370 | White |
2874 | 843 | 3679 | 1079 |
| A-CDR180037A | 1800 | 370 | Anthracite |
2874 | 843 | 3679 | 1079 |
| A-CDR180037B | 1800 | 370 | Brass |
2874 | 843 | 3679 | 1079 |
| A-CDR180049W | 1800 | 495 | White |
3833 | 1124 | 4906 | 1439 |
| A-CDR180049A | 1800 | 495 | Anthracite |
3833 | 1124 | 4906 | 1439 |
| A-CDR180049B | 1800 | 495 | Brass |
3833 | 1124 | 4906 | 1439 |
| A-CDR180062W | 1800 | 620 | White |
4789 | 1404 | 6130 | 1798 |
| A-CDR180062A | 1800 | 620 | Anthracite |
4789 | 1404 | 6130 | 1798 |
| A-CDR180062B | 1800 | 620 | Brass |
4789 | 1404 | 6130 | 1798 |
Downloads
Technical Drawings
Cutout Product Images
1800 x 245 White
0.1 MB
1800 x 245 Anthracite
0.11 MB
1800 x 370 White
0.14 MB
1800 x 370 Anthracite
0.14 MB
1800 x 370 Brass
0.21 MB
1800 x 495 White
0.17 MB
1800 x 495 Anthracite
0.17 MB
1800 x 495 Brass
0.26 MB
1800 x 620 White
0.2 MB
1800 x 620 Anthracite
0.2 MB
1800 x 620 Brass
0.3 MB
Roomset Product Images
High Resolution Images
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| A-CDR180024W | 1800 | 245 |
White |
£310.00 | Log in to see stock |
| A-CDR180024A | 1800 | 245 |
Anthracite |
£310.00 | Log in to see stock |
| A-CDR180037W | 1800 | 370 |
White |
£426.00 | Log in to see stock |
| A-CDR180037A | 1800 | 370 |
Anthracite |
£426.00 | Log in to see stock |
| A-CDR180037B | 1800 | 370 |
Brass |
£540.00 | Log in to see stock |
| A-CDR180049W | 1800 | 495 |
White |
£520.00 | Log in to see stock |
| A-CDR180049A | 1800 | 495 |
Anthracite |
£520.00 | Log in to see stock |
| A-CDR180049B | 1800 | 495 |
Brass |
£670.00 | Log in to see stock |
| A-CDR180062W | 1800 | 620 |
White |
£604.00 | Log in to see stock |
| A-CDR180062A | 1800 | 620 |
Anthracite |
£604.00 | Log in to see stock |
| A-CDR180062B | 1800 | 620 |
Brass |
£770.00 | Log in to see stock |
