Capo Flat Mild Steel Towel Rail

5 Years Guarantee
Material: Mild Steel
Central Heating
Electric
Dual Fuel

The Reina Capo Flat Towel Radiator features a modern ladder design with straight tubes, available in anthracite, black, or chrome finishes. Crafted from durable steel, it provides superb heat output and optimal warmth distribution through its 22mm horizontal tubes. Enjoy stylish functionality with the peace of mind of a 5-year guarantee.

  • Available in 4 colours and 15 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • chrome
  • anthracite
  • black
  • white

Product Resource Centre

800mm HEIGHT 400mm WIDTH
800mm HEIGHT 500mm WIDTH
800mm HEIGHT 600mm WIDTH
1000mm HEIGHT 400mm WIDTH
1000mm HEIGHT 500mm WIDTH
1000mm HEIGHT 600mm WIDTH
1200mm HEIGHT 400mm WIDTH
1200mm HEIGHT 500mm WIDTH
1200mm HEIGHT 600mm WIDTH
1600mm HEIGHT 400mm WIDTH
1600mm HEIGHT 500mm WIDTH
1600mm HEIGHT 600mm WIDTH
1800mm HEIGHT 400mm WIDTH
1800mm HEIGHT 500mm WIDTH
1800mm HEIGHT 600mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
800 400 355 70-85 85-100 - 12
800 500 455 70-85 85-100 - 12
800 600 555 70-85 85-100 - 12
1000 400 355 70-85 85-100 - 16
1000 500 455 70-85 85-100 - 16
1000 600 555 70-85 85-100 - 16
1200 400 355 70-85 85-100 - 18
1200 500 455 70-85 85-100 - 18
1200 600 555 70-85 85-100 - 18
1600 400 355 70-85 85-100 - 24
1600 500 455 70-85 85-100 - 24
1600 600 555 70-85 85-100 - 24
1800 400 355 70-85 85-100 - 27
1800 500 455 70-85 85-100 - 27
1800 600 555 70-85 85-100 - 27

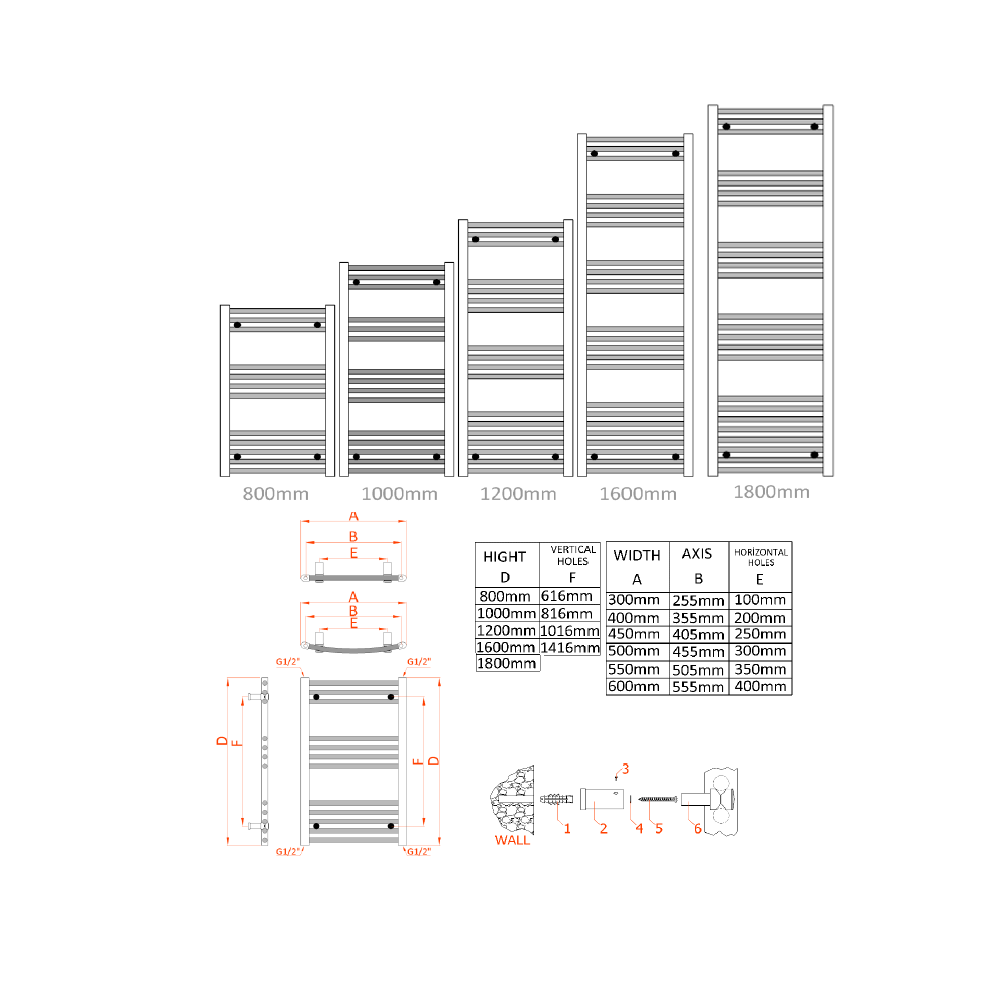

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
CPO0840CF 800 400 Chrome 749 220 585 172 298 88
CPO0840AF 800 400 Anthracite 1105 324 863 253 440 129
CPO0840KF 800 400 Black 1105 324 863 253 440 129
CPO0840WF 800 400 White 1105 324 863 253 440 129
CPO0850CF 800 500 Chrome 886 260 692 203 353 104
CPO0850AF 800 500 Anthracite 1311 384 1024 300 522 153
CPO0850KF 800 500 Black 1311 384 1024 300 522 153
CPO0850WF 800 500 White 1311 384 1024 300 522 153
CPO0860CF 800 600 Chrome 1027 301 802 235 409 120
CPO0860AF 800 600 Anthracite 1528 448 1194 350 609 179
CPO0860KF 800 600 Black 1528 448 1194 350 609 179
CPO0860WF 800 600 White 1528 448 1194 350 609 179
CPO1040CF 1000 400 Chrome 960 282 750 220 383 112
CPO1040AF 1000 400 Anthracite 1420 416 1109 325 566 166
CPO1040KF 1000 400 Black 1420 416 1109 325 566 166
CPO1040WF 1000 400 White 1420 416 1109 325 566 166
CPO1050CF 1000 500 Chrome 1101 323 860 252 439 129
CPO1050AF 1000 500 Anthracite 1640 481 1281 376 653 192
CPO1050KF 1000 500 Black 1640 481 1281 376 653 192
CPO1050WF 1000 500 White 1640 481 1281 376 653 192
CPO1060CF 1000 600 Chrome 1243 365 971 285 495 145
CPO1060AF 1000 600 Anthracite 1848 542 1444 423 736 216
CPO1060KF 1000 600 Black 1848 542 1444 423 736 216
CPO1060WF 1000 600 White 1848 542 1444 423 736 216
CPO1240CF 1200 400 Chrome 1075 315 840 246 428 126
CPO1240AF 1200 400 Anthracite 1598 469 1248 366 637 187
CPO1240KF 1200 400 Black 1598 469 1248 366 637 187
CPO1240WF 1200 400 White 1598 469 1248 366 637 187
CPO1250CF 1200 500 Chrome 1269 372 991 291 506 148
CPO1250AF 1200 500 Anthracite 1900 557 1484 435 757 222
CPO1250KF 1200 500 Black 1900 557 1484 435 757 222
CPO1250WF 1200 500 White 1900 557 1484 435 757 222
CPO1260CF 1200 600 Chrome 1471 431 1149 337 586 172
CPO1260AF 1200 600 Anthracite 2180 639 1703 499 869 255
CPO1260KF 1200 600 Black 2180 639 1703 499 869 255
CPO1260WF 1200 600 White 2180 639 1703 499 869 255
CPO1640CF 1600 400 Chrome 1421 417 1110 326 566 166
CPO1640AF 1600 400 Anthracite 2117 621 1654 485 843 247
CPO1640KF 1600 400 Black 2117 621 1654 485 843 247
CPO1640WF 1600 400 White 2117 621 1654 485 843 247
CPO1650CF 1600 500 Chrome 1675 491 1309 384 667 196
CPO1650AF 1600 500 Anthracite 2500 733 1953 573 996 292
CPO1650KF 1600 500 Black 2500 733 1953 573 996 292
CPO1650WF 1600 500 White 2500 733 1953 573 996 292
CPO1660CF 1600 600 Chrome 1943 570 1518 445 774 227
CPO1660AF 1600 600 Anthracite 2895 849 2262 663 1153 338
CPO1660KF 1600 600 Black 2895 849 2262 663 1153 338
CPO1660WF 1600 600 White 2895 849 2262 663 1153 338
CPO1840CF 1800 400 Chrome 1502 440 1173 344 598 175
CPO1840AF 1800 400 Anthracite 1868 548 1459 428 744 218
CPO1840KF 1800 400 Black 1868 548 1459 428 744 218
CPO1840WF 1800 400 White 1868 548 1459 428 744 218
CPO1850CF 1800 500 Chrome 1836 538 1434 421 732 215
CPO1850AF 1800 500 Anthracite 2770 812 2164 635 1104 324
CPO1850KF 1800 500 Black 2770 812 2164 635 1104 324
CPO1850WF 1800 500 White 2770 812 2164 635 1104 324
CPO1860CF 1800 600 Chrome 2982 874 2330 683 1188 348
CPO1860AF 1800 600 Anthracite 3144 956 2456 747 1253 381
CPO1860KF 1800 600 Black 3144 956 2456 747 1253 381
CPO1860WF 1800 600 White 3144 956 2456 747 1253 381
Images

Cutout Product Images

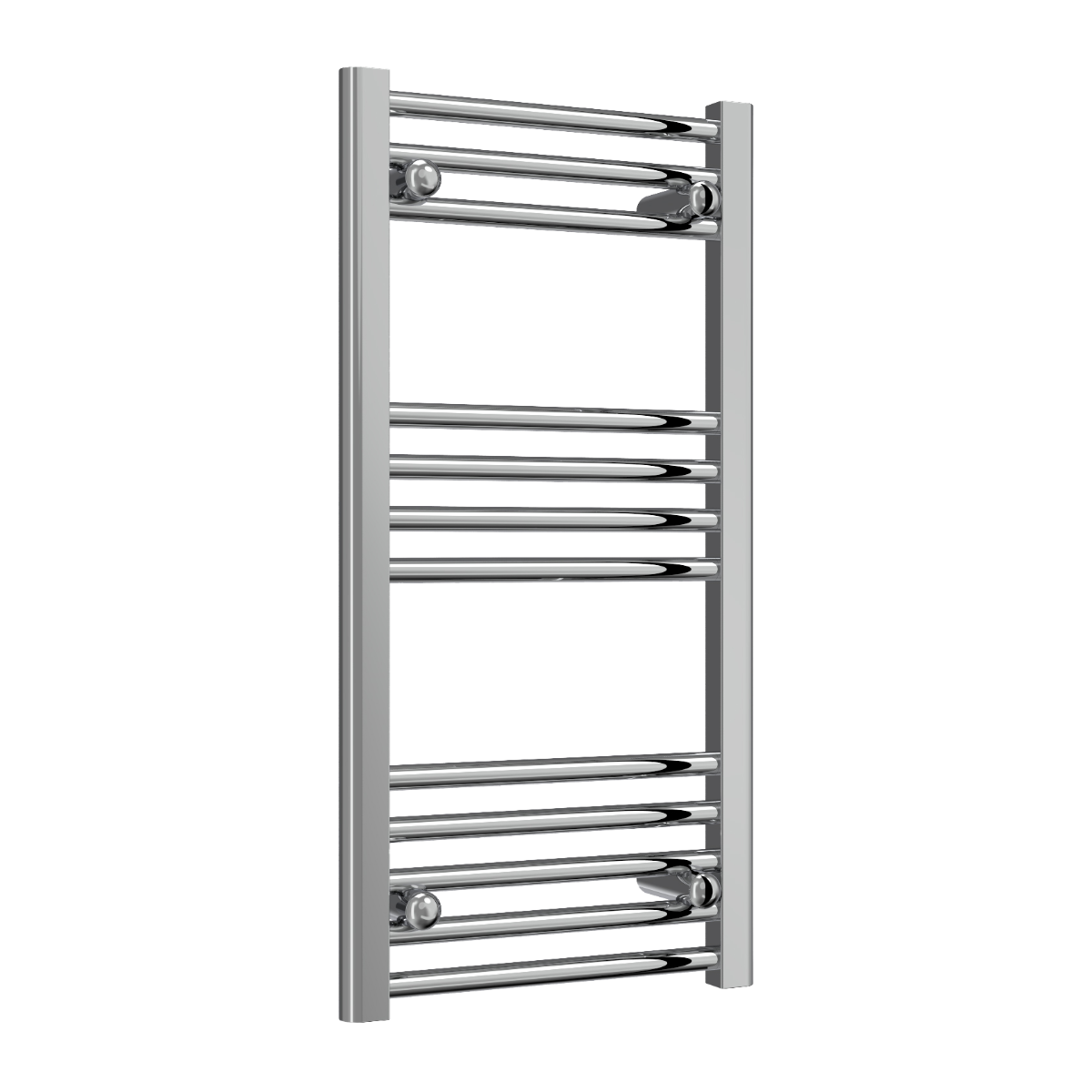

800 x 400 Chrome
0.3 MB

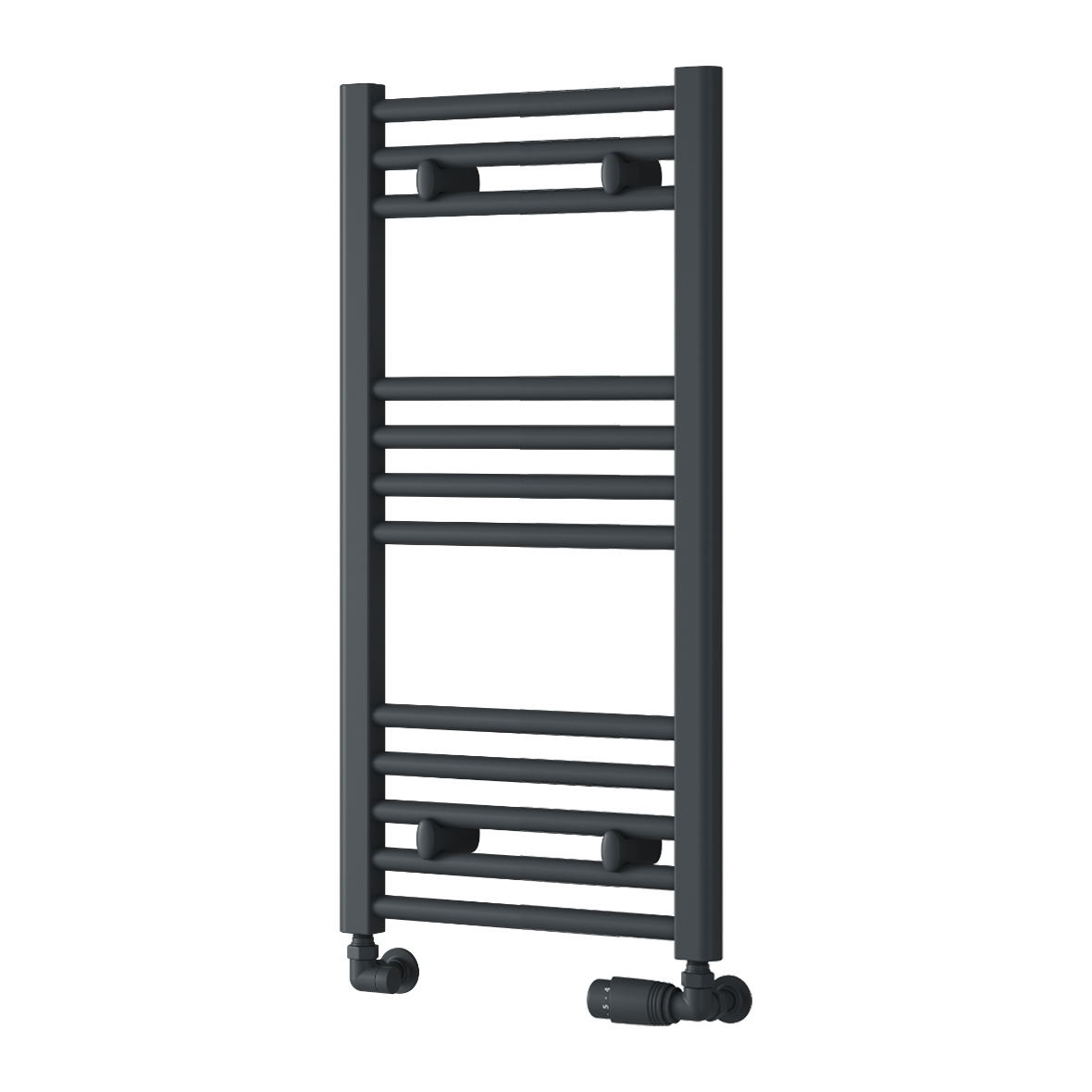

800 x 400 Anthracite
0.3 MB

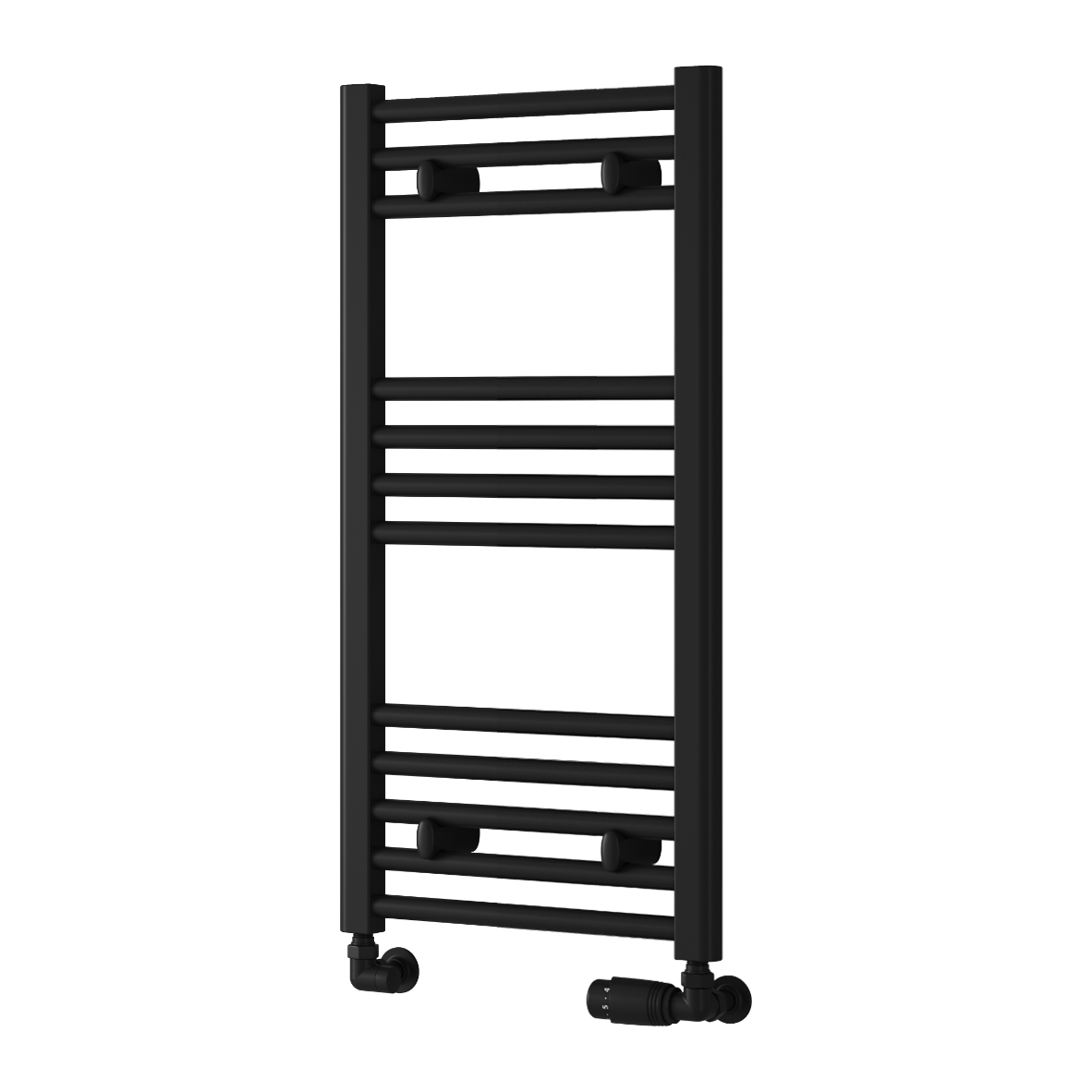

800 x 400 Black
0.2 MB

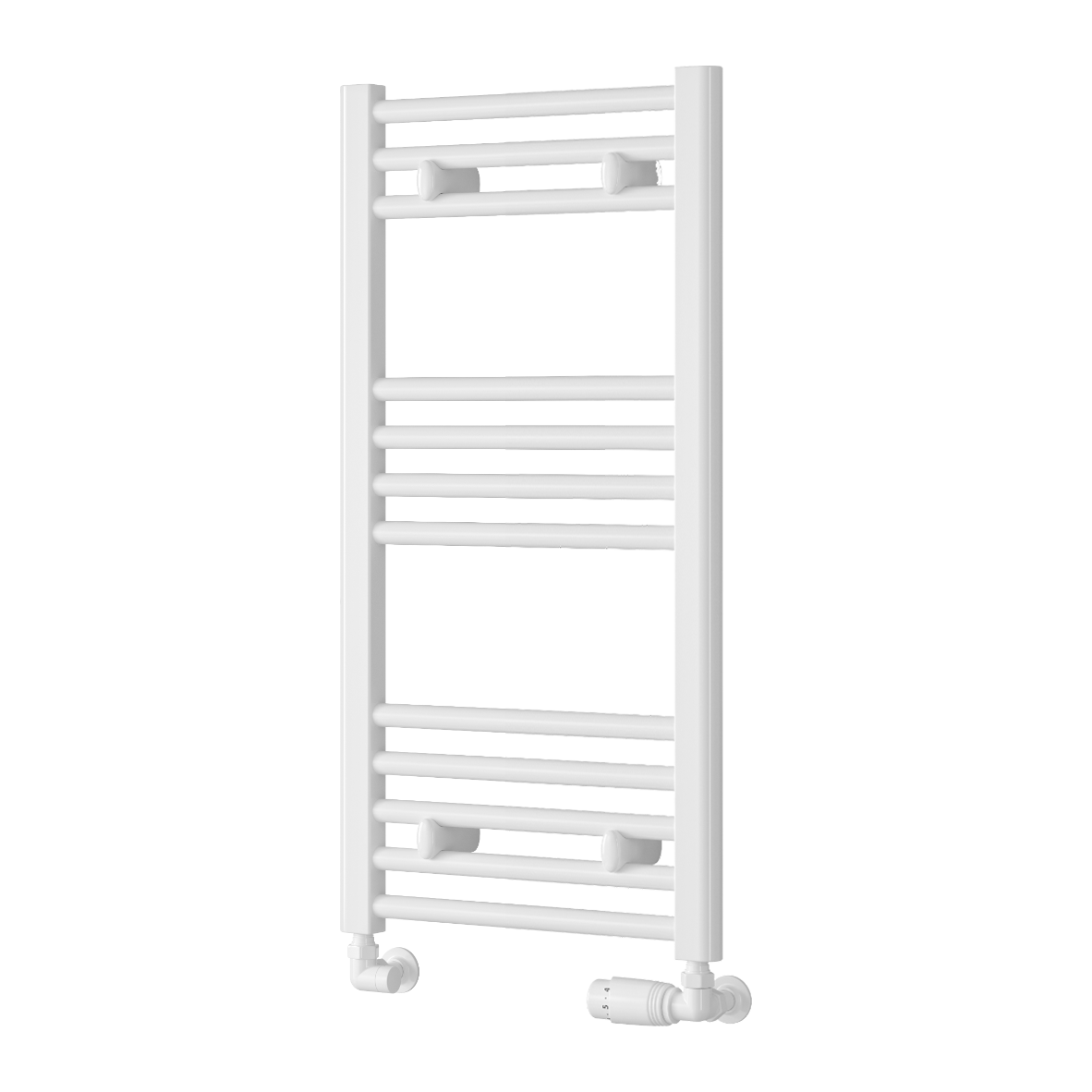

800 x 400 White
0.2 MB

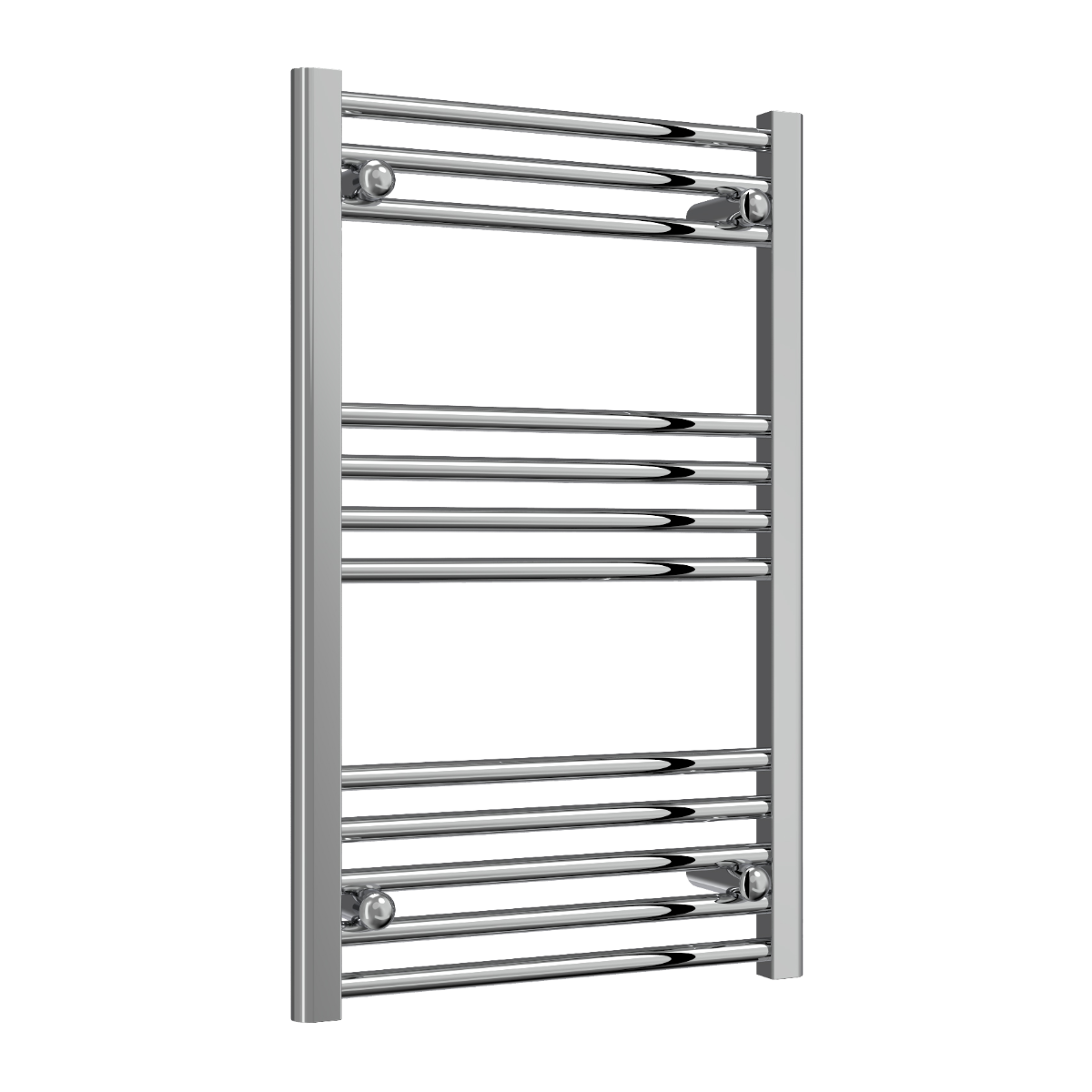

800 x 500 Chrome
0.34 MB

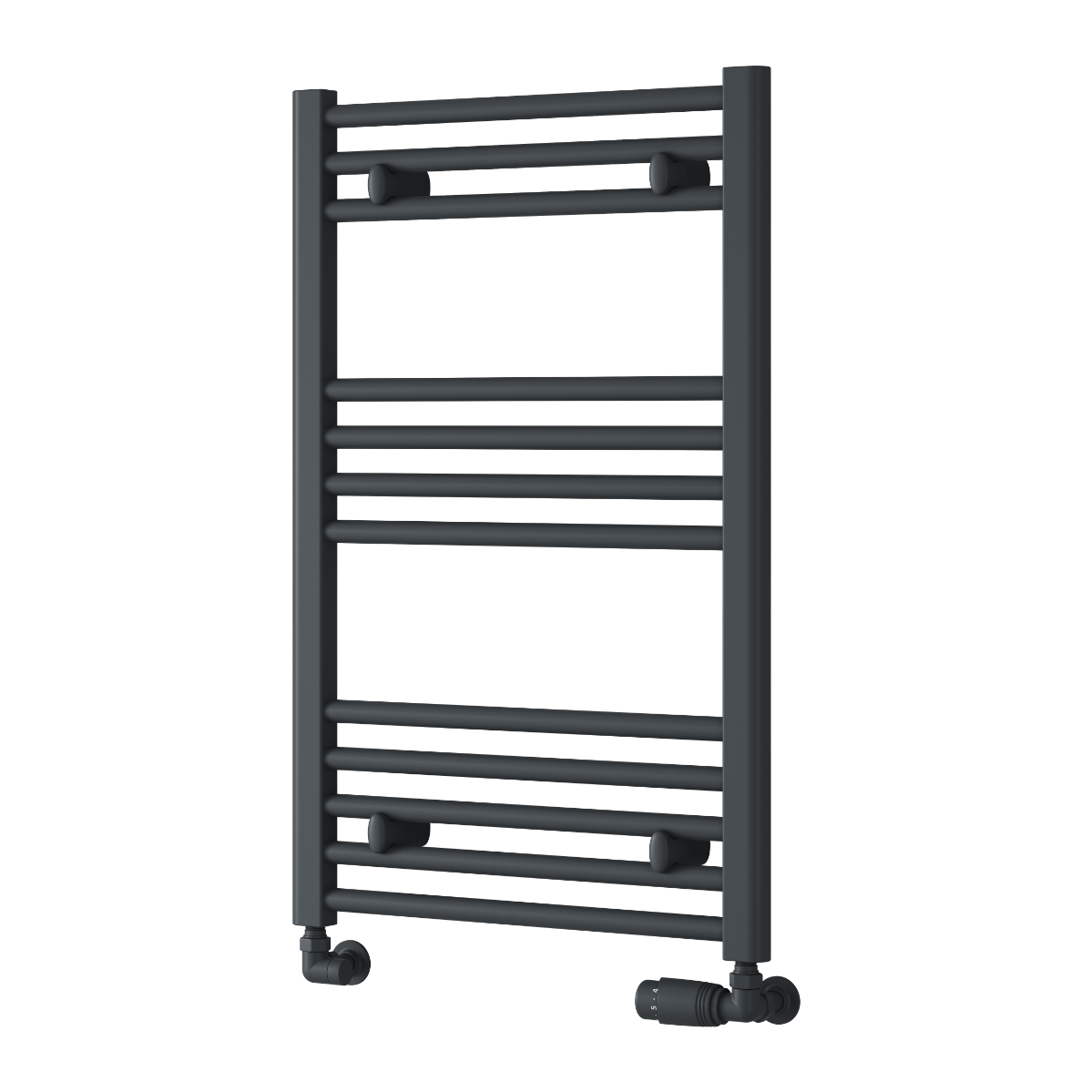

800 x 500 Anthracite
0.3 MB

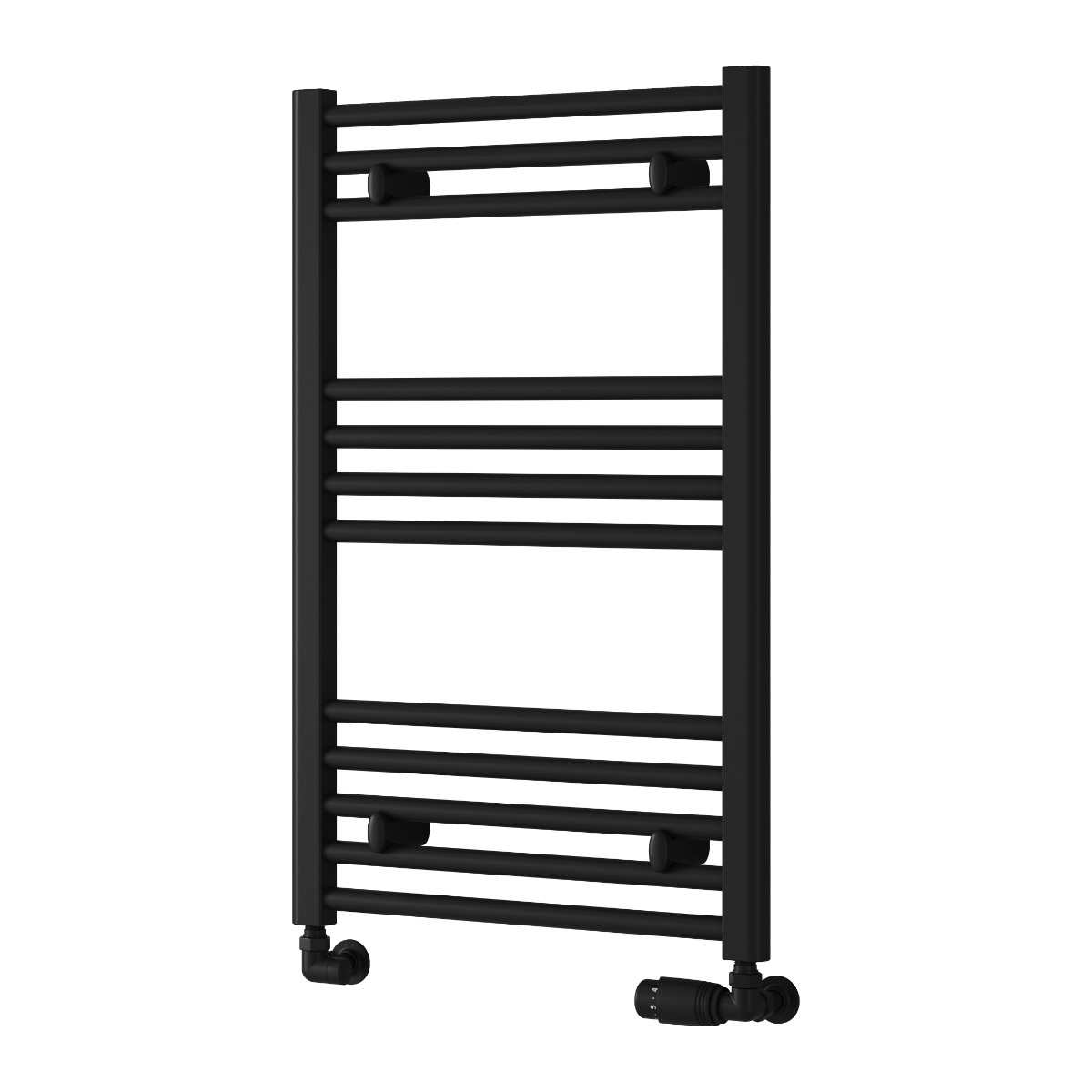

800 x 500 Black
0.2 MB

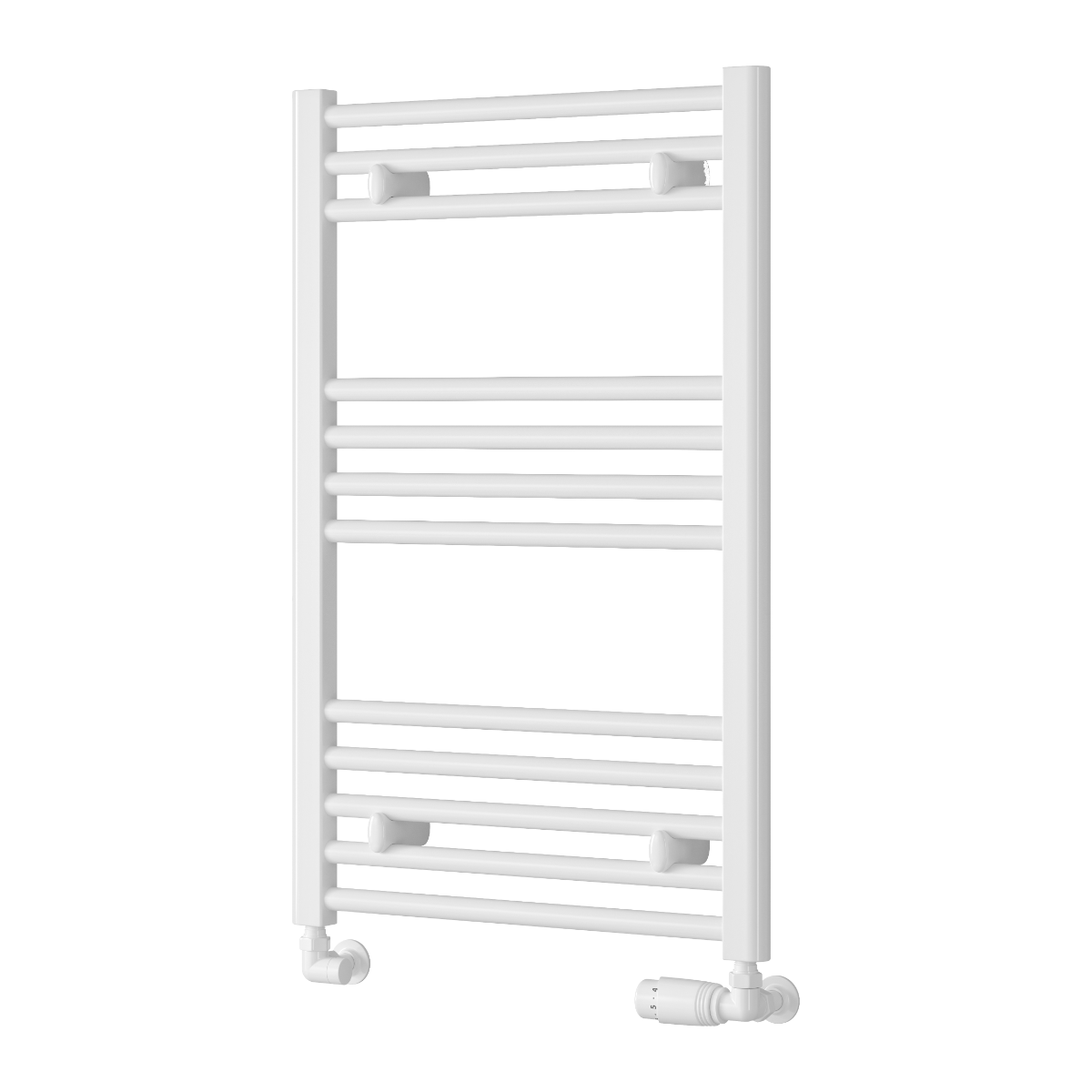

800 x 500 White
0.2 MB

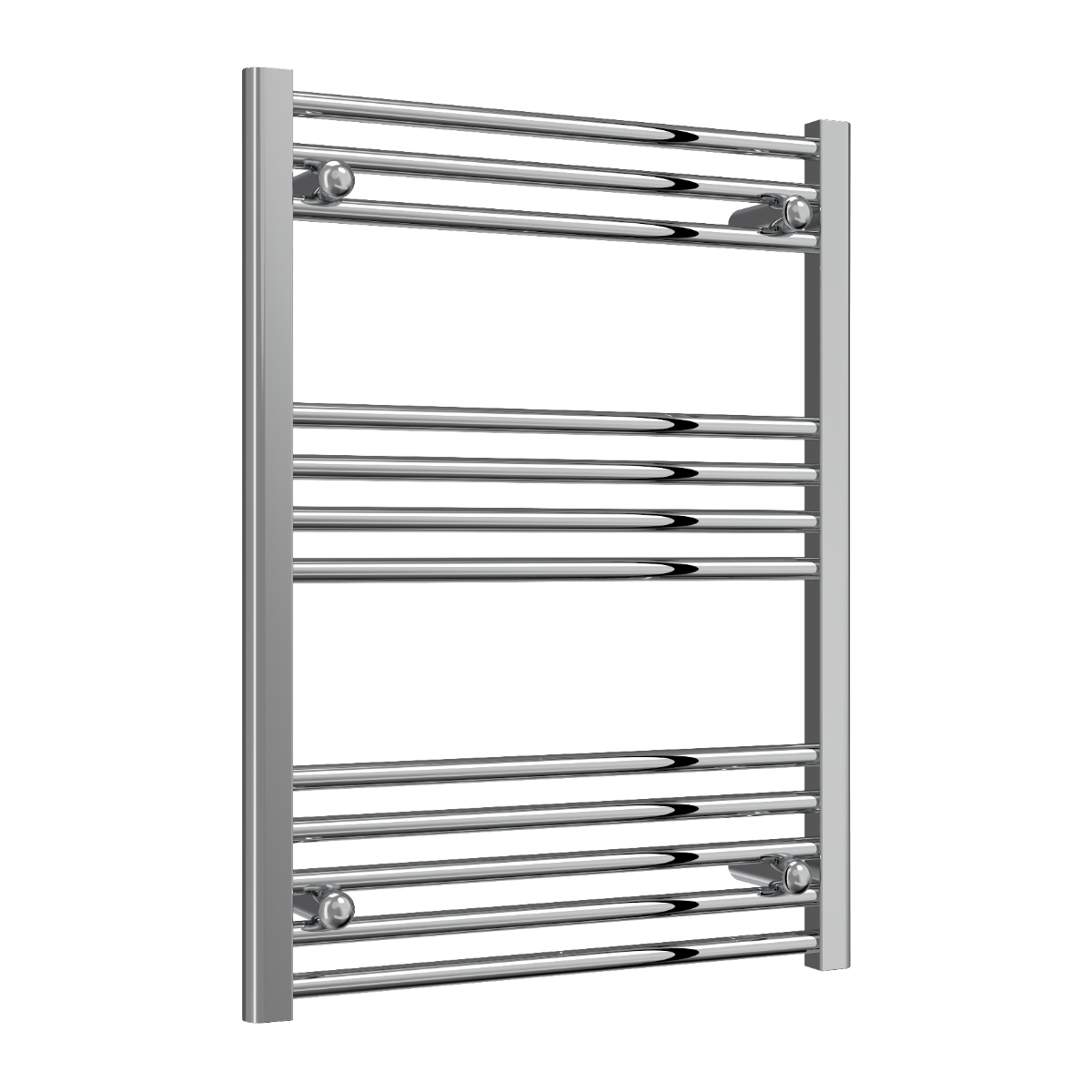

800 x 600 Chrome
0.38 MB
800 x 600 Anthracite
0.35 MB

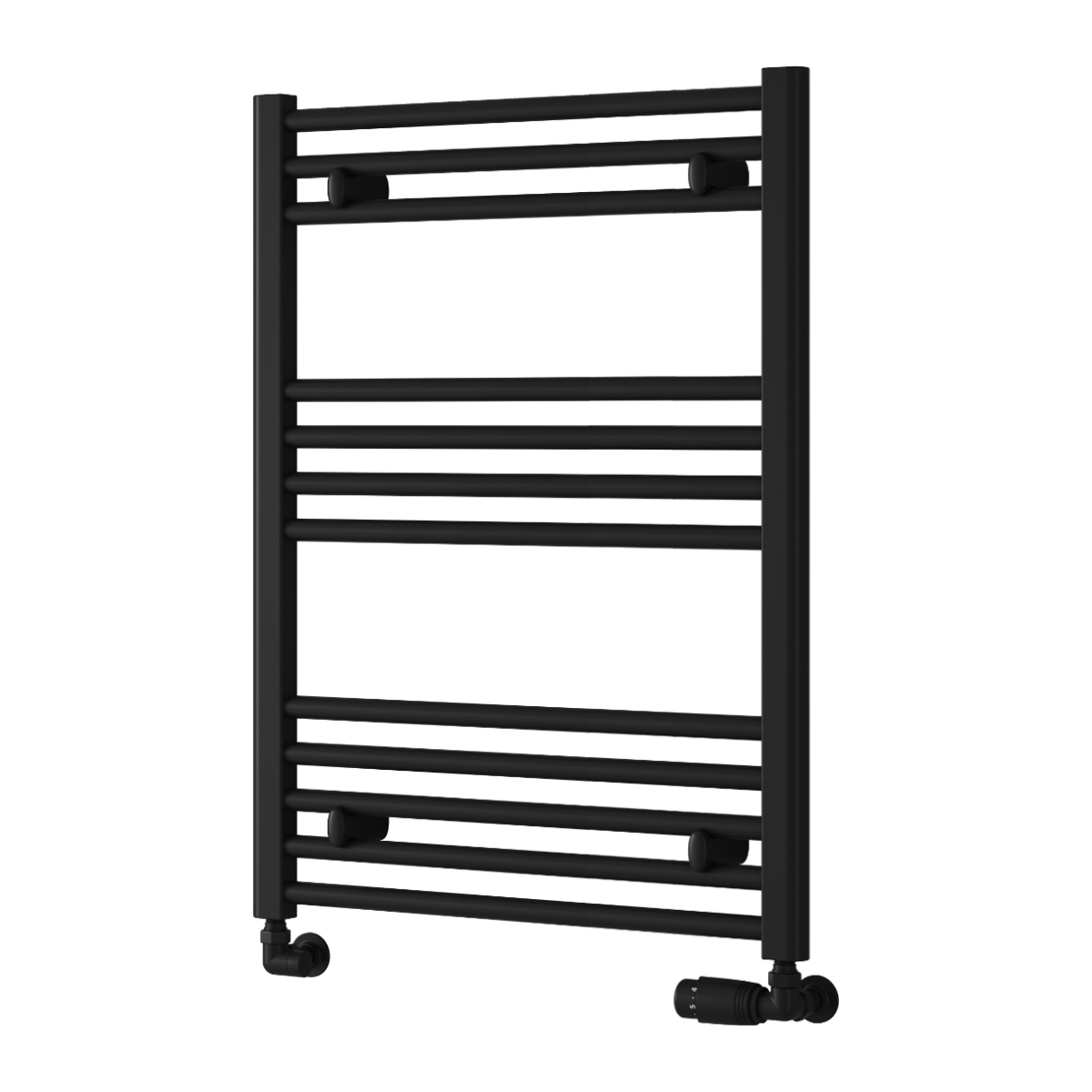

800 x 600 Black
0.23 MB

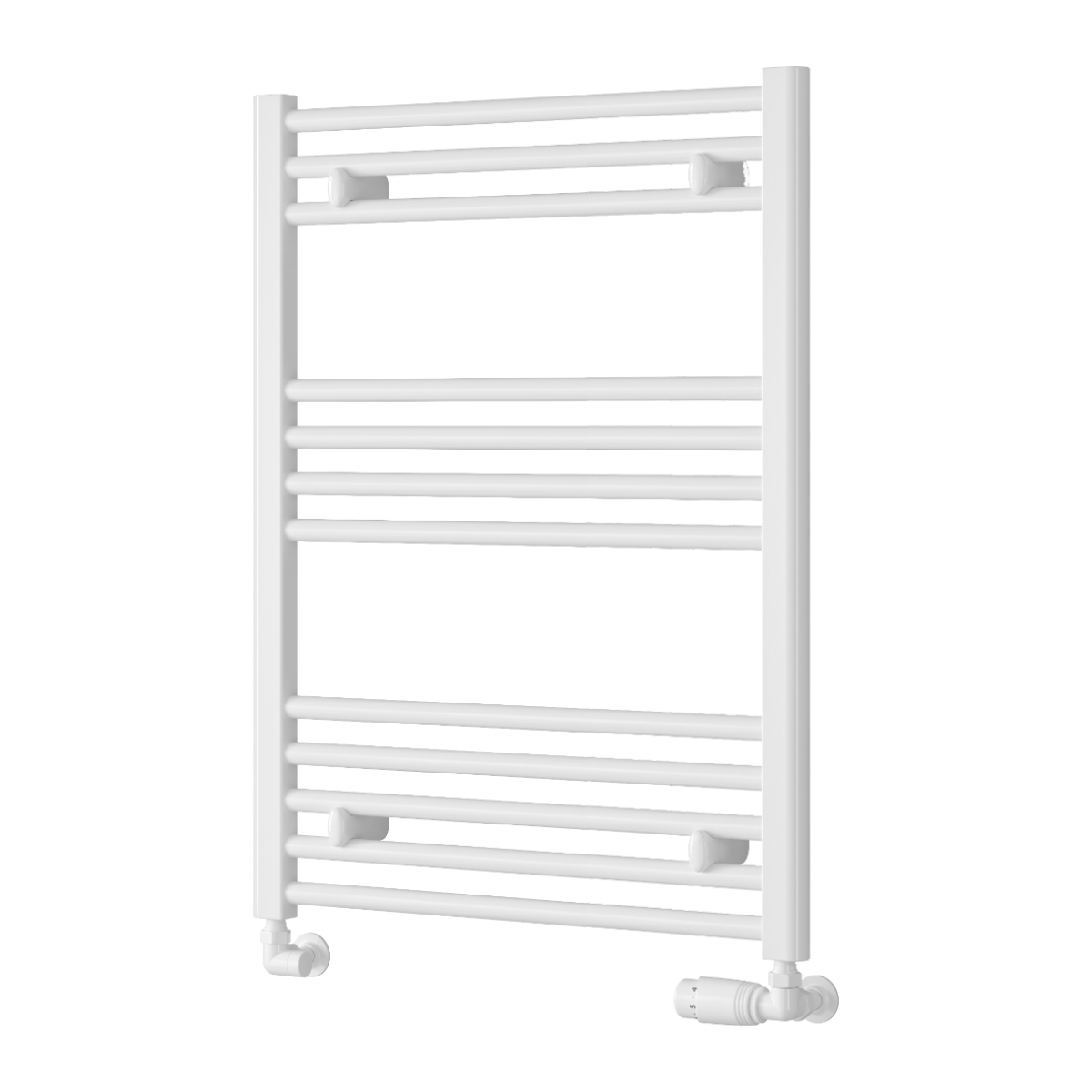

800 x 600 White
0.24 MB

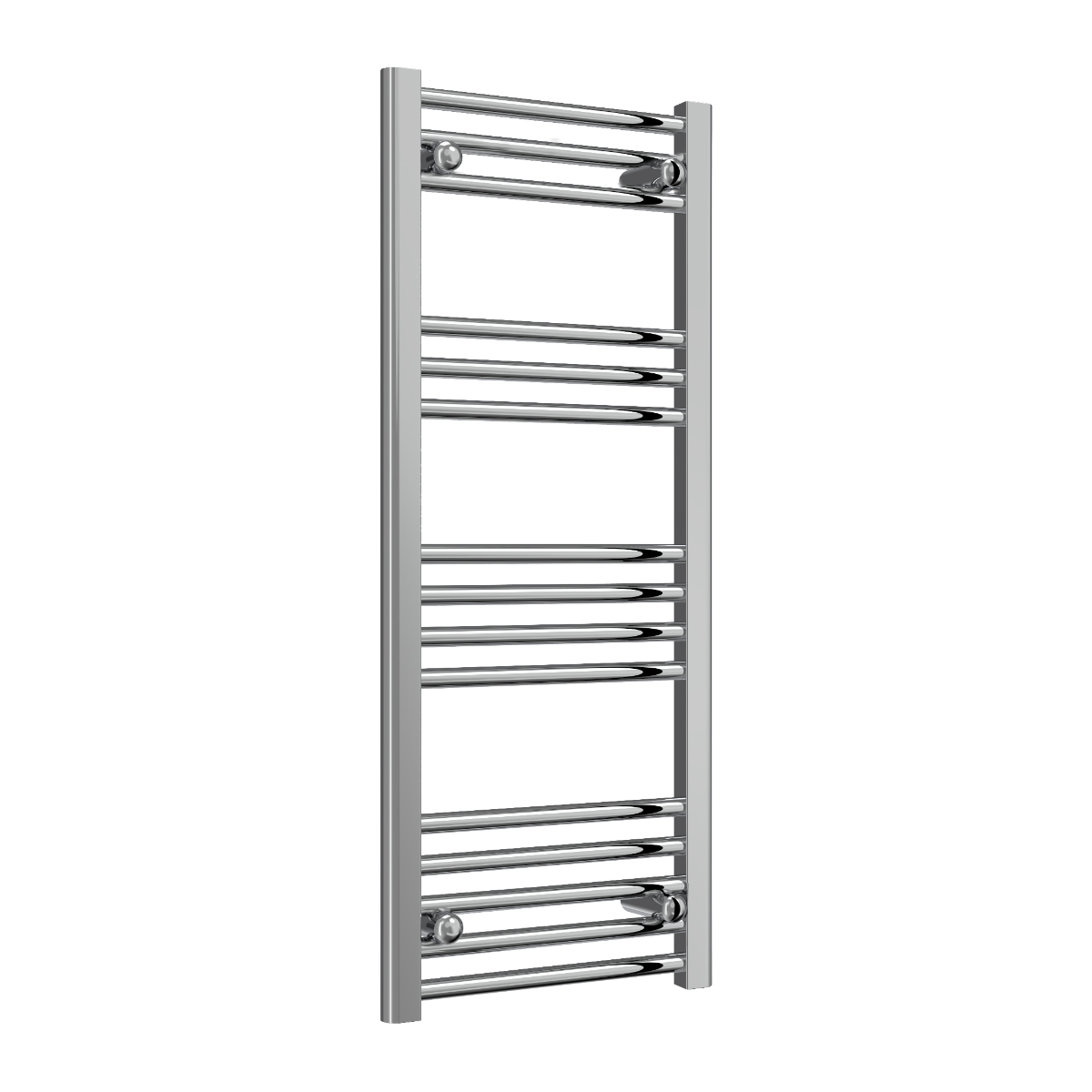

1000 x 400 Chrome
0.27 MB

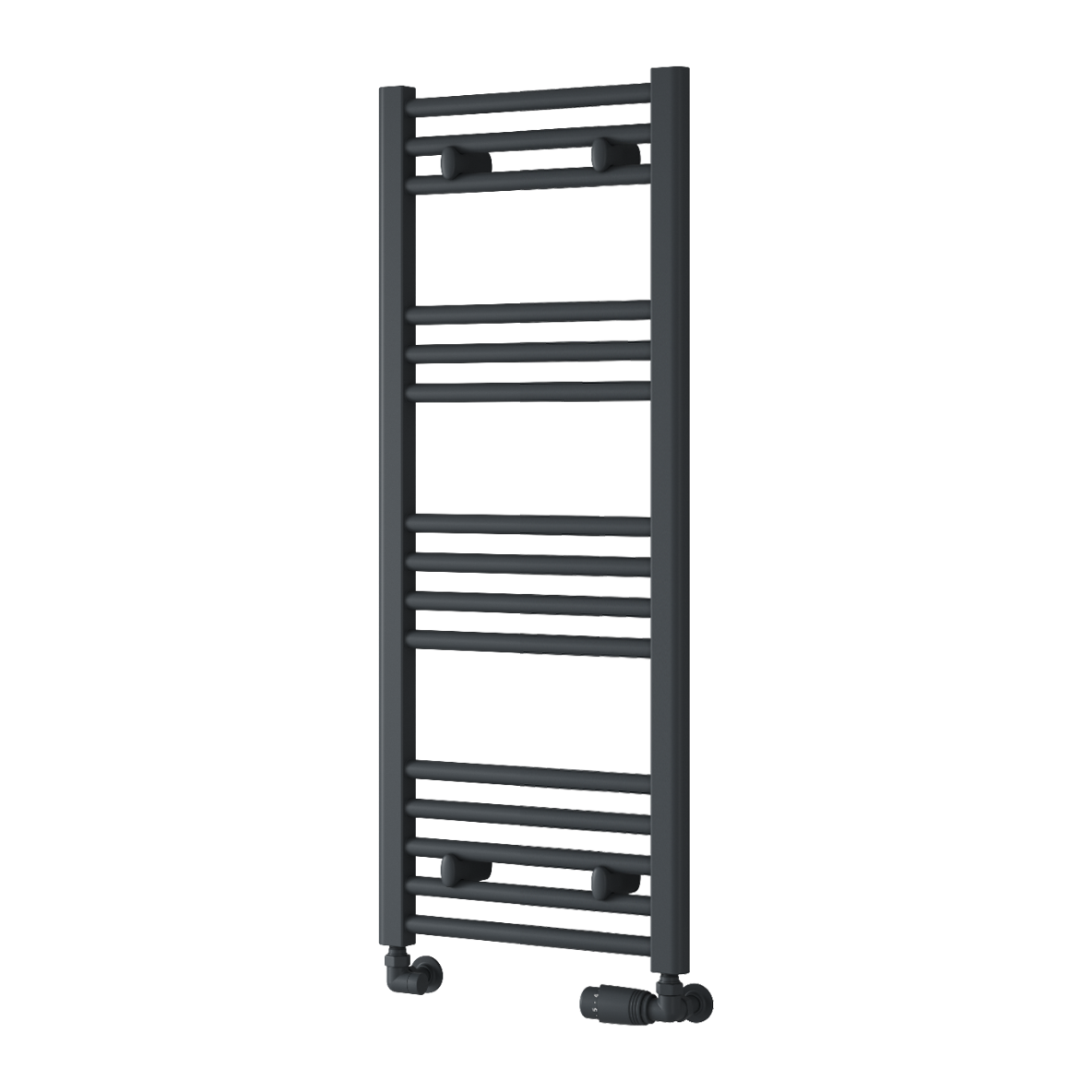

1000 x 400 Anthracite
0.3 MB

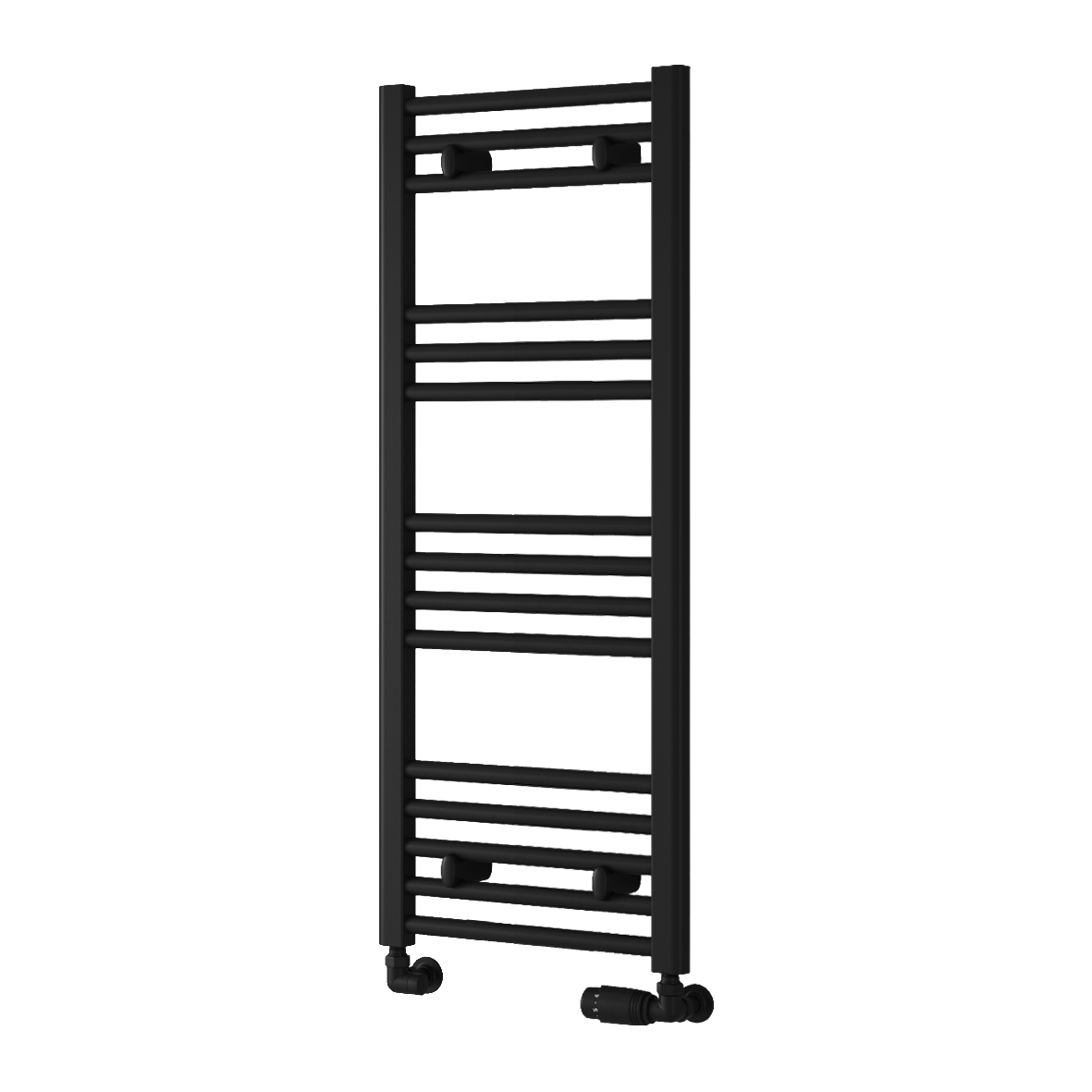

1000 x 400 Black
0.19 MB
1000 x 400 White
0.39 MB
1000 x 500 Chrome
0.32 MB

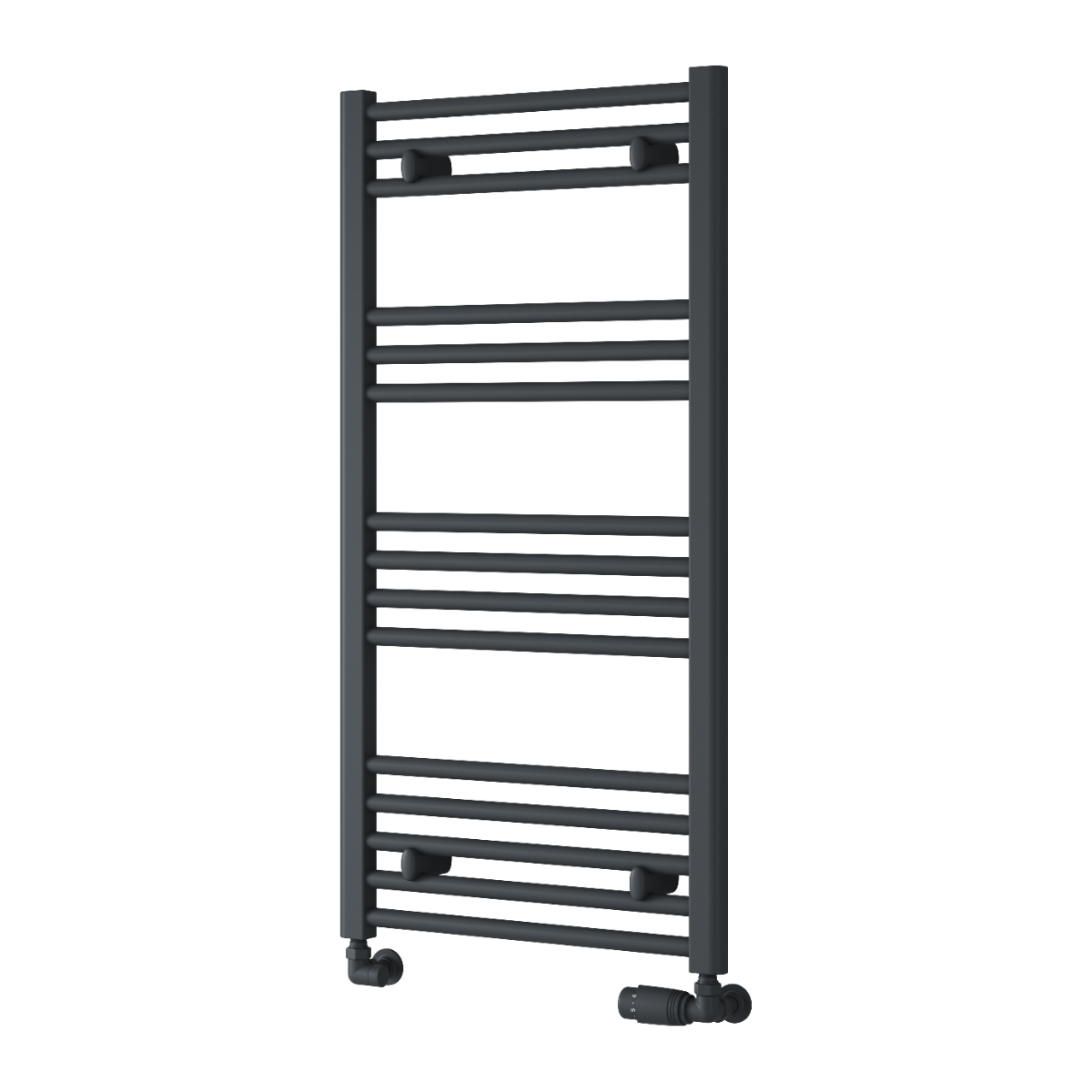

1000 x 500 Anthracite
0.31 MB

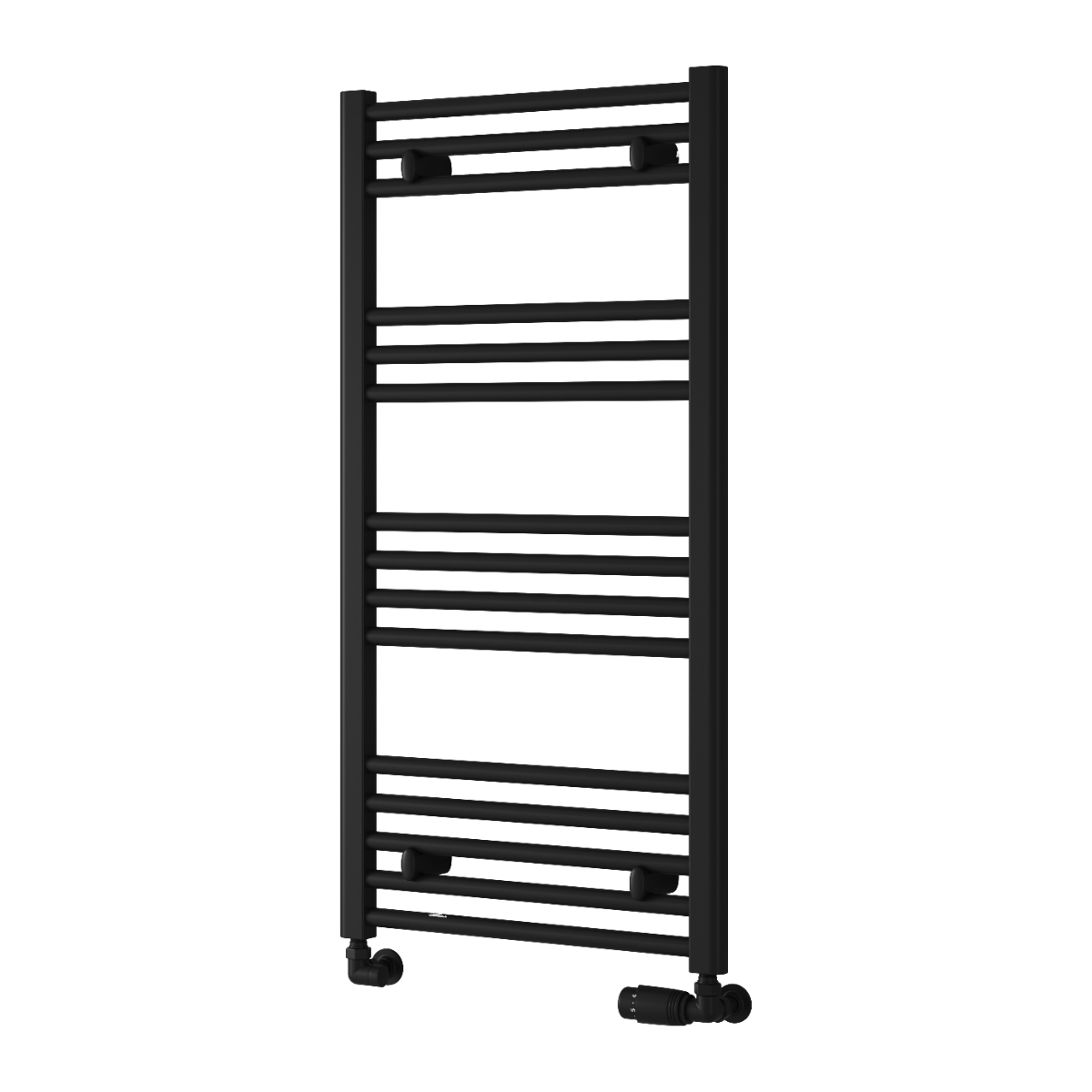

1000 x 500 Black
0.2 MB
1000 x 500 White
0.45 MB

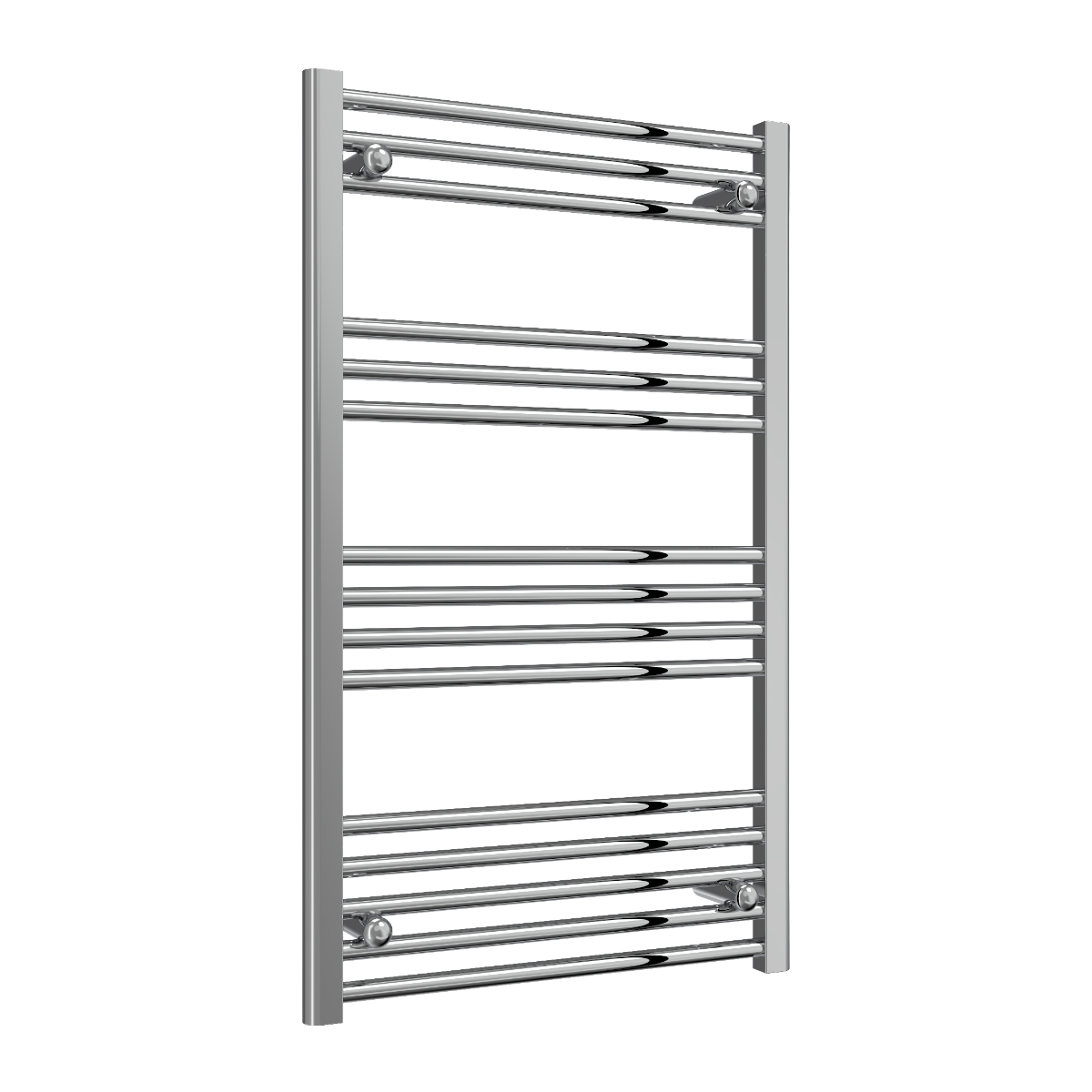

1000 x 600 Chrome
0.36 MB

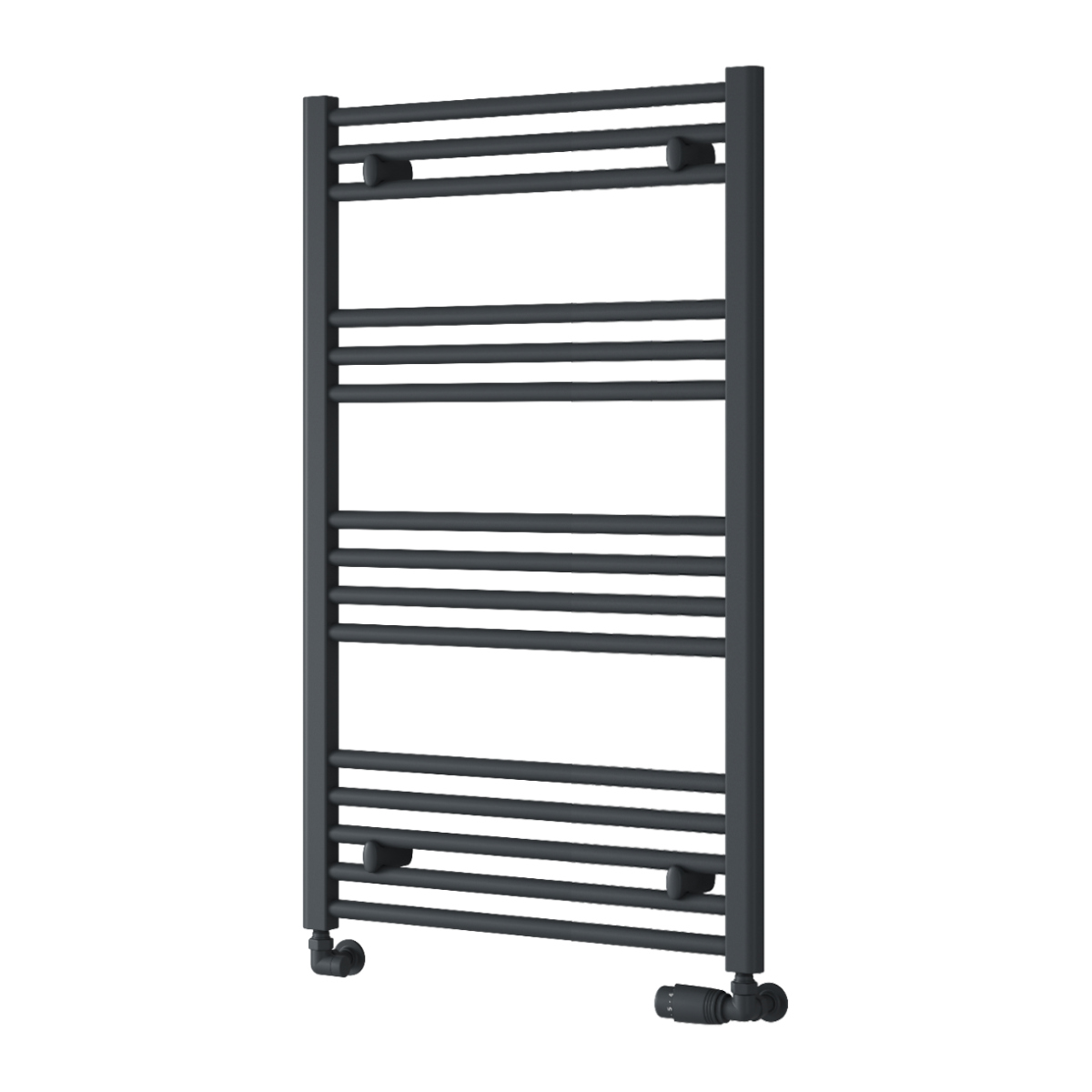

1000 x 600 Anthracite
0.39 MB

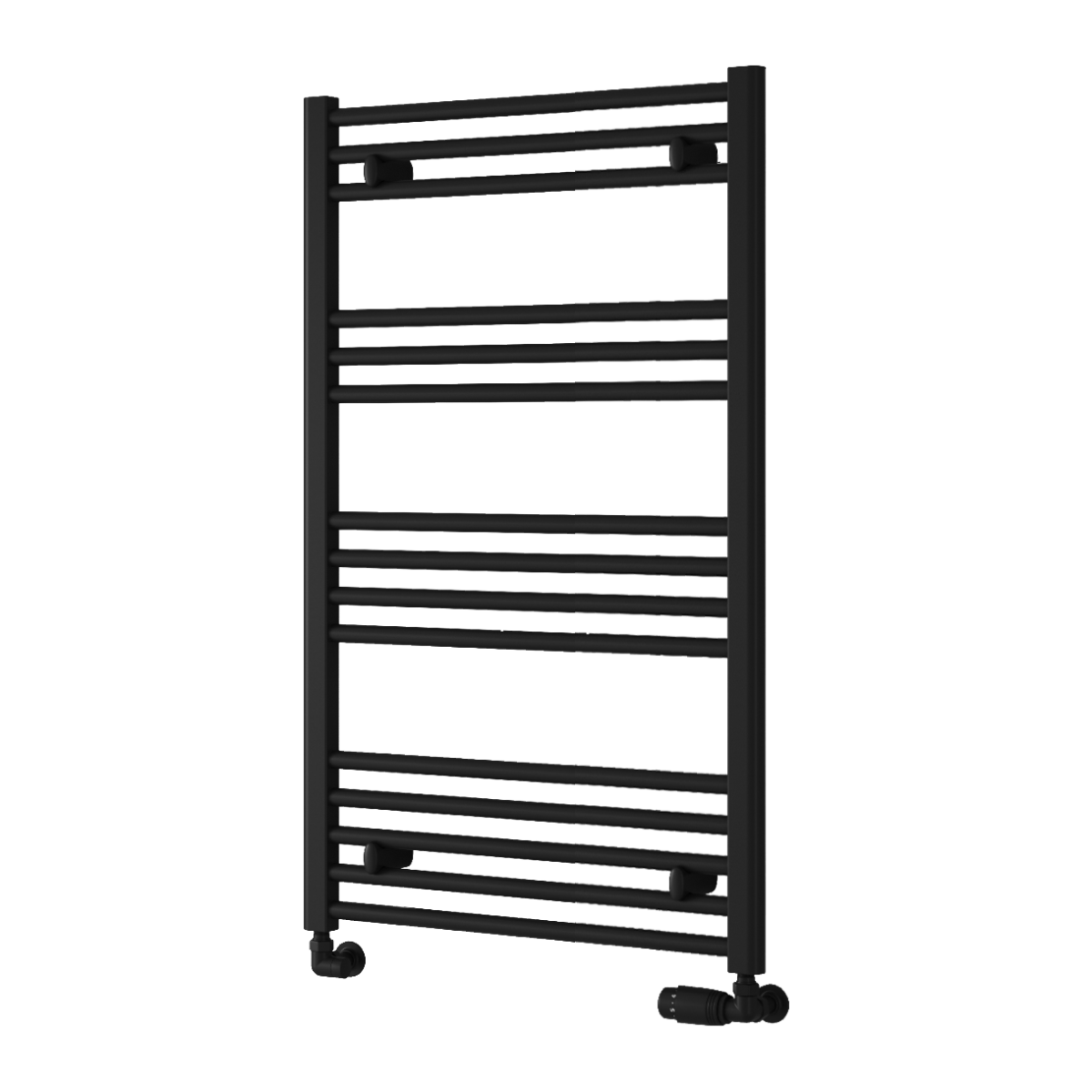

1000 x 600 Black
0.24 MB
1000 x 600 White
0.52 MB

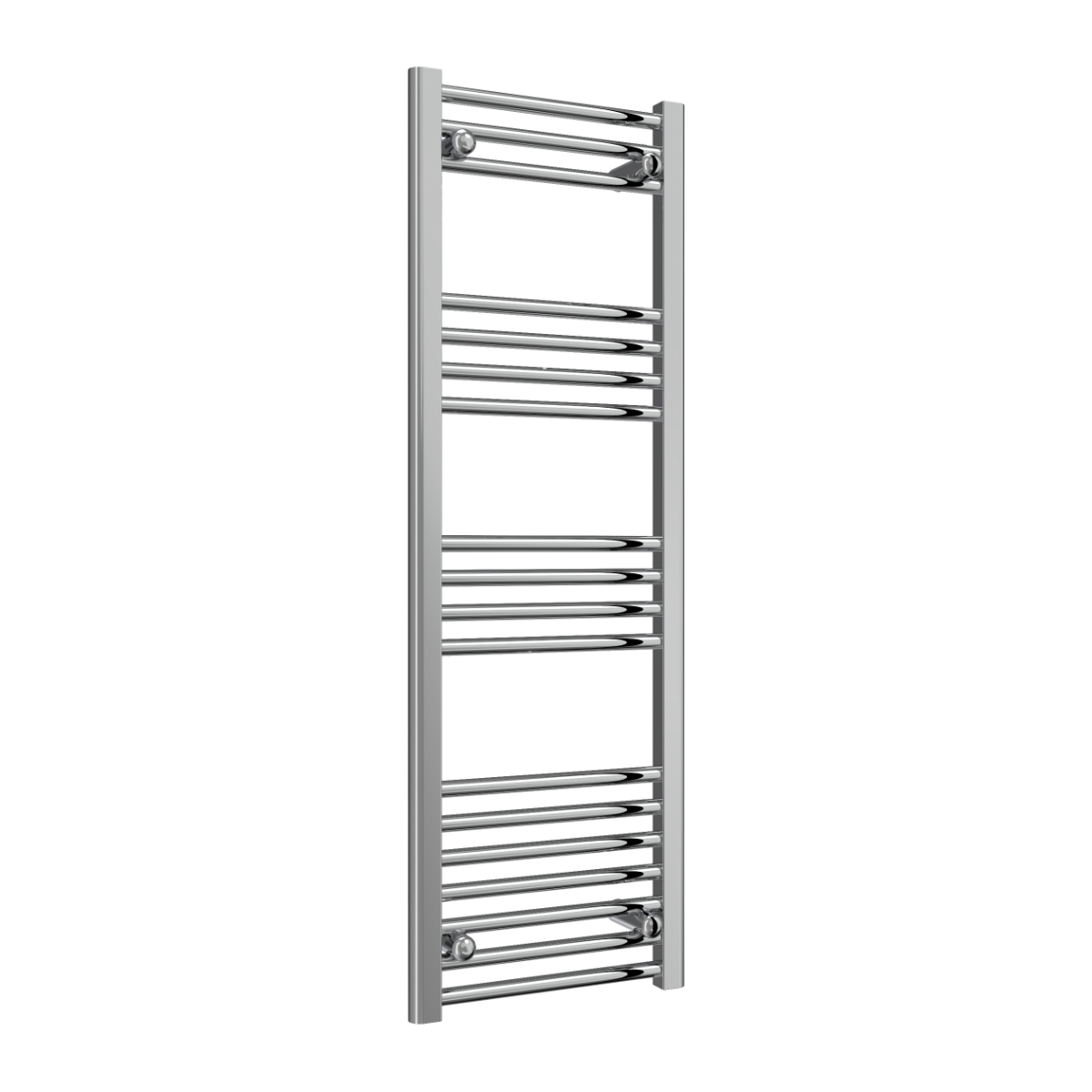

1200 x 400 Chrome
0.27 MB

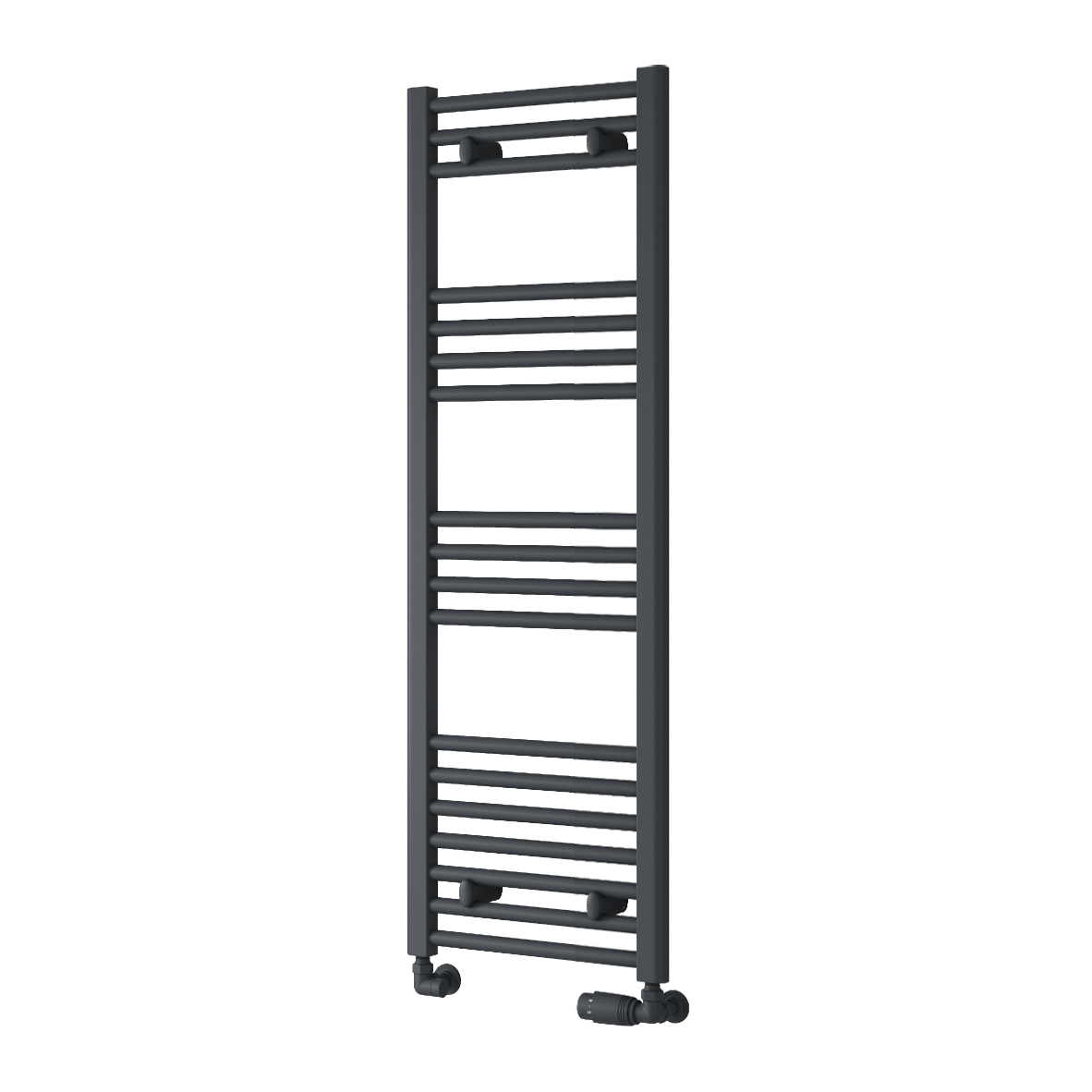

1200 x 400 Anthracite
0.3 MB

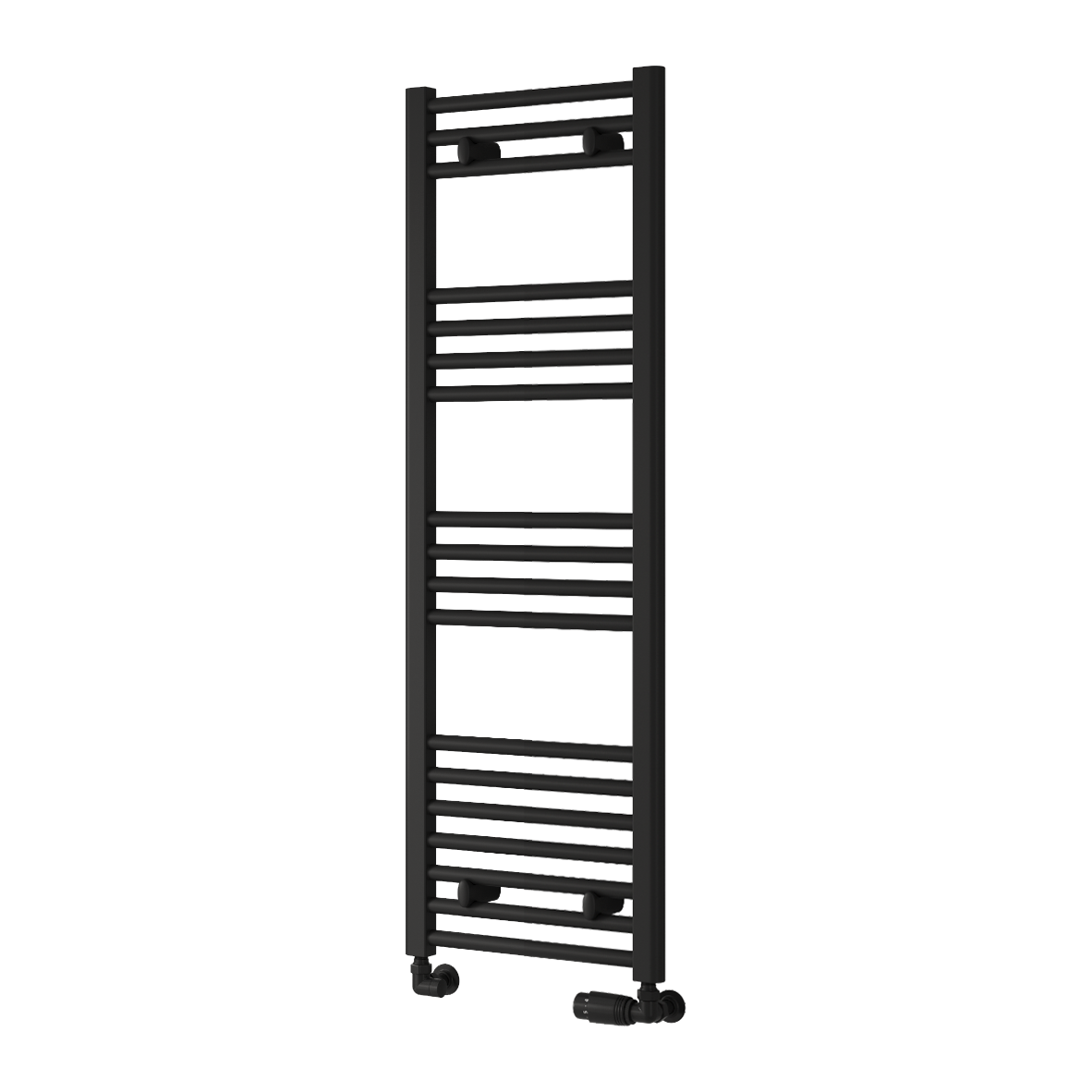

1200 x 400 Black
0.27 MB

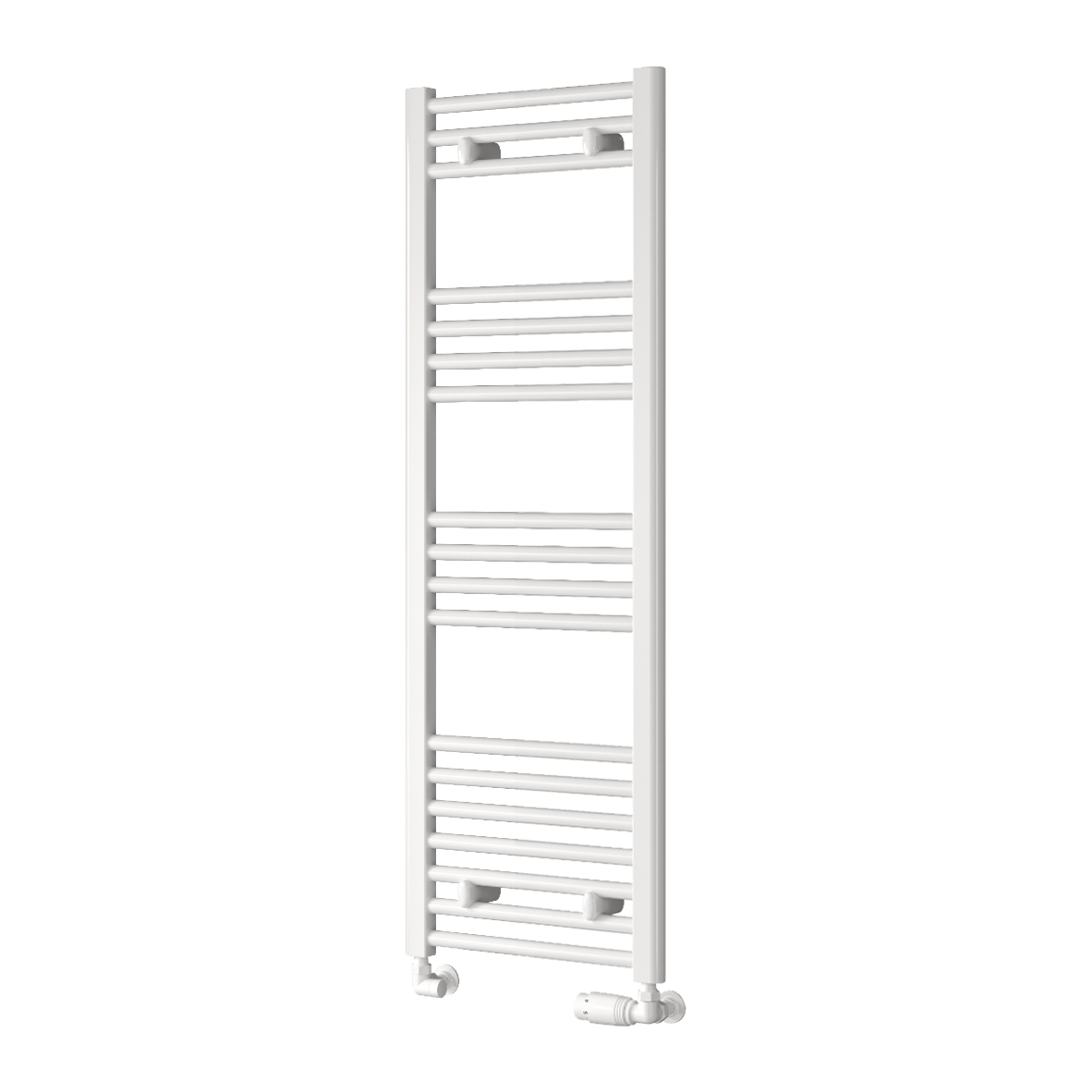

1200 x 400 White
0.28 MB

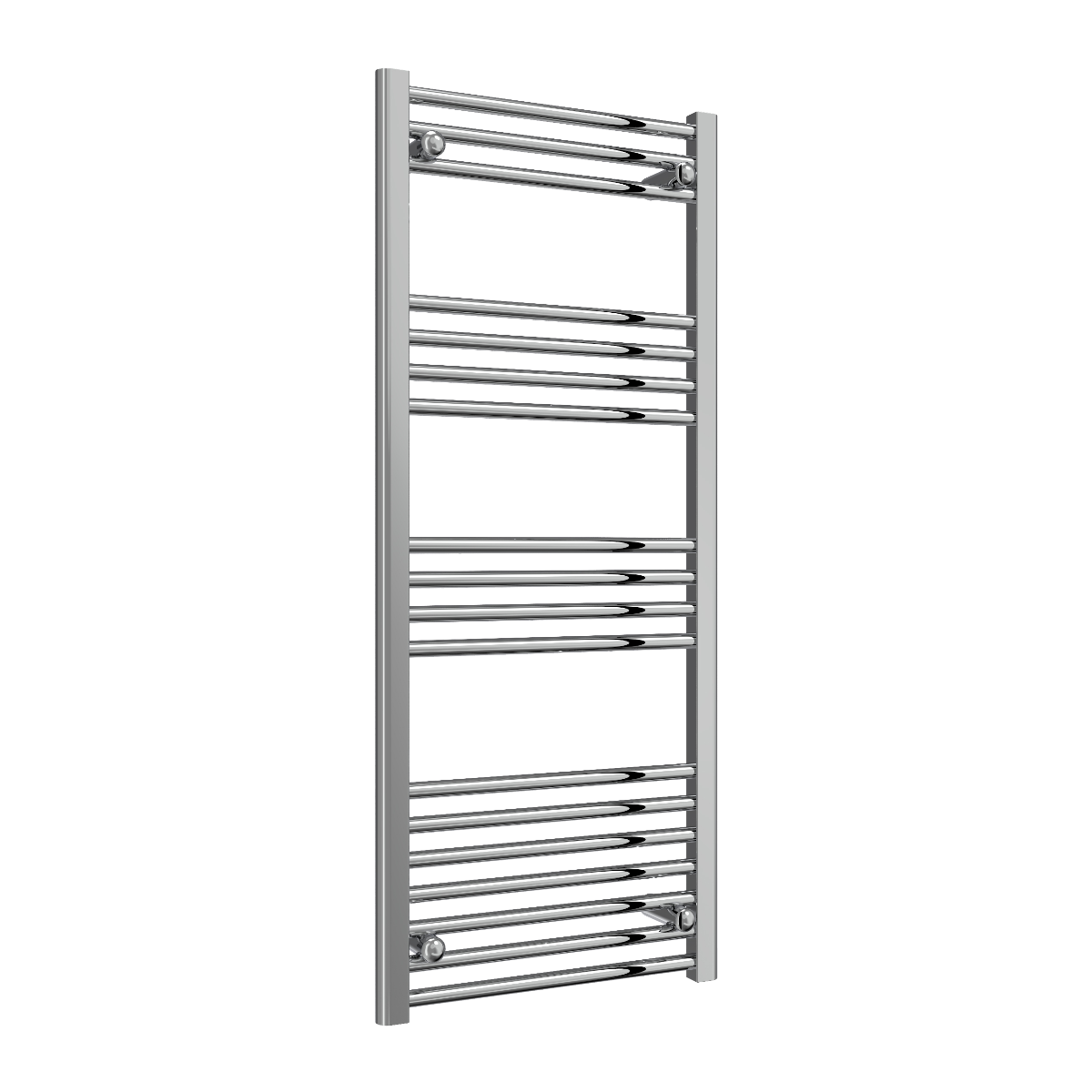

1200 x 500 Chrome
0.32 MB

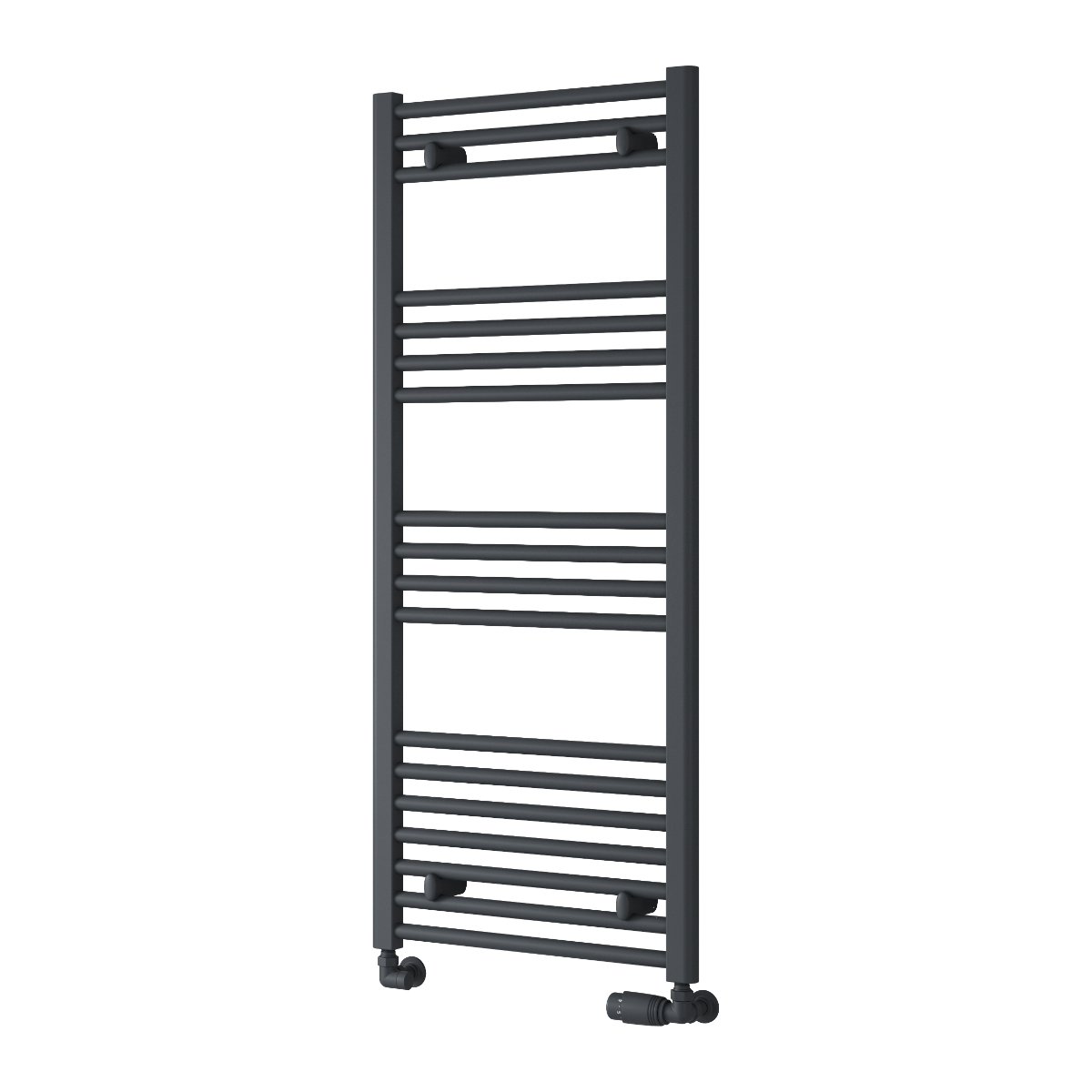

1200 x 500 Anthracite
0.33 MB
1200 x 500 Black
0.28 MB

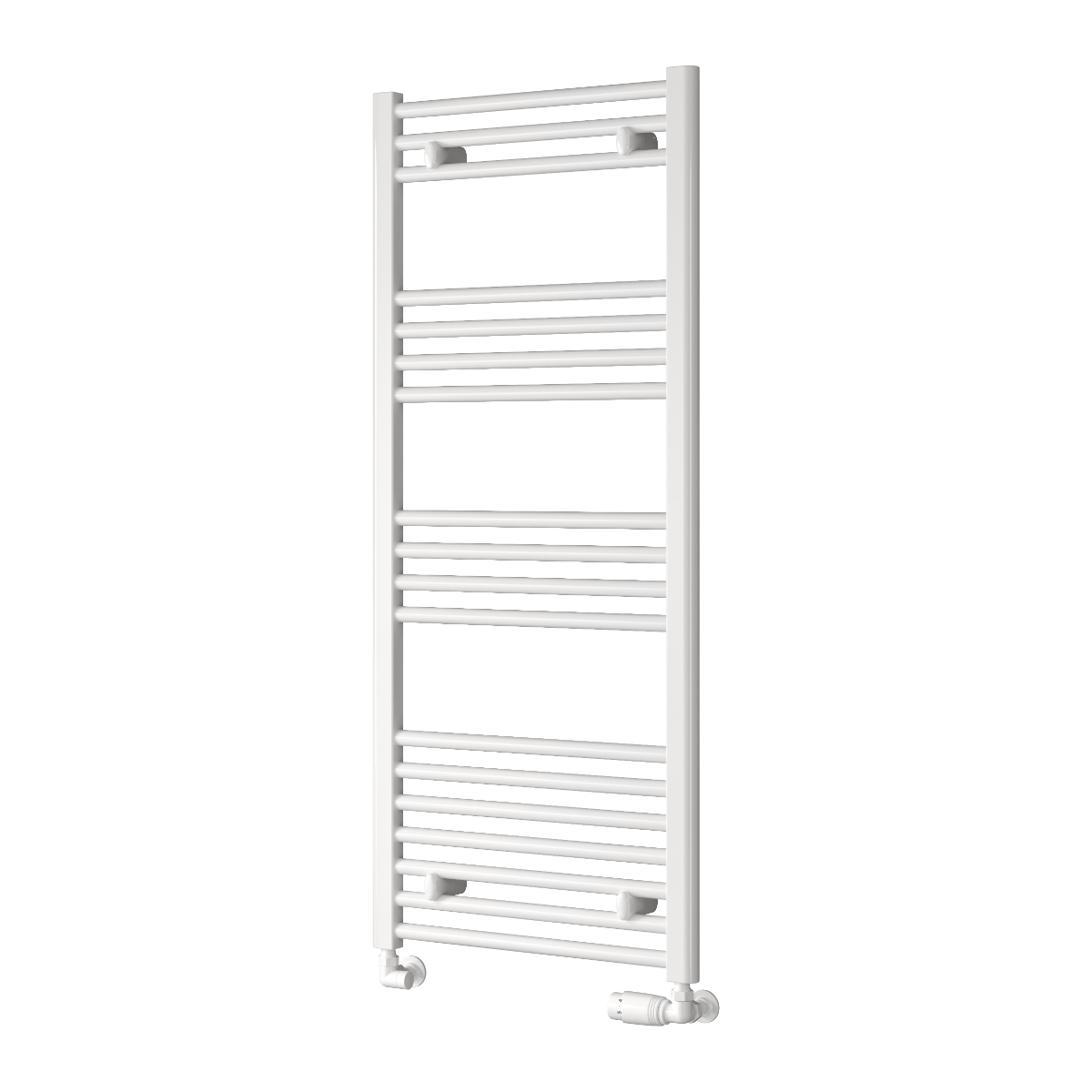

1200 x 500 White
0.3 MB

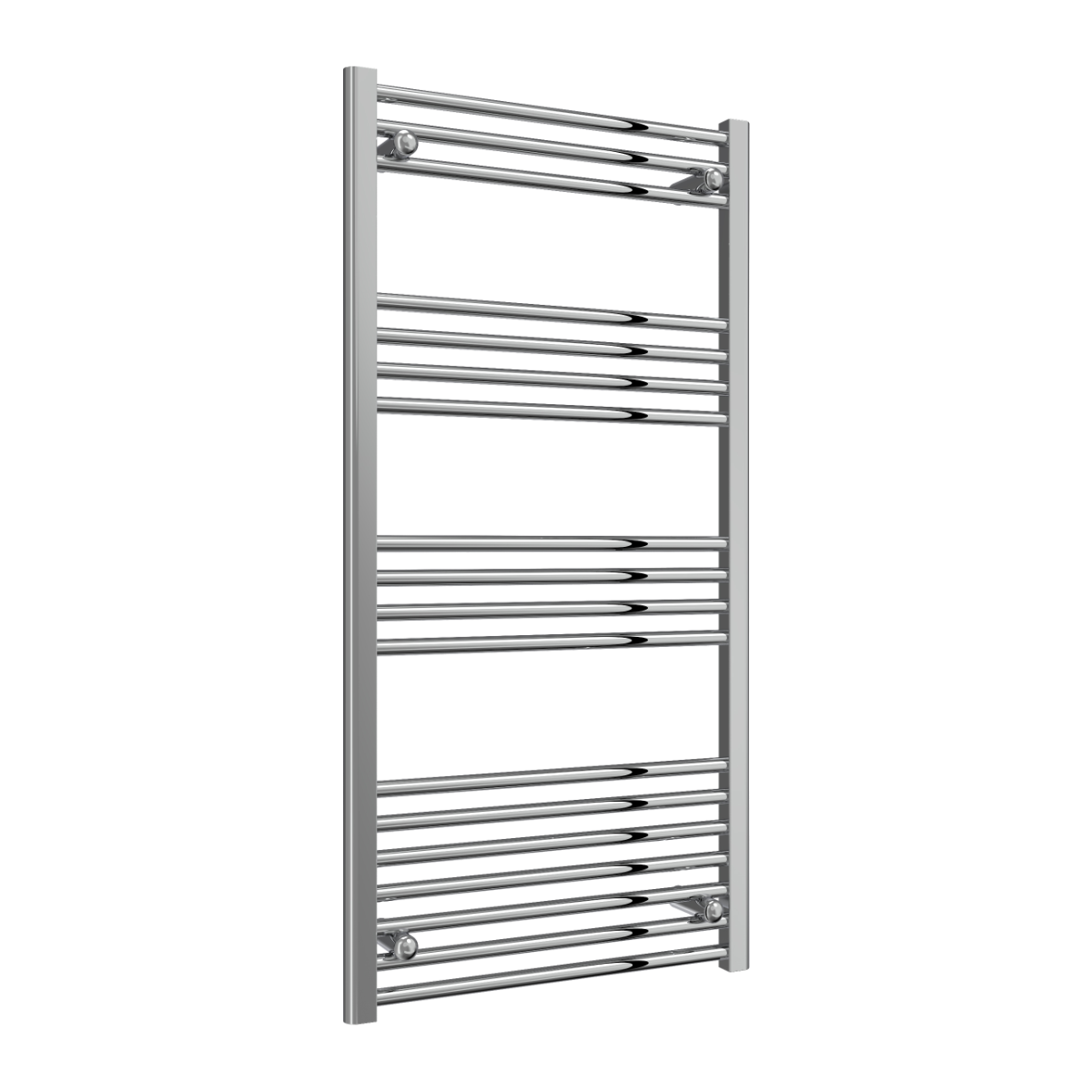

1200 x 600 Chrome
0.35 MB

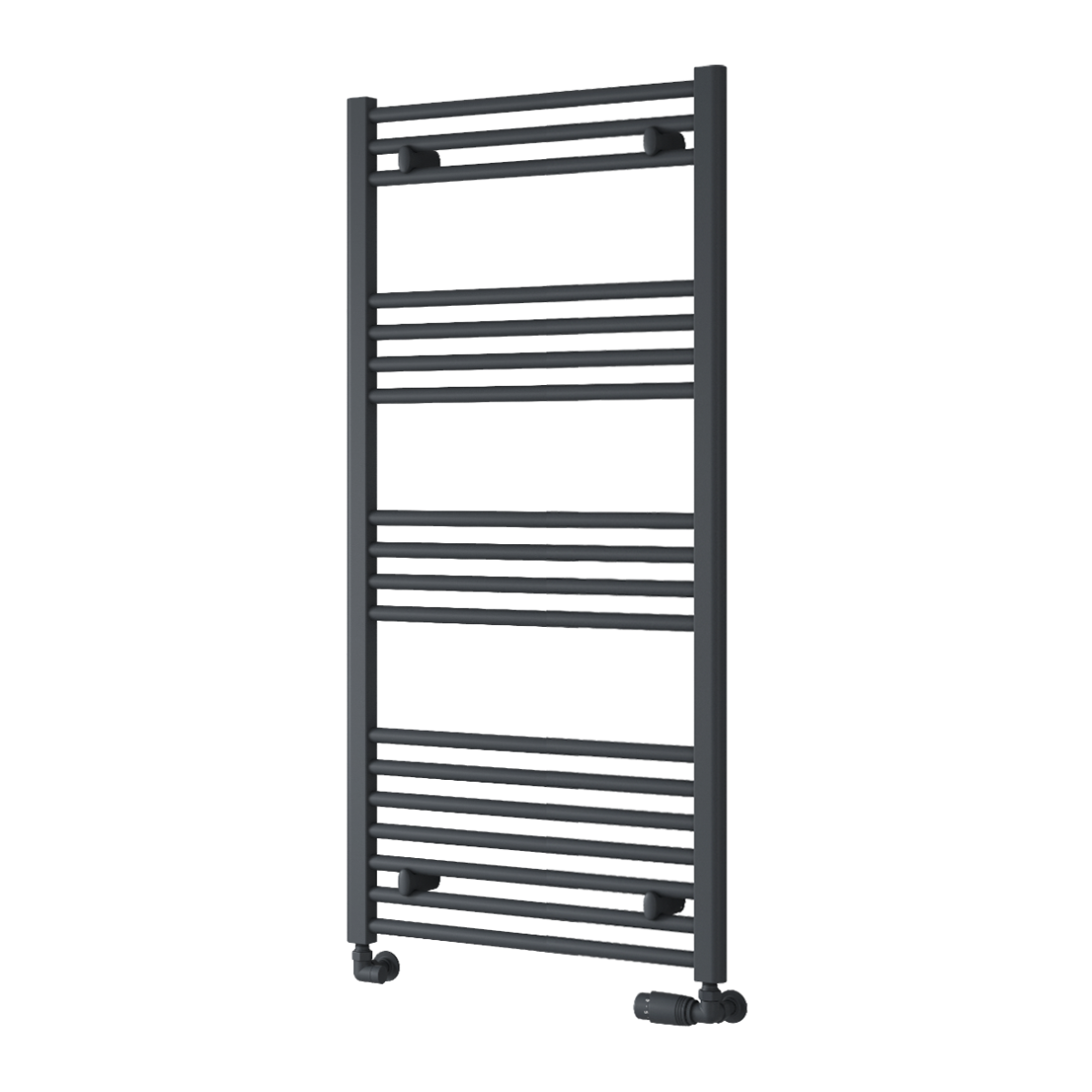

1200 x 600 Anthracite
0.38 MB

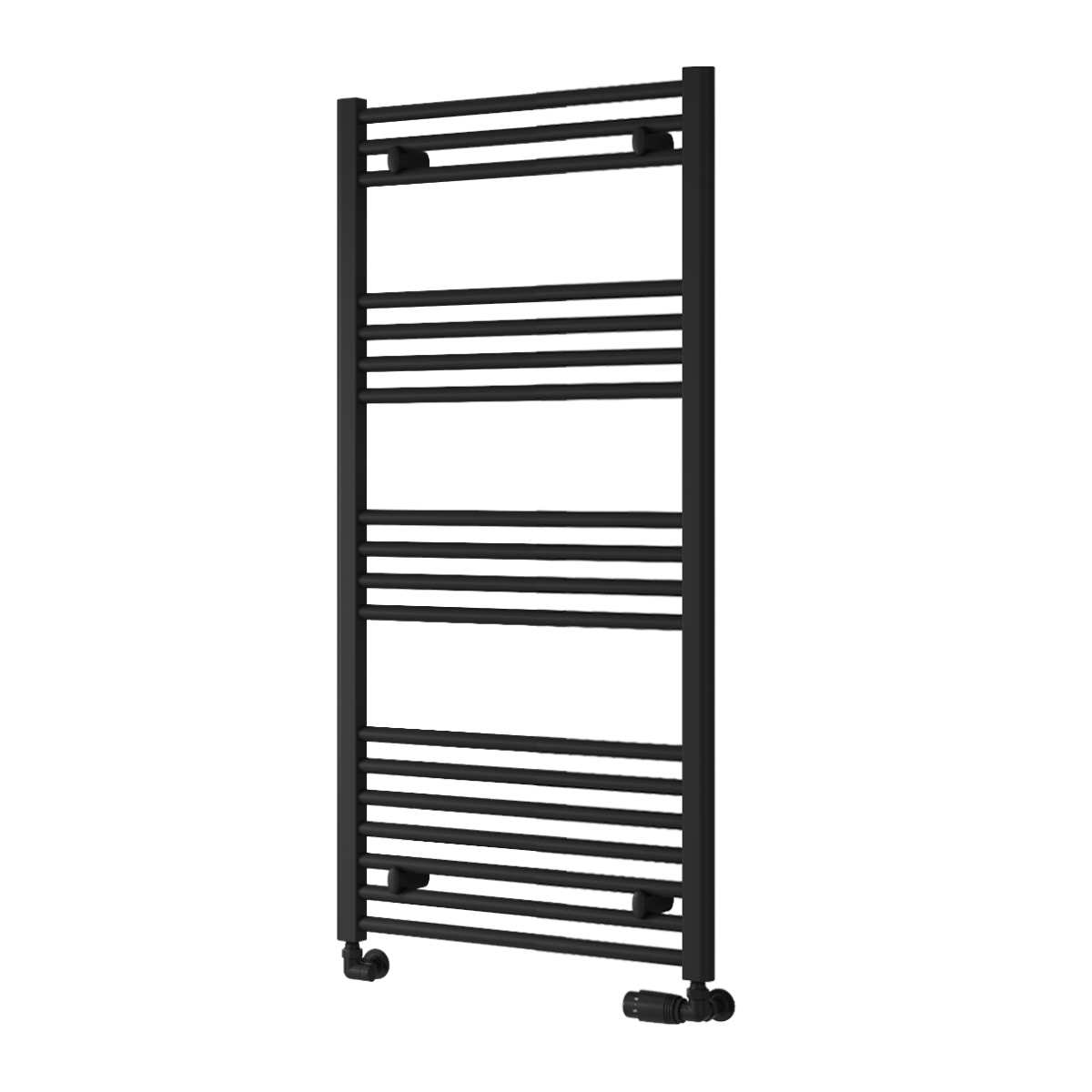

1200 x 600 Black
0.35 MB

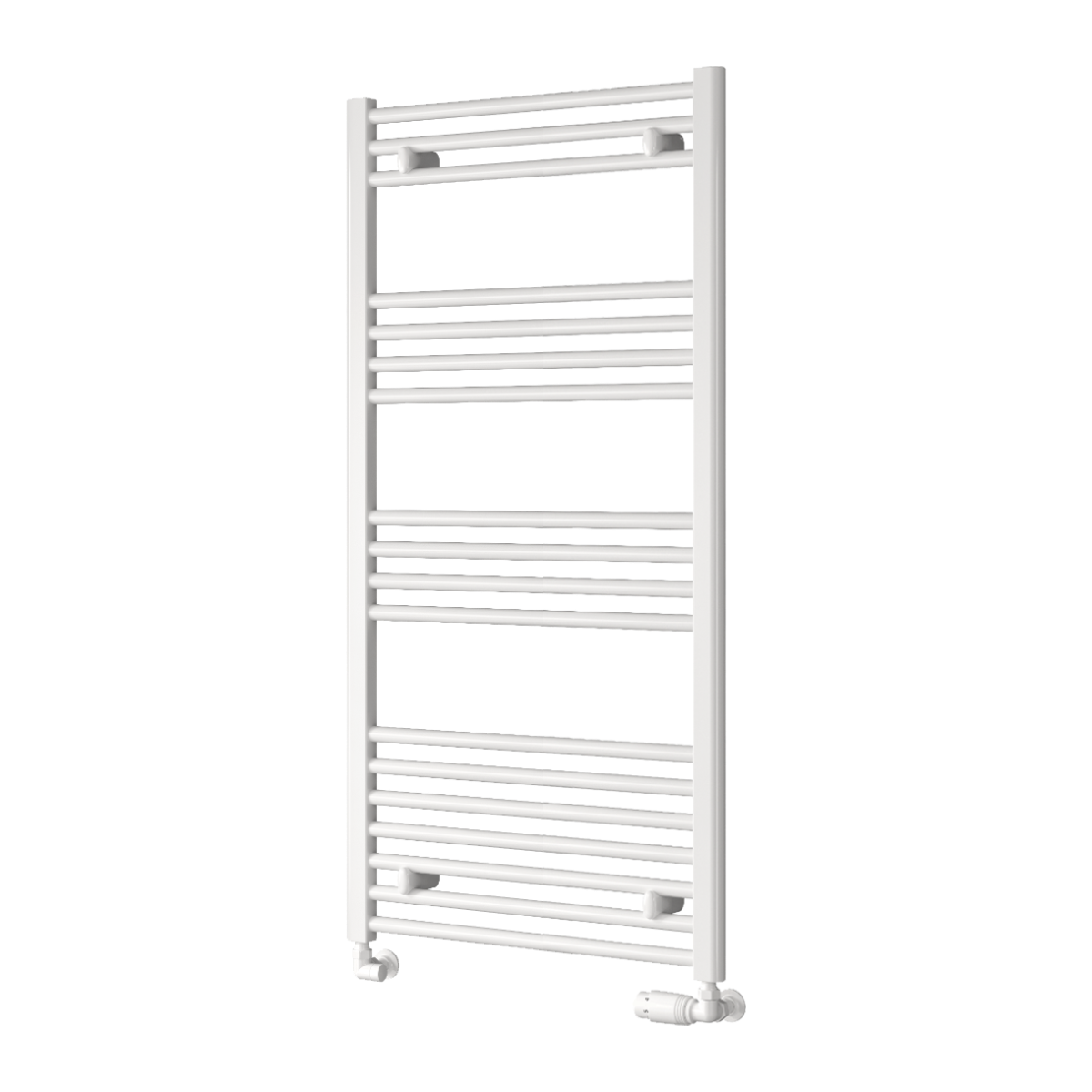

1200 x 600 White
0.34 MB
1600 x 400 Chrome
0.25 MB
1600 x 400 Anthracite
0.25 MB

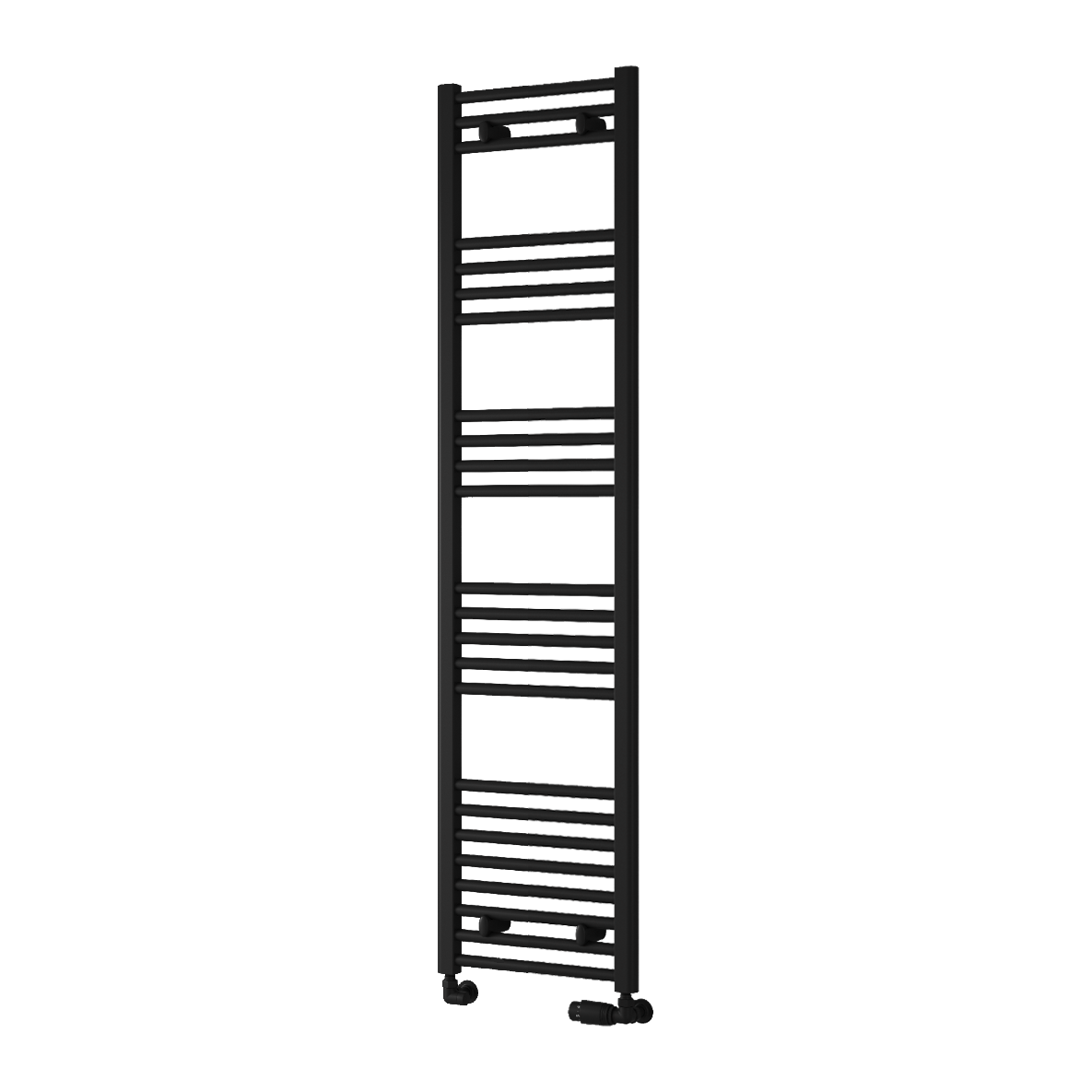

1600 x 400 Black
0.2 MB

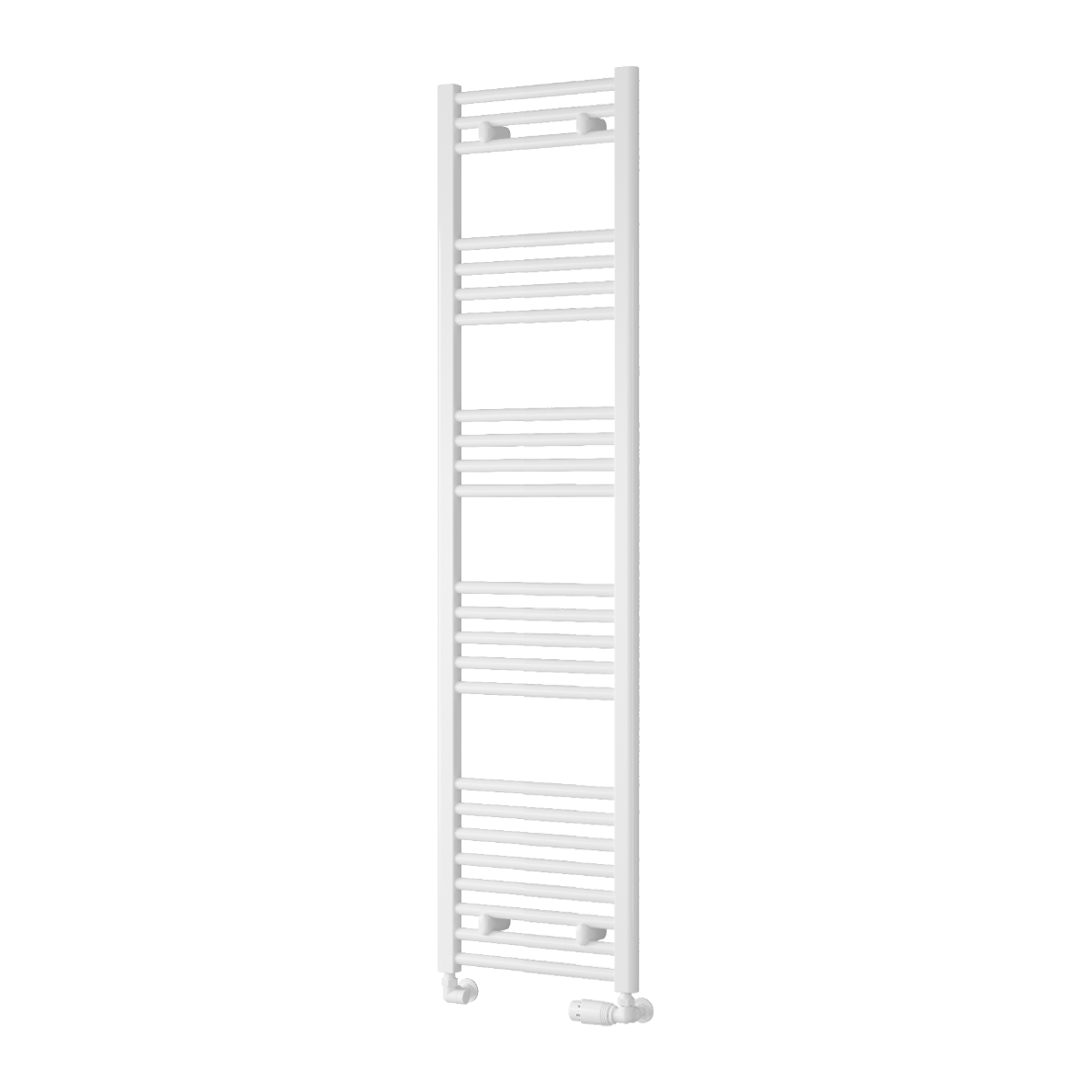

1600 x 400 White
0.2 MB
1600 x 500 Chrome
0.31 MB

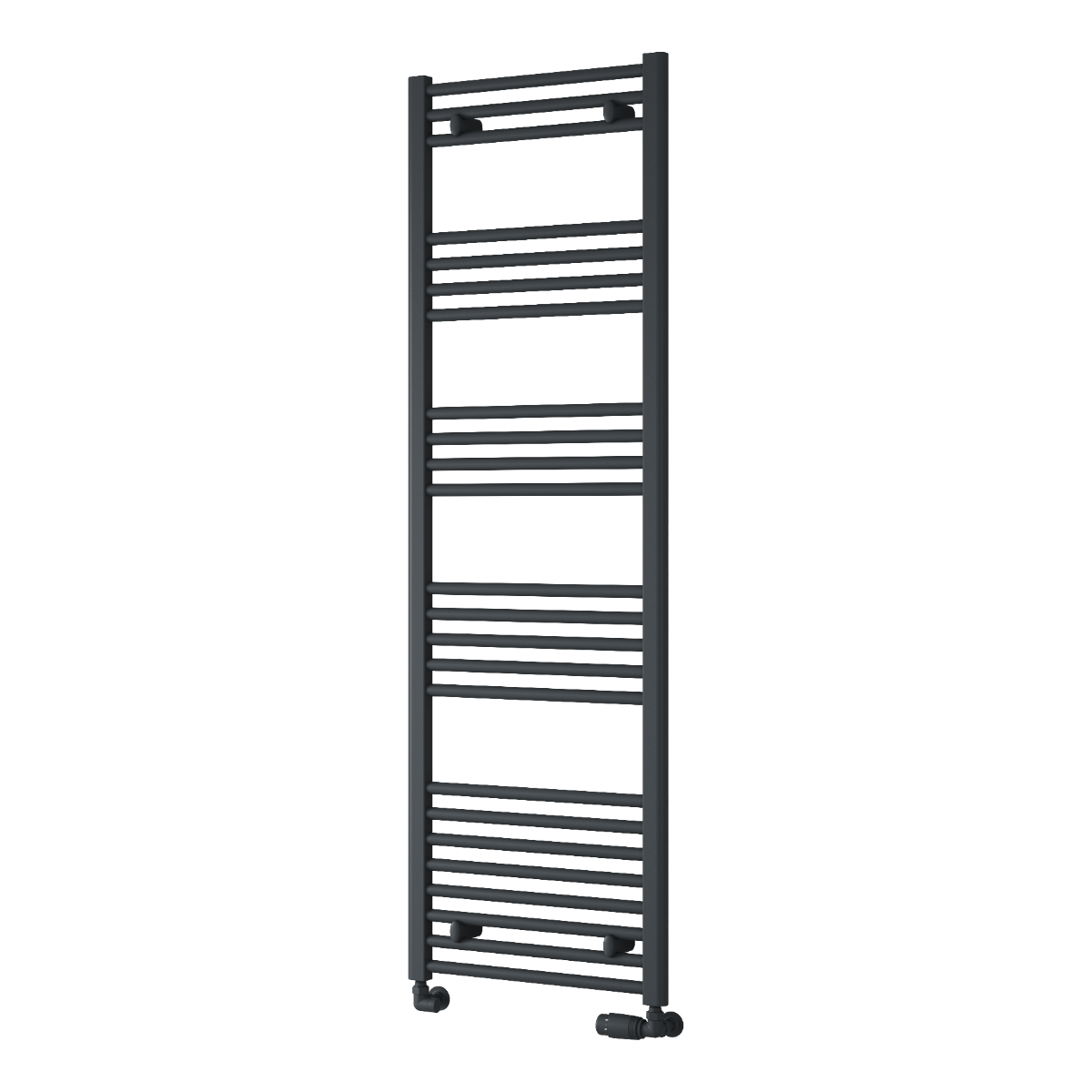

1600 x 500 Anthracite
0.26 MB

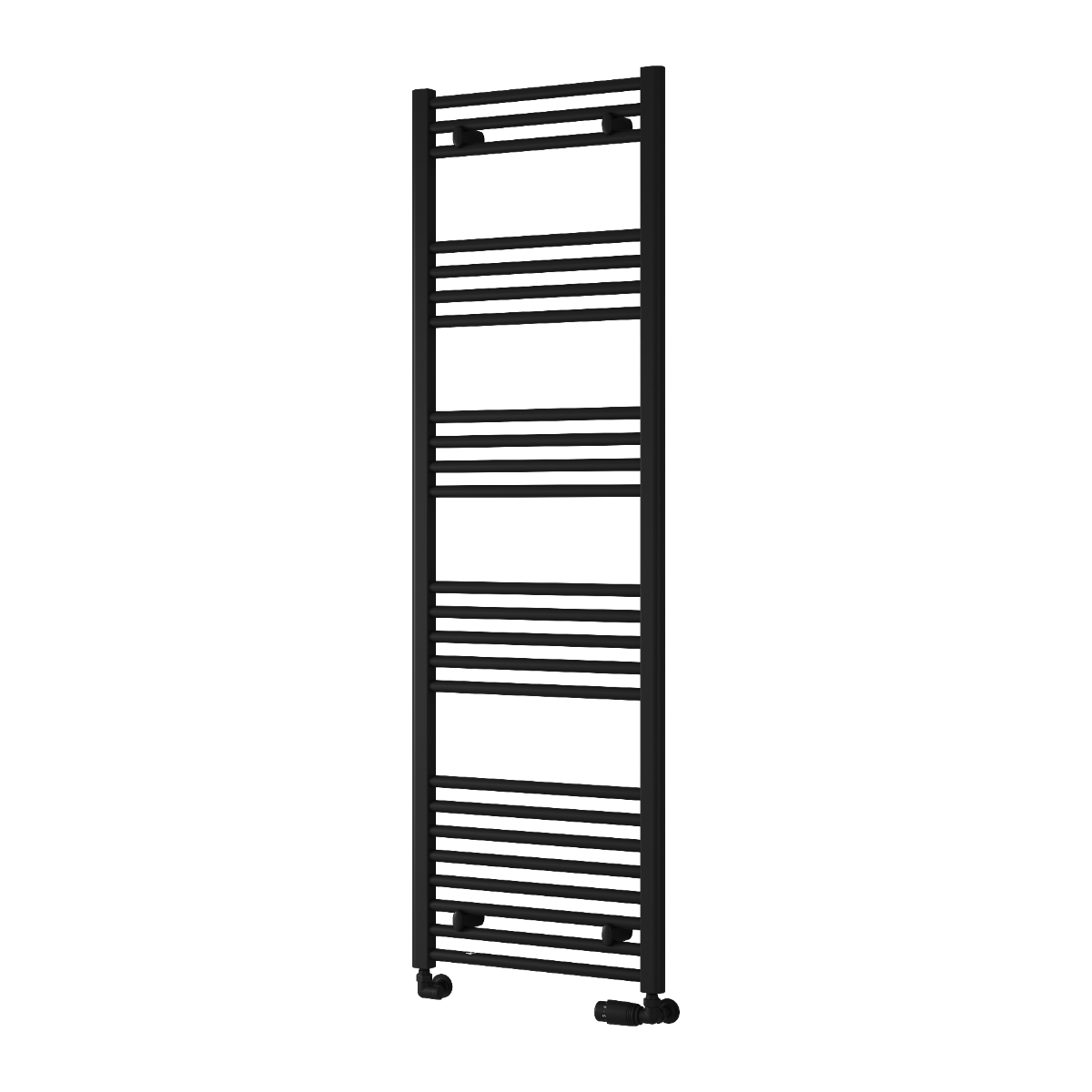

1600 x 500 Black
0.2 MB
1600 x 500 White
0.2 MB

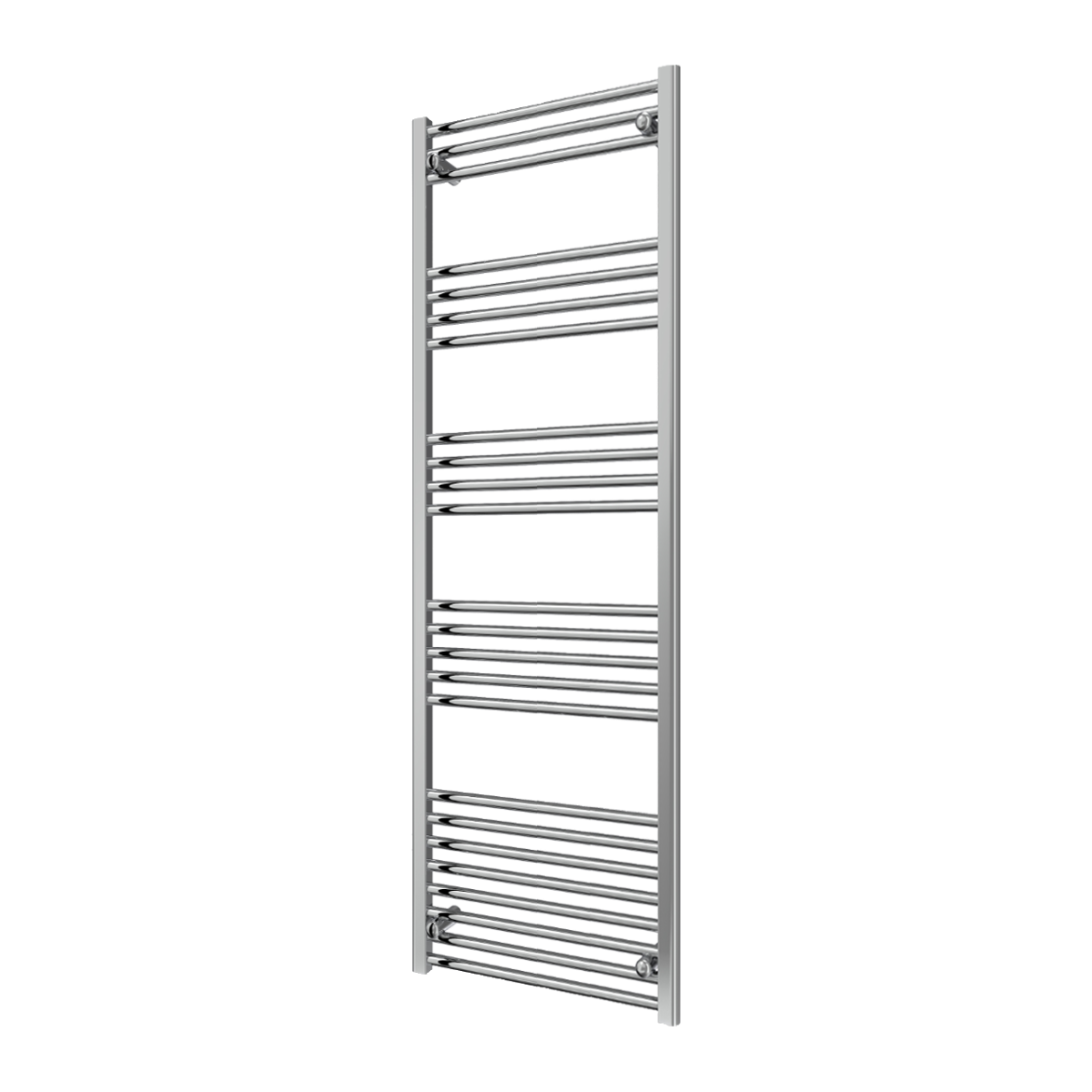

1600 x 600 Chrome
0.36 MB
1600 x 600 Anthracite
0.36 MB

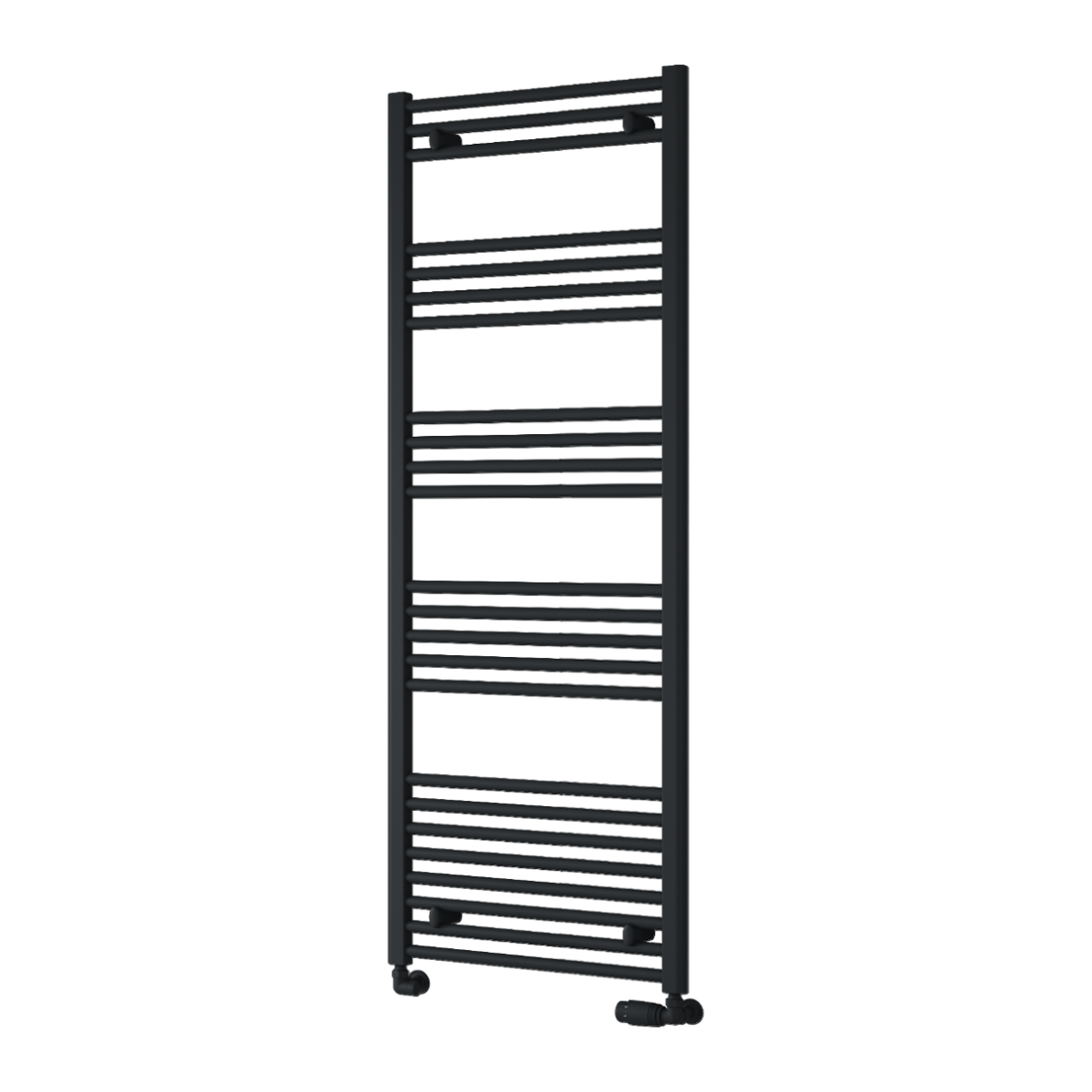

1600 x 600 Black
0.33 MB

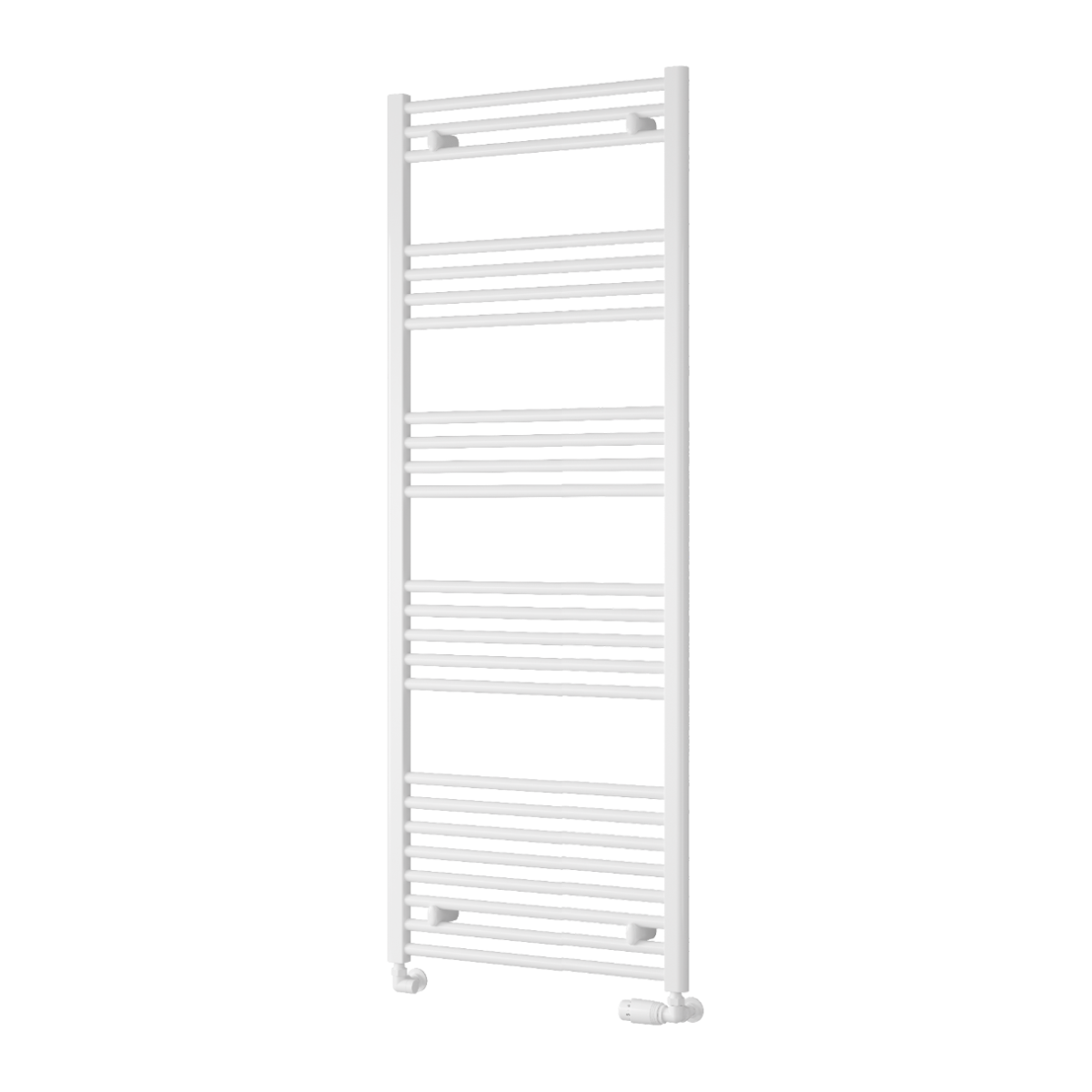

1600 x 600 White
0.24 MB

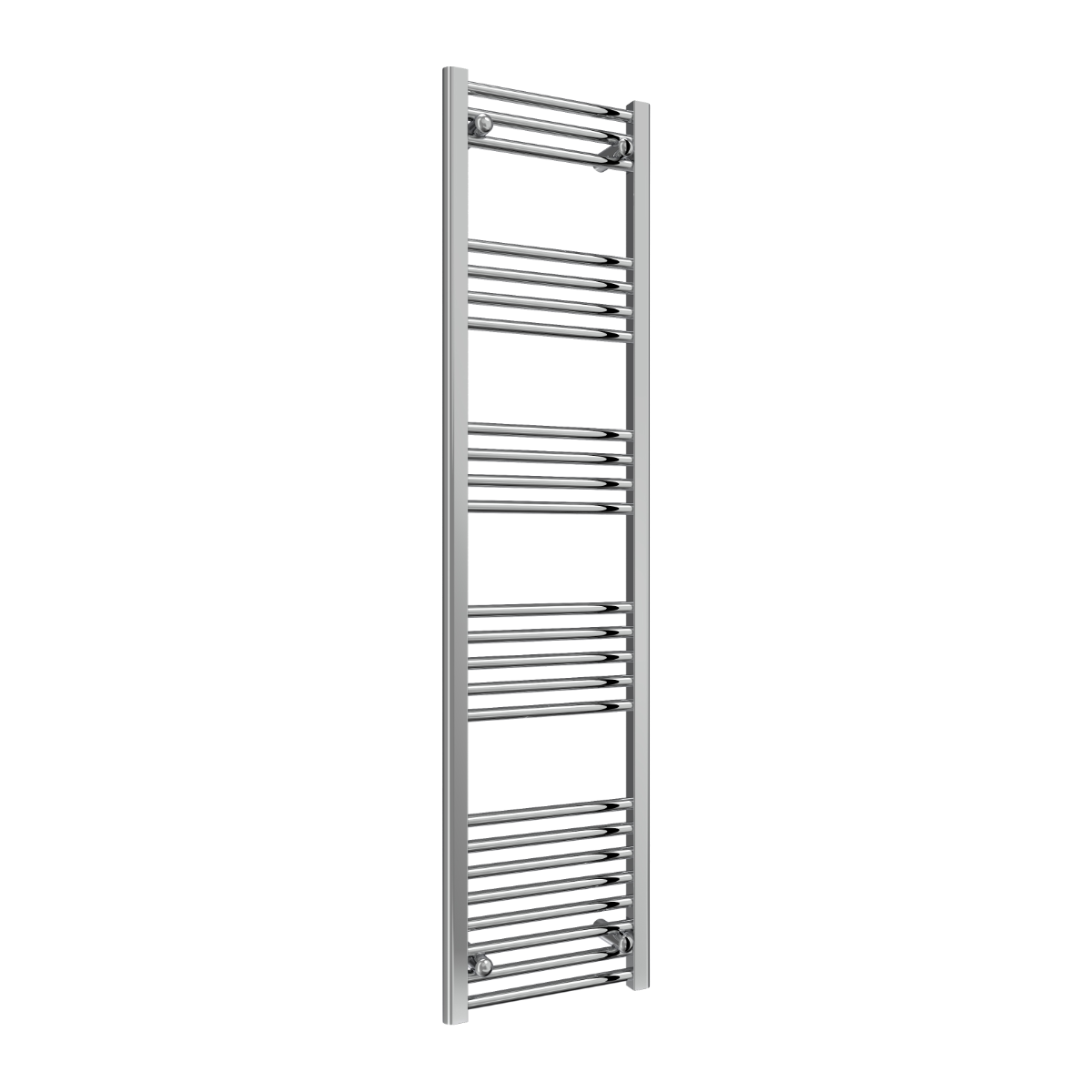

1800 x 400 Chrome
0.25 MB

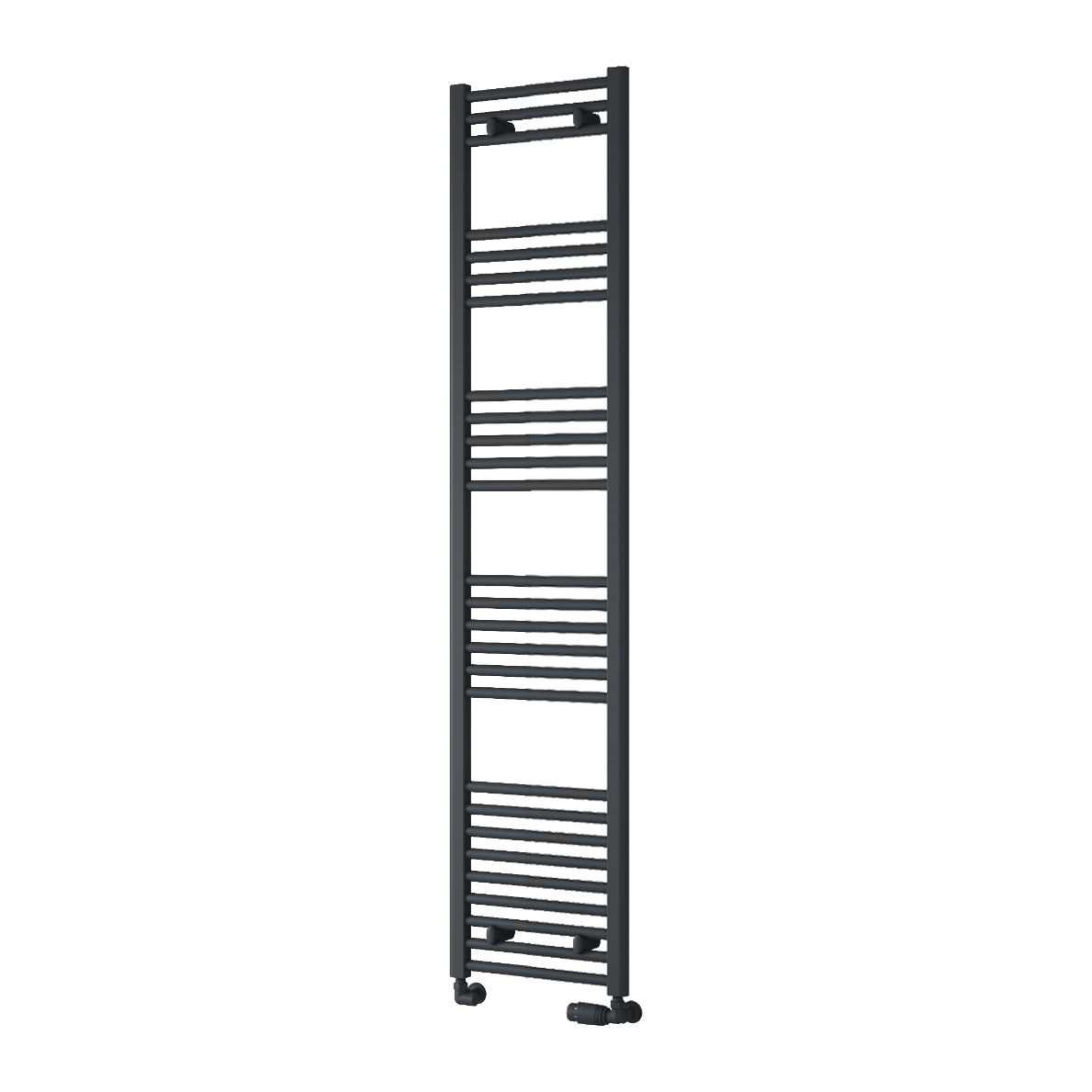

1800 x 400 Anthracite
0.24 MB

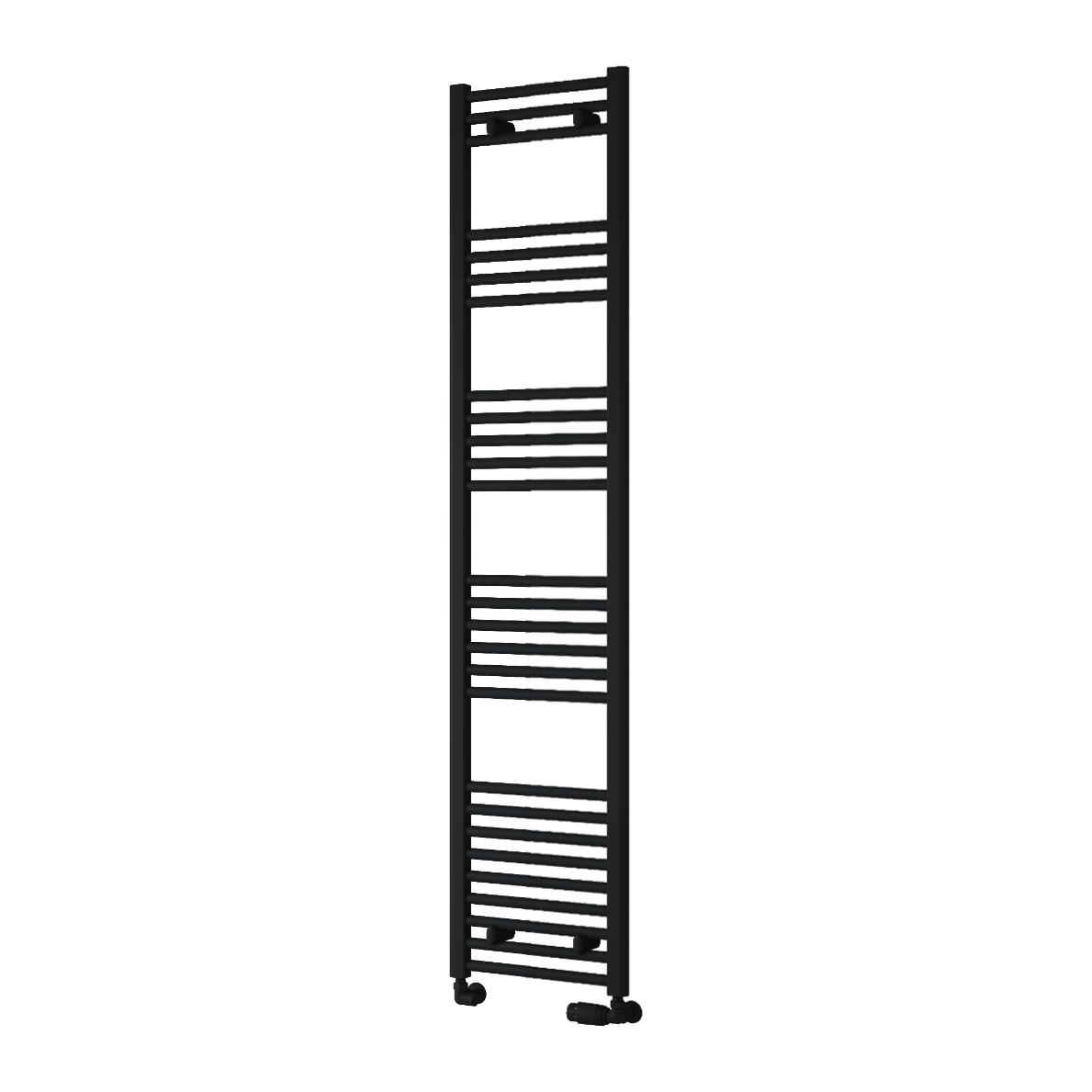

1800 x 400 Black
0.21 MB

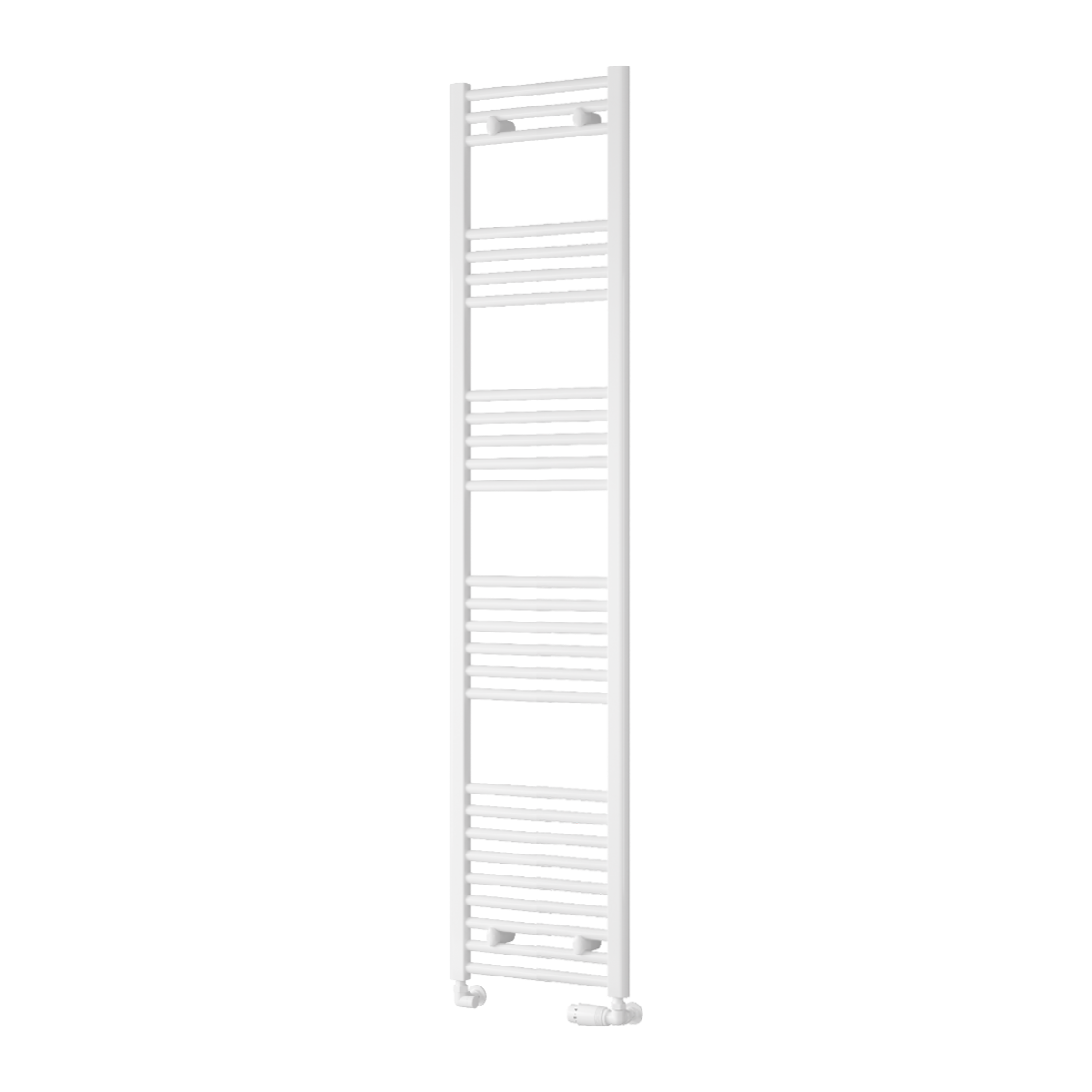

1800 x 400 White
0.18 MB

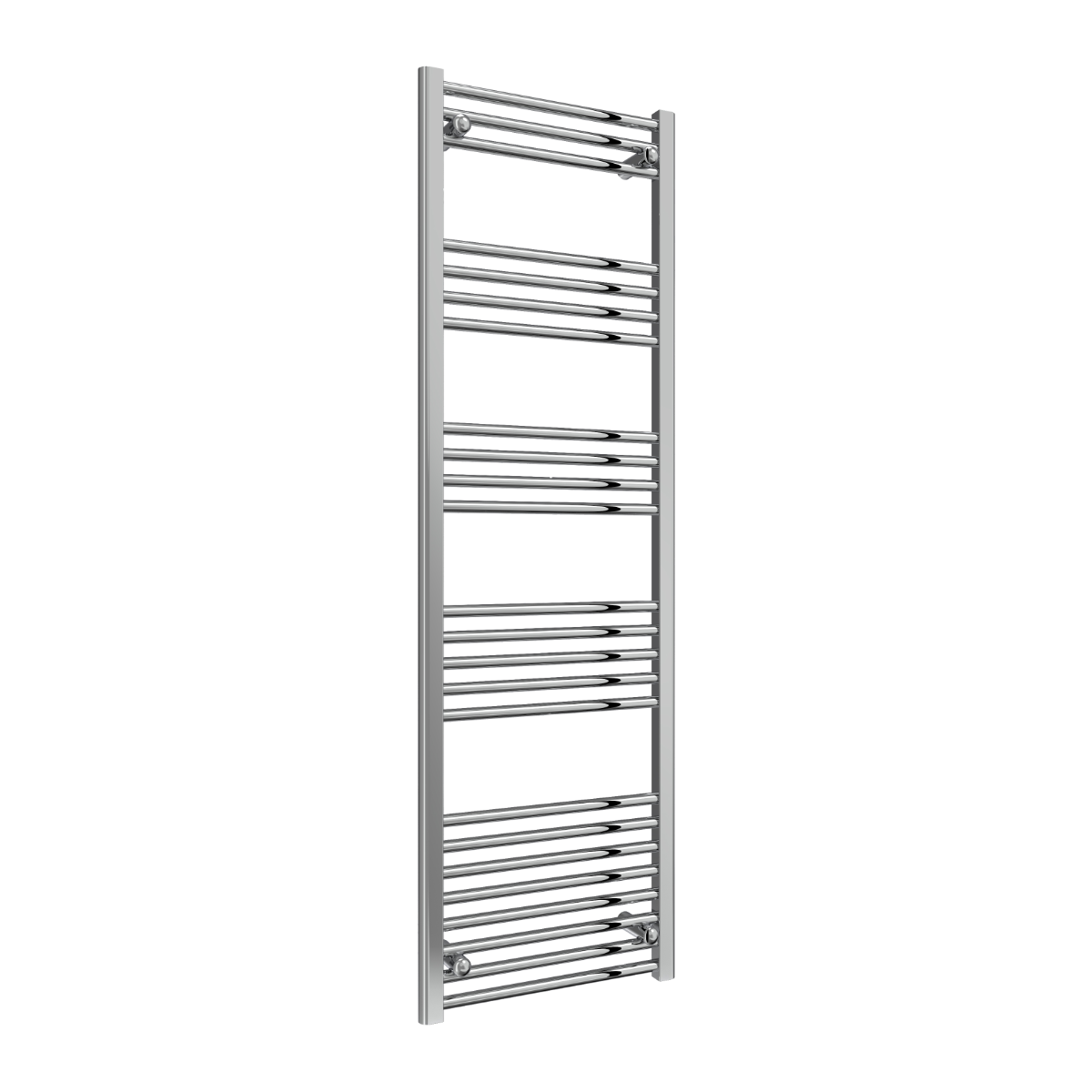

1800 x 500 Chrome
0.29 MB
1800 x 500 Anthracite
0.23 MB

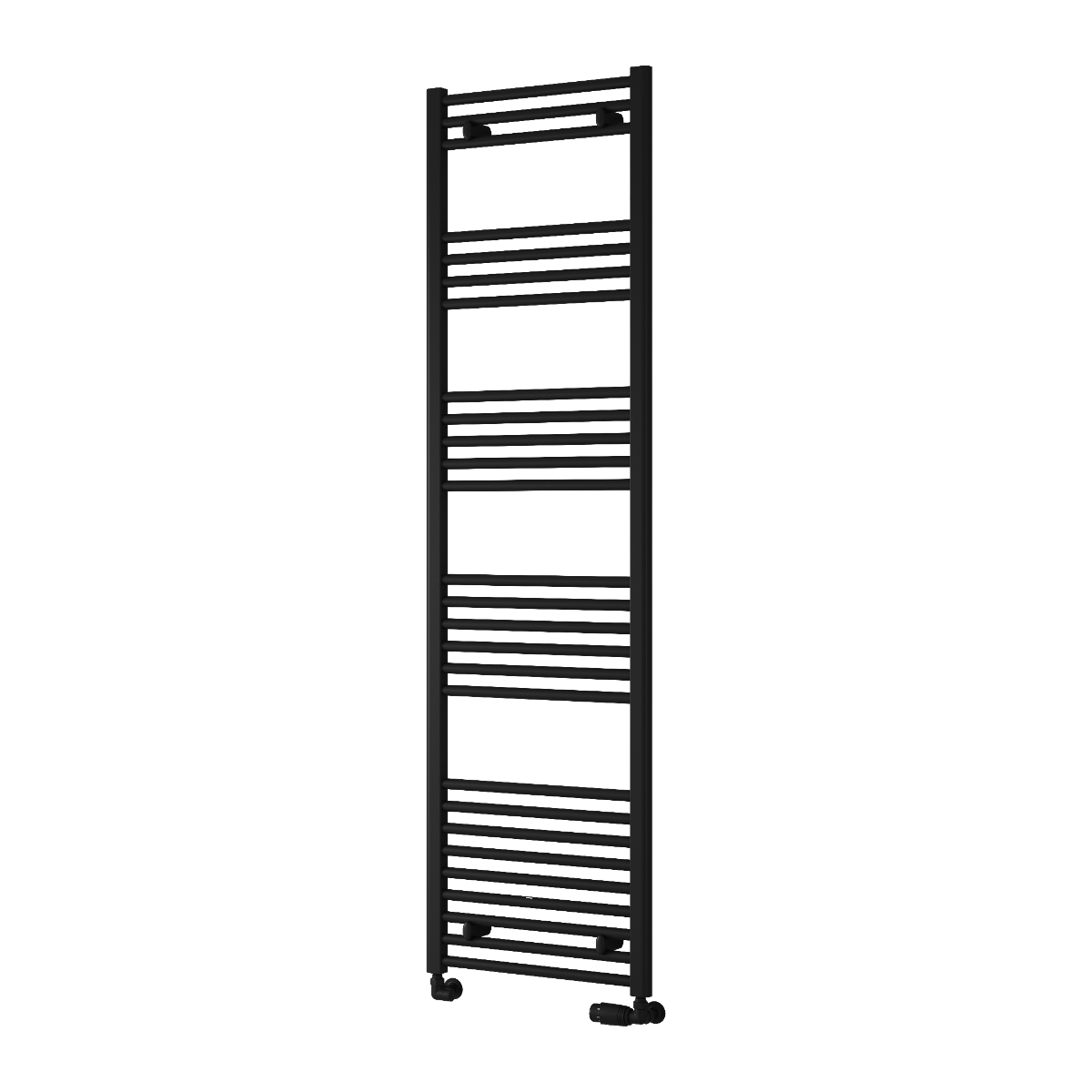

1800 x 500 Black
0.2 MB

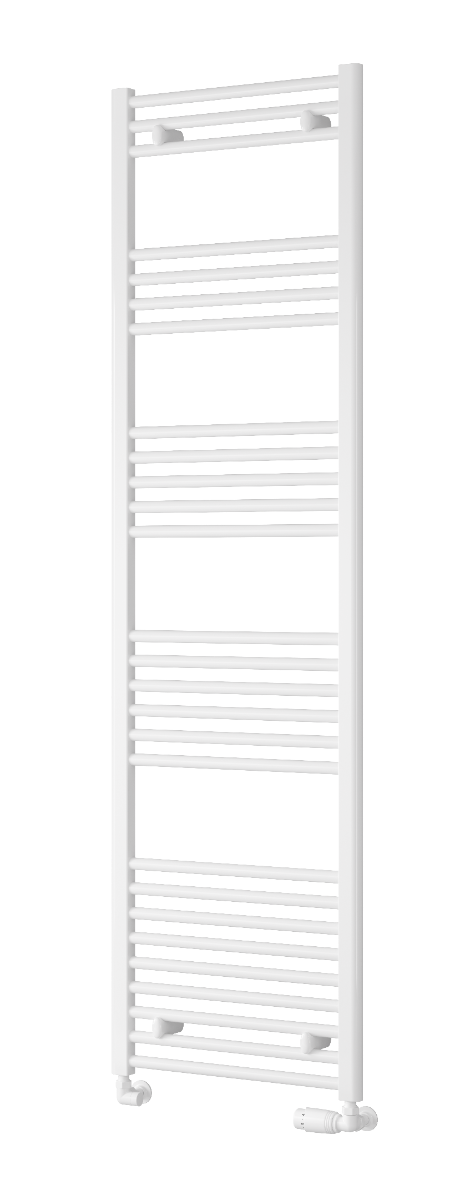

1800 x 500 White
0.16 MB
1800 x 600 Chrome
0.33 MB

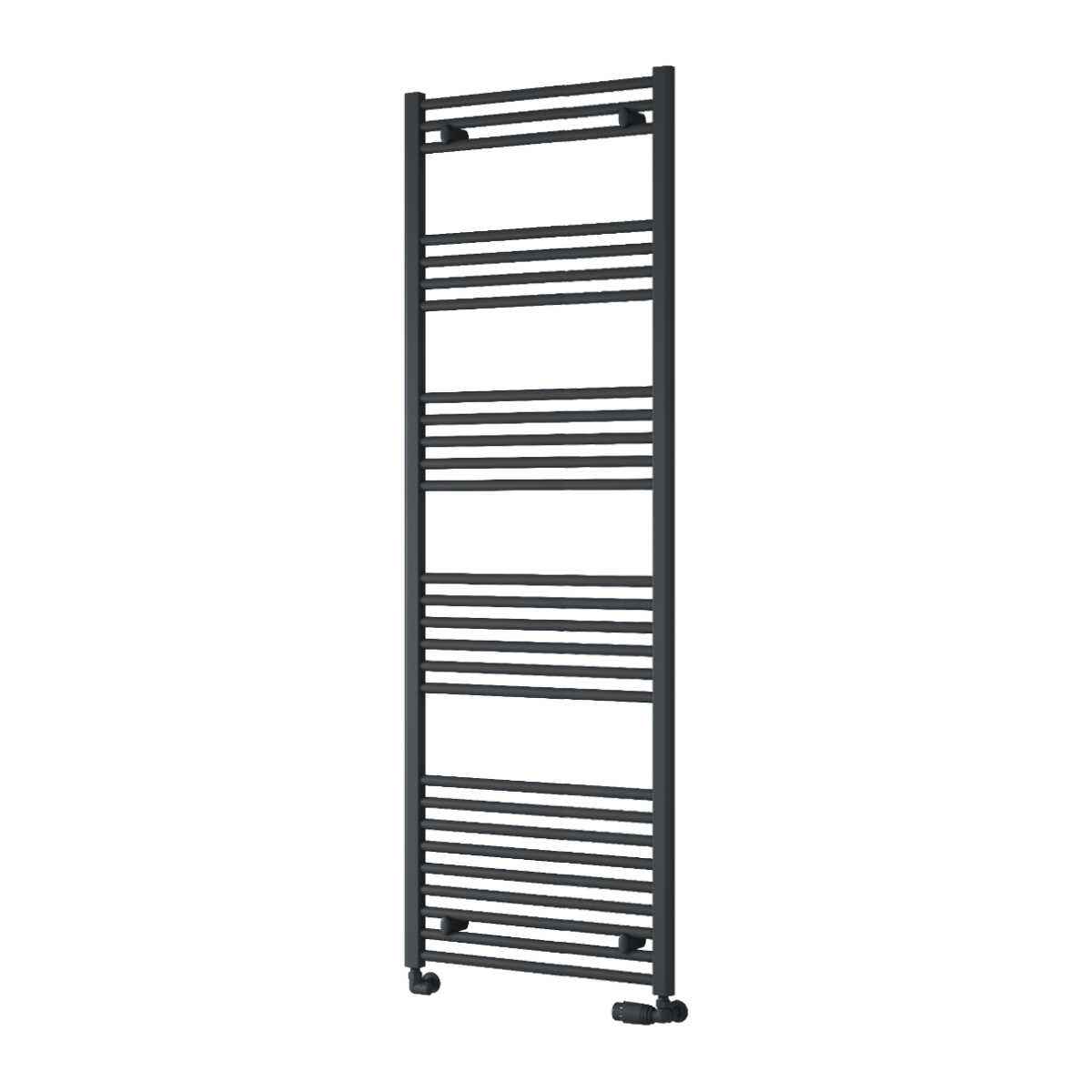

1800 x 600 Anthracite
0.3 MB

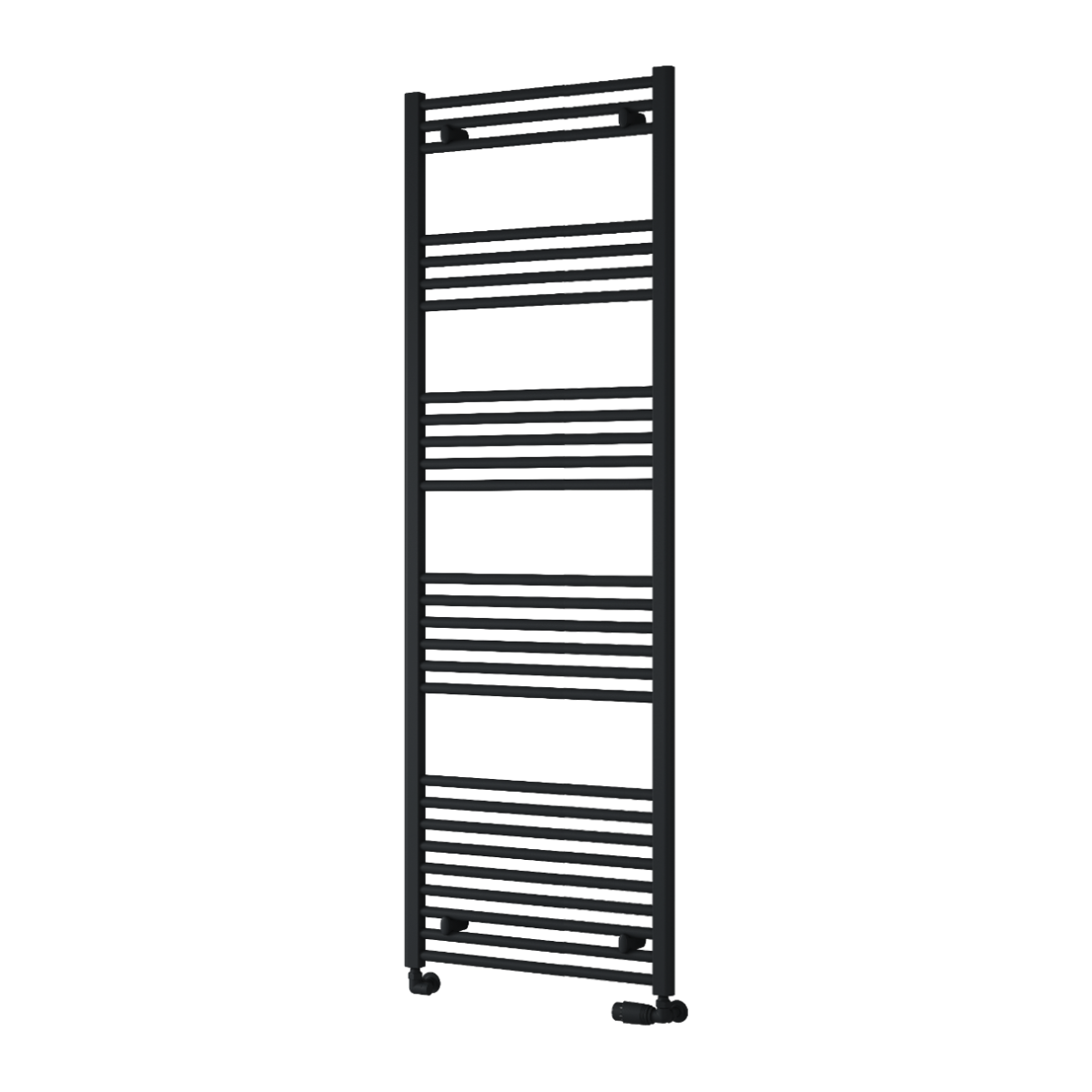

1800 x 600 Black
0.27 MB

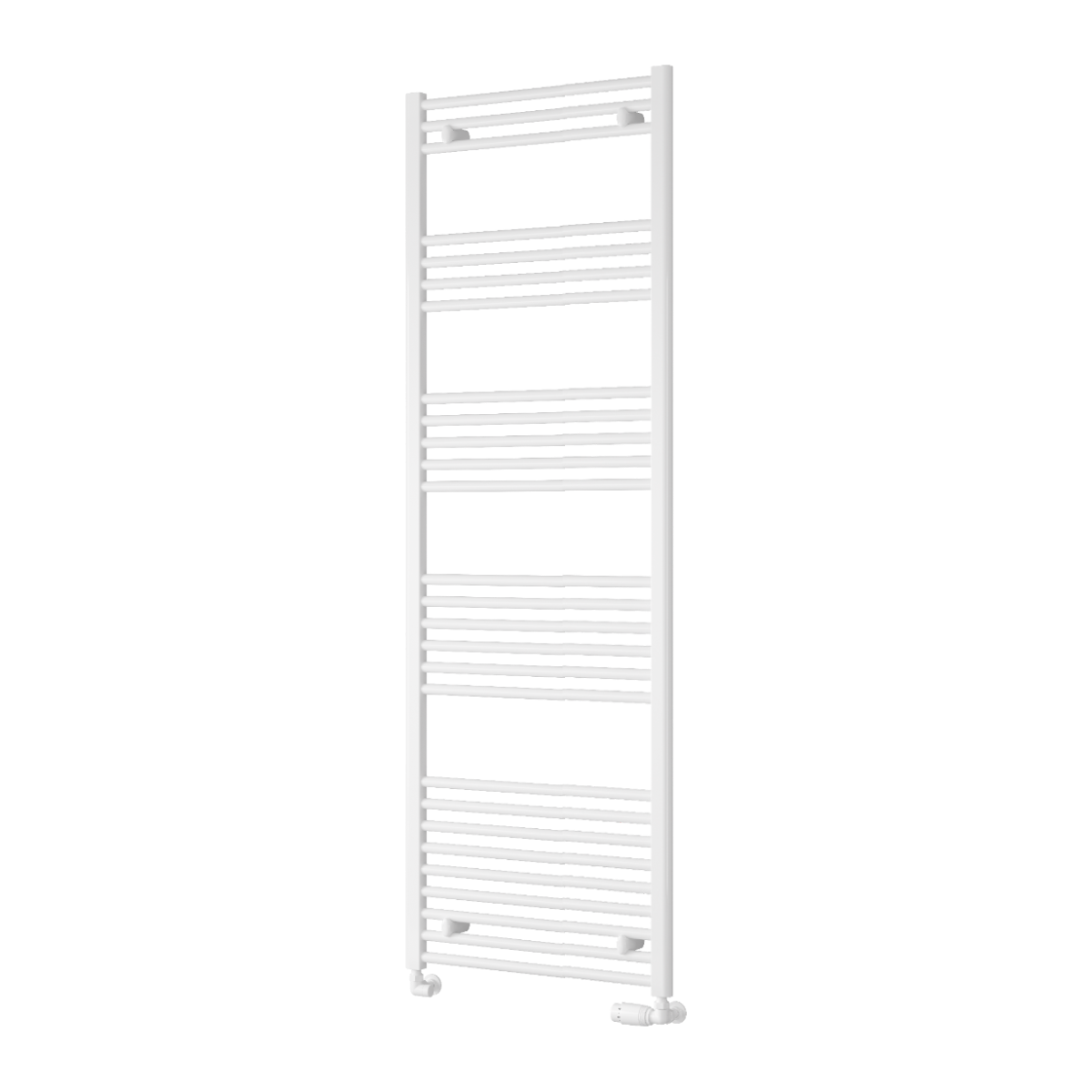

1800 x 600 White
0.23 MB

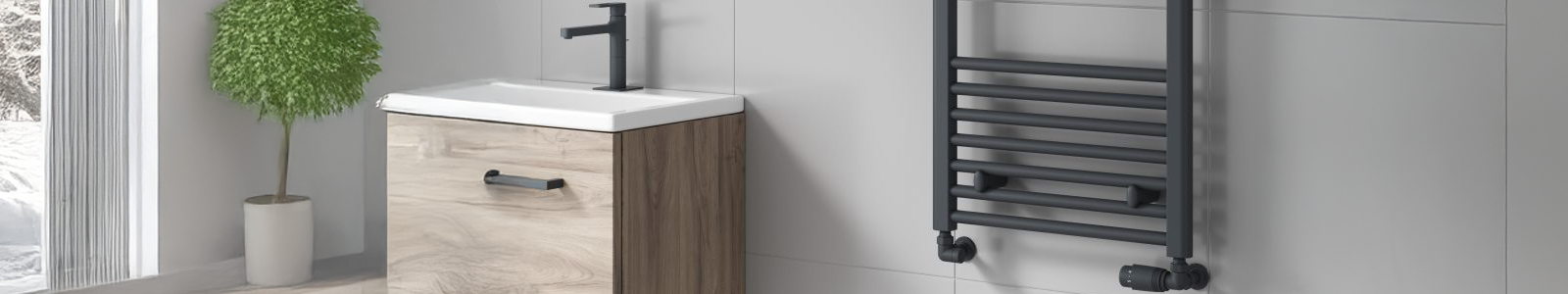

Roomset Product Images

Capo Flat
0.09 MB
Capo Flat
0.13 MB
Capo Flat
0.07 MB

High Resolution Images

Reina Capo Flat 1200x500 Anthracite Roomset
24.28 MB
Reina Capo Flat 1200x500 Black Roomset
24.68 MB

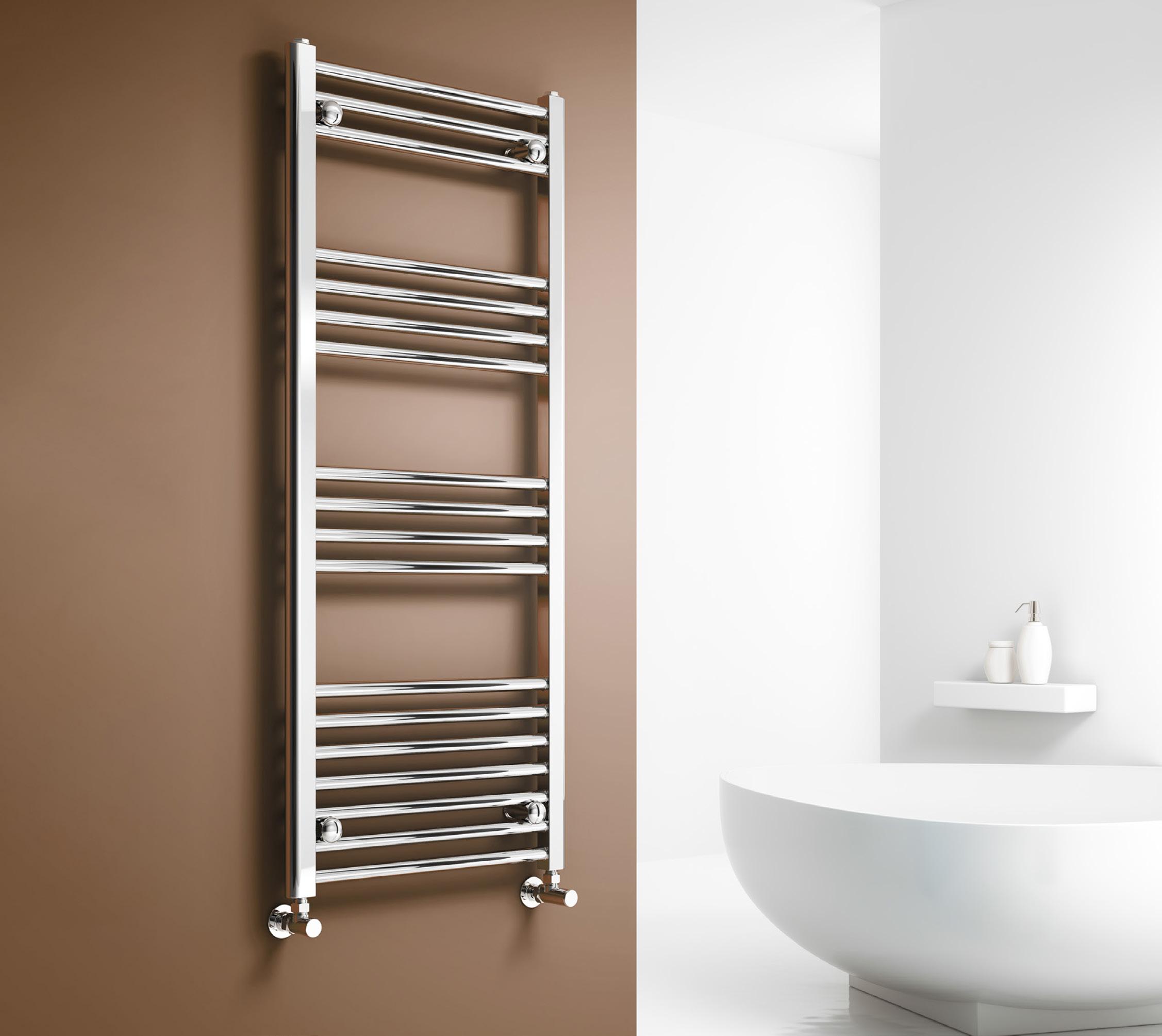

Reina Capo Flat 1200x500 Chrome Roomset
0.19 MB

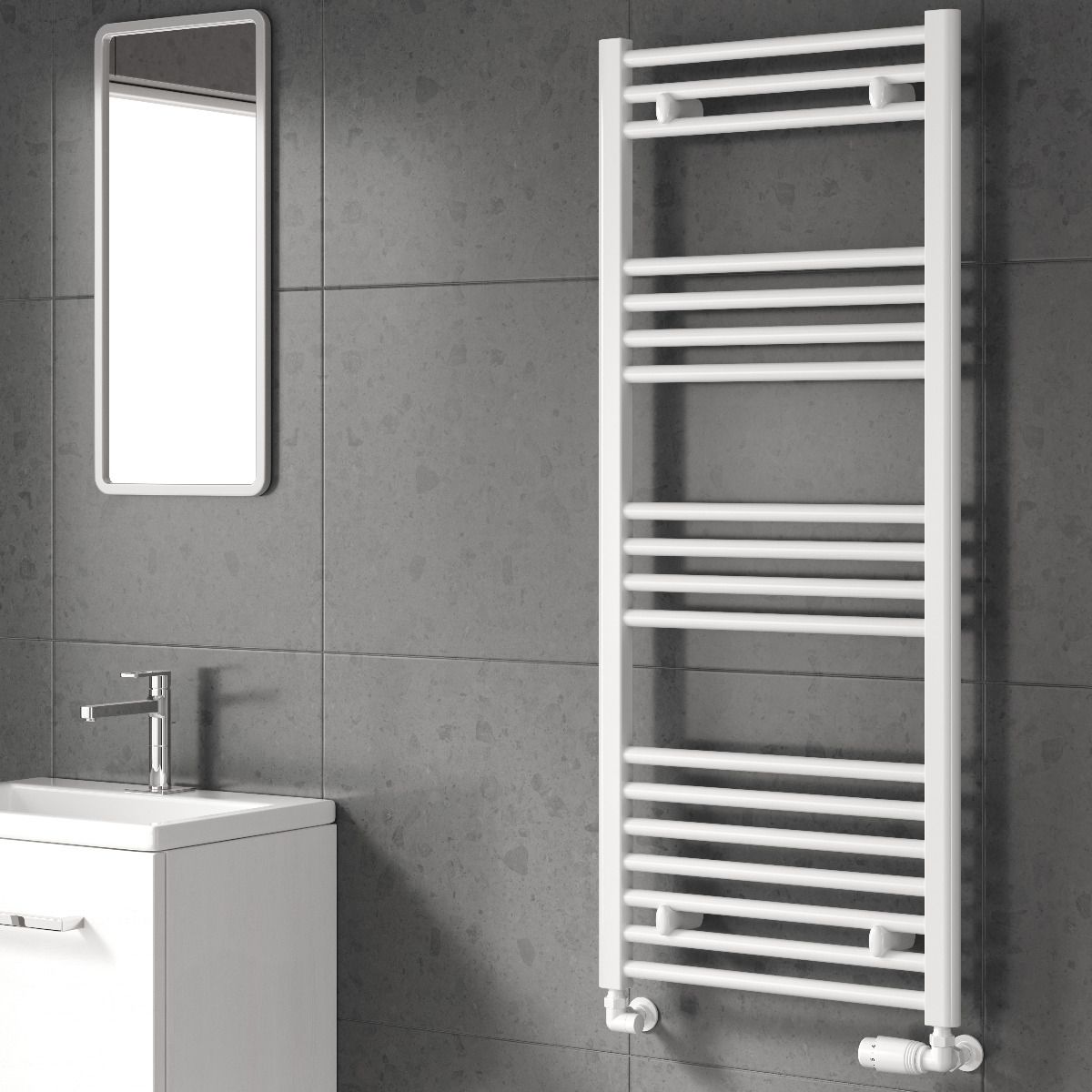

Reina Capo Flat 1200x500 White Roomset
10.63 MB
Tech Drawings

Technical Drawings

Capo Flat Technical Drawing
0.08 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
CPO0840CF 800 400 Chrome £100.41 Log in to see stock
CPO0840AF 800 400 Anthracite £72.00 Log in to see stock
CPO0840KF 800 400 Black £72.00 Log in to see stock
CPO0840WF 800 400 White £72.00 Log in to see stock
CPO0850CF 800 500 Chrome £105.37 Log in to see stock
CPO0850AF 800 500 Anthracite £77.00 Log in to see stock
CPO0850KF 800 500 Black £77.00 Log in to see stock
CPO0850WF 800 500 White £77.00 Log in to see stock
CPO0860CF 800 600 Chrome £111.43 Log in to see stock
CPO0860AF 800 600 Anthracite £81.00 Log in to see stock
CPO0860KF 800 600 Black £81.00 Log in to see stock
CPO0860WF 800 600 White £81.00 Log in to see stock
CPO1040CF 1000 400 Chrome £112.53 Log in to see stock
CPO1040AF 1000 400 Anthracite £83.00 Log in to see stock
CPO1040KF 1000 400 Black £83.00 Log in to see stock
CPO1040WF 1000 400 White £83.00 Log in to see stock
CPO1050CF 1000 500 Chrome £115.57 Log in to see stock
CPO1050AF 1000 500 Anthracite £89.00 Log in to see stock
CPO1050KF 1000 500 Black £89.00 Log in to see stock
CPO1050WF 1000 500 White £89.00 Log in to see stock
CPO1060CF 1000 600 Chrome £124.66 Log in to see stock
CPO1060AF 1000 600 Anthracite £95.00 Log in to see stock
CPO1060KF 1000 600 Black £95.00 Log in to see stock
CPO1060WF 1000 600 White £95.00 Log in to see stock
CPO1240CF 1200 400 Chrome £124.66 Log in to see stock
CPO1240AF 1200 400 Anthracite £94.00 Log in to see stock
CPO1240KF 1200 400 Black £94.00 Log in to see stock
CPO1240WF 1200 400 White £94.00 Log in to see stock
CPO1250CF 1200 500 Chrome £125.76 Log in to see stock
CPO1250AF 1200 500 Anthracite £99.00 Log in to see stock
CPO1250KF 1200 500 Black £99.00 Log in to see stock
CPO1250WF 1200 500 White £99.00 Log in to see stock
CPO1260CF 1200 600 Chrome £137.89 Log in to see stock
CPO1260AF 1200 600 Anthracite £108.00 Log in to see stock
CPO1260KF 1200 600 Black £108.00 Log in to see stock
CPO1260WF 1200 600 White £108.00 Log in to see stock
CPO1640CF 1600 400 Chrome £180.89 Log in to see stock
CPO1640AF 1600 400 Anthracite £113.00 Log in to see stock
CPO1640KF 1600 400 Black £113.00 Log in to see stock
CPO1640WF 1600 400 White £113.00 Log in to see stock
CPO1650CF 1600 500 Chrome £189.71 Log in to see stock
CPO1650AF 1600 500 Anthracite £122.00 Log in to see stock
CPO1650KF 1600 500 Black £122.00 Log in to see stock
CPO1650WF 1600 500 White £122.00 Log in to see stock
CPO1660CF 1600 600 Chrome £198.53 Log in to see stock
CPO1660AF 1600 600 Anthracite £131.00 Log in to see stock
CPO1660KF 1600 600 Black £131.00 Log in to see stock
CPO1660WF 1600 600 White £131.00 Log in to see stock
CPO1840CF 1800 400 Chrome £190.00 Log in to see stock
CPO1840AF 1800 400 Anthracite £132.00 Log in to see stock
CPO1840KF 1800 400 Black £132.00 Log in to see stock
CPO1840WF 1800 400 White £132.00 Log in to see stock
CPO1850CF 1800 500 Chrome £204.00 Log in to see stock
CPO1850AF 1800 500 Anthracite £142.00 Log in to see stock
CPO1850KF 1800 500 Black £142.00 Log in to see stock
CPO1850WF 1800 500 White £142.00 Log in to see stock
CPO1860CF 1800 600 Chrome £220.00 Log in to see stock
CPO1860AF 1800 600 Anthracite £152.00 Log in to see stock
CPO1860KF 1800 600 Black £152.00 Log in to see stock
CPO1860WF 1800 600 White £152.00 Log in to see stock
