Casina Horizontal Aluminium Radiator

5 Years Guarantee
Material: Aluminium
Central Heating
Electric
Dual Fuel

The Casina Horizontal Radiator combines modern elegance with exceptional performance, featuring a sleek vertical flat panel design in anthracite or white, durable aluminium construction, and impressive heat output, backed confidently by a 5-year guarantee.

  • Available in 2 colours and 6 sizes
  • Durable Aluminium Construction
  • 5 Years Guarantee
  • white
  • anthracite

Product Resource Centre

600mm HEIGHT 470mm WIDTH
600mm HEIGHT 660mm WIDTH
600mm HEIGHT 850mm WIDTH
600mm HEIGHT 1040mm WIDTH
600mm HEIGHT 1230mm WIDTH
600mm HEIGHT 1420mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
600 470 Double 470 55 86 - 10
600 660 Double 660 55 86 - 14
600 850 Double 850 55 86 - 18
600 1040 Double 1040 55 86 - 22
600 1230 Double 1230 55 86 - 26
600 1420 Double 1420 55 86 - 30
600 470 Single 470 35 65 - 5
600 660 Single 660 35 65 - 7
600 850 Single 850 35 65 - 9
600 1040 Single 1040 35 65 - 11
600 1230 Single 1230 35 65 - 13
600 1420 Single 1420 35 65 - 15

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
A-CSN060047WD 600 470 White 2252 660 1759 516 897 263
A-CSN060047AD 600 470 Anthracite 2252 660 1759 516 897 263
A-CSN060066WD 600 660 White 3152 924 2463 722 1256 368
A-CSN060066AD 600 660 Anthracite 3152 924 2463 722 1256 368
A-CSN060085WD 600 850 White 4053 1189 3166 929 1615 474
A-CSN060085AD 600 850 Anthracite 4053 1253 3166 979 1615 499
A-CSN060104WD 600 1040 White 4954 1453 3870 1135 1974 579
A-CSN060104AD 600 1040 Anthracite 4954 1453 3870 1135 1974 579
A-CSN060123WD 600 1230 White 5855 1717 4574 1341 2333 684
A-CSN060123AD 600 1230 Anthracite 5855 1717 4574 1341 2333 684
A-CSN060142WD 600 1420 White 6756 1981 5278 1548 2692 789
A-CSN060142AD 600 1420 Anthracite 6756 1981 5278 1548 2692 789
A-CSC6047SW 600 470 White 1575 462 1230 361 628 184
A-CSC6047SA 600 470 Anthracite 1575 462 1230 361 628 184
A-CSC6066SW 600 660 White 2205 647 1723 505 879 258
A-CSC6066SA 600 660 Anthracite 2205 647 1723 505 879 258
A-CSC6085SW 600 850 White 2834 831 2214 649 1129 331
A-CSC6085SA 600 850 Anthracite 2834 831 2214 649 1129 331
A-CSC6104SW 600 1040 White 3465 1016 2707 794 1381 405
A-CSC6104SA 600 1040 Anthracite 3460 1016 2703 794 1379 405
A-CSC6123SW 600 1230 White 4094 1201 3198 938 1631 478
A-CSC6123SA 600 1230 Anthracite 4094 1201 3198 938 1631 478
A-CSC6142SW 600 1420 White 4725 1386 3691 1083 1883 552
A-CSC6142SA 600 1420 Anthracite 4725 1386 3691 1083 1883 552
Images

Cutout Product Images

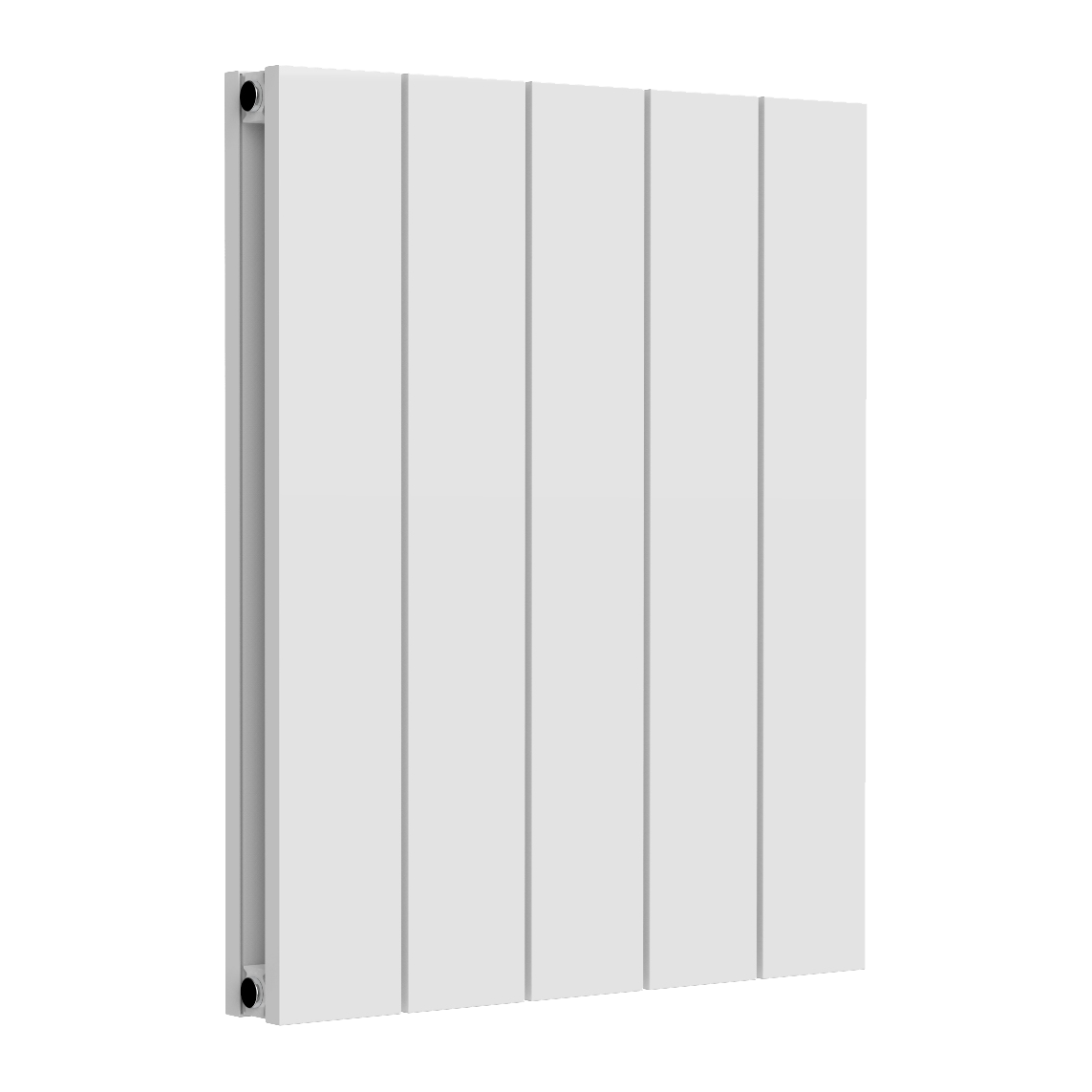

600 x 470 White
0.1 MB

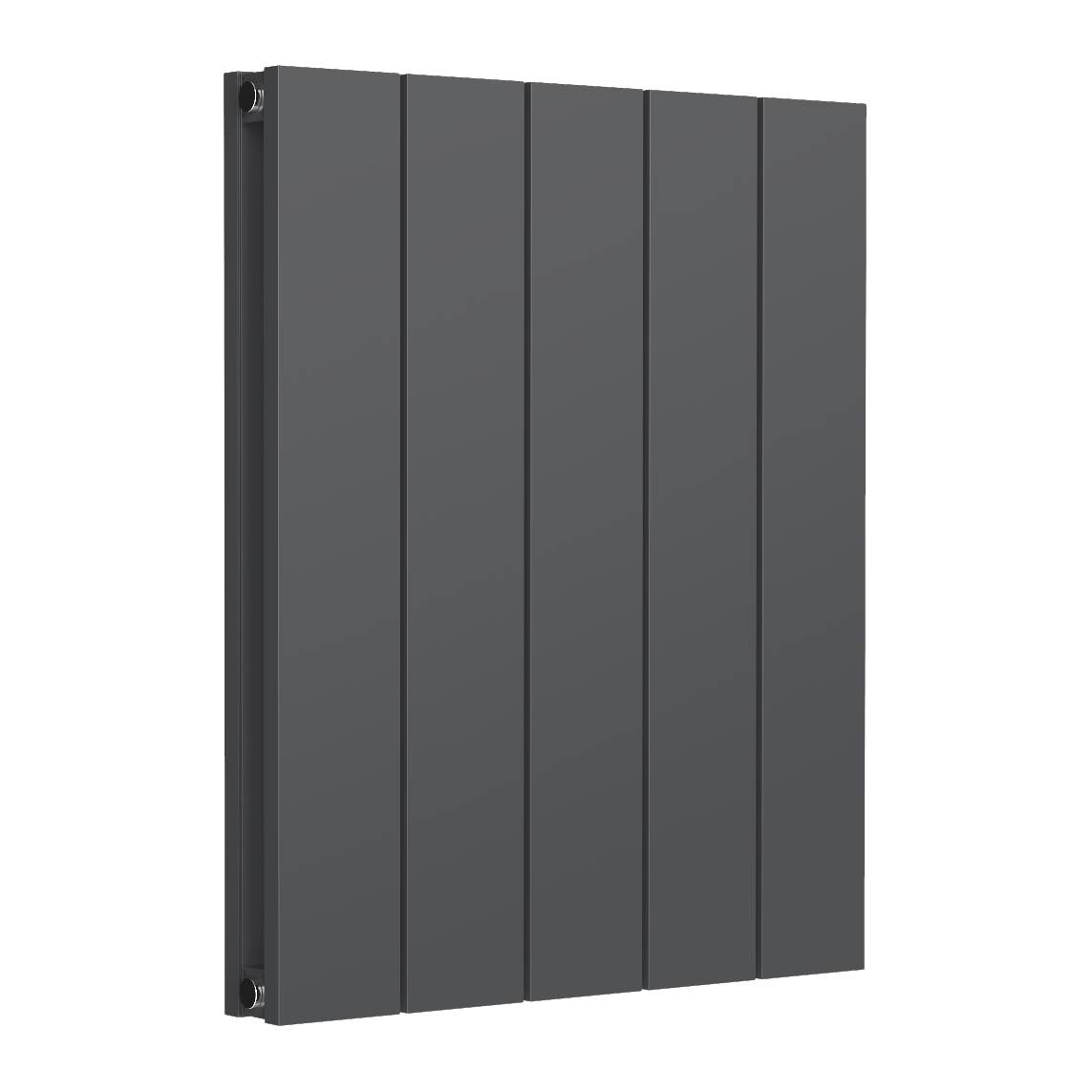

600 x 470 Anthracite
0.19 MB

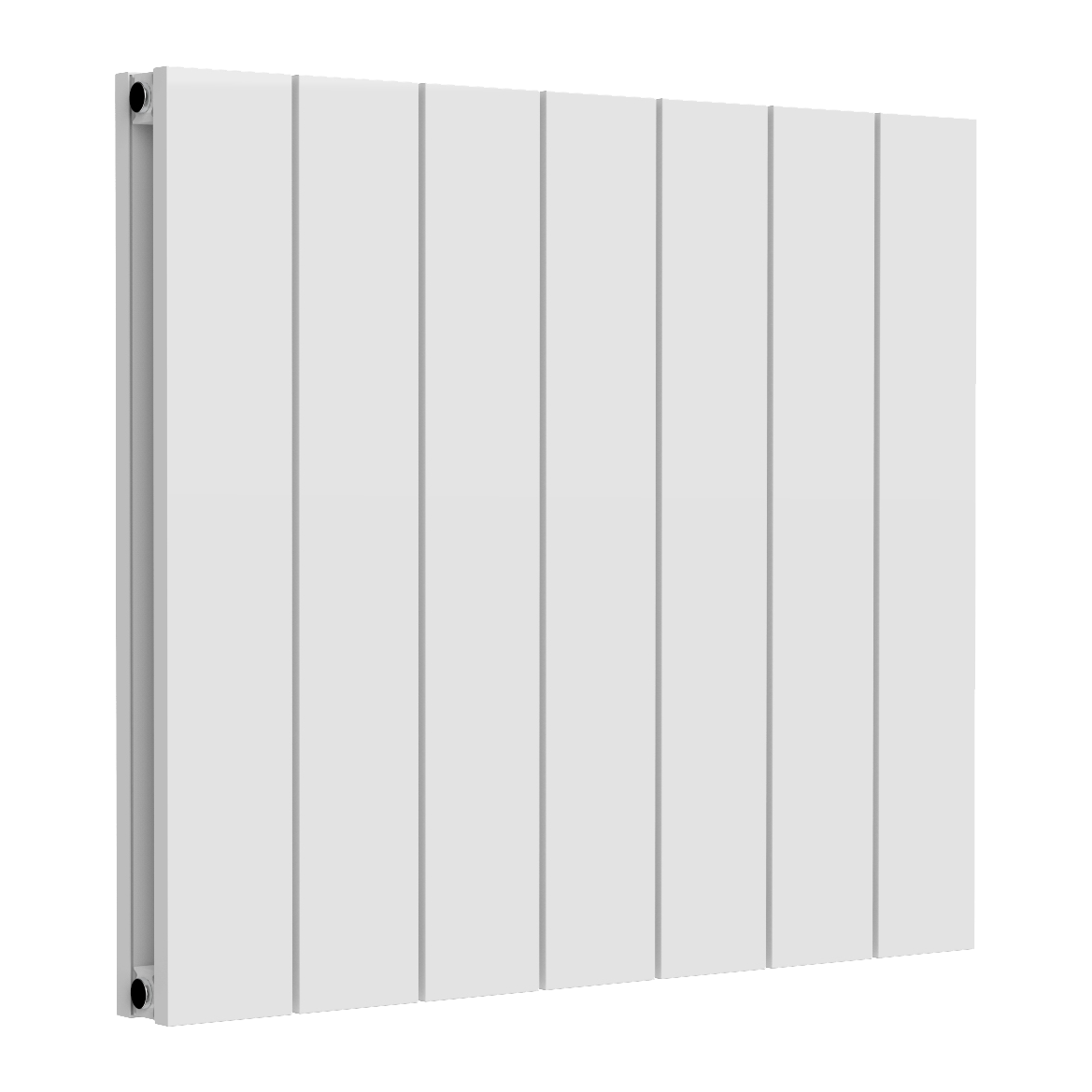

600 x 660 White
0.12 MB

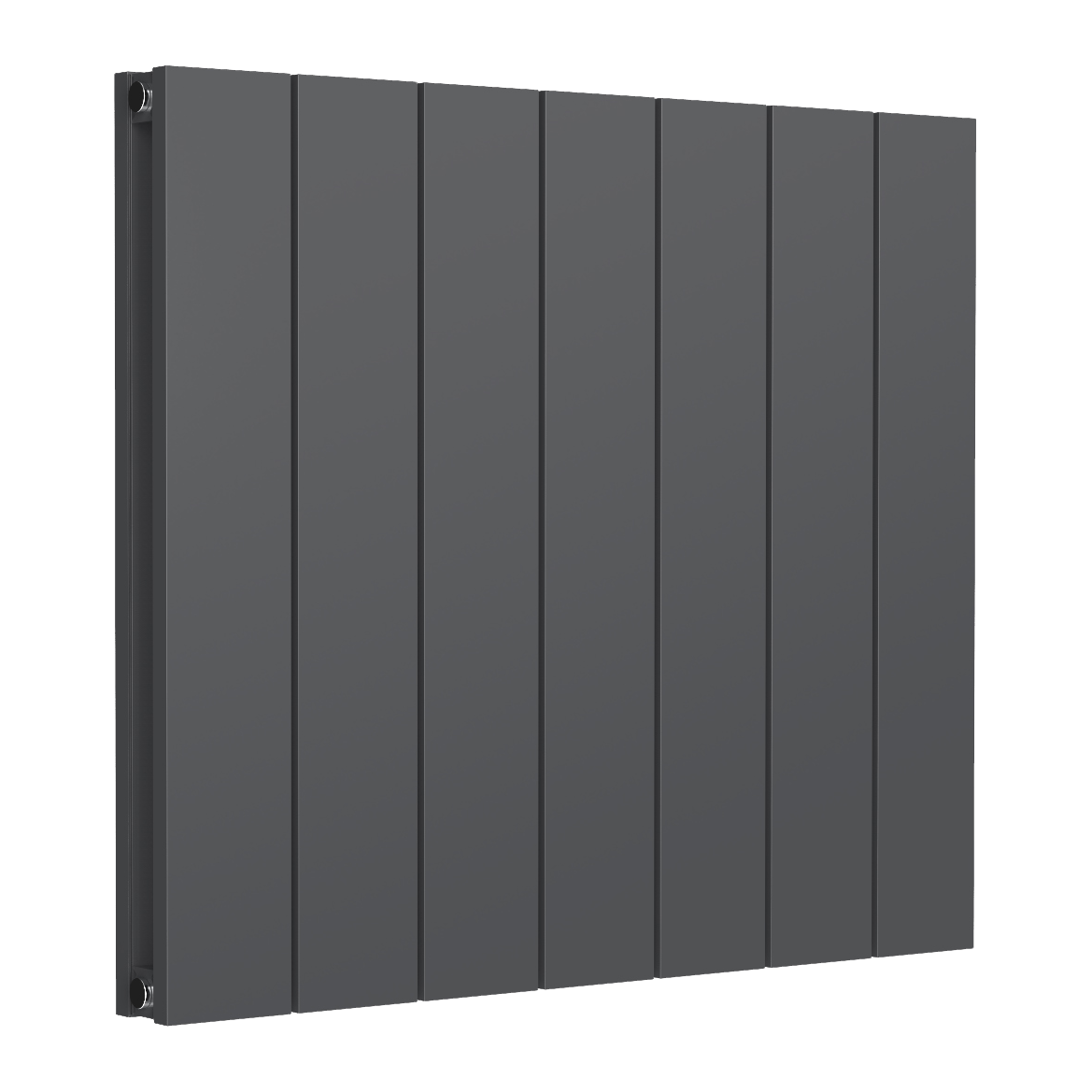

600 x 660 Anthracite
0.24 MB

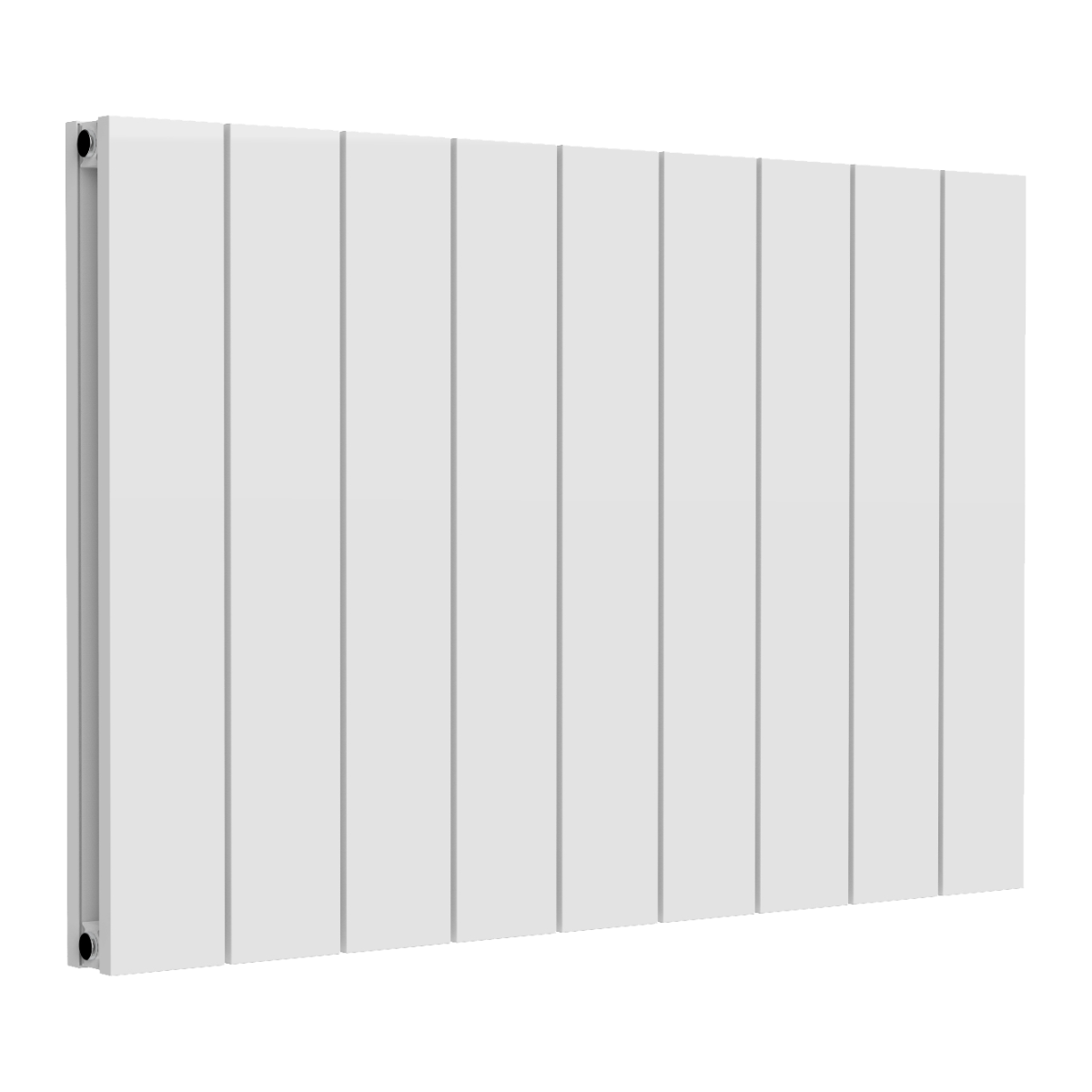

600 x 850 White
0.11 MB

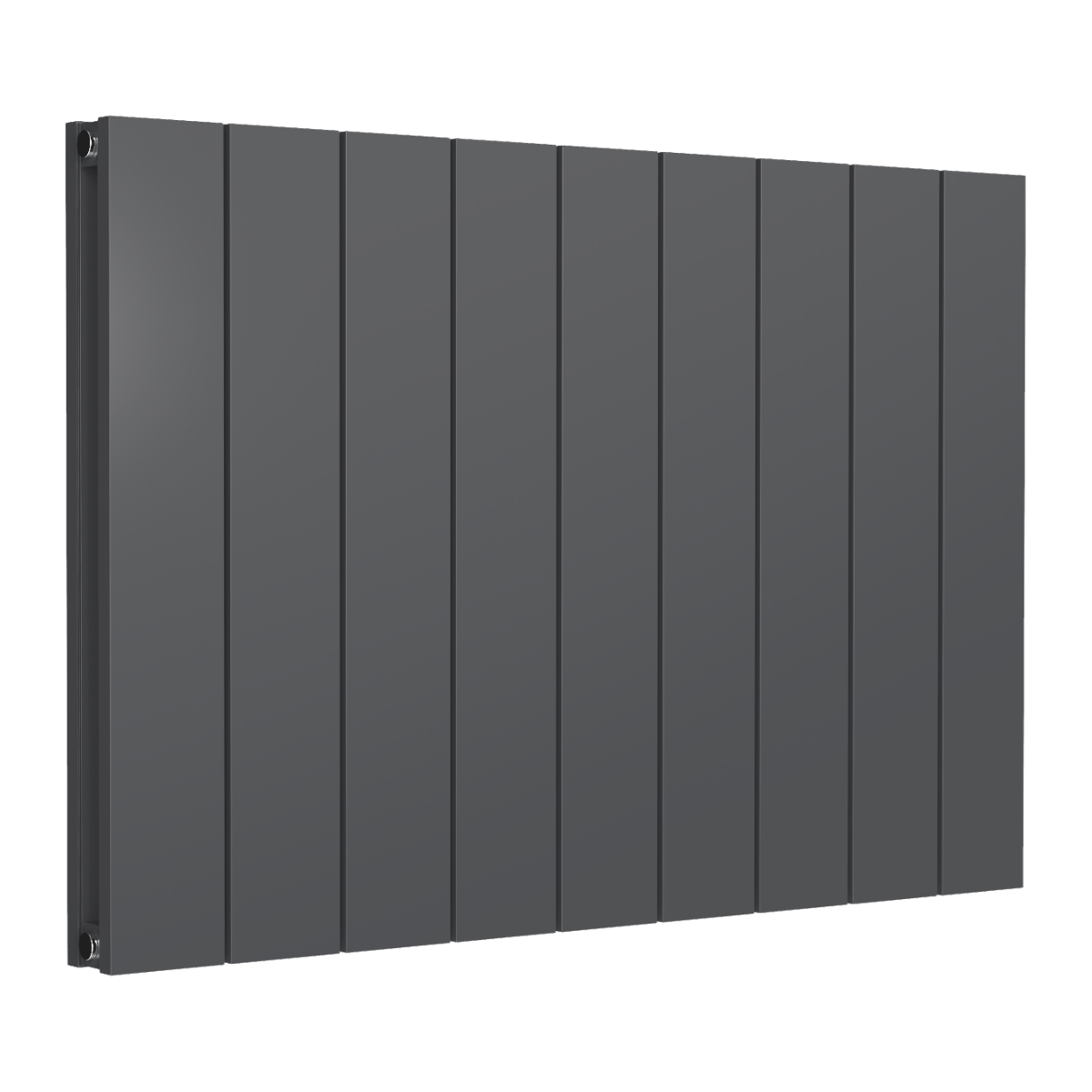

600 x 850 Anthracite
0.28 MB

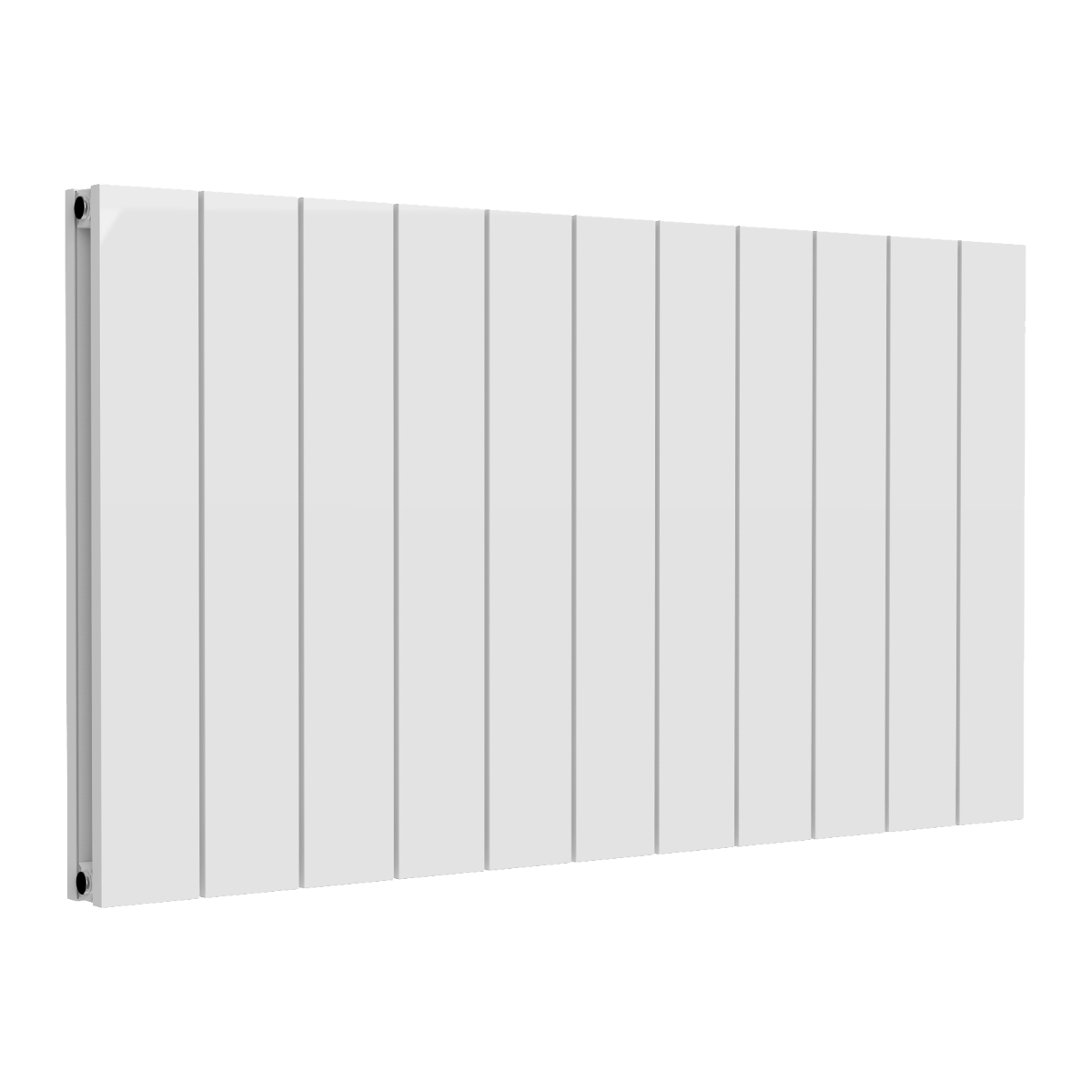

600 x 1040 White
0.1 MB

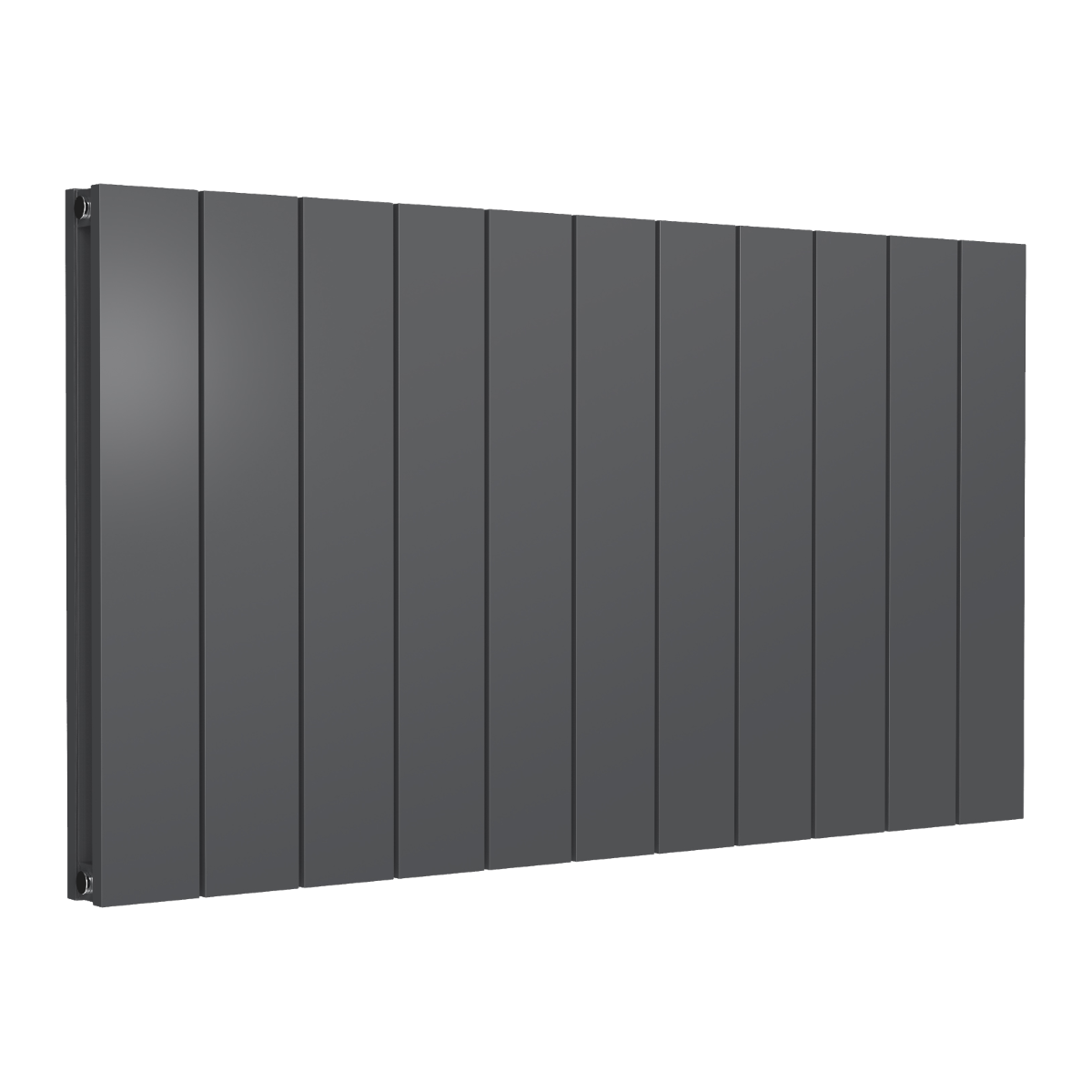

600 x 1040 Anthracite
0.26 MB

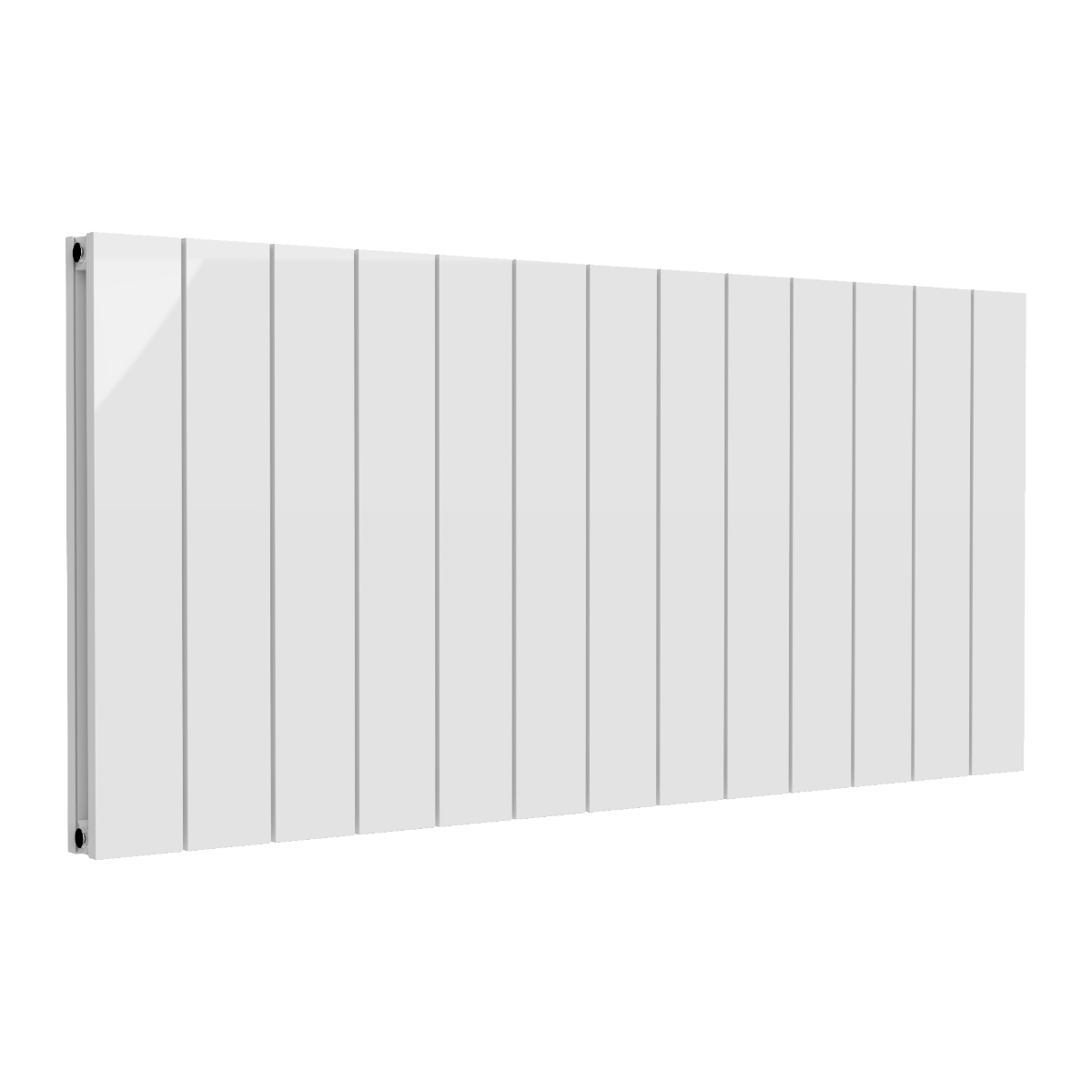

600 x 1230 White
0.09 MB

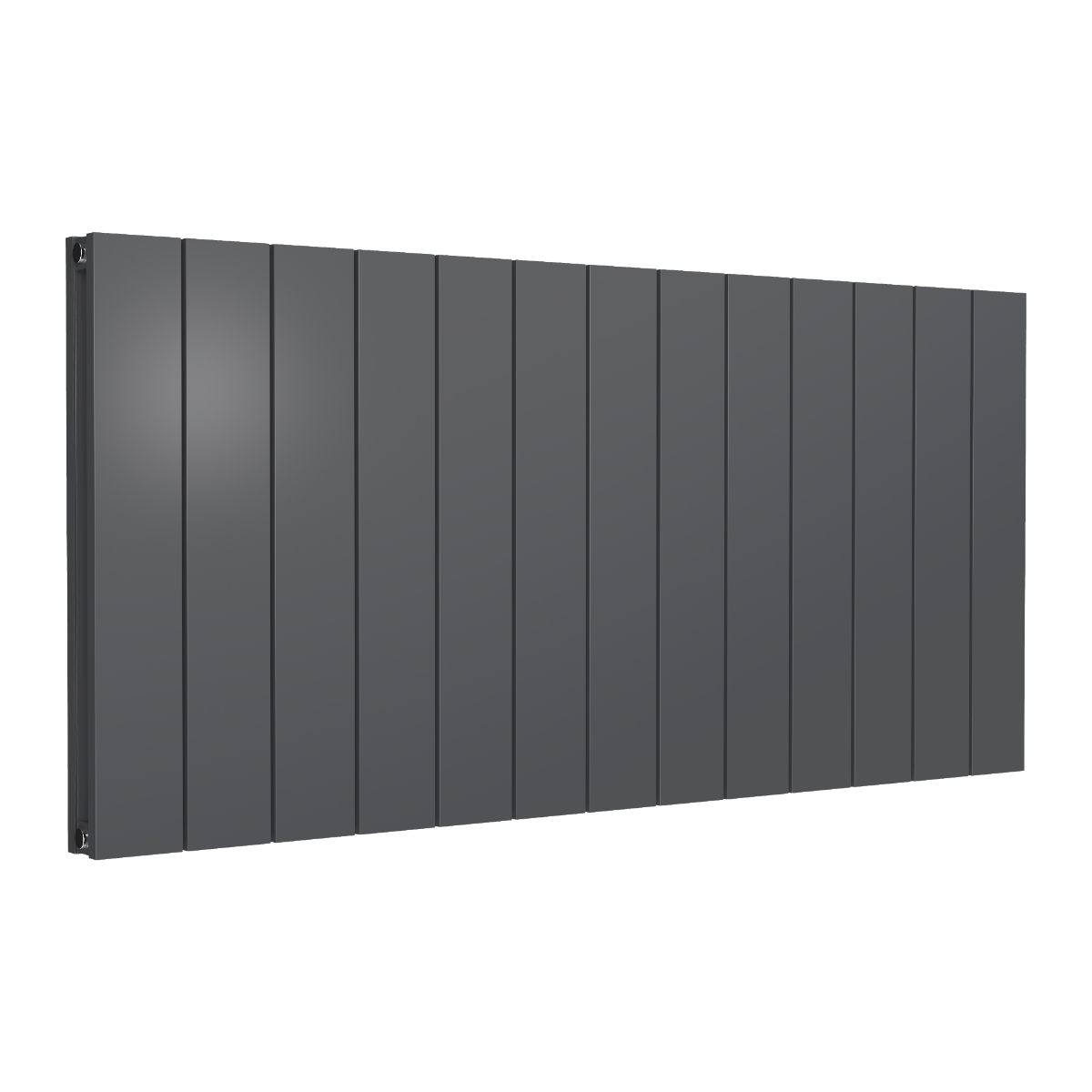

600 x 1230 Anthracite
0.24 MB
600 x 1420 White
0.08 MB

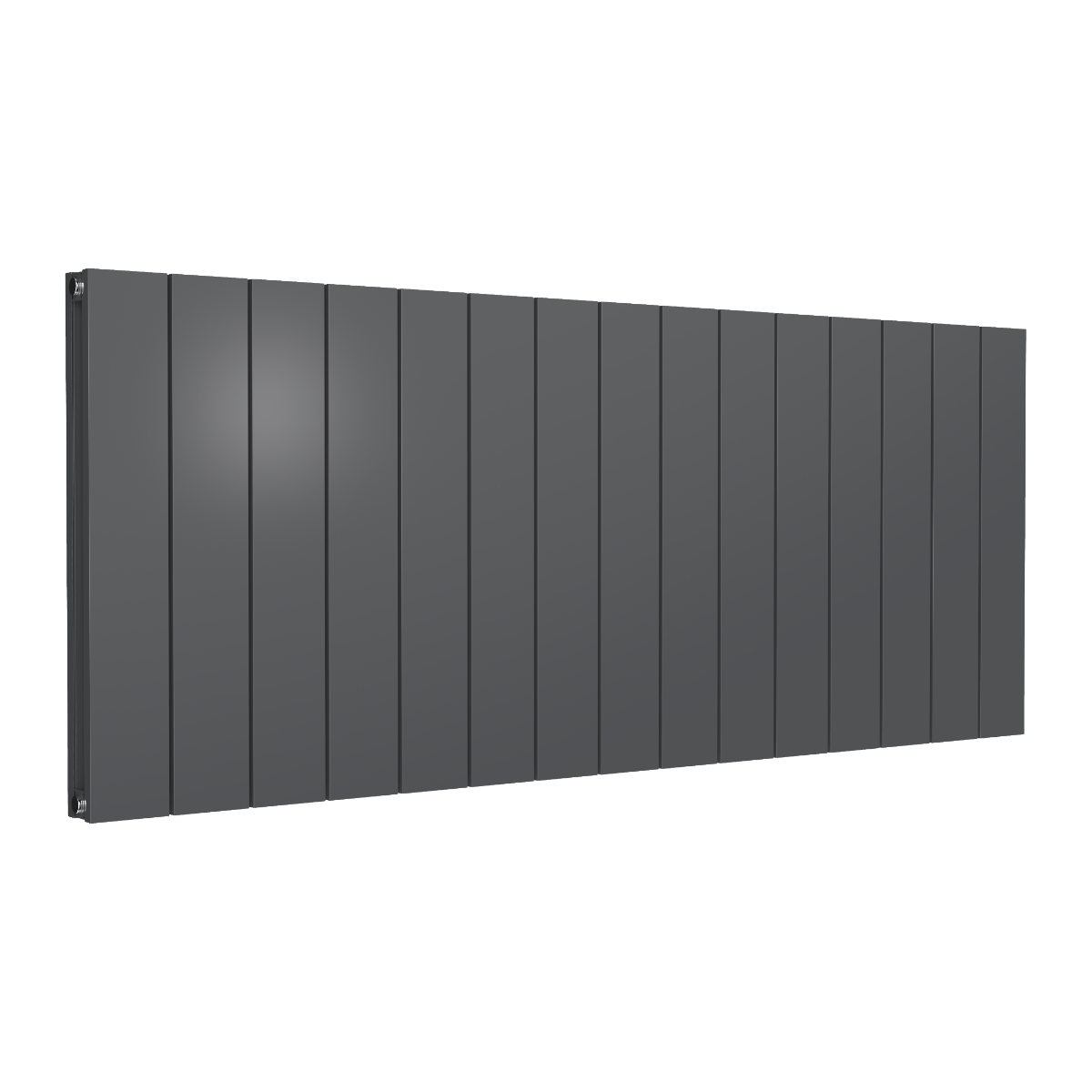

600 x 1420 Anthracite
0.22 MB

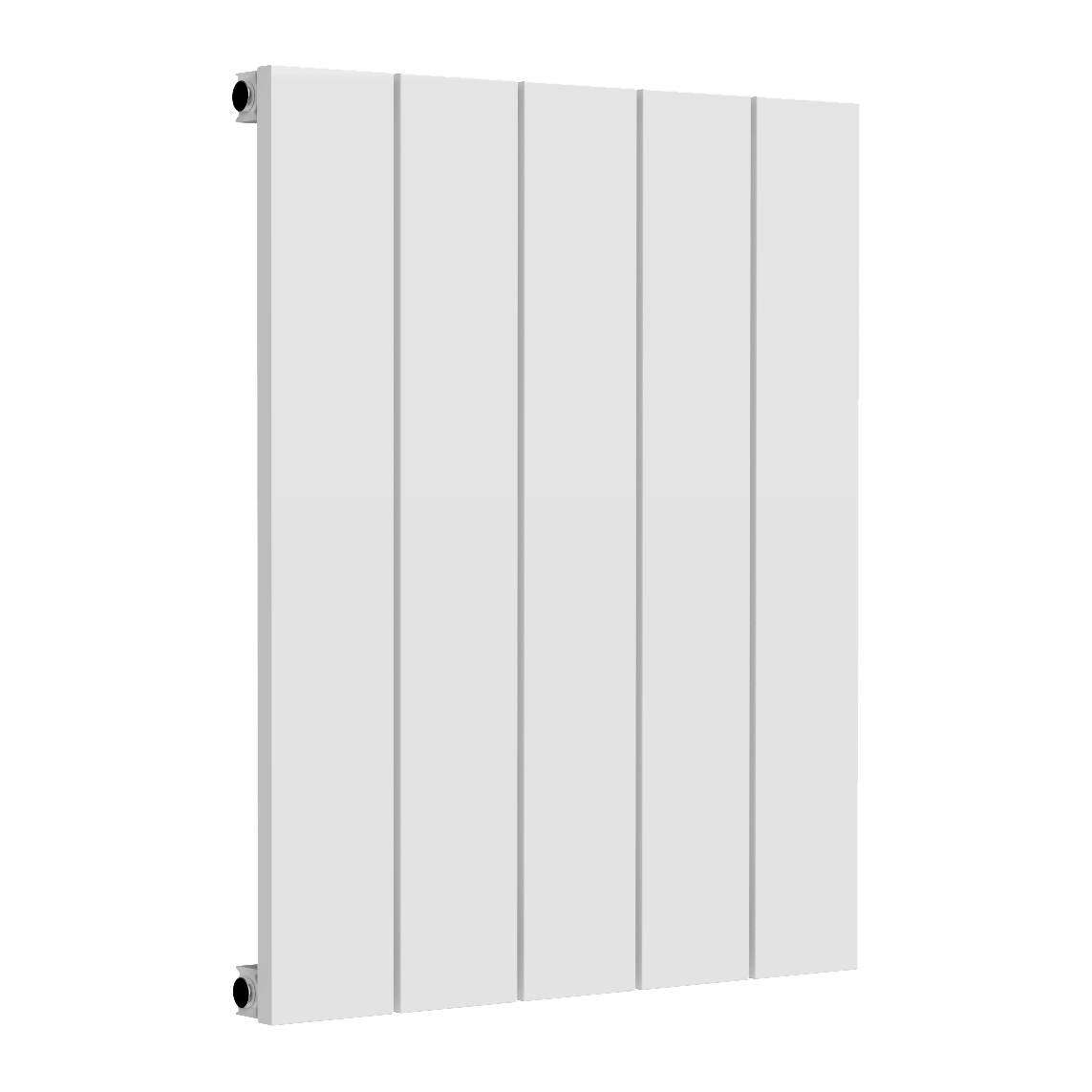

600 x 470 White
0.07 MB

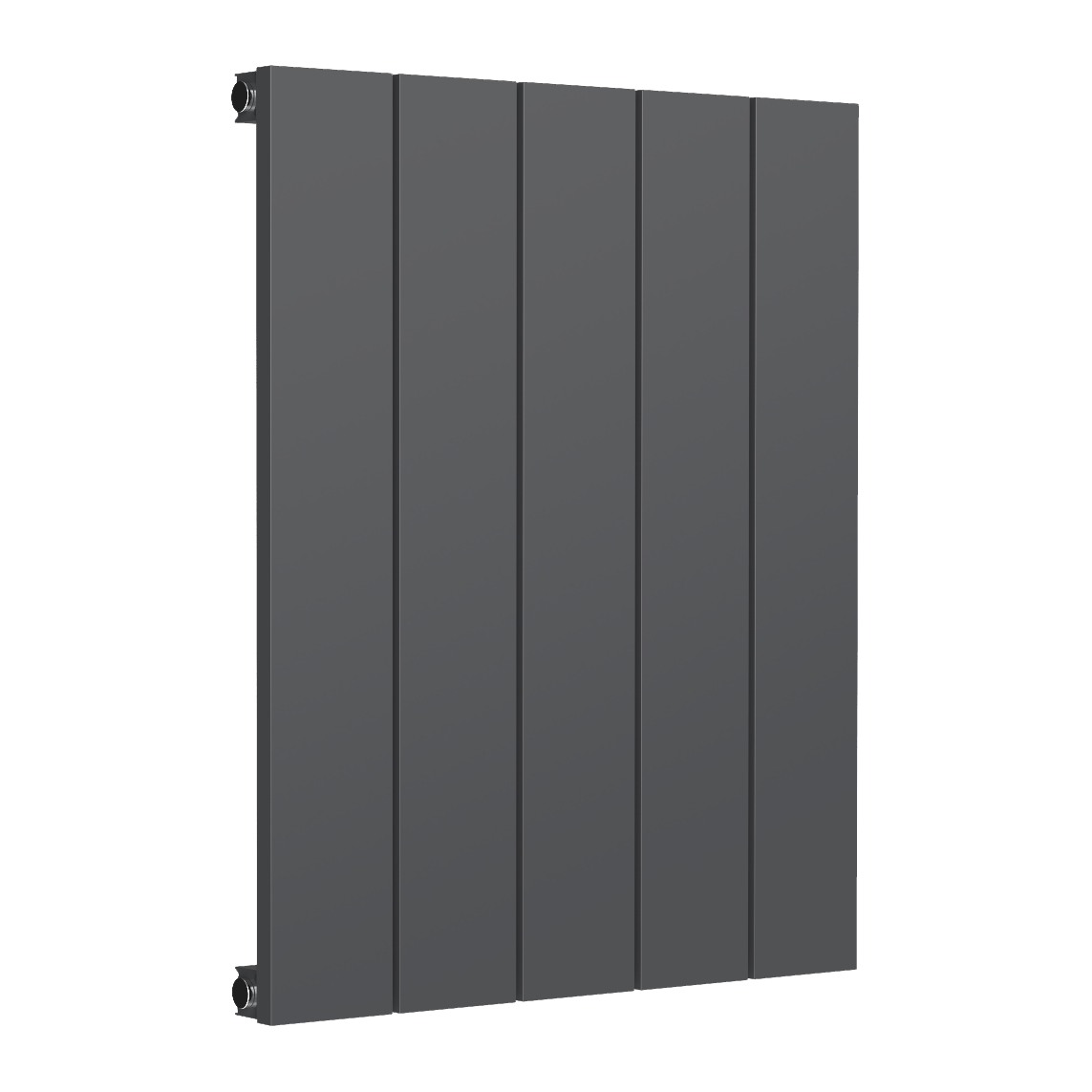

600 x 470 Anthracite
0.17 MB

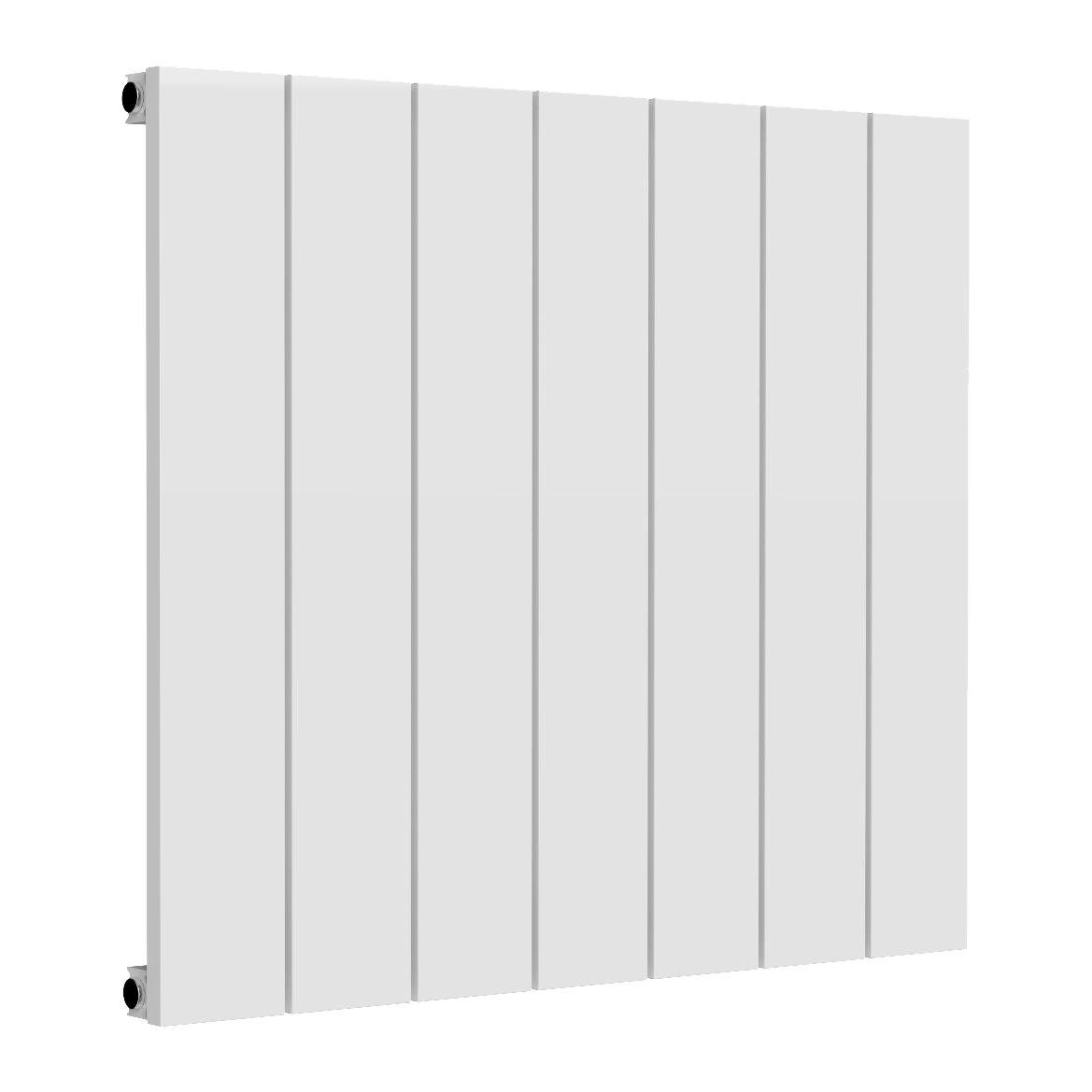

600 x 660 White
0.09 MB

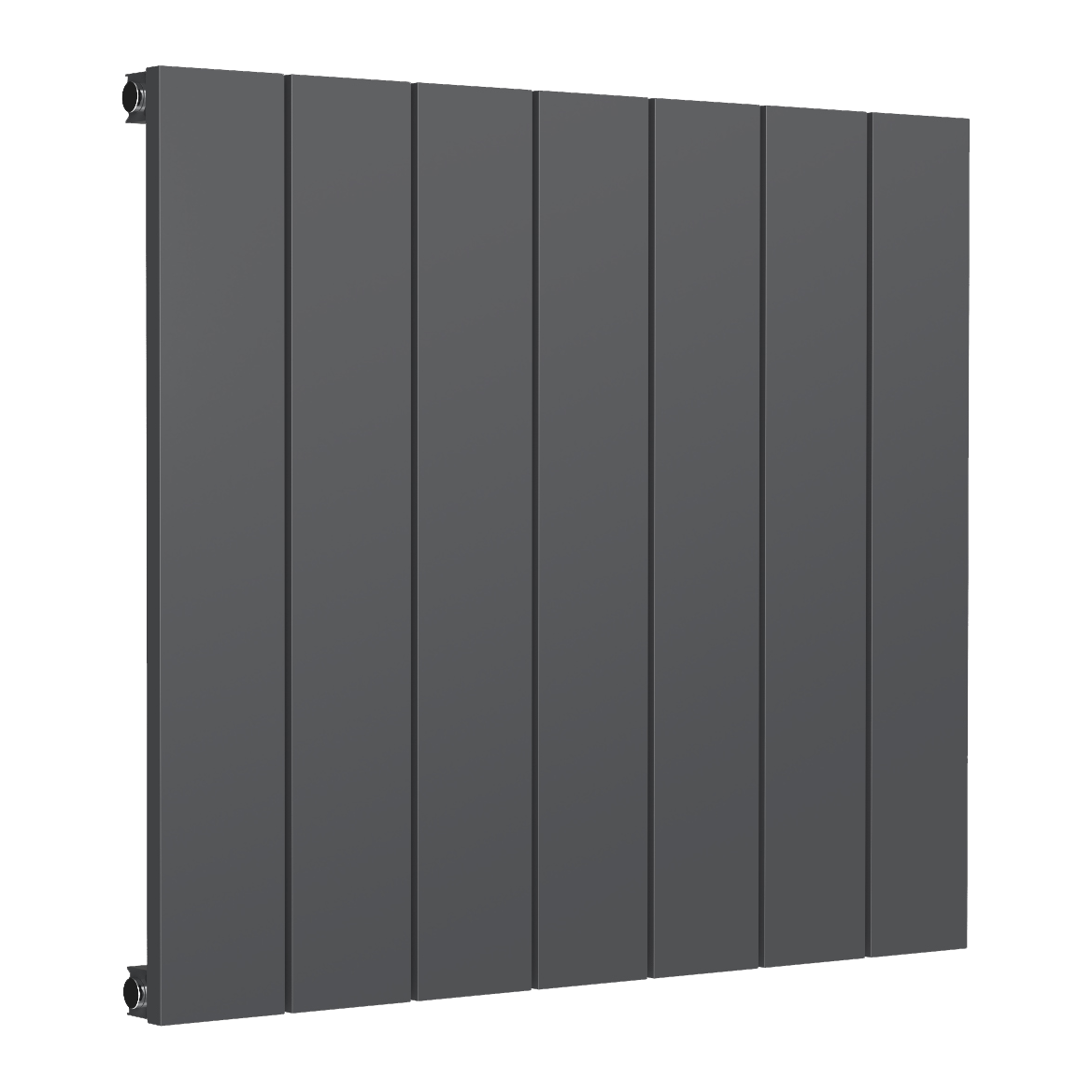

600 x 660 Anthracite
0.22 MB

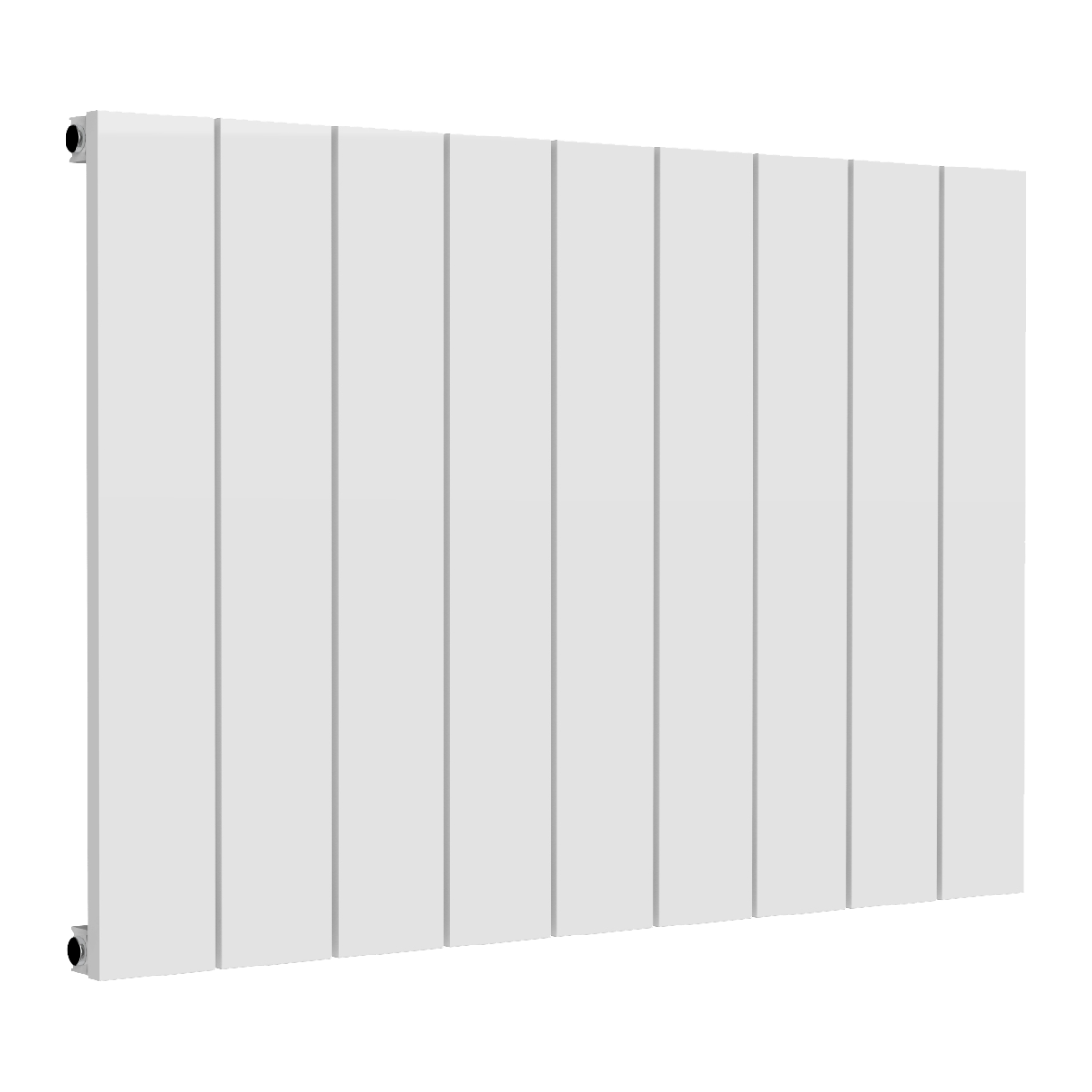

600 x 850 White
0.1 MB

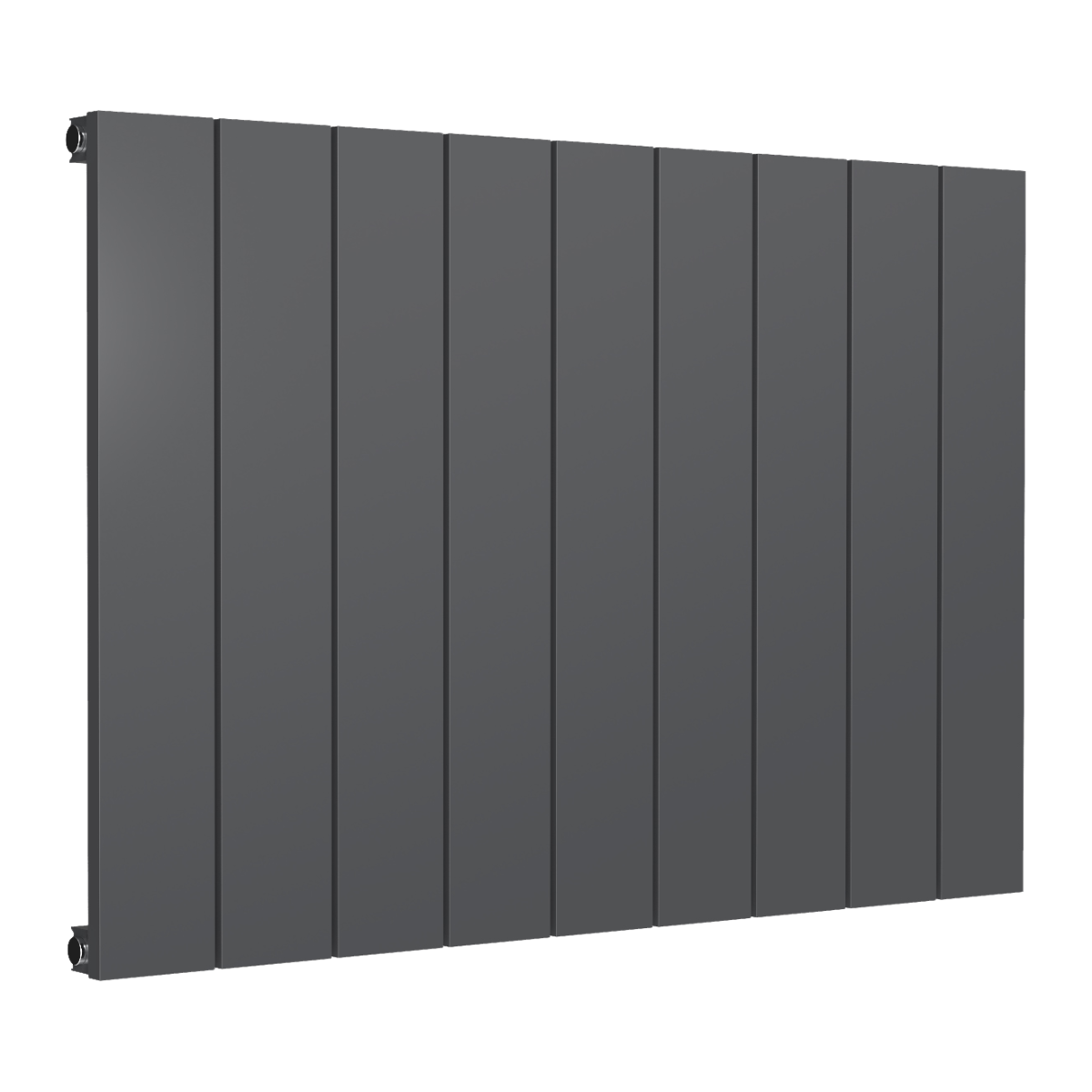

600 x 850 Anthracite
0.27 MB

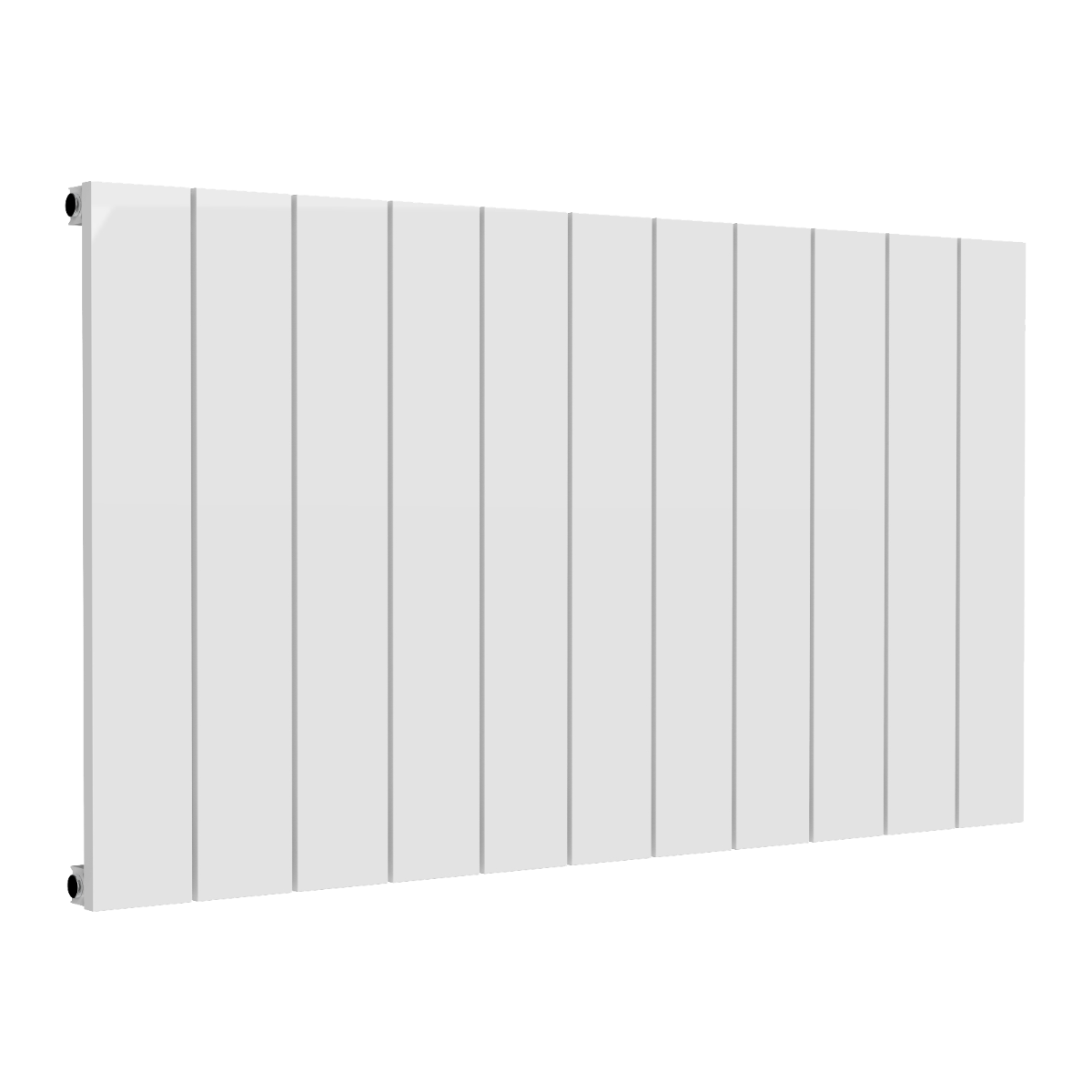

600 x 1040 White
0.09 MB

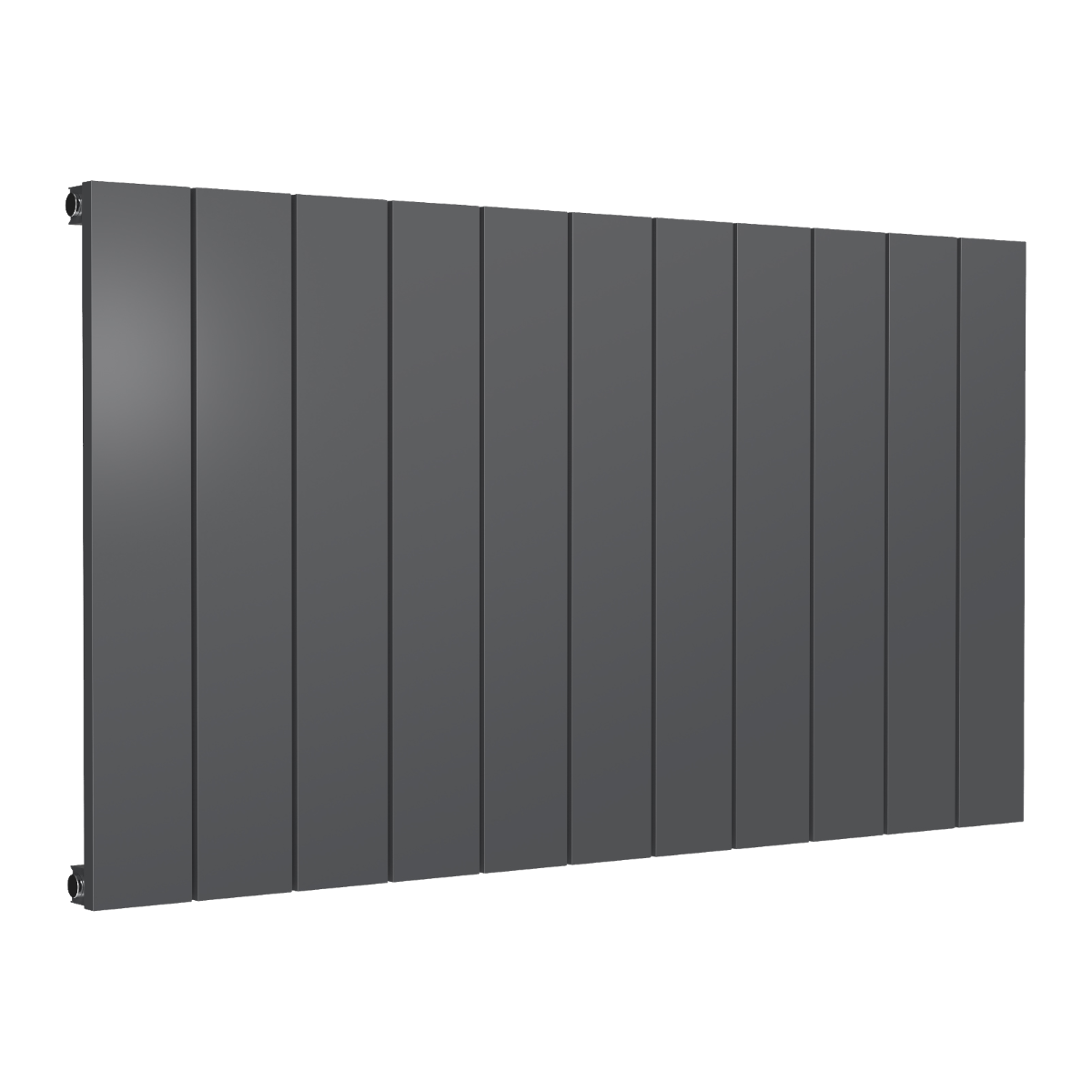

600 x 1040 Anthracite
0.25 MB

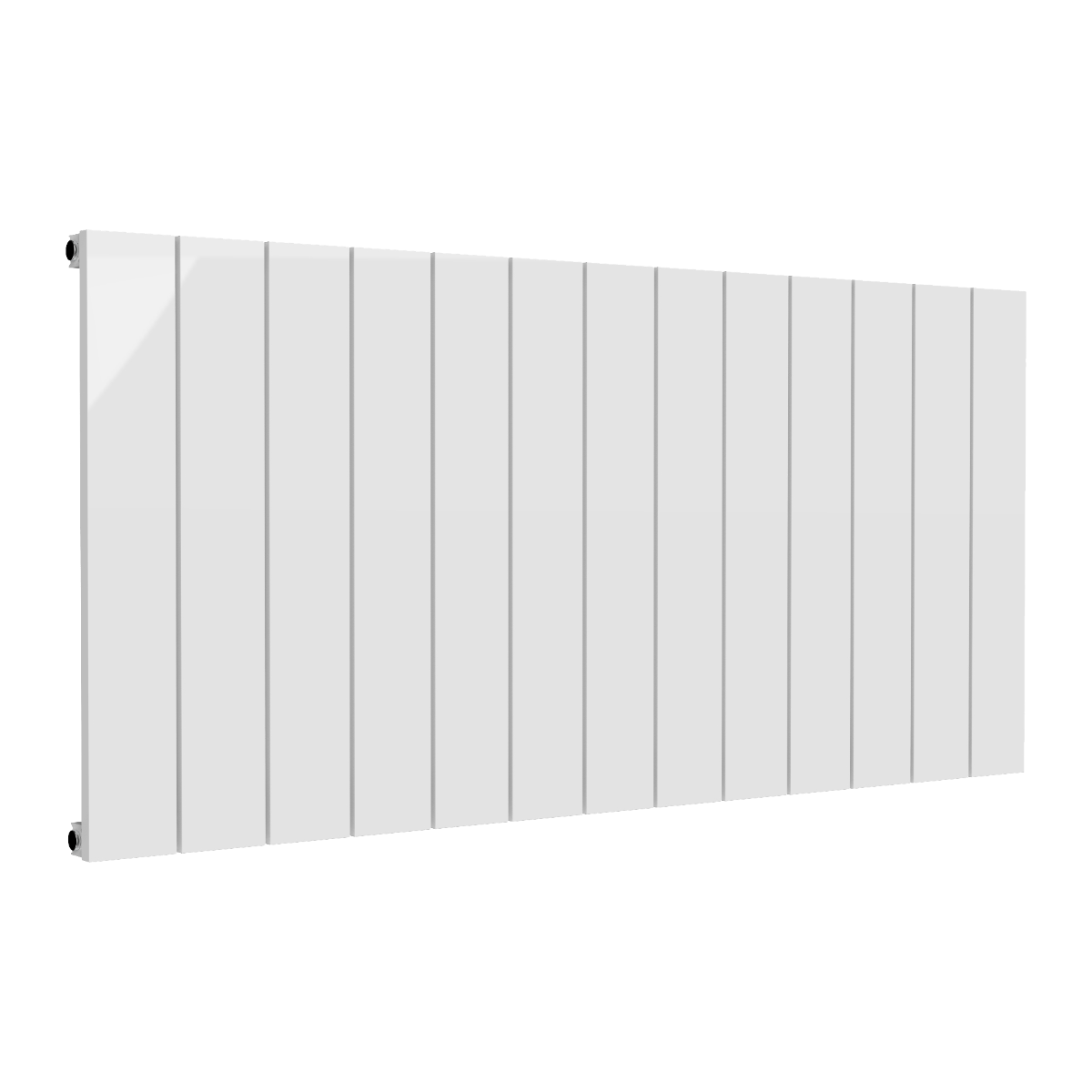

600 x 1230 White
0.08 MB
600 x 1230 Anthracite
0.24 MB

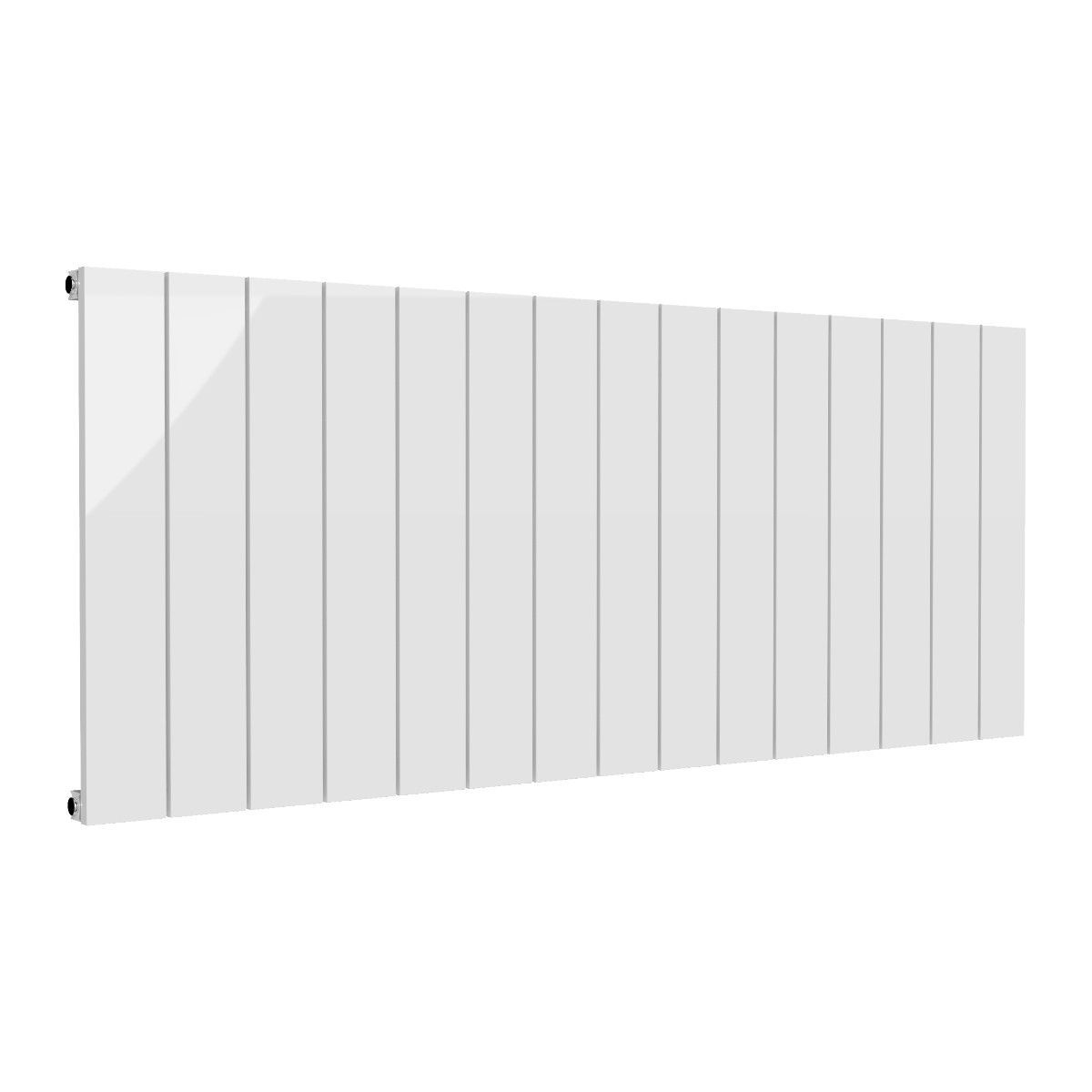

600 x 1420 White
0.07 MB
600 x 1420 Anthracite
0.22 MB

Roomset Product Images

Casina Horizontal
0.13 MB
Casina Horizontal
0.03 MB

High Resolution Images

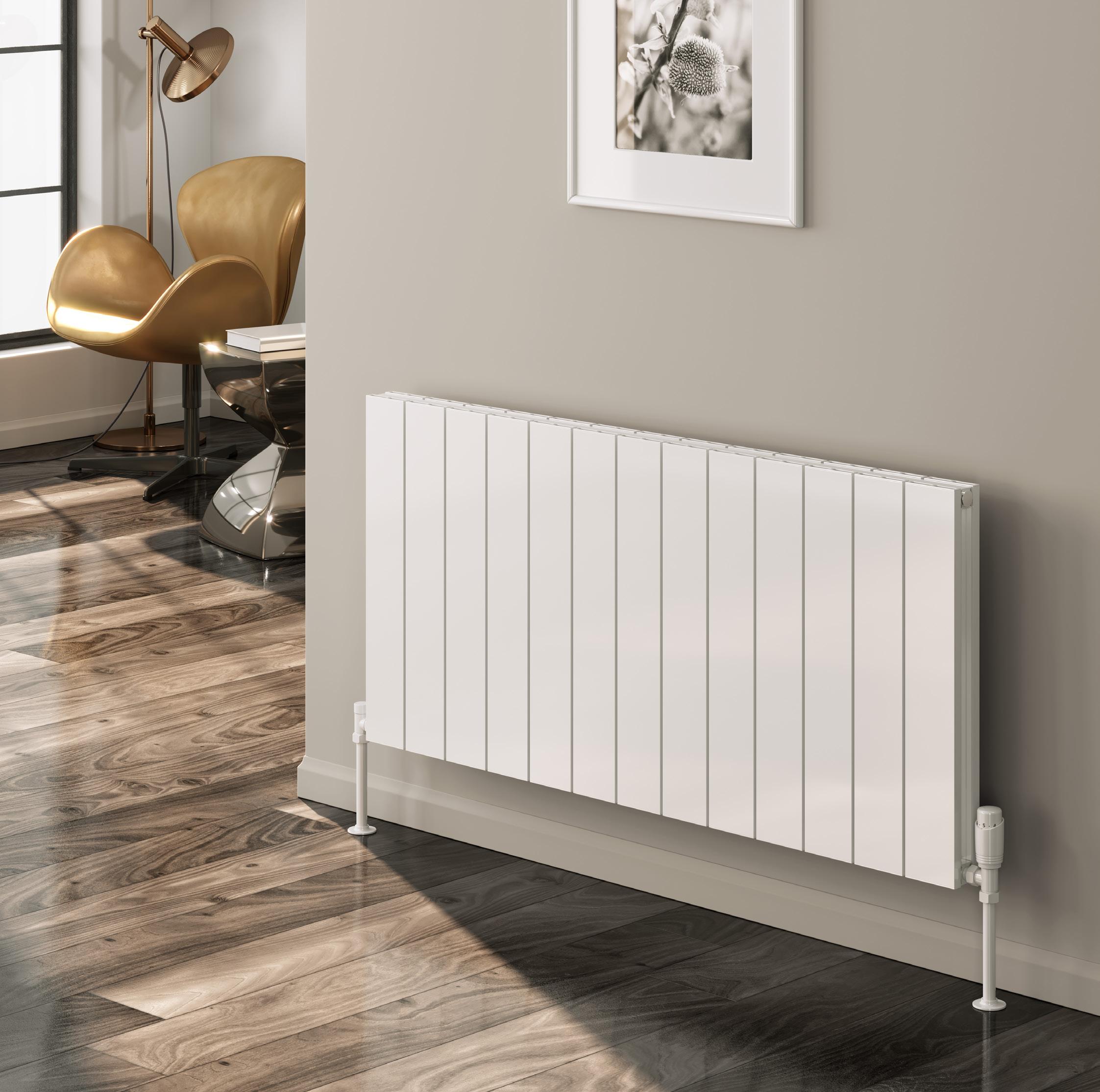

Reina Casina Horizontal 600x1230 White Roomset
0.37 MB
Tech Drawings

Technical Drawings

Casina Horizontal Technical Drawing
0.28 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
A-CSN060047WD 600 470 White £270.00 Log in to see stock
A-CSN060047AD 600 470 Anthracite £270.00 Log in to see stock
A-CSN060066WD 600 660 White £352.00 Log in to see stock
A-CSN060066AD 600 660 Anthracite £352.00 Log in to see stock
A-CSN060085WD 600 850 White £440.00 Log in to see stock
A-CSN060085AD 600 850 Anthracite £440.00 Log in to see stock
A-CSN060104WD 600 1040 White £520.00 Log in to see stock
A-CSN060104AD 600 1040 Anthracite £520.00 Log in to see stock
A-CSN060123WD 600 1230 White £650.00 Log in to see stock
A-CSN060123AD 600 1230 Anthracite £650.00 Log in to see stock
A-CSN060142WD 600 1420 White £740.00 Log in to see stock
A-CSN060142AD 600 1420 Anthracite £740.00 Log in to see stock
A-CSC6047SW 600 470 White £210.00 Log in to see stock
A-CSC6047SA 600 470 Anthracite £210.00 Log in to see stock
A-CSC6066SW 600 660 White £262.00 Log in to see stock
A-CSC6066SA 600 660 Anthracite £262.00 Log in to see stock
A-CSC6085SW 600 850 White £314.00 Log in to see stock
A-CSC6085SA 600 850 Anthracite £314.00 Log in to see stock
A-CSC6104SW 600 1040 White £394.00 Log in to see stock
A-CSC6104SA 600 1040 Anthracite £394.00 Log in to see stock
A-CSC6123SW 600 1230 White £444.00 Log in to see stock
A-CSC6123SA 600 1230 Anthracite £444.00 Log in to see stock
A-CSC6142SW 600 1420 White £494.00 Log in to see stock
A-CSC6142SA 600 1420 Anthracite £494.00 Log in to see stock
