Casina Vertical Aluminium Radiator

5 Years Guarantee
Material: Aluminium
Central Heating

The Casina Vertical Radiator combines modern elegance with exceptional performance, featuring a sleek vertical flat panel design in anthracite or white, durable aluminium construction, and impressive heat output, backed confidently by a 5-year guarantee.

  • Available in 2 colours and 5 sizes
  • Durable Aluminium Construction
  • 5 Years Guarantee
  • anthracite
  • white

Product Resource Centre

1800mm HEIGHT 375mm WIDTH
1800mm HEIGHT 280mm WIDTH
1800mm HEIGHT 470mm WIDTH
1800mm HEIGHT 565mm WIDTH
1800mm HEIGHT 660mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
1800 375 Double 375 55 86 - 8
1800 280 Double 280 55 86 - 6
1800 470 Double 470 55 86 - 10
1800 565 Double 565 55 86 - 12
1800 280 Single 280 35 65 - 3
1800 375 Single 375 35 65 - 4
1800 470 Single 470 35 65 - 5
1800 565 Single 565 35 65 - 6
1800 660 Single 660 35 65 - 7
1800 660 Double 660 55 86 - 12

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
A-CSN180037AD 1800 375 Anthracite 5252 1540 4103 1203 2093 614
A-CSN180037WD 1800 375 White 5252 1540 4103 1203 2093 614
A-CSN180028AD 1800 280 Anthracite 3939 1155 3077 902 1569 460
A-CSN180028WD 1800 280 White 3939 1155 3077 902 1569 460
A-CSN180047AD 1800 470 Anthracite 6566 1926 5130 1504 2616 767
A-CSN180047WD 1800 470 White 6566 1926 5130 1504 2616 767
A-CSN180056AD 1800 565 Anthracite 7879 2311 6155 1805 3139 921
A-CSN180056WD 1800 565 White 7879 2311 6155 1805 3139 921
A-CSC18028SW 1800 280 White 2834 831 2214 649 1129 331
A-CSC18028SA 1800 280 Anthracite 2834 831 2214 649 1129 331
A-CSC18037SW 1800 375 White 3779 1108 2952 866 1506 442
A-CSC18037SA 1800 375 Anthracite 3779 1108 2952 866 1506 442
A-CSC18047SW 1800 470 White 4724 1385 3691 1082 1882 552
A-CSC18047SA 1800 470 Anthracite 4724 1385 3691 1082 1882 552
A-CSC18056SW 1800 565 White 5668 1662 4428 1299 2258 662
A-CSC18056SA 1800 565 Anthracite 5668 1662 4428 1299 2258 662
A-CSC18066SW 1800 660 White 6613 1939 5166 1515 2635 773
A-CSC18066SA 1800 660 Anthracite 6613 1939 5166 1515 2635 773
A-CSN180066WD 1800 660 White 9192 2696 7181 2106 3662 1074
A-CSN180066AD 1800 660 Anthracite 9192 2696 7181 2106 3662 1074
Images

Cutout Product Images

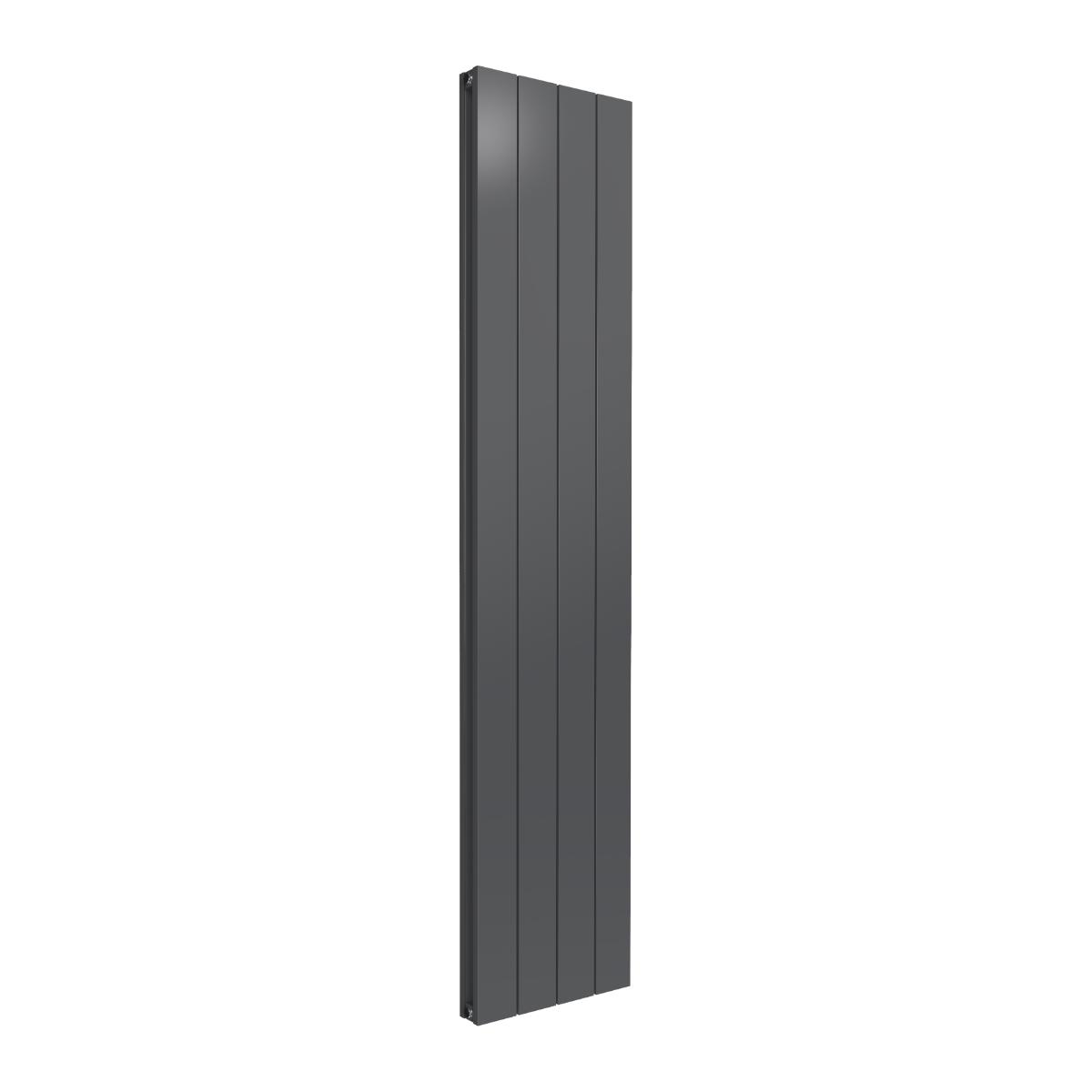

1800 x 375 Anthracite
0.09 MB
1800 x 375 White
0.04 MB
1800 x 280 Anthracite
0.07 MB
1800 x 280 White
0.04 MB

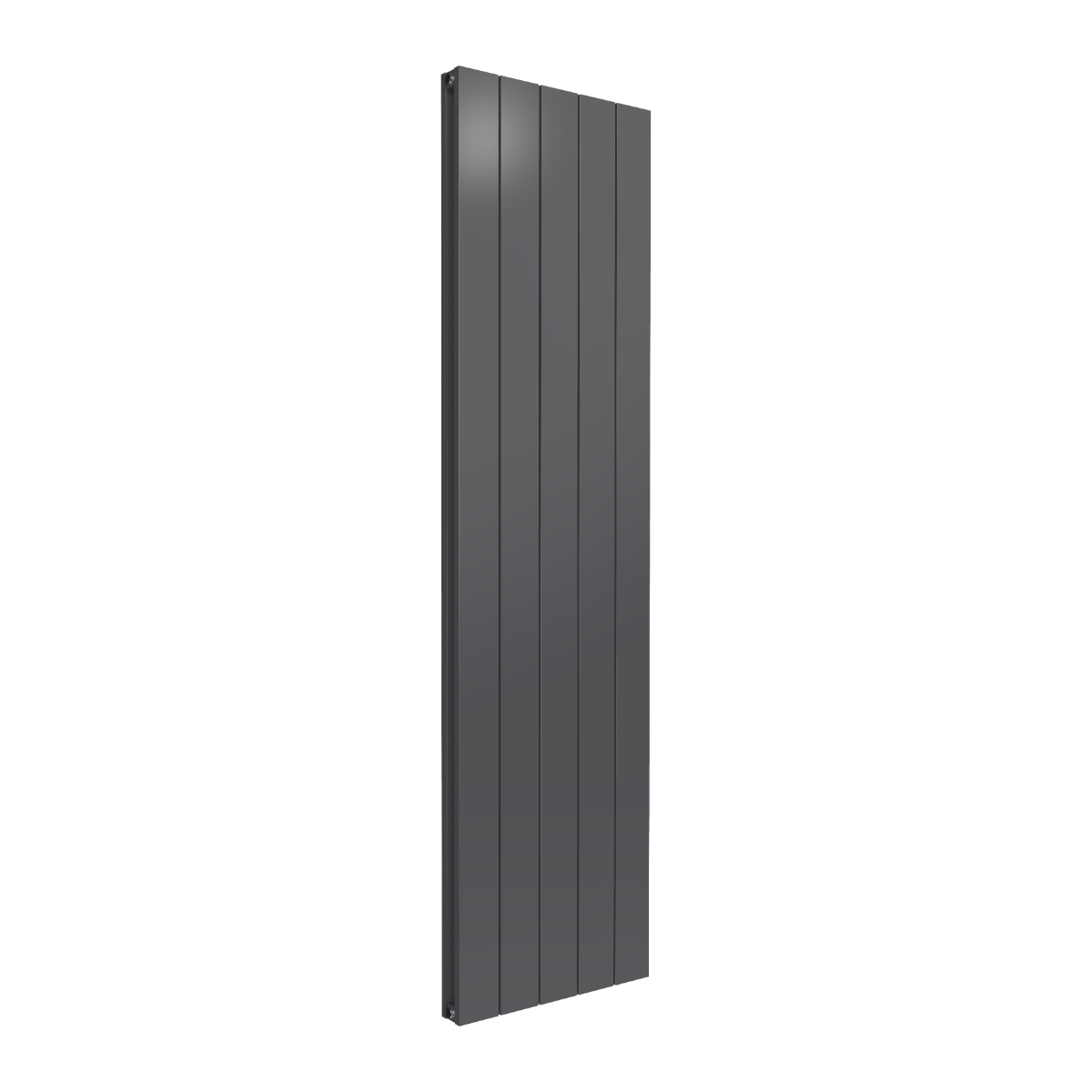

1800 x 470 Anthracite
0.1 MB

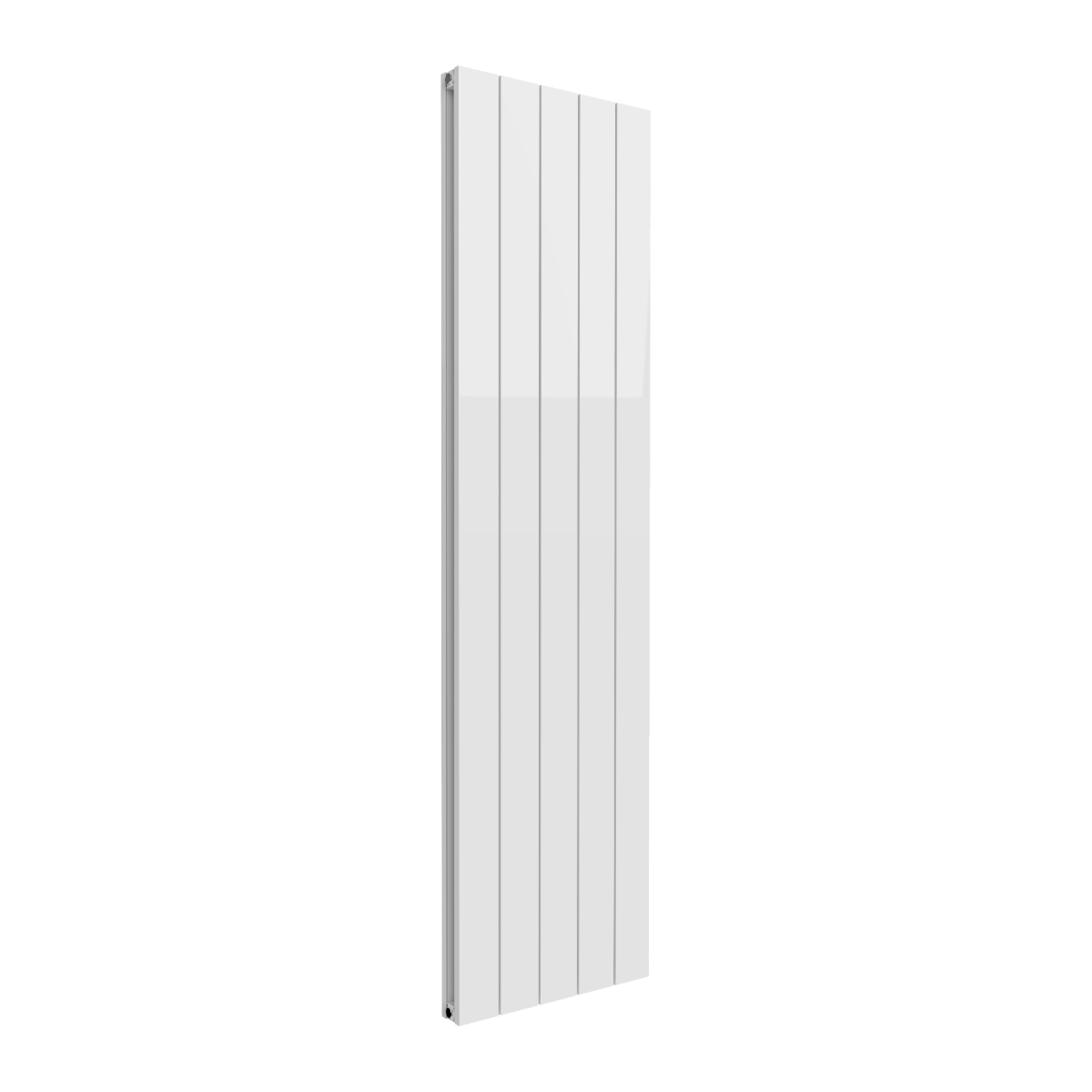

1800 x 470 White
0.05 MB

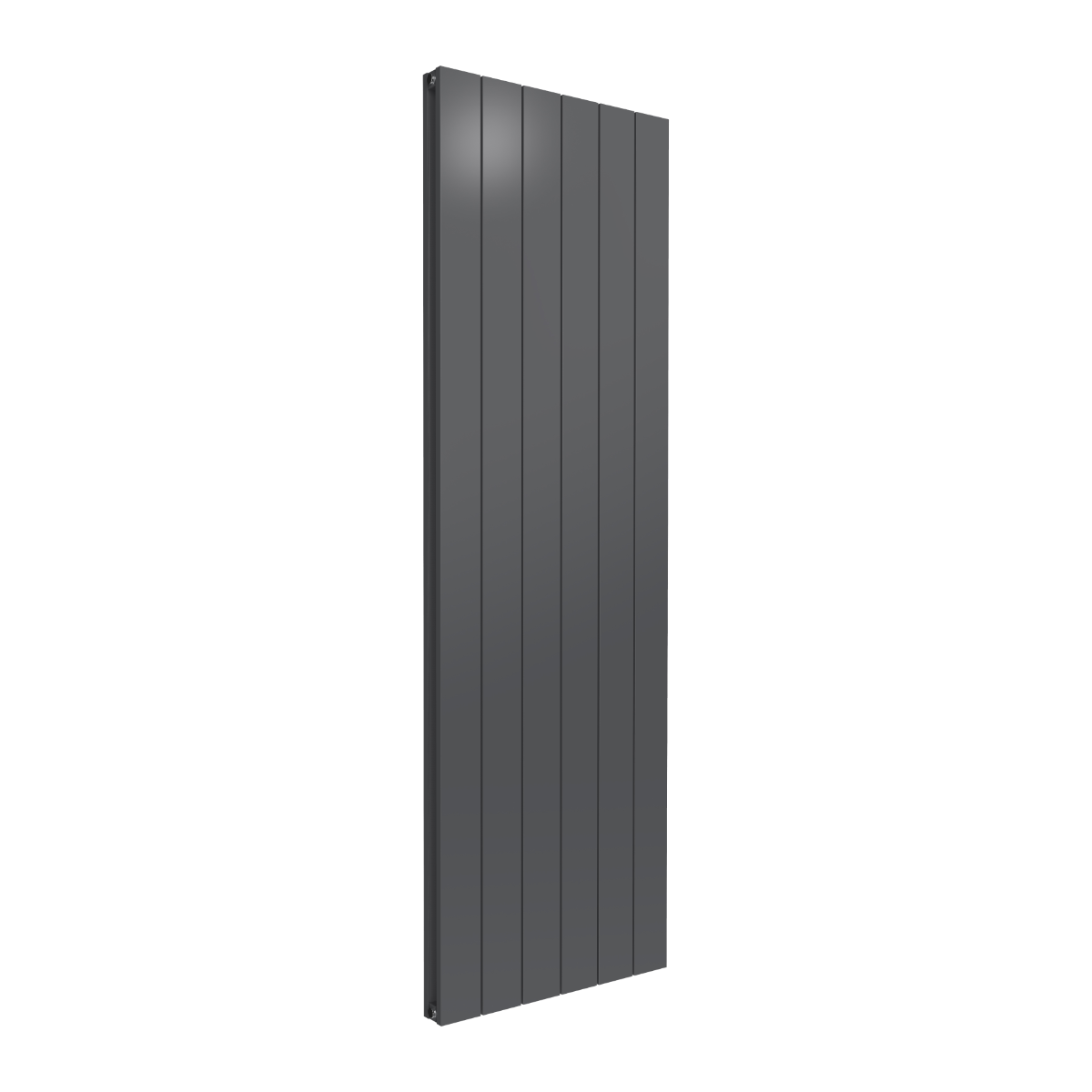

1800 x 565 Anthracite
0.11 MB

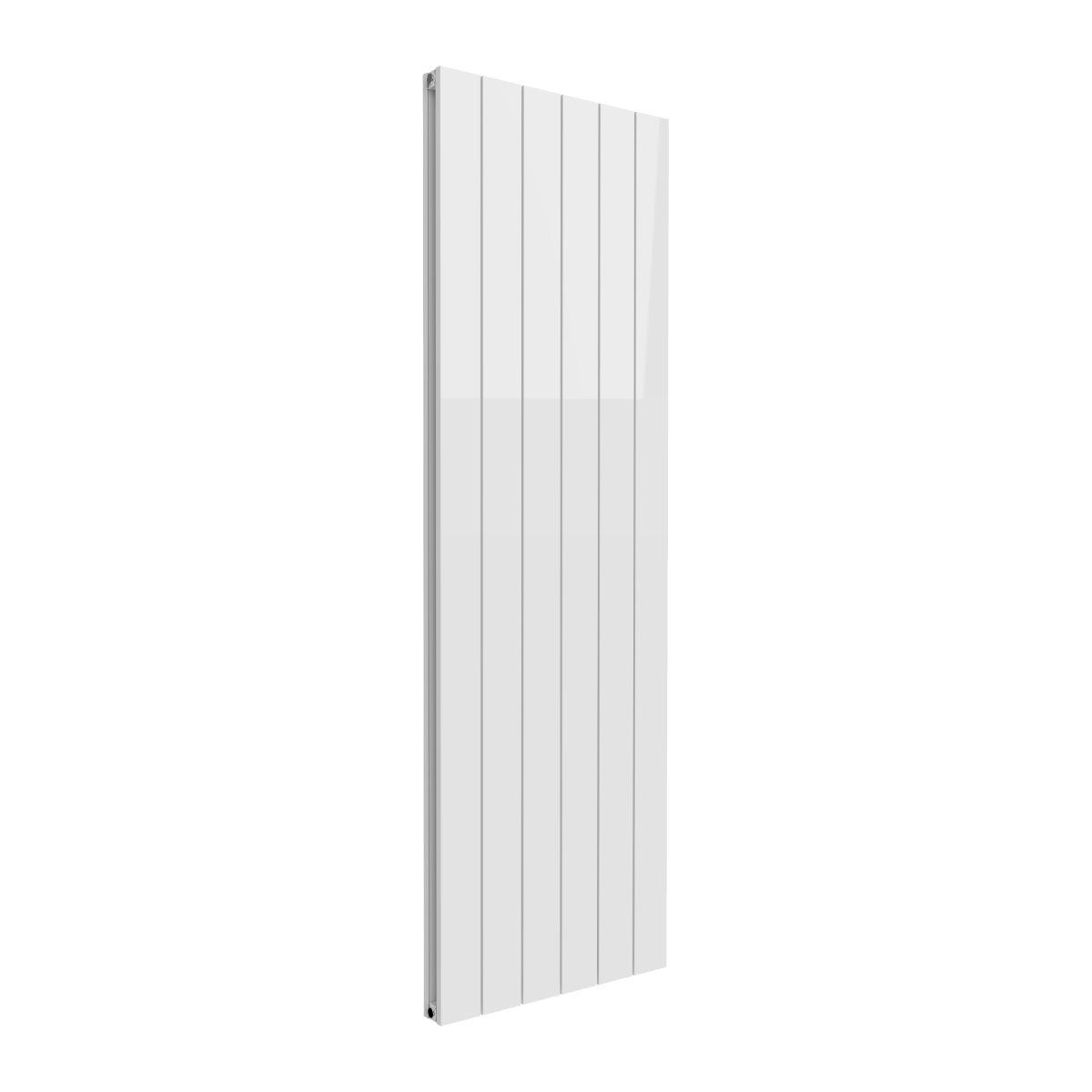

1800 x 565 White
0.05 MB

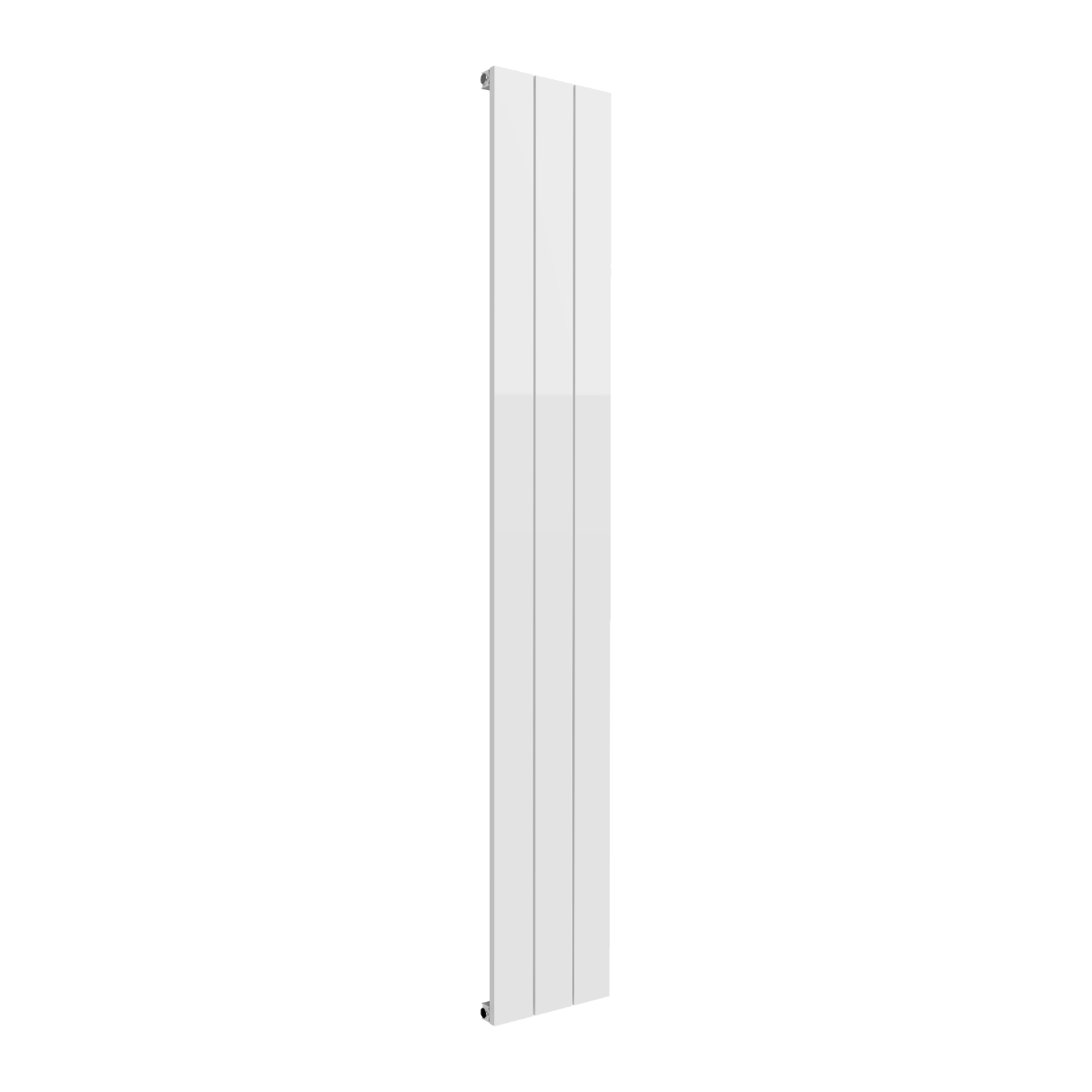

1800 x 280 White
0.03 MB

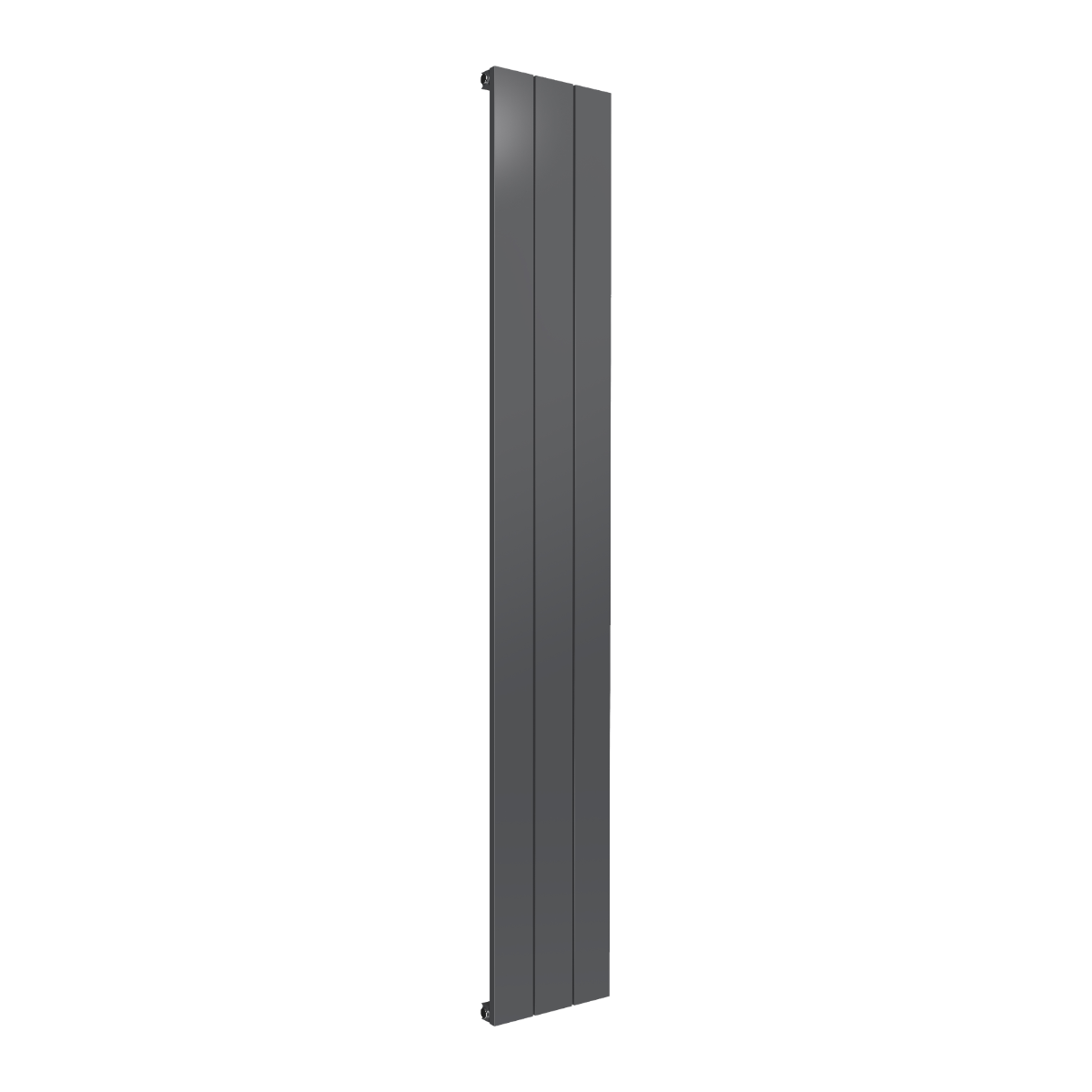

1800 x 280 Anthracite
0.06 MB

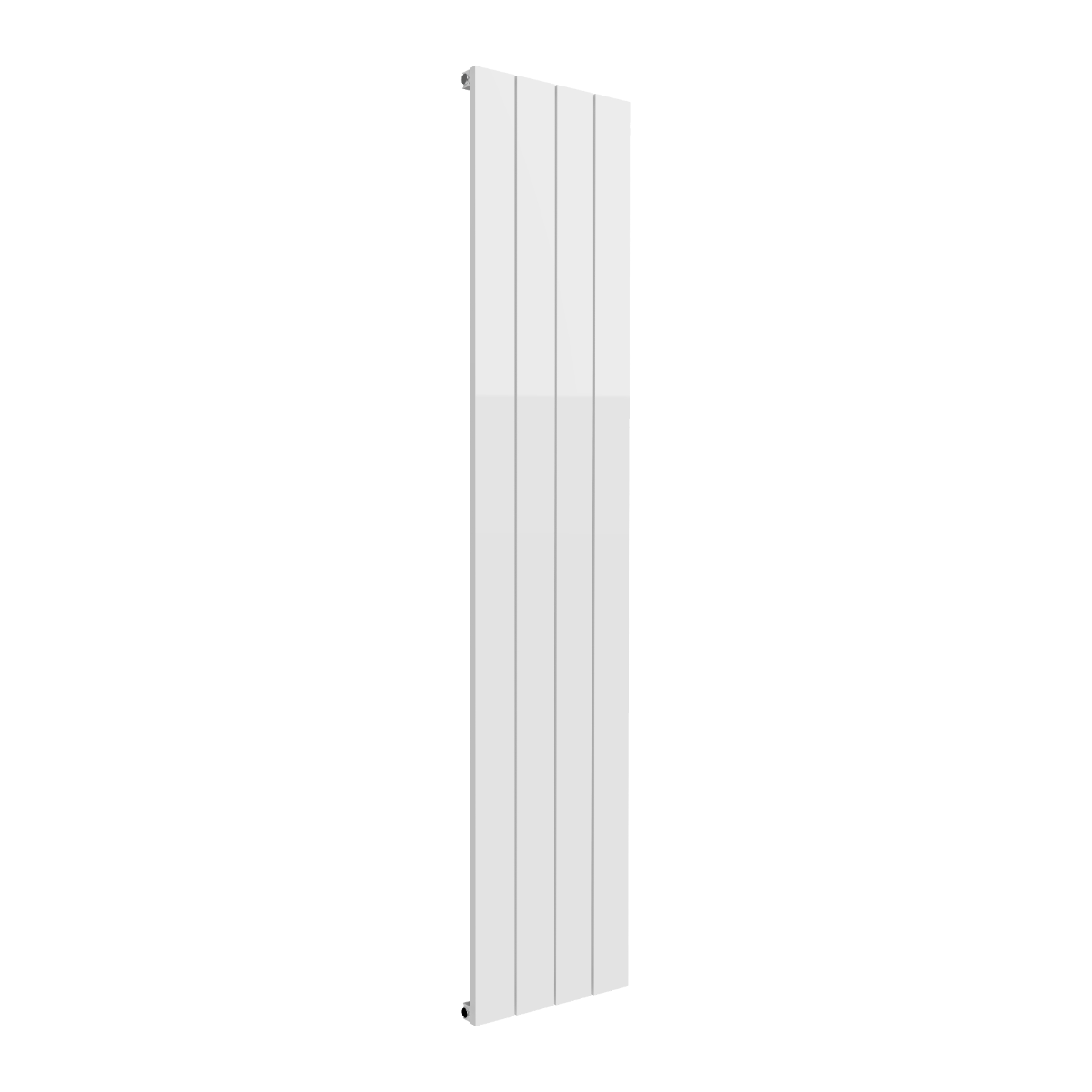

1800 x 375 White
0.03 MB

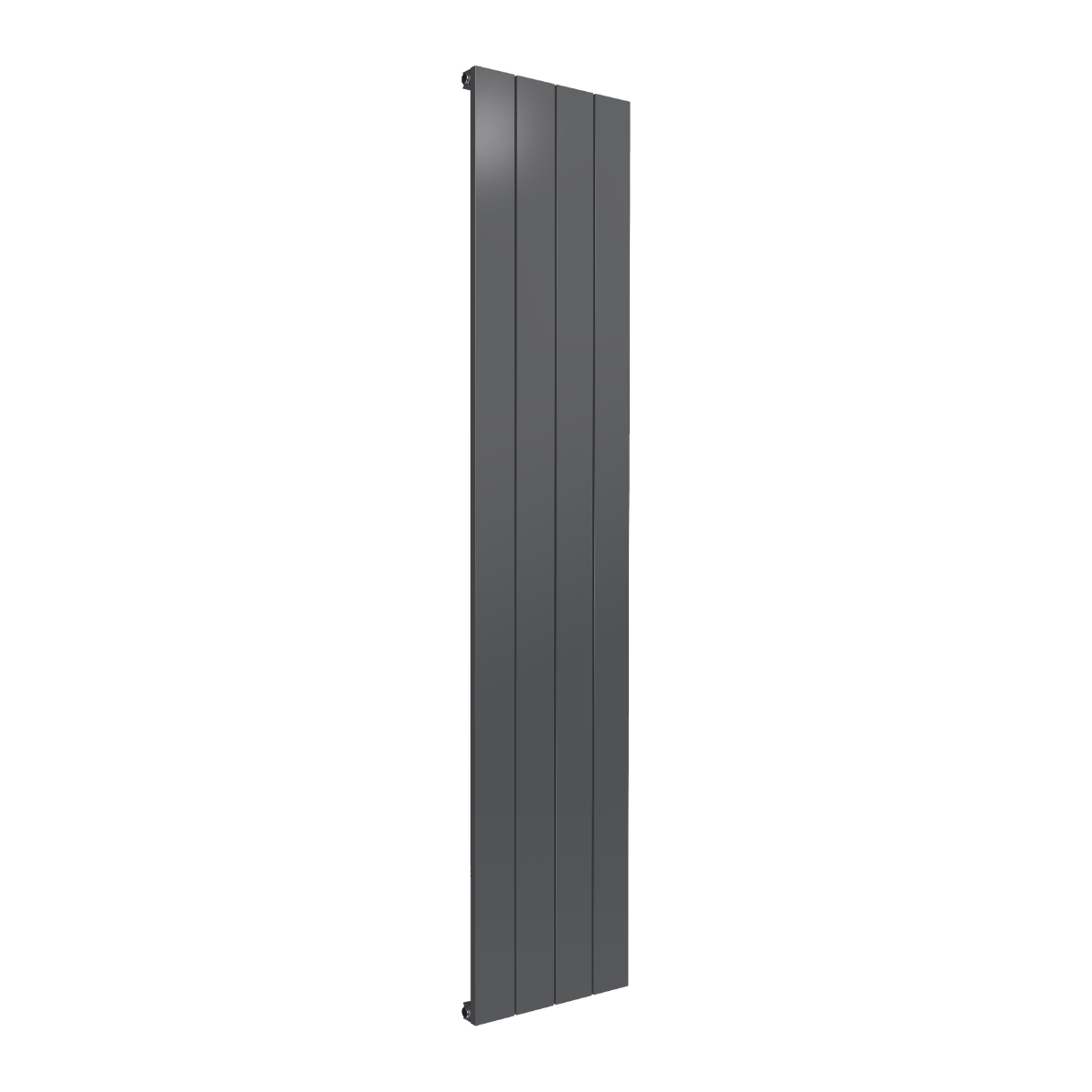

1800 x 375 Anthracite
0.08 MB
1800 x 470 White
0.04 MB

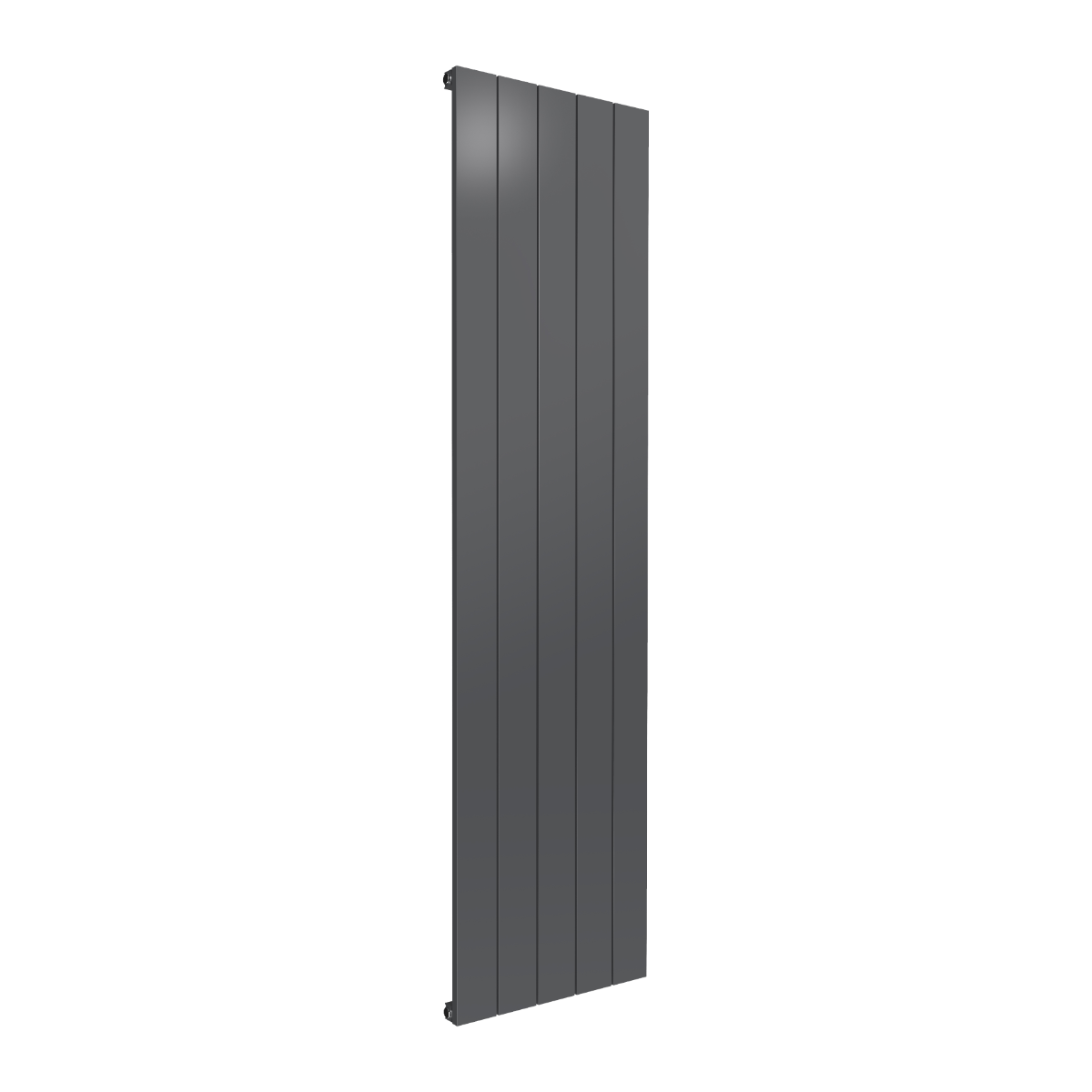

1800 x 470 Anthracite
0.09 MB

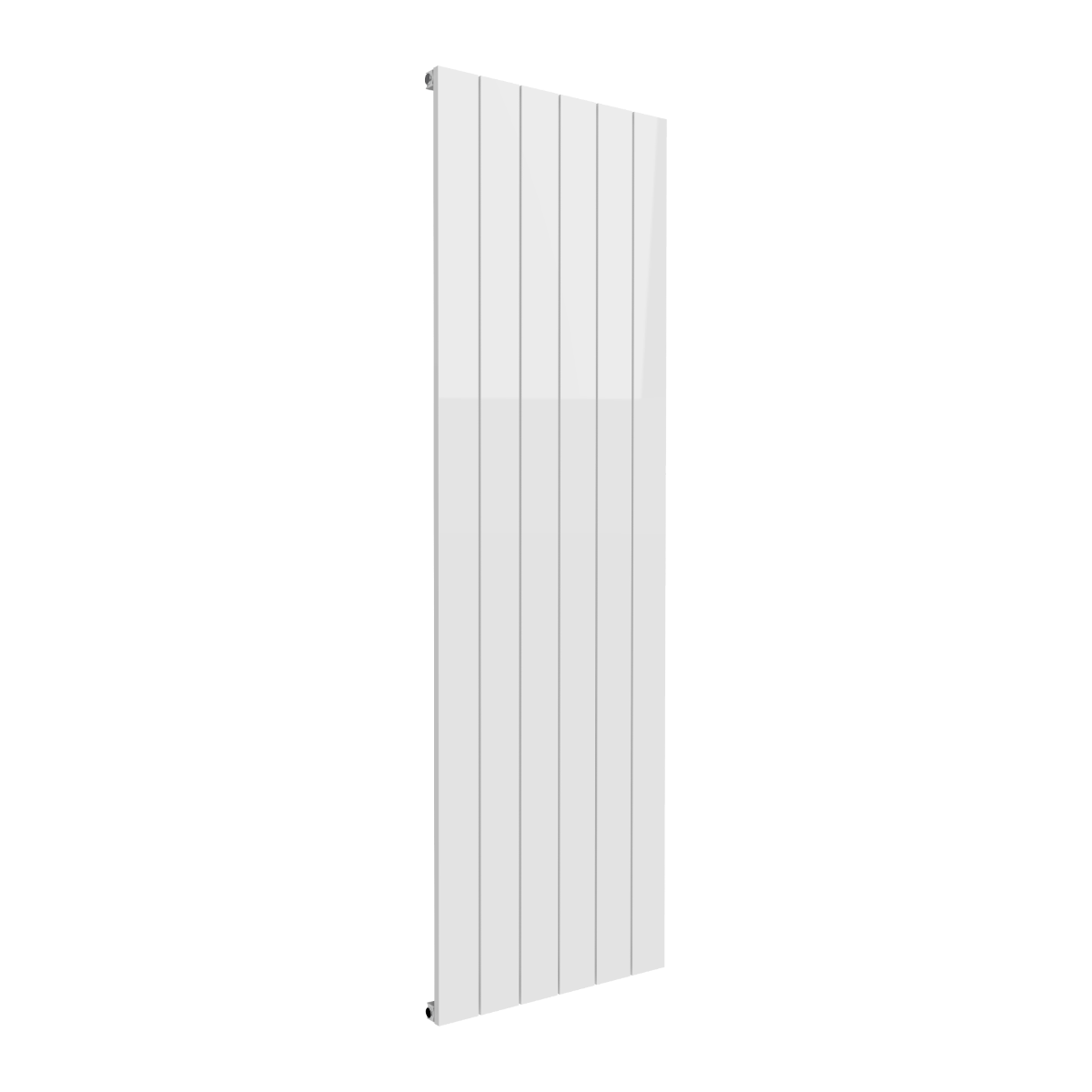

1800 x 565 White
0.04 MB

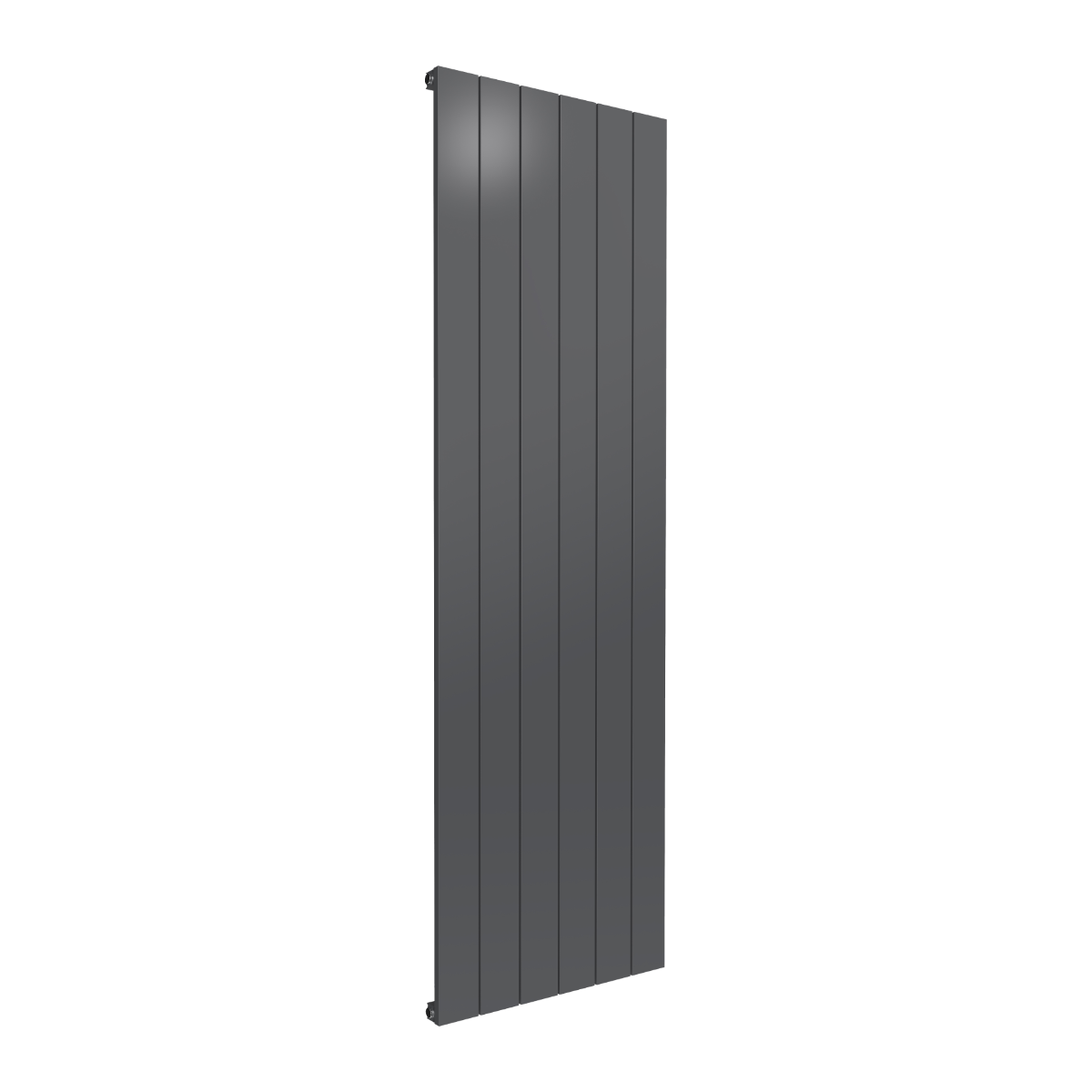

1800 x 565 Anthracite
0.1 MB
1800 x 660 White
0.04 MB
1800 x 660 Anthracite
0.11 MB
1800 x 660 White
0.05 MB
1800 x 660 Anthracite
0.11 MB

Roomset Product Images

Casina Vertical
0.11 MB
Casina Vertical
0.02 MB

High Resolution Images

Reina Casina Vertical 1800x565 Anthracite Roomset
0.31 MB
Tech Drawings

Technical Drawings

Casina Vertical Technical Drawing
0.28 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
A-CSN180037AD 1800 375 Anthracite £496.00 Log in to see stock
A-CSN180037WD 1800 375 White £496.00 Log in to see stock
A-CSN180028AD 1800 280 Anthracite £394.00 Log in to see stock
A-CSN180028WD 1800 280 White £394.00 Log in to see stock
A-CSN180047AD 1800 470 Anthracite £598.00 Log in to see stock
A-CSN180047WD 1800 470 White £598.00 Log in to see stock
A-CSN180056AD 1800 565 Anthracite £698.00 Log in to see stock
A-CSN180056WD 1800 565 White £698.00 Log in to see stock
A-CSC18028SW 1800 280 White £290.00 Log in to see stock
A-CSC18028SA 1800 280 Anthracite £290.00 Log in to see stock
A-CSC18037SW 1800 375 White £336.00 Log in to see stock
A-CSC18037SA 1800 375 Anthracite £336.00 Log in to see stock
A-CSC18047SW 1800 470 White £390.00 Log in to see stock
A-CSC18047SA 1800 470 Anthracite £390.00 Log in to see stock
A-CSC18056SW 1800 565 White £450.00 Log in to see stock
A-CSC18056SA 1800 565 Anthracite £450.00 Log in to see stock
A-CSC18066SW 1800 660 White £530.00 Log in to see stock
A-CSC18066SA 1800 660 Anthracite £530.00 Log in to see stock
A-CSN180066WD 1800 660 White £798.00 Log in to see stock
A-CSN180066AD 1800 660 Anthracite £798.00 Log in to see stock
