Cavo Stainless Steel Towel Rail
25 Years Guarantee
Material: Stainless Steel
Central Heating
Electric
Dual Fuel
The Cavo Modern Offset Ladder Towel Radiator showcases horizontal oval tubes crafted from high-quality stainless steel, available in brushed or polished finishes. Its reversible design allows for left or right-handed mounting, while offering exceptional heat output and a 25-year guarantee, ensuring both style and durability for your space.
- Reversible Design - Can Be Mounted Left or Right Handed
- Available in 2 colours and 4 sizes
- Durable Stainless Steel Construction
- 25 Years Guarantee
-
brushed stainless steel
-
polished stainless steel
530mm HEIGHT 500mm WIDTH
880mm HEIGHT 500mm WIDTH
1230mm HEIGHT 500mm WIDTH
1580mm HEIGHT 500mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 530 | 500 | 50 | 65-80 | 105-120 | - | 5 |
| 880 | 500 | 50 | 65-80 | 105-120 | - | 8 |
| 1230 | 500 | 50 | 65-80 | 105-120 | - | 11 |
| 1580 | 500 | 50 | 65-80 | 105-120 | - |

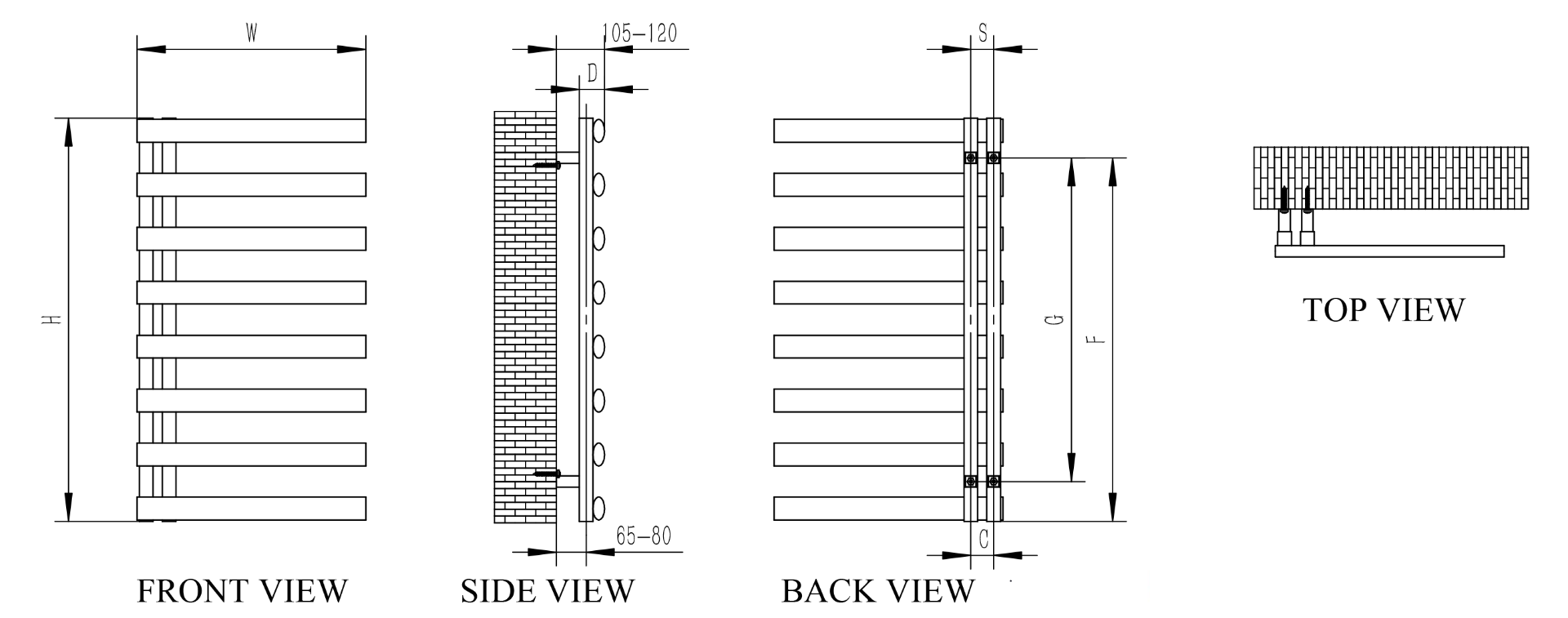

Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| RNS-CV505B | 530 | 500 | Brushed Stainless Steel |
630 | 185 | 807 | 237 |
| RNS-CV505P | 530 | 500 | Polished Stainless Steel |
630 | 185 | 807 | 237 |
| RNS-CV508B | 880 | 500 | Brushed Stainless Steel |
977 | 287 | 1251 | 367 |
| RNS-CV508P | 880 | 500 | Polished Stainless Steel |
977 | 287 | 1251 | 367 |
| RNS-CV512B | 1230 | 500 | Brushed Stainless Steel |
1235 | 362 | 1581 | 464 |
| RNS-CV512P | 1230 | 500 | Polished Stainless Steel |
1235 | 362 | 1581 | 464 |
| RNS-CV515B | 1580 | 500 | Brushed Stainless Steel |
1743 | 511 | 2231 | 654 |
| RNS-CV515P | 1580 | 500 | Polished Stainless Steel |
1743 | 511 | 2231 | 654 |
Downloads
Installation Guide
0.35 MB
Product Datasheet
Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Technical Drawings
Cutout Product Images
530 x 500 Brushed Stainless Steel
0.37 MB
530 x 500 Polished Stainless Steel
0.37 MB
880 x 500 Brushed Stainless Steel
0.3 MB
880 x 500 Polished Stainless Steel
0.32 MB
1230 x 500 Brushed Stainless Steel
0.25 MB
1230 x 500 Polished Stainless Steel
0.3 MB
1580 x 500 Brushed Stainless Steel
0.23 MB
1580 x 500 Polished Stainless Steel
0.28 MB
Roomset Product Images
High Resolution Images
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| RNS-CV505B | 530 | 500 |
Brushed Stainless Steel |
£295.00 | Log in to see stock |
| RNS-CV505P | 530 | 500 |
Polished Stainless Steel |
£295.00 | Log in to see stock |
| RNS-CV508B | 880 | 500 |
Brushed Stainless Steel |
£394.00 | Log in to see stock |
| RNS-CV508P | 880 | 500 |
Polished Stainless Steel |
£394.00 | Log in to see stock |
| RNS-CV512B | 1230 | 500 |
Brushed Stainless Steel |
£482.00 | Log in to see stock |
| RNS-CV512P | 1230 | 500 |
Polished Stainless Steel |
£482.00 | Log in to see stock |
| RNS-CV515B | 1580 | 500 |
Brushed Stainless Steel |
£658.00 | Log in to see stock |
| RNS-CV515P | 1580 | 500 |
Polished Stainless Steel |
£658.00 | Log in to see stock |
