Classico Horizontal Column Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating

The Classico Horizontal Radiator brings a timeless column design to any space, combining classic styling with reliable and efficient heating performance. Its low, wide profile makes it ideal for placement under windows or along feature walls, delivering consistent warmth while enhancing the overall look of the room. Perfectly suited to both traditional and modern interiors, the Classico offers a balance of practicality and elegant design. Built for durability and long-term use, it is crafted from high-quality steel to ensure dependable heat output and everyday reliability.

  • Available in 1 colour and 28 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white

Product Resource Centre

500mm HEIGHT 425mm WIDTH
500mm HEIGHT 605mm WIDTH
500mm HEIGHT 830mm WIDTH
500mm HEIGHT 965mm WIDTH
500mm HEIGHT 1190mm WIDTH
600mm HEIGHT 425mm WIDTH
600mm HEIGHT 605mm WIDTH
600mm HEIGHT 830mm WIDTH
600mm HEIGHT 965mm WIDTH
600mm HEIGHT 1190mm WIDTH
300mm HEIGHT 830mm WIDTH
300mm HEIGHT 965mm WIDTH
300mm HEIGHT 1190mm WIDTH
300mm HEIGHT 1370mm WIDTH
400mm HEIGHT 425mm WIDTH
400mm HEIGHT 605mm WIDTH
400mm HEIGHT 830mm WIDTH
400mm HEIGHT 965mm WIDTH
400mm HEIGHT 1190mm WIDTH
400mm HEIGHT 1370mm WIDTH
500mm HEIGHT 1370mm WIDTH
600mm HEIGHT 1370mm WIDTH
750mm HEIGHT 425mm WIDTH
750mm HEIGHT 605mm WIDTH
750mm HEIGHT 830mm WIDTH
750mm HEIGHT 965mm WIDTH
750mm HEIGHT 1190mm WIDTH
750mm HEIGHT 1370mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Columns Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
500 425 Two 425 68 92 9.8kg 9
500 605 Two 605 68 92 13.6kg 13
500 830 Two 830 68 92 18.1kg 18
500 965 Two 965 68 92 20.9kg 21
500 1190 Two 1190 68 92 25.7kg 26
600 425 Two 425 68 92 11.1kg 9
600 605 Two 605 68 92 15.4kg 13
600 830 Two 830 68 92 20.6kg 18
600 965 Two 965 68 92 23.8kg 21
600 1190 Two 1190 68 92 29.4kg 26
300 830 Three 830 68 118 18.5kg 18
300 965 Three 965 68 118 21.3kg 21
300 1190 Three 1190 68 118 26.3kg 26
300 1370 Three 1370 68 118 30.1kg 30
400 425 Three 425 68 118 11.8kg 9
400 605 Three 605 68 118 16.4kg 13
400 830 Three 830 68 118 22.2kg 18
400 965 Three 965 68 118 25.6kg 21
400 965 Three 965 68 118 25.6kg 26
400 1370 Three 1370 68 118 36.3kg 30
500 1370 Three 1370 68 118 42.5kg 30
600 1370 Three 1370 68 118 48.8kg 30
750 425 Three 425 68 118 18.7kg 9
750 605 Three 605 68 118 26.2kg 13
750 830 Three 830 68 118 35.4kg 18
750 965 Three 965 68 118 41.0kg 21
750 1190 Three 1190 68 118 50.6kg 26
750 1370 Three 1370 68 118 58.1kg 30

For pipe centre measurement including valves, add 90mm

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Columns Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
RV-CS25009 500 425 Two White 1441 422 1126 330 583 171
RV-CS25013 500 605 Two White 2083 611 1627 477 842 247
RV-CS25018 500 830 Two White 2883 845 2252 660 1166 342
RV-CS25021 500 965 Two White 3999 1172 3124 916 1617 474
RV-CS25026 500 1190 Two White 4165 1221 3254 954 1684 494
RV-CS26009 600 425 Two White 1700 499 1328 390 687 202
RV-CS26013 600 605 Two White 2458 721 1920 563 994 291
RV-CS26018 600 830 Two White 3401 997 2657 779 1375 403
RV-CS26021 600 965 Two White 4718 1384 3686 1081 1908 560
RV-CS26026 600 1190 Two White 4914 1441 3839 1126 1987 583
RV-CS33018 300 830 Three White 2417 709 1888 554 977 287
RV-CS33021 300 965 Three White 2819 826 2202 645 1140 334
RV-CS33026 300 1190 Three White 3489 1023 2726 799 1411 414
RV-CS33030 300 1370 Three White 4026 1181 3145 923 1628 478
RV-CS34009 400 425 Three White 1610 472 1258 369 651 191
RV-CS34013 400 605 Three White 2327 682 1818 533 941 276
RV-CS34018 400 830 Three White 3222 945 2517 738 1303 382
RV-CS34021 400 965 Three White 3758 1102 2936 861 1520 446
RV-CS34026 400 965 Three White 4653 1364 3635 1066 1882 552
RV-CS34030 400 1370 Three White 5367 1574 4193 1230 2171 637
RV-CS35009 500 425 Three White 1987 582 1552 455 803 236
RV-CS35013 500 605 Three White 2870 842 2242 658 1161 341
RV-CS35018 500 830 Three White 3973 1165 3104 910 1607 471
RV-CS35021 500 965 Three White 4636 1361 3622 1063 1875 550
RV-CS35026 500 1190 Three White 5742 1684 4486 1316 2322 681
RV-CS35030 500 1370 Three White 6624 1943 5175 1518 2679 786
RV-CS36009 600 425 Three White 2346 689 1833 538 949 279
RV-CS36013 600 605 Three White 3389 995 2648 777 1371 402
RV-CS36018 600 830 Three White 4676 1371 3653 1071 1891 554
RV-CS36021 600 965 Three White 5455 1600 4262 1250 2206 647
RV-CS36026 600 1190 Three White 6755 1981 5277 1548 2732 801
RV-CS36030 600 1370 Three White 7793 2285 6088 1785 3152 924
RV-CS37509 750 425 Three White 2934 860 2292 672 1186 348
RV-CS37513 750 605 Three White 4237 1243 3310 971 1713 503
RV-CS37518 750 830 Three White 5844 1714 4566 1339 2364 693
RV-CS37521 750 965 Three White 6820 2001 5328 1563 2758 809
RV-CS37526 750 1190 Three White 8443 2476 6596 1934 3414 1001
RV-CS37530 750 1370 Three White 9741 2857 7610 2232 3939 1155
RV-CS43018 300 830 Four White 3117 914 2435 714 1261 370
RV-CS43021 300 965 Four White 3636 1066 2841 833 1471 431
RV-CS43026 300 1190 Four White 4502 1320 3517 1031 1821 534
RV-CS43030 300 1370 Four White 5196 1524 4059 1191 2101 617
RV-CS44009 400 425 Four White 2026 594 1583 464 819 240
RV-CS44013 400 605 Four White 2627 858 2052 670 1062 347
RV-CS44018 400 830 Four White 4052 1188 3166 928 1639 480
RV-CS44021 400 965 Four White 4727 1386 3693 1083 1912 561
RV-CS44026 400 1190 Four White 5853 1716 4573 1341 2367 694
RV-CS44030 400 1370 Four White 6755 1981 5277 1548 2732 801
RV-CS45009 500 425 Four White 2533 742 1979 580 1024 300
RV-CS45013 500 605 Four White 3658 1073 2858 838 1479 434
RV-CS45018 500 830 Four White 5065 1485 3957 1160 2048 600
RV-CS45021 500 965 Four White 5910 1733 4617 1354 2390 701
RV-CS45026 500 1190 Four White 7316 2145 5716 1676 2959 868
RV-CS45030 500 1370 Four White 8443 2476 6596 1934 3414 1001
RV-CS46009 600 425 Four White 3000 881 2344 688 1213 356
RV-CS46013 600 605 Four White 4334 1271 3386 993 1753 514
RV-CS46018 600 830 Four White 6001 1760 4688 1375 2427 712
RV-CS46021 600 965 Four White 7002 2053 5470 1604 2832 830
RV-CS46026 600 1190 Four White 8668 2542 6772 1986 3506 1028
RV-CS46030 600 1370 Four White 10001 2932 7813 2291 4044 1186
RV-CS47509 750 425 Four White 3750 1100 2930 859 1517 445
RV-CS47513 750 605 Four White 5418 1588 4233 1241 2191 642
RV-CS47518 750 830 Four White 7501 2200 5860 1719 3033 890
RV-CS47521 750 965 Four White 8751 2566 6837 2005 3539 1038
RV-CS47526 750 1190 Four White 10835 3177 8465 2482 4382 1285
RV-CS47530 750 1370 Four White 12500 3666 9766 2864 5055 1483
RV-CS63018 300 830 Six White 4591 1347 3587 1052 1857 545
RV-CS63021 300 965 Six White 5330 1563 4164 1221 2156 632
RV-CS63026 300 1190 Six White 6390 1874 4992 1464 2584 758
RV-CS64018 400 830 Six White 6122 1795 4783 1402 2476 726
RV-CS64021 400 965 Six White 7107 2084 5552 1628 2874 843
RV-CS64026 400 1190 Six White 8520 2499 6656 1952 3446 1010
RV-CS65013 500 605 Six White 5263 1542 4112 1205 2129 624
RV-CS65018 500 830 Six White 7379 2164 5765 1691 2984 875
RV-CS65021 500 965 Six White 8612 2525 6728 1973 3483 1021
RV-CS65026 500 1190 Six White 10721 3144 8376 2456 4336 1271
RV-CS66013 600 605 Six White 6240 1830 4875 1430 2524 740
RV-CS66018 600 830 Six White 8699 2551 6796 1993 3518 1032
RV-CS66021 600 965 Six White 10148 2976 7928 2325 4104 1204
RV-CS66026 600 1190 Six White 12274 3599 9589 2812 4964 1456
Images

Cutout Product Images

500 x 425 White
0.3 MB
500 x 605 White
0.38 MB
500 x 830 White
0.38 MB
500 x 965 White
0.29 MB
500 x 1190 White
0.27 MB
600 x 425 White
0.29 MB
600 x 605 White
0.36 MB
600 x 830 White
0.43 MB
600 x 965 White
0.35 MB
600 x 1190 White
0.31 MB
300 x 830 White
0.17 MB
300 x 965 White
0.19 MB
300 x 1190 White
0.22 MB
300 x 1370 White
0.19 MB
400 x 425 White
0.3 MB
400 x 605 White
0.42 MB
400 x 830 White
0.41 MB
400 x 965 White
0.3 MB
400 x 965 White
0.28 MB

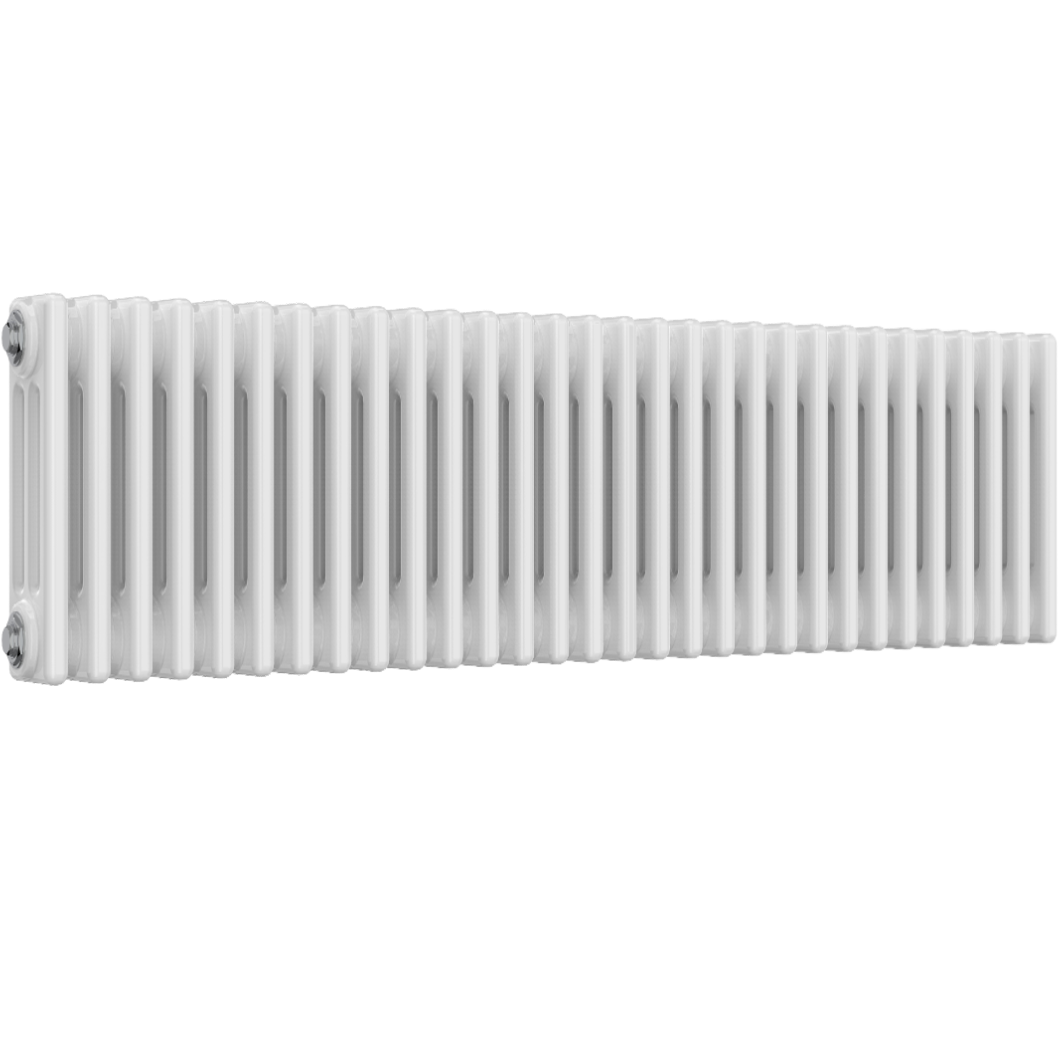

400 x 1370 White
0.25 MB
500 x 425 White
0.4 MB
500 x 605 White
0.5 MB
500 x 830 White
0.47 MB
500 x 965 White
0.36 MB
500 x 1190 White
0.33 MB
500 x 1370 White
0.27 MB
600 x 425 White
0.36 MB

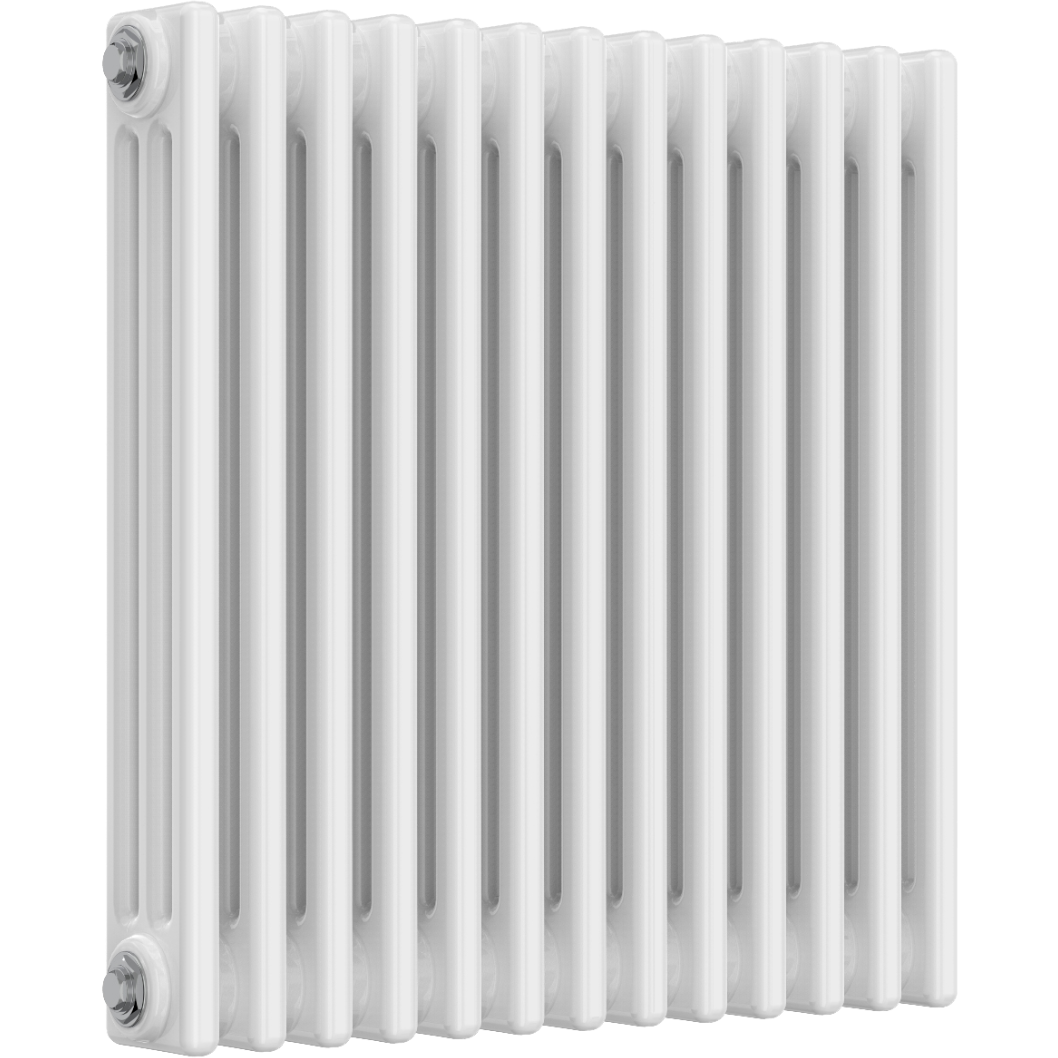

600 x 605 White
0.45 MB
600 x 830 White
0.55 MB
600 x 965 White
0.41 MB
600 x 1190 White
0.38 MB
600 x 1370 White
0.27 MB
750 x 425 White
0.36 MB
750 x 605 White
0.46 MB
750 x 830 White
0.57 MB
750 x 965 White
0.5 MB
750 x 1190 White
0.46 MB
750 x 1370 White
0.34 MB
300 x 830 White
0.14 MB
300 x 965 White
0.16 MB
300 x 1190 White
0.18 MB
300 x 1370 White
0.19 MB
400 x 425 White
0.26 MB
400 x 605 White
0.37 MB
400 x 830 White
0.16 MB
400 x 965 White
0.2 MB
400 x 1190 White
0.24 MB
400 x 1370 White
0.19 MB
500 x 425 White
0.35 MB
500 x 605 White
0.23 MB
500 x 830 White
0.2 MB
500 x 965 White
0.23 MB
500 x 1190 White
0.27 MB
500 x 1370 White
0.2 MB
600 x 425 White
0.32 MB
600 x 605 White
0.4 MB

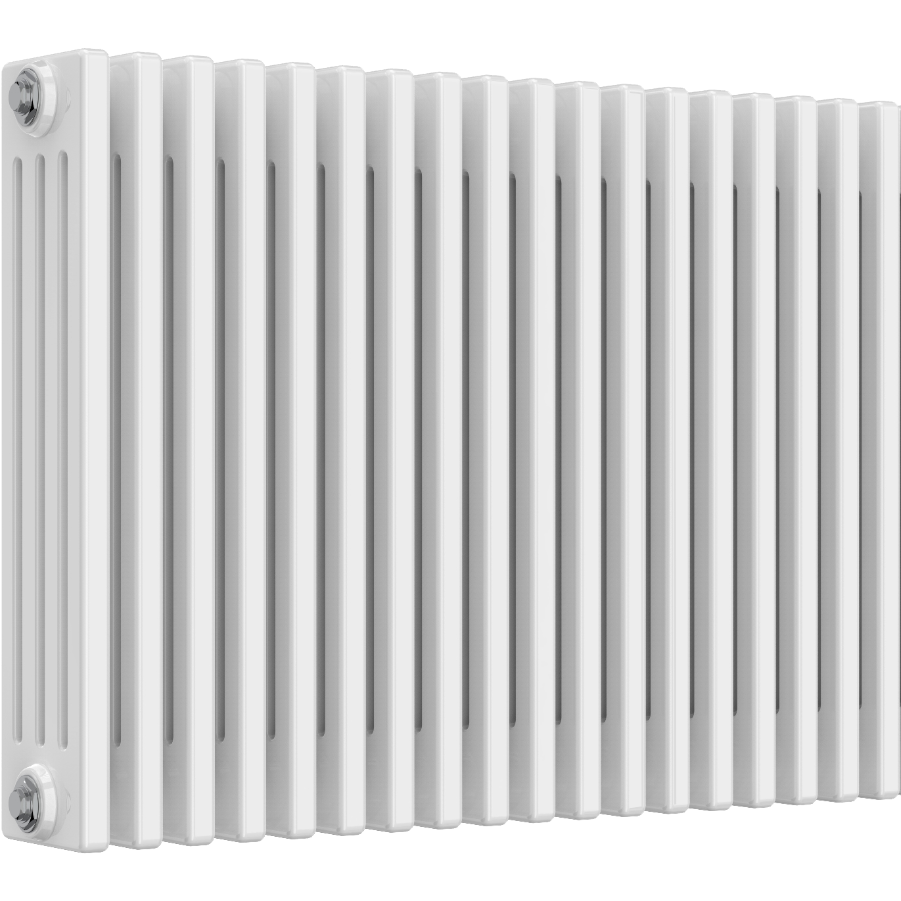

600 x 830 White
0.31 MB
600 x 965 White
0.35 MB
600 x 1190 White
0.31 MB
600 x 1370 White
0.23 MB
750 x 425 White
0.32 MB
750 x 605 White
0.4 MB
750 x 830 White
0.38 MB

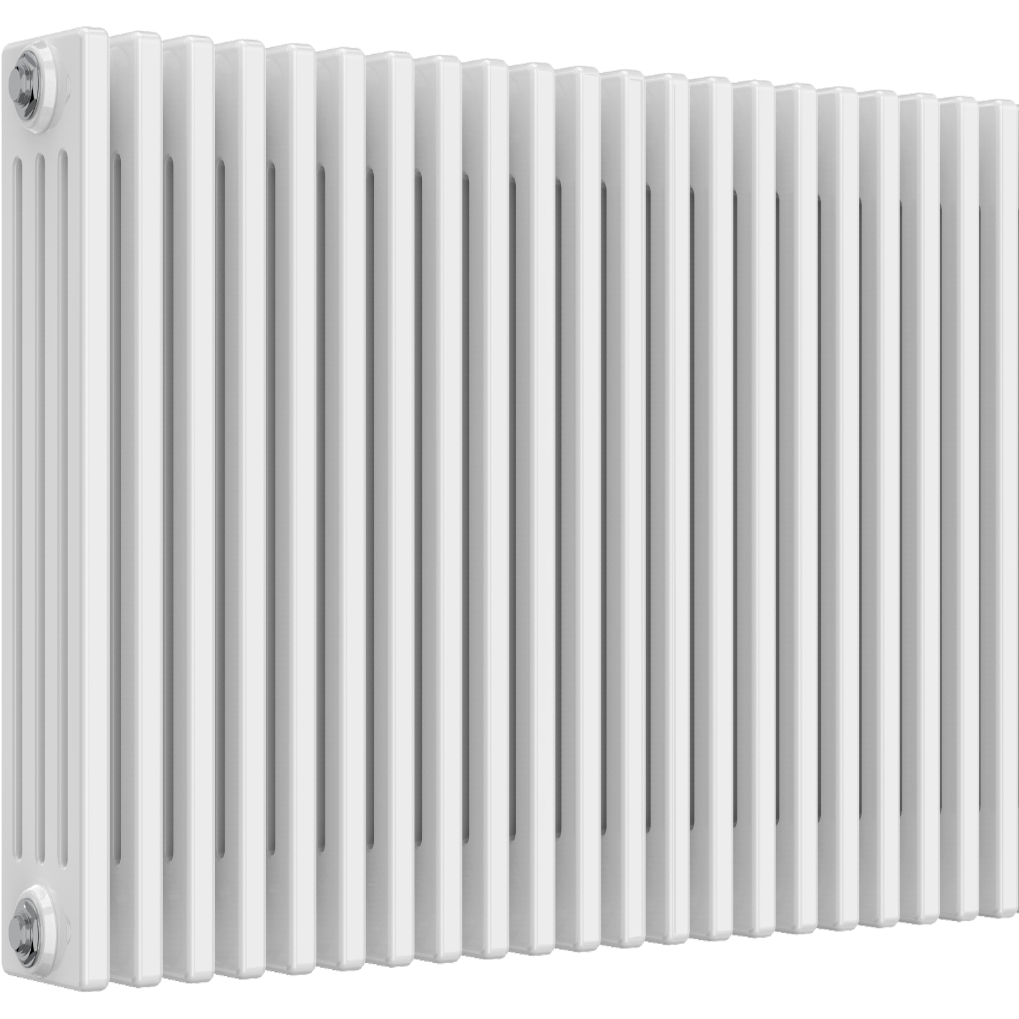

750 x 965 White
0.42 MB
750 x 1190 White
0.39 MB
750 x 1370 White
0.29 MB
300 x 830 White
0.16 MB

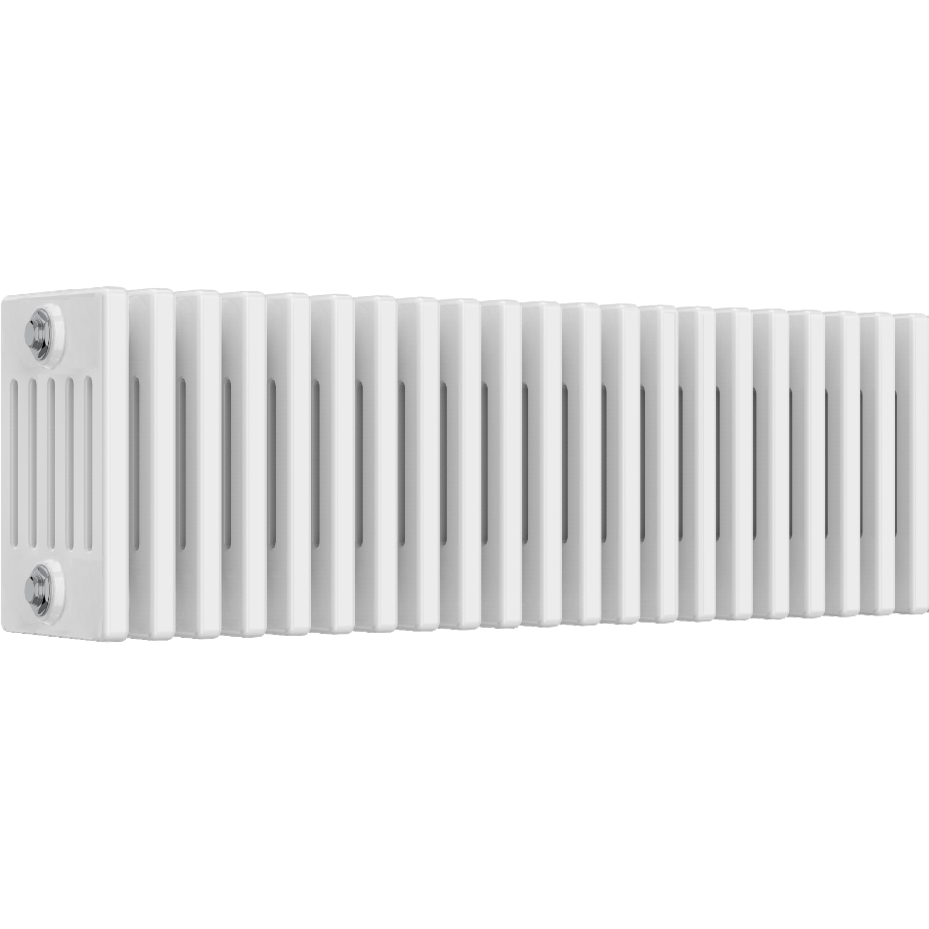

300 x 965 White
0.18 MB
300 x 1190 White
0.2 MB
400 x 830 White
0.2 MB
400 x 965 White
0.22 MB
400 x 1190 White
0.25 MB
500 x 605 White
0.26 MB
500 x 830 White
0.23 MB
500 x 965 White
0.26 MB
500 x 1190 White
0.3 MB
600 x 605 White
0.46 MB
600 x 830 White
0.35 MB
600 x 965 White
0.39 MB

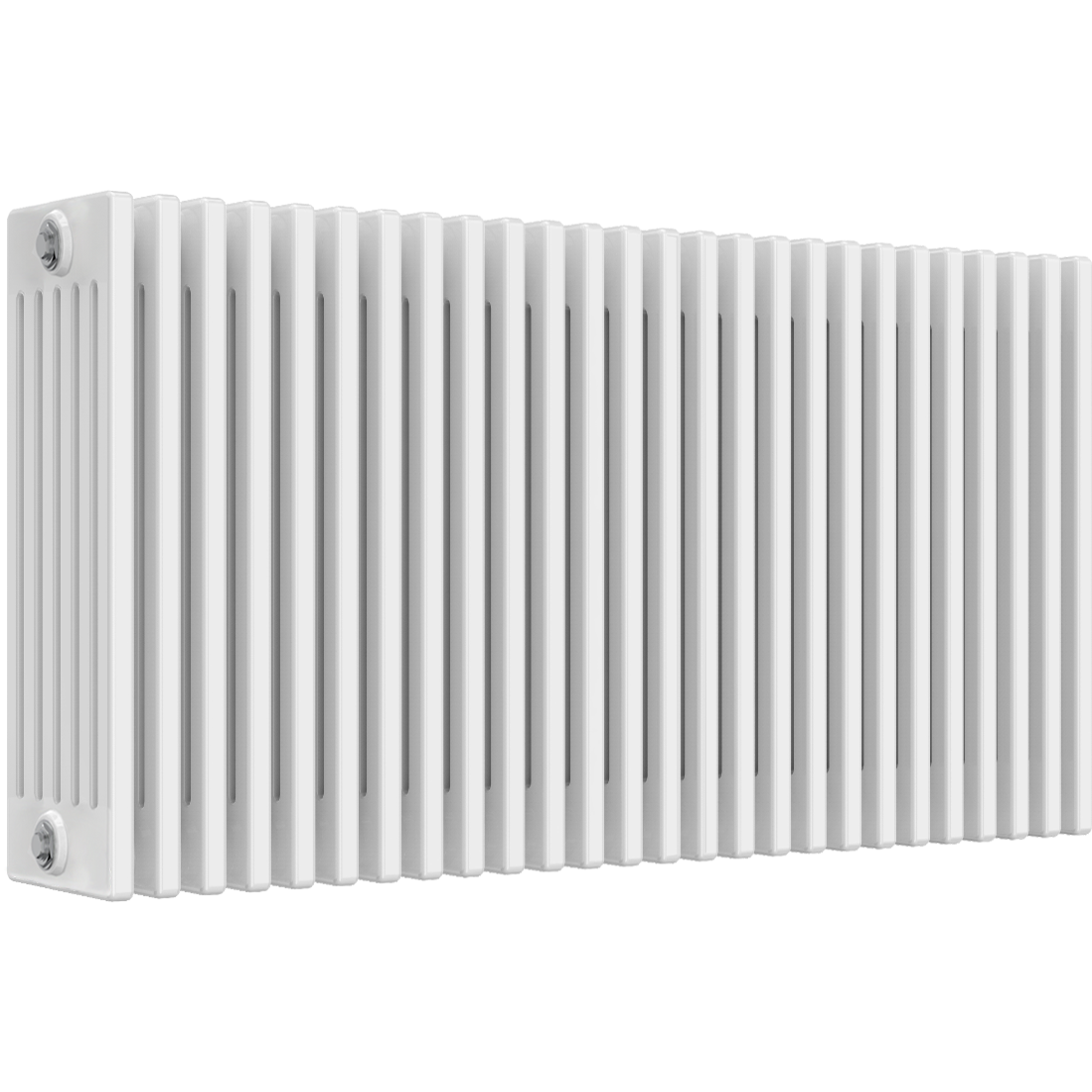

600 x 1190 White
0.35 MB

Roomset Product Images

Classico Horizontal
0.13 MB
Classico Horizontal
0.17 MB
Classico Horizontal
0.14 MB
Classico Horizontal
0.15 MB
Classico Horizontal
0.11 MB
Tech Drawings

Technical Drawings

Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Columns Colour Available Stock
RV-CS25009 500 425 Two White Log in to see stock
RV-CS25013 500 605 Two White Log in to see stock
RV-CS25018 500 830 Two White Log in to see stock
RV-CS25021 500 965 Two White Log in to see stock
RV-CS25026 500 1190 Two White Log in to see stock
RV-CS26009 600 425 Two White Log in to see stock
RV-CS26013 600 605 Two White Log in to see stock
RV-CS26018 600 830 Two White Log in to see stock
RV-CS26021 600 965 Two White Log in to see stock
RV-CS26026 600 1190 Two White Log in to see stock
RV-CS33018 300 830 Three White Log in to see stock
RV-CS33021 300 965 Three White Log in to see stock
RV-CS33026 300 1190 Three White Log in to see stock
RV-CS33030 300 1370 Three White Log in to see stock
RV-CS34009 400 425 Three White Log in to see stock
RV-CS34013 400 605 Three White Log in to see stock
RV-CS34018 400 830 Three White Log in to see stock
RV-CS34021 400 965 Three White Log in to see stock
RV-CS34026 400 965 Three White Log in to see stock
RV-CS34030 400 1370 Three White Log in to see stock
RV-CS35009 500 425 Three White Log in to see stock
RV-CS35013 500 605 Three White Log in to see stock
RV-CS35018 500 830 Three White Log in to see stock
RV-CS35021 500 965 Three White Log in to see stock
RV-CS35026 500 1190 Three White Log in to see stock
RV-CS35030 500 1370 Three White Log in to see stock
RV-CS36009 600 425 Three White Log in to see stock
RV-CS36013 600 605 Three White Log in to see stock
RV-CS36018 600 830 Three White Log in to see stock
RV-CS36021 600 965 Three White Log in to see stock
RV-CS36026 600 1190 Three White Log in to see stock
RV-CS36030 600 1370 Three White Log in to see stock
RV-CS37509 750 425 Three White Log in to see stock
RV-CS37513 750 605 Three White Log in to see stock
RV-CS37518 750 830 Three White Log in to see stock
RV-CS37521 750 965 Three White Log in to see stock
RV-CS37526 750 1190 Three White Log in to see stock
RV-CS37530 750 1370 Three White Log in to see stock
RV-CS43018 300 830 Four White Log in to see stock
RV-CS43021 300 965 Four White Log in to see stock
RV-CS43026 300 1190 Four White Log in to see stock
RV-CS43030 300 1370 Four White Log in to see stock
RV-CS44009 400 425 Four White Log in to see stock
RV-CS44013 400 605 Four White Log in to see stock
RV-CS44018 400 830 Four White Log in to see stock
RV-CS44021 400 965 Four White Log in to see stock
RV-CS44026 400 1190 Four White Log in to see stock
RV-CS44030 400 1370 Four White Log in to see stock
RV-CS45009 500 425 Four White Log in to see stock
RV-CS45013 500 605 Four White Log in to see stock
RV-CS45018 500 830 Four White Log in to see stock
RV-CS45021 500 965 Four White Log in to see stock
RV-CS45026 500 1190 Four White Log in to see stock
RV-CS45030 500 1370 Four White Log in to see stock
RV-CS46009 600 425 Four White Log in to see stock
RV-CS46013 600 605 Four White Log in to see stock
RV-CS46018 600 830 Four White Log in to see stock
RV-CS46021 600 965 Four White Log in to see stock
RV-CS46026 600 1190 Four White Log in to see stock
RV-CS46030 600 1370 Four White Log in to see stock
RV-CS47509 750 425 Four White Log in to see stock
RV-CS47513 750 605 Four White Log in to see stock
RV-CS47518 750 830 Four White Log in to see stock
RV-CS47521 750 965 Four White Log in to see stock
RV-CS47526 750 1190 Four White Log in to see stock
RV-CS47530 750 1370 Four White Log in to see stock
RV-CS63018 300 830 Six White Log in to see stock
RV-CS63021 300 965 Six White Log in to see stock
RV-CS63026 300 1190 Six White Log in to see stock
RV-CS64018 400 830 Six White Log in to see stock
RV-CS64021 400 965 Six White Log in to see stock
RV-CS64026 400 1190 Six White Log in to see stock
RV-CS65013 500 605 Six White Log in to see stock
RV-CS65018 500 830 Six White Log in to see stock
RV-CS65021 500 965 Six White Log in to see stock
RV-CS65026 500 1190 Six White Log in to see stock
RV-CS66013 600 605 Six White Log in to see stock
RV-CS66018 600 830 Six White Log in to see stock
RV-CS66021 600 965 Six White Log in to see stock
RV-CS66026 600 1190 Six White Log in to see stock
SIGN UP
