Classico Vertical Column Radiator
Roomset images cannot be copied and used to promote the V By Reina product. Please use only the product cutout images to produce your marketing materials.
5 Years Guarantee
Material: Mild Steel
Central Heating
The Classico Vertical Radiator offers a timeless column design that blends effortlessly into both traditional and contemporary interiors, delivering reliable and consistent heat to keep your space comfortable. Its elegant vertical profile helps maximise wall space while creating a classic feature in living rooms, hallways, or bedrooms. Built for durability and long-lasting performance, the Classico radiator is crafted from high-quality steel, ensuring dependable heat output and everyday reliability in any home.
- Available in 1 colour and 7 sizes
- Durable Mild Steel Construction
- 5 Years Guarantee
-
white
Product Resource Centre
1800mm HEIGHT 560mm WIDTH
1800mm HEIGHT 515mm WIDTH
1800mm HEIGHT 425mm WIDTH
1800mm HEIGHT 335mm WIDTH
1800mm HEIGHT 245mm WIDTH
1500mm HEIGHT 515mm WIDTH
1500mm HEIGHT 425mm WIDTH
Technical
Measurements
| Height (mm) | Width (mm) | Columns | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|---|
| 1800 | 560 | Three | 560 | 68 | 118 | 54.5kg | 12 |
| 1800 | 515 | Three | 515 | 68 | 118 | 50.2kg | 11 |
| 1800 | 425 | Three | 425 | 68 | 118 | 41.8kg | 9 |
| 1800 | 335 | Three | 335 | 68 | 118 | 33.3kg | 7 |
| 1800 | 245 | Three | 245 | 68 | 118 | 25.0kg | 5 |
| 1500 | 515 | Three | 515 | 68 | 118 | 42.4kg | 11 |
| 1500 | 425 | Three | 425 | 68 | 118 | 35.3kg | 9 |
For pipe centre measurement including valves, add 90mm
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Columns | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT30°C | ||
|---|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | |||||
| RV-CS31812 | 1800 | 560 | Three | 6901 | 2023 | 3572 | 1047 | |
| RV-CS31811 | 1800 | 515 | Three | 6326 | 1855 | 3275 | 960 | |
| RV-CS31809 | 1800 | 425 | Three | 5176 | 1518 | 2679 | 786 | |
| RV-CS31807 | 1800 | 335 | Three | 4025 | 1180 | 2084 | 611 | |
| RV-CS31805 | 1800 | 245 | Three | 2875 | 843 | 1488 | 436 | |
| RV-CS31511 | 1500 | 515 | Three | 5320 | 1560 | 2754 | 808 | |
| RV-CS31509 | 1500 | 425 | Three | 4353 | 1277 | 2253 | 661 | |
| RV-CS21812 | 1800 | 560 | Two | 5074 | 1488 | 2627 | 770 | |
| RV-CS21811 | 1800 | 515 | Two | 4652 | 1364 | 2408 | 706 | |
| RV-CS21809 | 1800 | 425 | Two | 3806 | 1116 | 1970 | 578 | |
| RV-CS21807 | 1800 | 335 | Two | 2958 | 867 | 1531 | 449 | |
| RV-CS21805 | 1800 | 245 | Two | 2113 | 620 | 1094 | 321 | |
| RV-CS21511 | 1500 | 515 | Two | 3941 | 1155 | 2040 | 598 | |
| RV-CS21509 | 1500 | 425 | Two | 3226 | 946 | 1670 | 490 | |
Images
Cutout Product Images

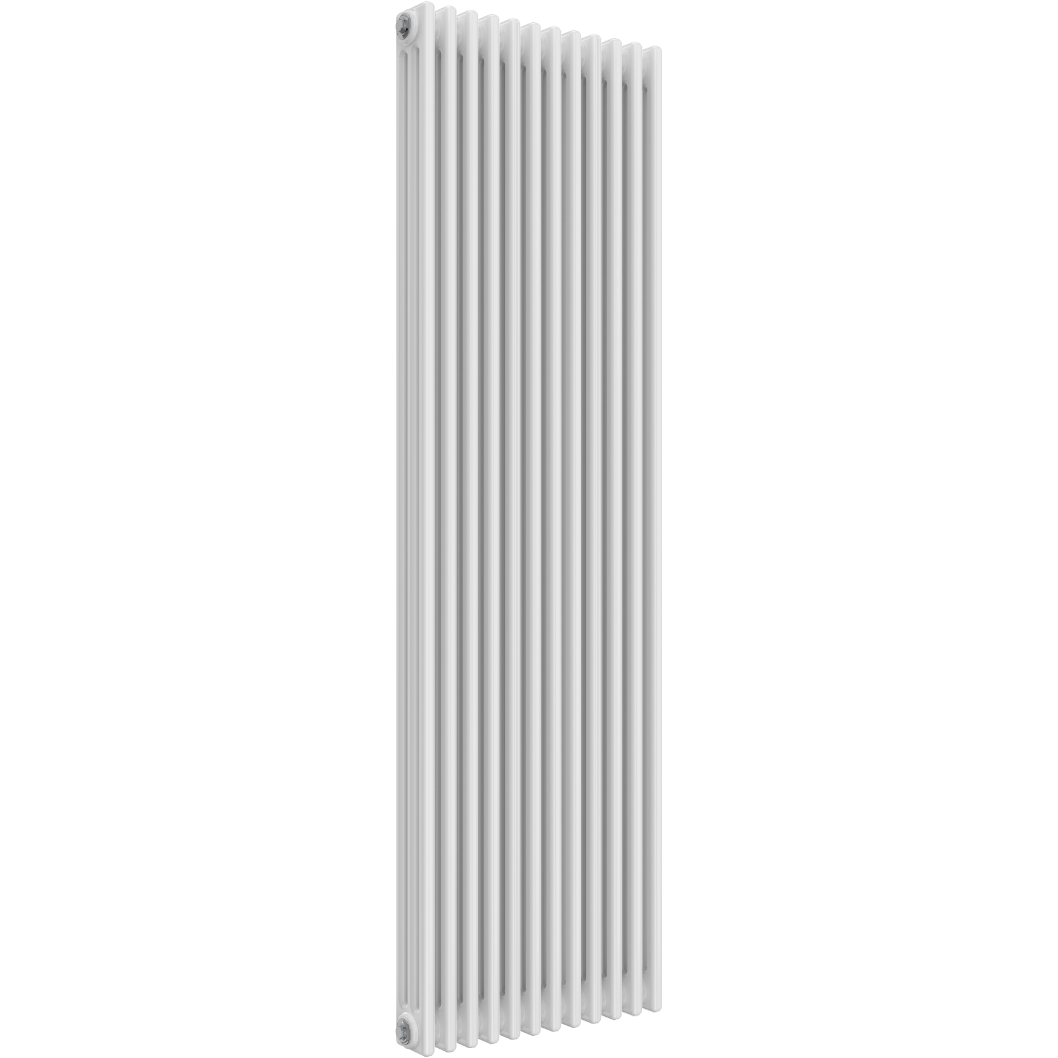

1800 x 560 White
0.13 MB
1800 x 515 White
0.12 MB
1800 x 425 White
0.11 MB

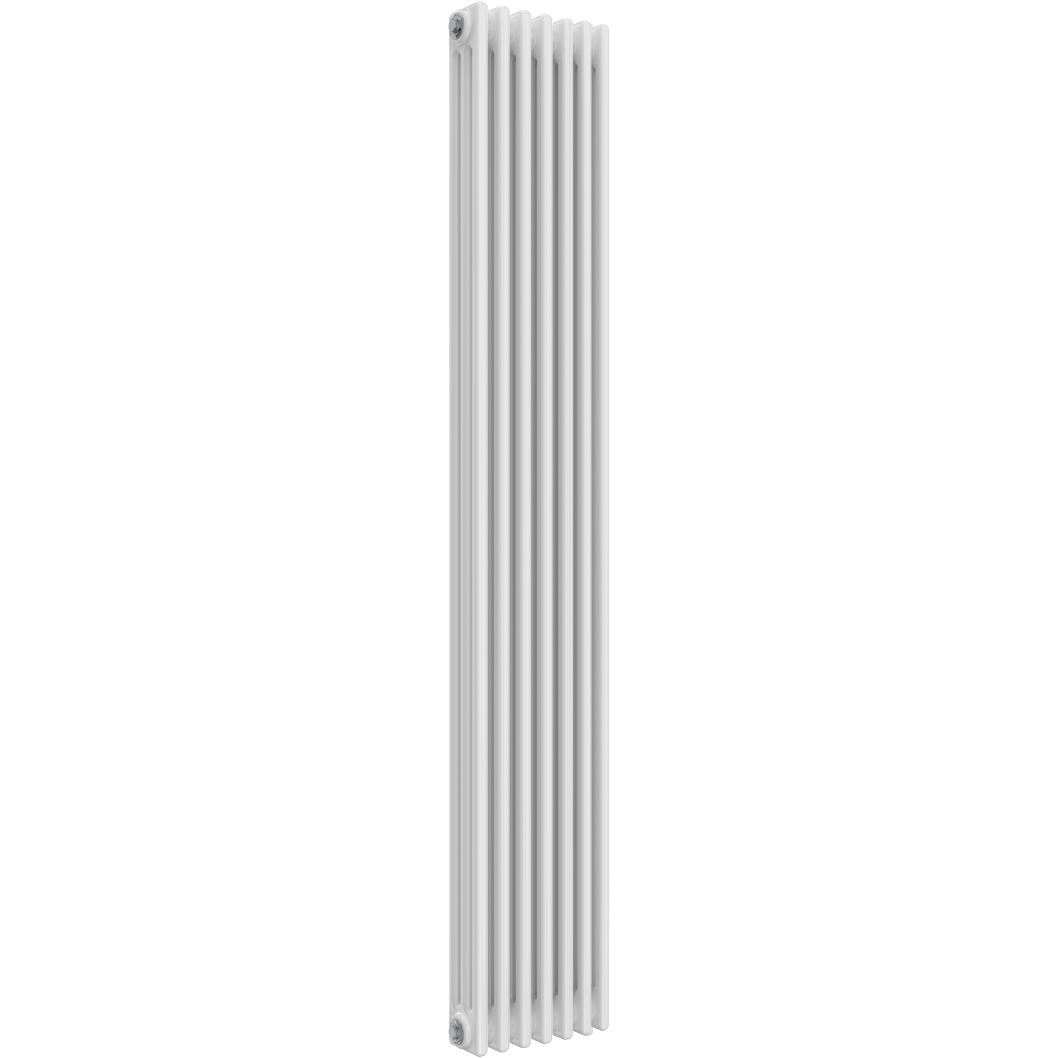

1800 x 335 White
0.09 MB

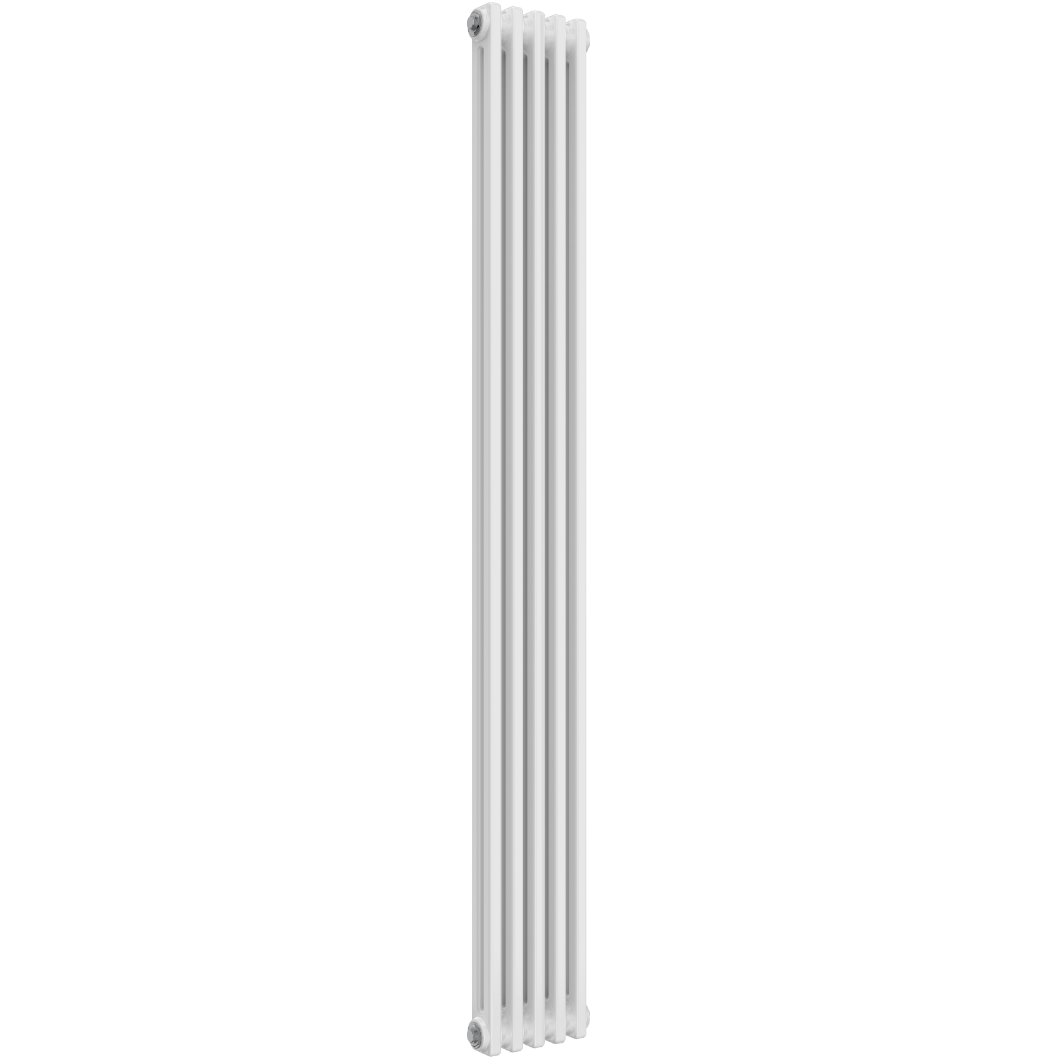

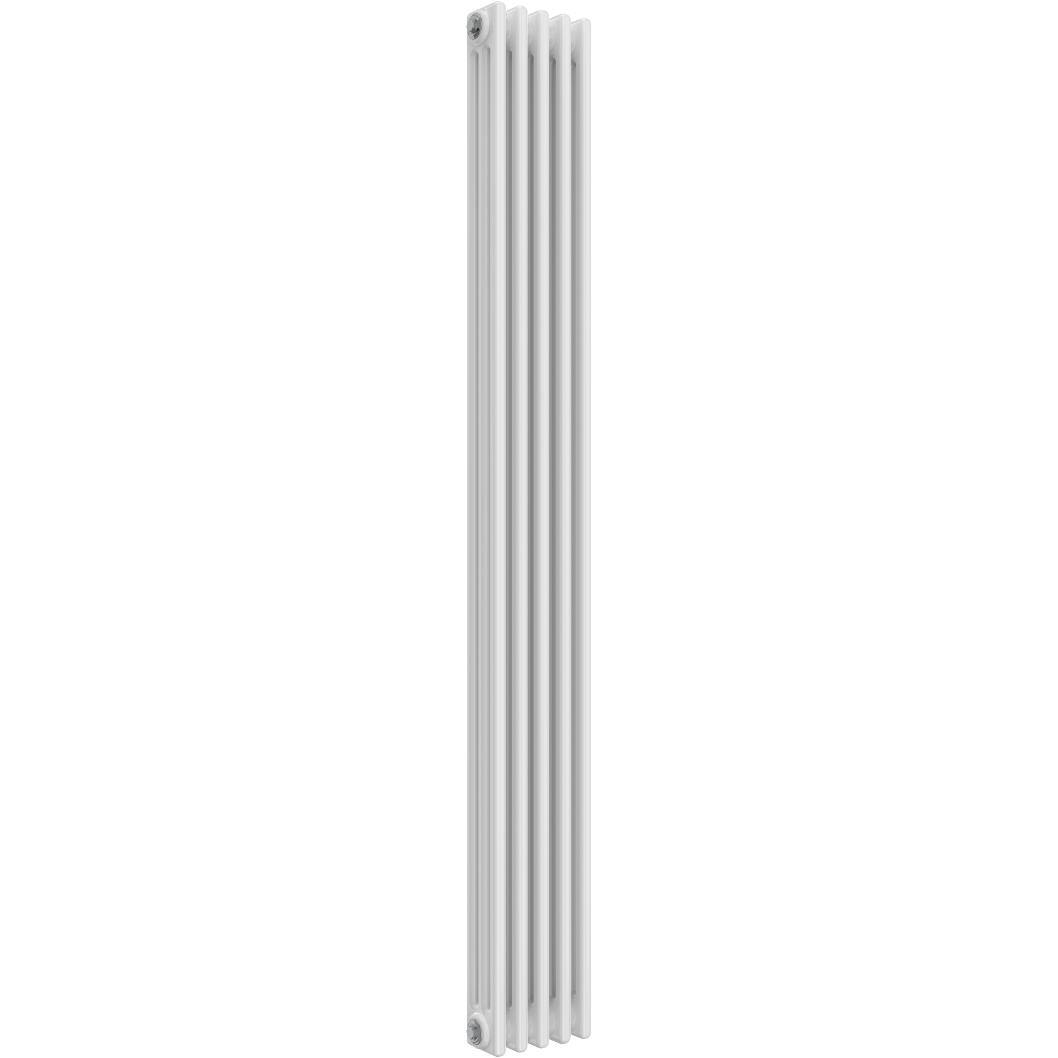

1800 x 245 White
0.08 MB

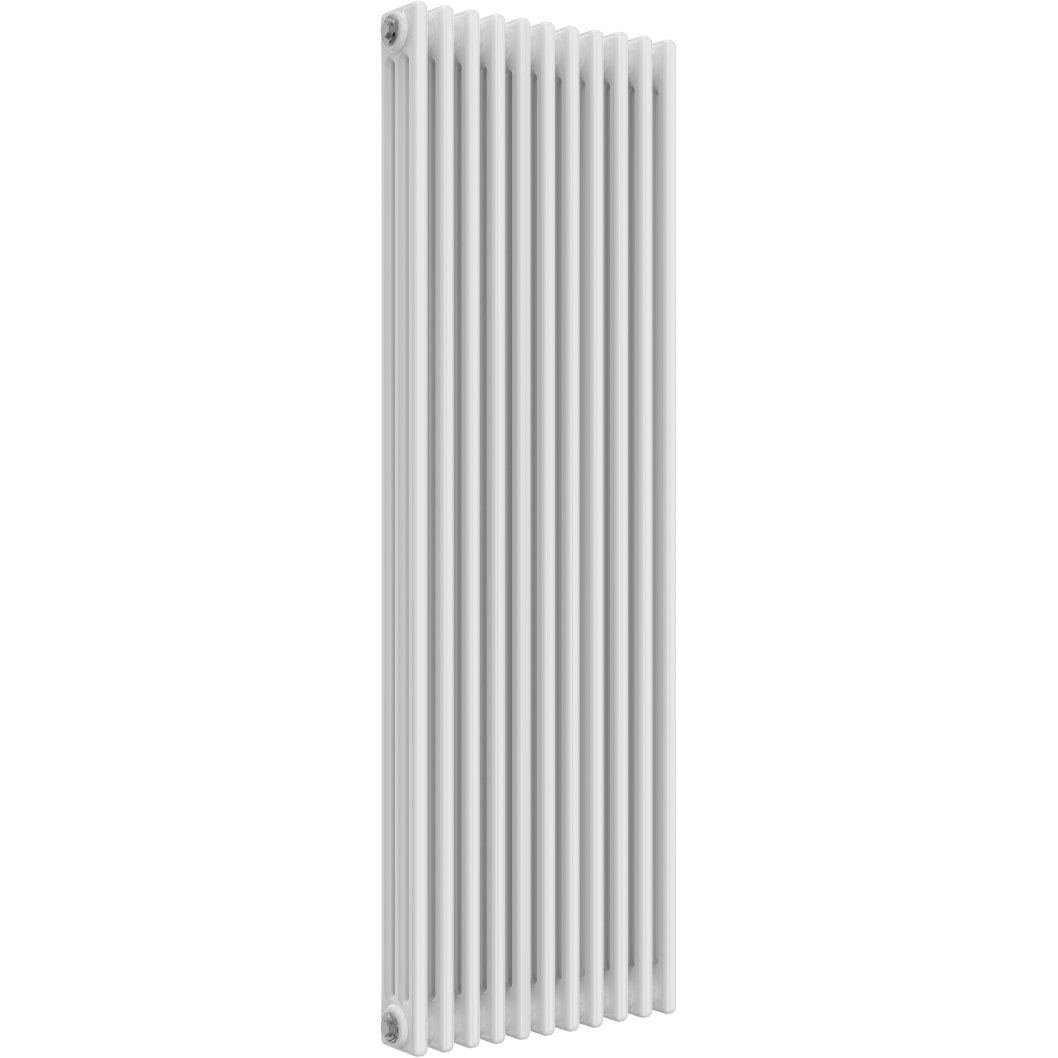

1500 x 515 White
0.16 MB

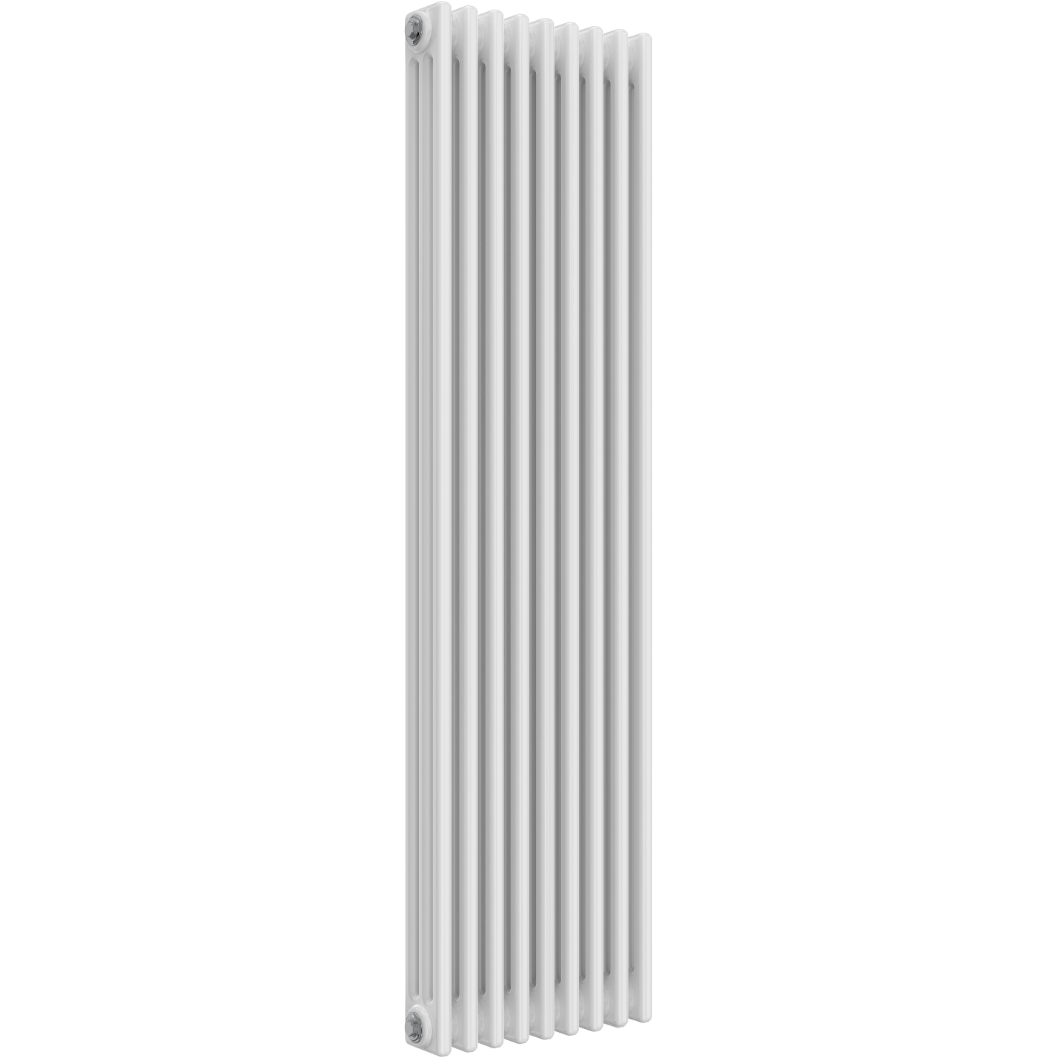

1500 x 425 White
0.15 MB

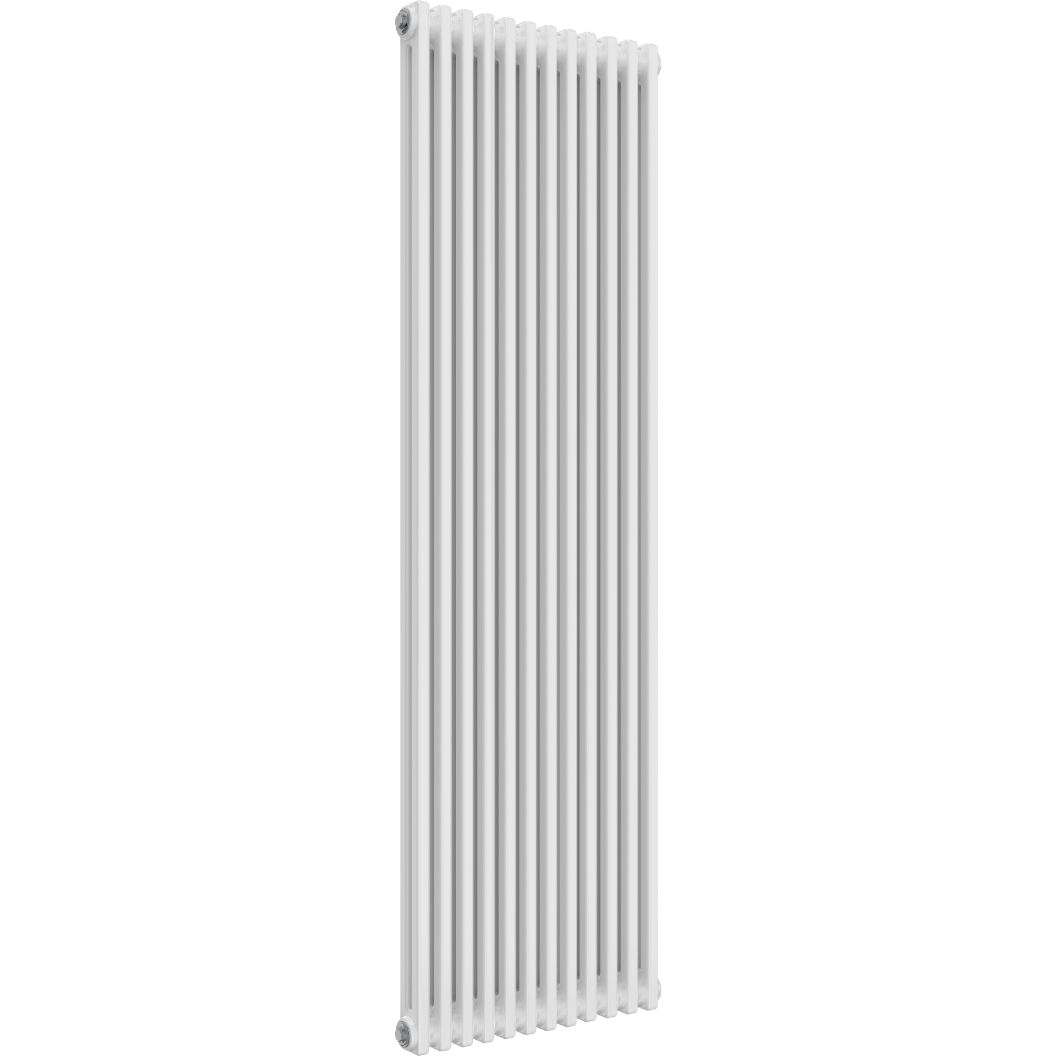

1800 x 560 White
0.12 MB

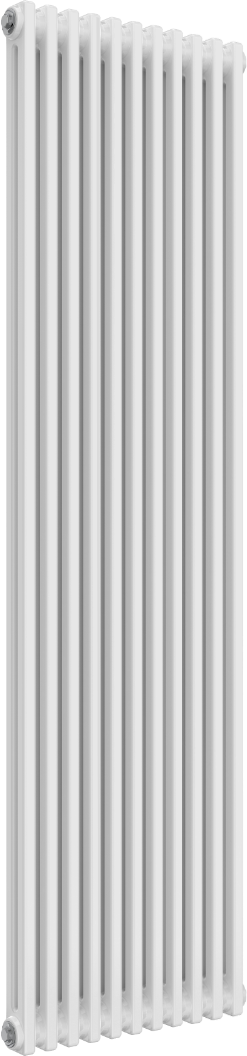

1800 x 515 White
0.09 MB

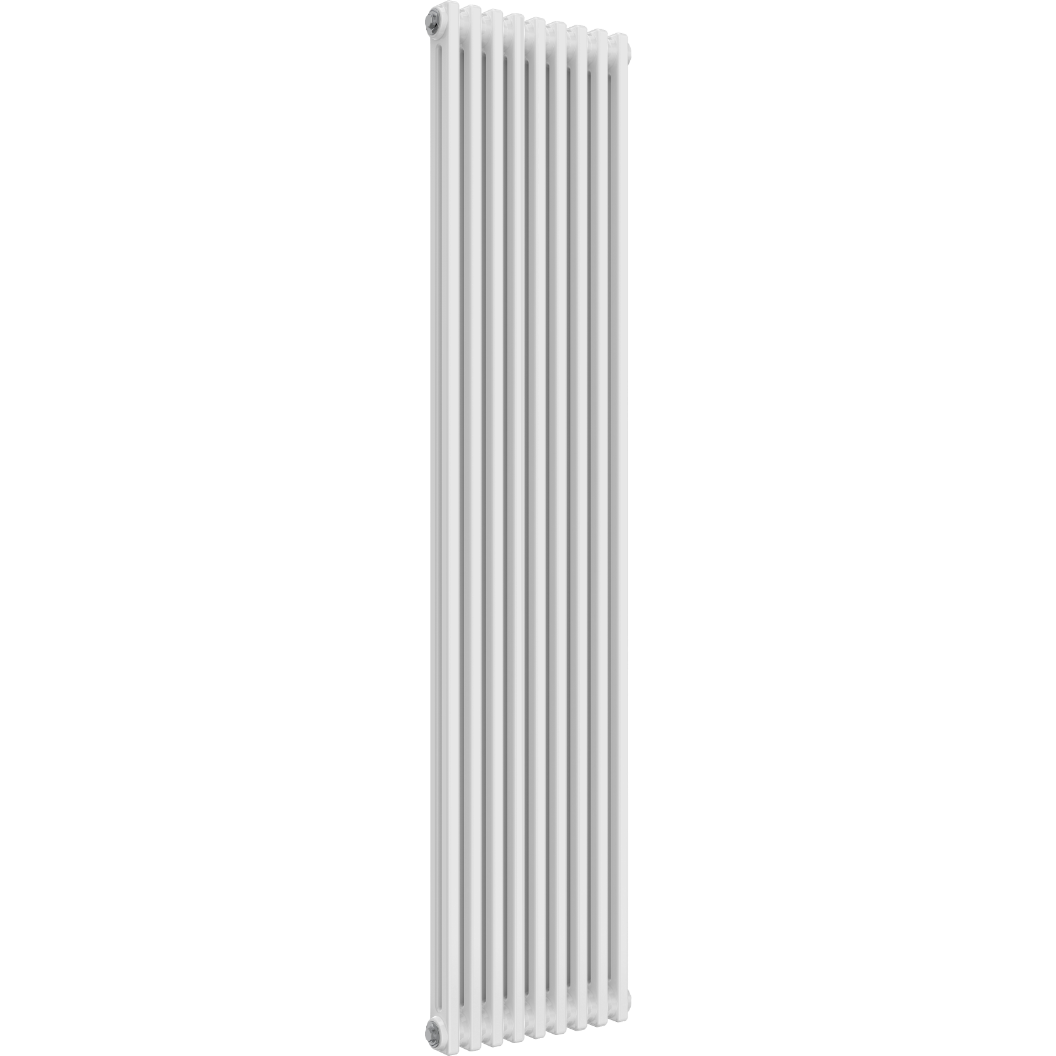

1800 x 425 White
0.1 MB

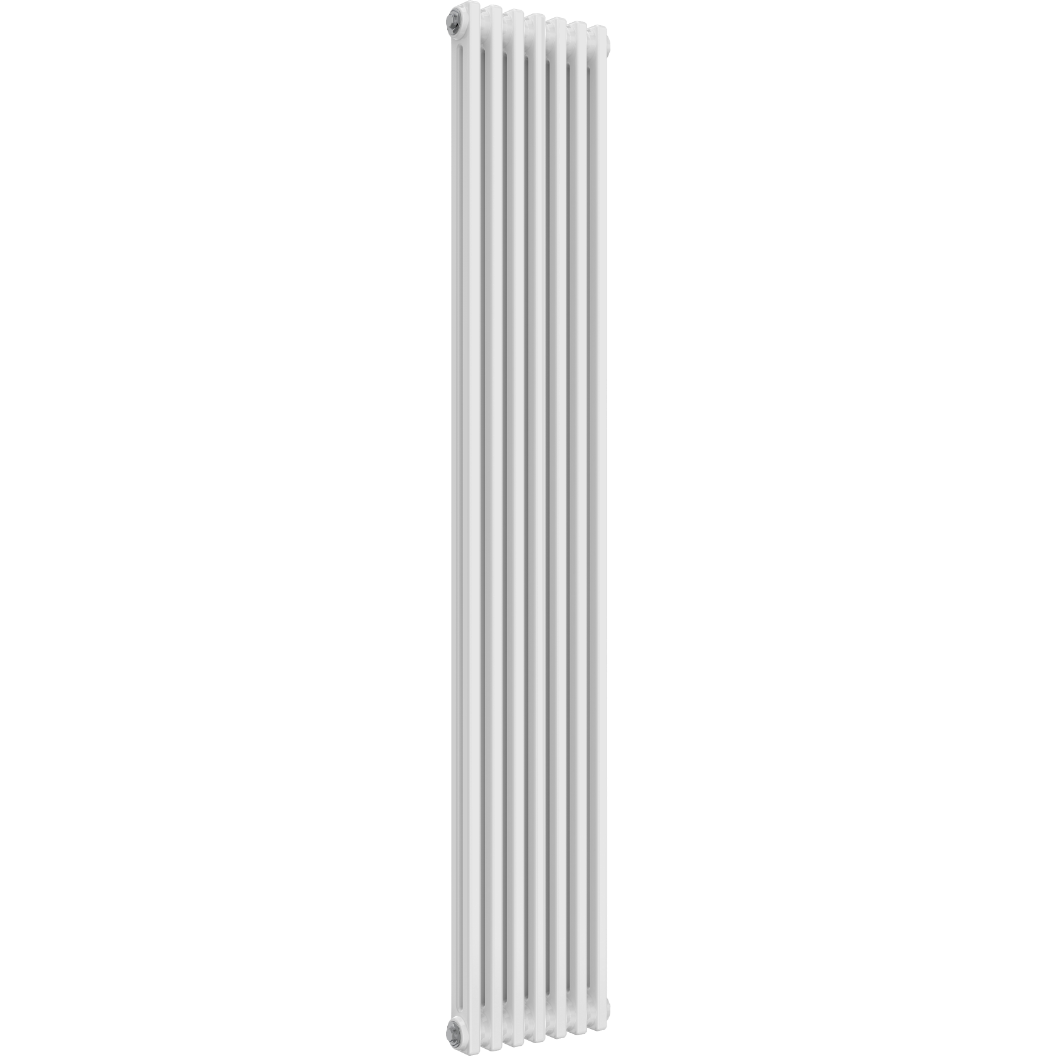

1800 x 335 White
0.08 MB
1800 x 245 White
0.07 MB

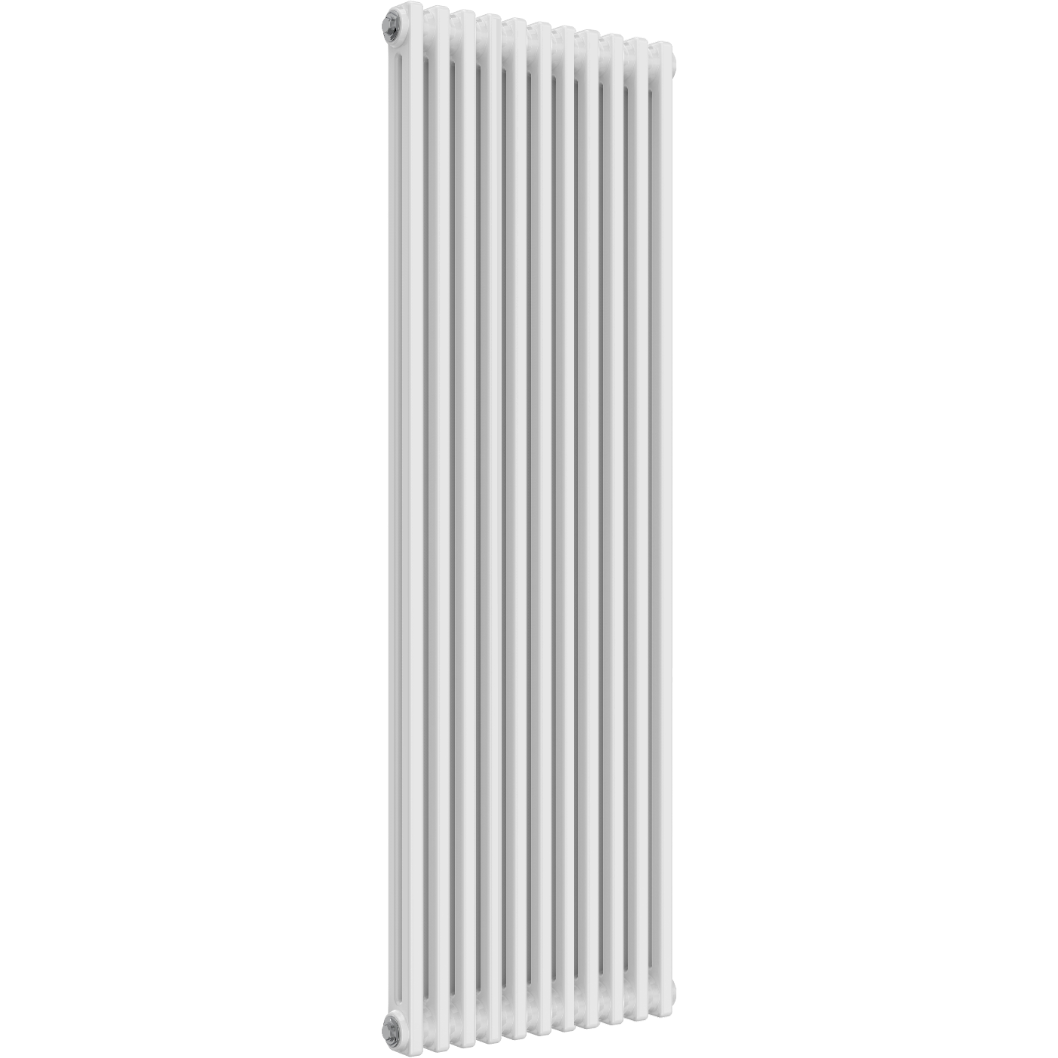

1500 x 515 White
