Colona Vertical Mild Steel Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating

  • Available in 3 colours and 6 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white
  • anthracite
  • raw steel lacquer

Product Resource Centre

1500mm HEIGHT 200mm WIDTH
1500mm HEIGHT 290mm WIDTH
1500mm HEIGHT 380mm WIDTH
1800mm HEIGHT 200mm WIDTH
1800mm HEIGHT 290mm WIDTH
1800mm HEIGHT 380mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
1500 200 200 66 98 - 4
1500 290 290 66 98 - 6
1500 380 380 66 98 - 8
1800 200 200 66 98 - 4
1800 290 290 66 98 - 6
1800 380 380 66 98 - 8

For pipe centre measurement including valves, add 90mm

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT50°C Heat Outputs ΔT60°C
BTU Watts BTU Watts
2/C154 1500 200 White 1433 420 1834 538
2/C156 1500 290 White 2147 630 2748 806
2/C158 1500 380 White 2867 841 3670 1076
2/C184 1800 200 White 1691 496 2165 635
2/C184A 1800 200 Anthracite 1691 496 2165 635
2/C186 1800 290 White 2535 743 3245 952
2/C186L 1800 290 Raw Steel Lacquer 2535 743 3245 952
2/C186A 1800 290 Anthracite 2535 743 3245 952
2/C188 1800 380 White 3383 992 4330 1270
2/C188L 1800 380 Raw Steel Lacquer 3383 992 4330 1270
2/C188A 1800 380 Anthracite 3383 992 4330 1270
3/C154 1500 200 White 1934 567 2476 726
3/C156 1500 290 White 2902 851 3714 1089
3/C158 1500 380 White 3869 1135 4952 1452
3/C184 1800 200 White 2300 674 2944 863
3/C184A 1800 200 Anthracite 2300 674 2944 863
3/C186 1800 290 White 3450 1012 4416 1295
3/C186L 1800 290 Raw Steel Lacquer 3450 1012 4416 1295
3/C186A 1800 290 Anthracite 3450 1012 4416 1295
3/C188 1800 380 White 4601 1349 5889 1727
3/C188L 1800 380 Raw Steel Lacquer 4601 1349 5889 1727
3/C188A 1800 380 Anthracite 4601 1349 5889 1727
Images

Cutout Product Images

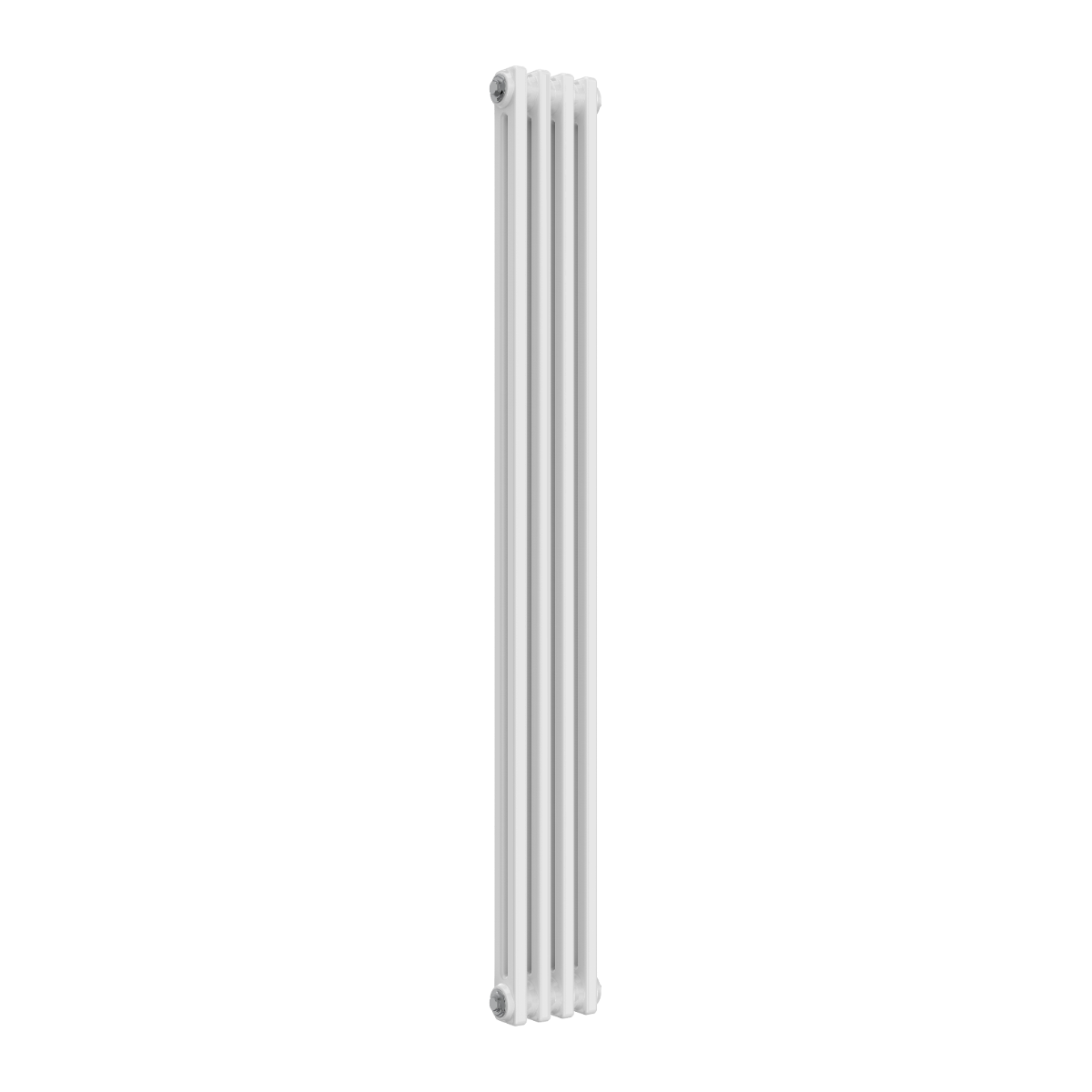

1500 x 200 White
0.08 MB

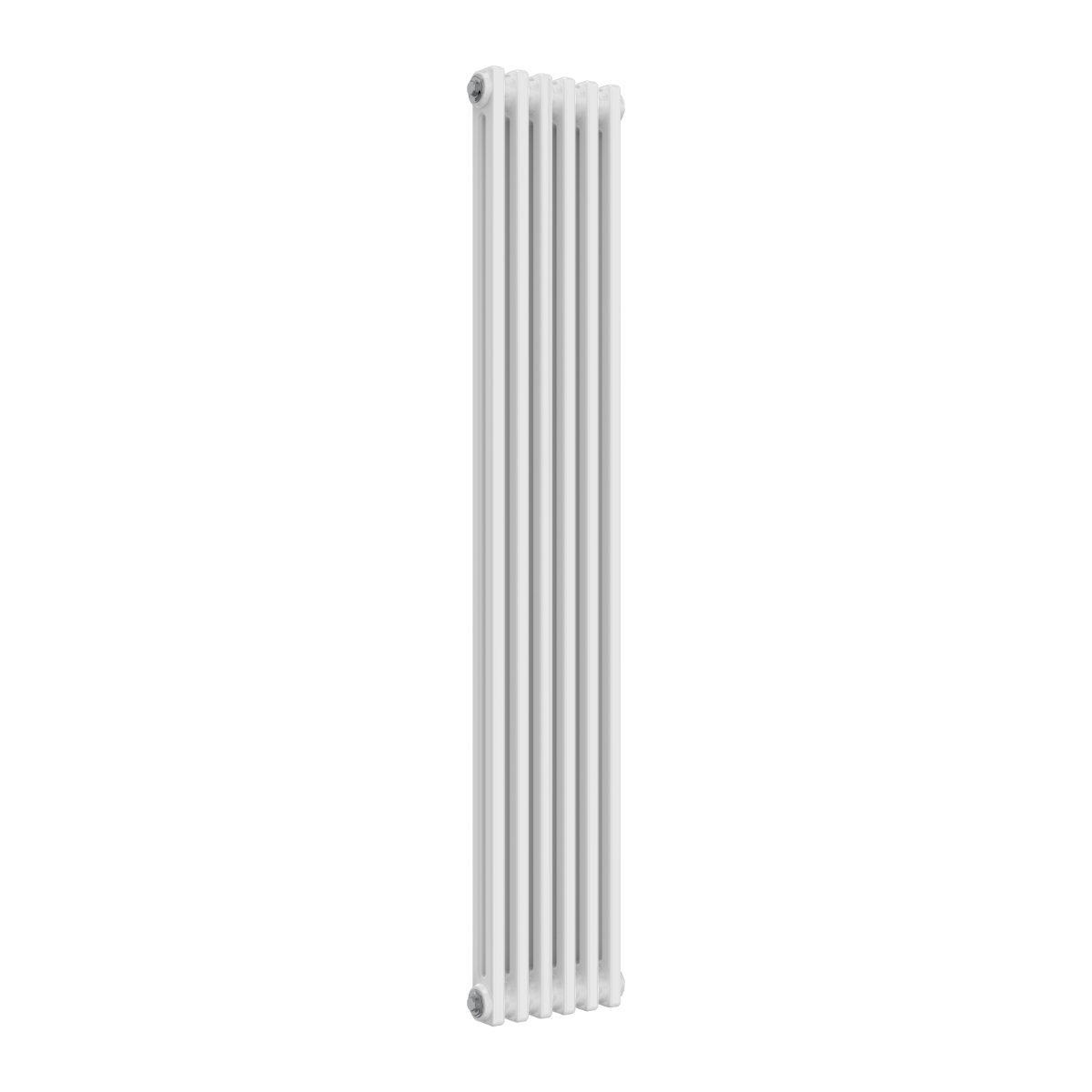

1500 x 290 White
0.09 MB

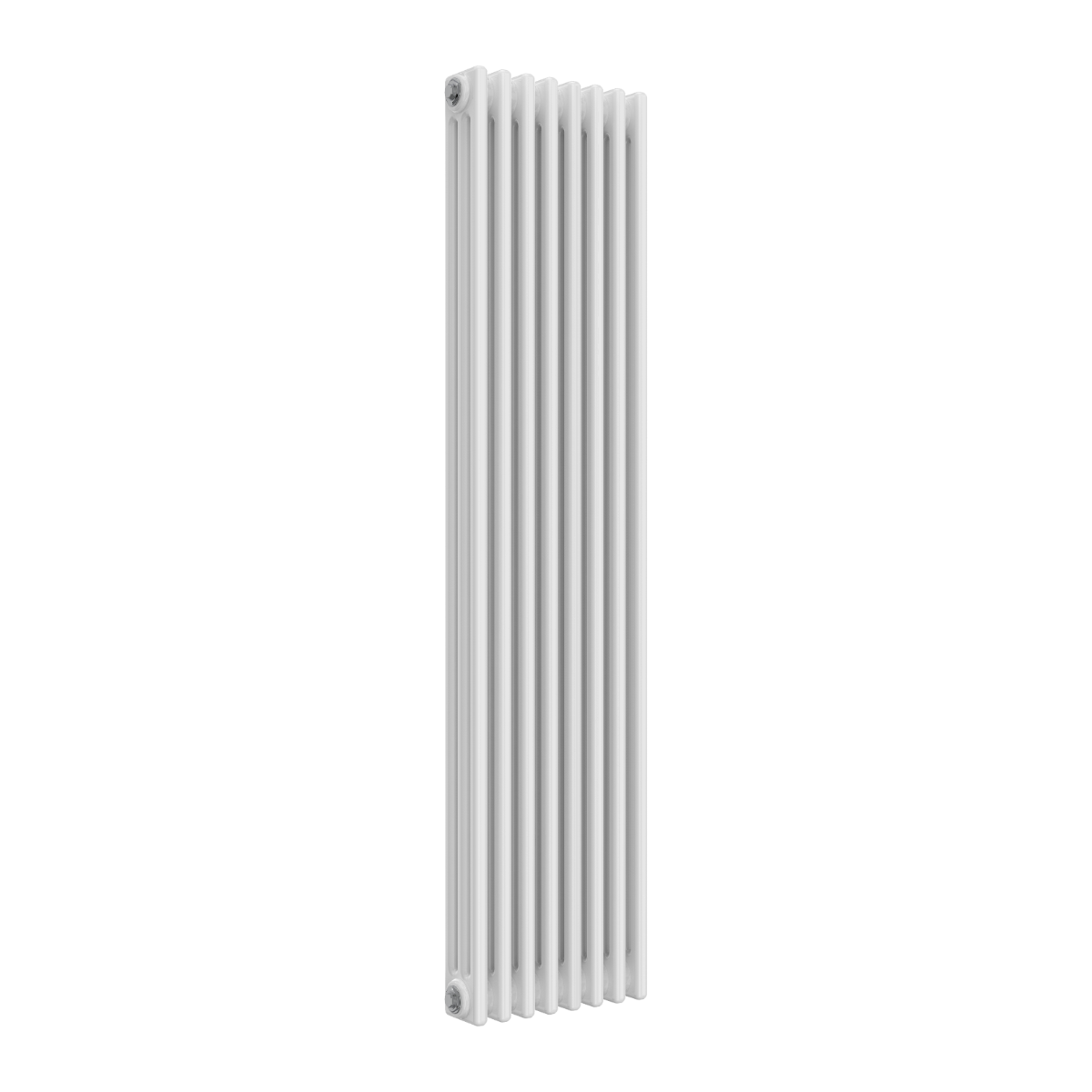

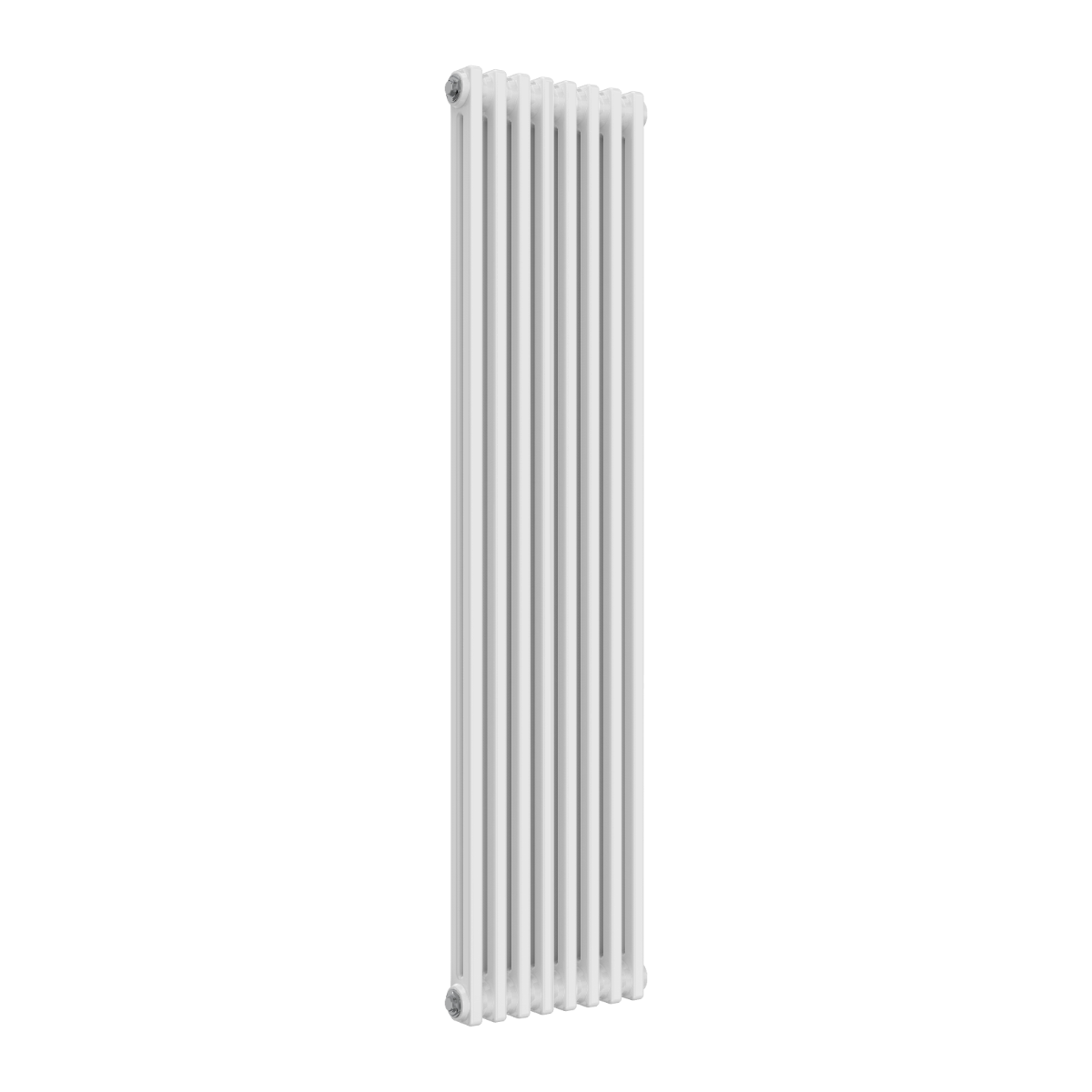

1500 x 380 White
0.12 MB
1800 x 200 White
0.07 MB

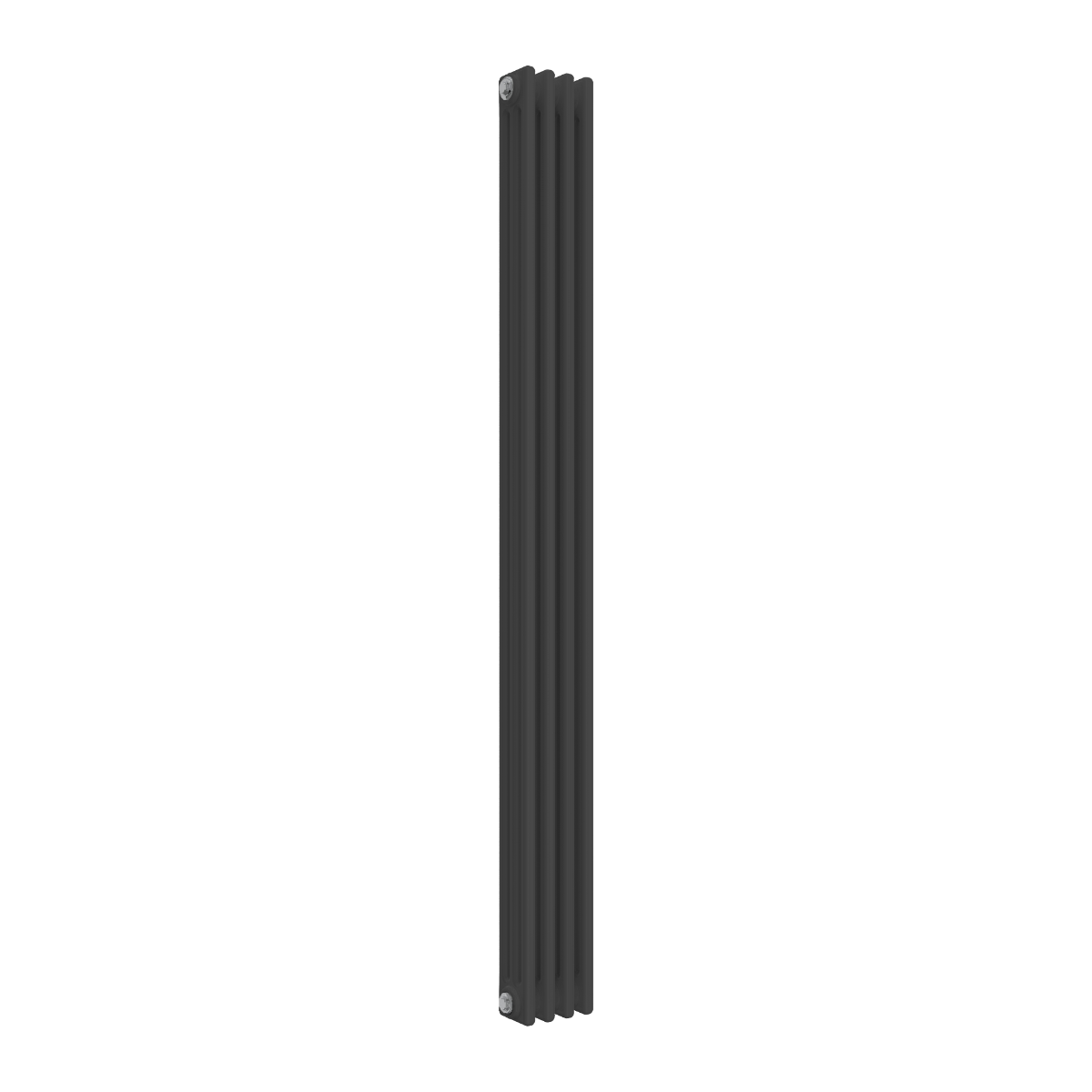

1800 x 200 Anthracite
0.05 MB

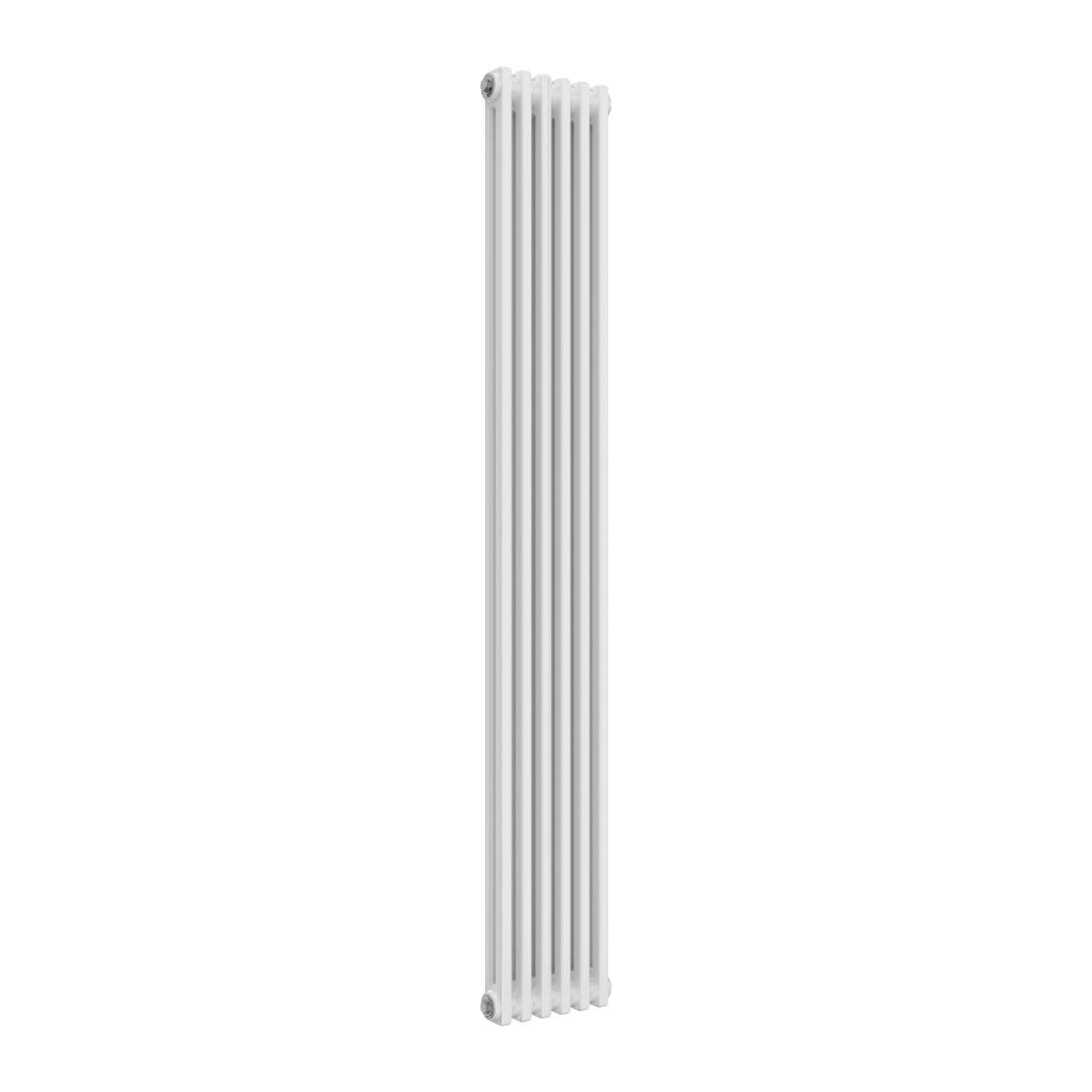

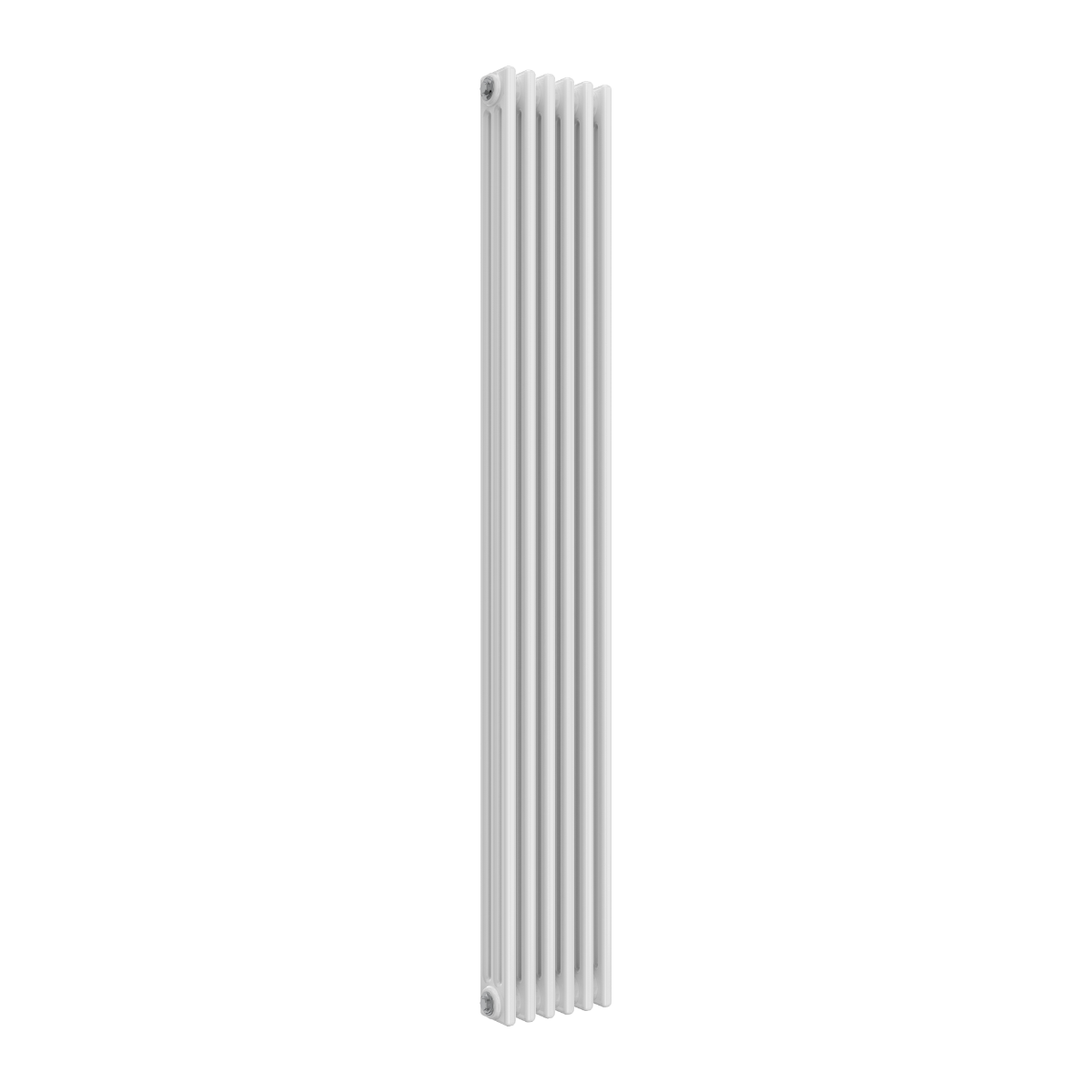

1800 x 290 White
0.08 MB

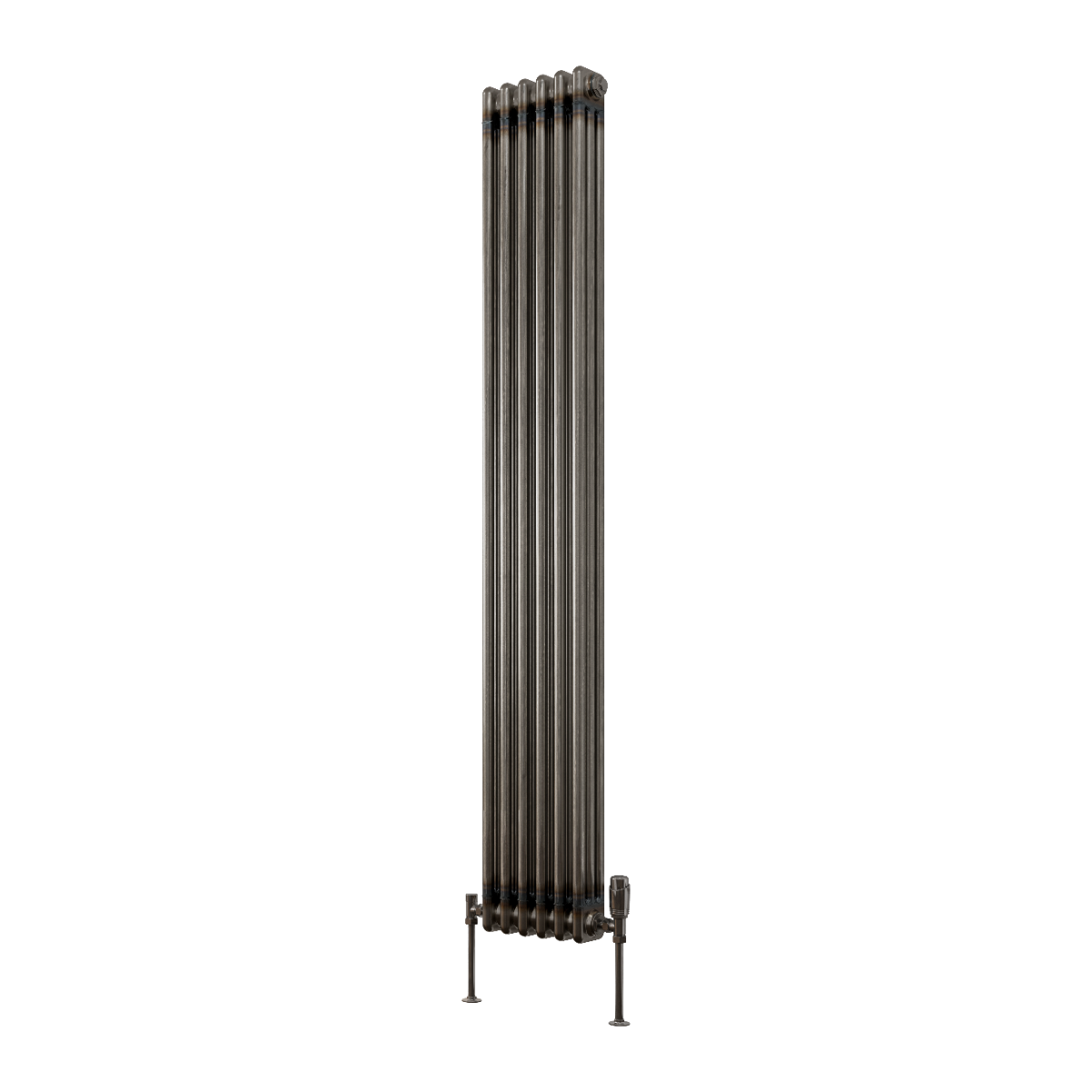

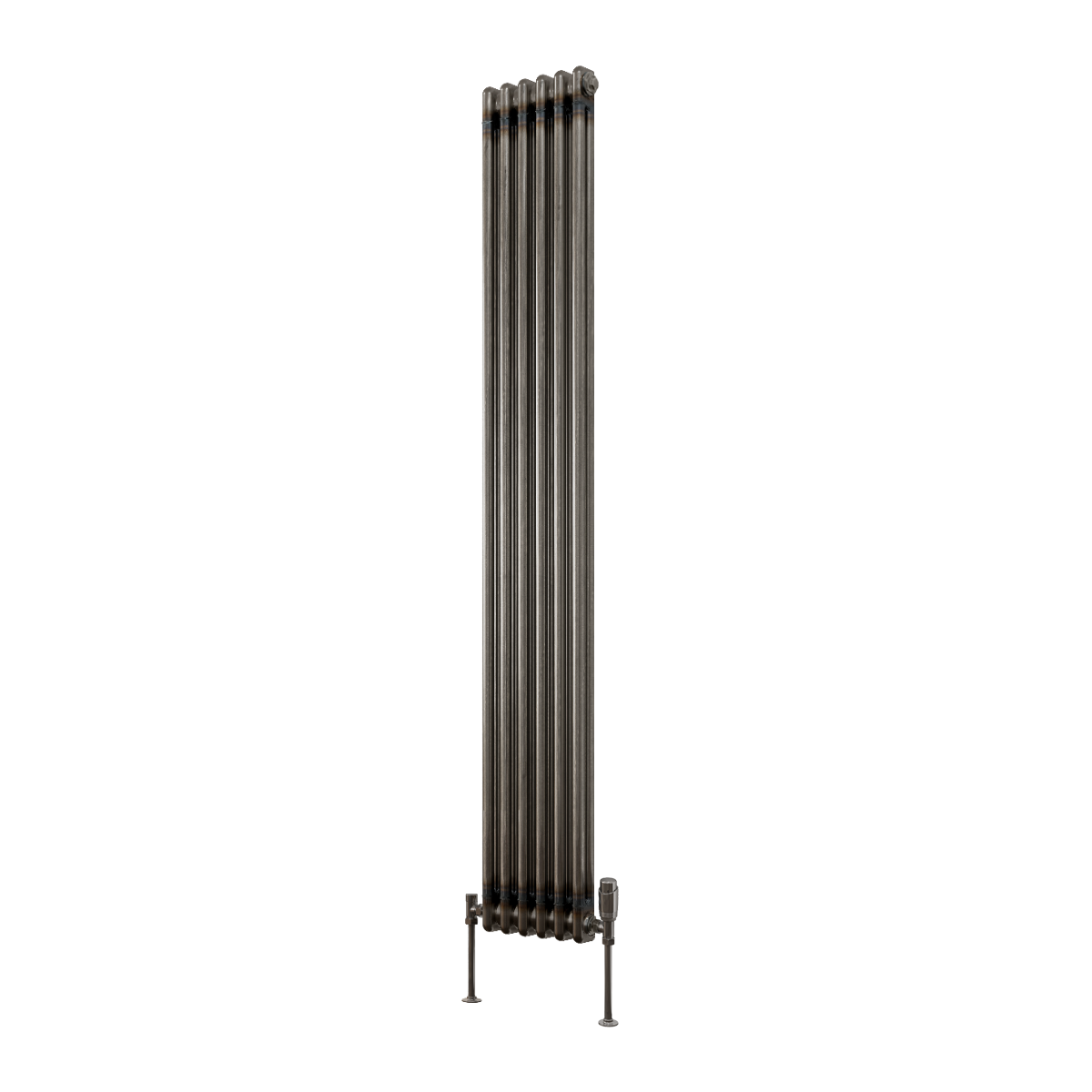

1800 x 290 Raw Steel Lacquer
0.25 MB

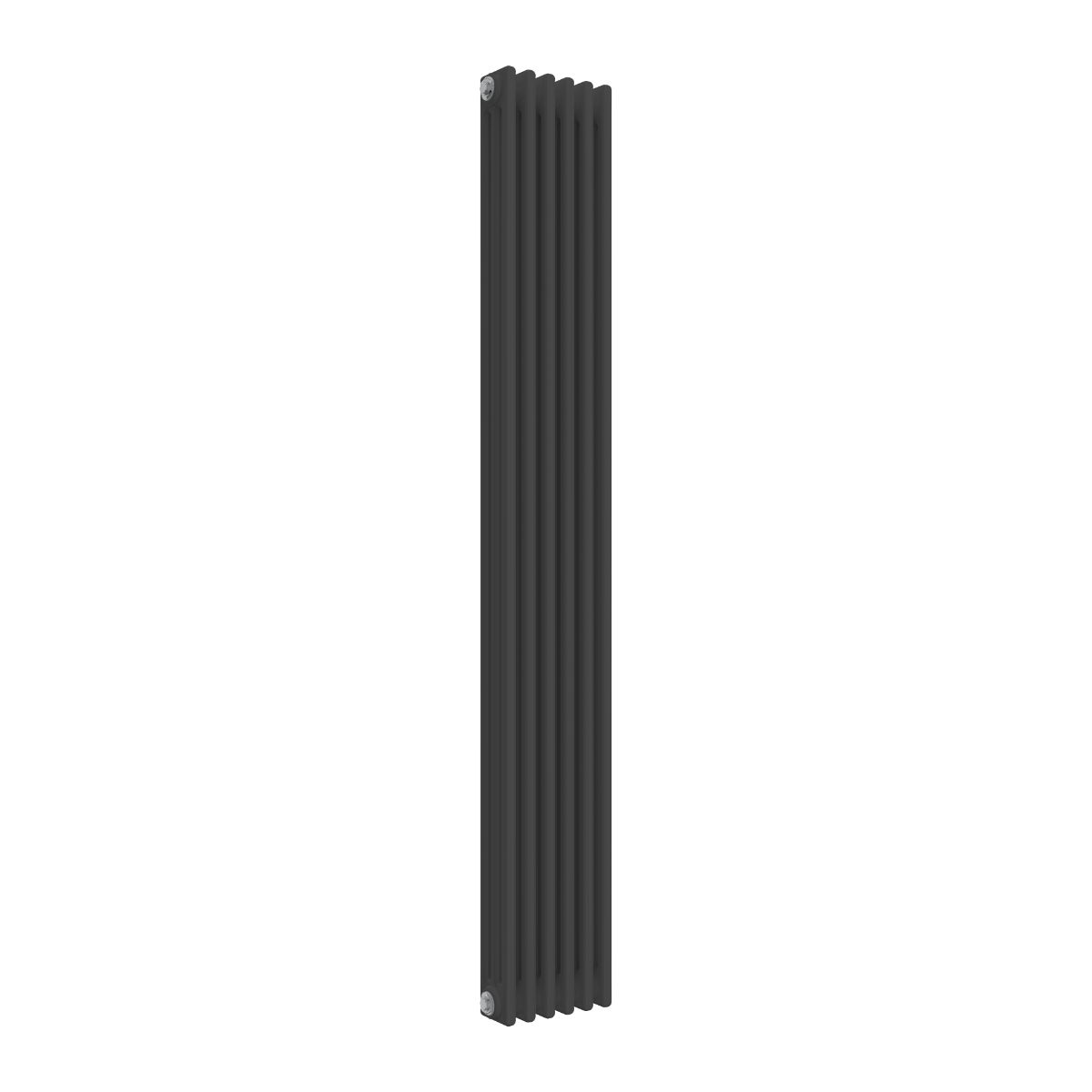

1800 x 290 Anthracite
0.05 MB

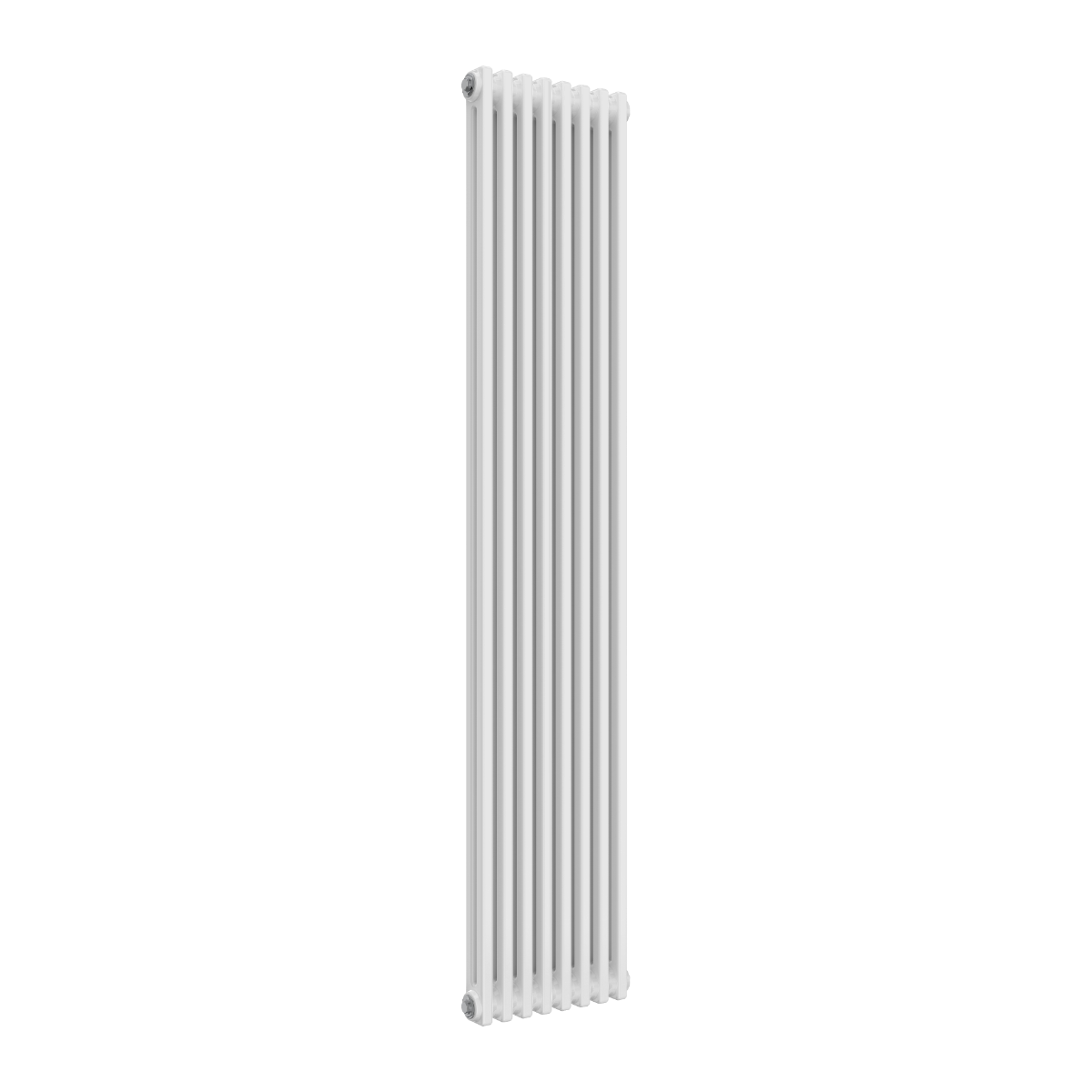

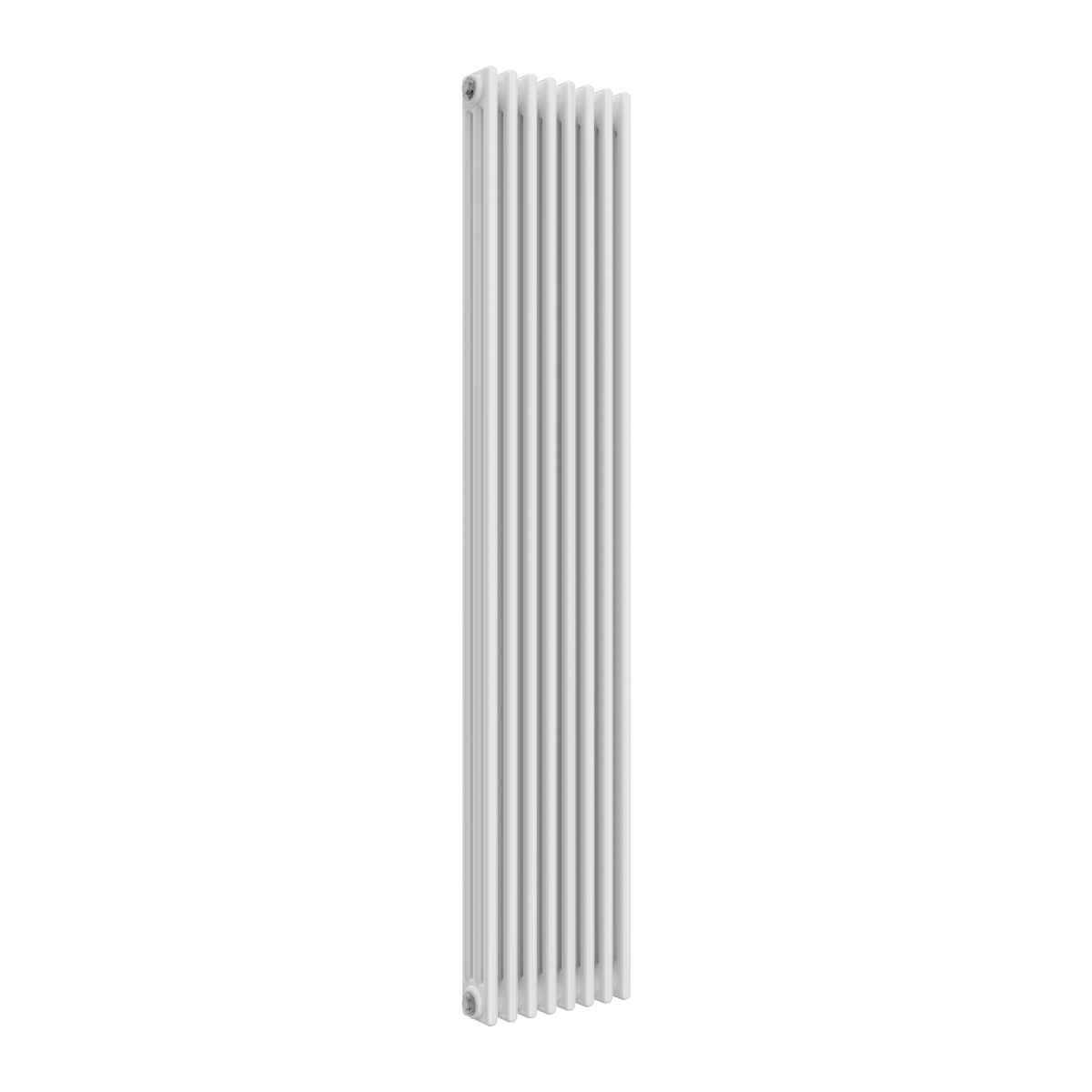

1800 x 380 White
0.09 MB

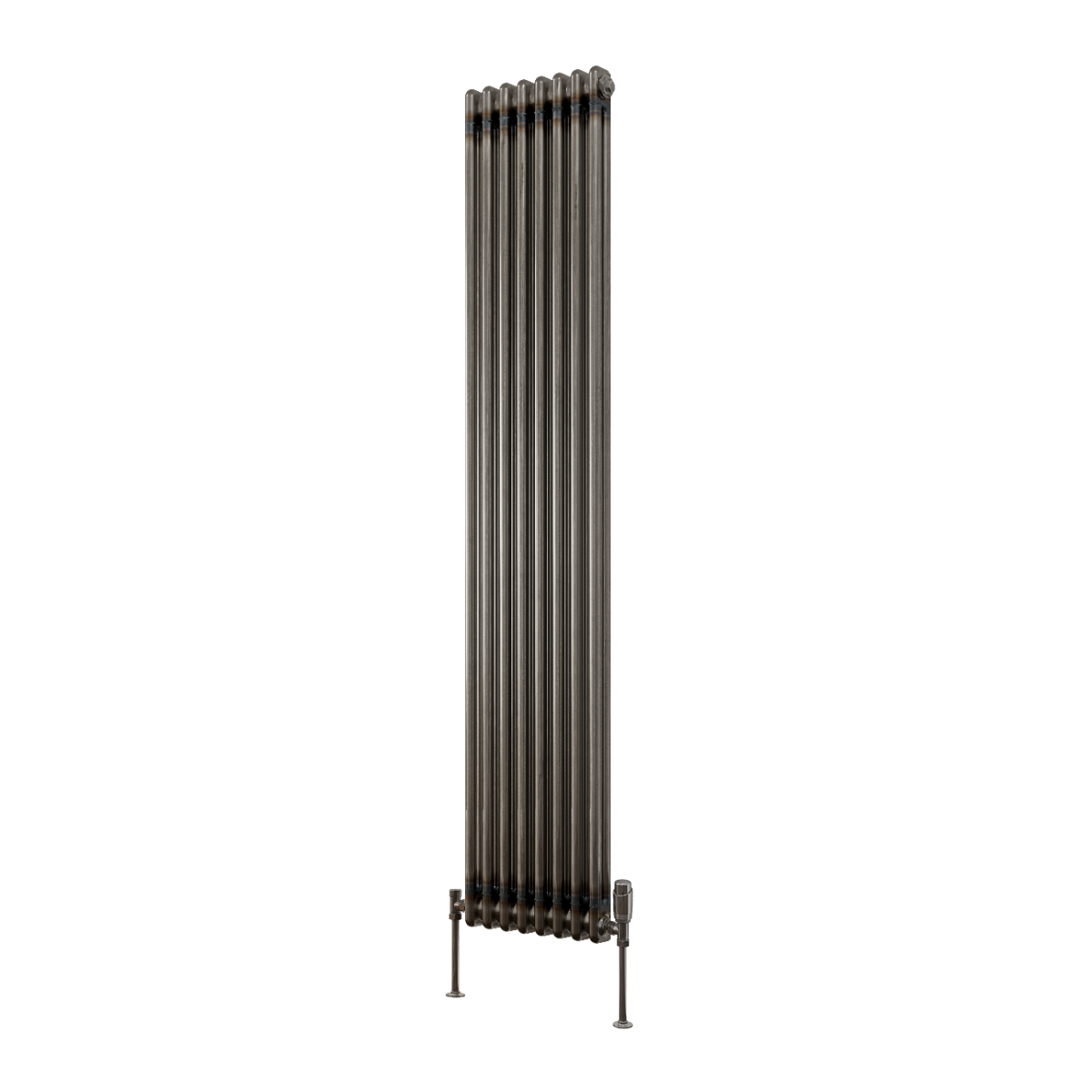

1800 x 380 Raw Steel Lacquer
0.3 MB

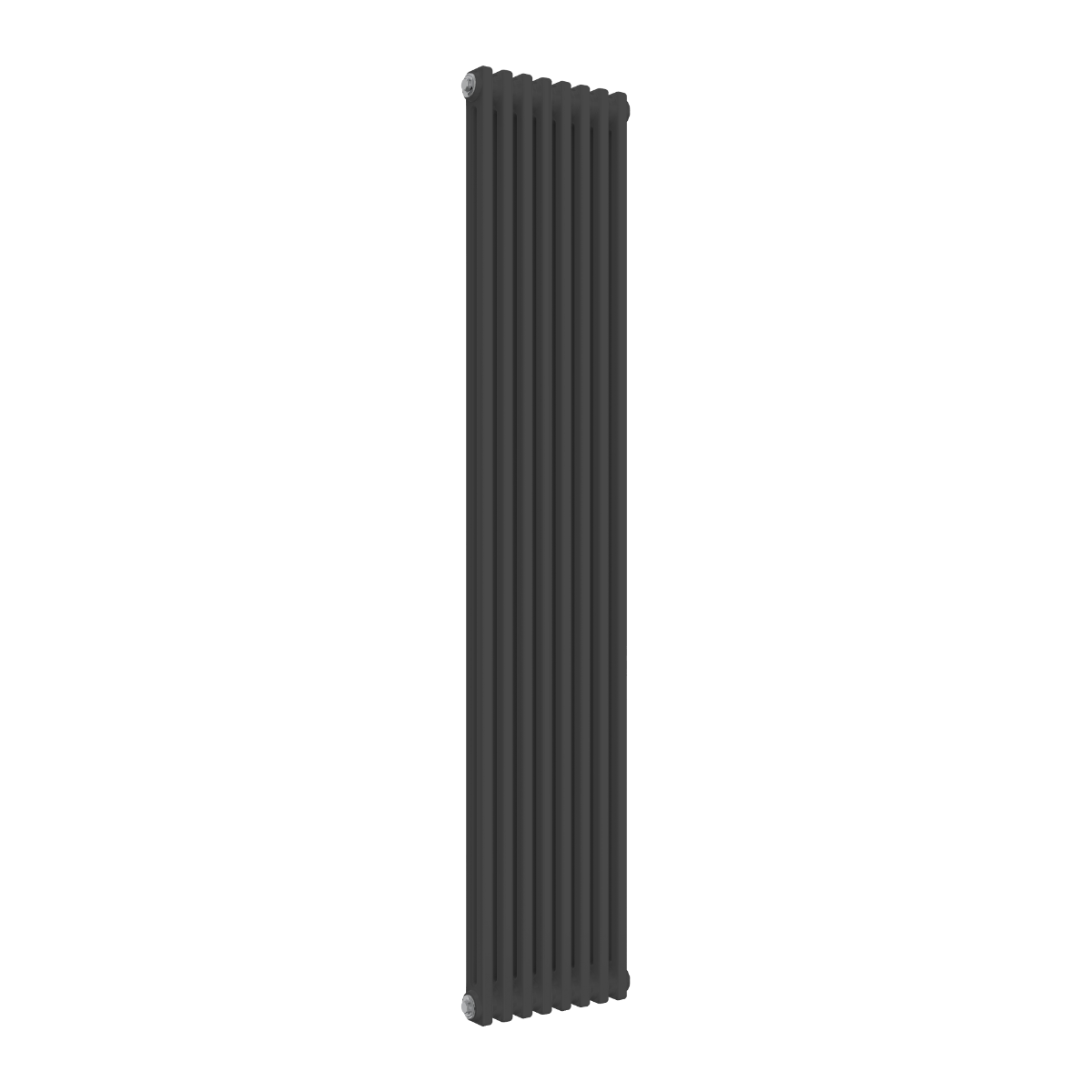

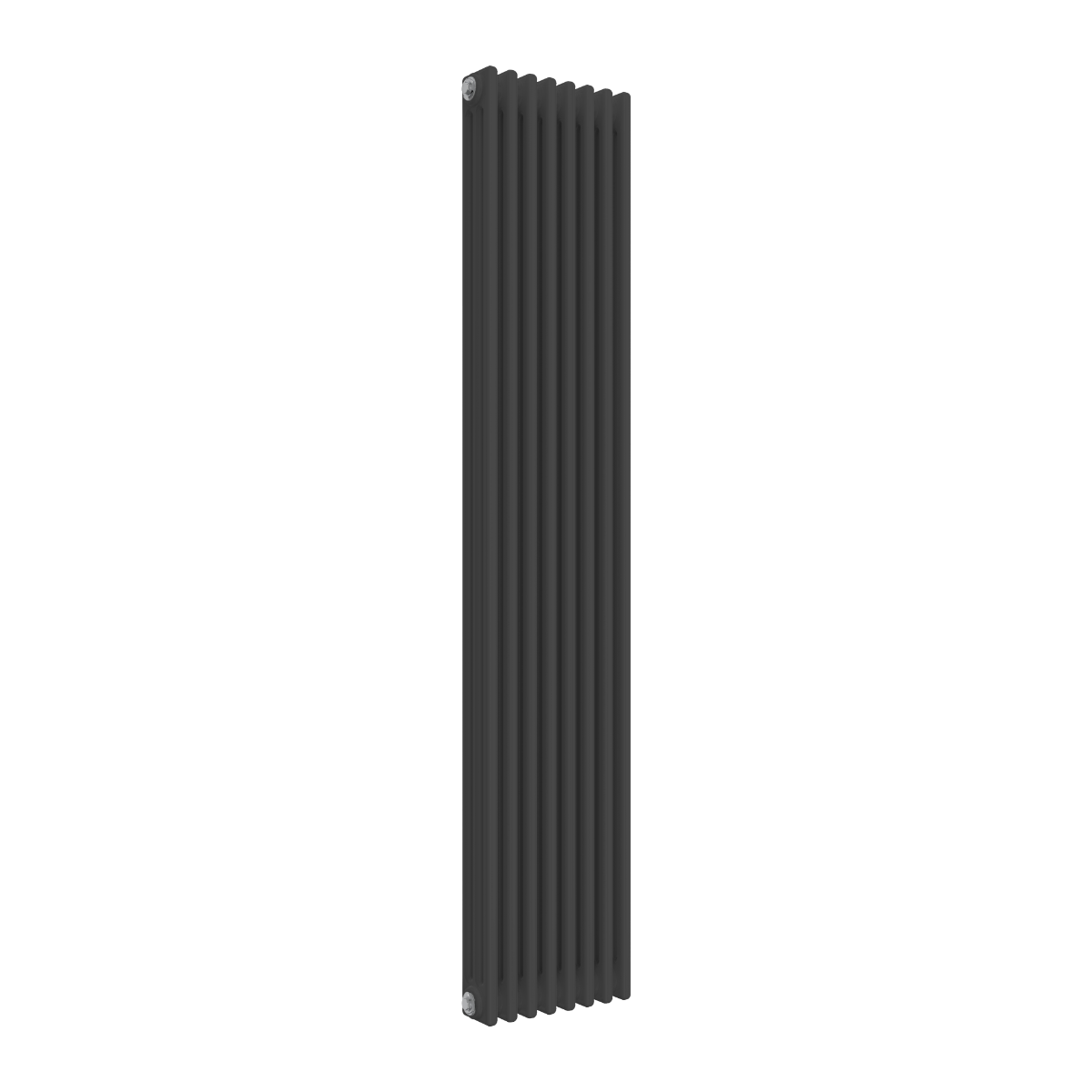

1800 x 380 Anthracite
0.06 MB
1500 x 200 White
0.08 MB
1500 x 290 White
0.11 MB
1500 x 380 White
0.14 MB
1800 x 200 White
0.08 MB
1800 x 200 Anthracite
0.05 MB
1800 x 290 White
0.09 MB
1800 x 290 Raw Steel Lacquer
0.27 MB
1800 x 290 Anthracite
0.06 MB
1800 x 380 White
0.1 MB
1800 x 380 Raw Steel Lacquer
0.32 MB
1800 x 380 Anthracite
0.07 MB

Roomset Product Images

Colona Vertical
0.12 MB
Colona Vertical
0.15 MB
Colona Vertical
0.07 MB
Colona Vertical
0.28 MB

High Resolution Images

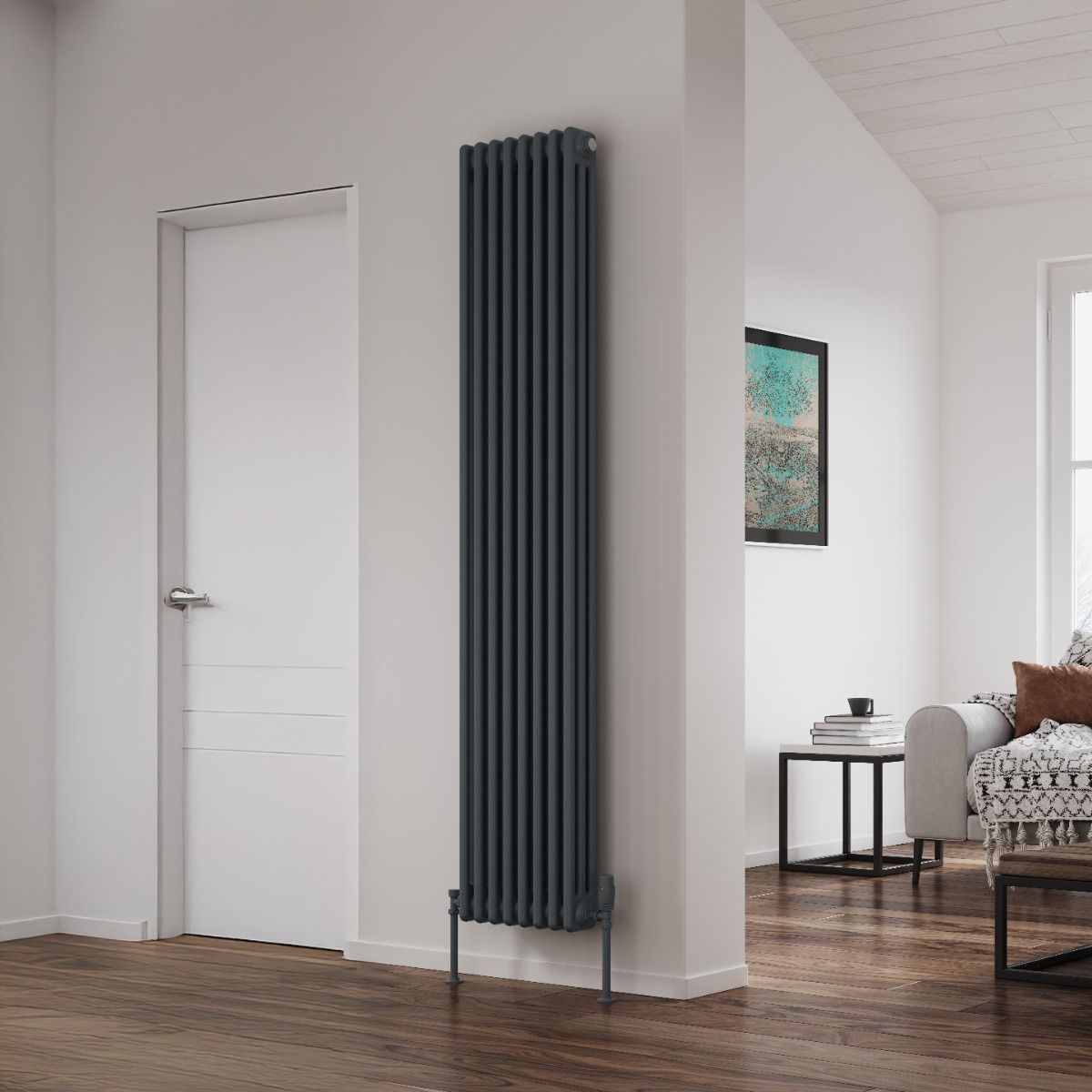

Reina Colona Vertical 3 Column 1800x380 Anthracite Roomset
19.34 MB
Reina Colona 3 Column 1800x380 Raw Metal Lacquer Roomset
33.41 MB

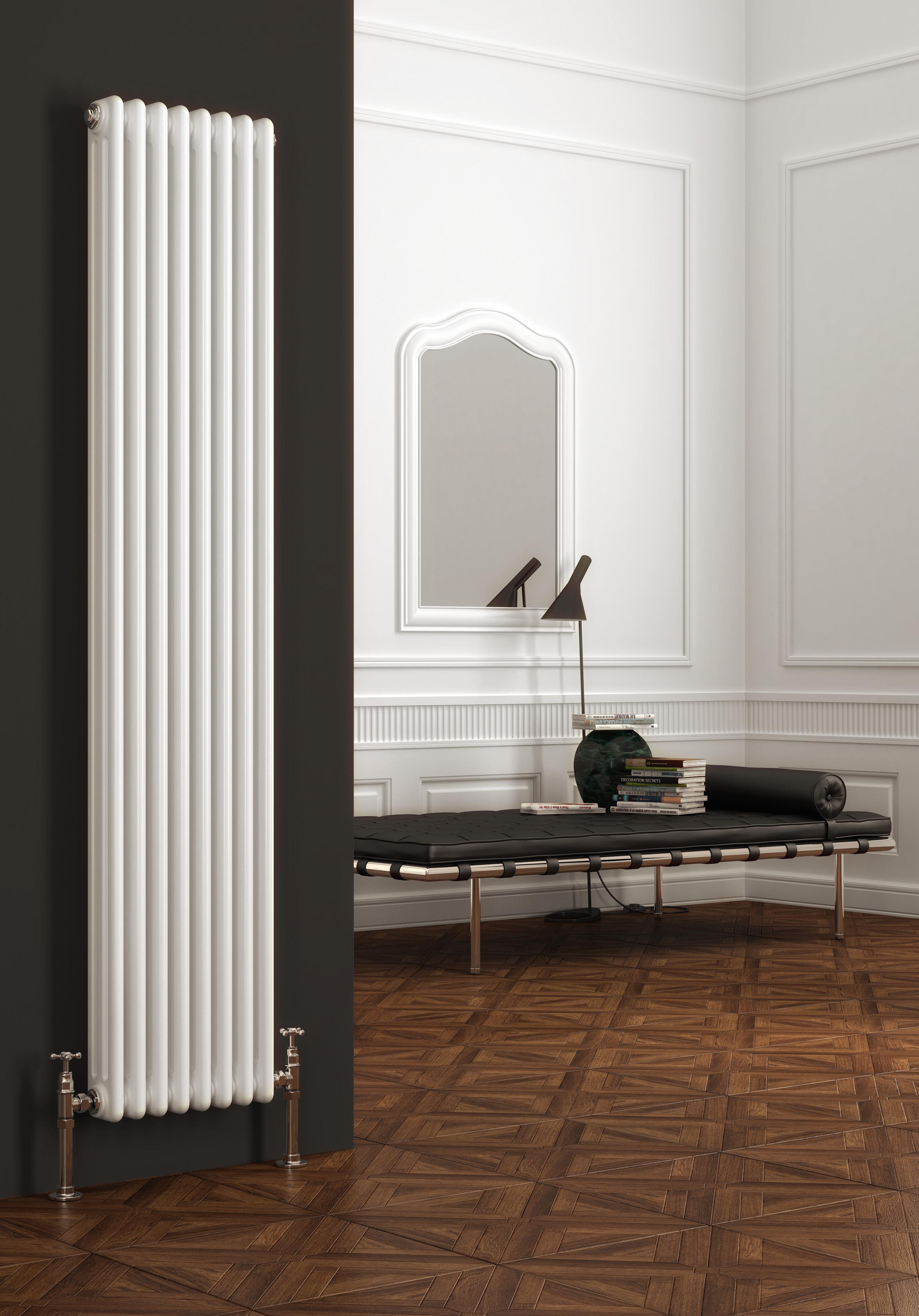

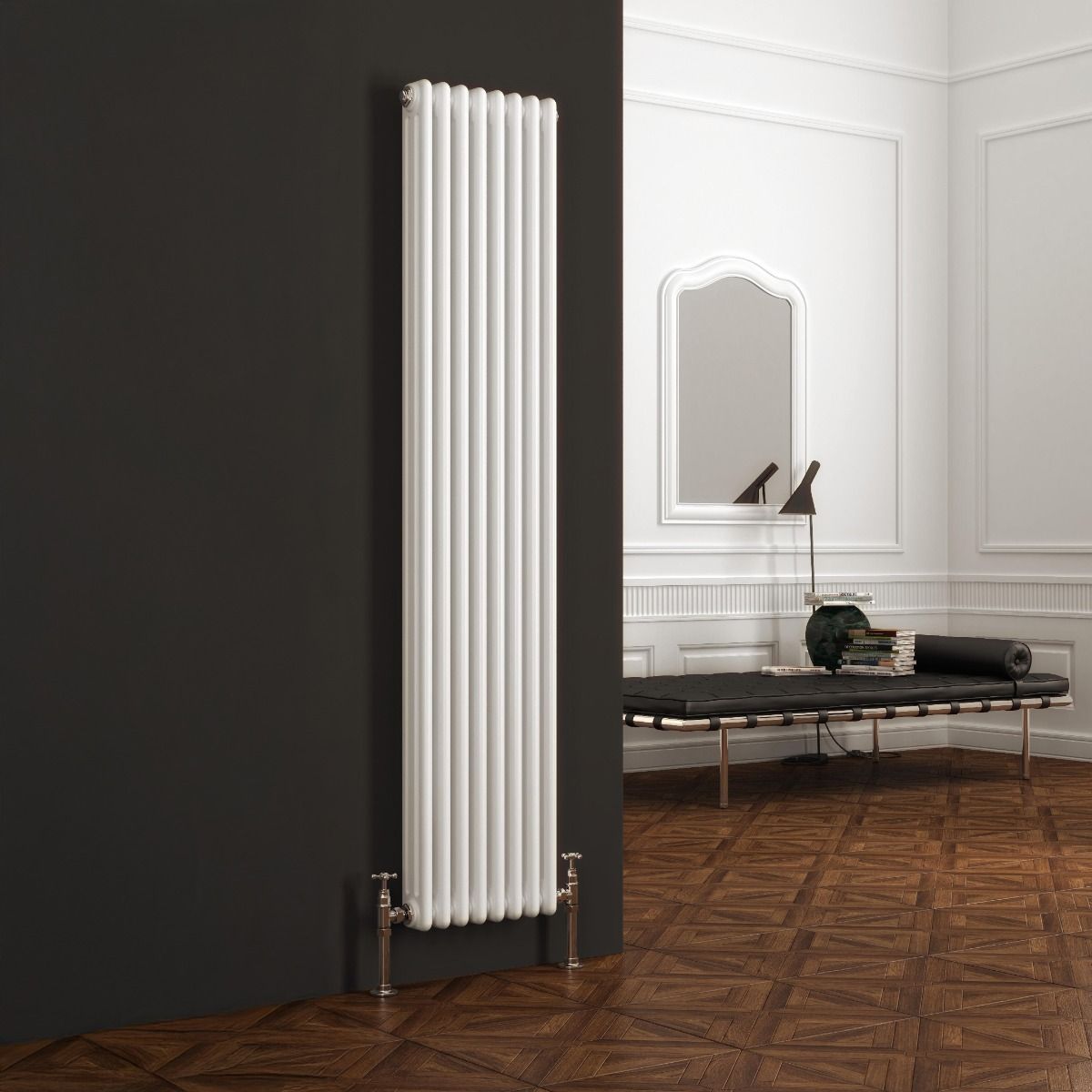

Reina Colona Vertical 3 Column 1800x380 White Roomset
0.99 MB
Tech Drawings

Technical Drawings

Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
2/C154 1500 200 White £155.49 Log in to see stock
2/C156 1500 290 White £221.89 Log in to see stock
2/C158 1500 380 White £293.63 Log in to see stock
2/C184 1800 200 White £160.80 Log in to see stock
2/C184A 1800 200 Anthracite £160.80 Log in to see stock
2/C186 1800 290 White £227.21 Log in to see stock
2/C186L 1800 290 Raw Steel Lacquer £348.00 Log in to see stock
2/C186A 1800 290 Anthracite £227.21 Log in to see stock
2/C188 1800 380 White £298.94 Log in to see stock
2/C188L 1800 380 Raw Steel Lacquer £430.00 Log in to see stock
2/C188A 1800 380 Anthracite £298.94 Log in to see stock
3/C154 1500 200 White £166.11 Log in to see stock
3/C156 1500 290 White £240.50 Log in to see stock
3/C158 1500 380 White £317.53 Log in to see stock
3/C184 1800 200 White £171.43 Log in to see stock
3/C184A 1800 200 Anthracite £171.43 Log in to see stock
3/C186 1800 290 White £245.81 Log in to see stock
3/C186L 1800 290 Raw Steel Lacquer £420.00 Log in to see stock
3/C186A 1800 290 Anthracite £245.81 Log in to see stock
3/C188 1800 380 White £322.84 Log in to see stock
3/C188L 1800 380 Raw Steel Lacquer £510.00 Log in to see stock
3/C188A 1800 380 Anthracite £322.84 Log in to see stock
