Colona Vertical Raw Steel Lacquer Column Radiator
5 Years Guarantee
Material: Mild Steel
Central Heating
- Available in 1 colour and 2 sizes
- Durable Mild Steel Construction
- 5 Years Guarantee
-
raw steel lacquer
Product Resource Centre
1800mm HEIGHT 290mm WIDTH
1800mm HEIGHT 380mm WIDTH
Technical
Measurements
| Height (mm) | Width (mm) | Columns | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|---|
| 1800 | 290 | Two | 290 | 60 | 95 | - | 6 |
| 1800 | 380 | Two | 380 | 60 | 95 | - | 8 |
For pipe centre measurement including valves, add 90mm
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Columns | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT30°C | ||
|---|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | |||||
| 2/C186L | 1800 | 290 | Two | Raw Steel Lacquer |
2535 | 743 | 1312 | 385 |
| 3/C186L | 1800 | 290 | Three | Raw Steel Lacquer |
3450 | 1012 | 1786 | 524 |
| 2/C188L | 1800 | 380 | Two | Raw Steel Lacquer |
3383 | 992 | 1751 | 514 |
| 3/C188L | 1800 | 380 | Three | Raw Steel Lacquer |
4601 | 1349 | 2382 | 698 |
Images
Cutout Product Images

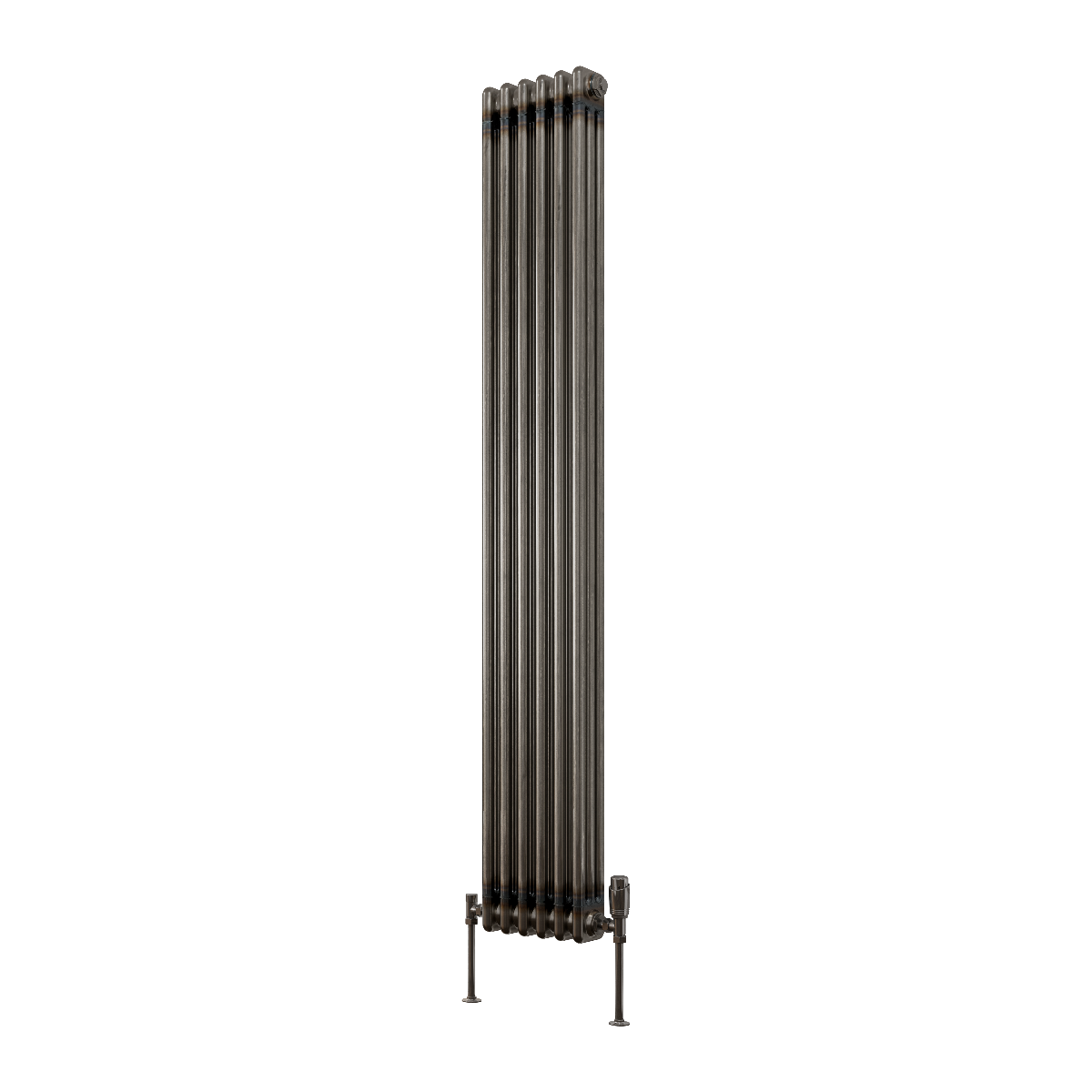

1800 x 290 Raw Steel Lacquer
0.25 MB
1800 x 290 Raw Steel Lacquer
0.27 MB
1800 x 380 Raw Steel Lacquer
0.3 MB
1800 x 380 Raw Steel Lacquer
0.32 MB

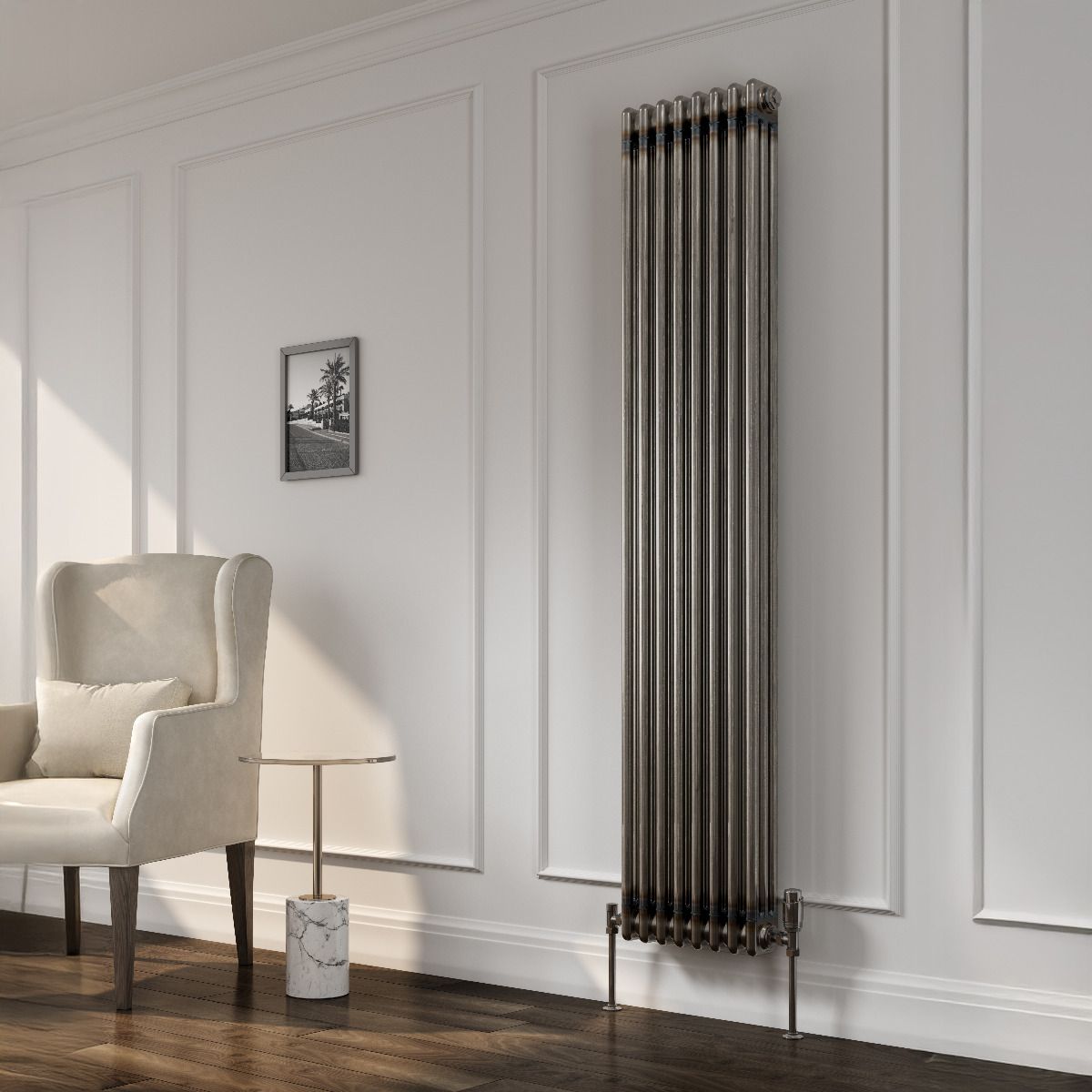

Roomset Product Images
Tech Drawings
Technical Drawings
Guides
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Columns | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|---|
| 2/C186L | 1800 | 290 | Two |
Raw Steel Lacquer |
£348.00 | Log in to see stock |
| 3/C186L | 1800 | 290 | Three |
Raw Steel Lacquer |
£420.00 | Log in to see stock |
| 2/C188L | 1800 | 380 | Two |
Raw Steel Lacquer |
£430.00 | Log in to see stock |
| 3/C188L | 1800 | 380 | Three |
Raw Steel Lacquer |
£510.00 | Log in to see stock |
