Diva Curved Mild Steel Towel Rail

5 Years Guarantee
Material: Mild Steel
Central Heating
Electric
Dual Fuel

The Reina Diva Curved Towel Radiator combines a modern ladder design with elegant curved tubes in a sleek chrome finish. Crafted from durable steel, it delivers exceptional heat output and optimal warmth distribution through its 25mm horizontal tubes. Experience reliable performance and style with a 5-year guarantee on this stunning addition to your space.

  • Available in 1 colour and 23 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • chrome

Product Resource Centre

800mm HEIGHT 400mm WIDTH
800mm HEIGHT 450mm WIDTH
800mm HEIGHT 500mm WIDTH
800mm HEIGHT 600mm WIDTH
800mm HEIGHT 750mm WIDTH
1000mm HEIGHT 400mm WIDTH
1000mm HEIGHT 500mm WIDTH
1000mm HEIGHT 600mm WIDTH
1200mm HEIGHT 400mm WIDTH
1200mm HEIGHT 450mm WIDTH
1200mm HEIGHT 500mm WIDTH
1200mm HEIGHT 600mm WIDTH
1200mm HEIGHT 750mm WIDTH
1400mm HEIGHT 500mm WIDTH
1400mm HEIGHT 600mm WIDTH
1600mm HEIGHT 400mm WIDTH
1600mm HEIGHT 500mm WIDTH
1600mm HEIGHT 600mm WIDTH
1800mm HEIGHT 400mm WIDTH
1800mm HEIGHT 450mm WIDTH
1800mm HEIGHT 500mm WIDTH
1800mm HEIGHT 600mm WIDTH
1800mm HEIGHT 750mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
800 400 360 70-85 85-100 - 14
800 450 410 70-85 85-100 - 14
800 500 460 70-85 85-100 - 14
800 600 560 70-85 85-100 - 14
800 750 710 70-85 85-100 - 14
1000 400 360 70-85 85-100 - 17
1000 500 460 70-85 85-100 - 17
1000 600 560 70-85 85-100 - 17
1200 400 360 70-85 85-100 - 21
1200 450 410 70-85 85-100 - 21
1200 500 460 70-85 85-100 - 21
1200 600 560 70-85 85-100 - 21
1200 750 710 70-85 85-100 - 21
1400 500 460 70-85 85-100 - 24
1400 600 560 70-85 85-100 - 24
1600 400 360 70-85 85-100 - 27
1600 500 460 70-85 85-100 - 27
1600 600 560 70-85 85-100 - 27
1800 400 360 70-85 85-100 - 31
1800 450 410 70-85 85-100 - 31
1800 500 460 70-85 85-100 - 31
1800 600 560 70-85 85-100 - 31
1800 750 710 70-85 85-100 - 31

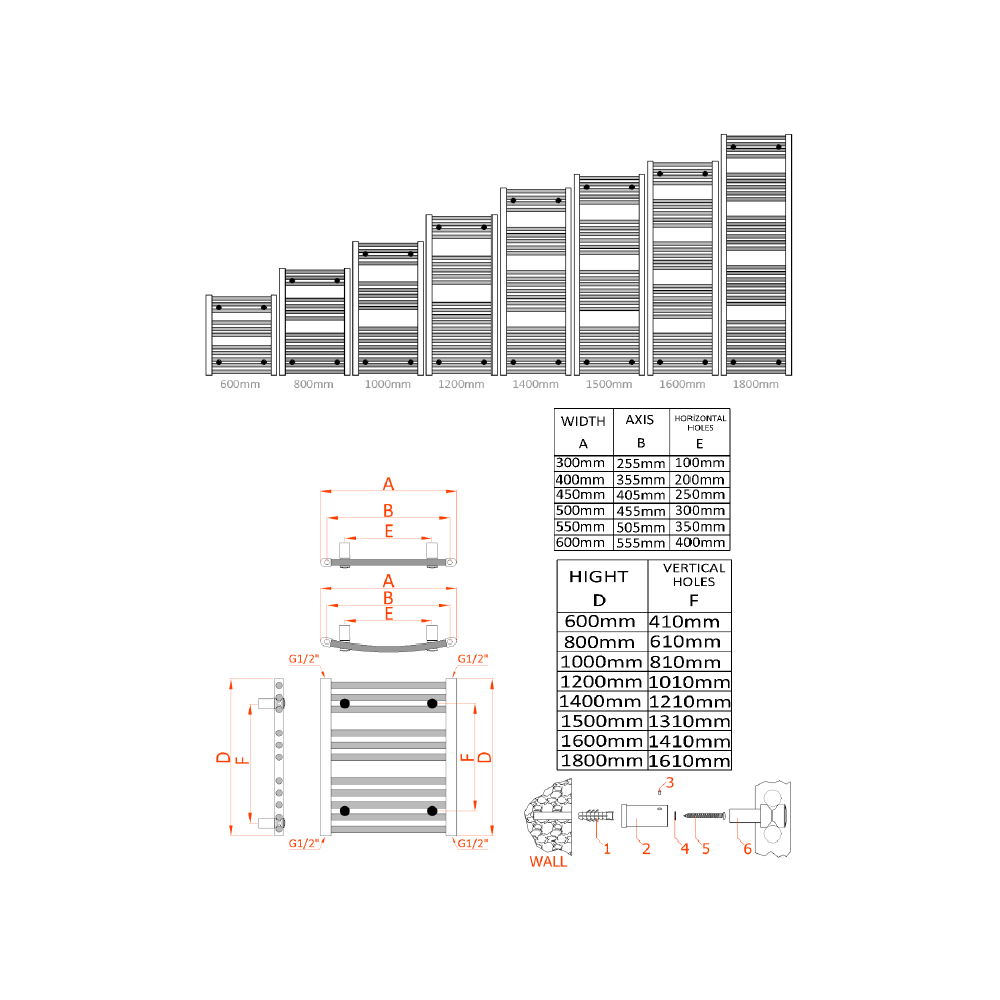

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
AG40800CC 800 400 Chrome 848 249 663 194 338 99
AG45800CC 800 450 Chrome 904 265 706 207 360 106
AG50800CC 800 500 Chrome 1015 298 793 233 404 119
AG60800CC 800 600 Chrome 1117 328 873 256 445 131
AG75800CC 800 750 Chrome 1257 369 982 288 501 147
AG40100CC 1000 400 Chrome 1236 362 966 283 492 144
AG50100CC 1000 500 Chrome 1411 414 1102 323 562 165
AG60100CC 1000 600 Chrome 1525 447 1191 349 608 178
AG40120CC 1200 400 Chrome 1623 476 1268 372 647 190
AG45120CC 1200 450 Chrome 1707 501 1334 391 680 199
AG50120CC 1200 500 Chrome 1807 530 1412 414 720 211
AG60120CC 1200 600 Chrome 1955 573 1527 448 779 228
AG75120CC 1200 750 Chrome 2107 618 1646 483 840 246
AG50140CC 1400 500 Chrome 2040 598 1594 467 813 238
AG60140CC 1400 600 Chrome 2256 662 1763 517 899 264
AG40160CC 1600 400 Chrome 2016 591 1575 462 803 236
AG50160CC 1600 500 Chrome 2352 690 1838 539 937 275
AG60160CC 1600 600 Chrome 2558 750 1998 586 1019 299
AG40180CC 1800 400 Chrome 2221 651 1735 509 885 260
AG45180CC 1800 450 Chrome 2449 718 1913 561 976 286
AG50180CC 1800 500 Chrome 2713 796 2120 622 1081 317
AG60180CC 1800 600 Chrome 2915 855 2277 668 1161 341
AG75180CC 1800 750 Chrome 3157 926 2466 723 1258 369
Images

Cutout Product Images

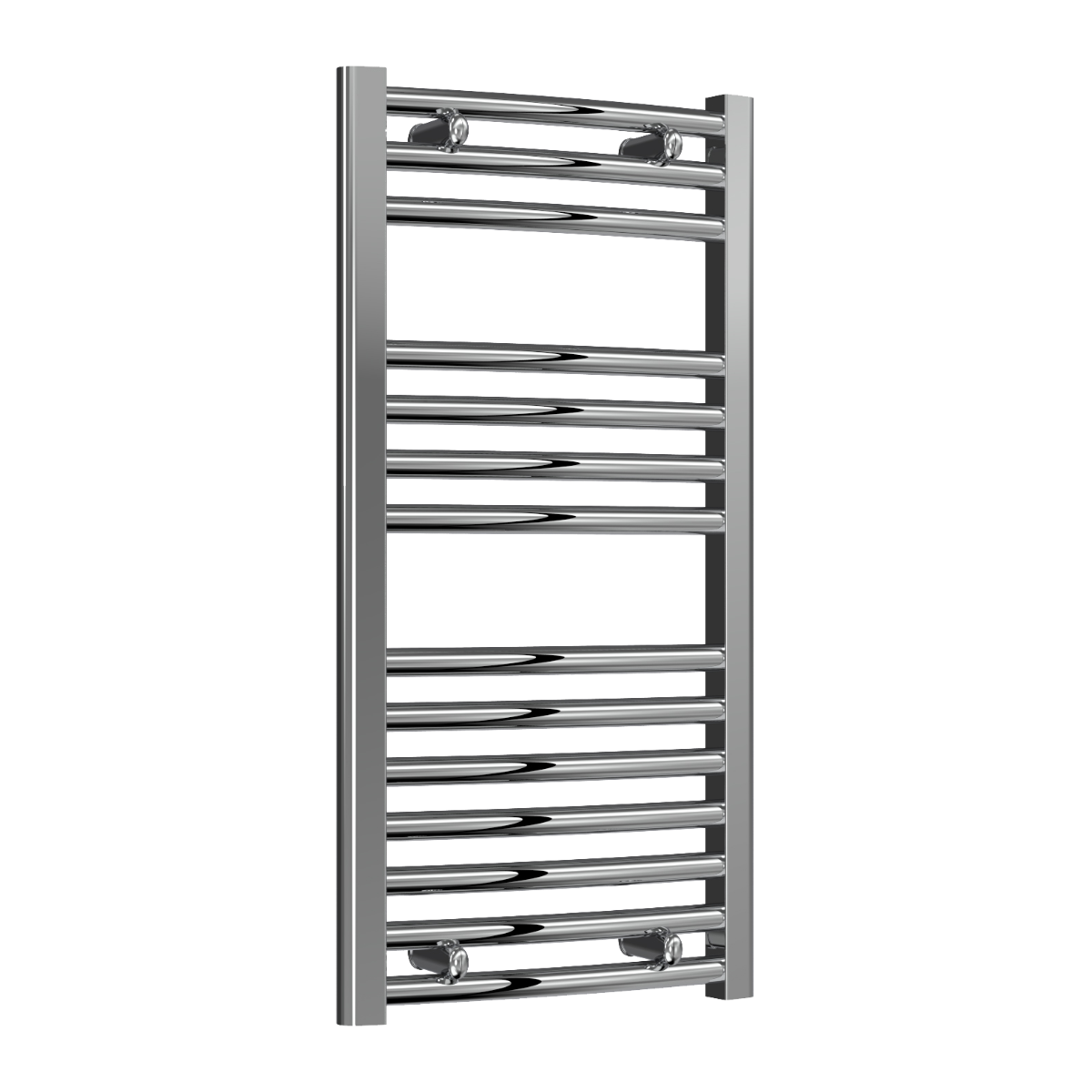

800 x 400 Chrome
0.34 MB

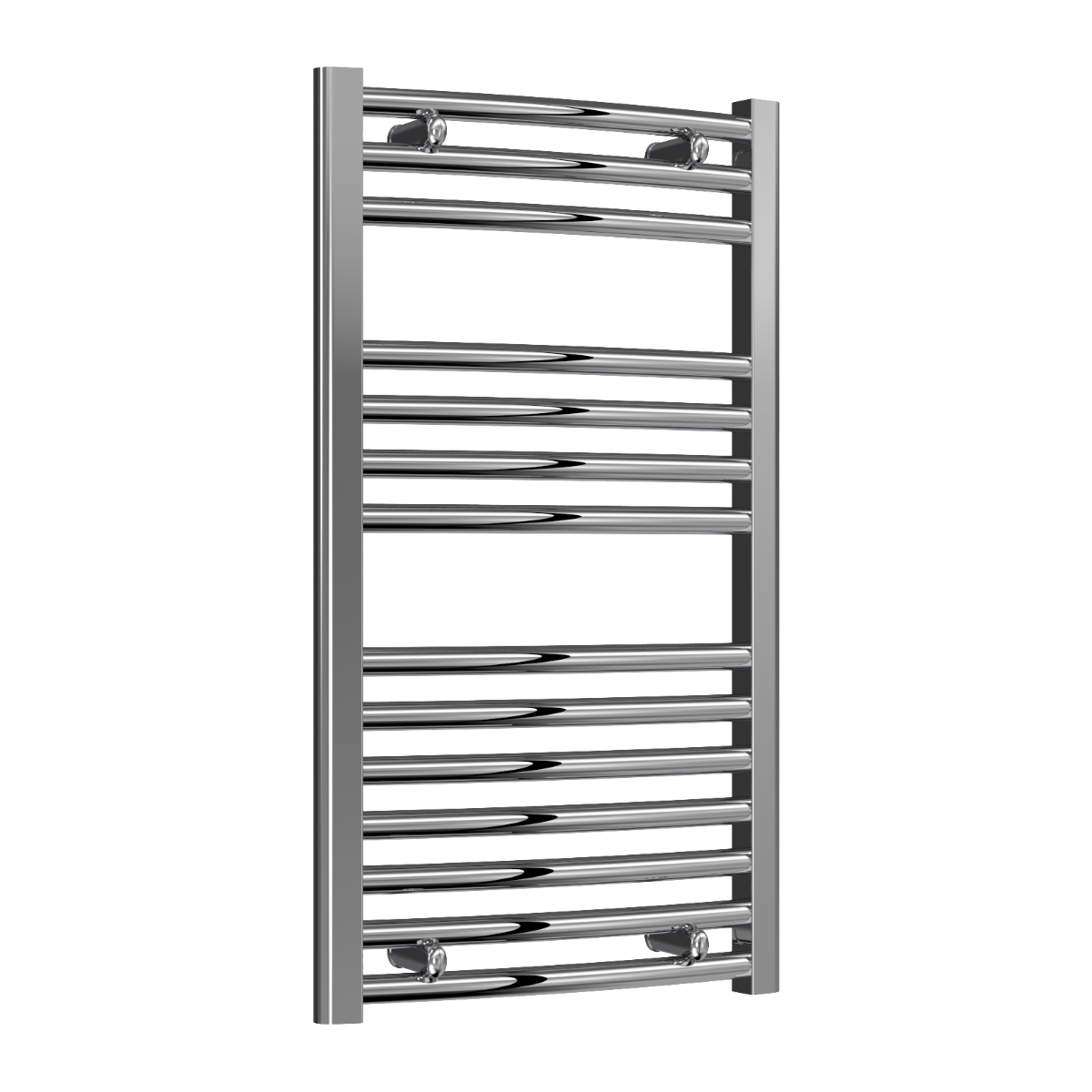

800 x 450 Chrome
0.37 MB
800 x 500 Chrome
0.4 MB

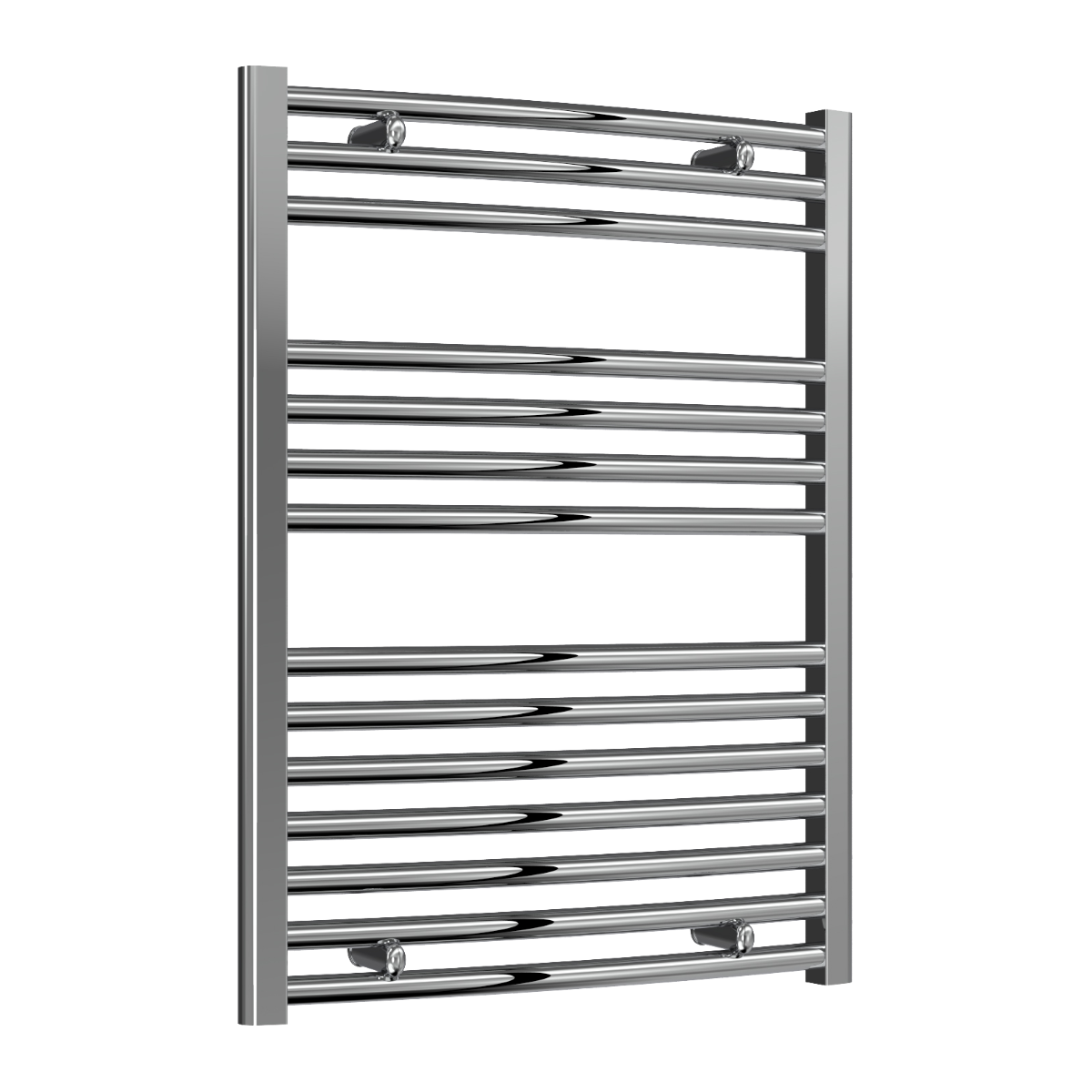

800 x 600 Chrome
0.45 MB

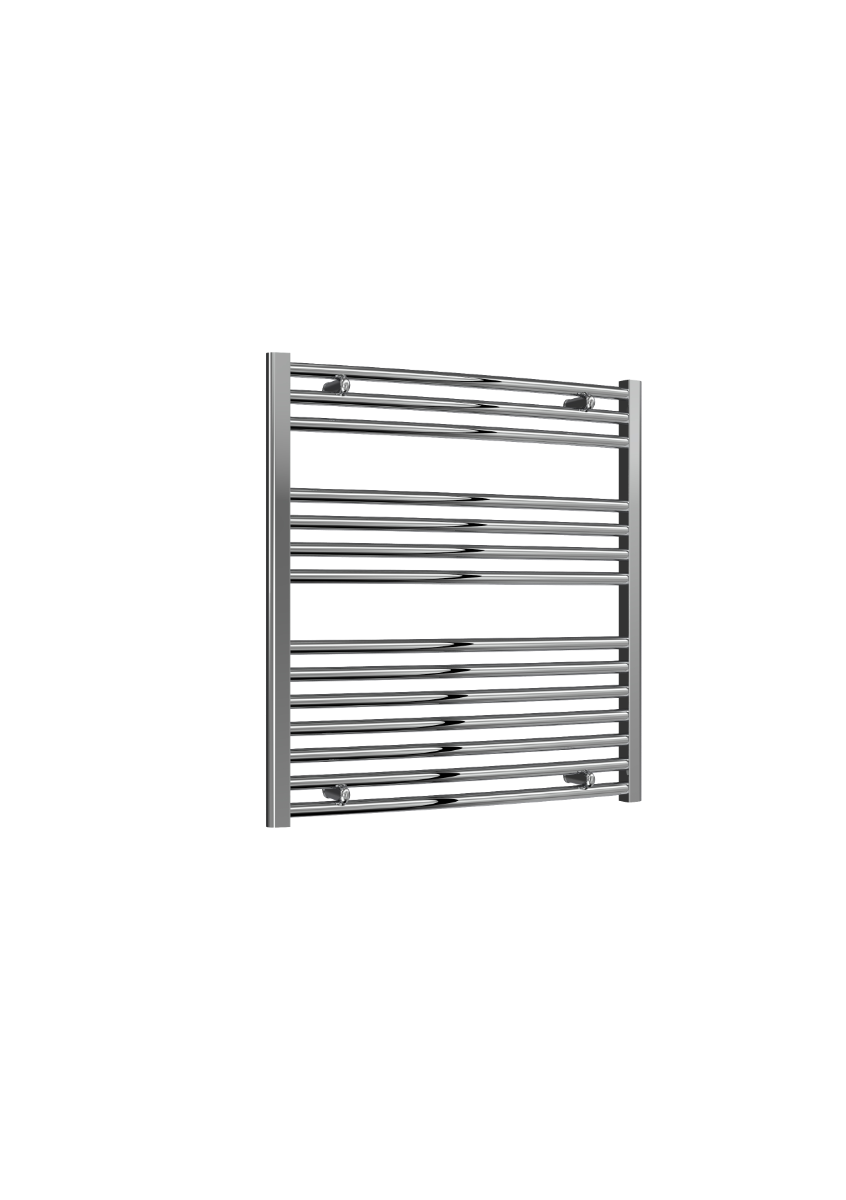

800 x 750 Chrome
0.17 MB

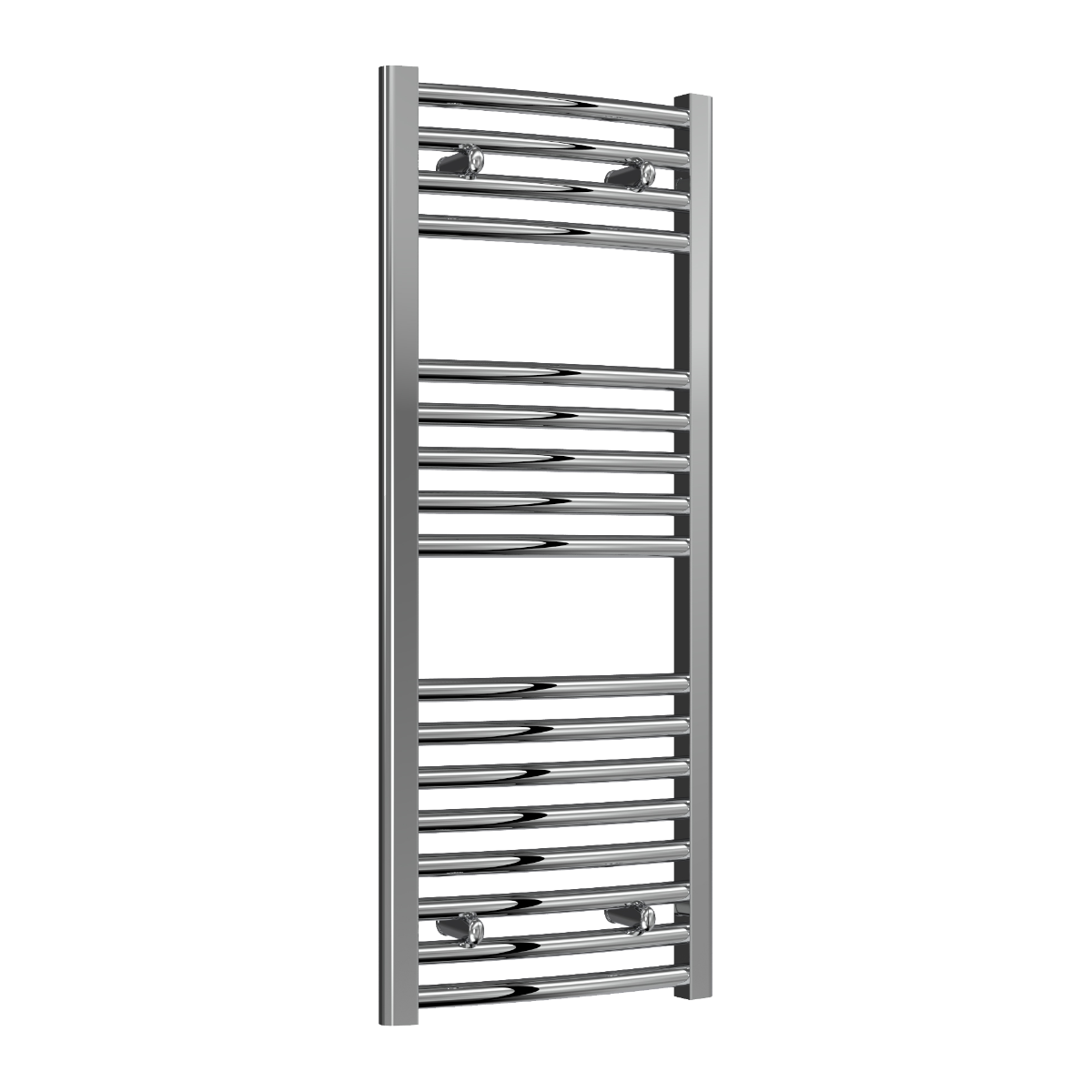

1000 x 400 Chrome
0.31 MB

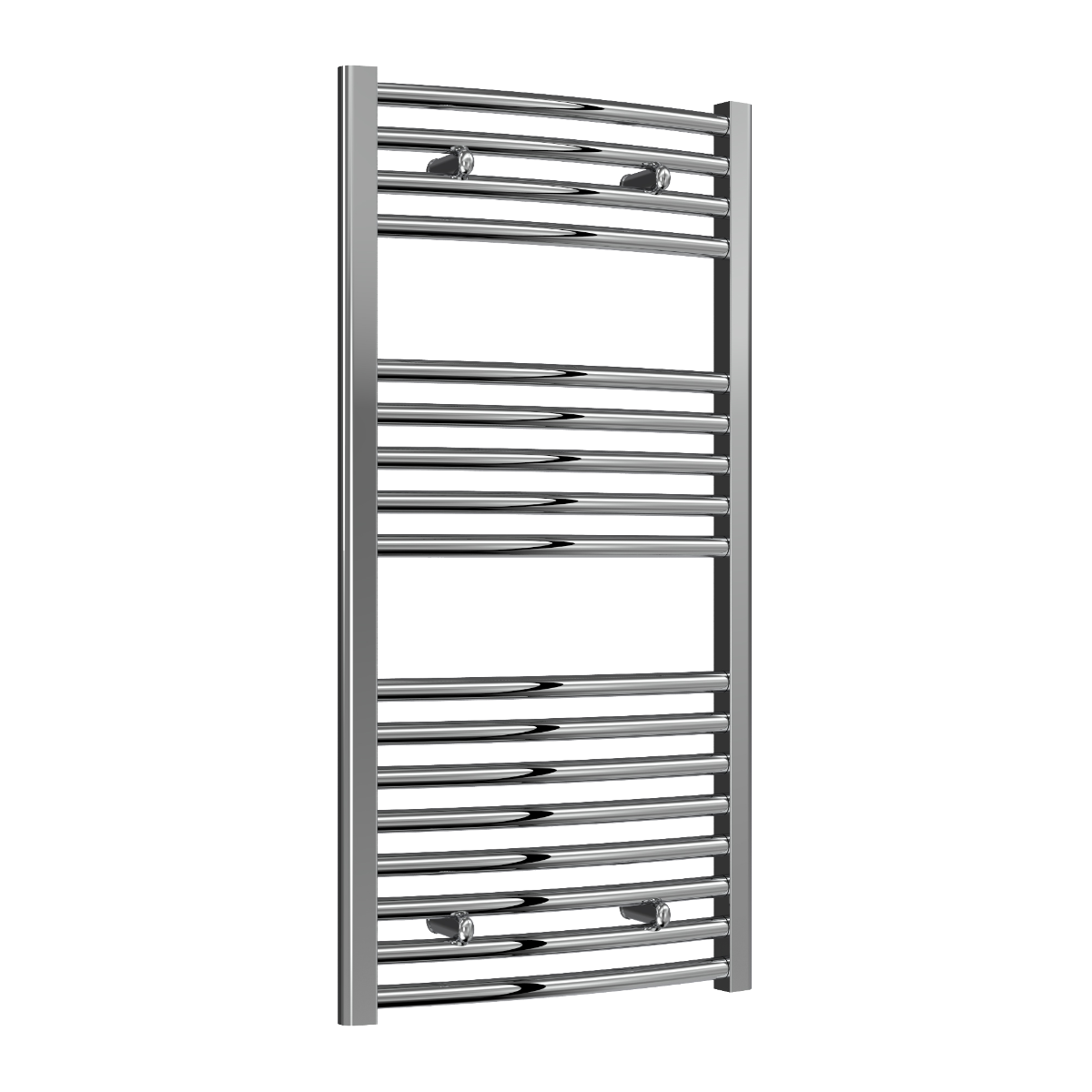

1000 x 500 Chrome
0.37 MB

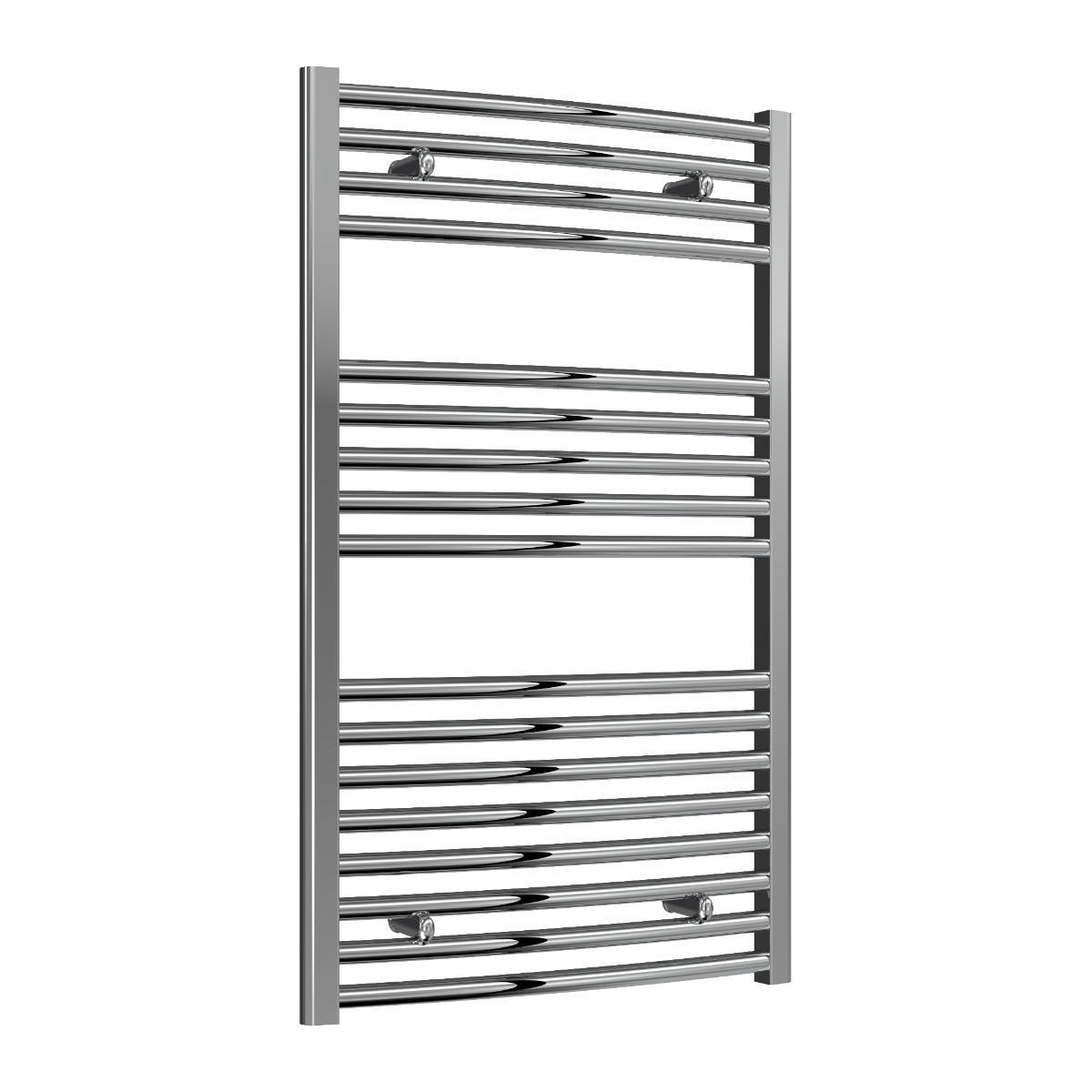

1000 x 600 Chrome
0.42 MB

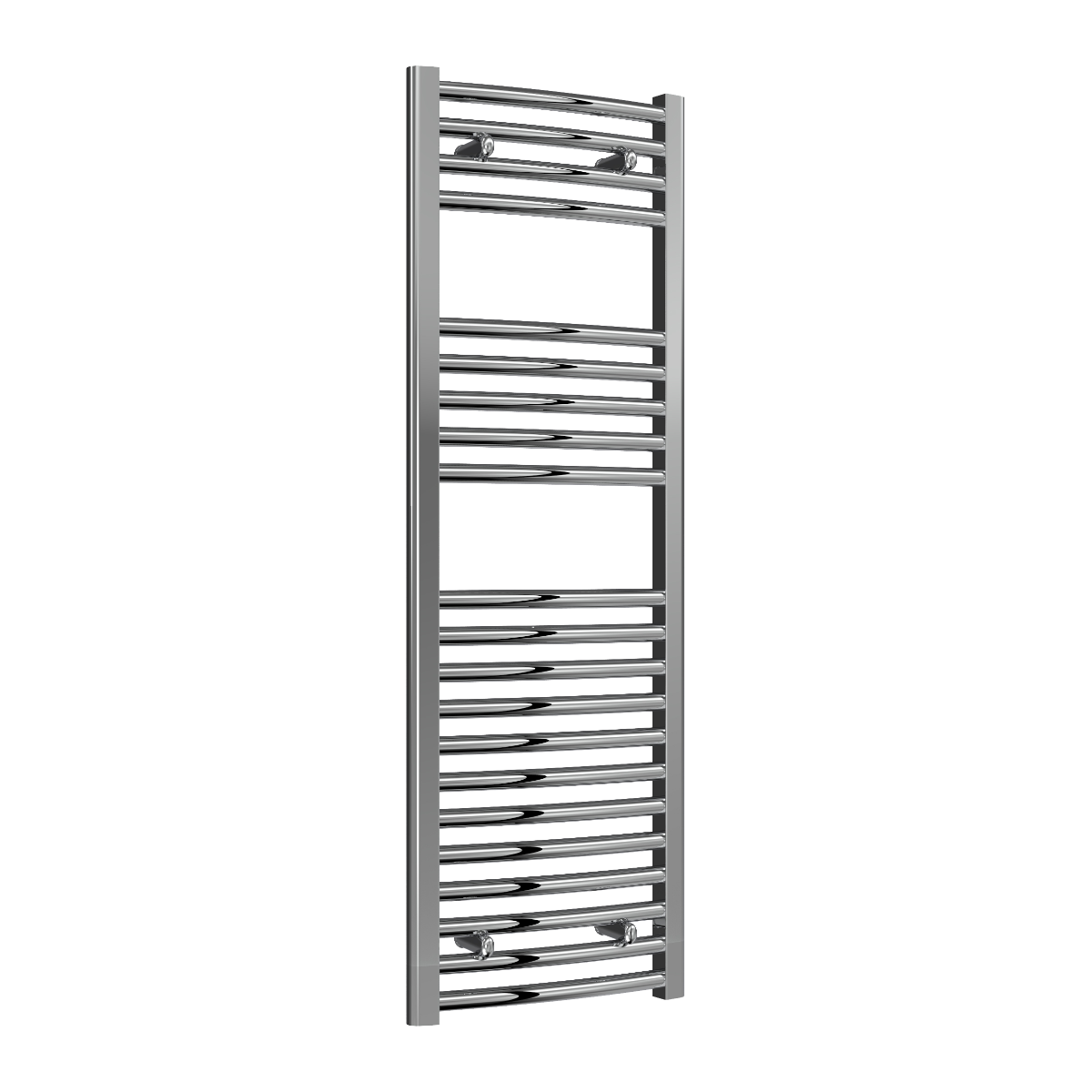

1200 x 400 Chrome
0.3 MB
1200 x 450 Chrome
0.33 MB

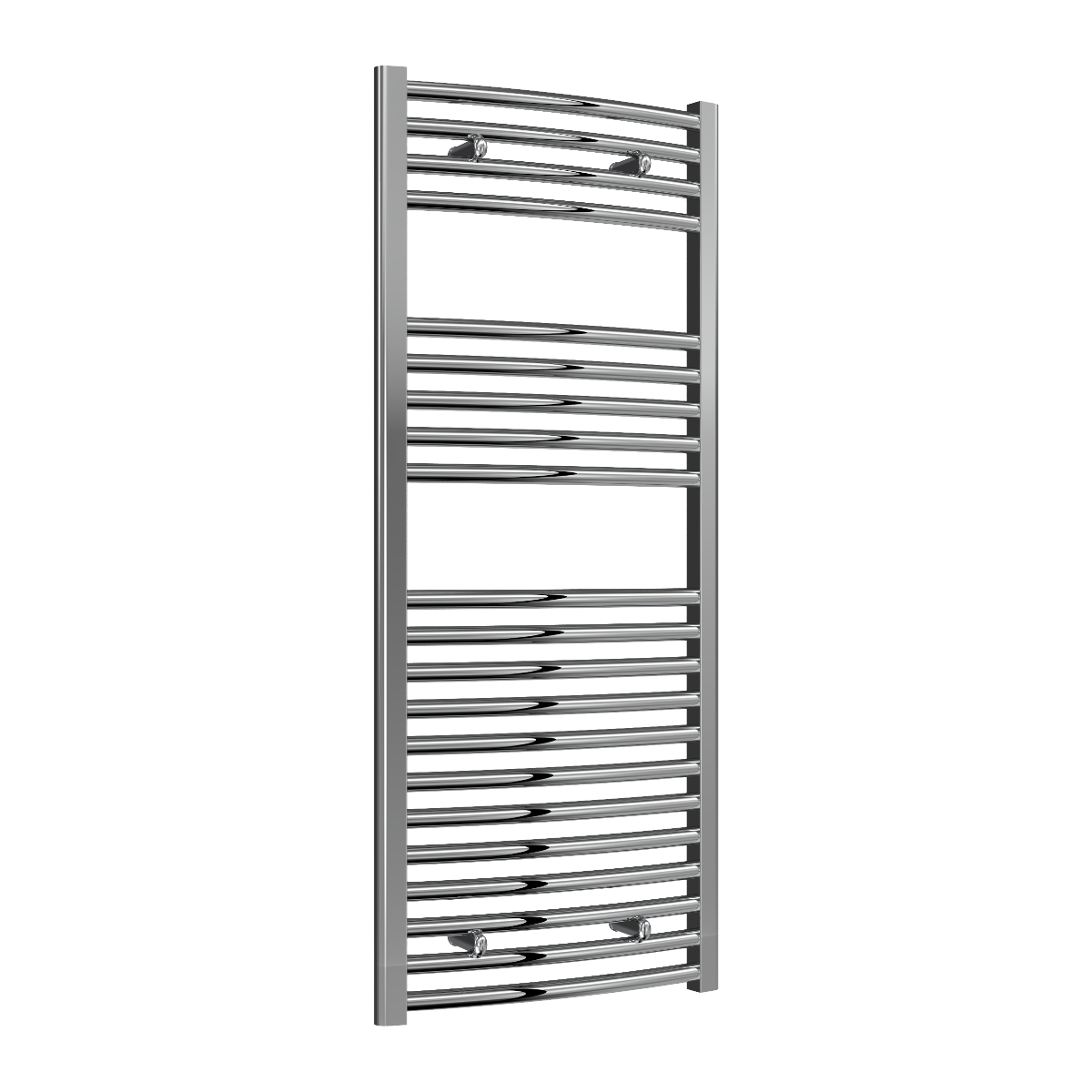

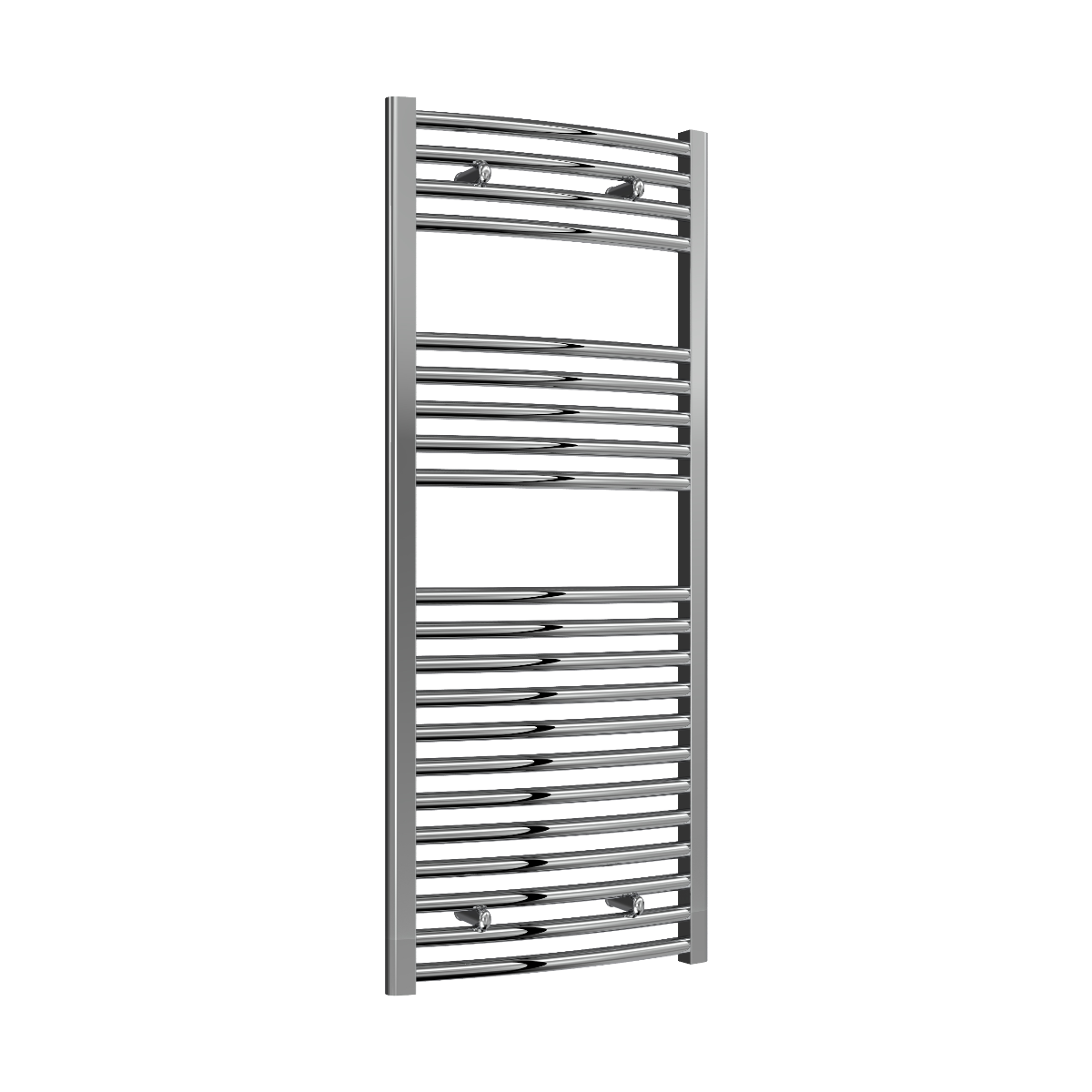

1200 x 500 Chrome
0.36 MB

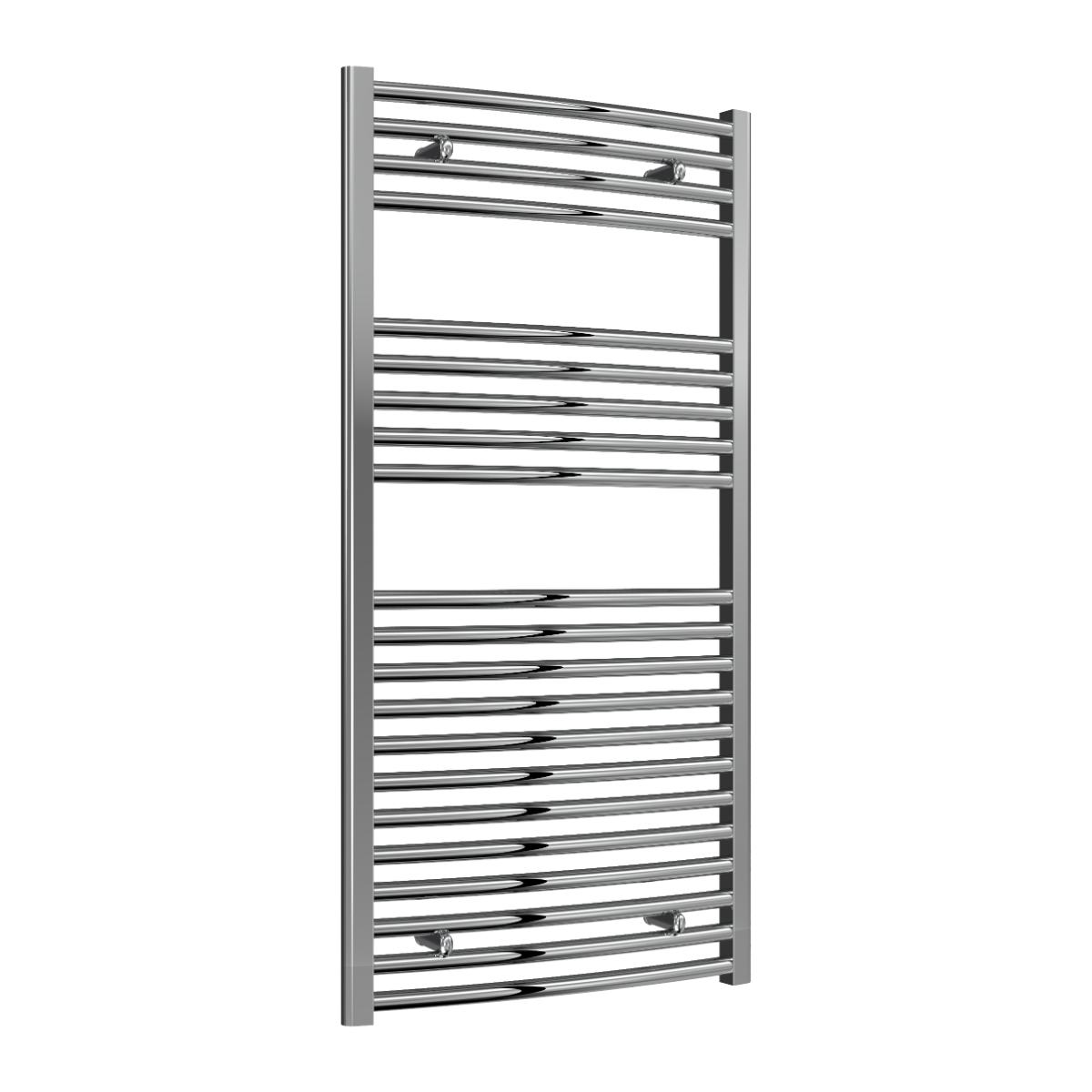

1200 x 600 Chrome
0.44 MB

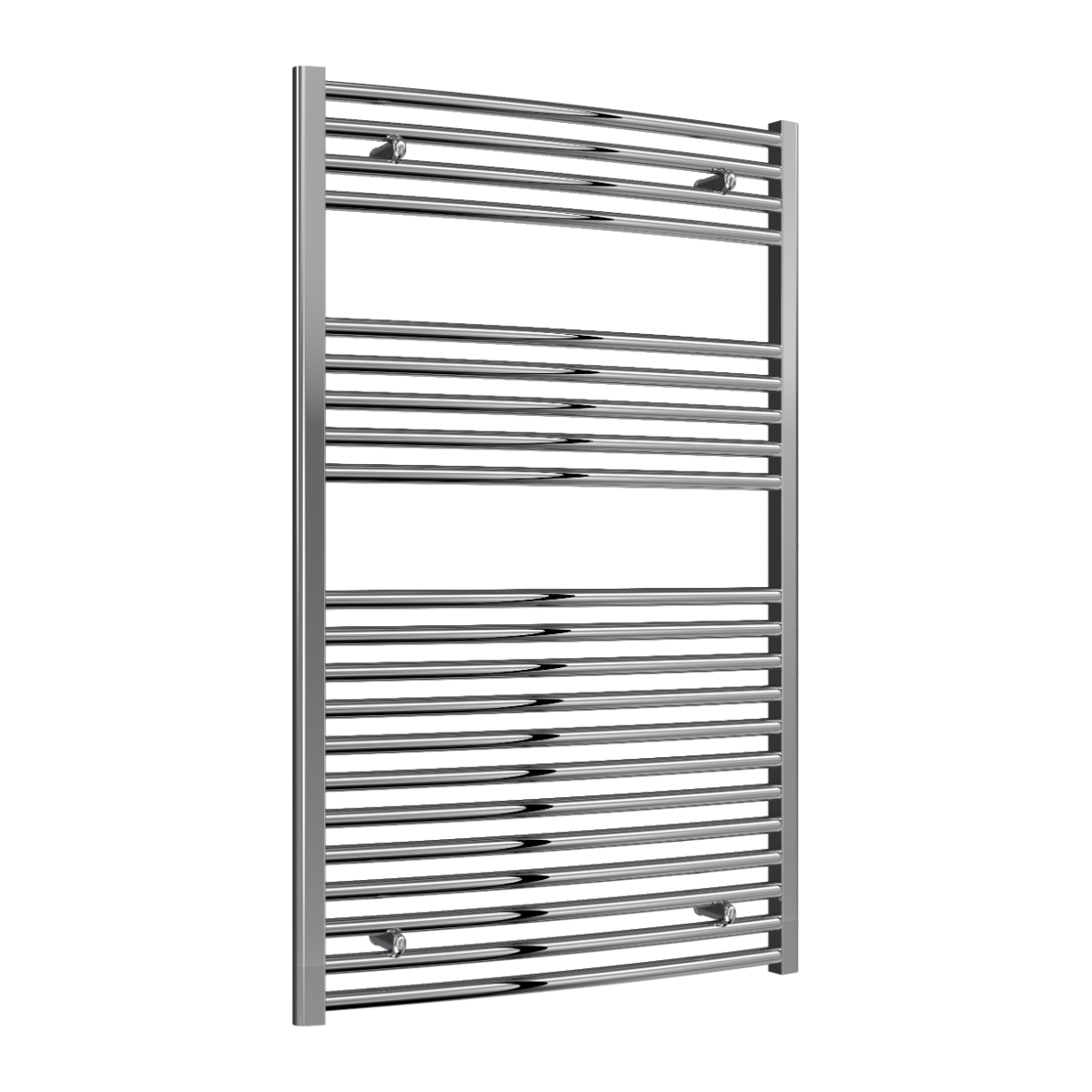

1200 x 750 Chrome
0.52 MB

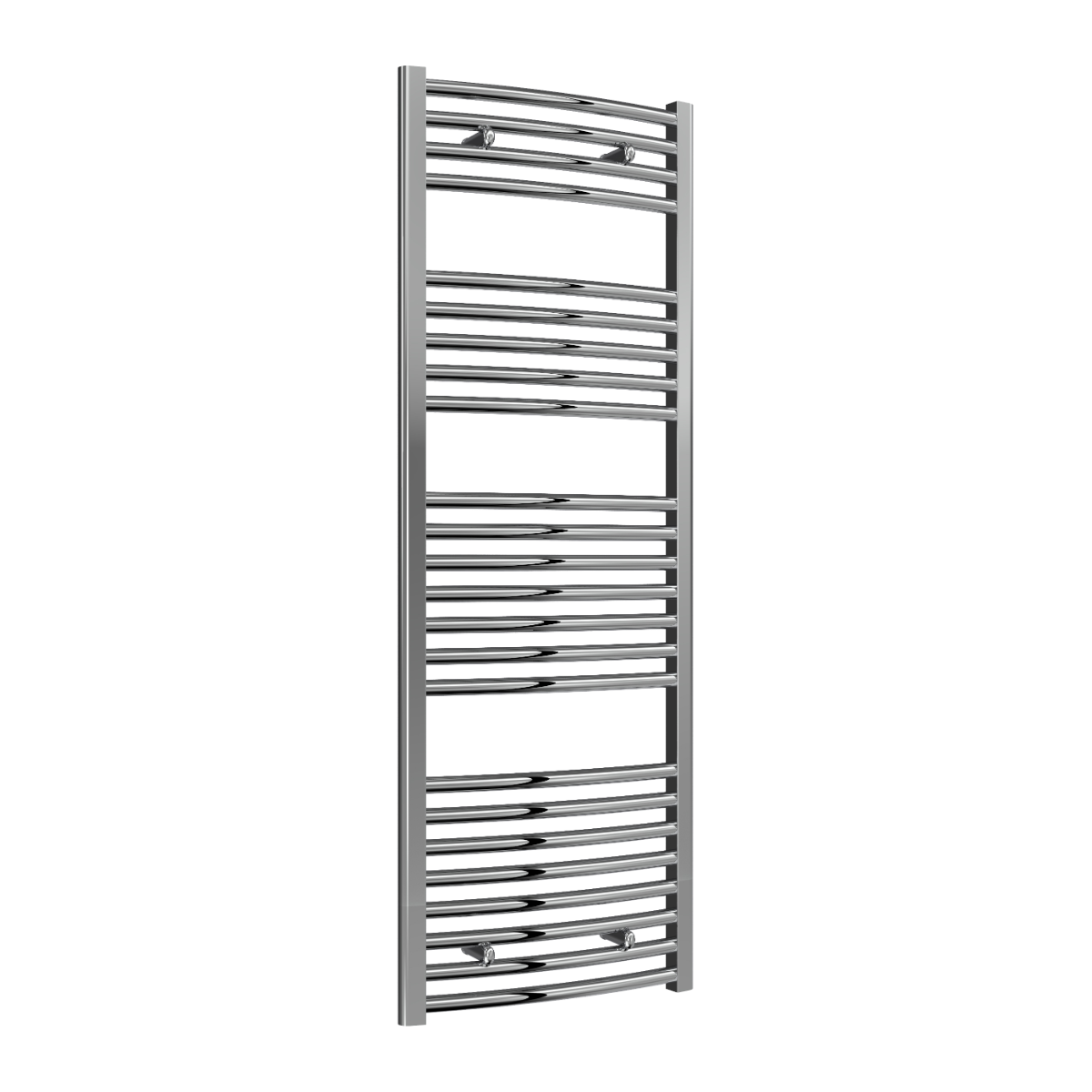

1400 x 500 Chrome
0.35 MB

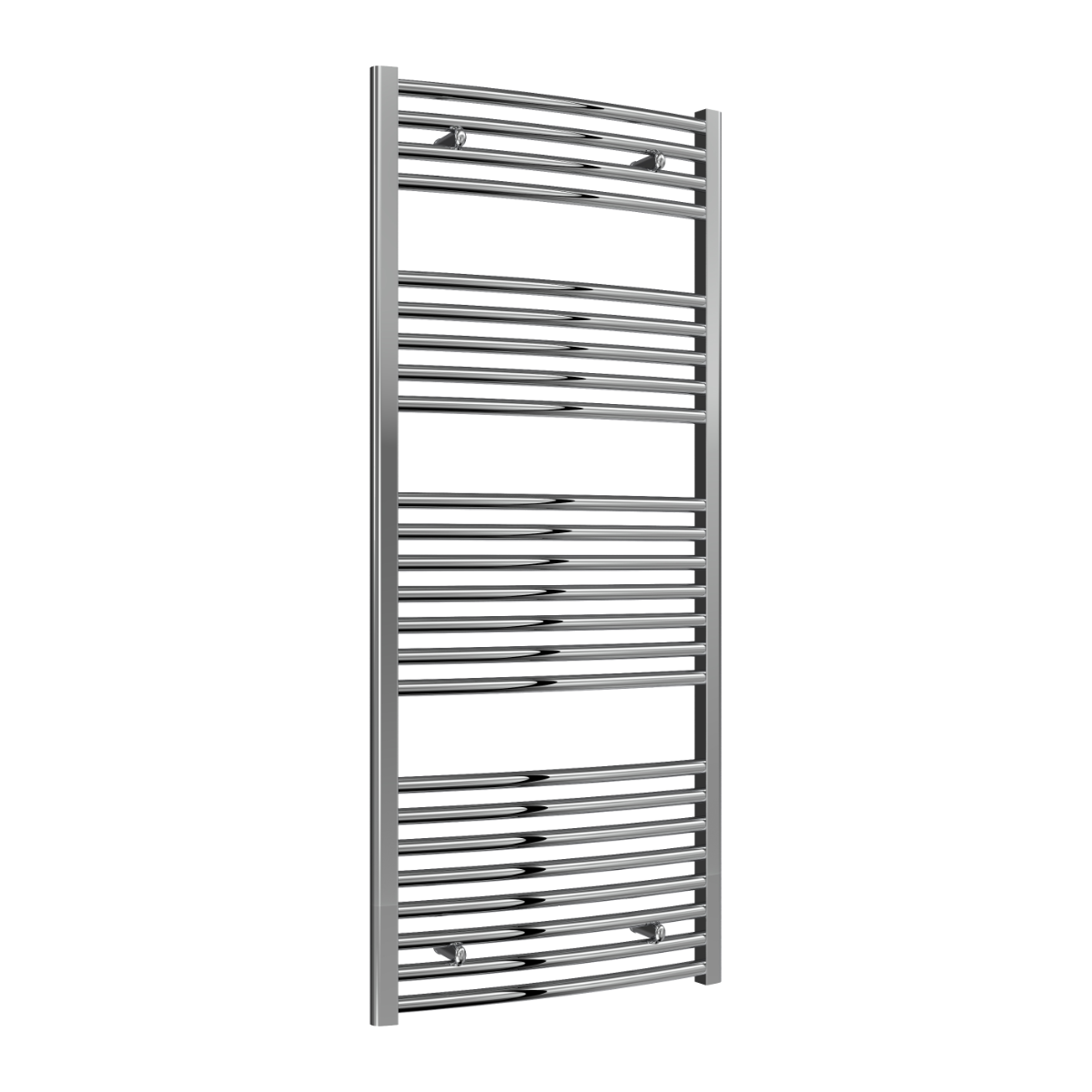

1400 x 600 Chrome
0.4 MB

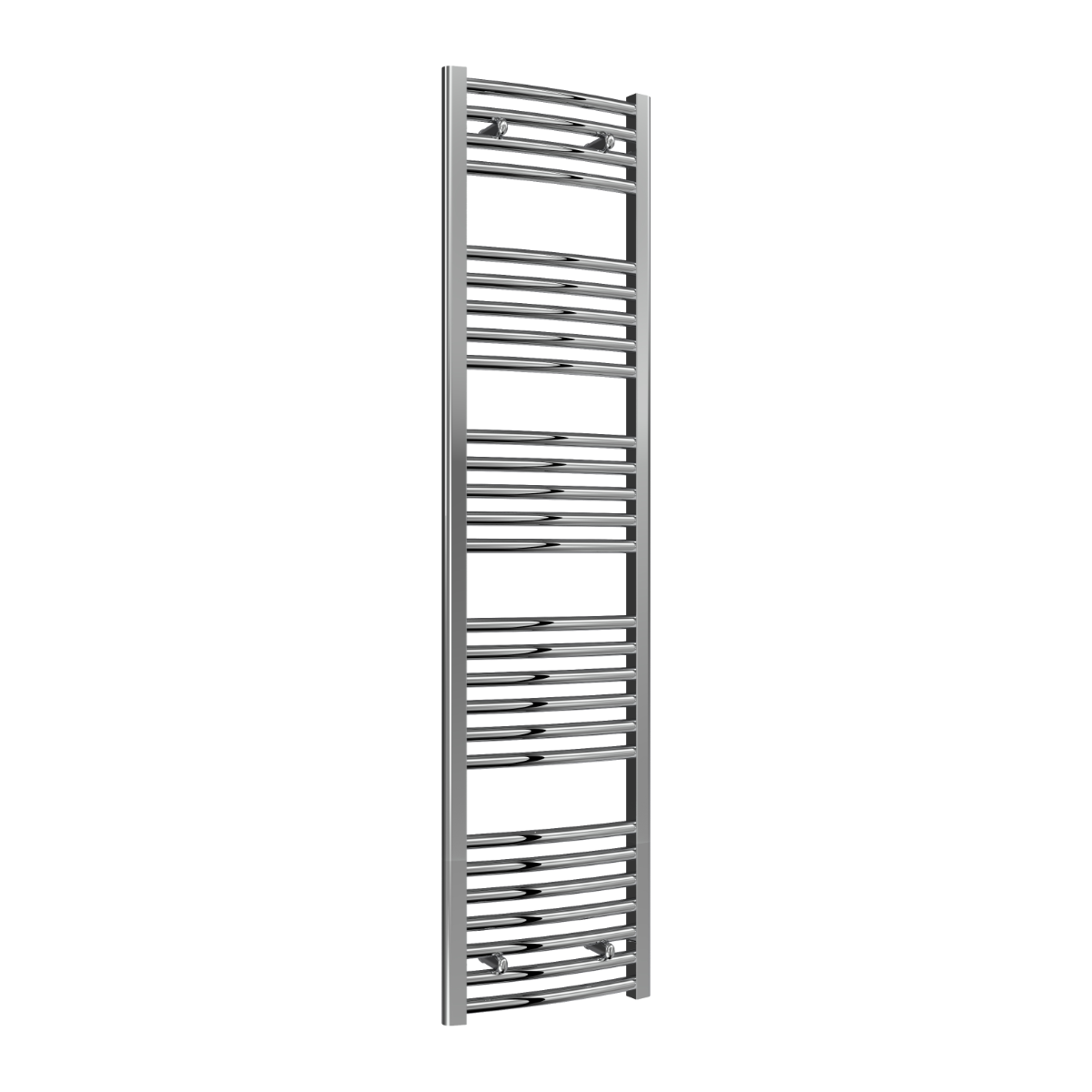

1600 x 400 Chrome
0.28 MB

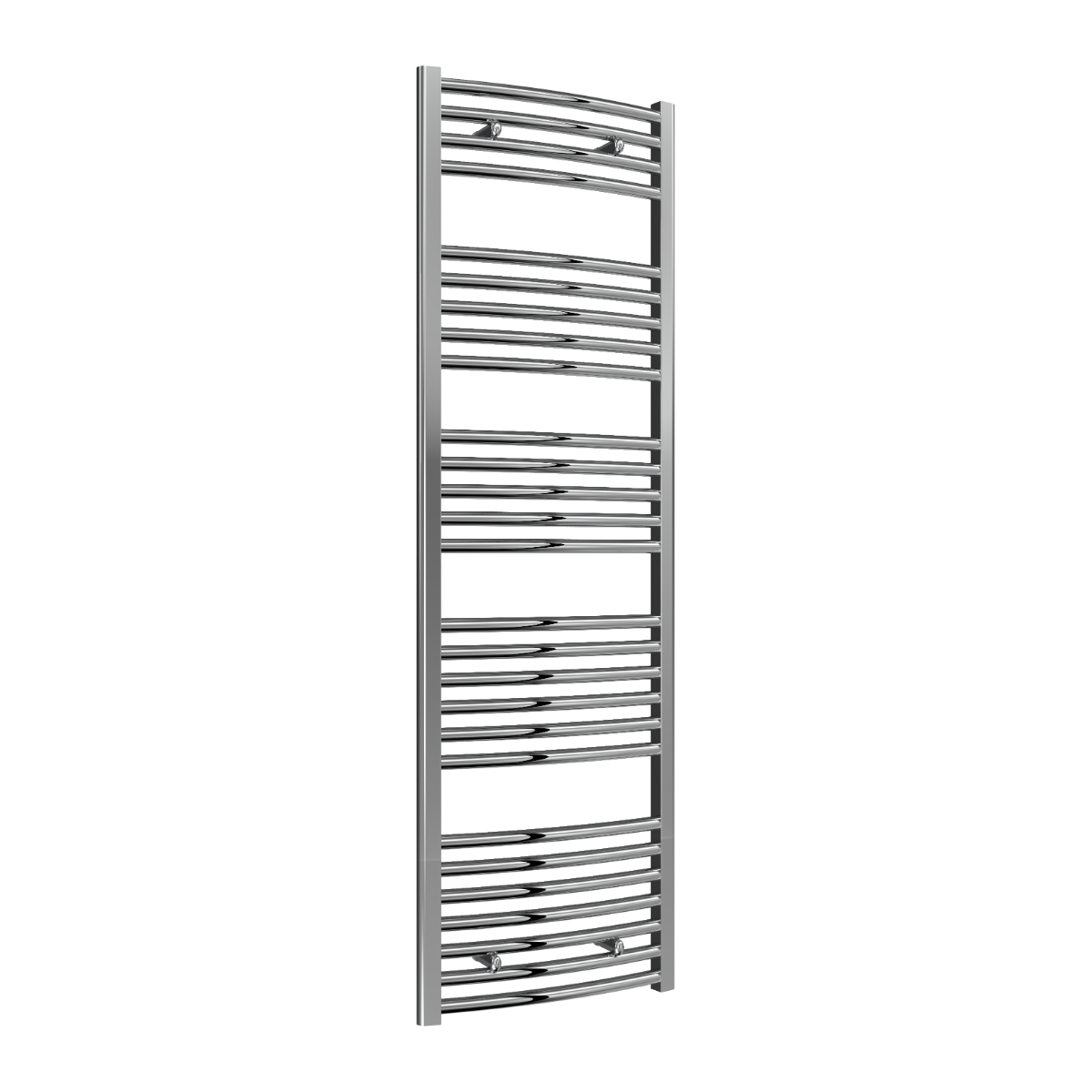

1600 x 500 Chrome
0.34 MB

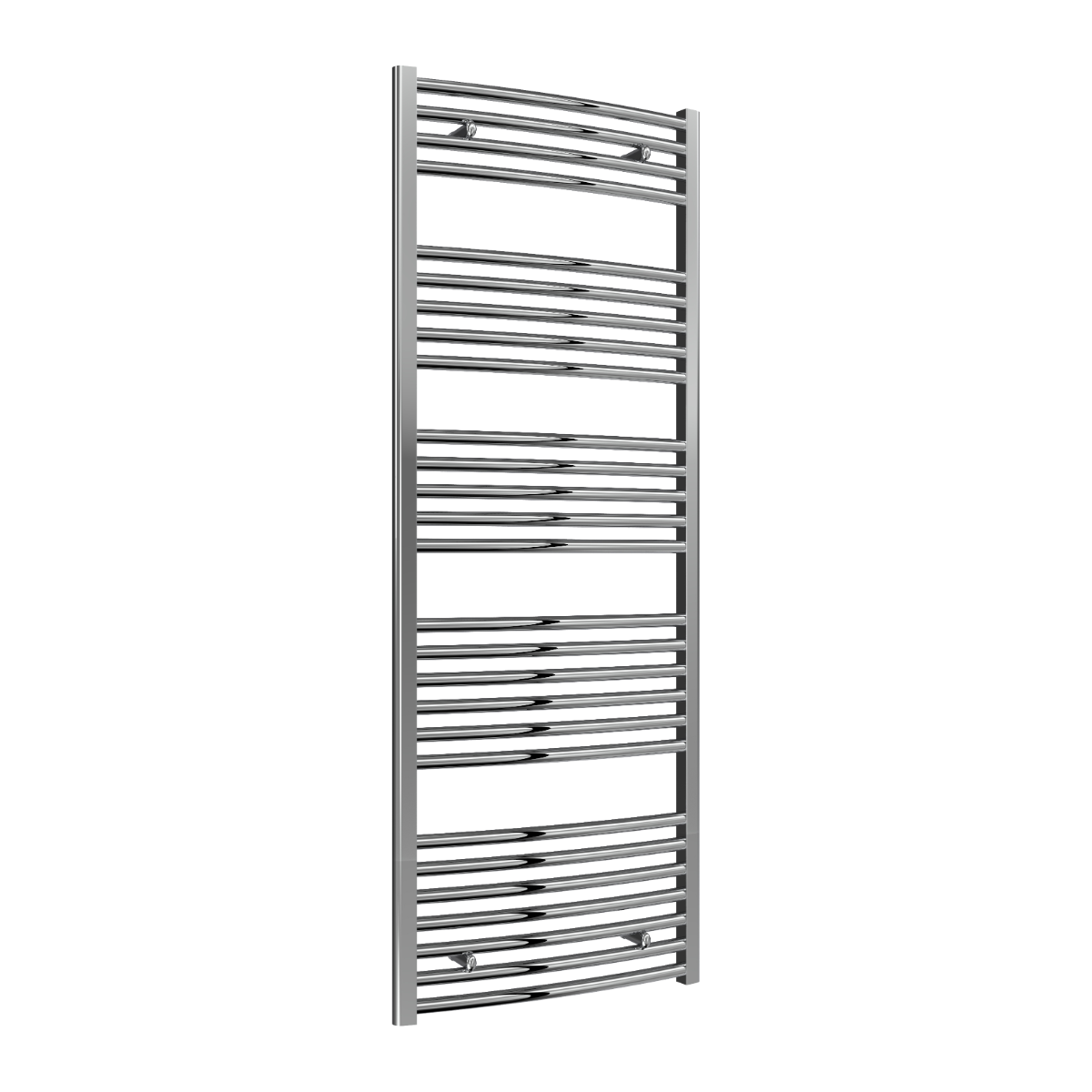

1600 x 600 Chrome
0.39 MB

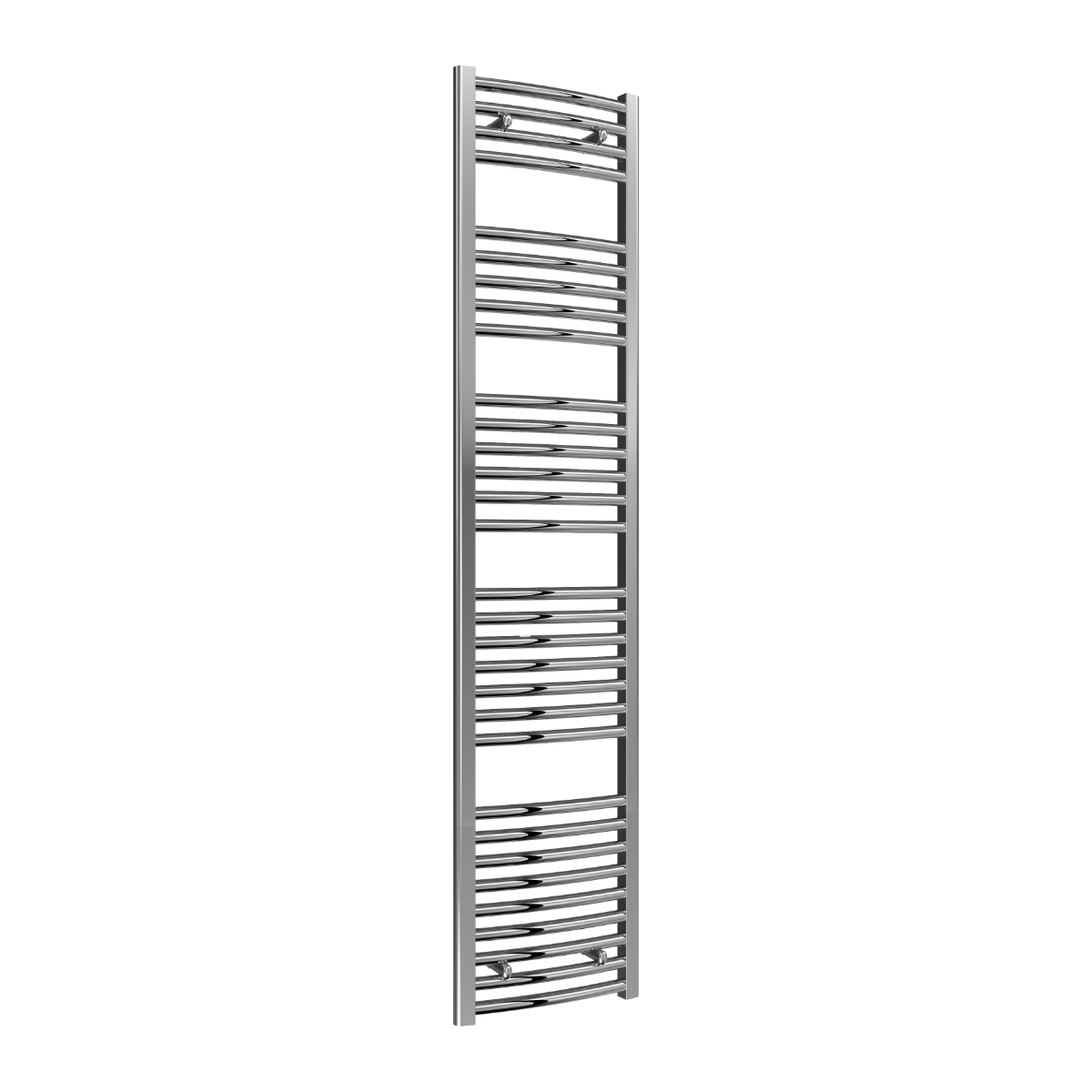

1800 x 400 Chrome
0.27 MB

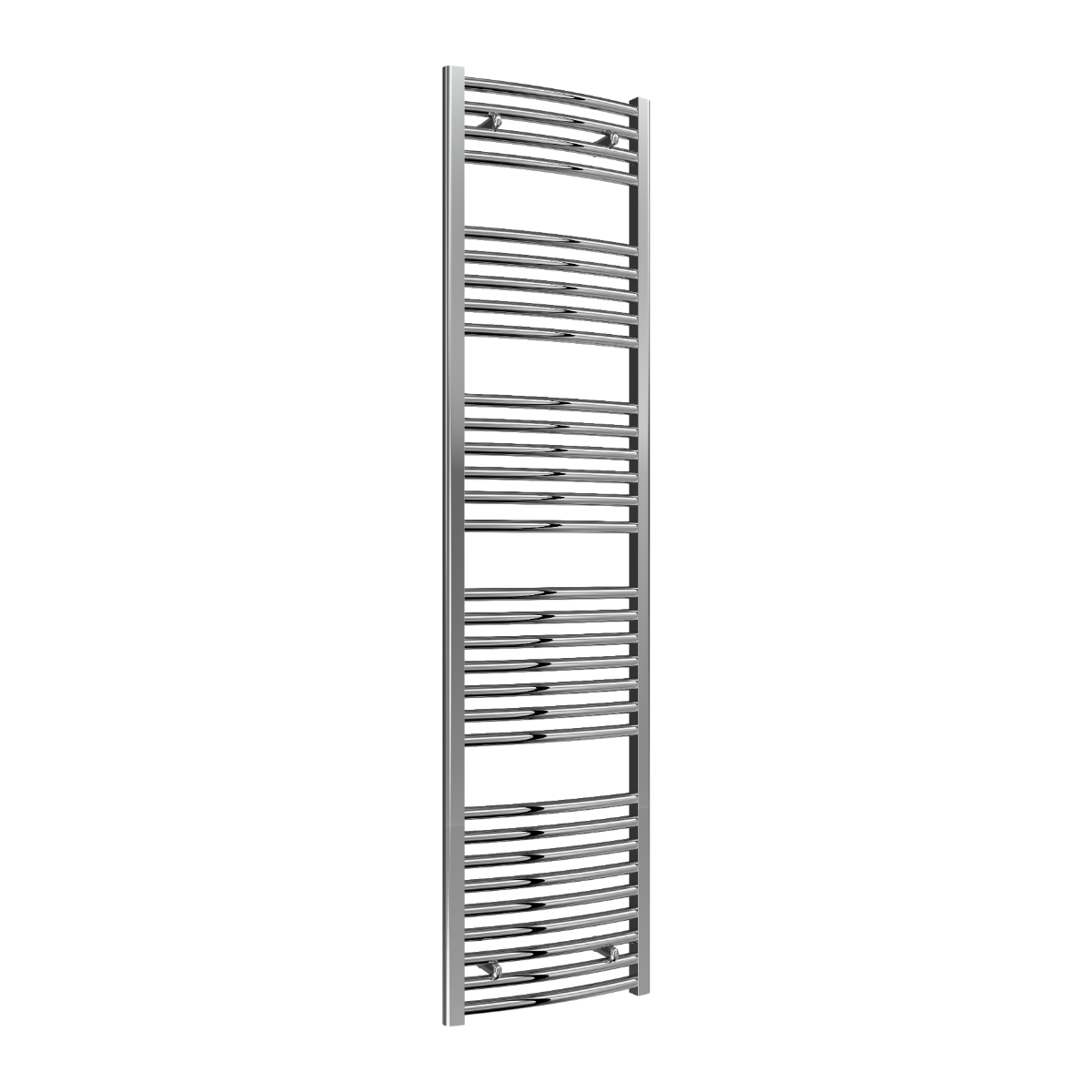

1800 x 450 Chrome
0.3 MB

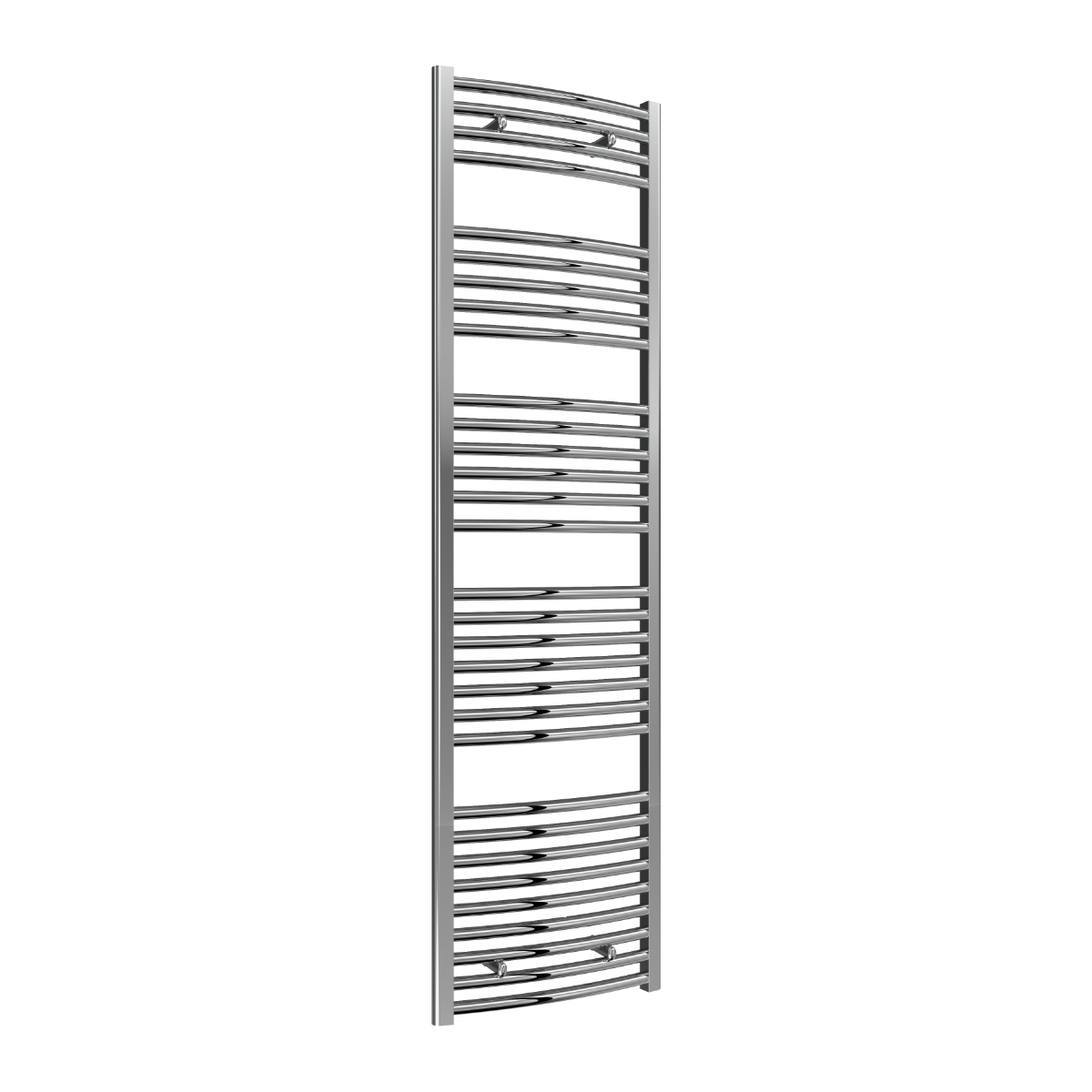

1800 x 500 Chrome
0.33 MB
1800 x 600 Chrome
0.37 MB

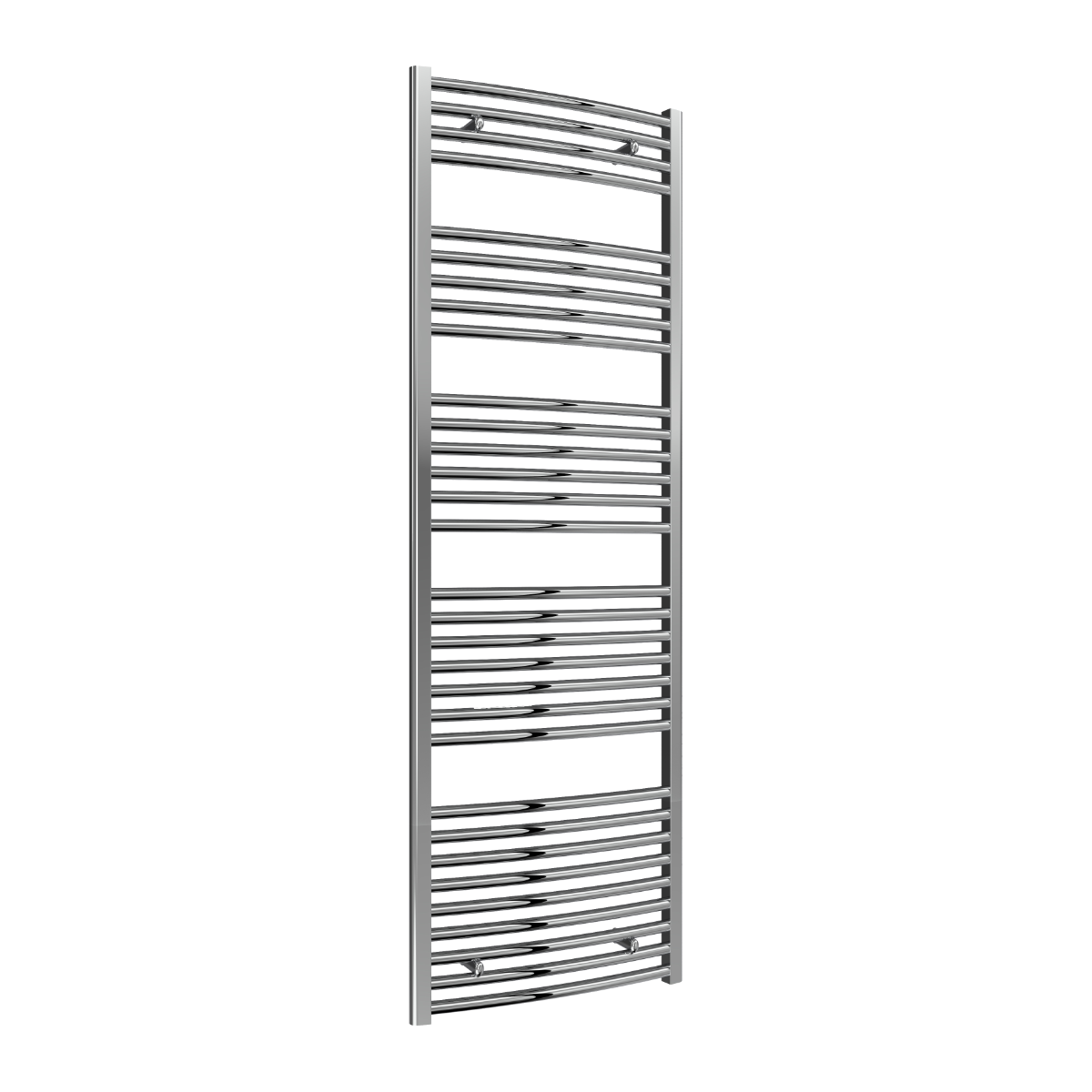

1800 x 750 Chrome
0.45 MB

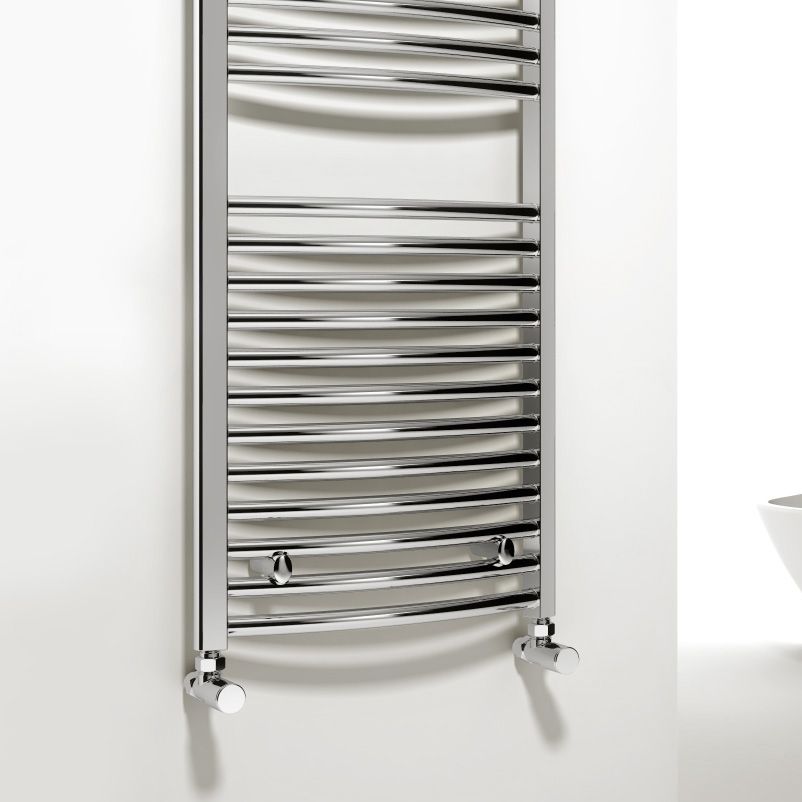

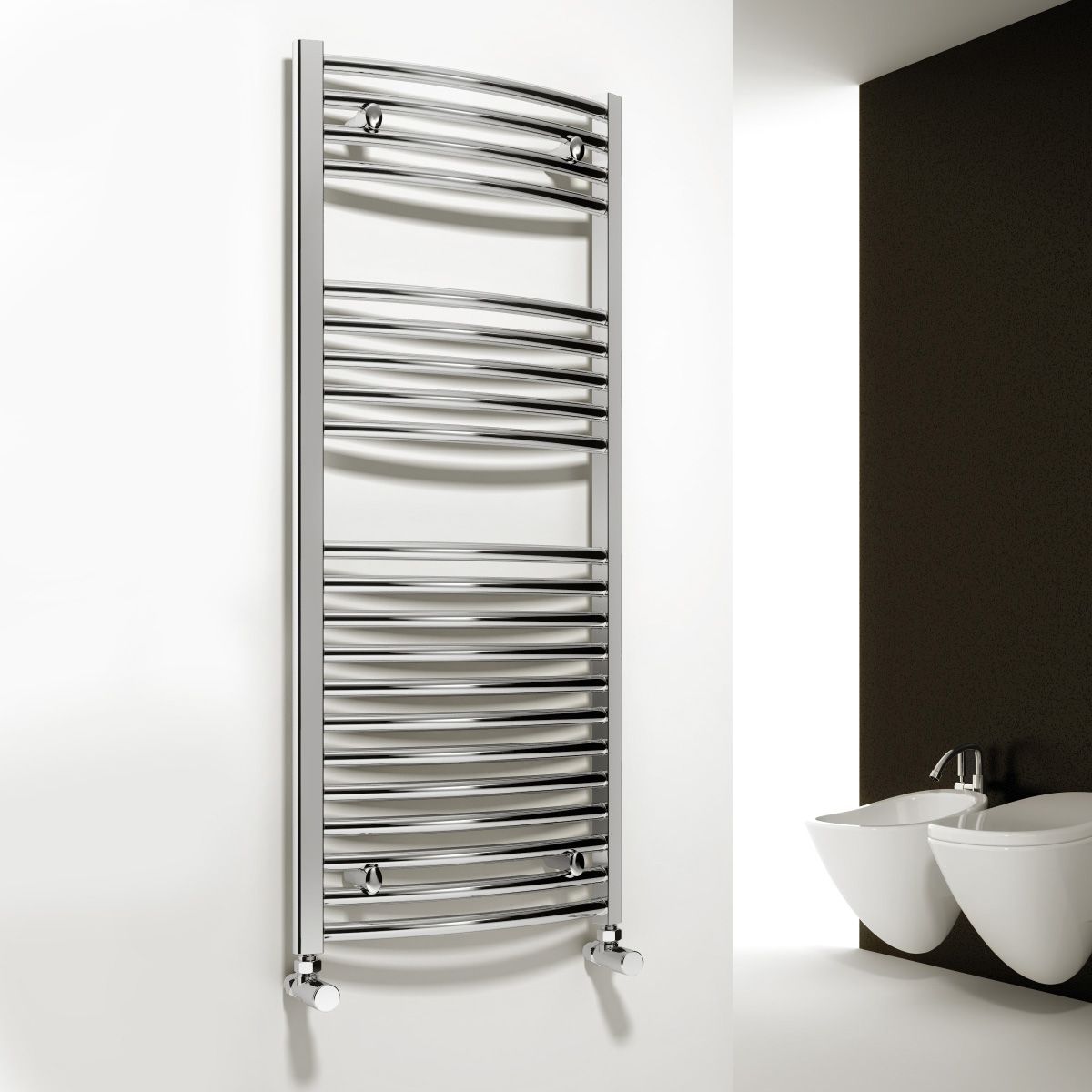

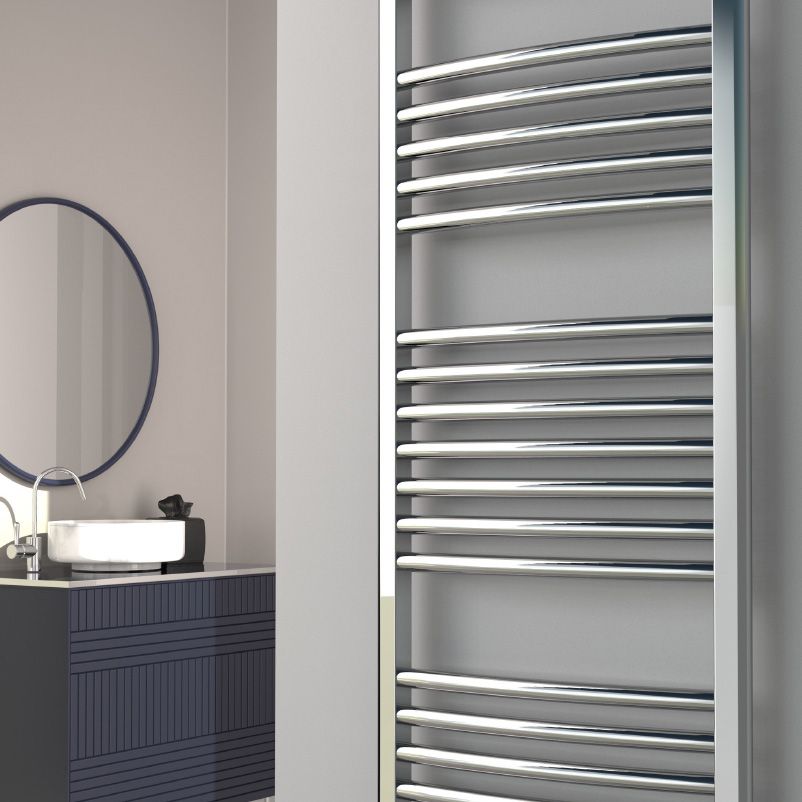

Roomset Product Images

Diva Curved
0.1 MB
Diva Curved
0.06 MB
Diva Curved
0.05 MB

High Resolution Images

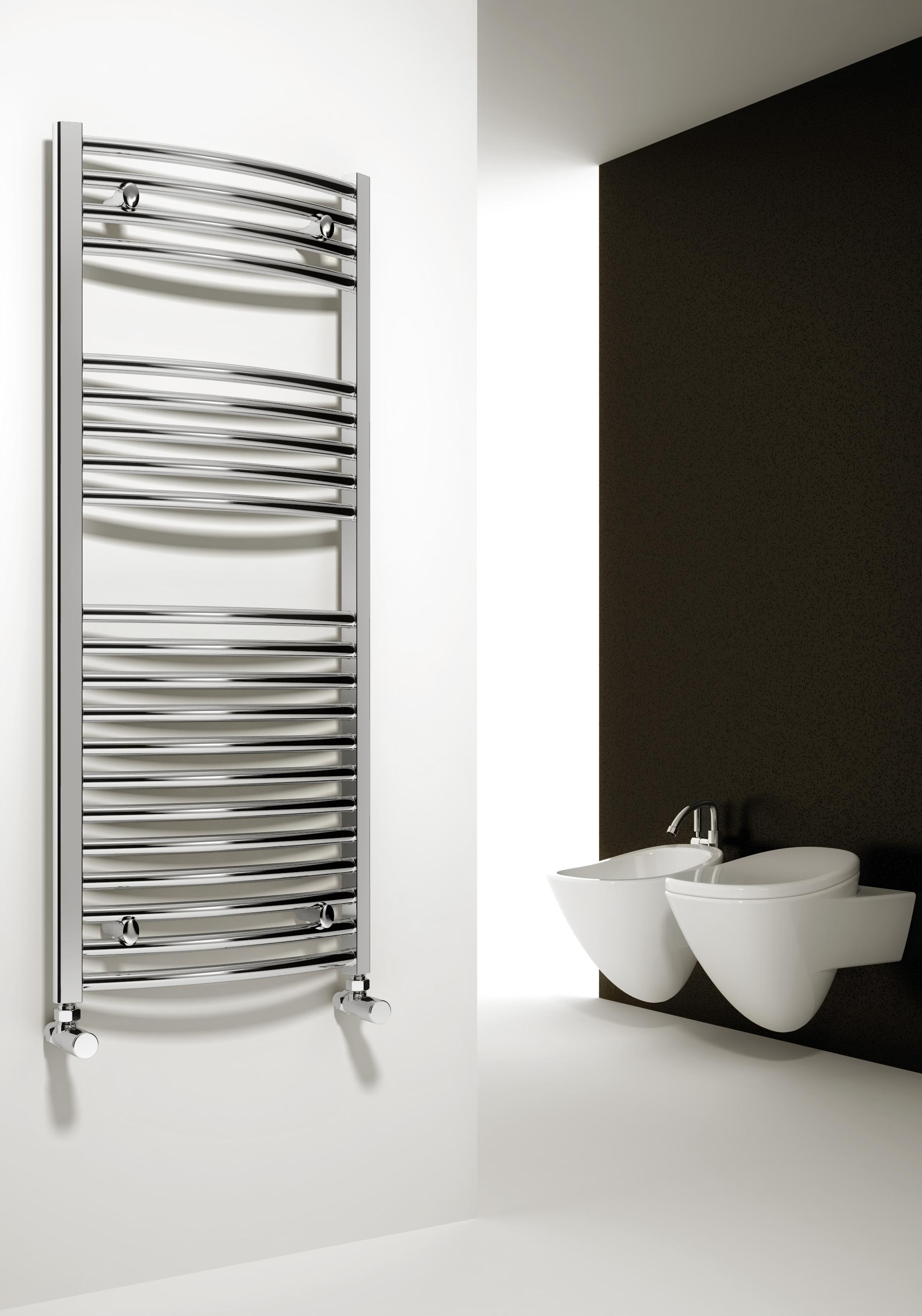

Reina Diva Curved 1200x500 Chrome Roomset
0.41 MB
Tech Drawings

Technical Drawings

Diva Curved Technical Drawing
0.1 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
AG40800CC 800 400 Chrome £145.61 Log in to see stock
AG45800CC 800 450 Chrome £148.64 Log in to see stock
AG50800CC 800 500 Chrome £151.12 Log in to see stock
AG60800CC 800 600 Chrome £153.88 Log in to see stock
AG75800CC 800 750 Chrome £175.38 Log in to see stock
AG40100CC 1000 400 Chrome £164.90 Log in to see stock
AG50100CC 1000 500 Chrome £169.31 Log in to see stock
AG60100CC 1000 600 Chrome £181.44 Log in to see stock
AG40120CC 1200 400 Chrome £180.89 Log in to see stock
AG45120CC 1200 450 Chrome £181.44 Log in to see stock
AG50120CC 1200 500 Chrome £189.43 Log in to see stock
AG60120CC 1200 600 Chrome £204.59 Log in to see stock
AG75120CC 1200 750 Chrome £229.95 Log in to see stock
AG50140CC 1400 500 Chrome £238.22 Log in to see stock
AG60140CC 1400 600 Chrome £262.47 Log in to see stock
AG40160CC 1600 400 Chrome £267.99 Log in to see stock
AG50160CC 1600 500 Chrome £275.98 Log in to see stock
AG60160CC 1600 600 Chrome £305.47 Log in to see stock
AG40180CC 1800 400 Chrome £286.73 Log in to see stock
AG45180CC 1800 450 Chrome £291.69 Log in to see stock
AG50180CC 1800 500 Chrome £305.47 Log in to see stock
AG60180CC 1800 600 Chrome £322.01 Log in to see stock
AG75180CC 1800 750 Chrome £371.62 Log in to see stock
