Diva Flat Mild Steel Towel Rail

5 Years Guarantee
Material: Mild Steel
Central Heating
Electric
Dual Fuel

The Reina Diva Flat Towel Radiator features a modern ladder design with straight tubes, offering an array of stylish color options. Crafted from durable steel, it ensures superb heat output and optimal warmth distribution through its 25mm horizontal tubes. Enjoy reliable performance and a 5-year guarantee with this elegant addition to your space.

  • Available in 4 colours and 27 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • chrome
  • white
  • anthracite
  • black

Product Resource Centre

600mm HEIGHT 300mm WIDTH
800mm HEIGHT 300mm WIDTH
800mm HEIGHT 400mm WIDTH
800mm HEIGHT 450mm WIDTH
800mm HEIGHT 500mm WIDTH
800mm HEIGHT 600mm WIDTH
800mm HEIGHT 750mm WIDTH
1000mm HEIGHT 400mm WIDTH
1000mm HEIGHT 500mm WIDTH
1000mm HEIGHT 600mm WIDTH
1200mm HEIGHT 300mm WIDTH
1200mm HEIGHT 400mm WIDTH
1200mm HEIGHT 450mm WIDTH
1200mm HEIGHT 500mm WIDTH
1200mm HEIGHT 600mm WIDTH
1200mm HEIGHT 750mm WIDTH
1400mm HEIGHT 500mm WIDTH
1400mm HEIGHT 600mm WIDTH
1600mm HEIGHT 300mm WIDTH
1600mm HEIGHT 400mm WIDTH
1600mm HEIGHT 500mm WIDTH
1600mm HEIGHT 600mm WIDTH
1800mm HEIGHT 400mm WIDTH
1800mm HEIGHT 450mm WIDTH
1800mm HEIGHT 500mm WIDTH
1800mm HEIGHT 600mm WIDTH
1800mm HEIGHT 750mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
600 300 260 70-85 85-100 - 11
800 300 260 70-85 85-100 - 14
800 400 360 70-85 85-100 - 14
800 450 410 70-85 85-100 - 14
800 500 460 70-85 85-100 - 14
800 600 560 70-85 85-100 - 14
800 750 710 70-85 85-100 - 14
1000 400 360 70-85 85-100 - 17
1000 500 460 70-85 85-100 - 17
1000 600 560 70-85 85-100 - 17
1200 300 260 70-85 85-100 - 21
1200 400 360 70-85 85-100 - 21
1200 450 410 70-85 85-100 - 21
1200 500 460 70-85 85-100 - 21
1200 600 560 70-85 85-100 - 21
1200 750 710 70-85 85-100 - 21
1400 500 460 70-85 85-100 - 24
1400 600 560 70-85 85-100 - 24
1600 300 260 70-85 85-100 - 27
1600 400 360 70-85 85-100 - 27
1600 500 460 70-85 85-100 - 27
1600 600 560 70-85 85-100 - 27
1800 400 360 70-85 85-100 - 31
1800 450 410 70-85 85-100 - 31
1800 500 460 70-85 85-100 - 31
1800 600 560 70-85 85-100 - 31
1800 750 710 70-85 85-100 - 31

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
AG30600CF 600 300 Chrome 557 163 435 128 222 65
AG30800CF 800 300 Chrome 672 197 525 154 268 79
AG30800WF 800 300 White 1085 318 848 249 432 127
AG40800CF 800 400 Chrome 848 249 663 194 338 99
AG40800AF 800 400 Anthracite 1239 363 968 284 494 145
AG40800BF 800 400 Black 1239 363 968 284 494 145
AG40800WF 800 400 White 1239 363 968 284 494 145
AG45800CF 800 450 Chrome 904 265 706 207 360 106
AG50800CF 800 500 Chrome 1015 298 793 233 404 119
AG50800AF 800 500 Anthracite 1487 436 1162 341 592 174
AG50800BF 800 500 Black 1487 436 1162 341 592 174
AG50800WF 800 500 White 1487 436 1162 341 592 174
AG60800CF 800 600 Chrome 1117 328 873 256 445 131
AG60800AF 800 600 Anthracite 1643 482 1284 376 655 192
AG60800BF 800 600 Black 1643 482 1284 376 655 192
AG60800WF 800 600 White 1643 482 1284 376 655 192
AG75800CF 800 750 Chrome 1257 369 982 288 501 147
AG40100CF 1000 400 Chrome 1236 362 966 283 492 144
AG50100CF 1000 500 Chrome 1411 414 1102 323 562 165
AG60100CF 1000 600 Chrome 1525 447 1191 349 608 178
AG30120CF 1200 300 Chrome 1179 346 921 270 470 138
AG30120WF 1200 300 White 1927 565 1505 441 768 225
AG40120CF 1200 400 Chrome 1623 476 1268 372 647 190
AG40120AF 1200 400 Anthracite 2369 695 1851 543 944 277
AG40120BF 1200 400 Black 2369 695 1851 543 944 277
AG40120WF 1200 400 White 2369 695 1851 543 944 277
AG45120CF 1200 450 Chrome 1707 501 1334 391 680 199
AG50120CF 1200 500 Chrome 1807 530 1412 414 720 211
AG50120AF 1200 500 Anthracite 2657 779 2076 609 1059 310
AG50120BF 1200 500 Black 2657 779 2076 609 1059 310
AG50120WF 1200 500 White 2657 779 2076 609 1059 310
AG60120CF 1200 600 Chrome 1955 573 1527 448 779 228
AG60120AF 1200 600 Anthracite 2870 842 2242 658 1144 335
AG60120BF 1200 600 Black 2870 842 2242 658 1144 335
AG60120WF 1200 600 White 2870 842 2242 658 1144 335
AG75120CF 1200 750 Chrome 2107 618 1646 483 840 246
AG50140CF 1400 500 Chrome 2040 598 1594 467 813 238
AG60140CF 1400 600 Chrome 2256 662 1763 517 899 264
AG30160CF 1600 300 Chrome 1625 477 1270 372 647 190
AG40160CF 1600 400 Chrome 2016 591 1575 462 803 236
AG50160CF 1600 500 Chrome 2352 690 1838 539 937 275
AG60160CF 1600 600 Chrome 2558 750 1998 586 1019 299
AG40180CF 1800 400 Chrome 2221 651 1735 509 885 260
AG40180AF 1800 400 Anthracite 3265 957 2551 748 1301 381
AG40180BF 1800 400 Black 3265 957 2551 748 1301 381
AG40180WF 1800 400 White 3265 957 2551 748 1301 381
AG45180CF 1800 450 Chrome 2449 718 1913 561 976 286
AG50180CF 1800 500 Chrome 2713 796 2120 622 1081 317
AG50180AF 1800 500 Anthracite 3961 1162 3095 907 1578 463
AG50180BF 1800 500 Black 3961 1162 3095 907 1578 463
AG50180WF 1800 500 White 3961 1162 3095 907 1578 463
AG60180CF 1800 600 Chrome 2915 855 2277 668 1161 341
AG60180AF 1800 600 Anthracite 4284 1256 3347 981 1707 501
AG60180BF 1800 600 Black 4284 1256 3347 981 1707 501
AG60180WF 1800 600 White 4284 1256 3347 981 1707 501
AG75180CF 1800 750 Chrome 3157 926 2466 723 1258 369
Images

Cutout Product Images

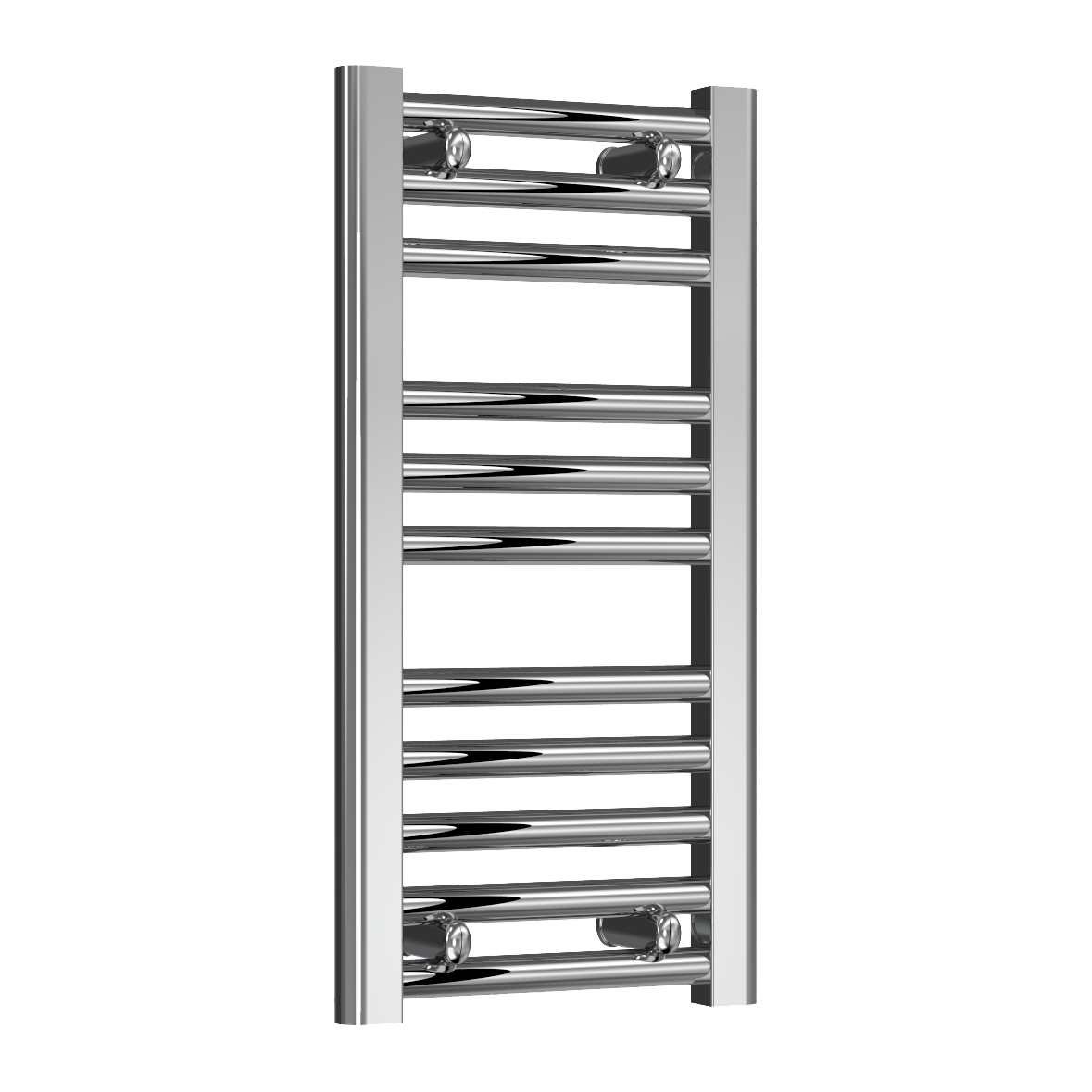

600 x 300 Chrome
0.3 MB
800 x 300 Chrome
0.29 MB
800 x 300 White
0.16 MB
800 x 400 Chrome
0.36 MB
800 x 400 Anthracite
0.19 MB
800 x 400 Black
0.19 MB

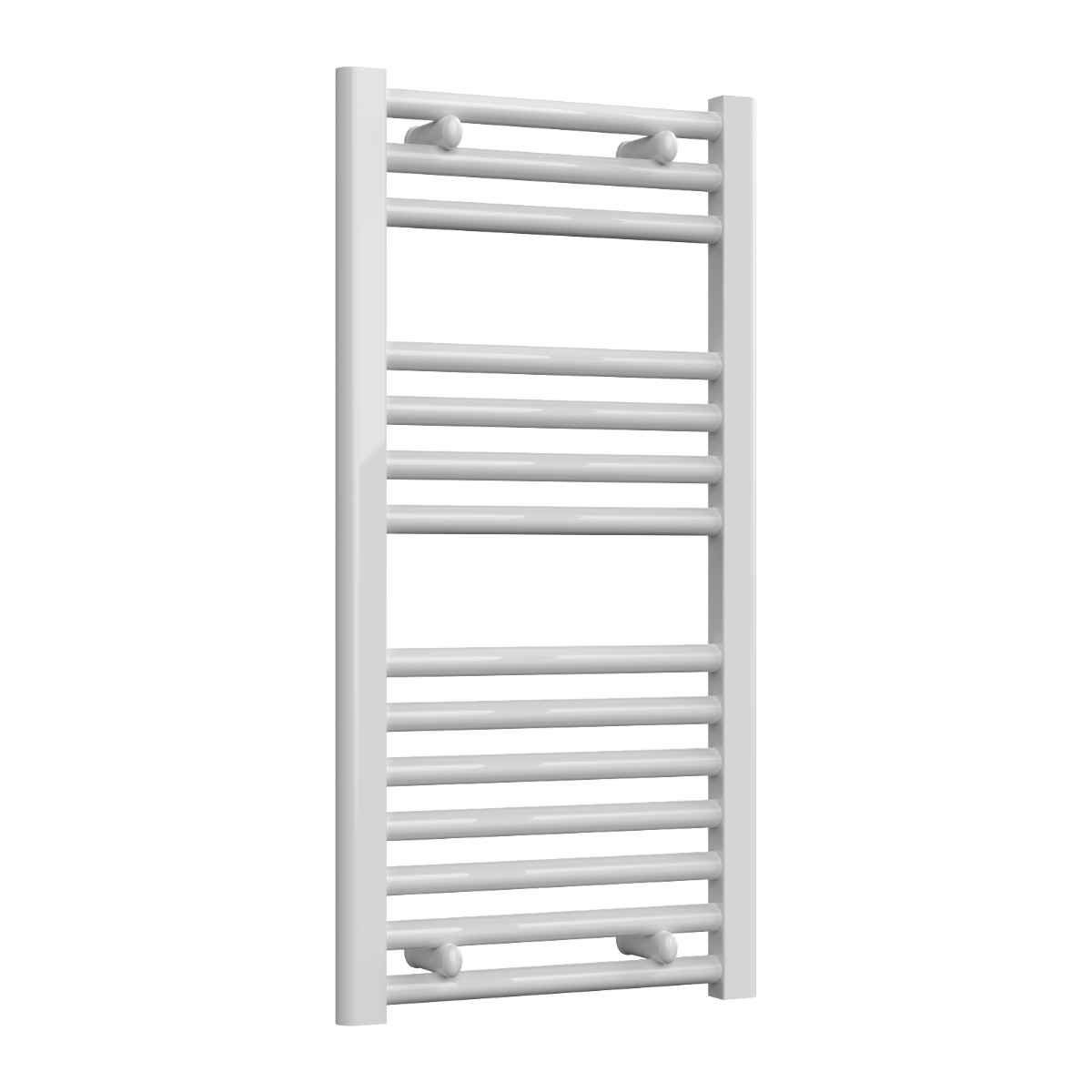

800 x 400 White
0.19 MB

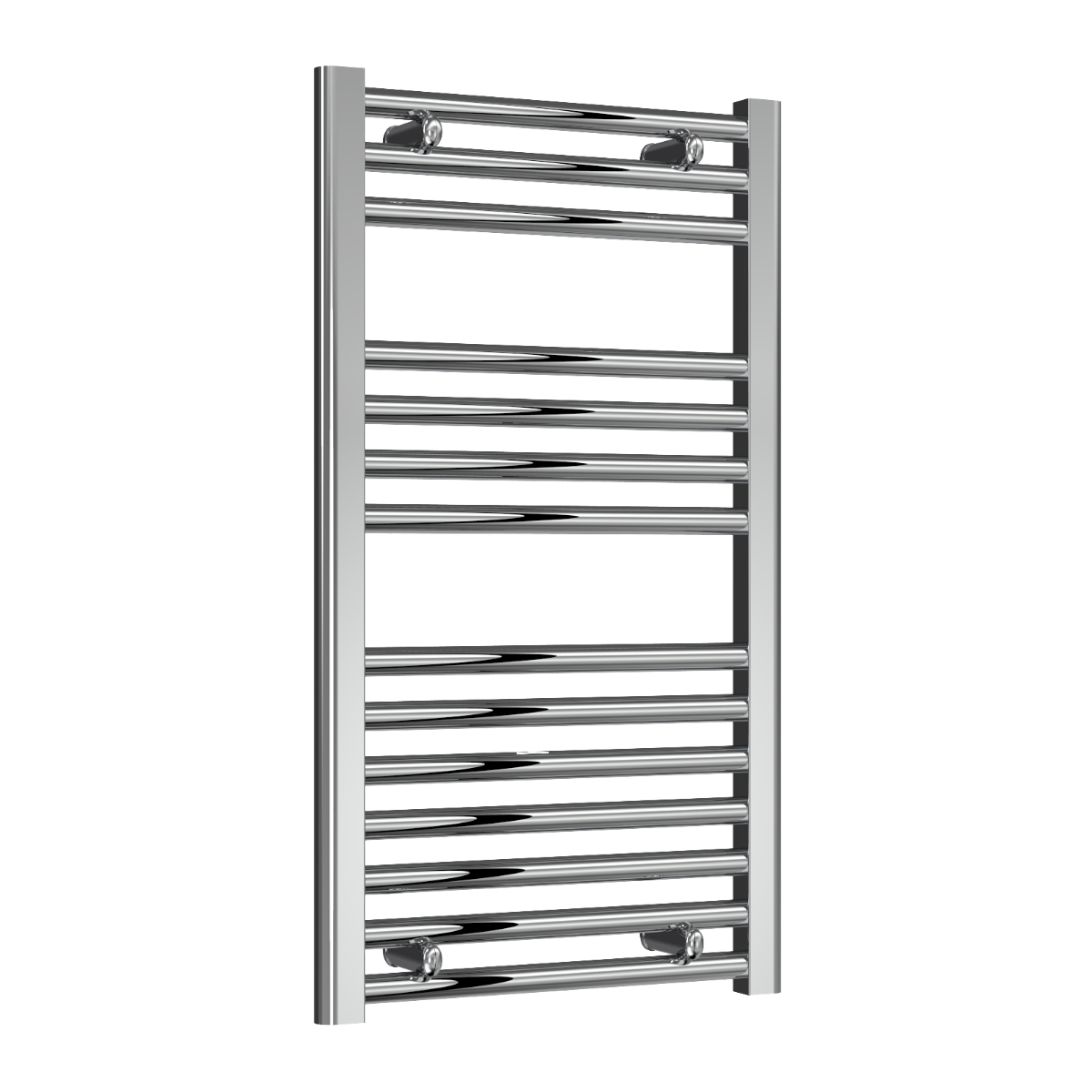

800 x 450 Chrome
0.38 MB

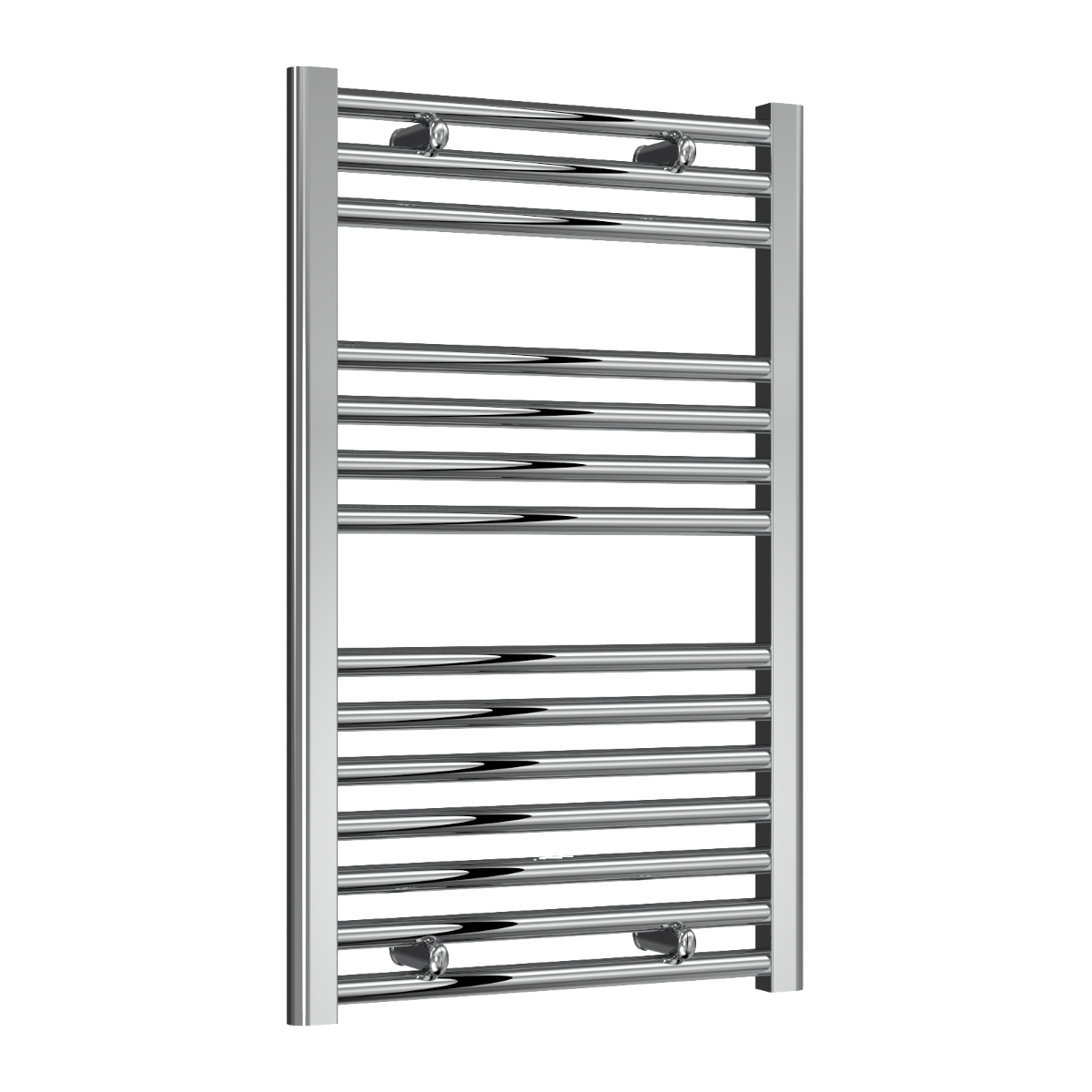

800 x 500 Chrome
0.42 MB
800 x 500 Anthracite
0.21 MB

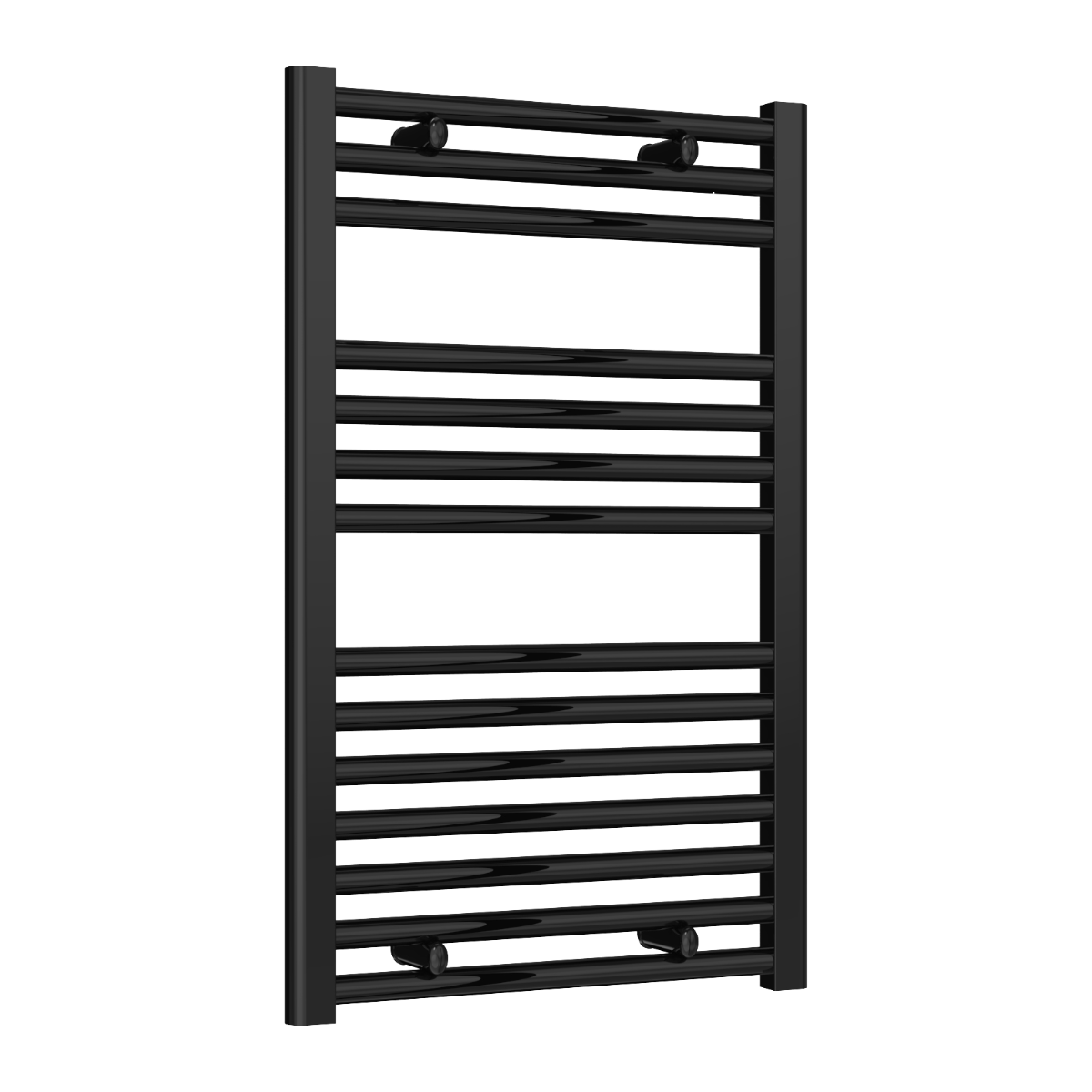

800 x 500 Black
0.22 MB

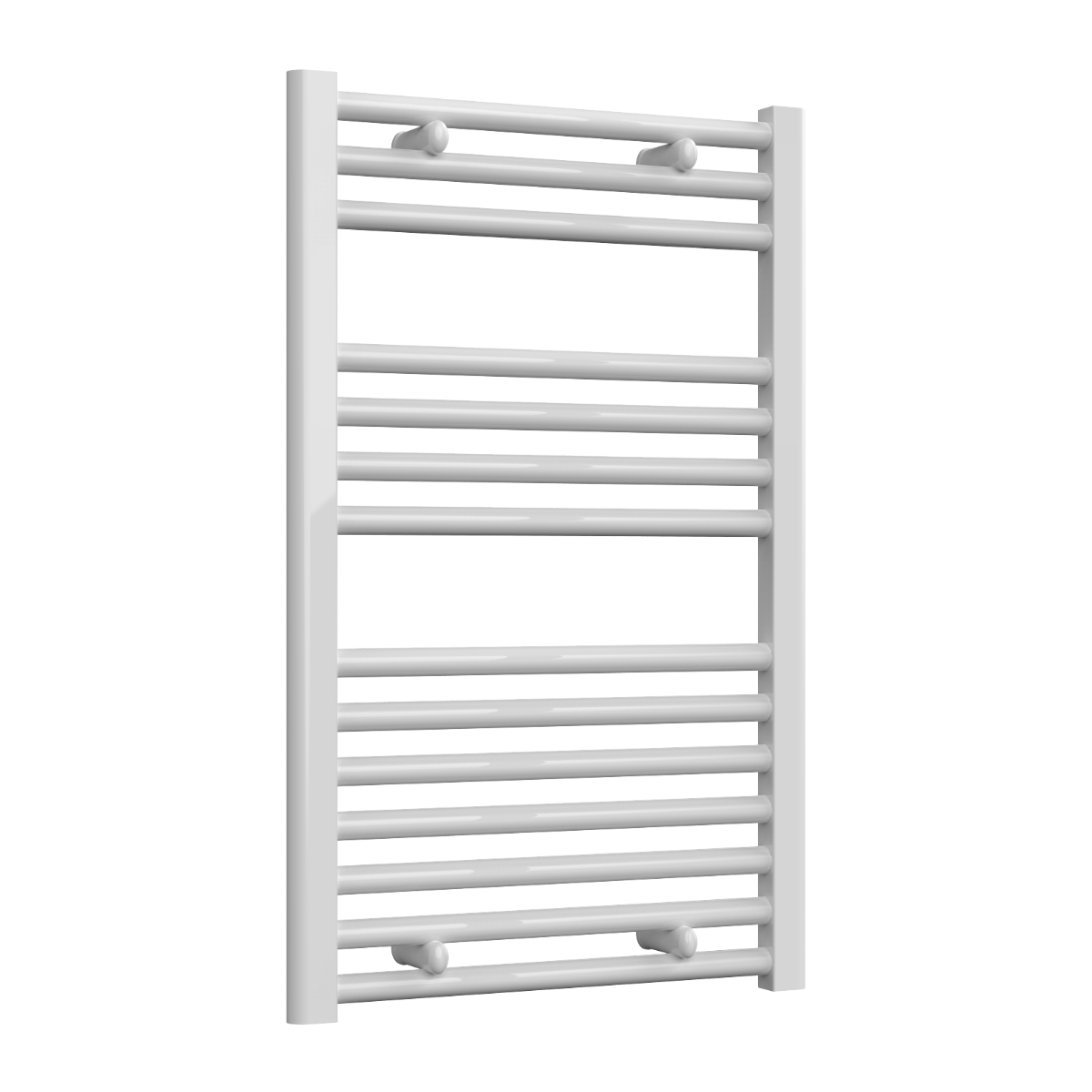

800 x 500 White
0.21 MB
800 x 600 Chrome
0.47 MB

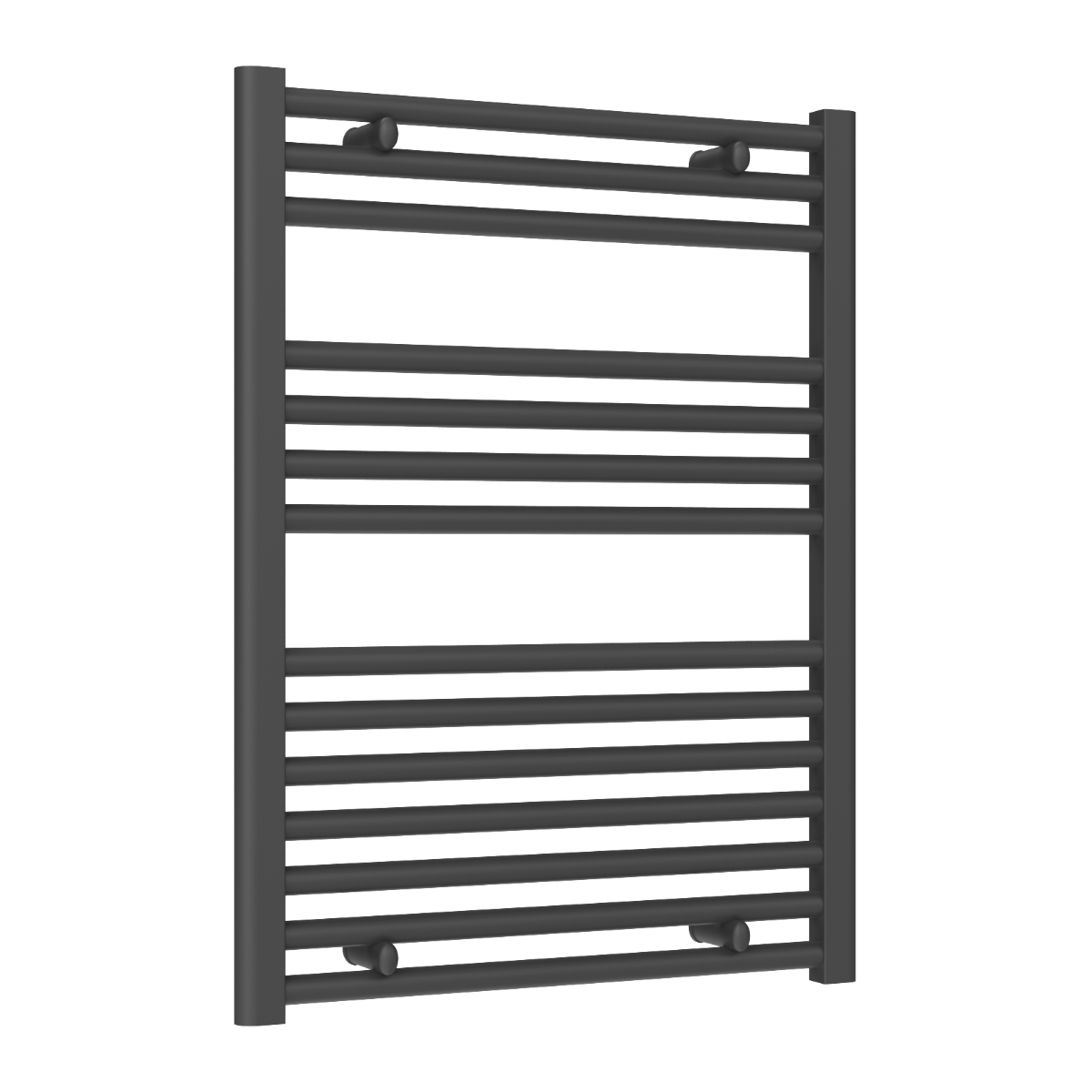

800 x 600 Anthracite
0.24 MB
800 x 600 Black
0.25 MB

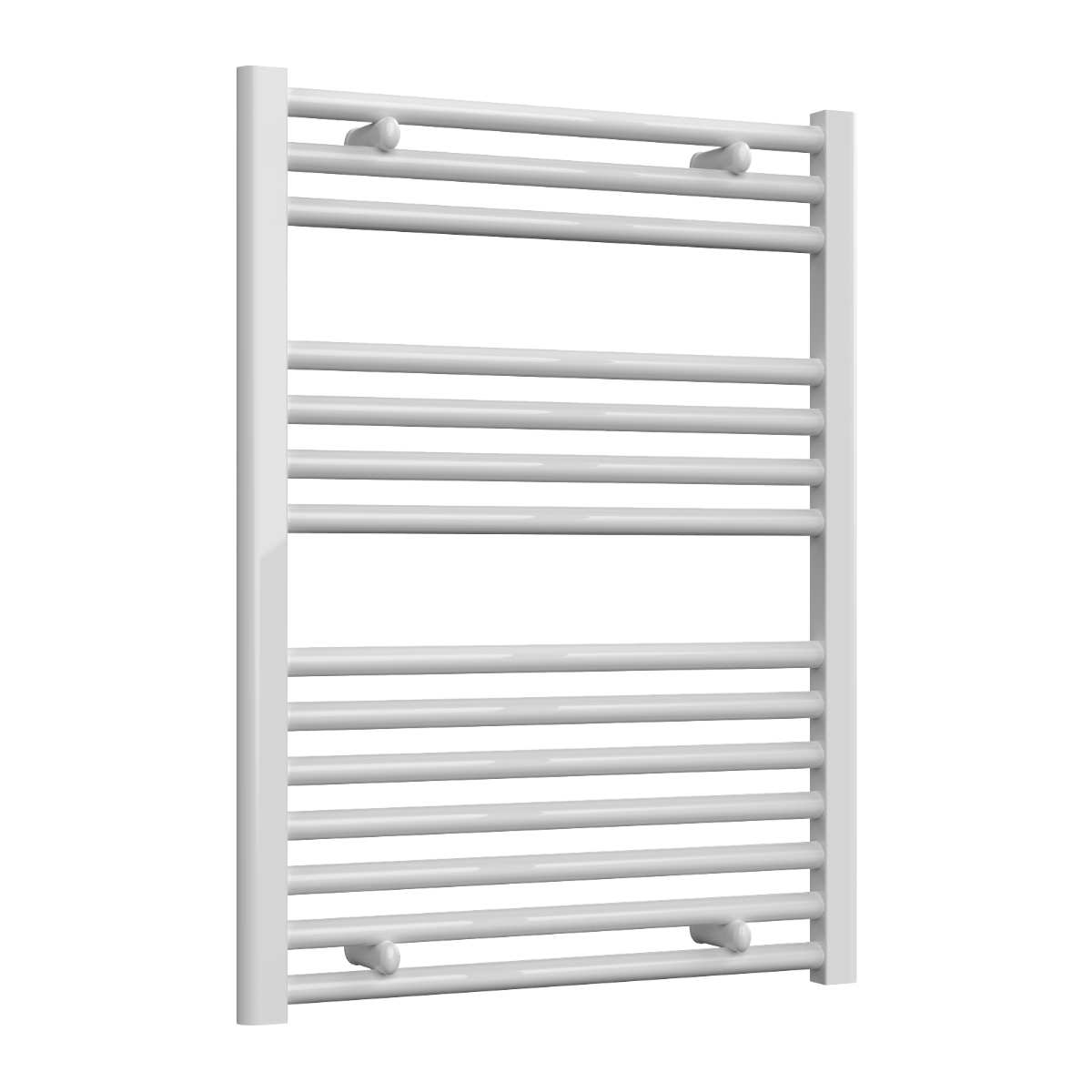

800 x 600 White
0.25 MB
800 x 750 Chrome
0.55 MB
1000 x 400 Chrome
0.33 MB
1000 x 500 Chrome
0.37 MB

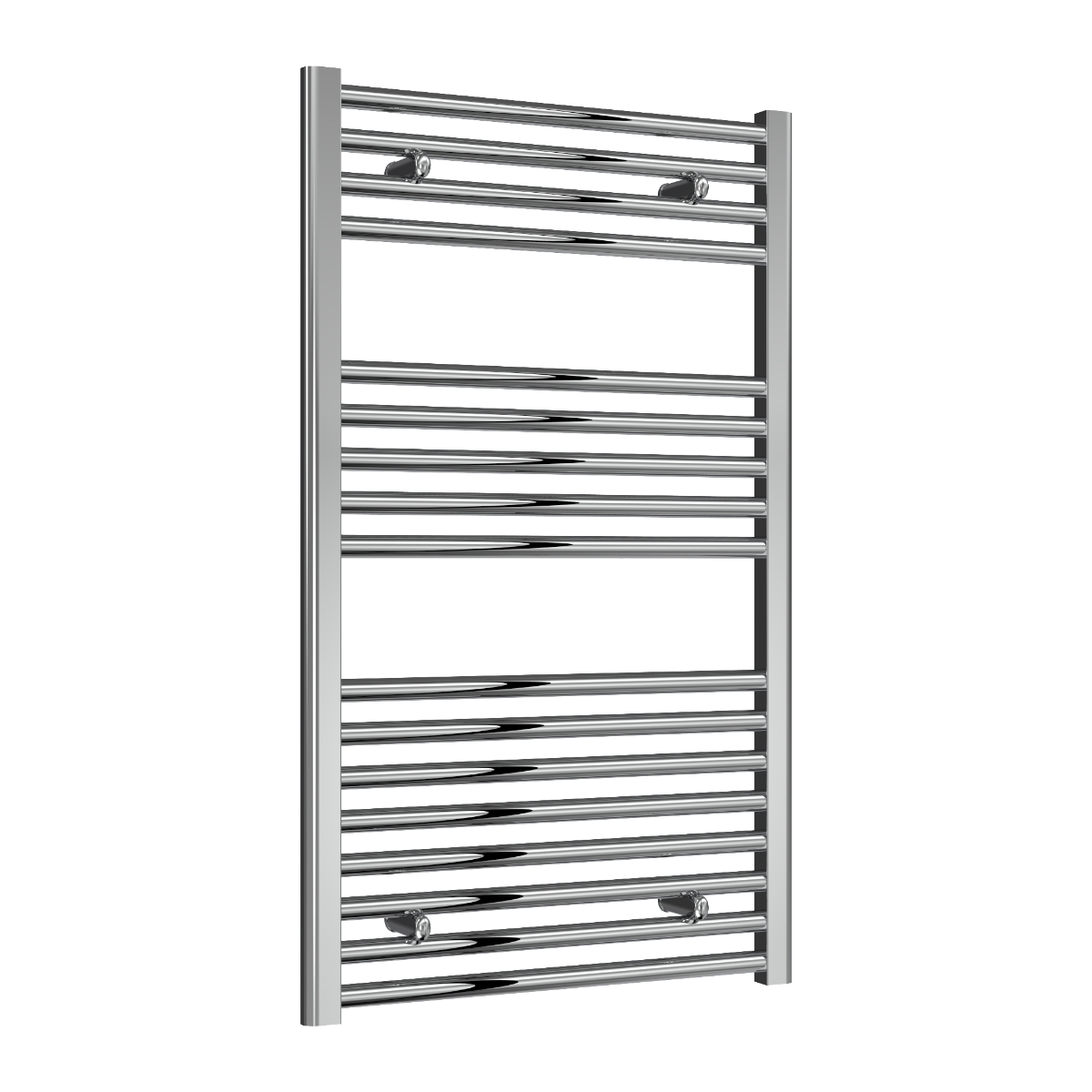

1000 x 600 Chrome
0.43 MB

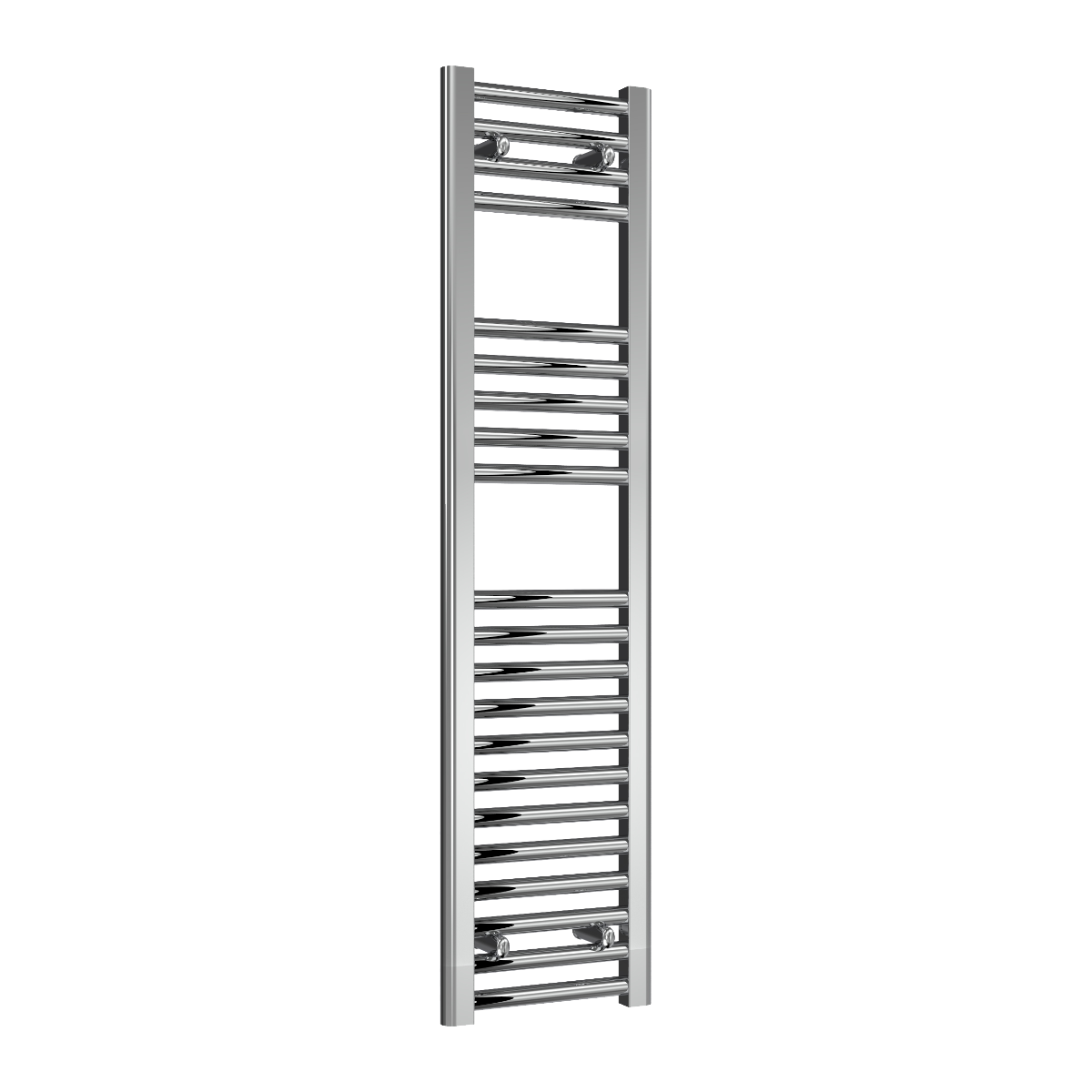

1200 x 300 Chrome
0.25 MB
1200 x 300 White
0.14 MB
1200 x 400 Chrome
0.31 MB
1200 x 400 Anthracite
0.16 MB
1200 x 400 Black
0.17 MB

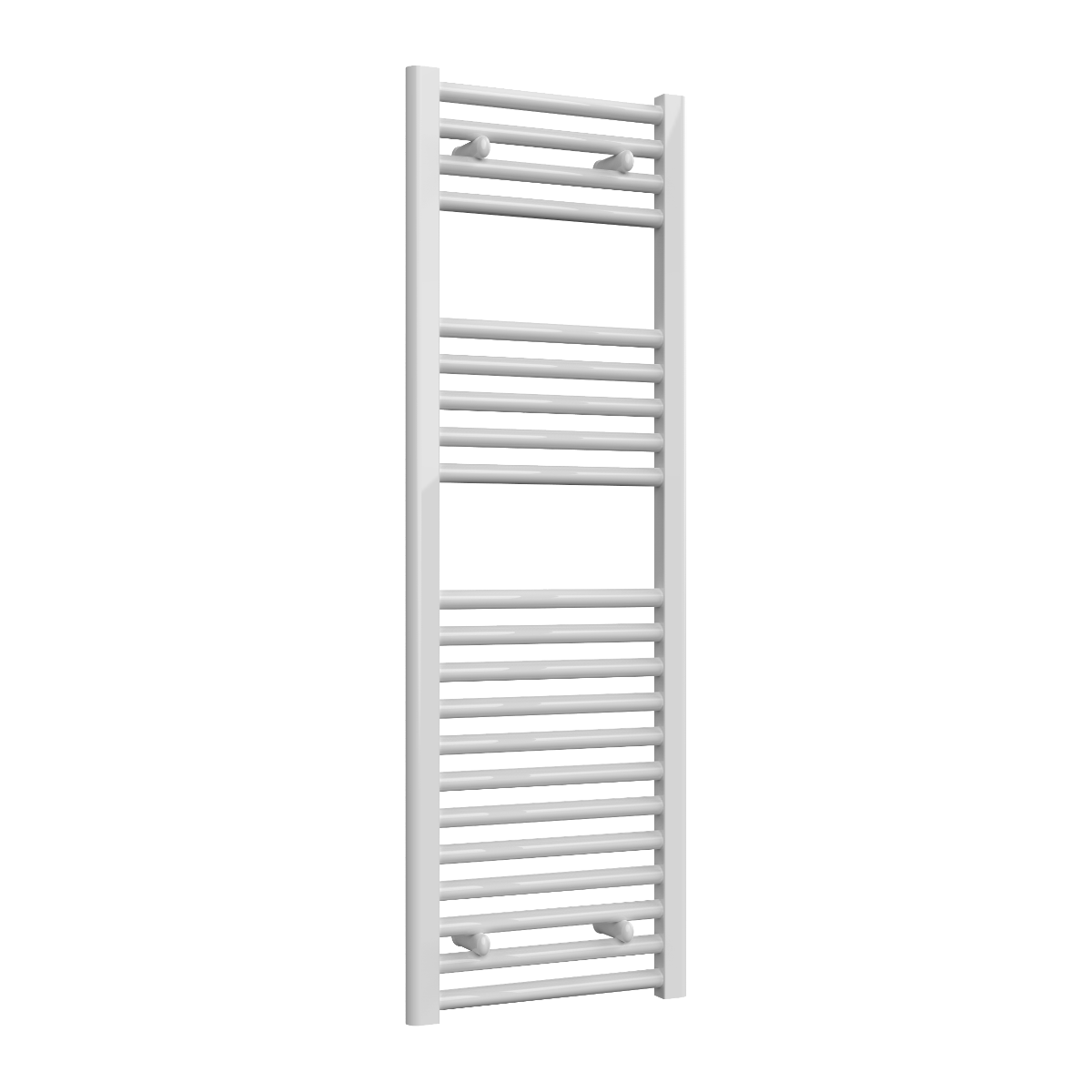

1200 x 400 White
0.16 MB

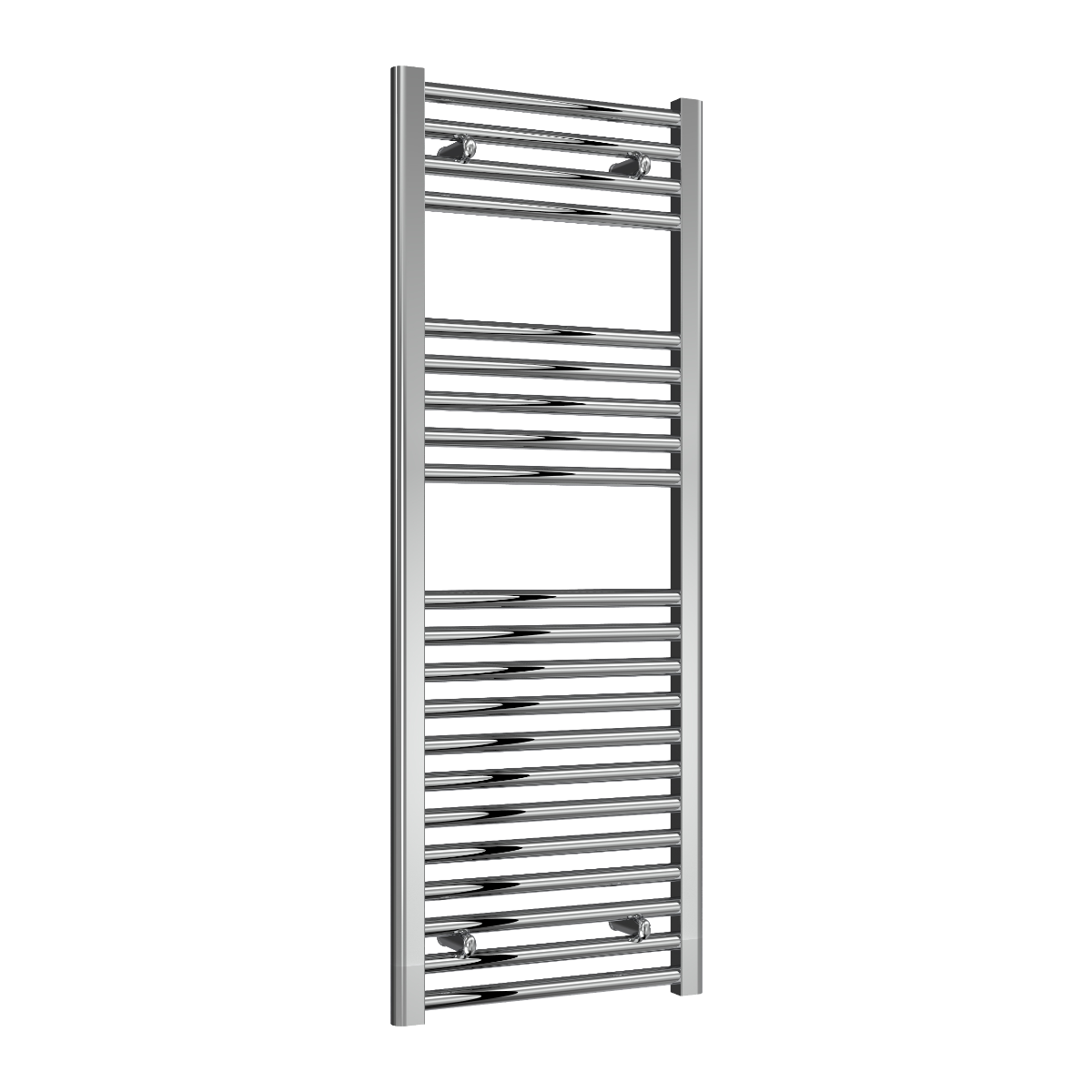

1200 x 450 Chrome
0.34 MB
1200 x 500 Chrome
0.36 MB

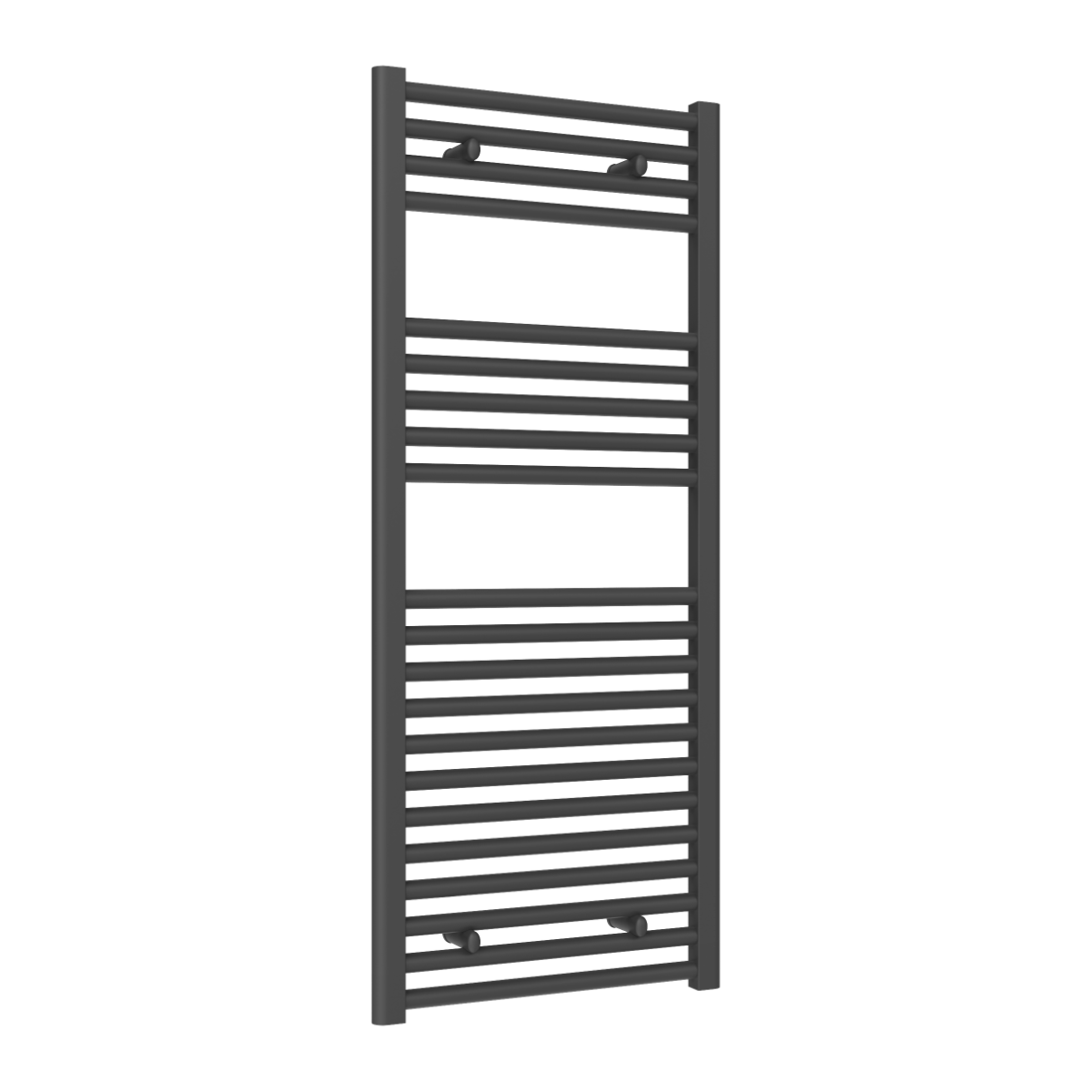

1200 x 500 Anthracite
0.2 MB
1200 x 500 Black
0.22 MB
1200 x 500 White
0.2 MB
1200 x 600 Chrome
0.45 MB
1200 x 600 Anthracite
0.23 MB

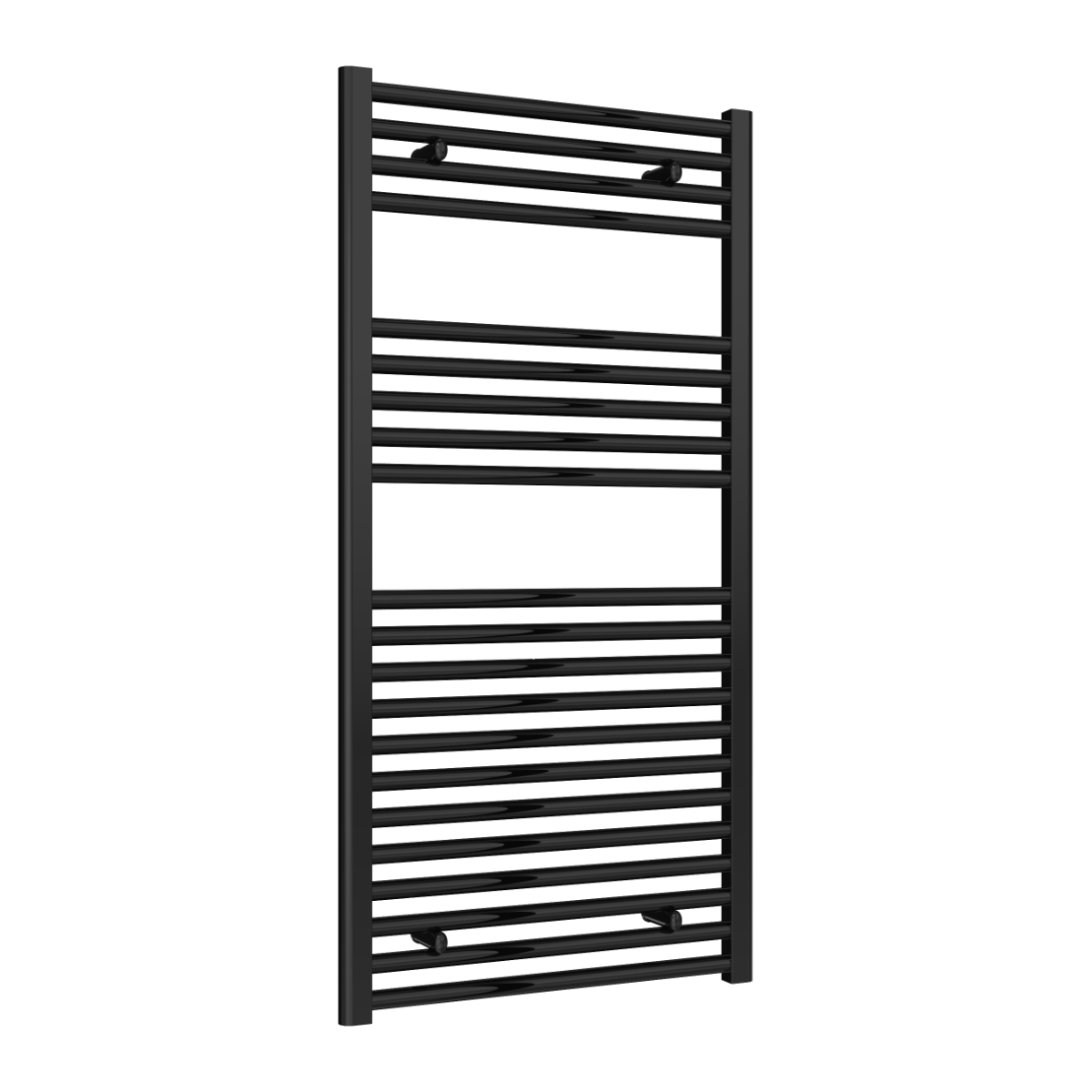

1200 x 600 Black
0.26 MB

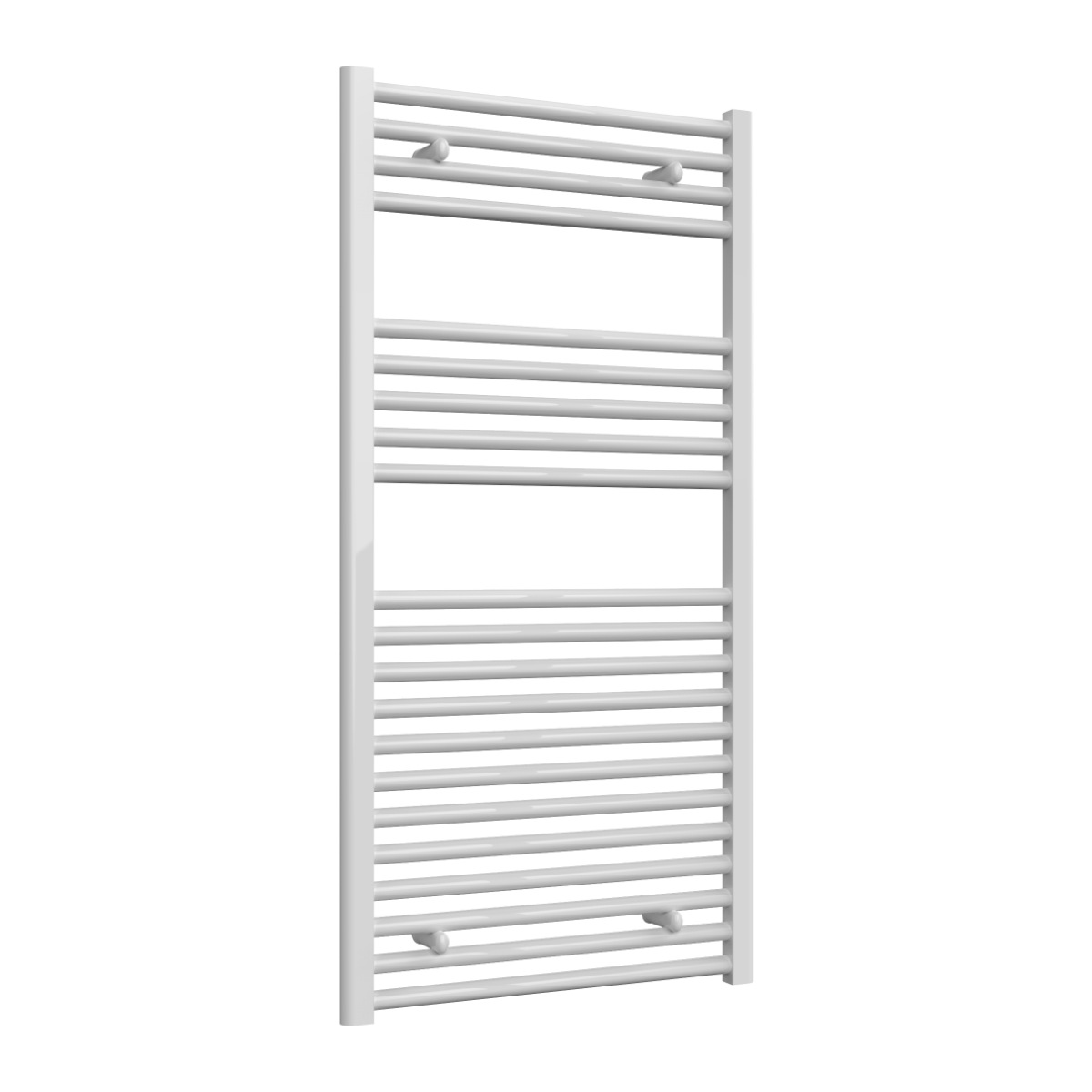

1200 x 600 White
0.24 MB
1200 x 750 Chrome
0.53 MB
1400 x 500 Chrome
0.36 MB
1400 x 600 Chrome
0.41 MB
1600 x 300 Chrome
0.23 MB

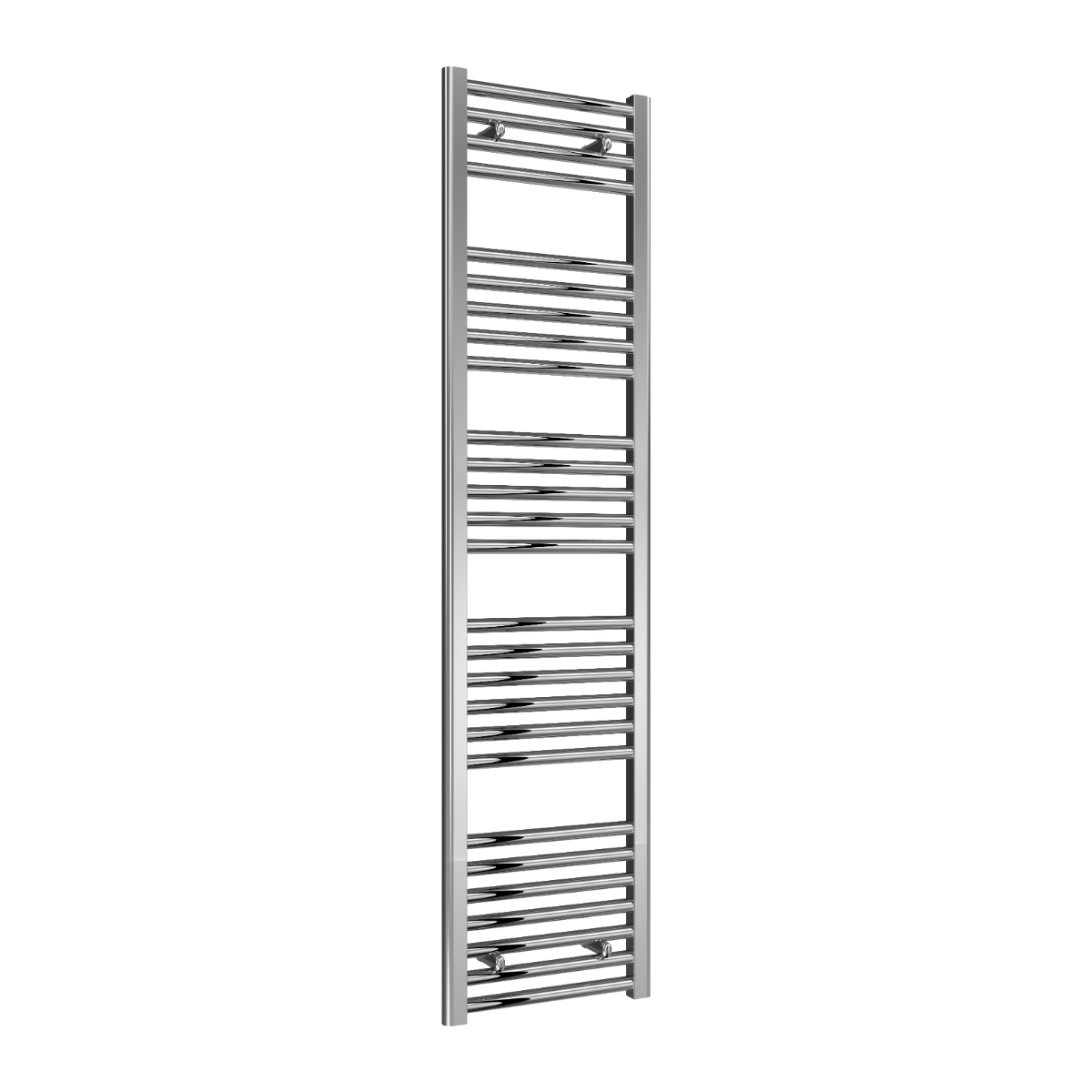

1600 x 400 Chrome
0.29 MB
1600 x 500 Chrome
0.34 MB
1600 x 600 Chrome
0.39 MB
1800 x 400 Chrome
0.28 MB
1800 x 400 Anthracite
0.15 MB

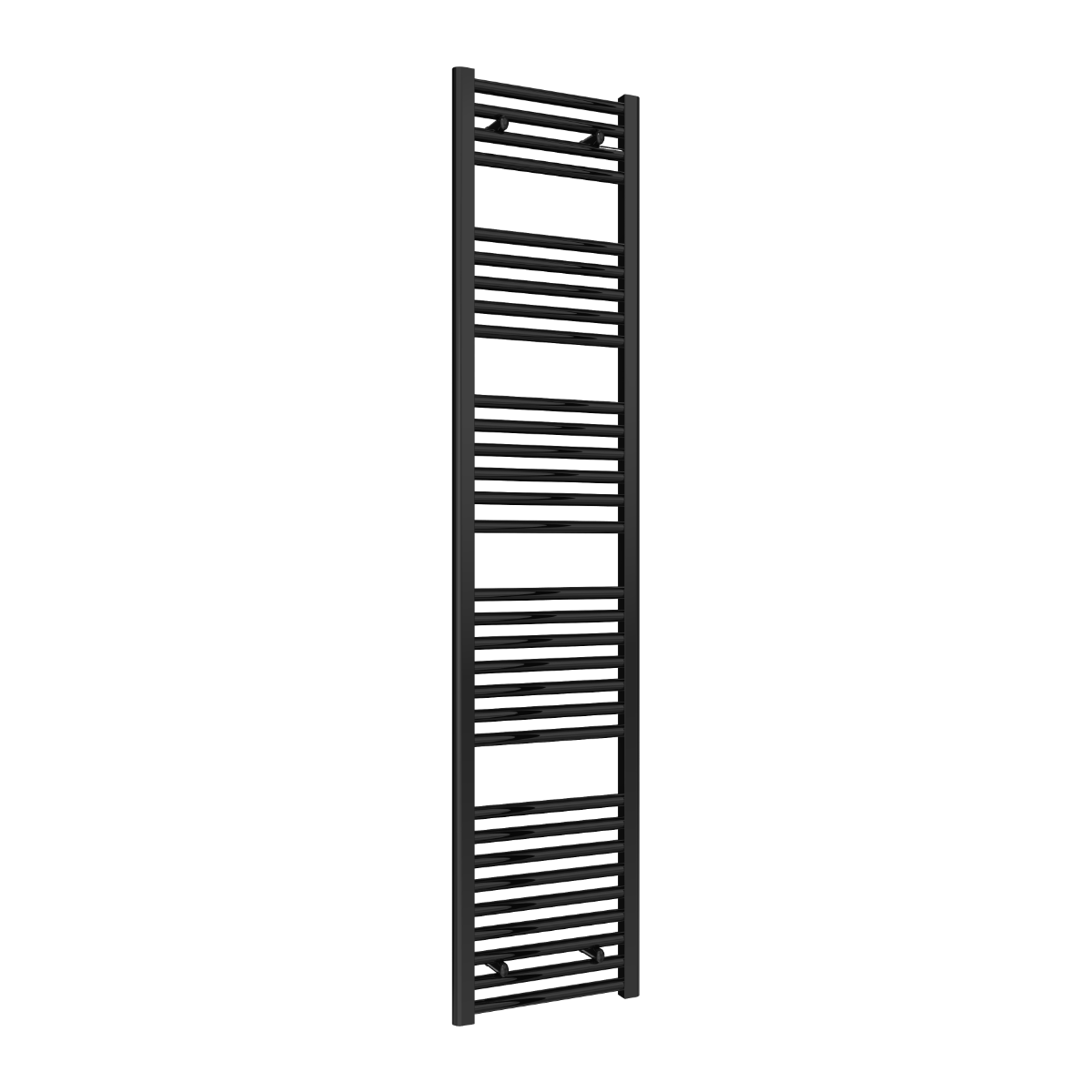

1800 x 400 Black
0.17 MB

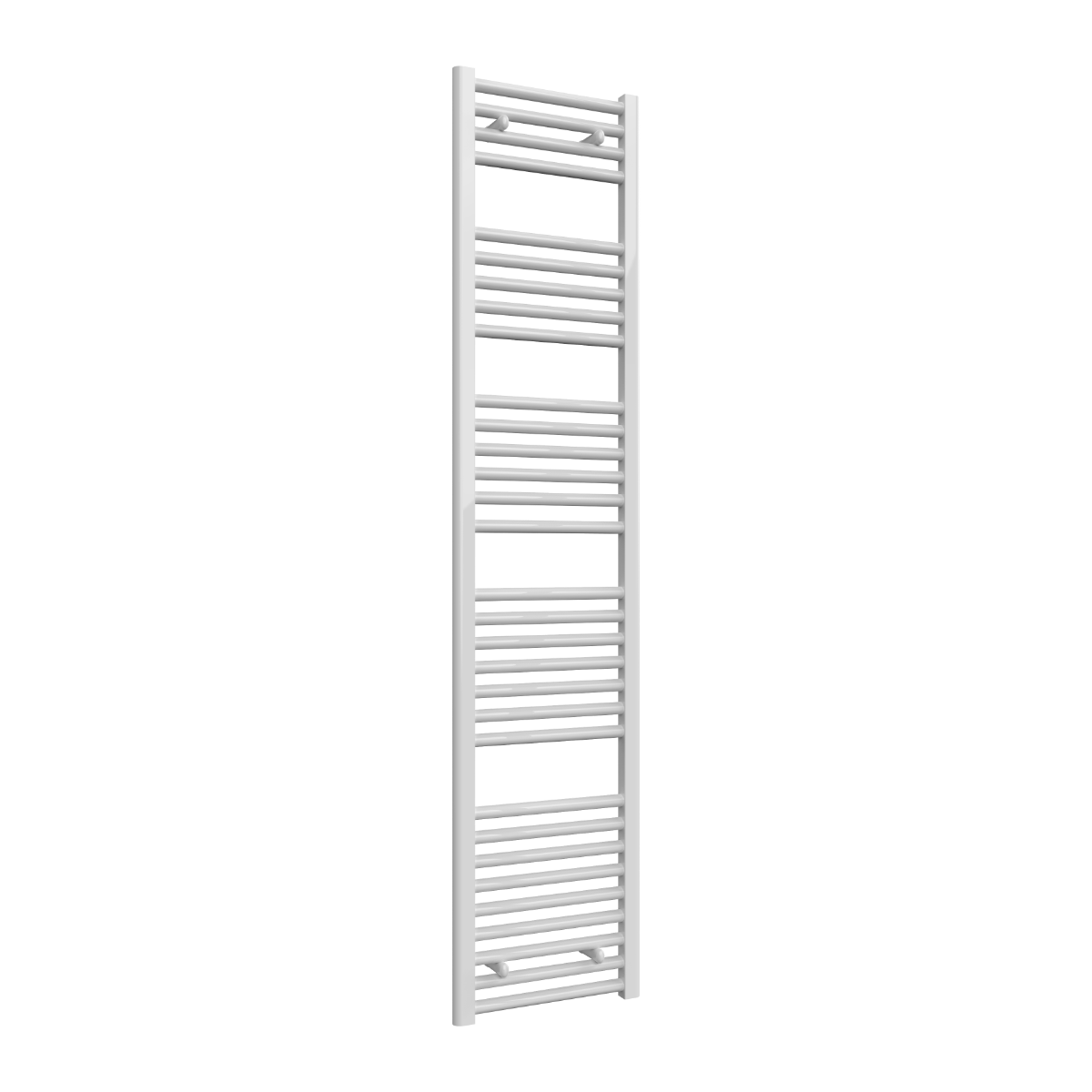

1800 x 400 White
0.15 MB
1800 x 450 Chrome
0.3 MB
1800 x 500 Chrome
0.33 MB
1800 x 500 Anthracite
0.18 MB

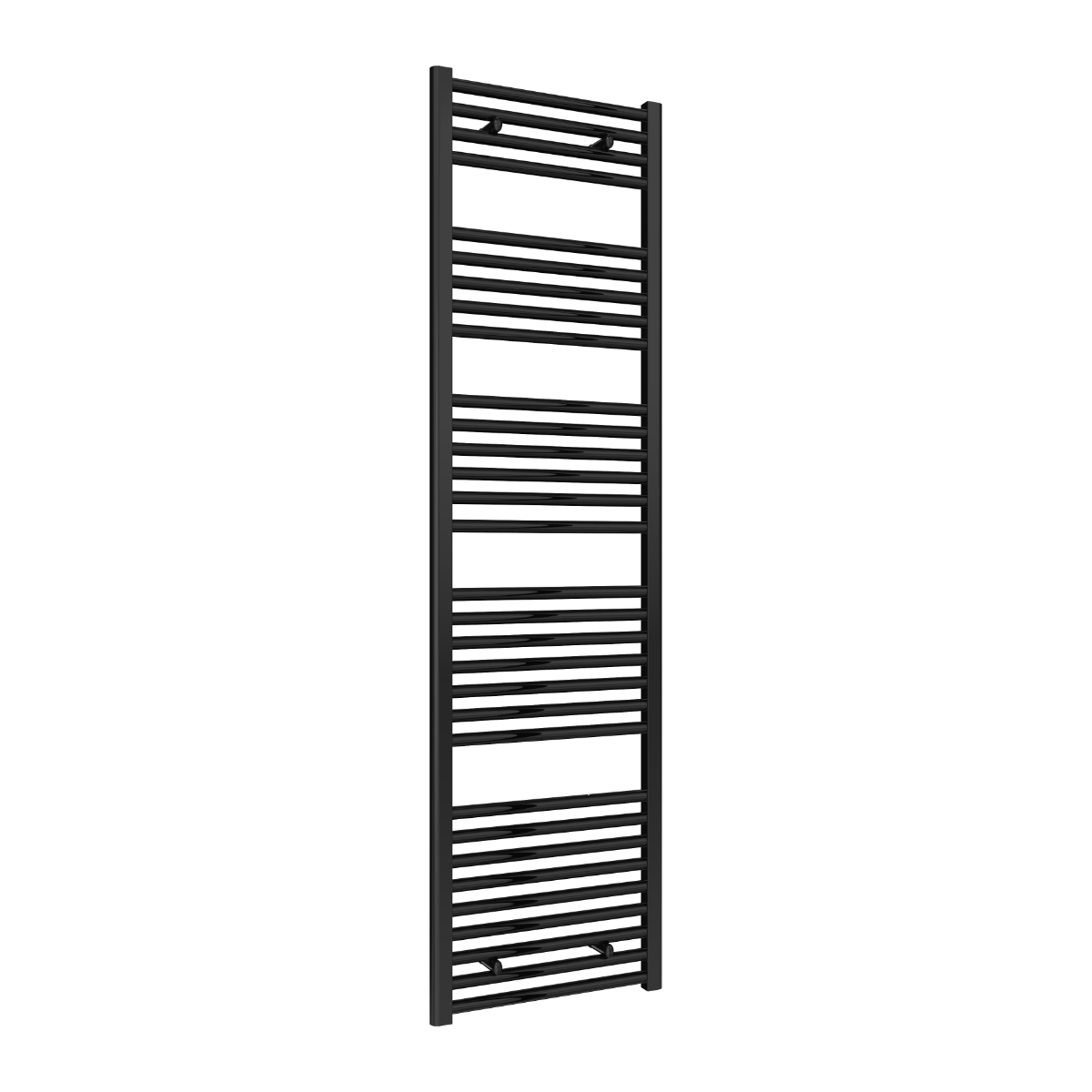

1800 x 500 Black
0.21 MB

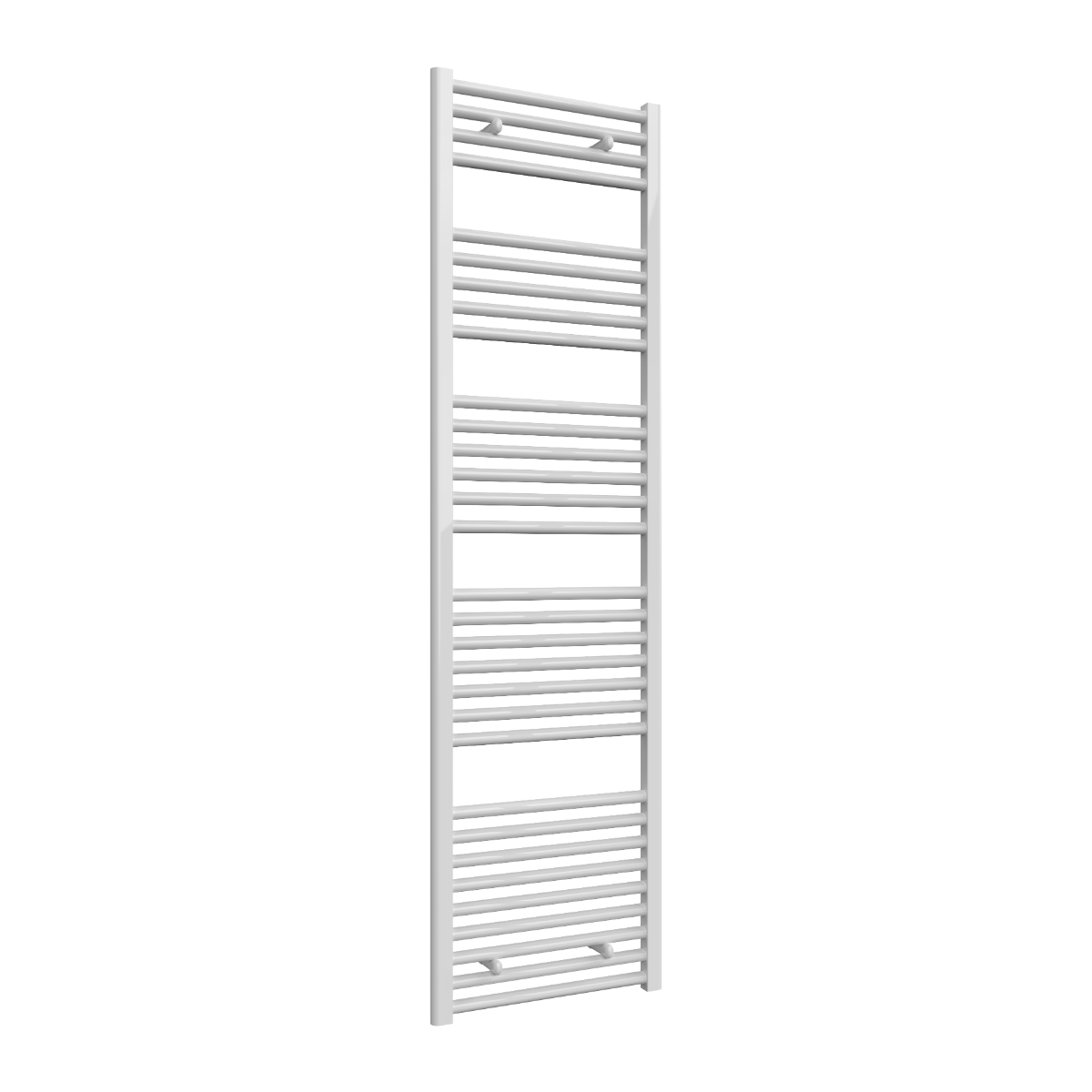

1800 x 500 White
0.18 MB
1800 x 600 Chrome
0.38 MB
1800 x 600 Anthracite
0.21 MB

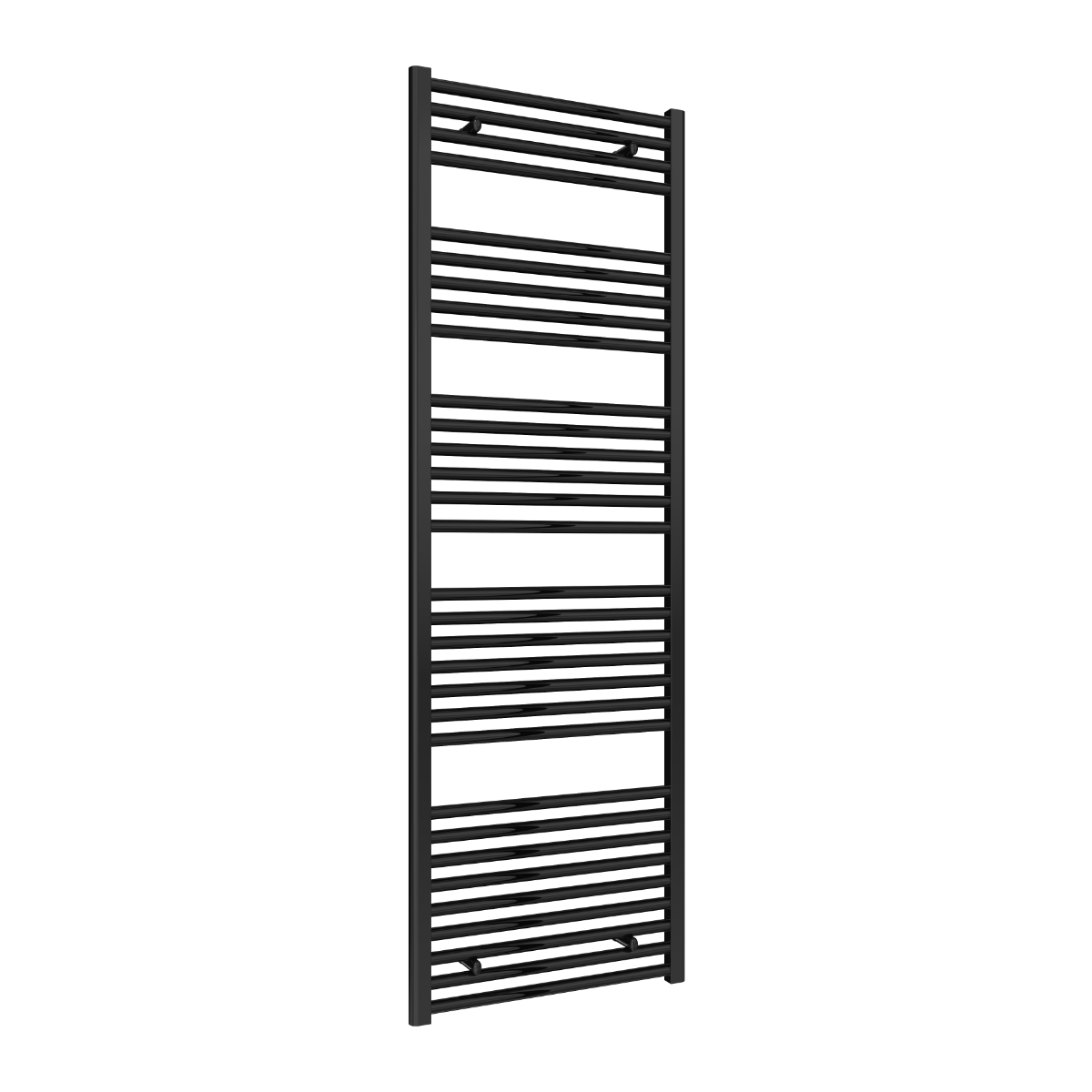

1800 x 600 Black
0.24 MB
1800 x 600 White
0.21 MB
1800 x 750 Chrome
0.46 MB

Roomset Product Images

Diva Flat
0.09 MB
Diva Flat
0.1 MB
Diva Flat
0.1 MB

High Resolution Images

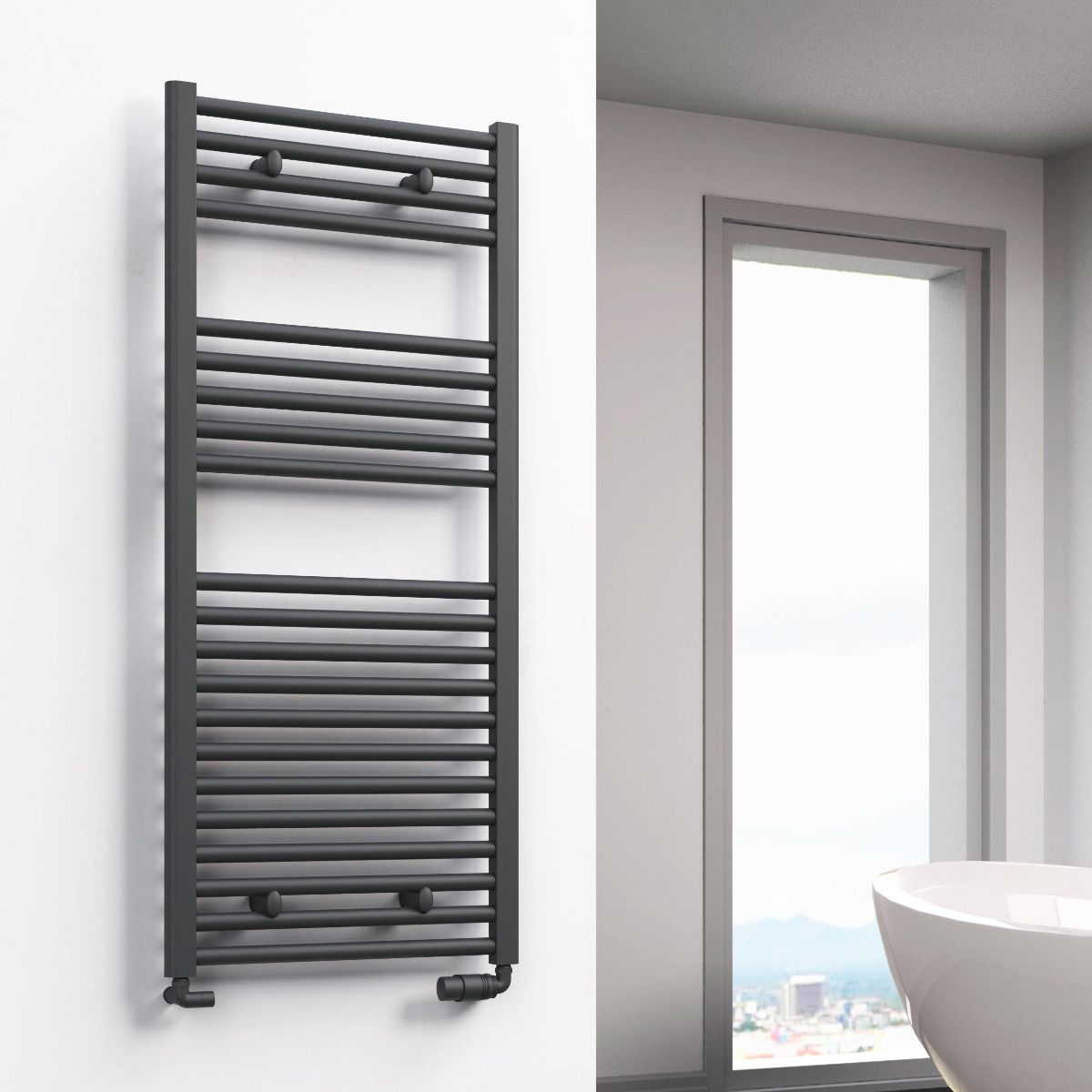

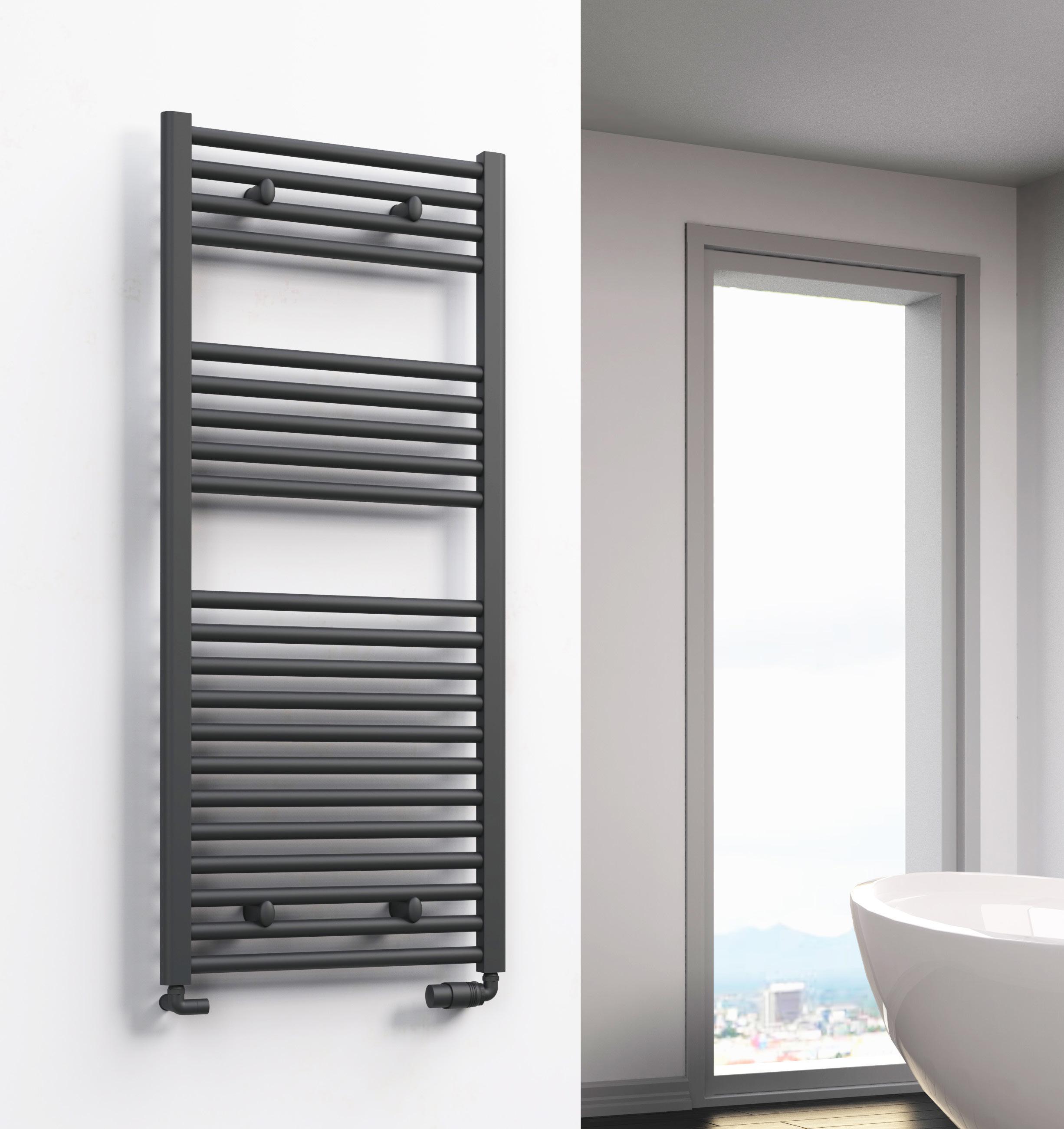

Reina Diva Flat 1200x500 Anthracite Roomset
0.32 MB
Reina Diva Flat 1200x500 Black Roomset
0.32 MB

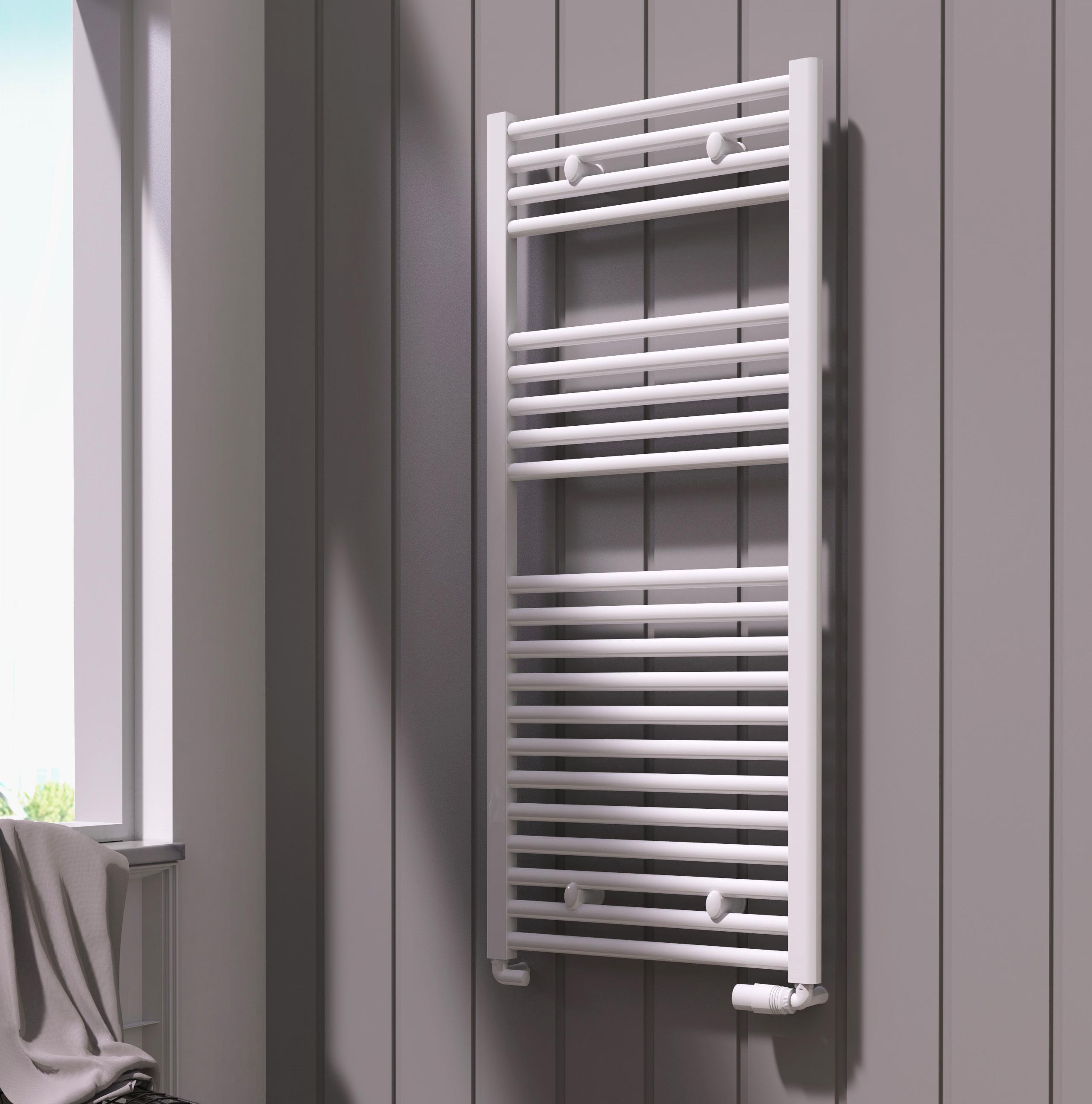

Reina Diva Flat 1200x500 White Roomset
0.33 MB
Tech Drawings

Technical Drawings

Diva Flat Technical Drawing
0.1 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
AG30600CF 600 300 Chrome £119.15 Log in to see stock
AG30800CF 800 300 Chrome £131.28 Log in to see stock
AG30800WF 800 300 White £108.90 Log in to see stock
AG40800CF 800 400 Chrome £140.37 Log in to see stock
AG40800AF 800 400 Anthracite £110.16 Log in to see stock
AG40800BF 800 400 Black £110.16 Log in to see stock
AG40800WF 800 400 White £110.16 Log in to see stock
AG45800CF 800 450 Chrome £143.40 Log in to see stock
AG50800CF 800 500 Chrome £145.61 Log in to see stock
AG50800AF 800 500 Anthracite £111.75 Log in to see stock
AG50800BF 800 500 Black £111.75 Log in to see stock
AG50800WF 800 500 White £111.75 Log in to see stock
AG60800CF 800 600 Chrome £148.36 Log in to see stock
AG60800AF 800 600 Anthracite £117.77 Log in to see stock
AG60800BF 800 600 Black £117.77 Log in to see stock
AG60800WF 800 600 White £117.77 Log in to see stock
AG75800CF 800 750 Chrome £169.31 Log in to see stock
AG40100CF 1000 400 Chrome £158.84 Log in to see stock
AG50100CF 1000 500 Chrome £163.25 Log in to see stock
AG60100CF 1000 600 Chrome £174.82 Log in to see stock
AG30120CF 1200 300 Chrome £161.59 Log in to see stock
AG30120WF 1200 300 White £130.84 Log in to see stock
AG40120CF 1200 400 Chrome £174.27 Log in to see stock
AG40120AF 1200 400 Anthracite £142.50 Log in to see stock
AG40120BF 1200 400 Black £142.50 Log in to see stock
AG40120WF 1200 400 White £142.50 Log in to see stock
AG45120CF 1200 450 Chrome £174.82 Log in to see stock
AG50120CF 1200 500 Chrome £182.54 Log in to see stock
AG50120AF 1200 500 Anthracite £139.33 Log in to see stock
AG50120BF 1200 500 Black £139.33 Log in to see stock
AG50120WF 1200 500 White £139.33 Log in to see stock
AG60120CF 1200 600 Chrome £197.43 Log in to see stock
AG60120AF 1200 600 Anthracite £144.40 Log in to see stock
AG60120BF 1200 600 Black £144.40 Log in to see stock
AG60120WF 1200 600 White £144.40 Log in to see stock
AG75120CF 1200 750 Chrome £221.68 Log in to see stock
AG50140CF 1400 500 Chrome £229.67 Log in to see stock
AG60140CF 1400 600 Chrome £252.00 Log in to see stock
AG30160CF 1600 300 Chrome £215.07 Log in to see stock
AG40160CF 1600 400 Chrome £258.06 Log in to see stock
AG50160CF 1600 500 Chrome £265.78 Log in to see stock
AG60160CF 1600 600 Chrome £294.45 Log in to see stock
AG40180CF 1800 400 Chrome £276.25 Log in to see stock
AG40180AF 1800 400 Anthracite £174.44 Log in to see stock
AG40180BF 1800 400 Black £174.44 Log in to see stock
AG40180WF 1800 400 White £174.44 Log in to see stock
AG45180CF 1800 450 Chrome £280.66 Log in to see stock
AG50180CF 1800 500 Chrome £294.45 Log in to see stock
AG50180AF 1800 500 Anthracite £183.07 Log in to see stock
AG50180BF 1800 500 Black £183.07 Log in to see stock
AG50180WF 1800 500 White £183.70 Log in to see stock
AG60180CF 1800 600 Chrome £309.88 Log in to see stock
AG60180AF 1800 600 Anthracite £188.77 Log in to see stock
AG60180BF 1800 600 Black £188.77 Log in to see stock
AG60180WF 1800 600 White £187.77 Log in to see stock
AG75180CF 1800 750 Chrome £357.84 Log in to see stock
