Elips Vertical Mild Steel Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating

The Elips Vertical Designer Radiator showcases a sleek, modern look with its distinctive oval tube design, creating a clean and sophisticated finish that elevates any contemporary interior. Its tall, space-saving profile makes it ideal for maximising wall space while delivering efficient and consistent heat throughout the room. Available in White and Anthracite finishes, the Elips radiator blends seamlessly into a variety of décor styles, from minimal to modern spaces, and is offered in both single and double panel options to suit different heat requirements. Built for durability and everyday performance, it is manufactured from high-quality mild steel, ensuring reliable heat output and long-lasting use.

  • Available in 2 colours and 6 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • anthracite
  • white

Product Resource Centre

1600mm HEIGHT 420mm WIDTH
1600mm HEIGHT 540mm WIDTH
1800mm HEIGHT 300mm WIDTH
1800mm HEIGHT 420mm WIDTH
1800mm HEIGHT 540mm WIDTH
1800mm HEIGHT 600mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
1600 420 Single 420 50 92 17.2kg
1600 540 Single 540 50 92 21.4kg
1800 300 Single 300 50 92 14.2kg
1800 420 Single 420 50 92 18.9kg
1800 540 Single 540 50 92 23.0kg
1800 600 Single 600 50 92 25.8kg
1600 420 Double 420 63 105 30.8kg
1600 540 Double 540 63 105 38.8kg
1800 300 Double 300 63 105 25.2kg
1800 420 Double 420 63 105 34.2kg
1800 540 Double 540 63 105 42.9kg
1800 600 Double 600 63 105 48.0kg

For pipe centre measurement including valves, add 90mm

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
RV-EV167AS 1600 420 Anthracite 3407 998 2662 780 1378 404
RV-EV167WS 1600 420 White 3407 998 2662 780 1378 404
RV-EV169AS 1600 540 Anthracite 4381 1285 3423 1004 1772 520
RV-EV169WS 1600 540 White 4381 1285 3423 1004 1772 520
RV-EV1805AS 1800 300 Anthracite 2697 791 2107 618 1091 320
RV-EV1805WS 1800 300 White 2697 791 2107 618 1091 320
RV-EV1807AS 1800 420 Anthracite 3777 1108 2951 866 1528 448
RV-EV1807WS 1800 420 White 3777 1108 2951 866 1528 448
RV-EV1809AS 1800 540 Anthracite 4856 1425 3794 1113 1964 576
RV-EV1809WS 1800 540 White 4856 1425 3794 1113 1964 576
RV-EV1810AS 1800 600 Anthracite 5396 1582 4216 1236 2182 640
RV-EV1810WS 1800 600 White 5396 1582 4216 1236 2182 640
RV-EV167AD 1600 420 Anthracite 5004 1467 3909 1146 2024 593
RV-EV167WD 1600 420 White 5004 1467 3909 1146 2024 593
RV-EV169AD 1600 540 Anthracite 6433 1887 5026 1474 2602 763
RV-EV169WD 1600 540 White 6433 1887 5026 1474 2602 763
RV-EV1805AD 1800 300 Anthracite 3985 1169 3113 913 1611 473
RV-EV1805WD 1800 300 White 3985 1169 3113 913 1611 473
RV-EV1807AD 1800 420 Anthracite 5581 1637 4360 1279 2257 662
RV-EV1807WD 1800 420 White 5581 1637 4360 1279 2257 662
RV-EV1809AD 1800 540 Anthracite 7174 2104 5605 1644 2901 851
RV-EV1809WD 1800 540 White 7174 2104 5605 1644 2901 851
RV-EV1810AD 1800 600 Anthracite 7973 2339 6229 1827 3225 946
RV-EV1810WD 1800 600 White 7973 2339 6229 1827 3225 946
Images

Cutout Product Images

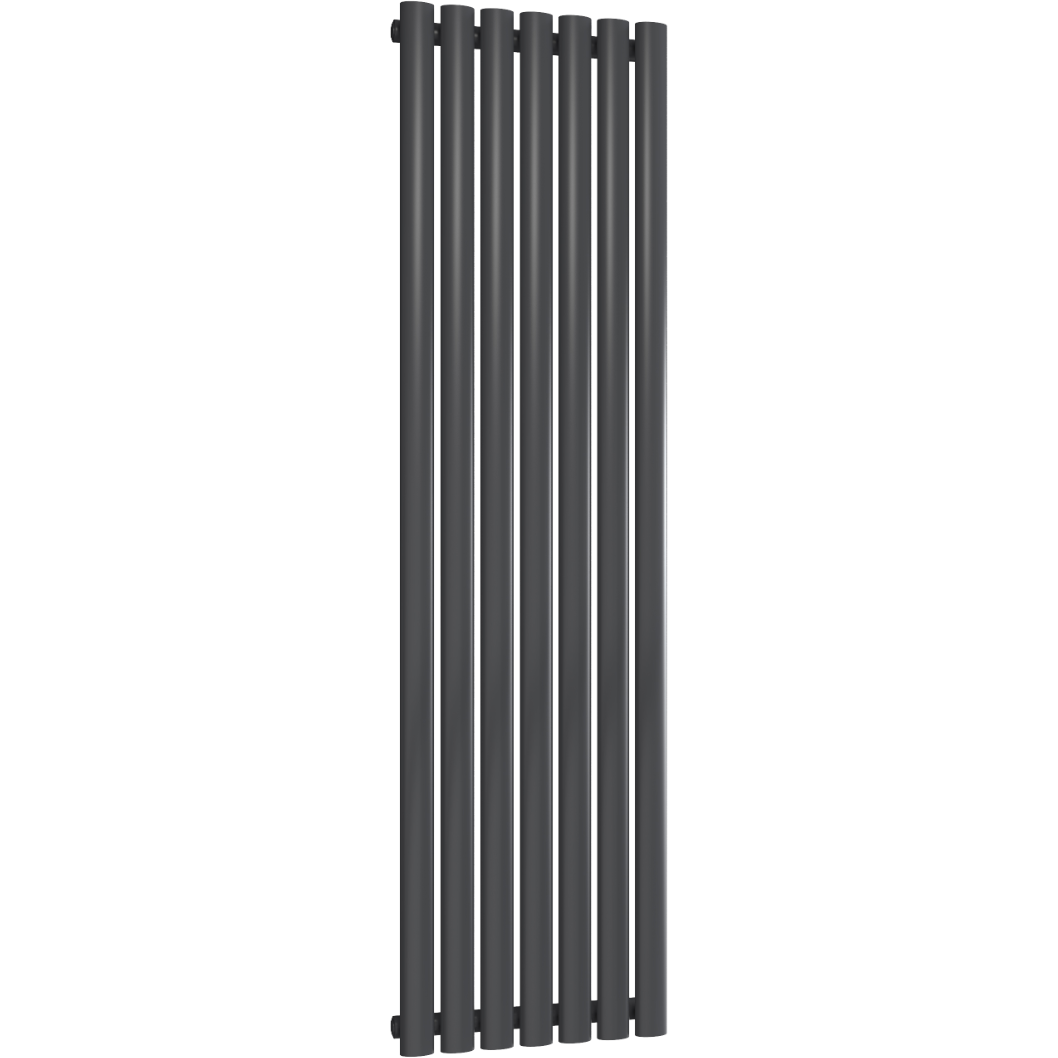

1600 x 420 Anthracite
0.17 MB

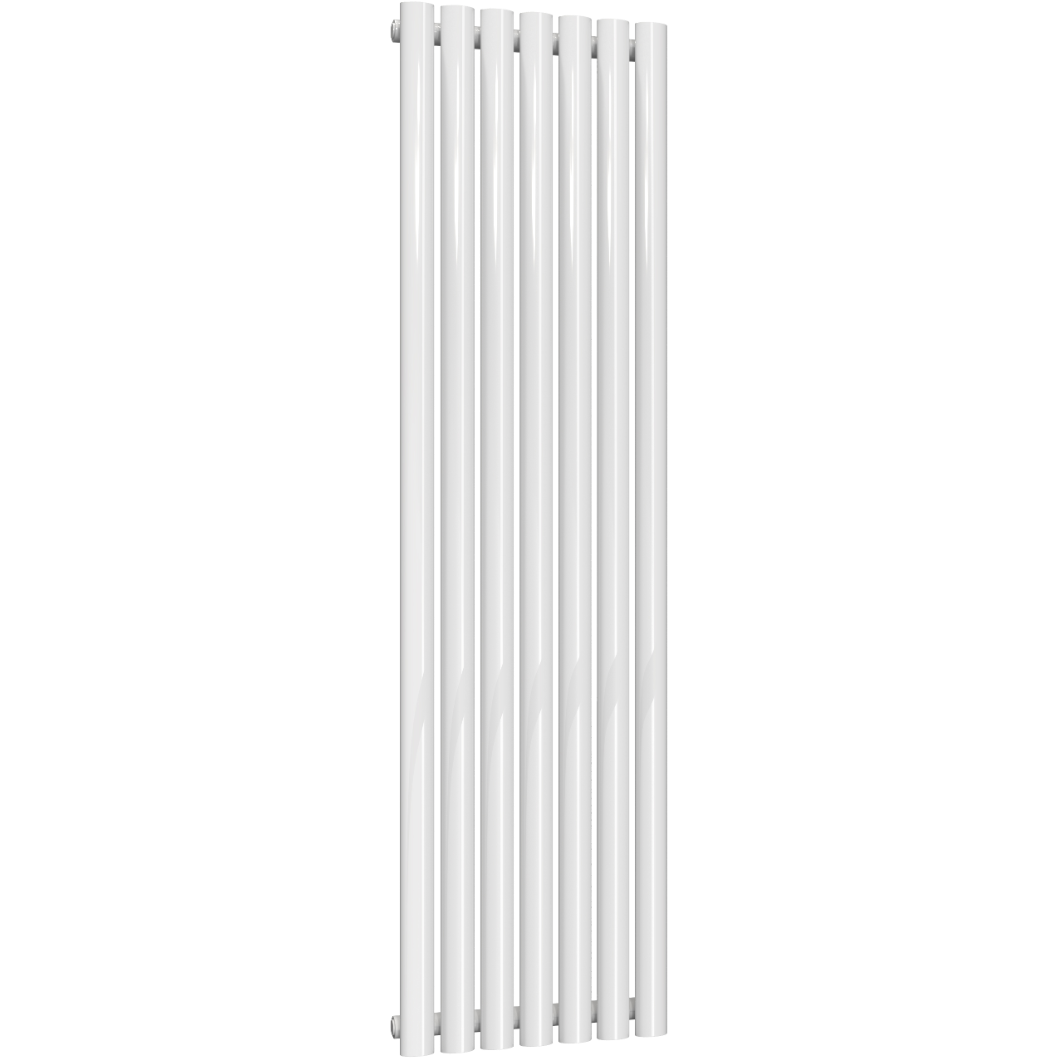

1600 x 420 White
0.17 MB
1600 x 540 Anthracite
0.2 MB
1600 x 540 White
0.21 MB
1800 x 300 Anthracite
0.06 MB
1800 x 300 White
0.11 MB

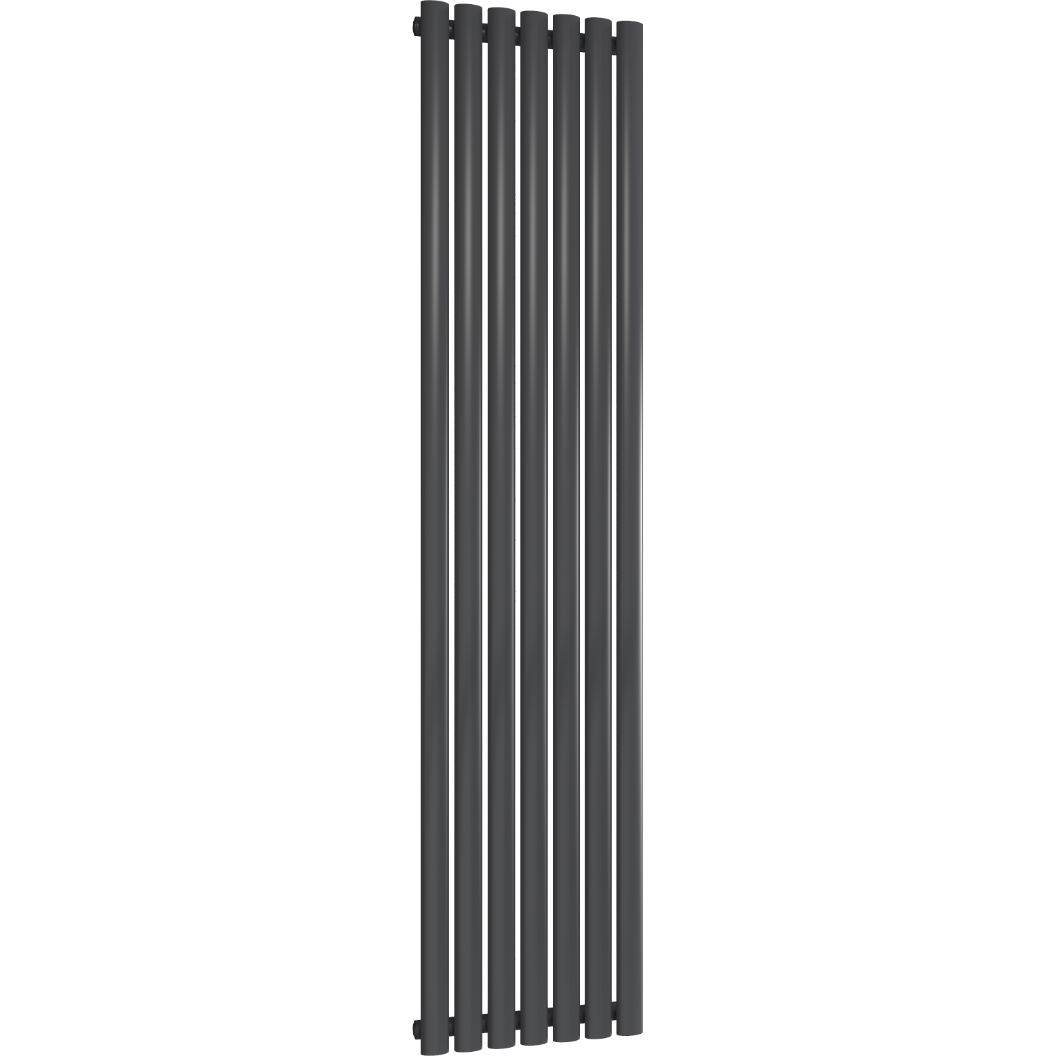

1800 x 420 Anthracite
0.15 MB
1800 x 420 White
0.15 MB

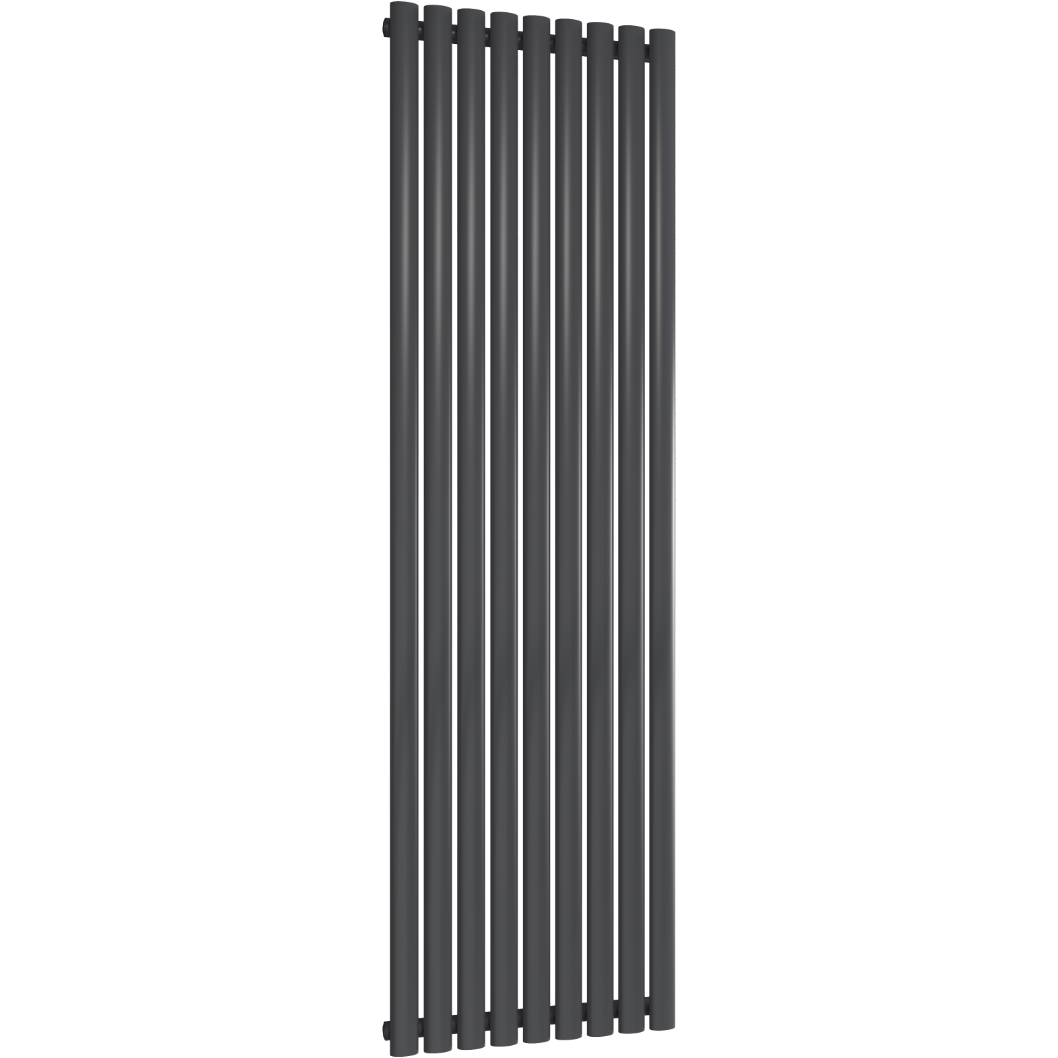

1800 x 540 Anthracite
0.18 MB
1800 x 540 White
0.19 MB
1800 x 600 Anthracite
0.19 MB

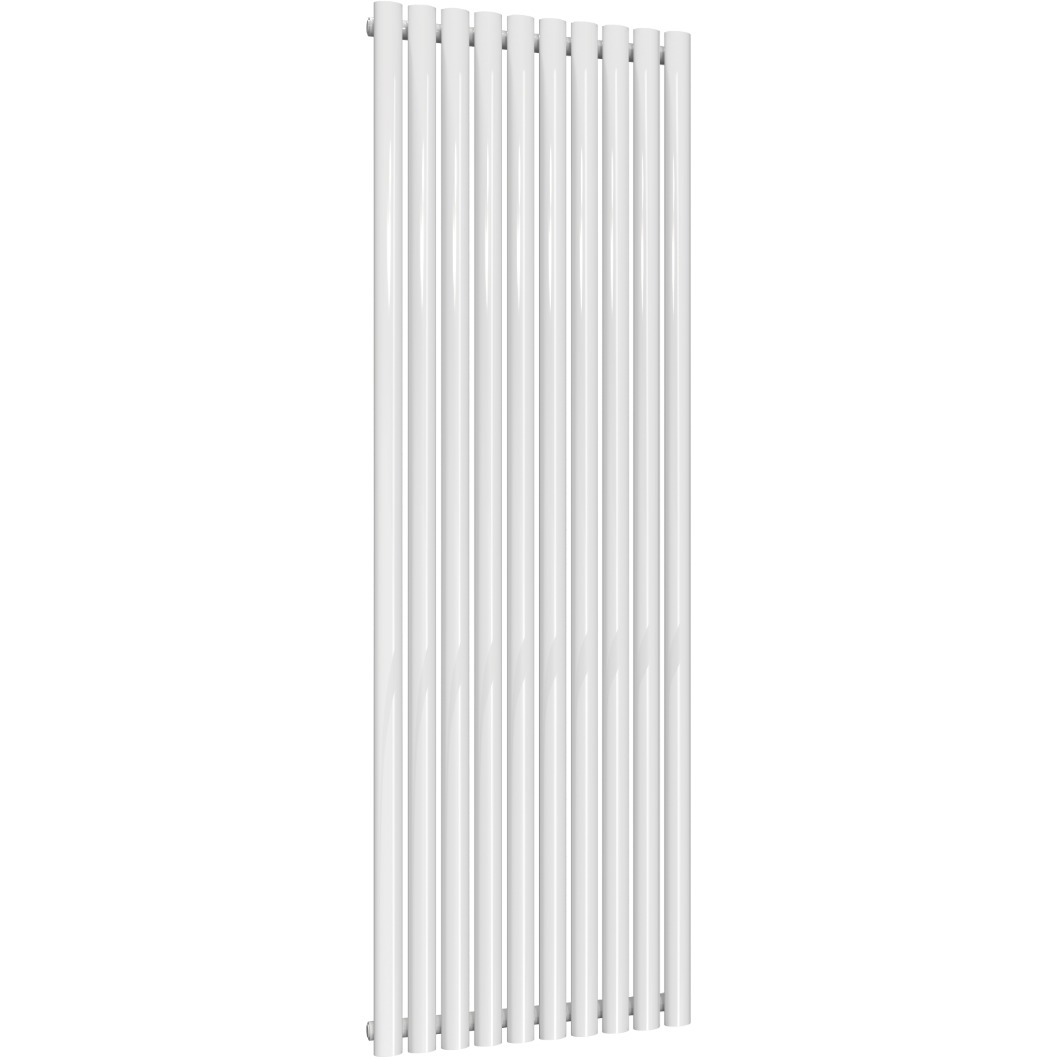

1800 x 600 White
0.2 MB

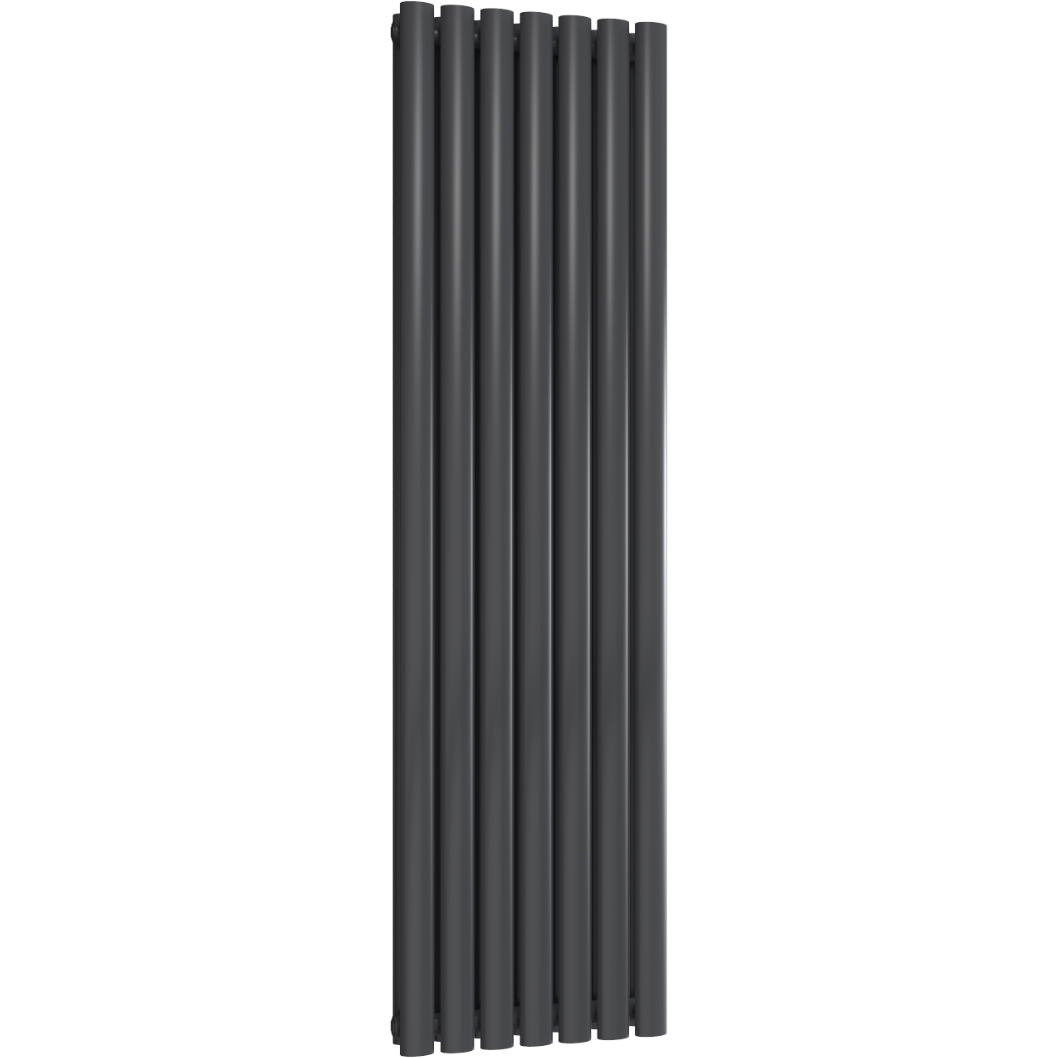

1600 x 420 Anthracite
0.17 MB

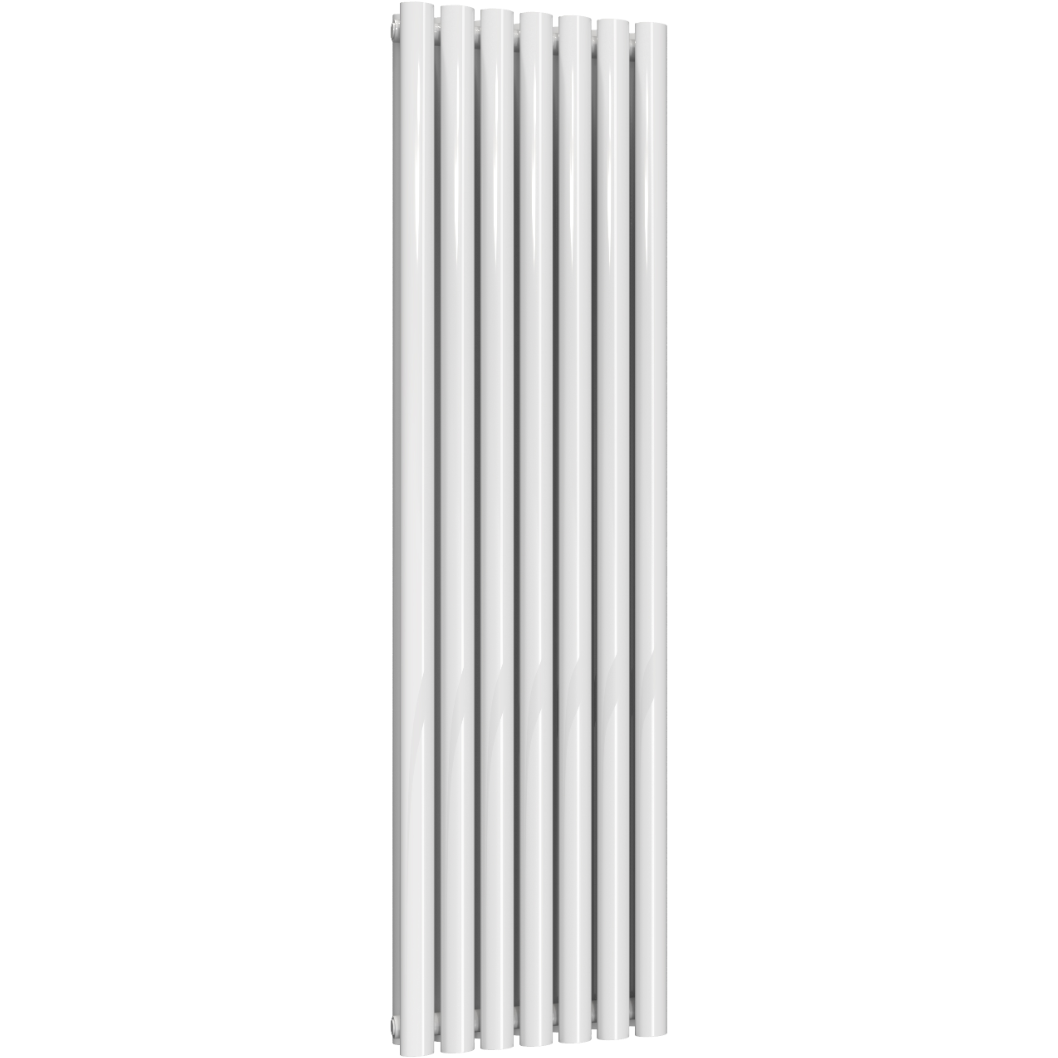

1600 x 420 White
0.18 MB
1600 x 540 Anthracite
0.2 MB
1600 x 540 White
0.21 MB
1800 x 300 Anthracite
0.12 MB
1800 x 300 White
0.12 MB

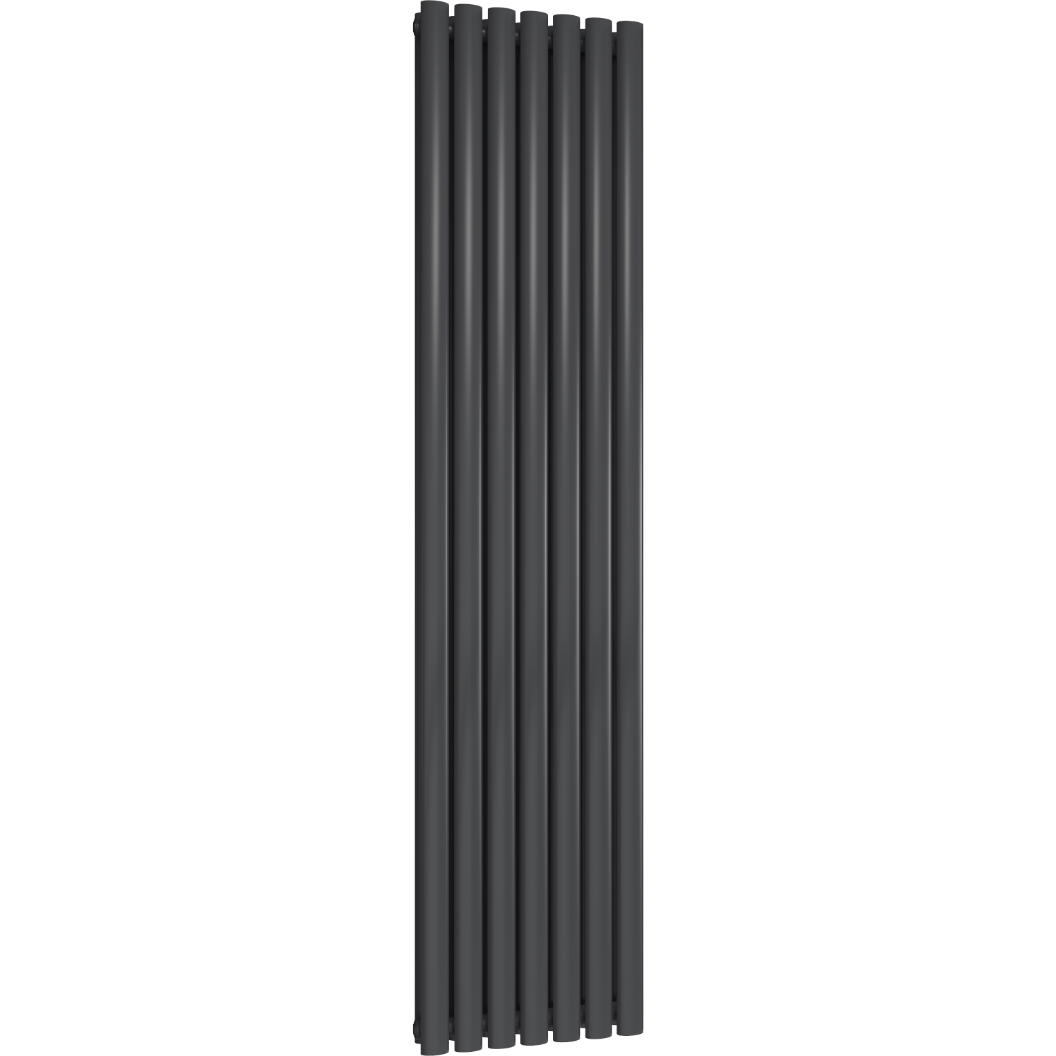

1800 x 420 Anthracite
0.16 MB
1800 x 420 White
0.1 MB
1800 x 540 Anthracite
0.18 MB

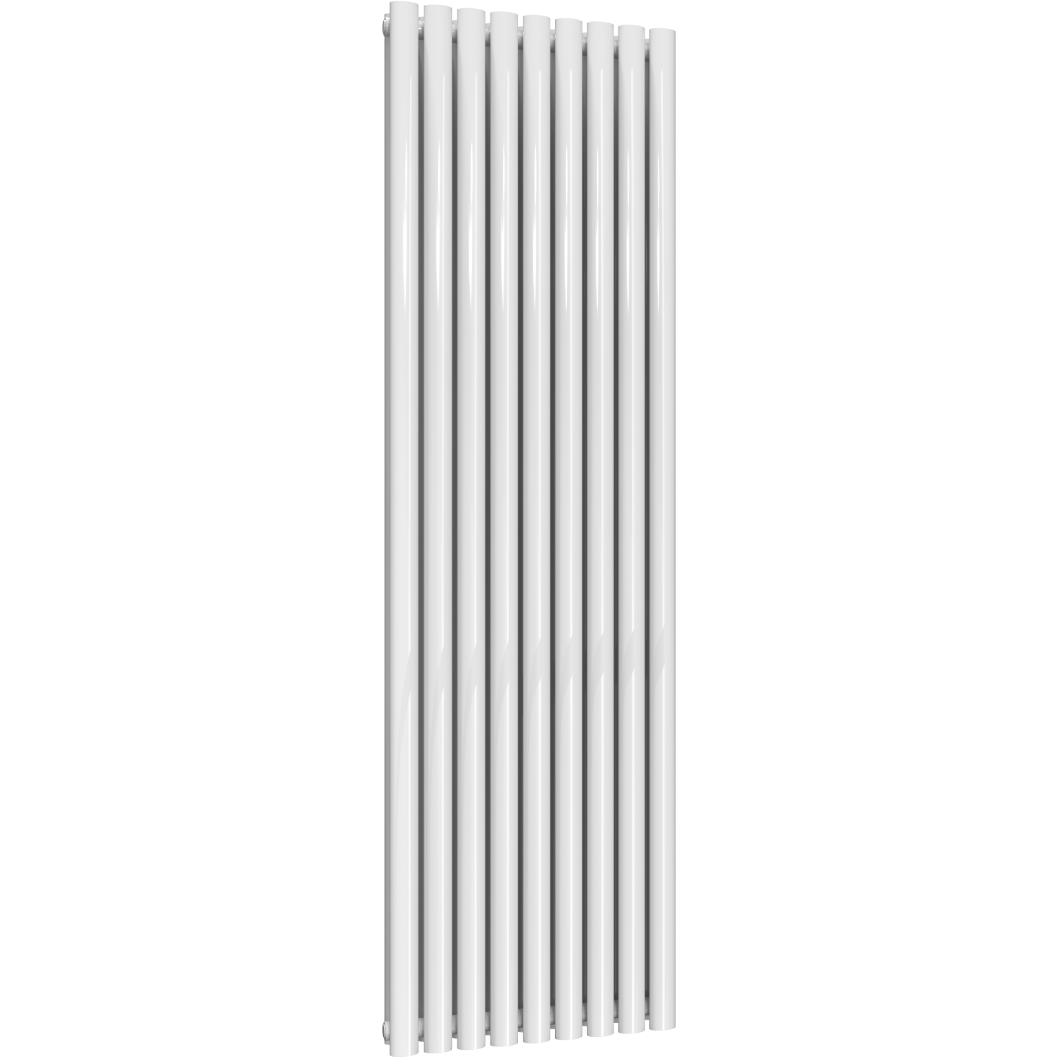

1800 x 540 White
0.18 MB
1800 x 600 Anthracite
0.19 MB
1800 x 600 White
0.19 MB

Roomset Product Images

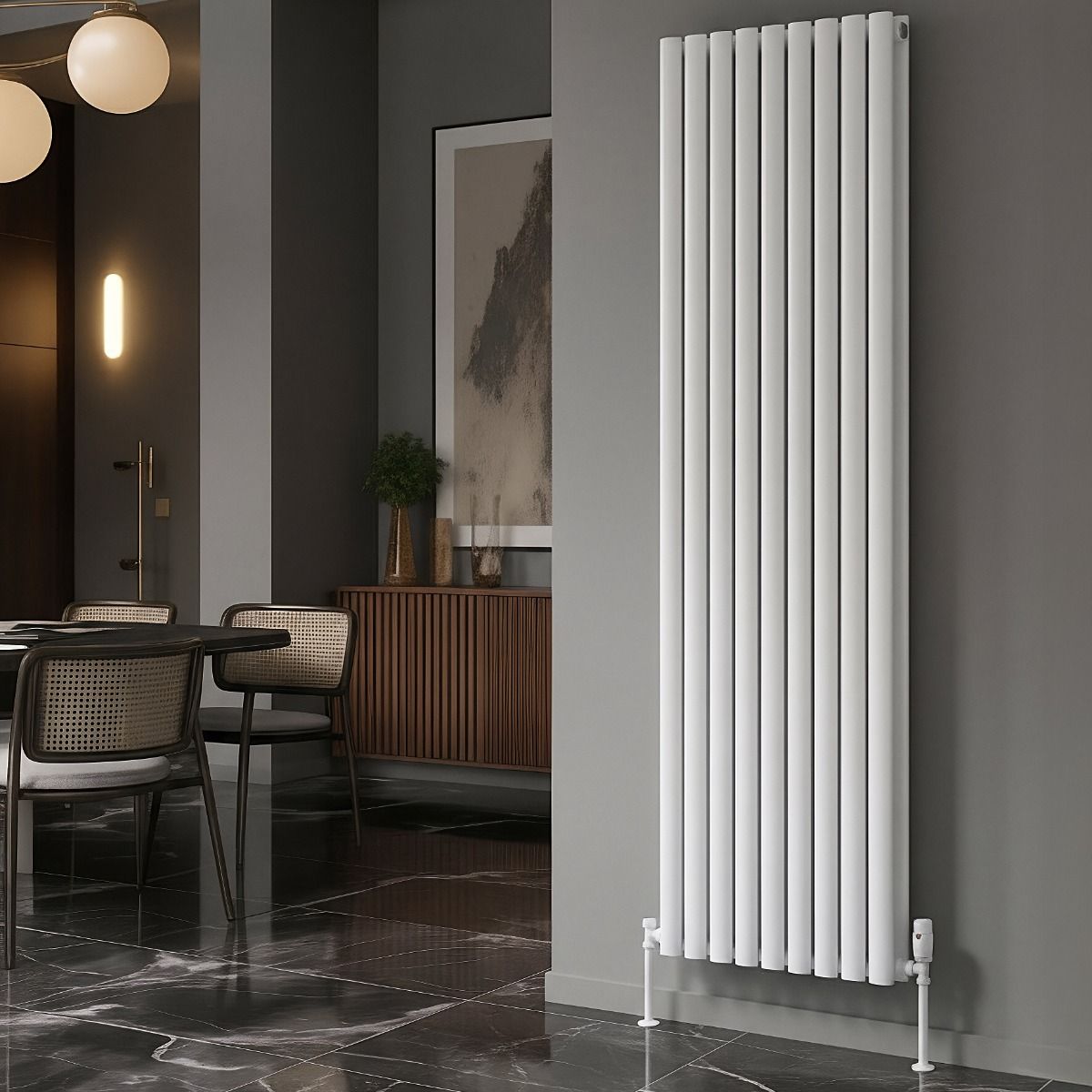

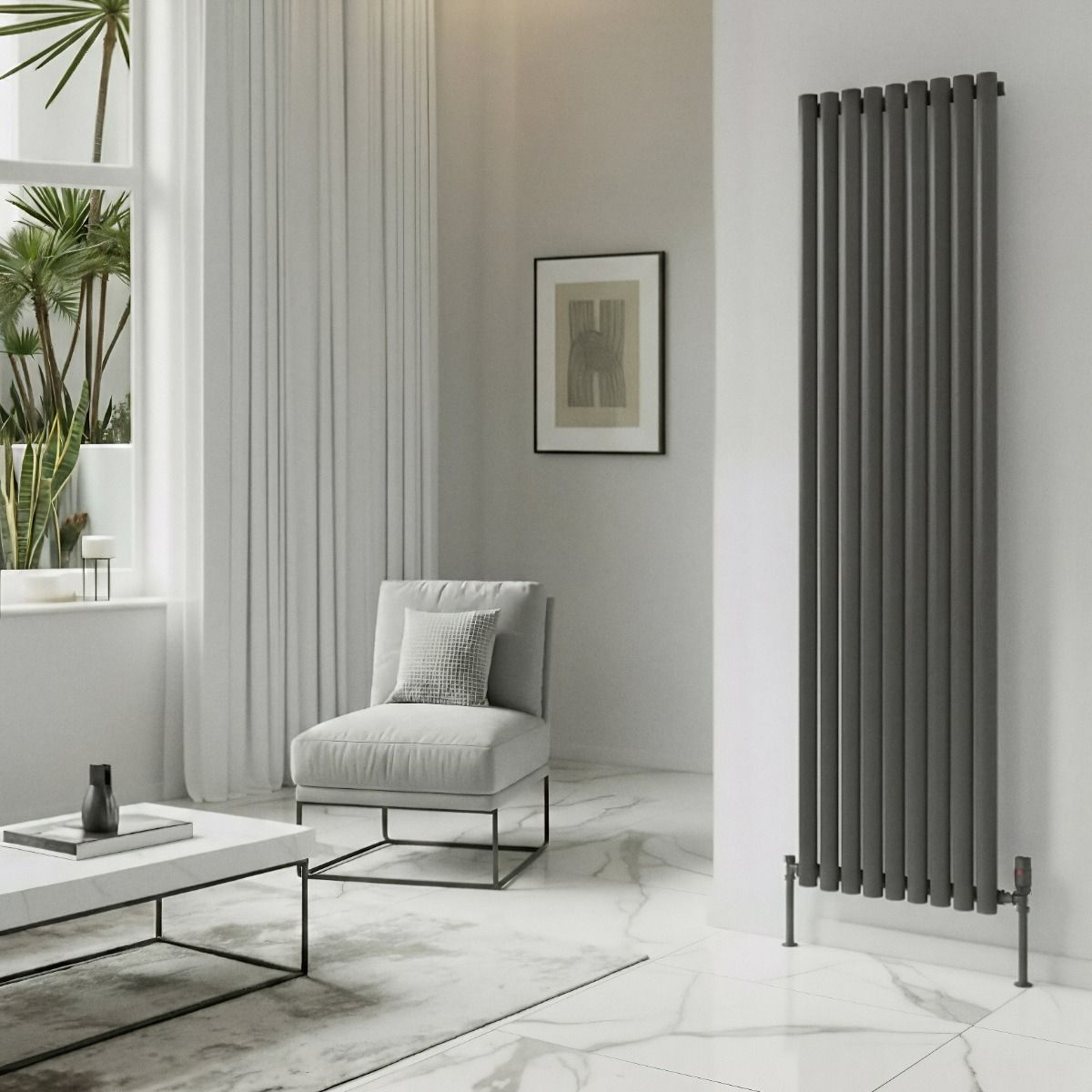

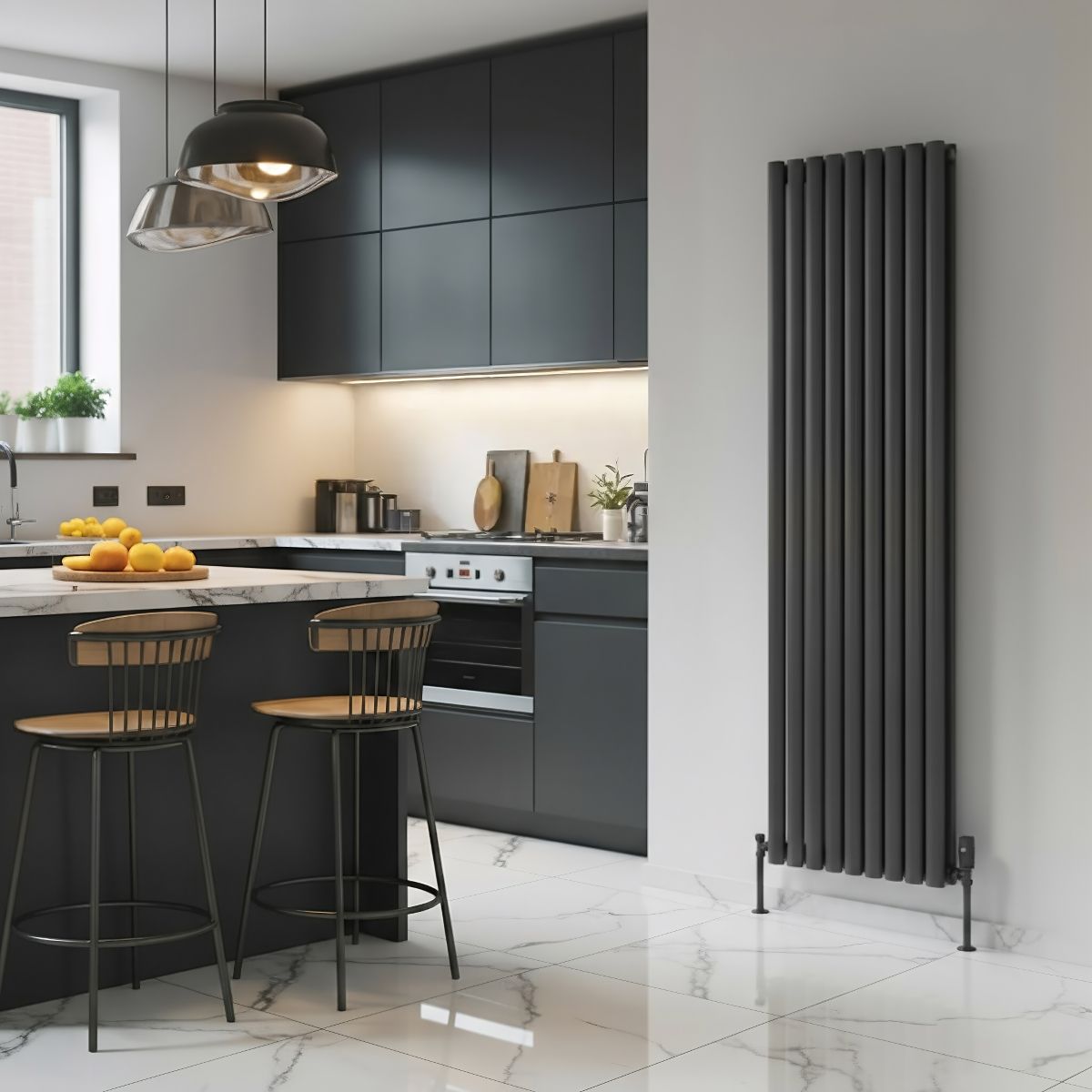

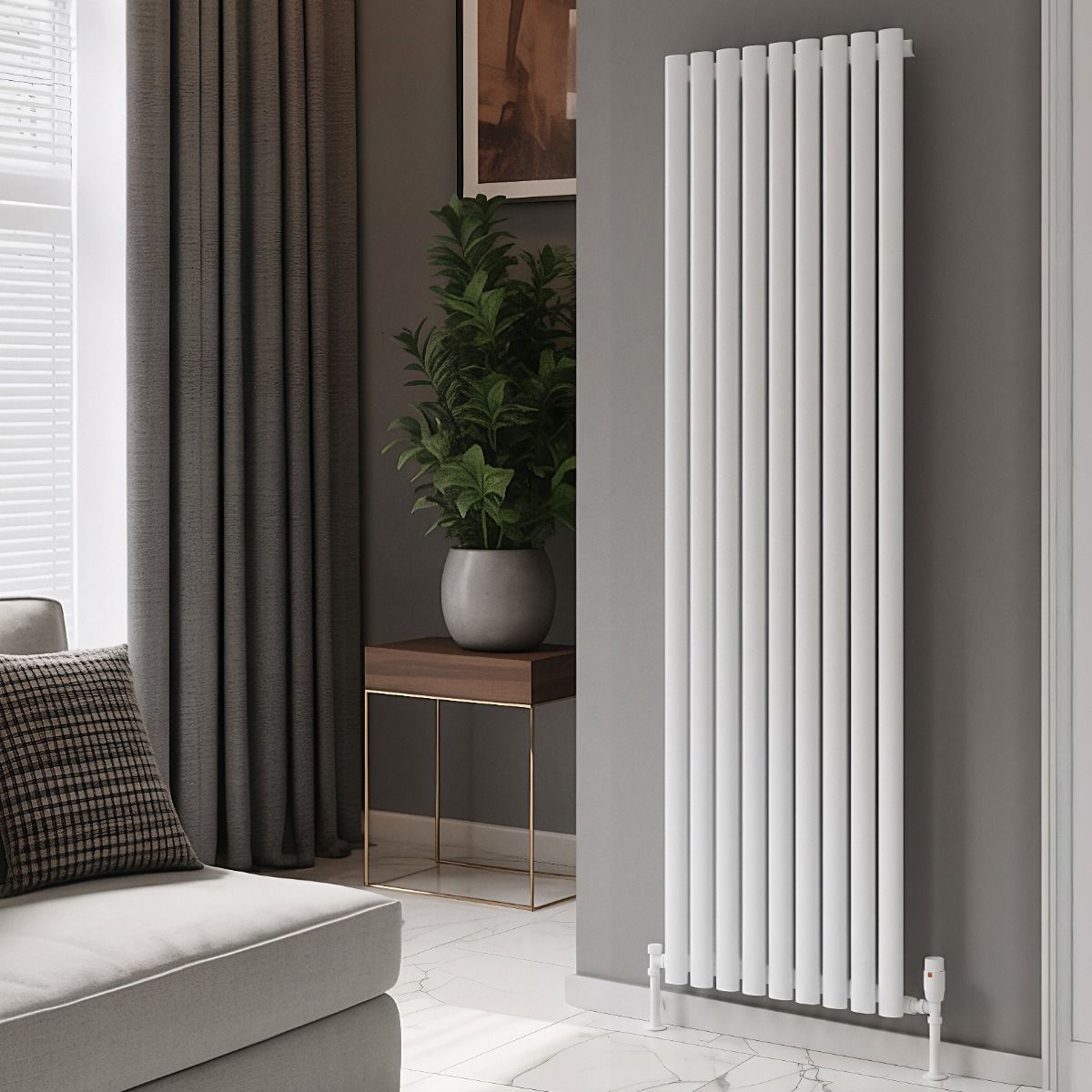

Elips Vertical
0.11 MB
Elips Vertical
0.13 MB
Elips Vertical
0.14 MB
Elips Vertical
0.15 MB
Tech Drawings

Technical Drawings

Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour Available Stock
RV-EV167AS 1600 420 Anthracite Log in to see stock
RV-EV167WS 1600 420 White Log in to see stock
RV-EV169AS 1600 540 Anthracite Log in to see stock
RV-EV169WS 1600 540 White Log in to see stock
RV-EV1805AS 1800 300 Anthracite Log in to see stock
RV-EV1805WS 1800 300 White Log in to see stock
RV-EV1807AS 1800 420 Anthracite Log in to see stock
RV-EV1807WS 1800 420 White Log in to see stock
RV-EV1809AS 1800 540 Anthracite Log in to see stock
RV-EV1809WS 1800 540 White Log in to see stock
RV-EV1810AS 1800 600 Anthracite Log in to see stock
RV-EV1810WS 1800 600 White Log in to see stock
RV-EV167AD 1600 420 Anthracite Log in to see stock
RV-EV167WD 1600 420 White Log in to see stock
RV-EV169AD 1600 540 Anthracite Log in to see stock
RV-EV169WD 1600 540 White Log in to see stock
RV-EV1805AD 1800 300 Anthracite Log in to see stock
RV-EV1805WD 1800 300 White Log in to see stock
RV-EV1807AD 1800 420 Anthracite Log in to see stock
RV-EV1807WD 1800 420 White Log in to see stock
RV-EV1809AD 1800 540 Anthracite Log in to see stock
RV-EV1809WD 1800 540 White Log in to see stock
RV-EV1810AD 1800 600 Anthracite Log in to see stock
RV-EV1810WD 1800 600 White Log in to see stock
