Eos Stainless Steel Towel Rail
25 Years Guarantee
Material: Stainless Steel
Central Heating
Electric
Dual Fuel
The Reina Eos Towel Radiator features a sleek design with curved horizontal tubes crafted from high-quality stainless steel and a polished finish. Offering superb heat output and supplies with a 25-year guarantee, it combines modern elegance with lasting durability, making it an excellent addition to any bathroom.
- Available in 1 colour and 8 sizes
- Durable Stainless Steel Construction
- 25 Years Guarantee
-
polished stainless steel
Product Resource Centre
430mm HEIGHT 500mm WIDTH
430mm HEIGHT 600mm WIDTH
720mm HEIGHT 500mm WIDTH
720mm HEIGHT 600mm WIDTH
1200mm HEIGHT 500mm WIDTH
1200mm HEIGHT 600mm WIDTH
1500mm HEIGHT 500mm WIDTH
1500mm HEIGHT 600mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 430 | 500 | 468 | 50-60 | 75-85 | - | 6 |
| 430 | 600 | 568 | 50-60 | 75-85 | - | 6 |
| 720 | 500 | 468 | 50-60 | 75-85 | - | 10 |
| 720 | 600 | 568 | 50-60 | 75-85 | - | 10 |
| 1200 | 500 | 468 | 50-60 | 75-85 | - | 16 |
| 1200 | 600 | 568 | 50-60 | 75-85 | - | 16 |
| 1500 | 500 | 468 | 50-60 | 75-85 | - | 20 |
| 1500 | 600 | 568 | 50-60 | 75-85 | - | 20 |
Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT60°C | Heat Outputs ΔT50°C | Heat Outputs ΔT30°C | |||
|---|---|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | BTU | Watts | ||||
| RNS-ES5043 | 430 | 500 | Polished Stainless Steel |
795 | 233 | 621 | 182 | 317 | 93 |
| RNS-ES6043 | 430 | 600 | Polished Stainless Steel |
909 | 267 | 710 | 208 | 362 | 106 |
| RNS-ES5072 | 720 | 500 | Polished Stainless Steel |
1586 | 465 | 1239 | 363 | 632 | 185 |
| RNS-ES6072 | 720 | 600 | Polished Stainless Steel |
1711 | 502 | 1337 | 392 | 682 | 200 |
| RNS-ES5120 | 1200 | 500 | Polished Stainless Steel |
2180 | 639 | 1703 | 499 | 869 | 255 |
| RNS-ES6120 | 1200 | 600 | Polished Stainless Steel |
2595 | 761 | 2027 | 595 | 1034 | 303 |
| RNS-ES5150 | 1500 | 500 | Polished Stainless Steel |
2905 | 852 | 2270 | 666 | 1157 | 339 |
| RNS-ES6150 | 1500 | 600 | Polished Stainless Steel |
3073 | 901 | 2401 | 704 | 1224 | 359 |
Images
Cutout Product Images

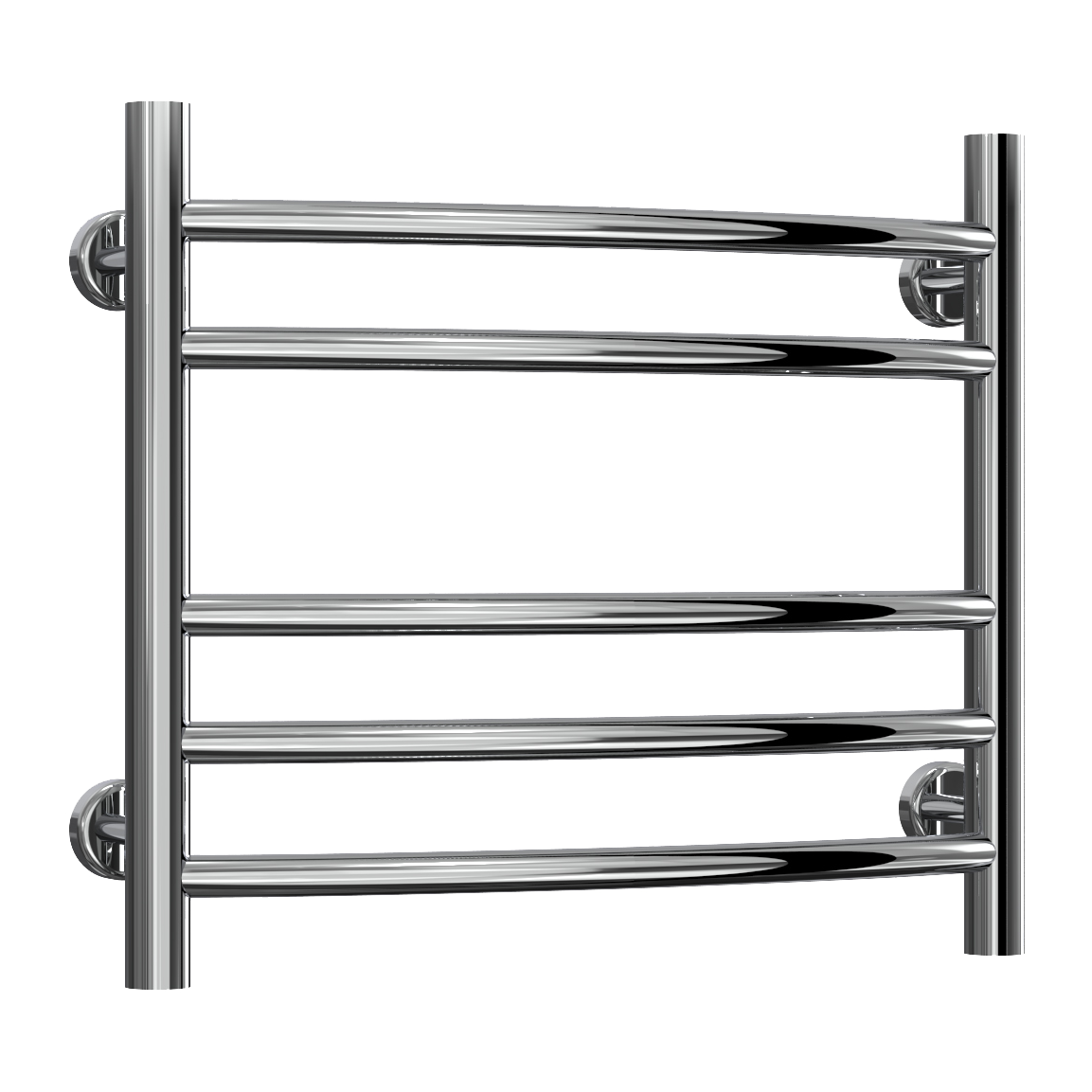

430 x 500 Polished Stainless Steel
0.3 MB

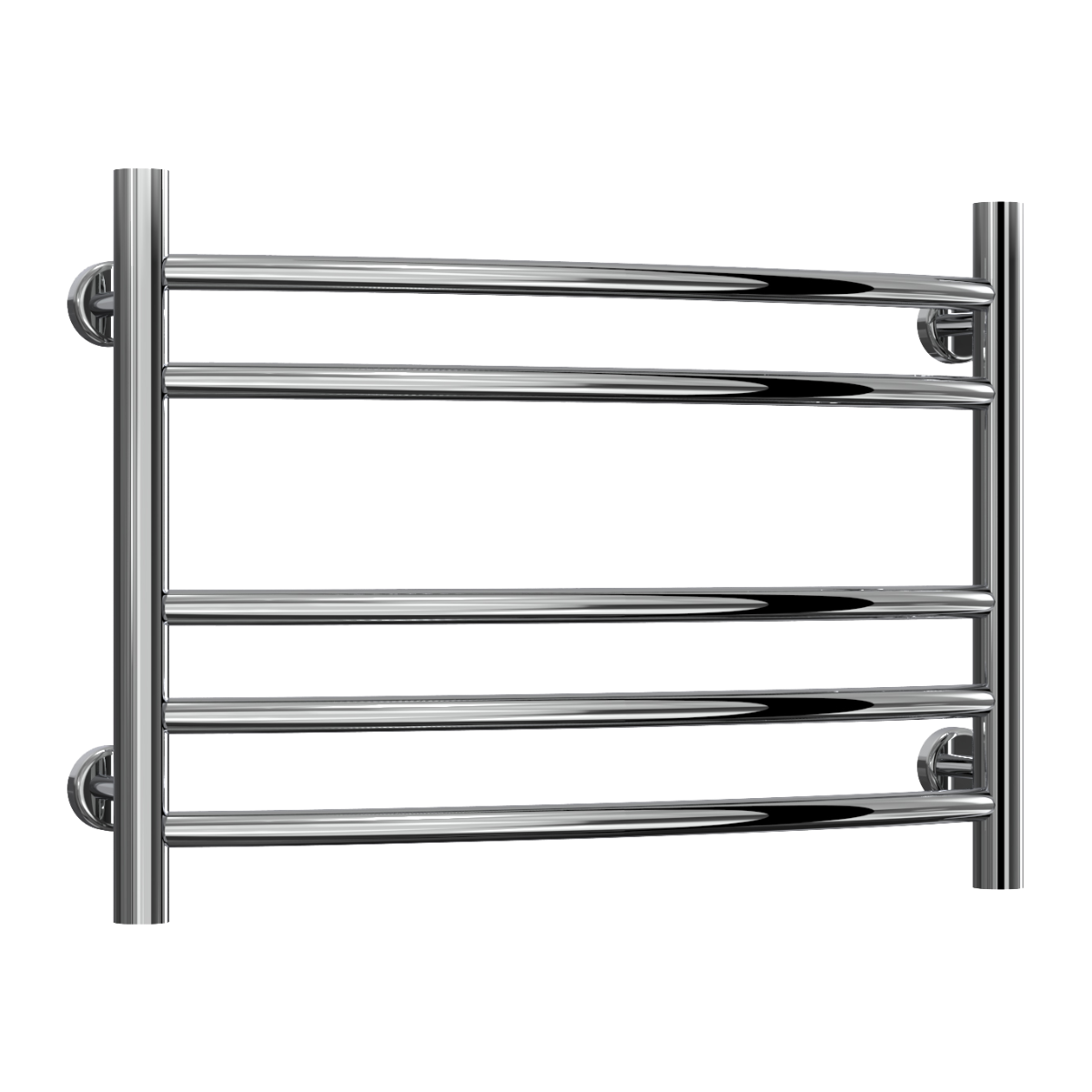

430 x 600 Polished Stainless Steel
0.31 MB

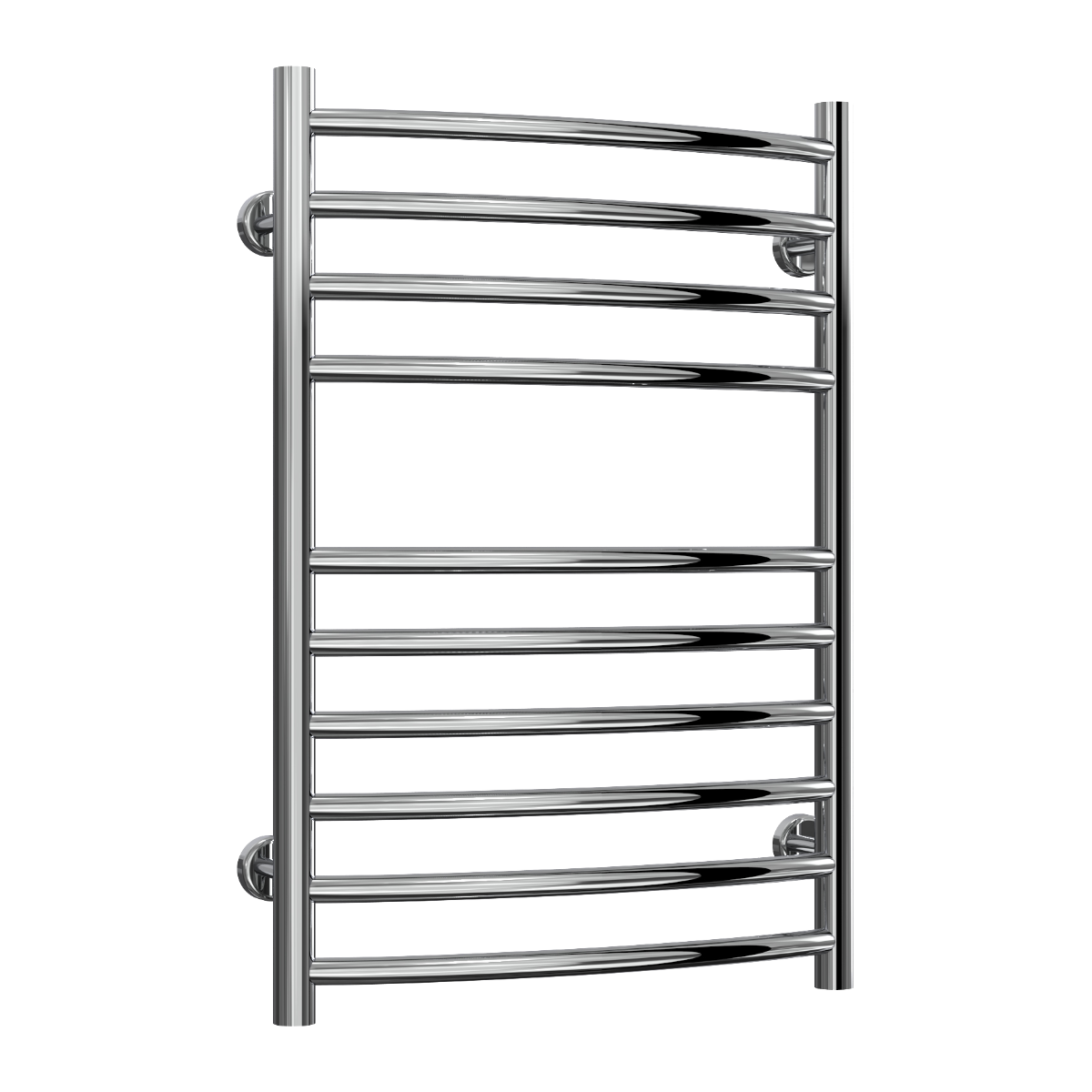

720 x 500 Polished Stainless Steel
0.36 MB

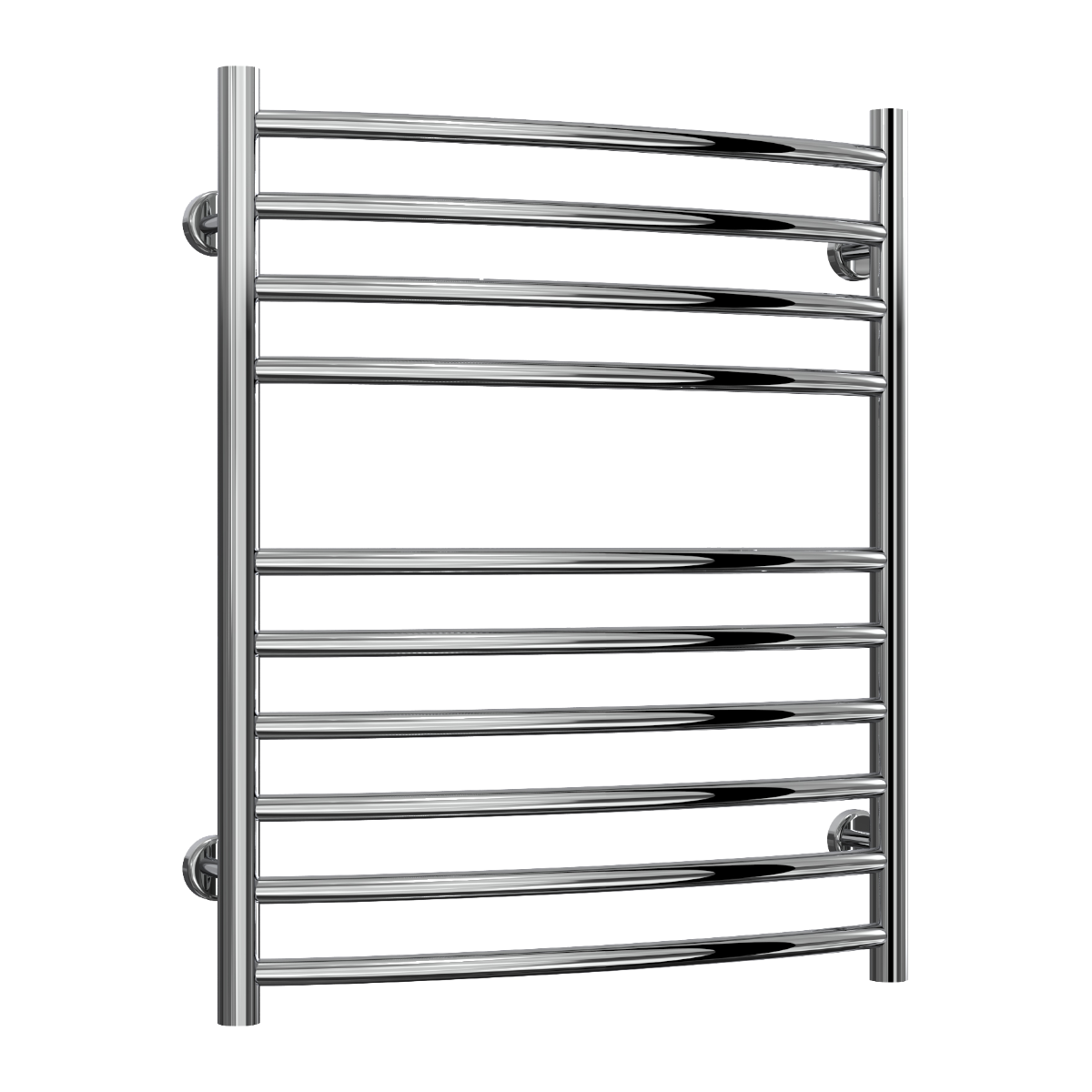

720 x 600 Polished Stainless Steel
0.4 MB

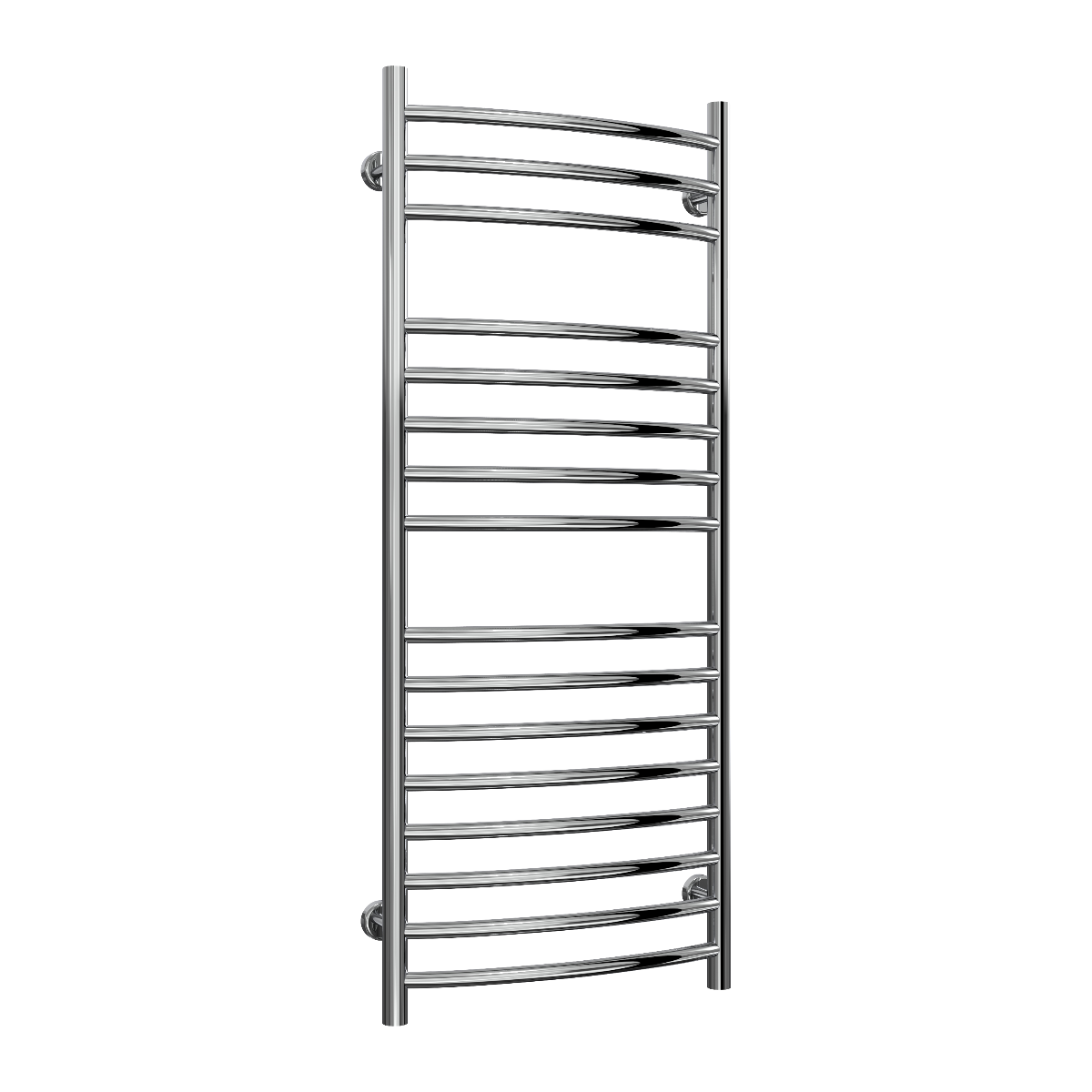

1200 x 500 Polished Stainless Steel
0.3 MB

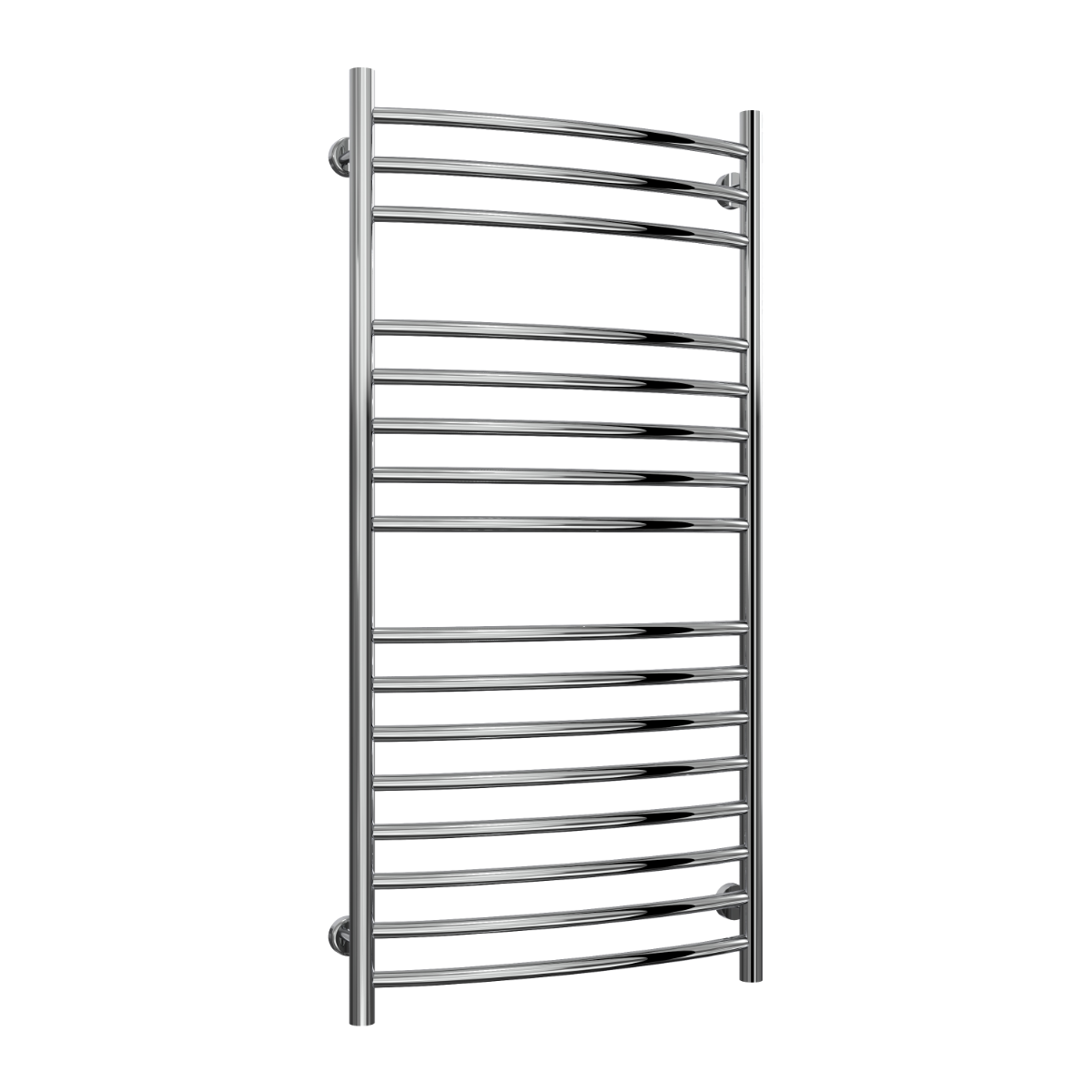

1200 x 600 Polished Stainless Steel
0.34 MB

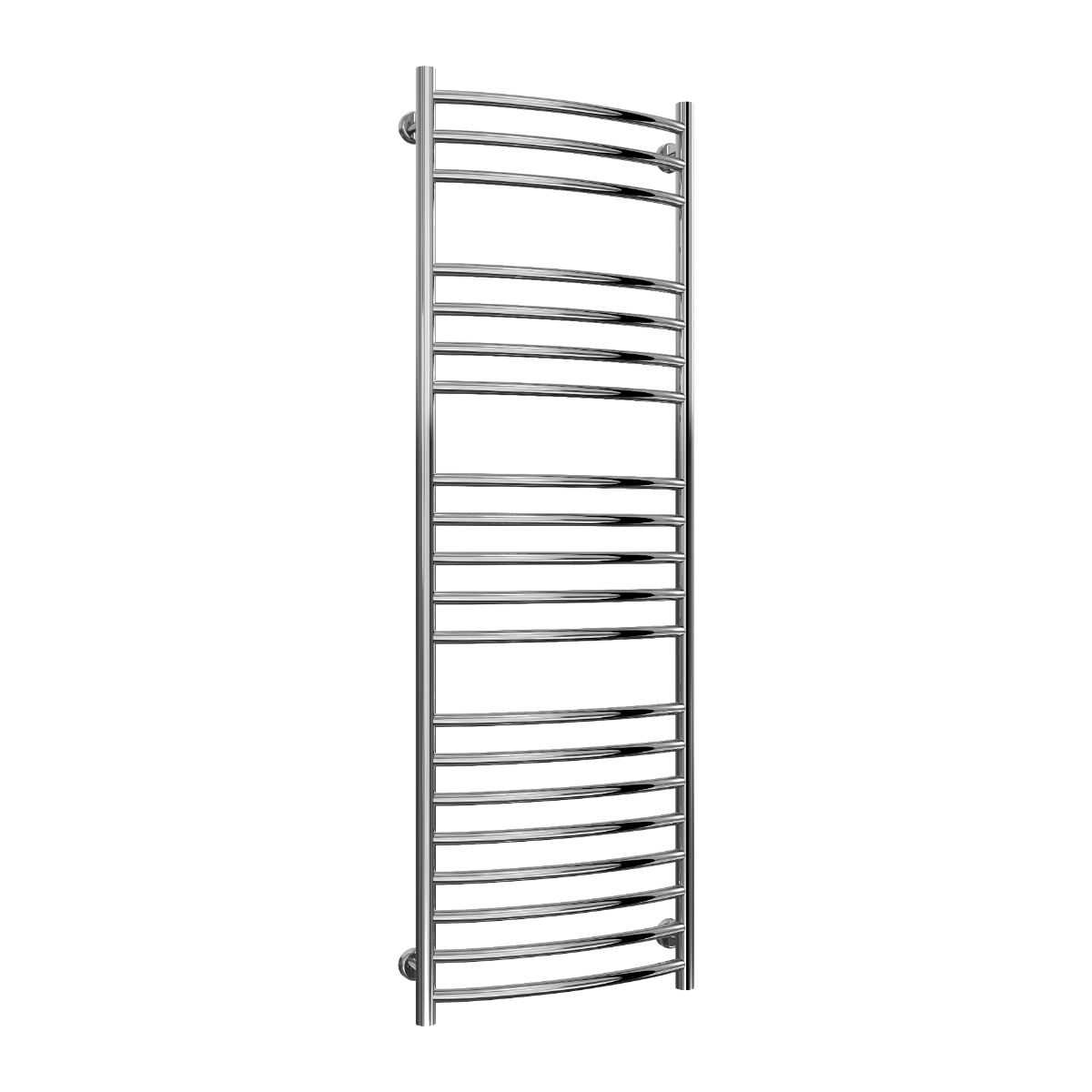

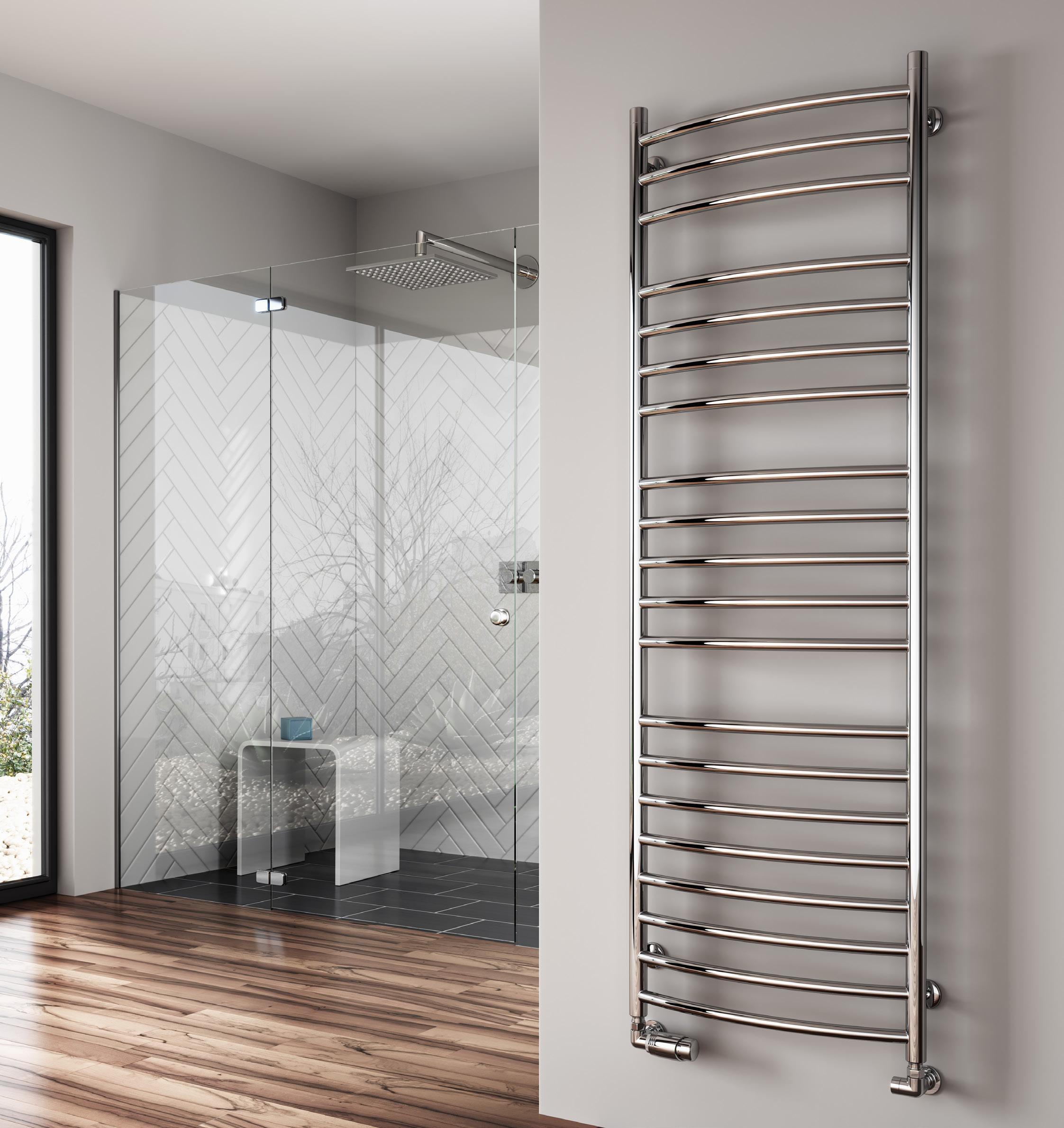

1500 x 500 Polished Stainless Steel
0.28 MB

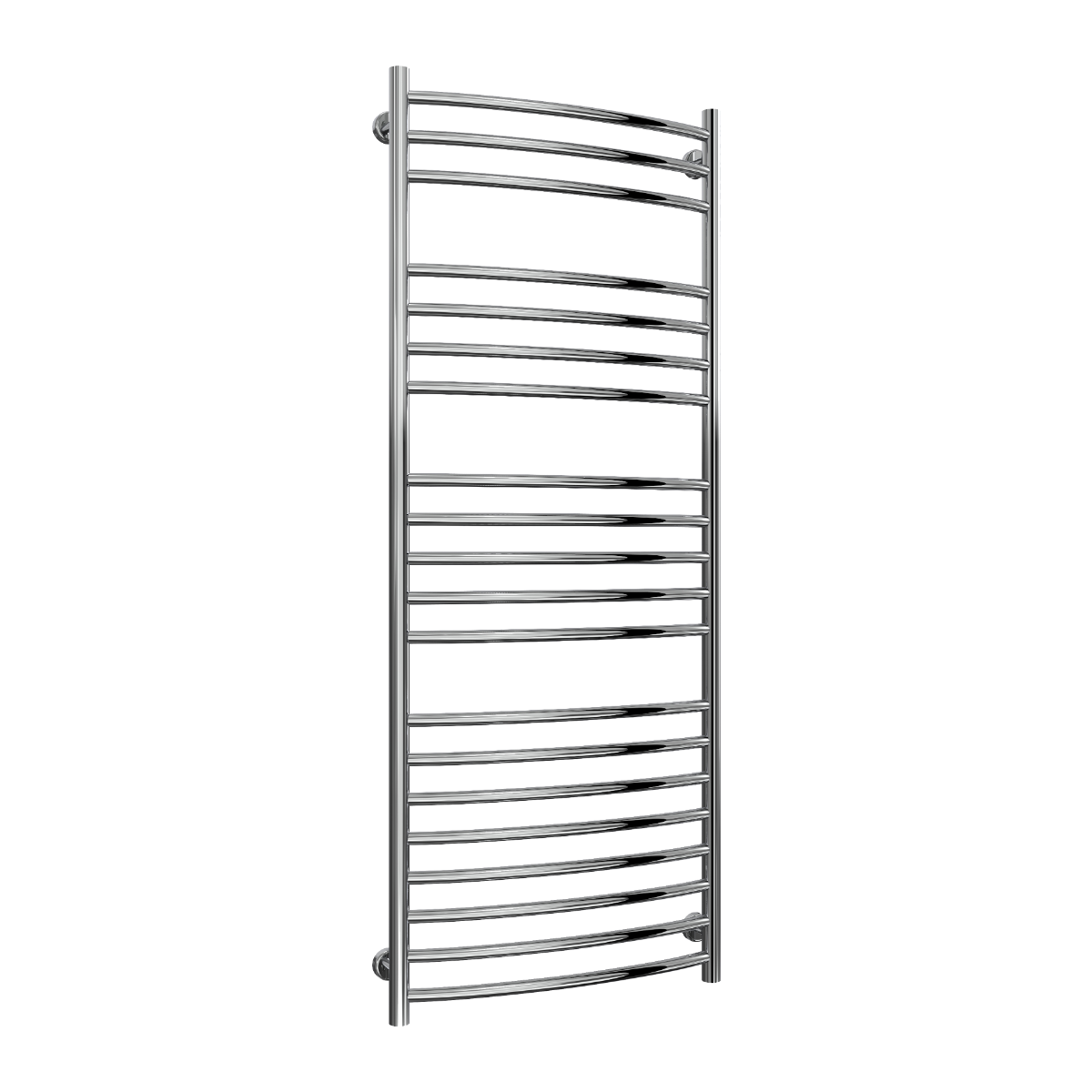

1500 x 600 Polished Stainless Steel
0.32 MB

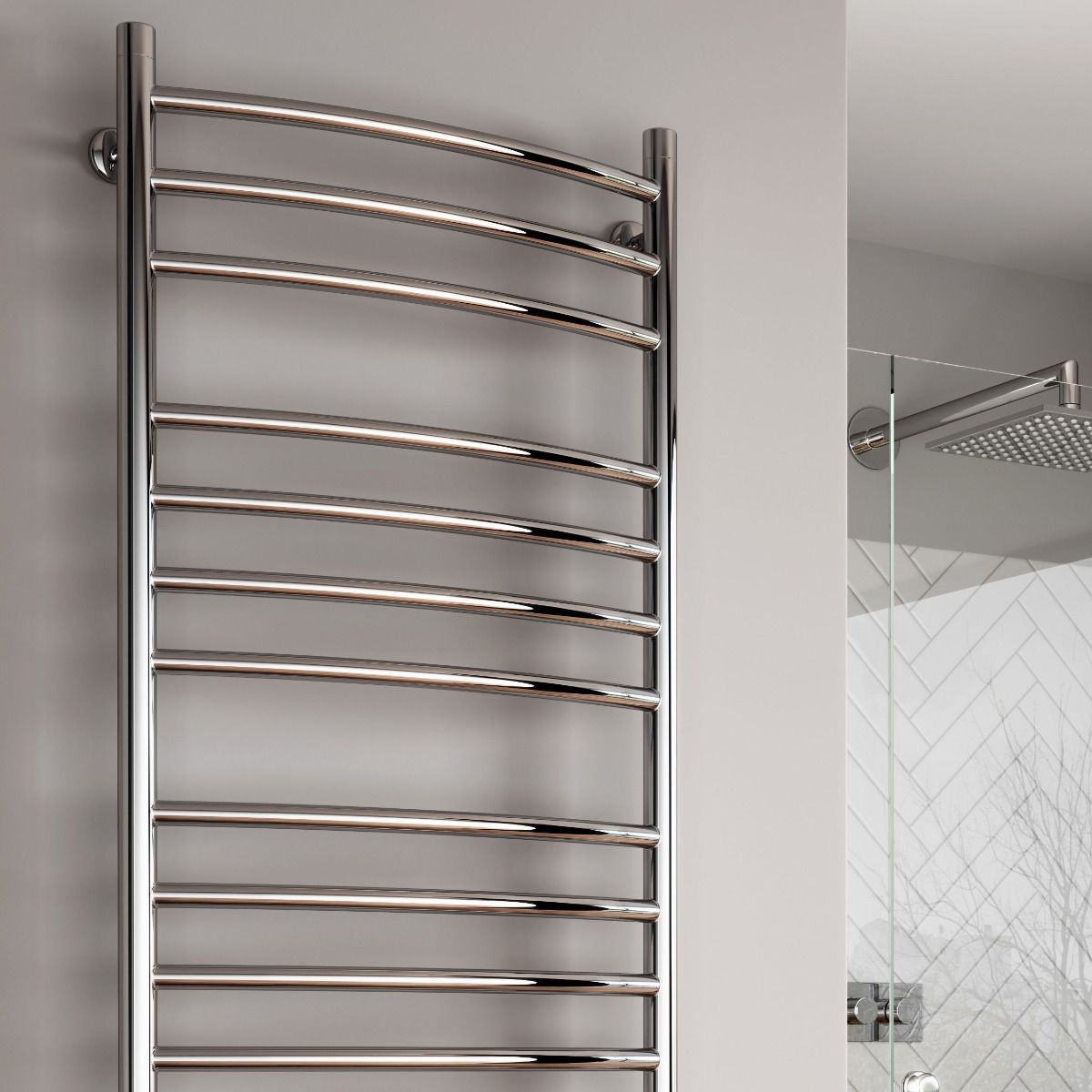

Roomset Product Images
High Resolution Images
Tech Drawings
Technical Drawings
Guides
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| RNS-ES5043 | 430 | 500 |
Polished Stainless Steel |
£190.00 | Log in to see stock |
| RNS-ES6043 | 430 | 600 |
Polished Stainless Steel |
£196.00 | Log in to see stock |
| RNS-ES5072 | 720 | 500 |
Polished Stainless Steel |
£262.00 | Log in to see stock |
| RNS-ES6072 | 720 | 600 |
Polished Stainless Steel |
£290.00 | Log in to see stock |
| RNS-ES5120 | 1200 | 500 |
Polished Stainless Steel |
£350.00 | Log in to see stock |
| RNS-ES6120 | 1200 | 600 |
Polished Stainless Steel |
£390.00 | Log in to see stock |
| RNS-ES5150 | 1500 | 500 |
Polished Stainless Steel |
£450.00 | Log in to see stock |
| RNS-ES6150 | 1500 | 600 |
Polished Stainless Steel |
£502.00 | Log in to see stock |
