Harley Horizontal Mild Steel Radiator

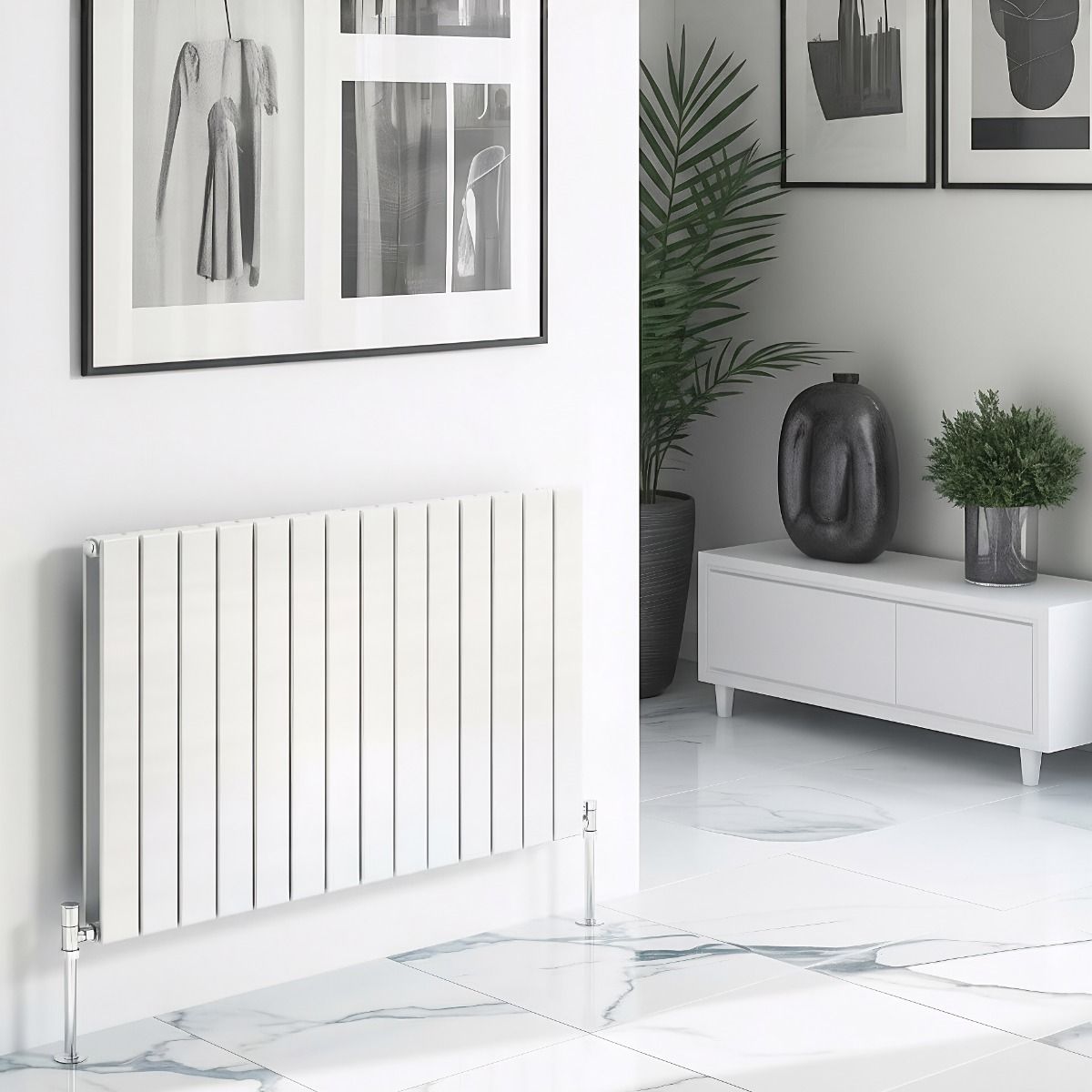

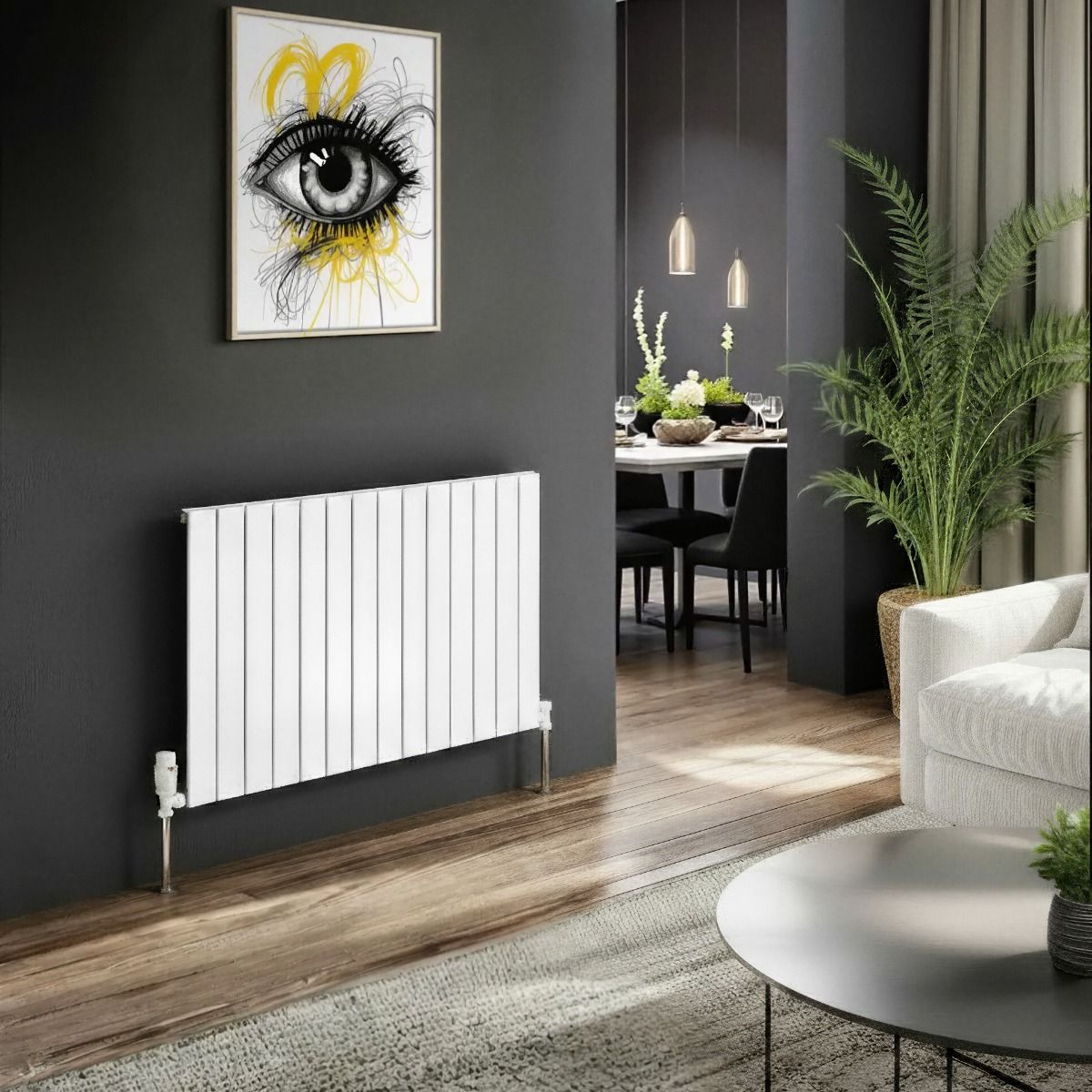

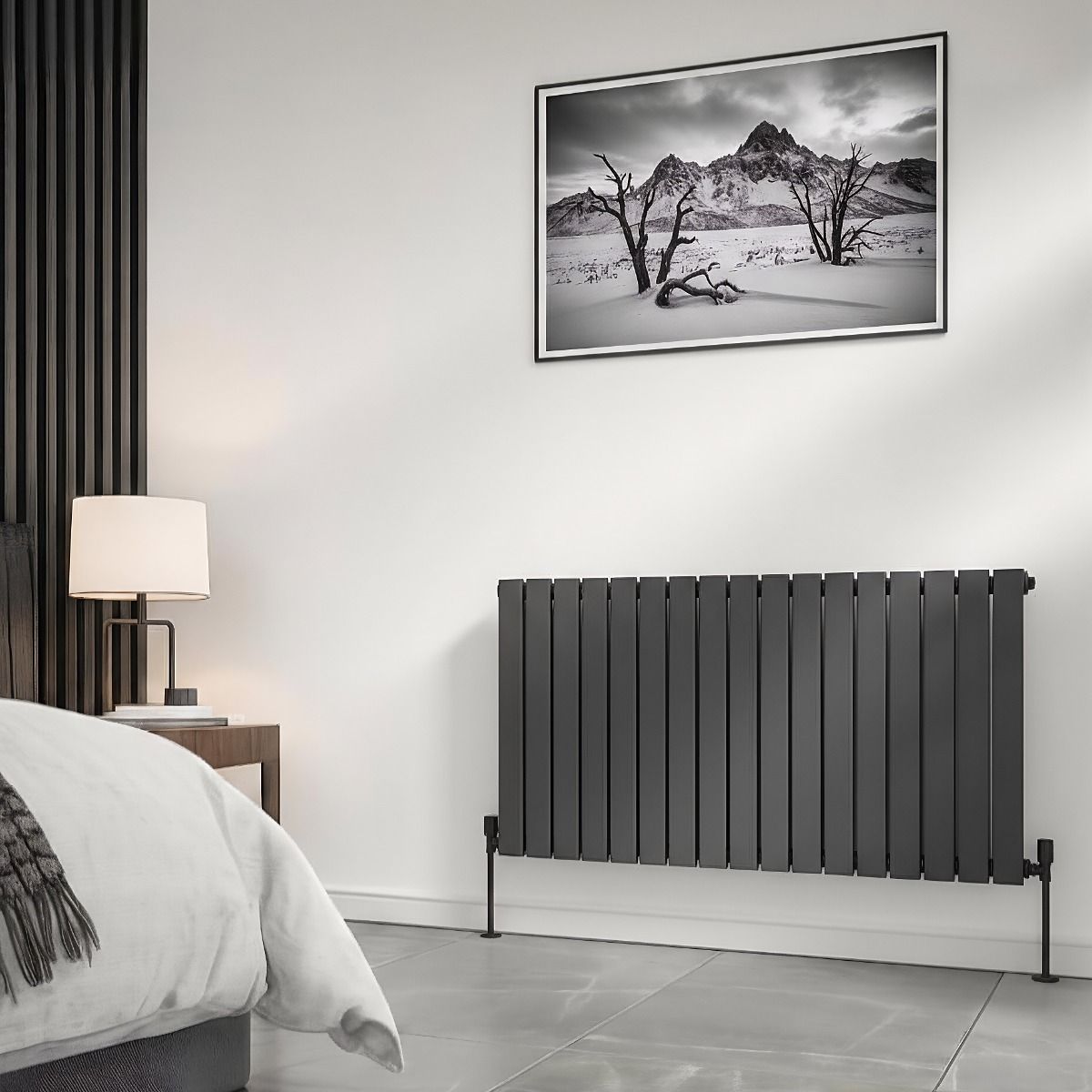

Roomset images cannot be copied and used to promote the V By Reina product. Please use only the product cutout images to produce your marketing materials.

5 Years Guarantee
Material: Mild Steel
Central Heating

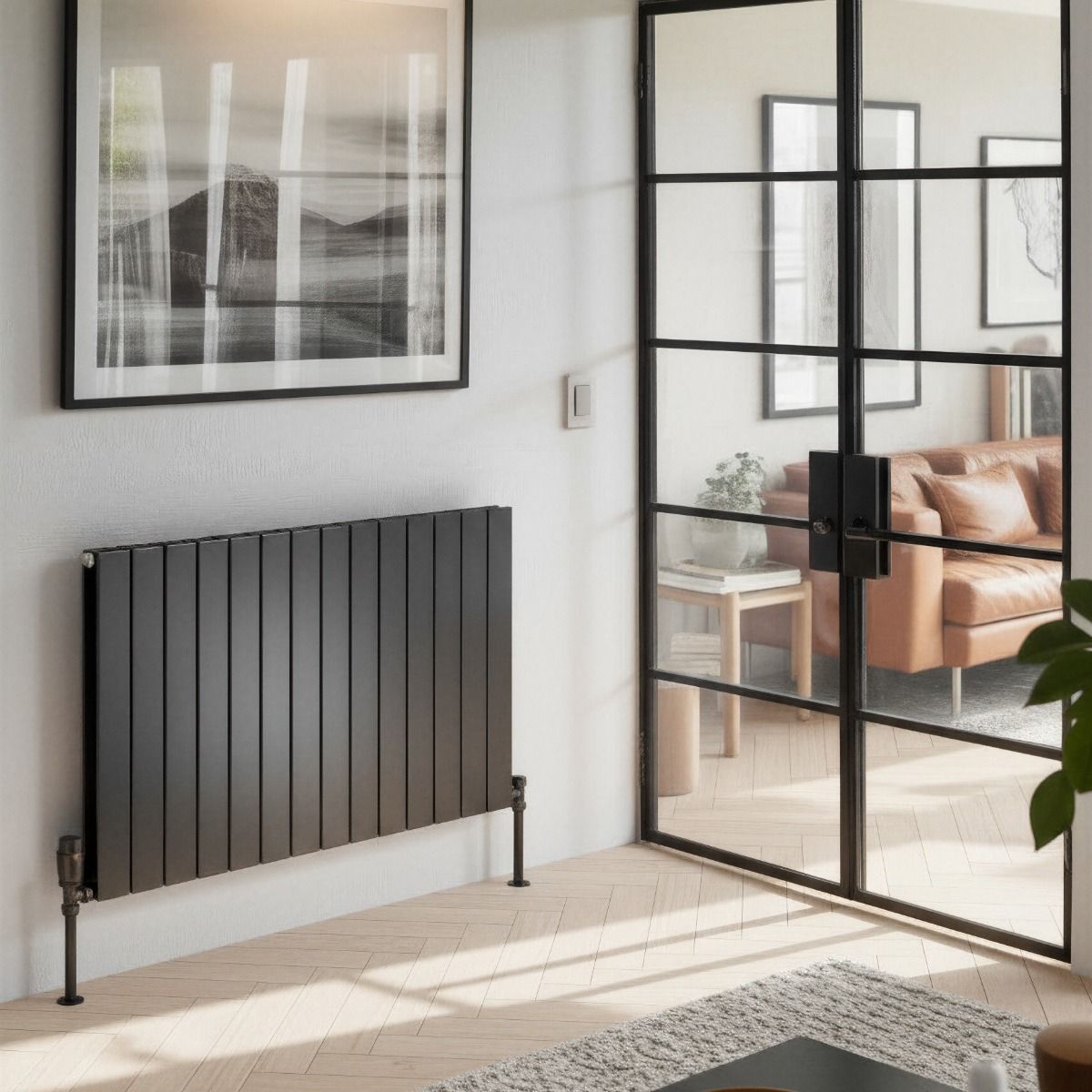

The Harley Horizontal Designer Radiator features a modern flat-panel design, delivering a clean and minimalist look that complements a wide range of interiors. Its low-profile layout is perfect for fitting under windows or along walls, providing efficient and consistent heat while enhancing the overall aesthetic of the space. Available in Anthracite and White finishes, the Harley radiator suits both contemporary and timeless décor styles. Offered in single and double panel options to accommodate different heat requirements, it combines sleek design with reliable everyday performance.

  • Available in 2 colours and 6 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white
  • anthracite

Product Resource Centre

600mm HEIGHT 420mm WIDTH
600mm HEIGHT 630mm WIDTH
600mm HEIGHT 770mm WIDTH
600mm HEIGHT 980mm WIDTH
600mm HEIGHT 1190mm WIDTH
600mm HEIGHT 1470mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
600 420 Single 420 50 79 7.0kg
600 630 Single 630 50 79 9.9kg
600 770 Single 770 50 79 11.9kg
600 980 Single 980 50 79 15.3kg
600 1190 Single 1190 50 79 18.2kg
600 1470 Single 1470 50 79 22.6kg
600 420 Double 420 63 94 11.9kg
600 630 Double 630 63 94 17.1kg
600 770 Double 770 63 94 20.6kg
600 980 Double 980 63 94 26.4kg
600 1190 Double 1190 63 94 31.6kg
600 1470 Double 1470 63 94 39.1kg

For pipe centre measurement including valves, add 90mm

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts
RV-HRH066WS 600 420 White 953 280 493 145
RV-HRH066AS 600 420 Anthracite 953 280 493 145
RV-HRH069AS 600 630 Anthracite 1430 420 740 217
RV-HRH069WS 600 630 White 1430 420 740 217
RV-HRH611AS 600 770 Anthracite 1747 513 904 266
RV-HRH611WS 600 770 White 1747 513 904 266
RV-HRH614AS 600 980 Anthracite 2223 652 1151 338
RV-HRH614WS 600 980 White 2223 652 1151 338
RV-HRH617AS 600 1190 Anthracite 2701 792 1398 410
RV-HRH617WS 600 1190 White 2701 792 1398 410
RV-HRH621AS 600 1470 Anthracite 3337 978 1727 506
RV-HRH621WS 600 1470 White 3337 978 1727 506
RV-HRH066AD 600 420 Anthracite 1542 452 798 234
RV-HRH066WD 600 420 White 1542 452 798 234
RV-HRH069AD 600 630 Anthracite 2313 678 1197 351
RV-HRH069WD 600 630 White 2313 678 1197 351
RV-HRH611AD 600 770 Anthracite 2872 829 1487 429
RV-HRH611WD 600 770 White 2872 829 1487 429
RV-HRH614AD 600 980 Anthracite 3598 1055 1863 546
RV-HRH614WD 600 980 White 3598 1055 1863 546
RV-HRH617AD 600 1190 Anthracite 4370 1281 2262 663
RV-HRH617WD 600 1190 White 4370 1281 2262 663
RV-HRH621AD 600 1470 Anthracite 5398 1583 2794 819
RV-HRH621WD 600 1470 White 5398 1583 2794 819
Images

Cutout Product Images

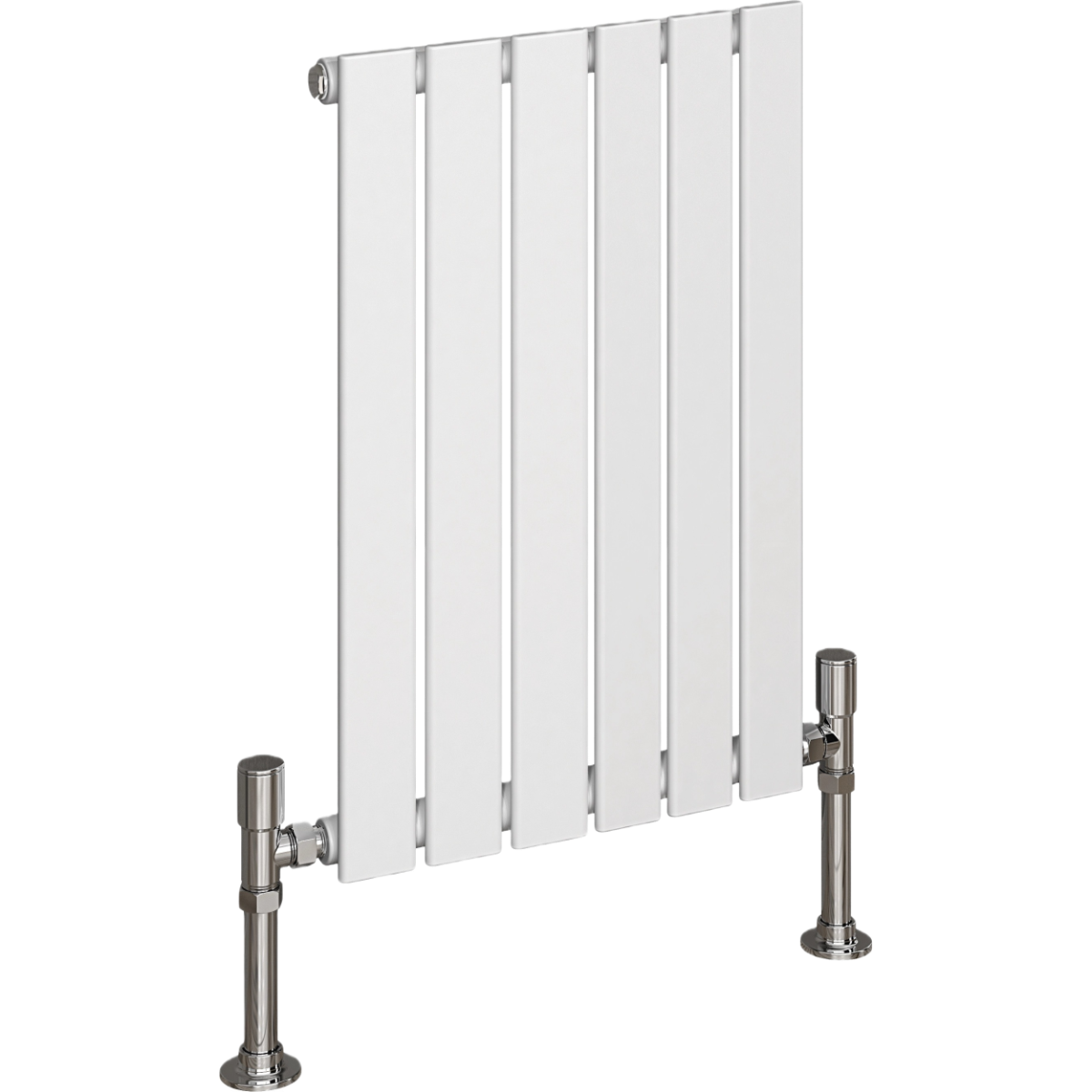

600 x 420 White
0.49 MB

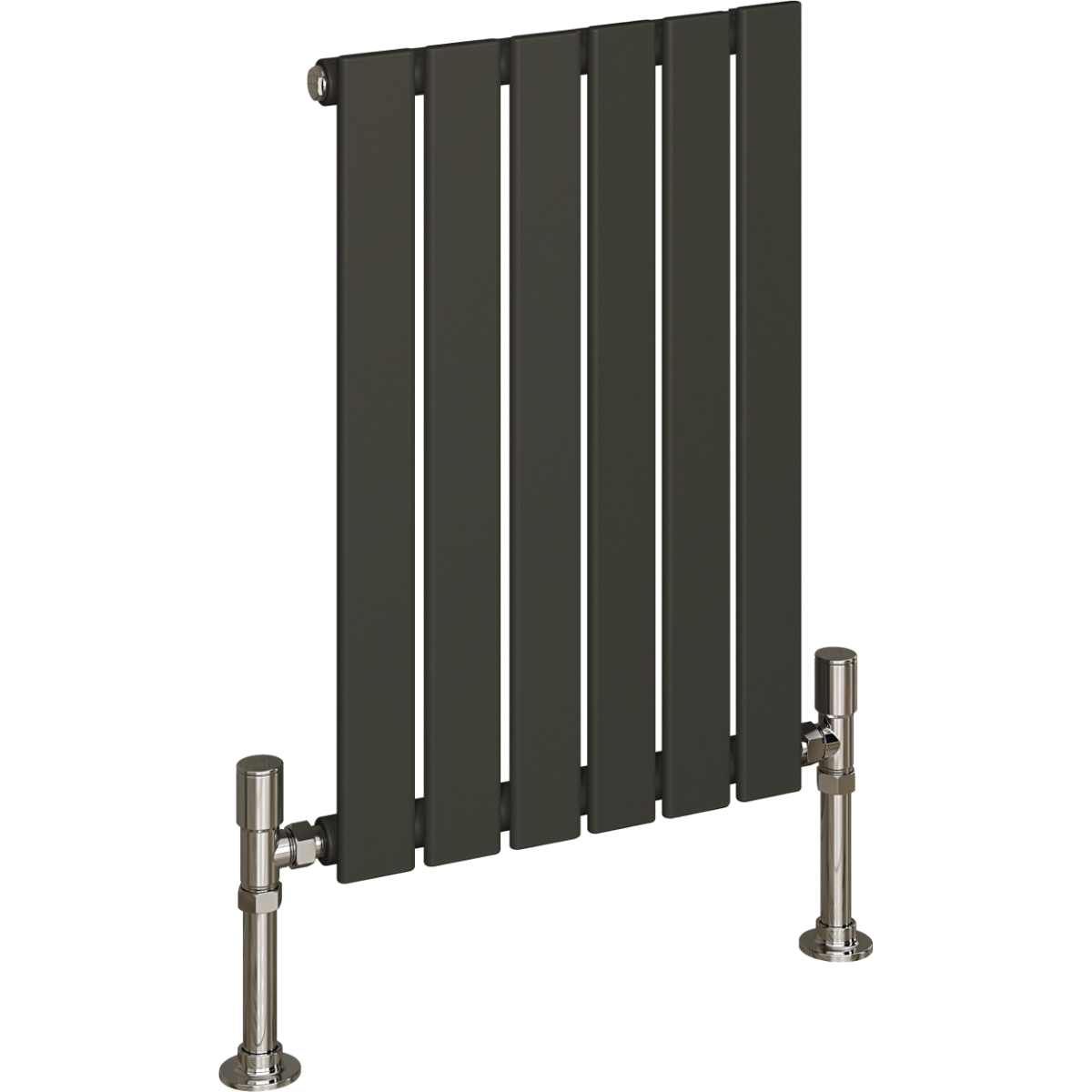

600 x 420 Anthracite
0.58 MB

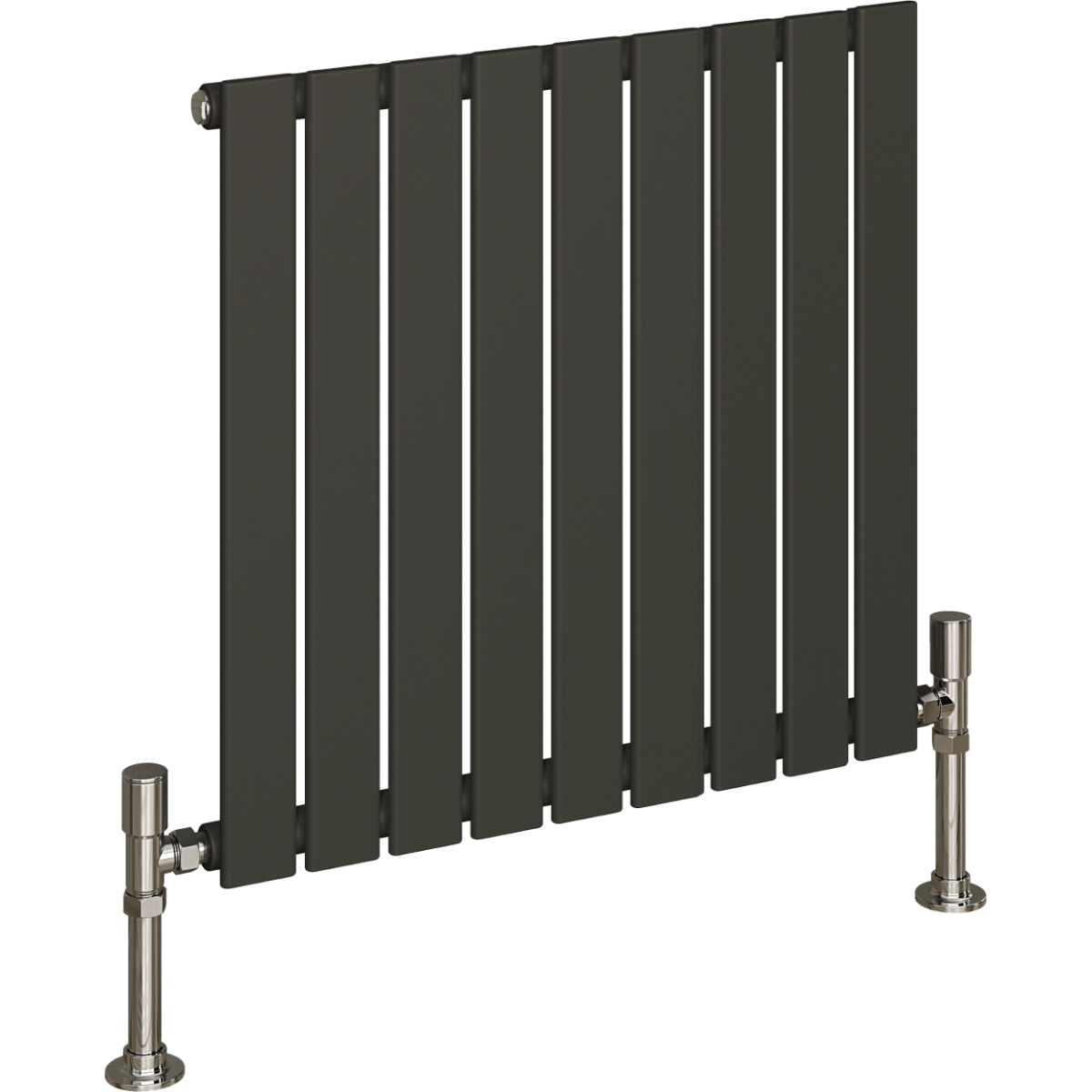

600 x 630 Anthracite
0.74 MB

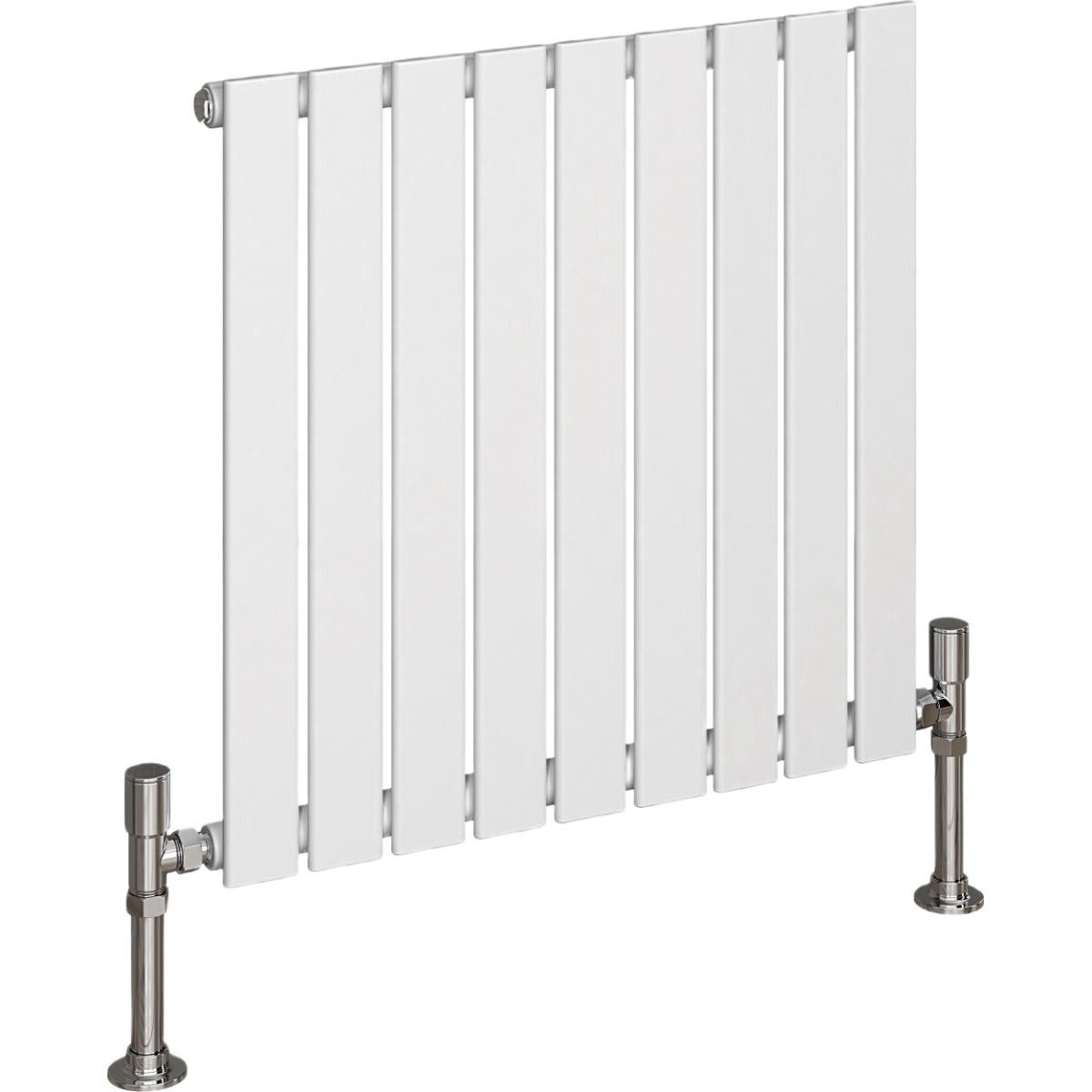

600 x 630 White
0.66 MB

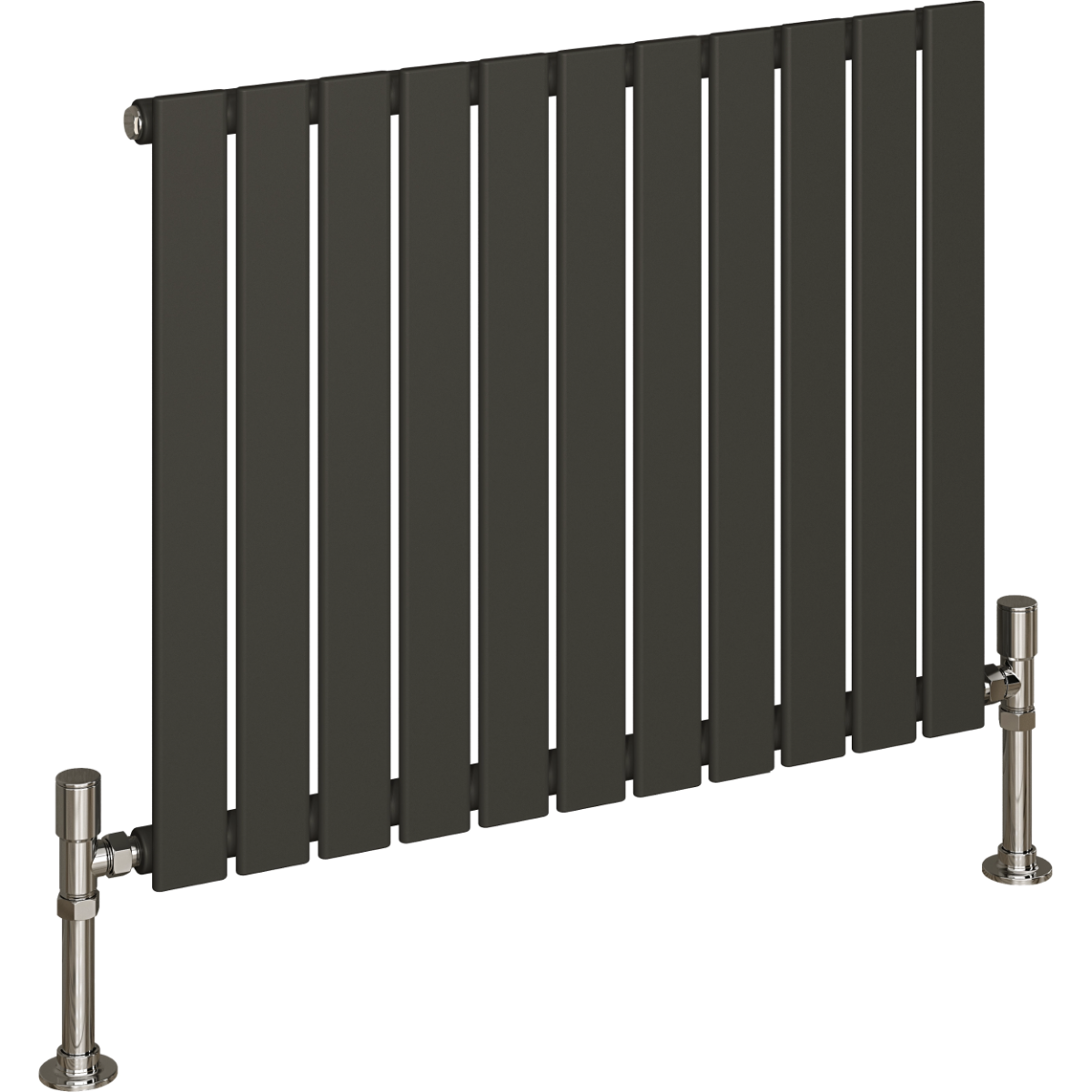

600 x 770 Anthracite
0.83 MB

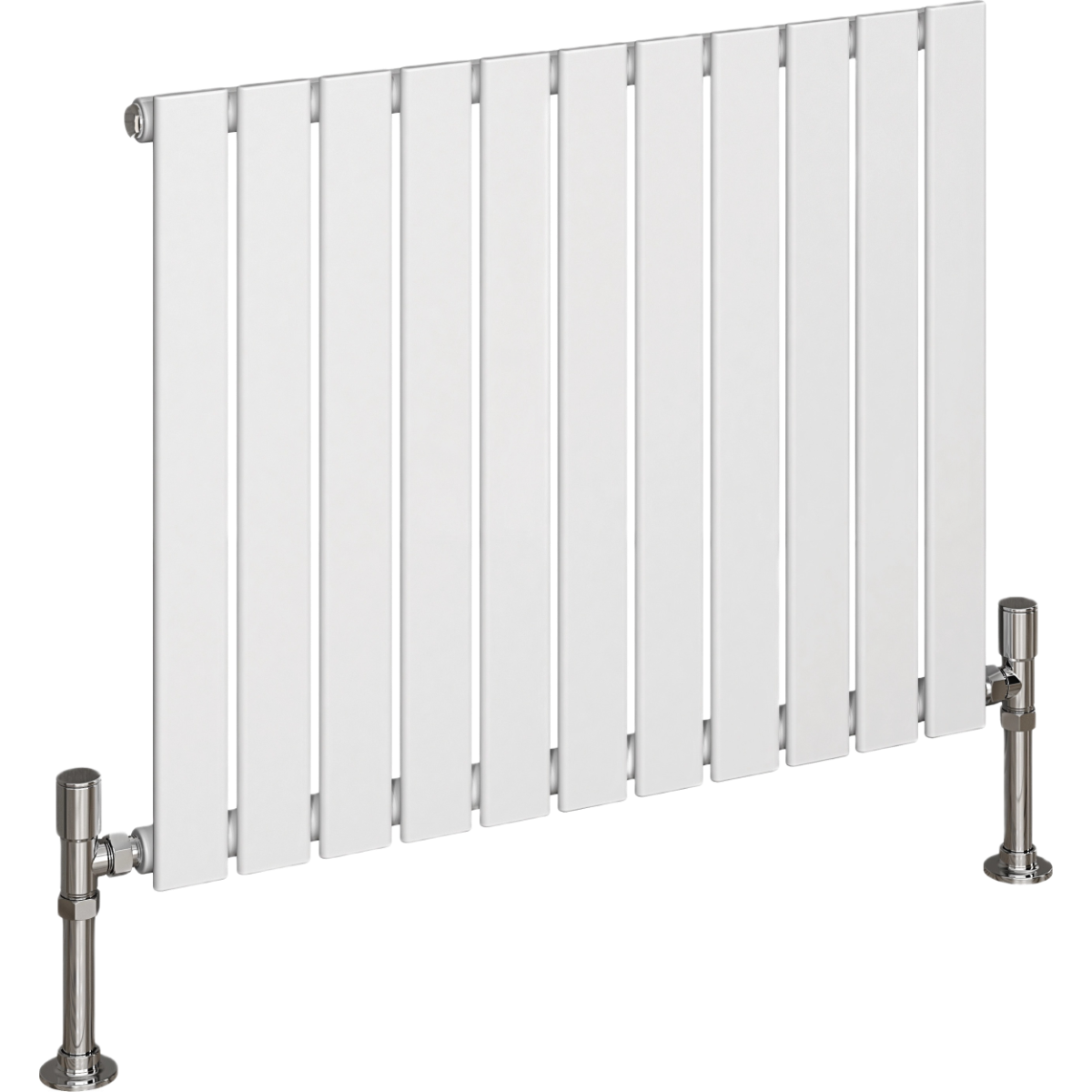

600 x 770 White
0.74 MB

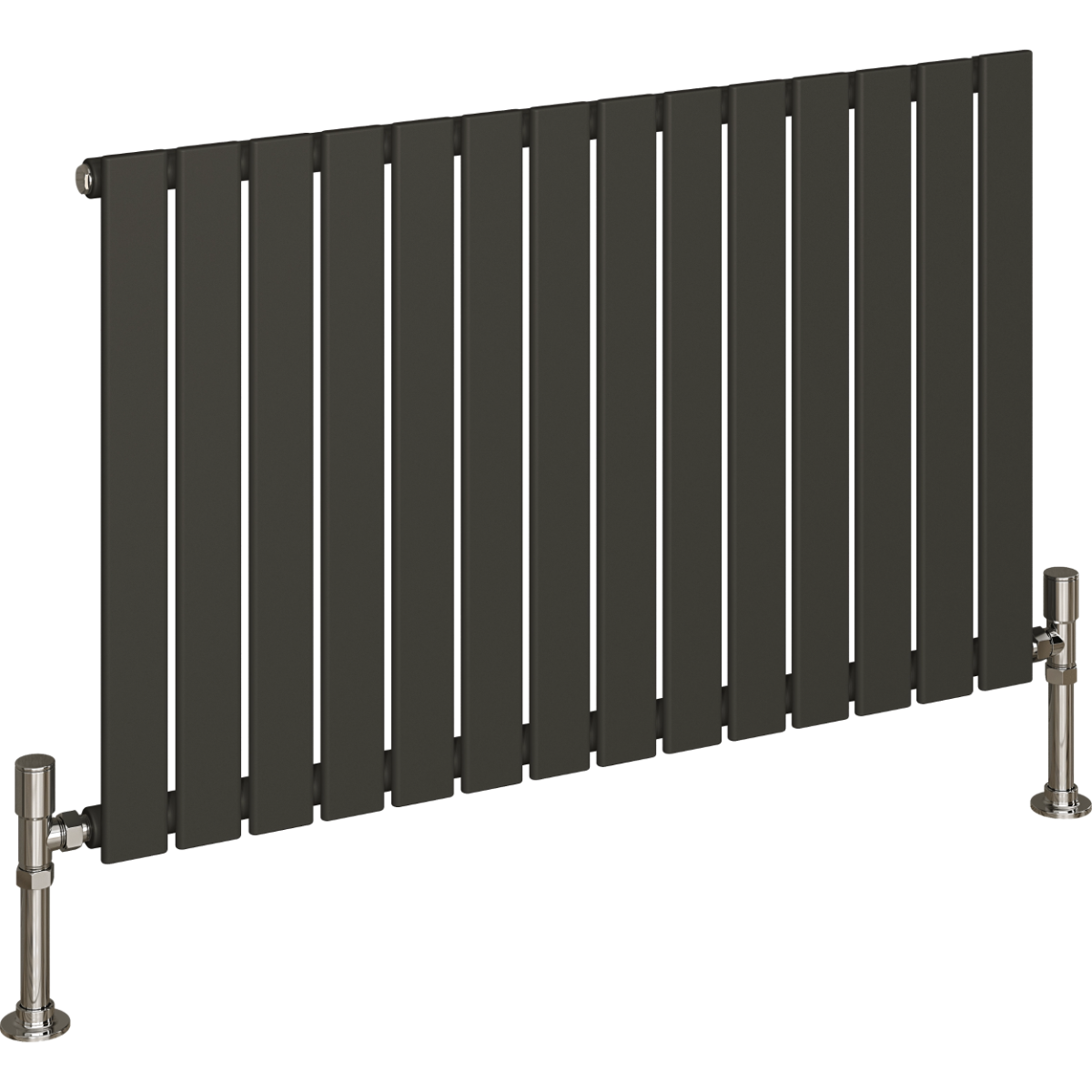

600 x 980 Anthracite
0.79 MB

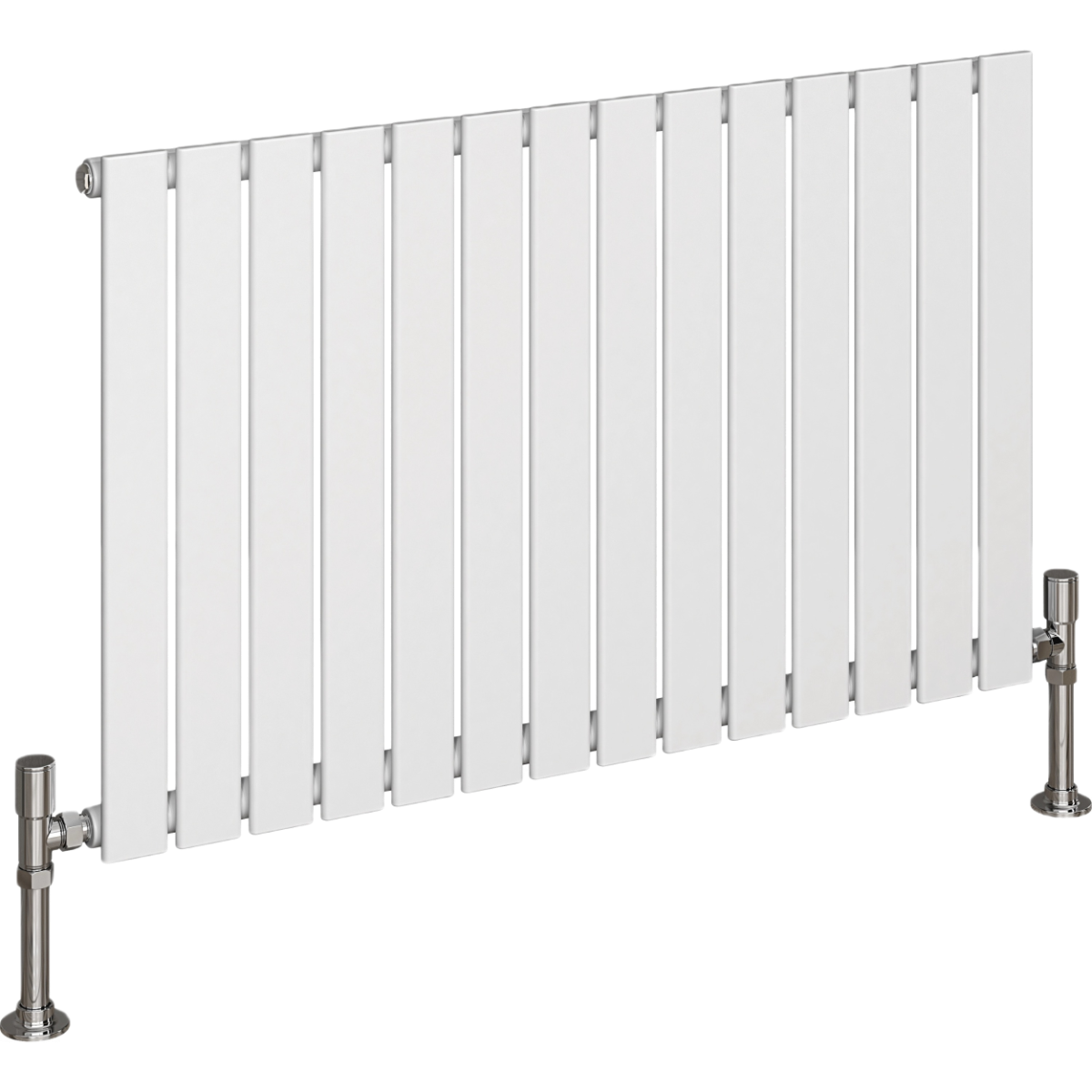

600 x 980 White
0.64 MB

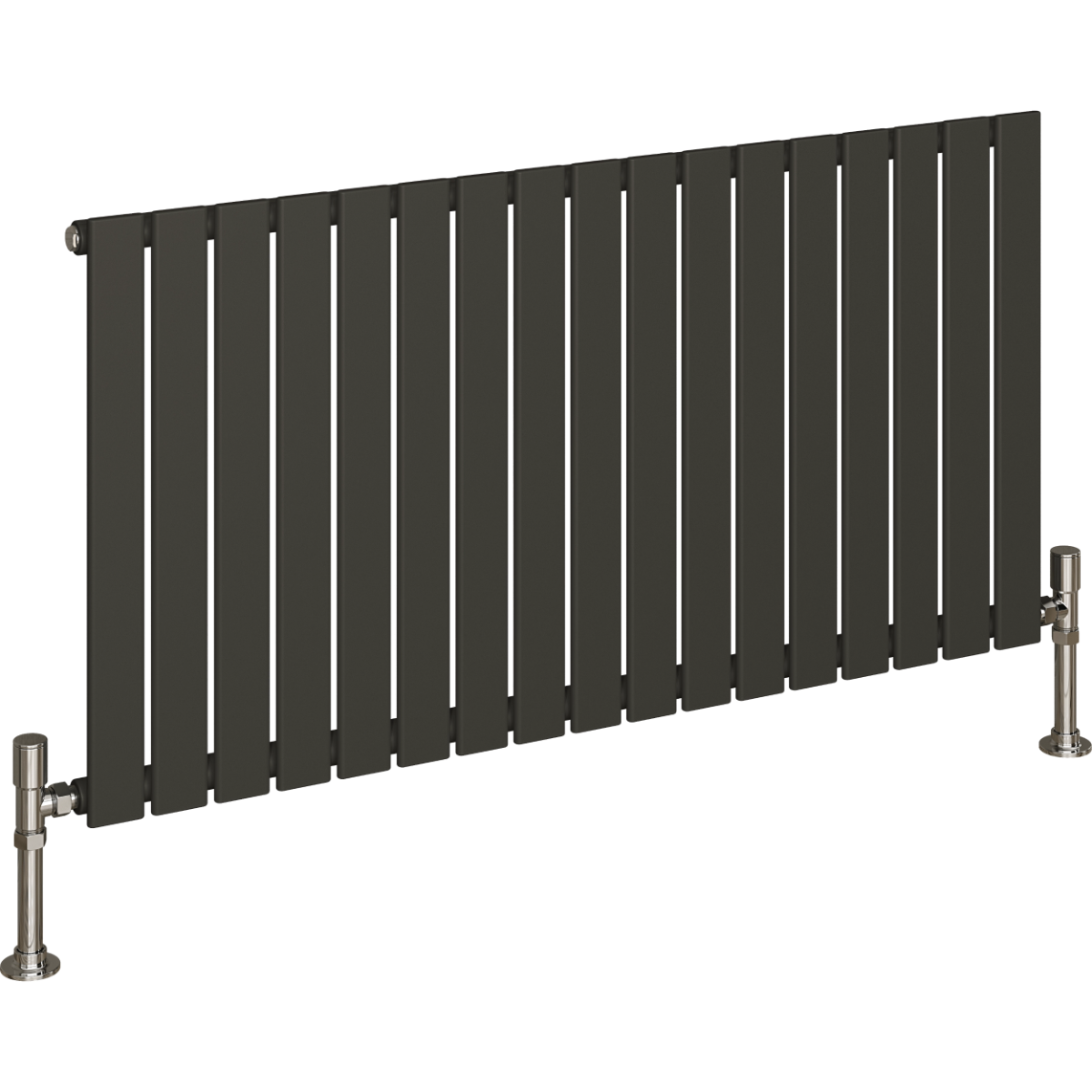

600 x 1190 Anthracite
0.68 MB

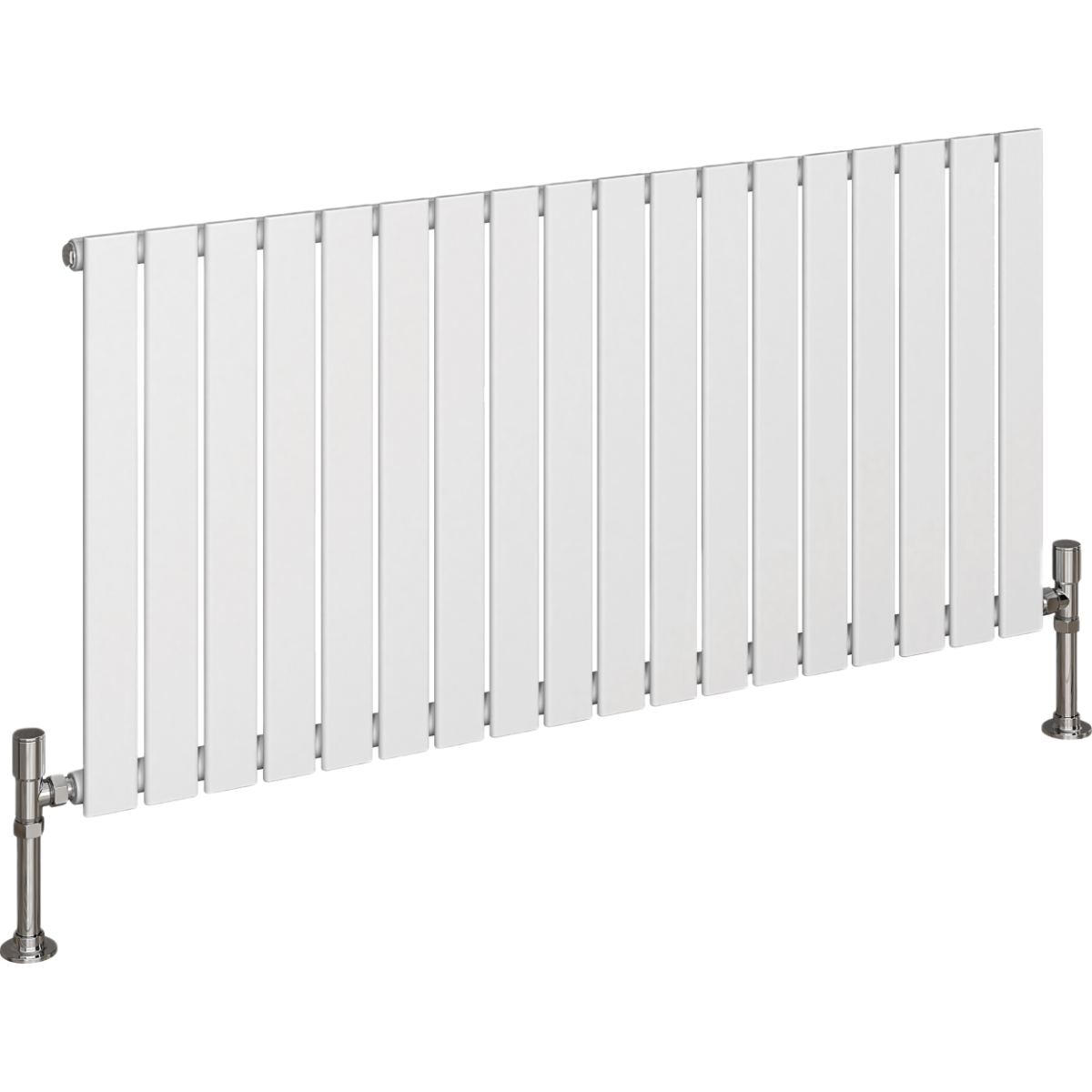

600 x 1190 White
0.51 MB

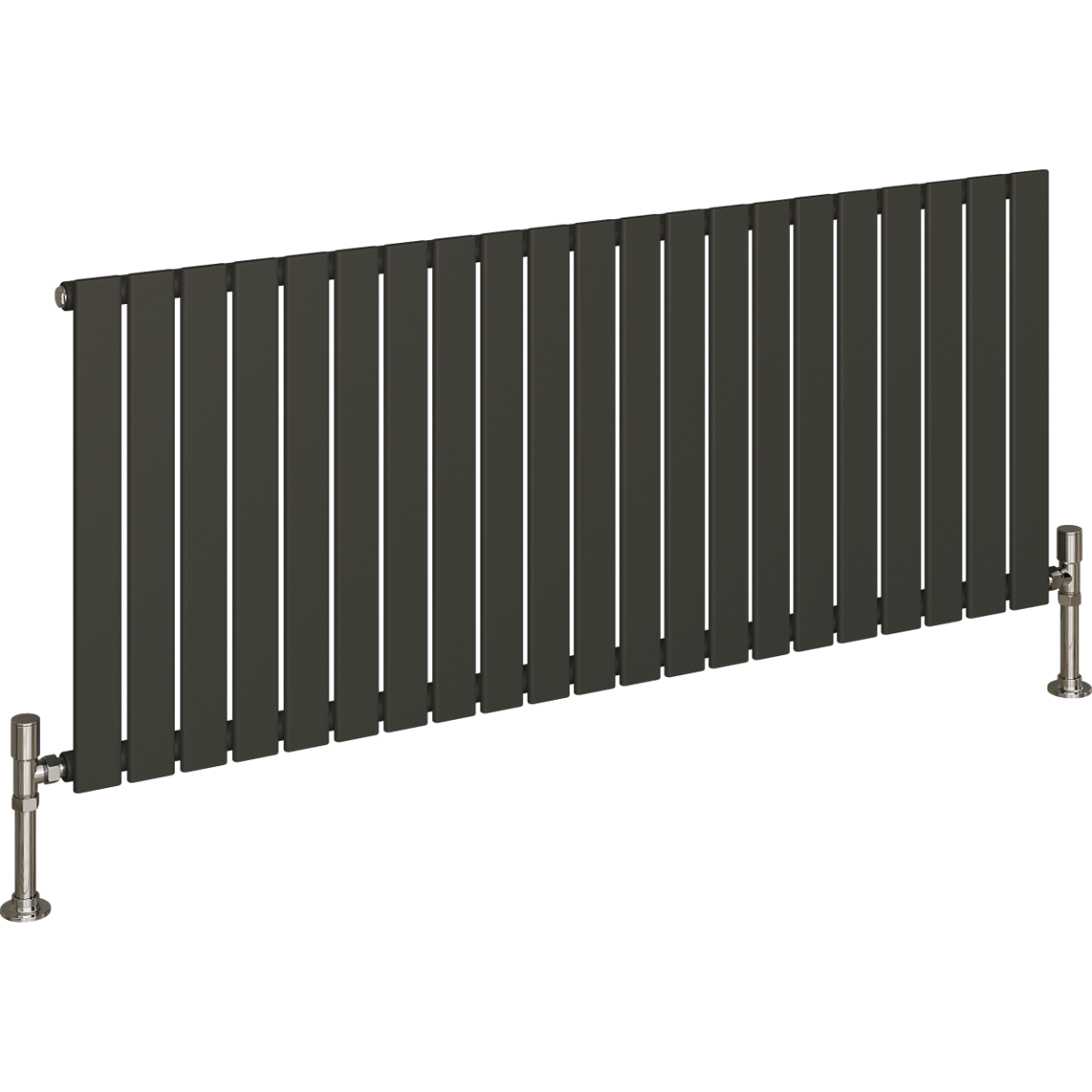

600 x 1470 Anthracite
0.57 MB

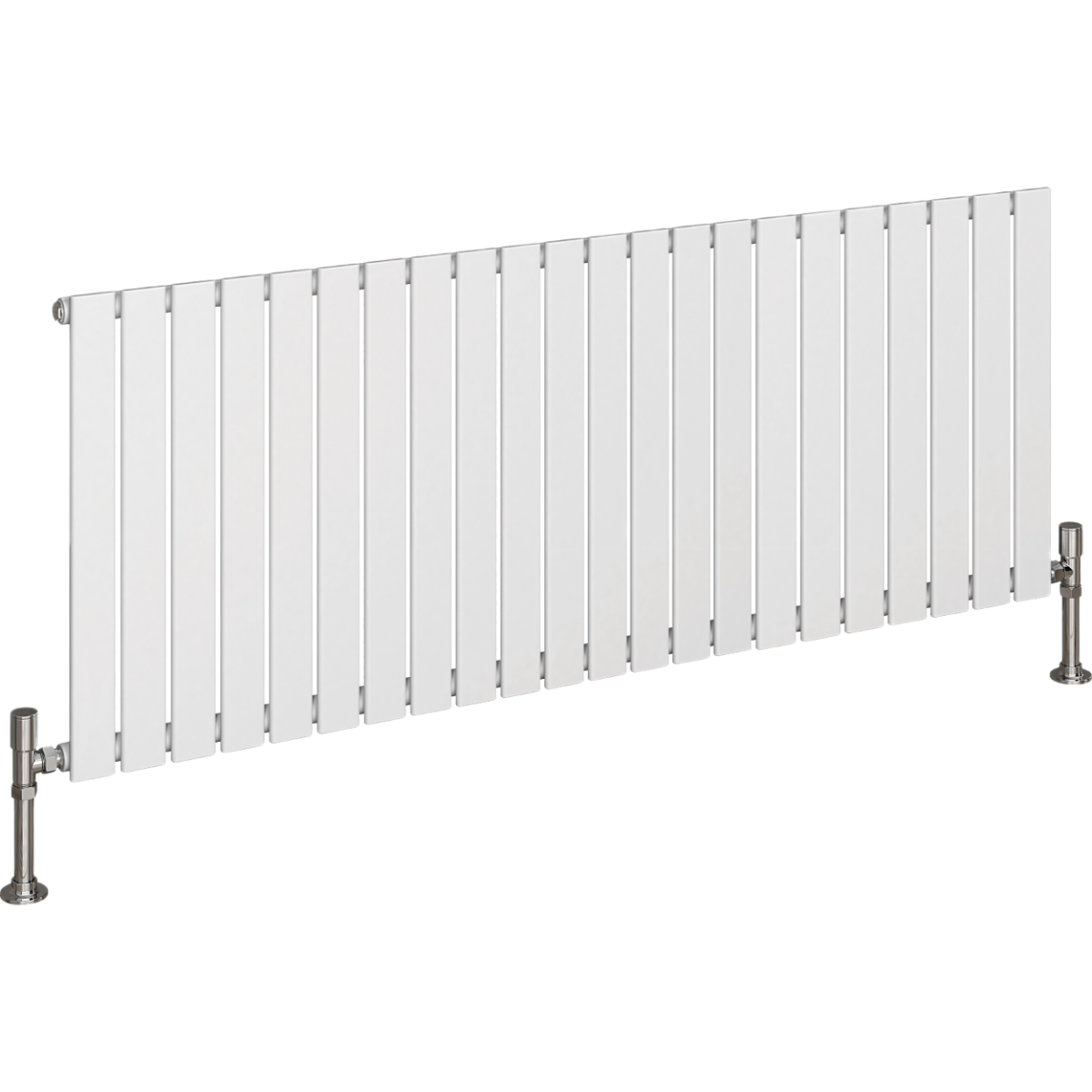

600 x 1470 White
0.4 MB

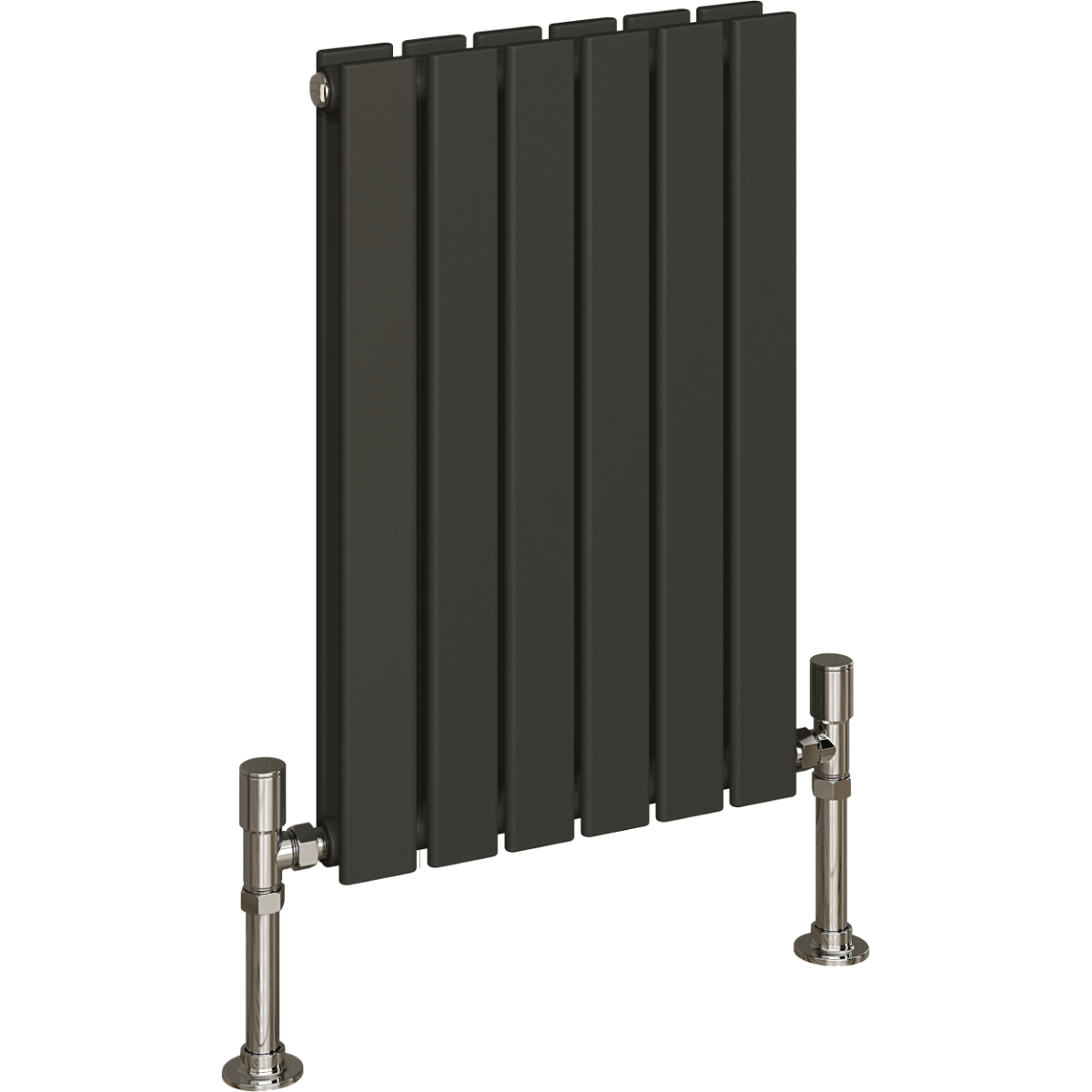

600 x 420 Anthracite
0.6 MB

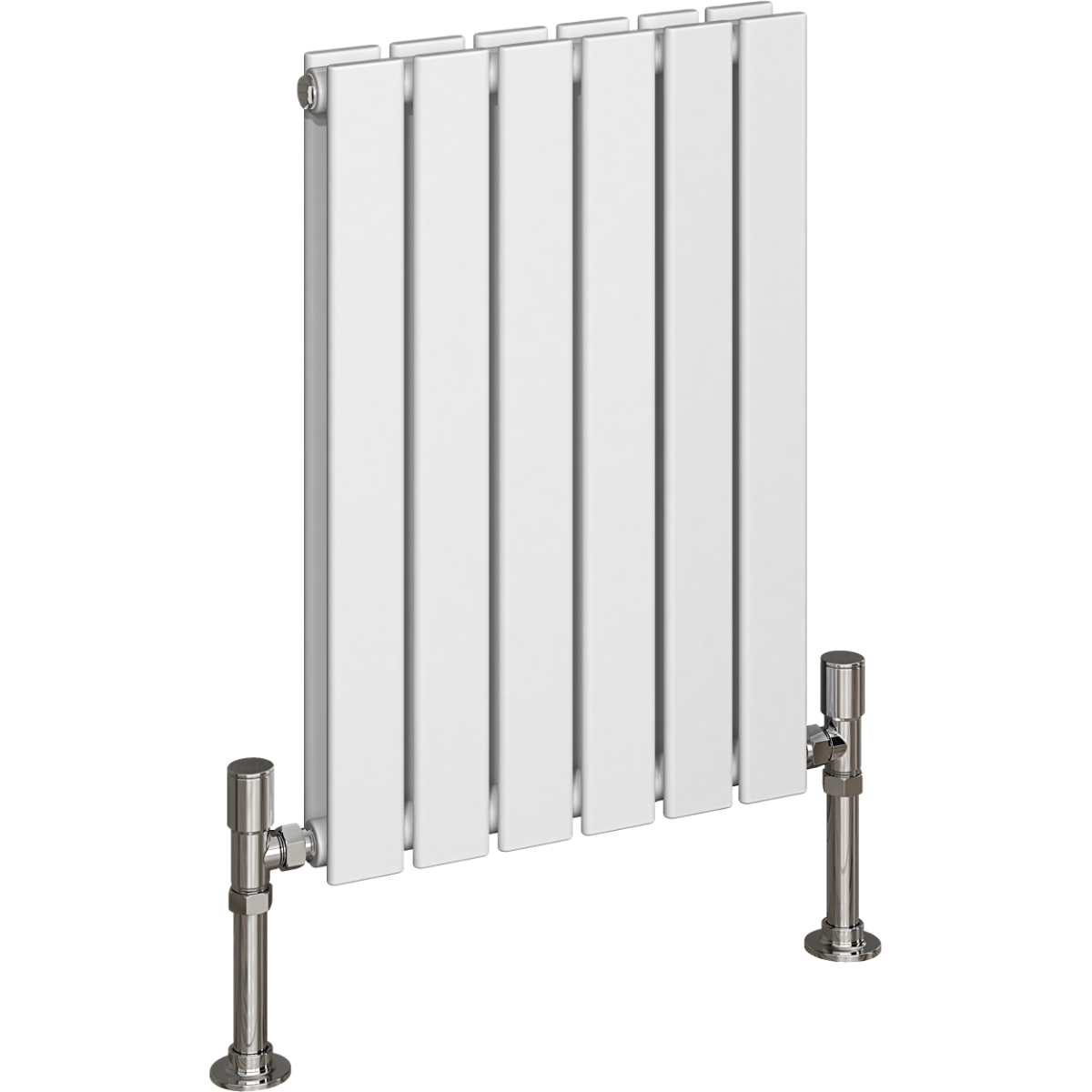

600 x 420 White
0.57 MB

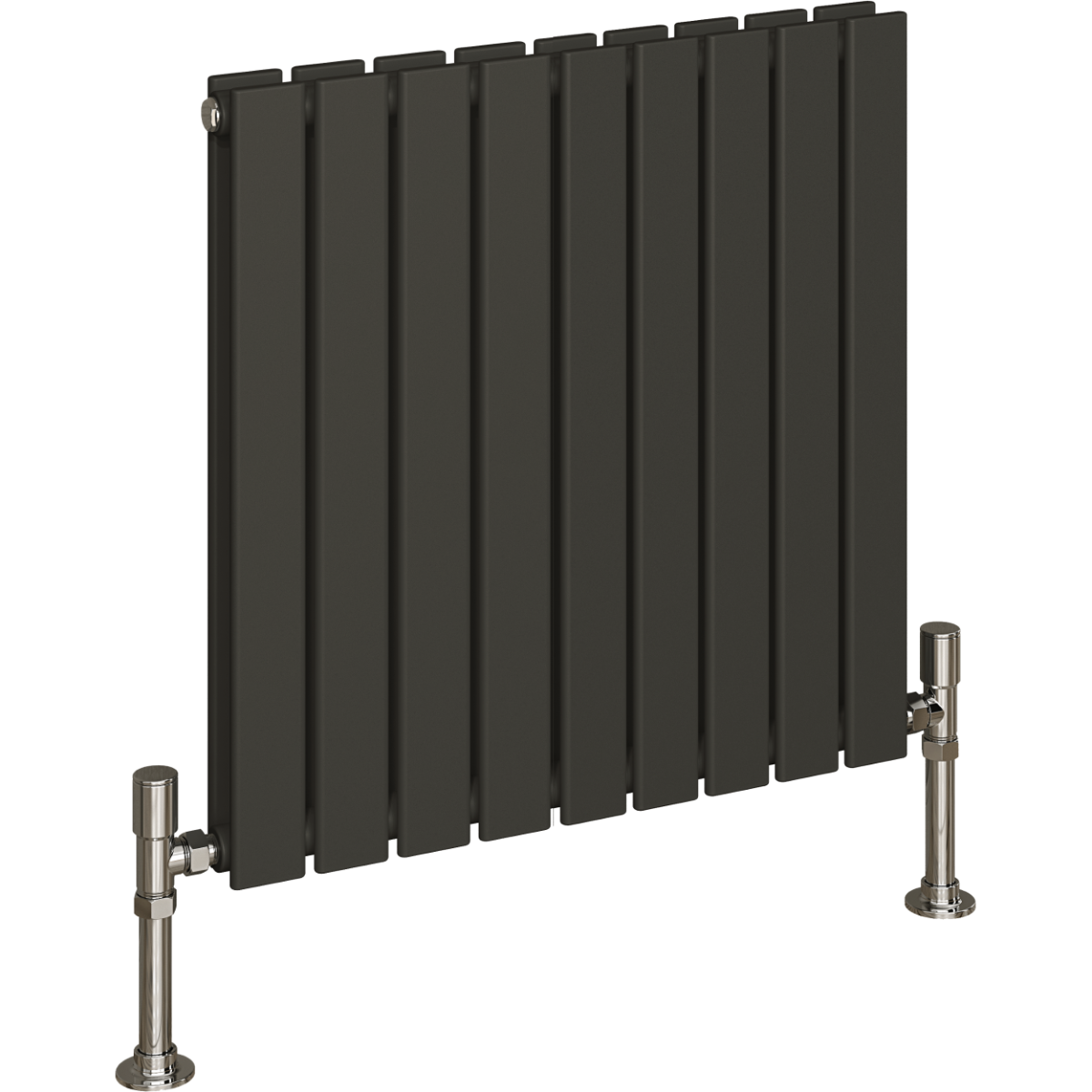

600 x 630 Anthracite
0.74 MB

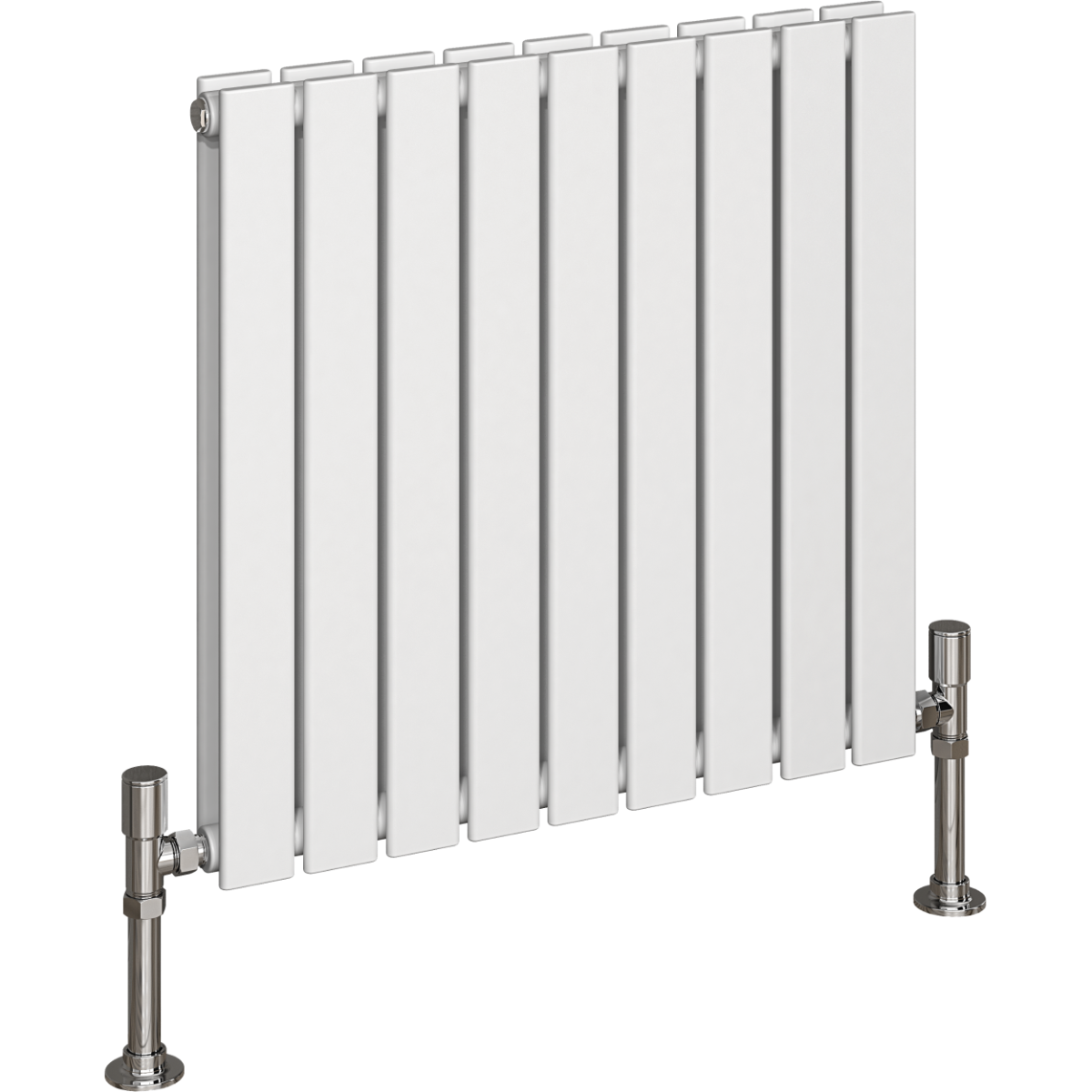

600 x 630 White
0.7 MB

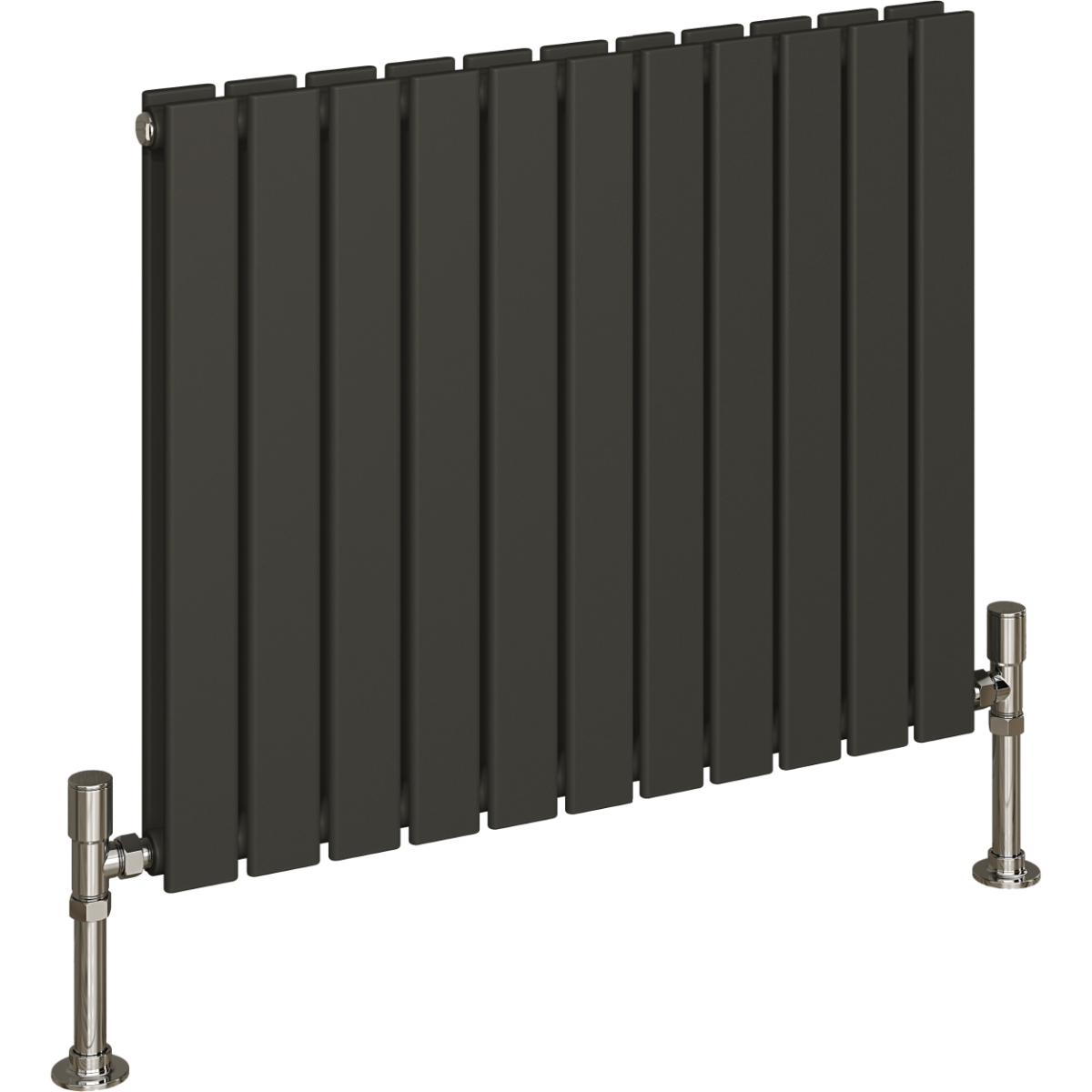

600 x 770 Anthracite
0.8 MB

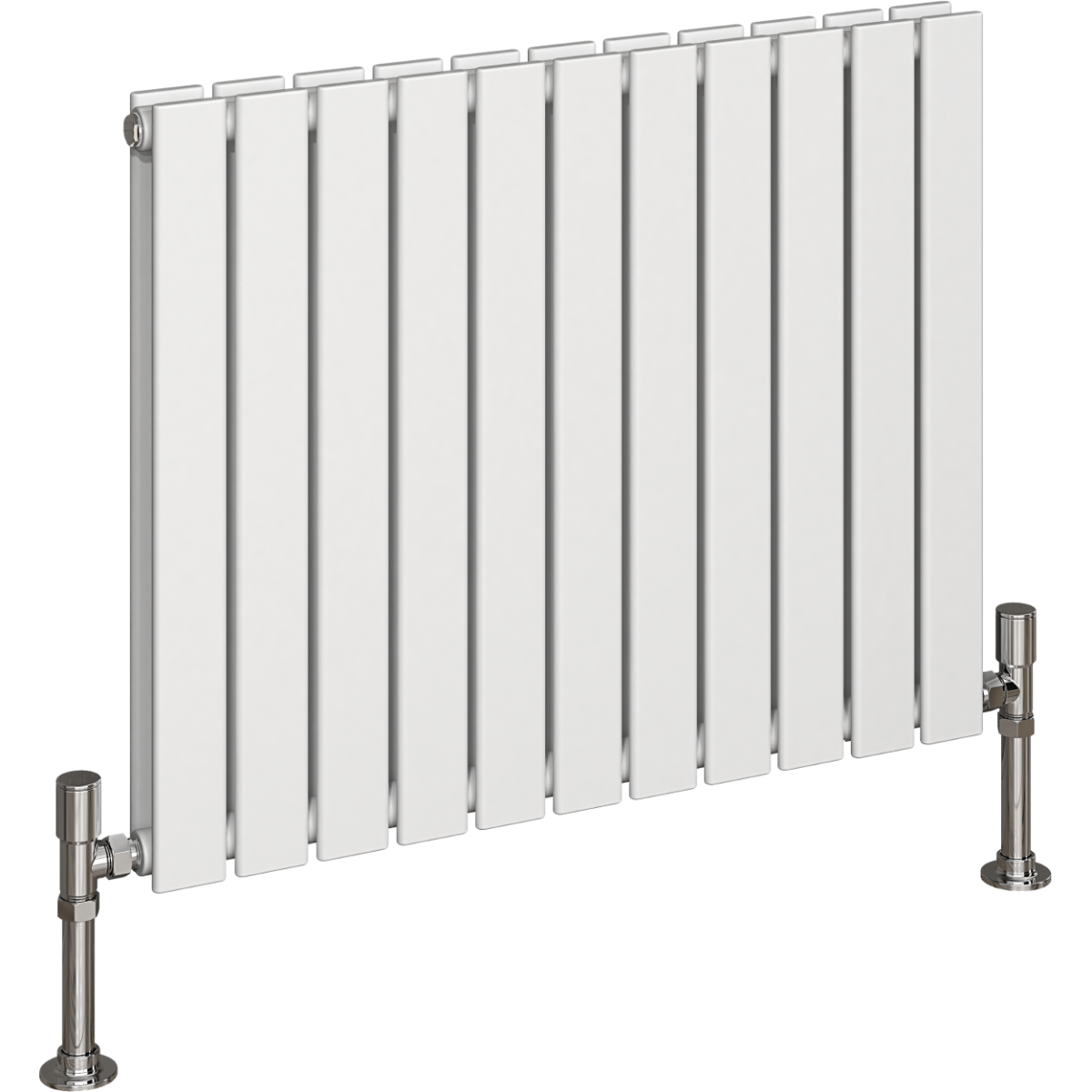

600 x 770 White
0.77 MB

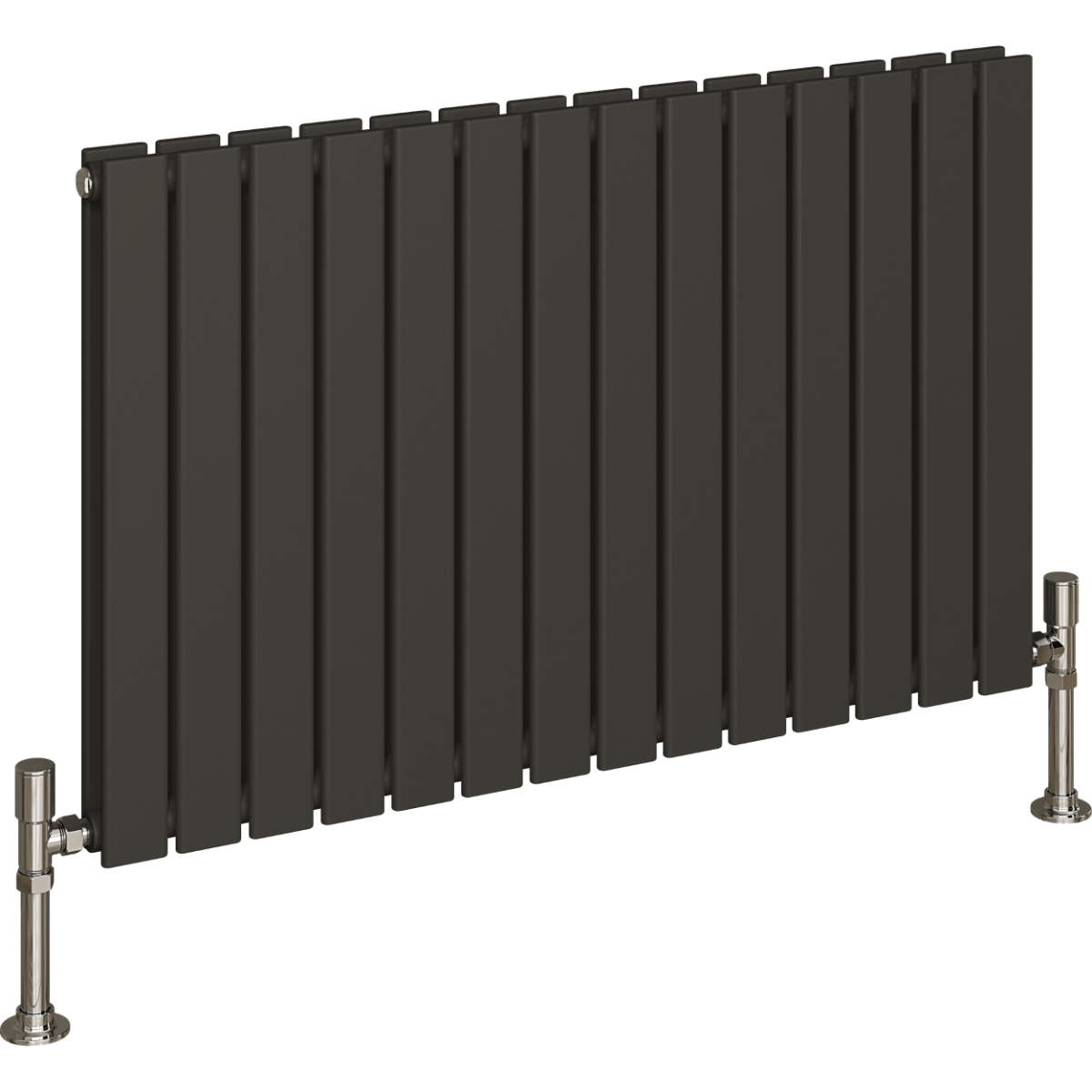

600 x 980 Anthracite
0.77 MB

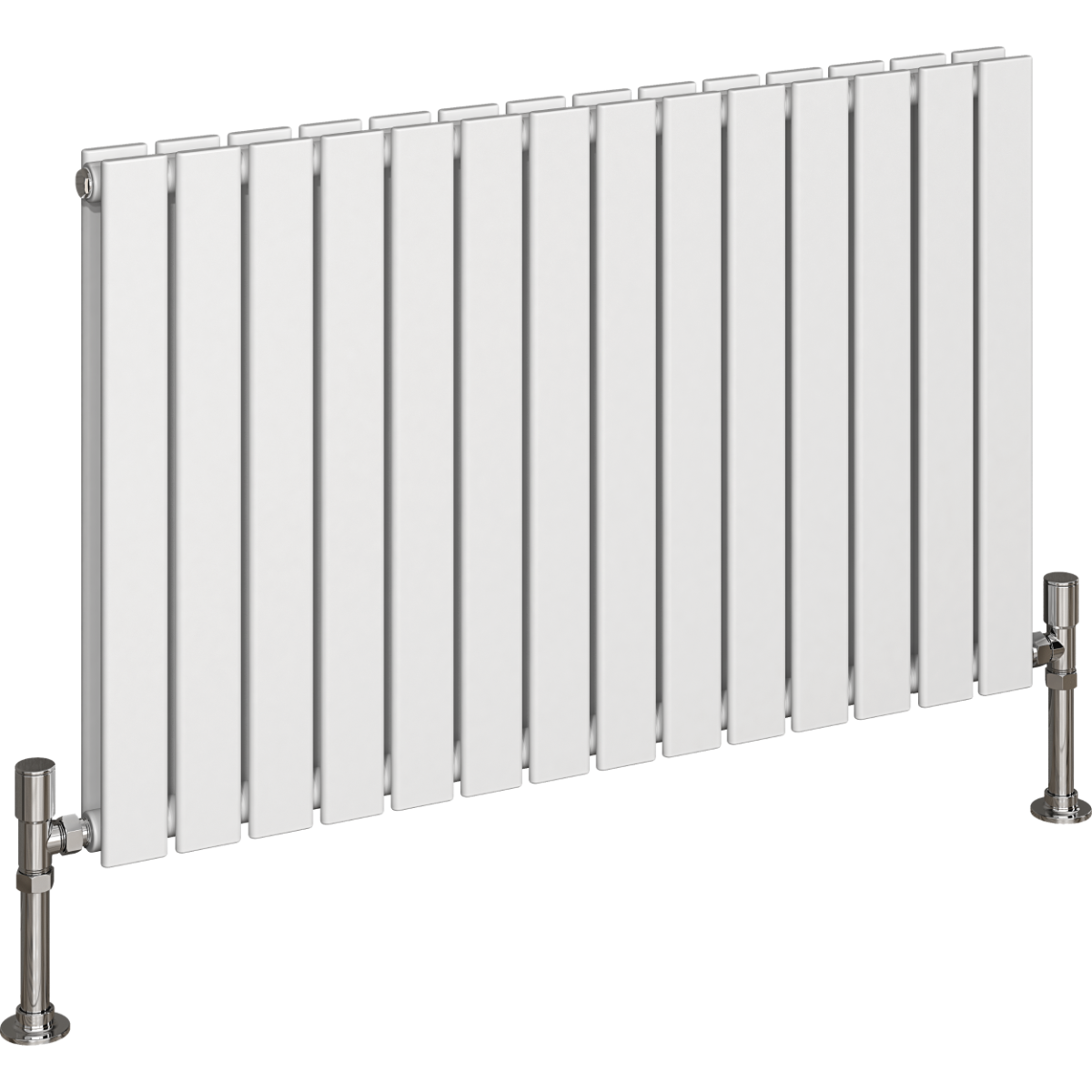

600 x 980 White
0.73 MB

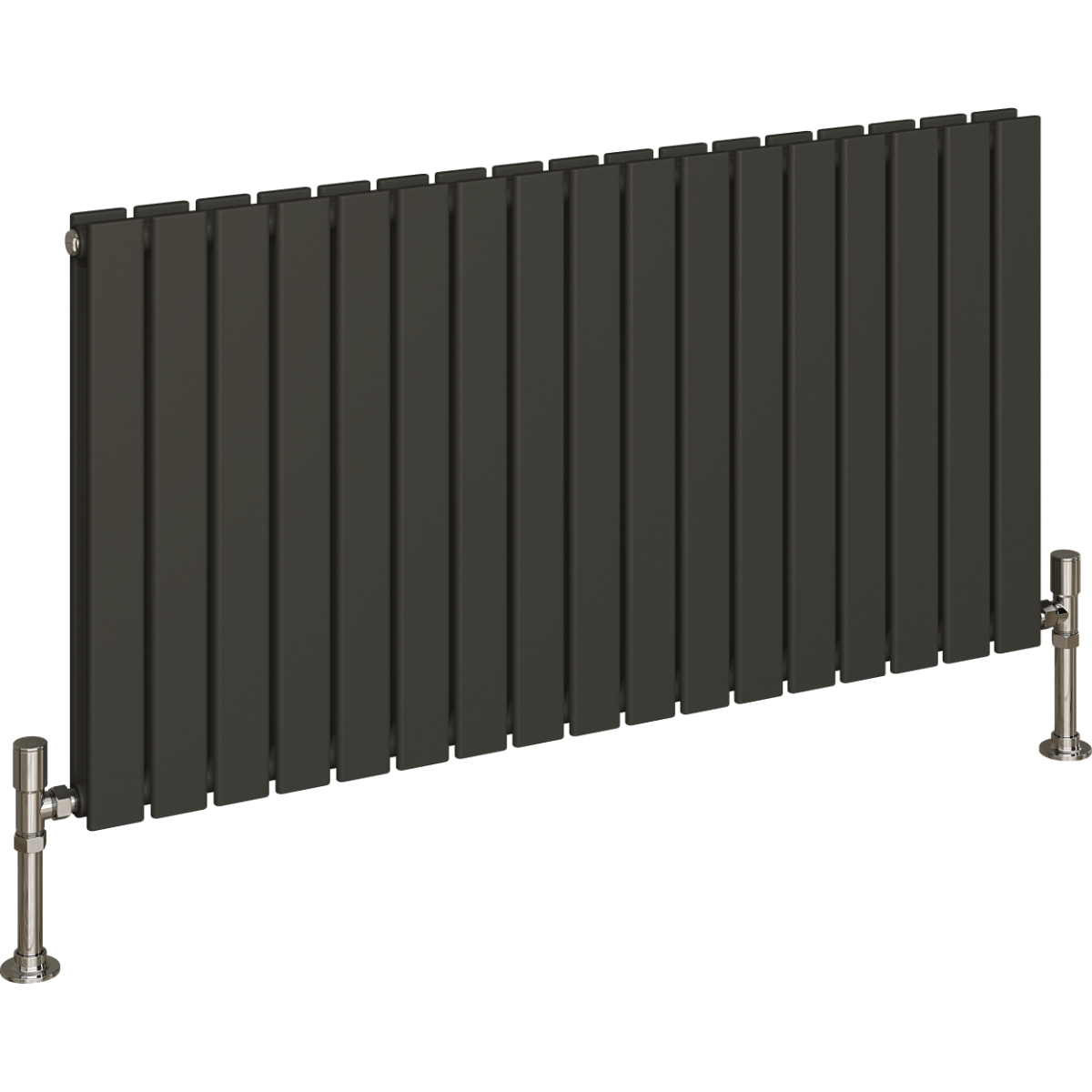

600 x 1190 Anthracite
0.65 MB

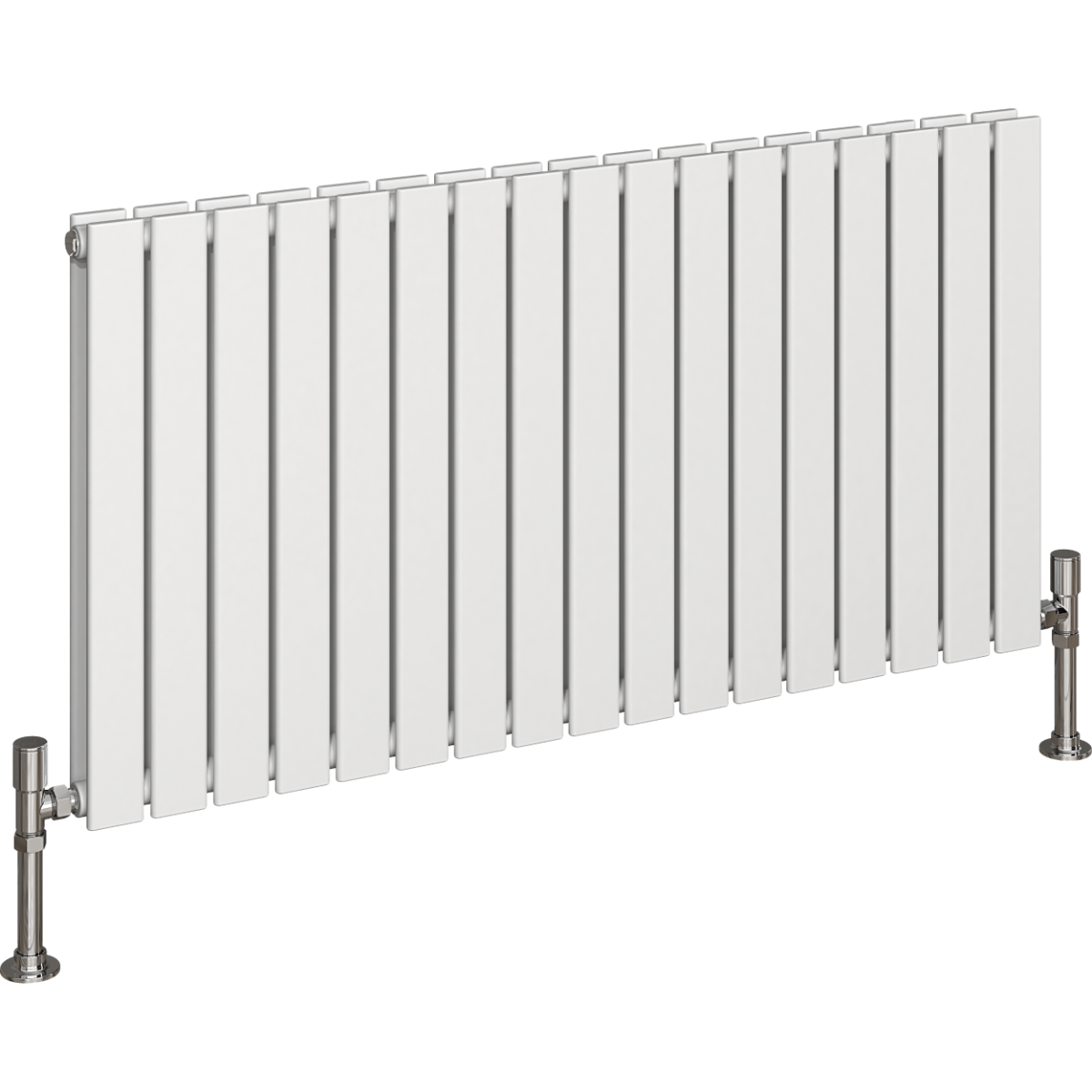

600 x 1190 White
0.62 MB
600 x 1470 Anthracite
0.53 MB

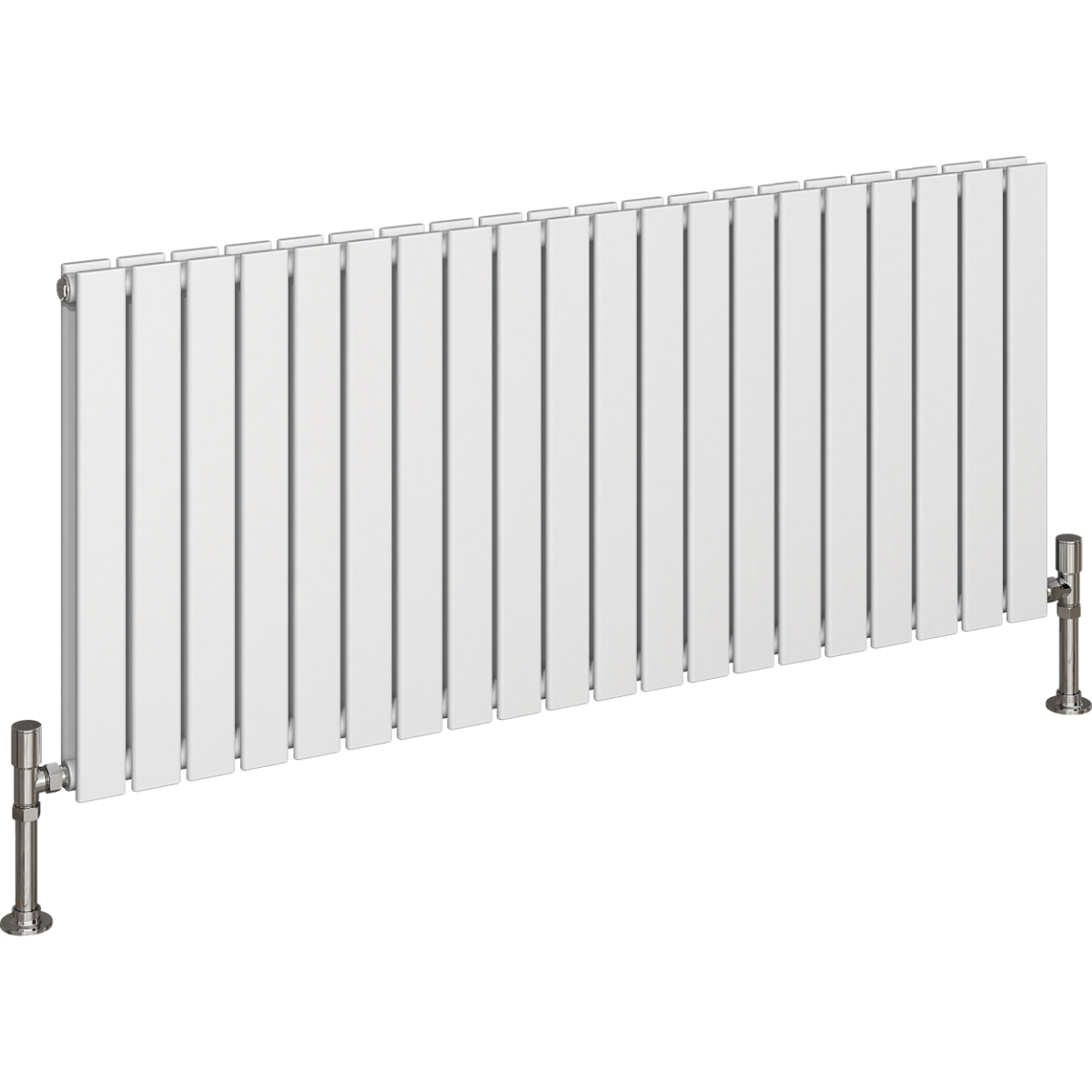

600 x 1470 White
0.55 MB
Tech Drawings

Technical Drawings

Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour Available Stock
RV-HRH066WS 600 420 White Log in to see stock
RV-HRH066AS 600 420 Anthracite Log in to see stock
RV-HRH069AS 600 630 Anthracite Log in to see stock
RV-HRH069WS 600 630 White Log in to see stock
RV-HRH611AS 600 770 Anthracite Log in to see stock
RV-HRH611WS 600 770 White Log in to see stock
RV-HRH614AS 600 980 Anthracite Log in to see stock
RV-HRH614WS 600 980 White Log in to see stock
RV-HRH617AS 600 1190 Anthracite Log in to see stock
RV-HRH617WS 600 1190 White Log in to see stock
RV-HRH621AS 600 1470 Anthracite Log in to see stock
RV-HRH621WS 600 1470 White Log in to see stock
RV-HRH066AD 600 420 Anthracite Log in to see stock
RV-HRH066WD 600 420 White Log in to see stock
RV-HRH069AD 600 630 Anthracite Log in to see stock
RV-HRH069WD 600 630 White Log in to see stock
RV-HRH611AD 600 770 Anthracite Log in to see stock
RV-HRH611WD 600 770 White Log in to see stock
RV-HRH614AD 600 980 Anthracite Log in to see stock
RV-HRH614WD 600 980 White Log in to see stock
RV-HRH617AD 600 1190 Anthracite Log in to see stock
RV-HRH617WD 600 1190 White Log in to see stock
RV-HRH621AD 600 1470 Anthracite Log in to see stock
RV-HRH621WD 600 1470 White Log in to see stock
