Harley Vertical Mild Steel Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating

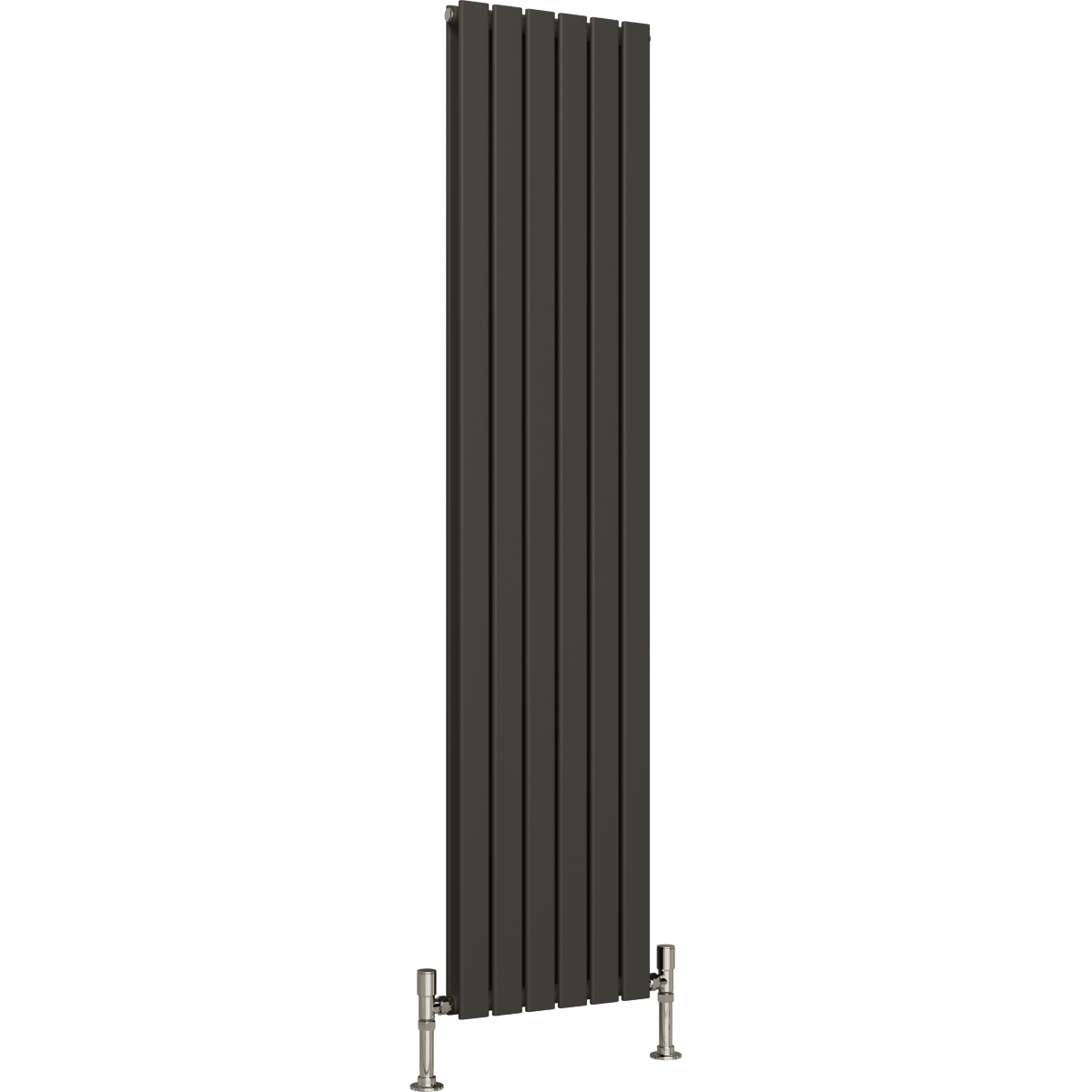

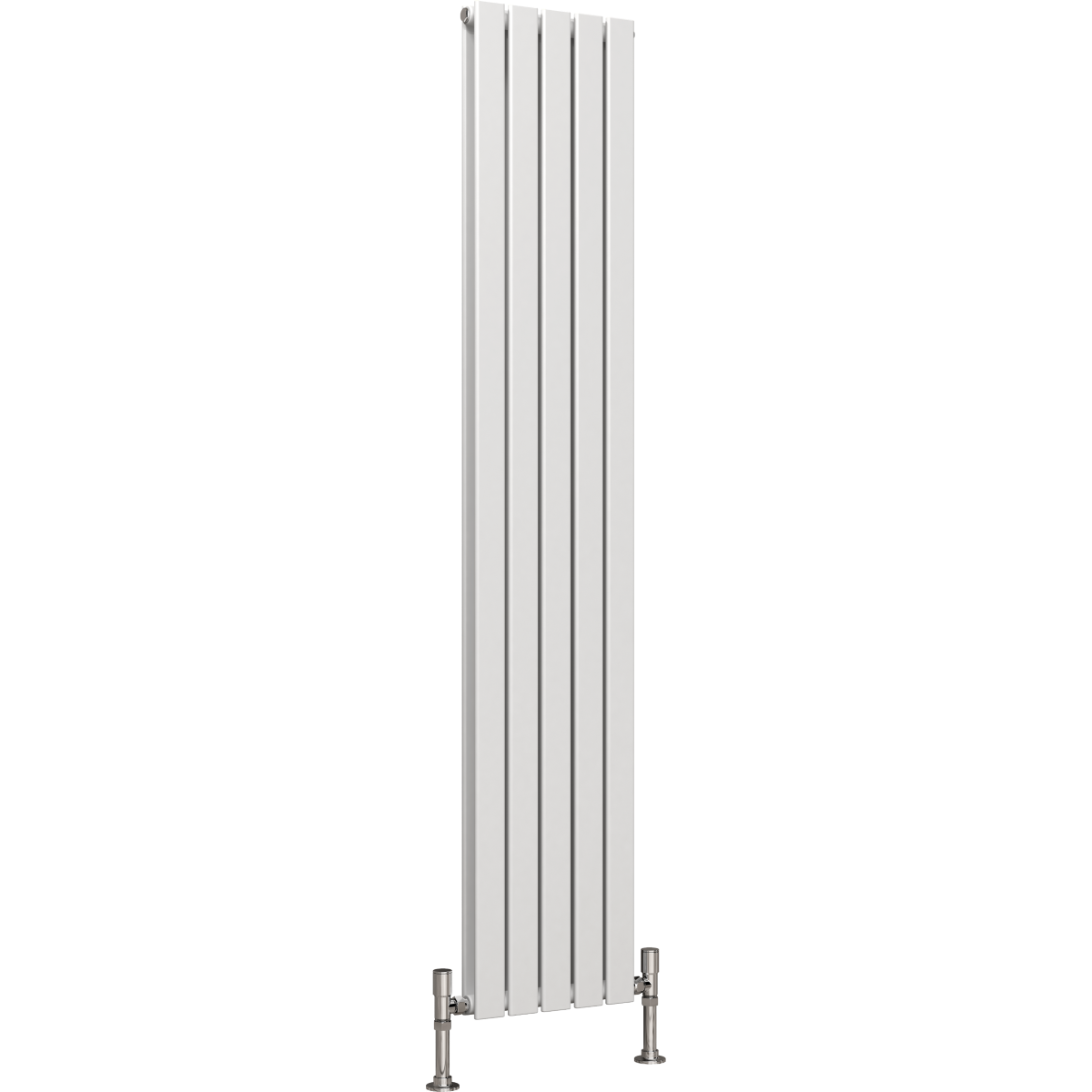

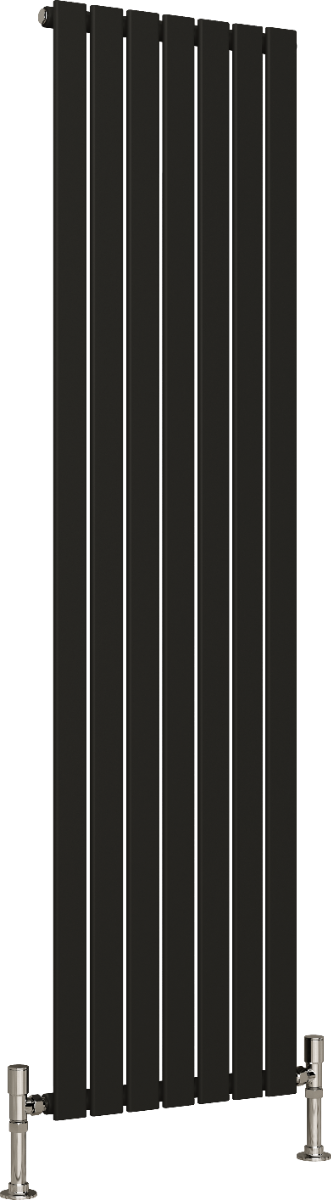

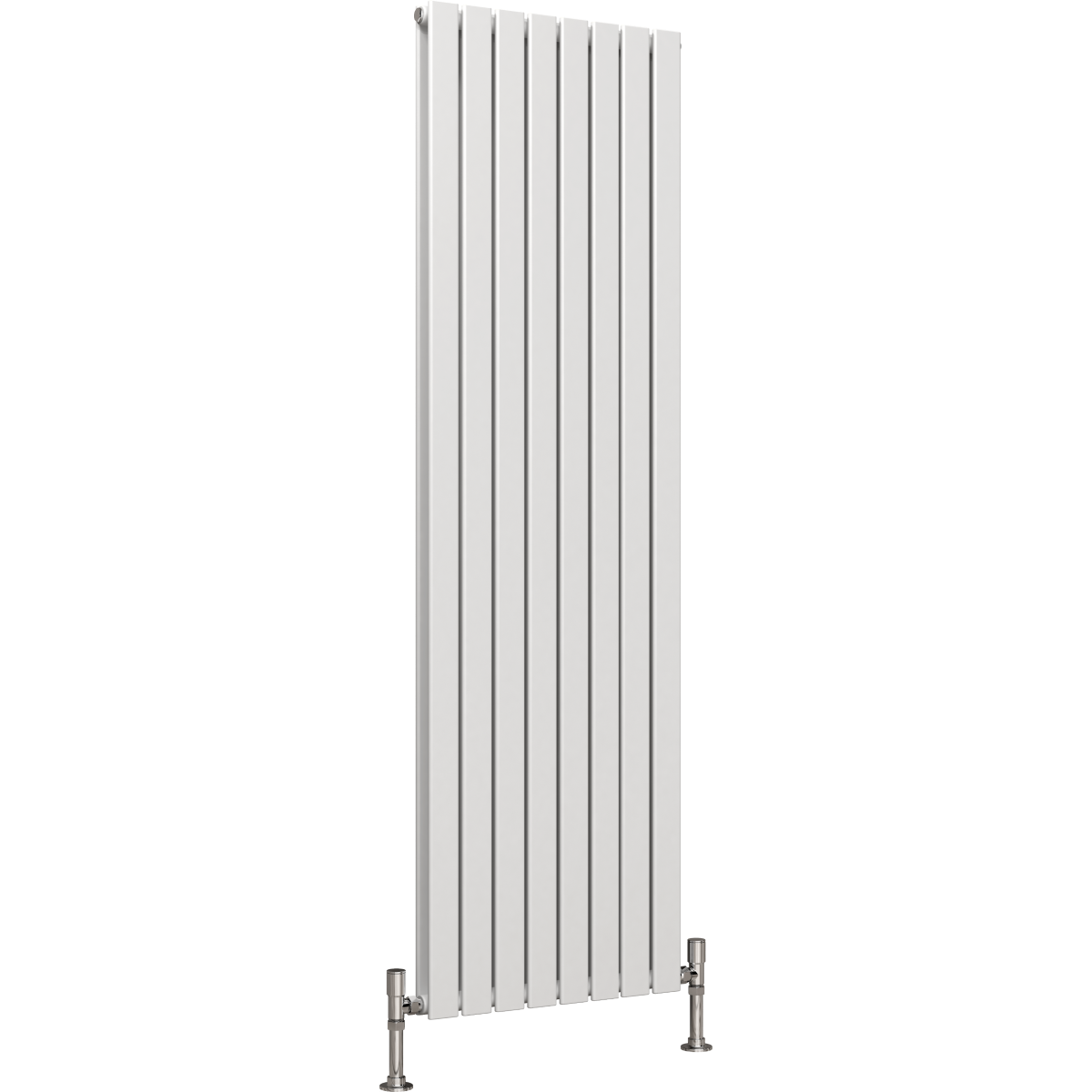

The Harley Vertical Designer Radiator features a sleek flat-panel design, offering a clean and contemporary look that enhances any modern interior. Its tall, space-saving structure makes it ideal for maximising wall space while delivering efficient and consistent heat throughout the room. Available in Anthracite, Black, and White finishes, the Harley radiator complements a wide range of décor styles, from minimalist to bold design schemes. Supplied in both single and double panel options to suit different heat requirements, it combines style with practicality, providing a reliable and modern heating solution for everyday living.

  • Available in 3 colours and 8 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white
  • anthracite
  • black

Product Resource Centre

1600mm HEIGHT 420mm WIDTH
1600mm HEIGHT 490mm WIDTH
1600mm HEIGHT 560mm WIDTH
1800mm HEIGHT 350mm WIDTH
1800mm HEIGHT 420mm WIDTH
1800mm HEIGHT 490mm WIDTH
1800mm HEIGHT 560mm WIDTH
1800mm HEIGHT 630mm WIDTH
Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
1600 420 Single 420 50 79 16.3kg
1600 490 Single 490 50 79 18.6kg
1600 560 Single 560 50 79 20.8kg
1800 350 Single 350 50 79 15.4kg
1800 420 Single 420 50 79 17.8kg
1800 490 Single 490 50 79 20.5kg
1800 560 Single 560 50 79 23.0kg
1800 630 Single 630 50 79 25.6kg
1600 420 Double 420 63 94 28.7kg
1600 490 Double 490 63 94 32.9kg
1600 560 Double 560 63 94 37.3kg
1800 350 Double 350 63 94 27.1kg
1800 420 Double 420 63 94 31.6kg
1800 490 Double 490 63 94 36.6kg
1800 560 Double 560 63 94 41.9kg
1800 630 Double 630 63 94 46.5kg

For pipe centre measurement including valves, add 90mm

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
RV-HRV166WS 1600 420 White 3126 916 2442 716 1264 371
RV-HRV167AS 1600 490 Anthracite 3647 1070 2849 836 1475 433
RV-HRV167WS 1600 490 White 3647 1070 2849 836 1475 433
RV-HRV168AS 1600 560 Anthracite 4168 1222 3256 955 1686 494
RV-HRV168WS 1600 560 White 4168 1222 3256 955 1686 494
RV-HRV185AS 1800 350 Anthracite 2885 846 2254 661 1167 342
RV-HRV185WS 1800 350 White 2885 846 2254 661 1167 342
RV-HRV186AS 1800 420 Anthracite 3462 1015 2705 793 1400 411
RV-HRV186WS 1800 420 White 3462 1015 2705 793 1400 411
RV-HRV187AS 1800 490 Anthracite 4038 1184 3155 925 1633 479
RV-HRV187WS 1800 490 White 4038 1184 3155 925 1633 479
RV-HRV188AS 1800 560 Anthracite 4617 1354 3607 1058 1867 548
RV-HRV188WS 1800 560 White 4617 1354 3607 1058 1867 548
RV-HRV189AS 1800 630 Anthracite 5193 1523 4057 1190 2100 616
RV-HRV189WS 1800 630 White 5193 1523 4057 1190 2100 616
RV-HRV166AD 1600 420 Anthracite 4719 1384 3687 1081 1909 560
RV-HRV166WD 1600 420 White 4719 1384 3687 1081 1909 560
RV-HRV167AD 1600 490 Anthracite 5505 1614 4301 1261 2226 653
RV-HRV167WD 1600 490 White 5505 1614 4301 1261 2226 653
RV-HRV168AD 1600 560 Anthracite 6292 1844 4916 1441 2545 746
RV-HRV168WD 1600 560 White 6292 1844 4916 1441 2545 746
RV-HRV185AD 1800 350 Anthracite 4445 1304 3473 1019 1798 527
RV-HRV185WD 1800 350 White 4445 1304 3473 1019 1798 527
RV-HRV186AD 1800 420 Anthracite 5335 1565 4168 1223 2158 633
RV-HRV186WD 1800 420 White 5335 1565 4168 1223 2158 633
RV-HRV187AD 1800 490 Anthracite 6223 1825 4862 1426 2517 738
RV-HRV187WD 1800 490 White 6223 1825 4862 1426 2517 738
RV-HRV188AD 1800 560 Anthracite 7113 2086 5557 1630 2877 844
RV-HRV188WD 1800 560 White 7113 2086 5557 1630 2877 844
RV-HRV189AD 1800 630 Anthracite 8001 2346 6251 1833 3236 949
RV-HRV189WD 1800 630 White 8001 2346 6251 1833 3236 949
RV-HRV185KS 1800 350 Black 2885 846 2254 661 1167 342
RV-HRV186KS 1800 420 Black 3462 1015 2705 793 1400 411
RV-HRV187KS 1800 490 Black 4038 1184 3155 925 1633 479
RV-HRV188KS 1800 560 Black 4617 1354 3607 1058 1867 548
RV-HRV189KS 1800 630 Black 5193 1523 4057 1190 2100 616
RV-HRV185KD 1800 350 Black 4445 1304 3473 1019 1798 527
RV-HRV186KD 1800 420 Black 5335 1565 4168 1223 2158 633
RV-HRV187KD 1800 490 Black 6223 1825 4862 1426 2517 738
RV-HRV188KD 1800 560 Black 7113 2086 5557 1630 2877 844
RV-HRV189KD 1800 630 Black 8001 2346 6251 1833 3236 949
