Loco Horizontal Double Aluminium Radiator

5 Years Guarantee
Material: Aluminium
Central Heating
Electric
Dual Fuel

Introducing the Loco Aluminium Horizontal Radiator – a striking column-style radiator that combines exceptional design with outstanding functionality. Available in sleek white or bold anthracite, the Loco radiator exudes style and sophistication. Crafted from premium aluminium and offered as a single or double radiator, it delivers unparalleled heat efficiency and performance, making it a standout choice for any modern space.

  • Available in 2 colours and 6 sizes
  • Durable Aluminium Construction
  • 5 Years Guarantee
  • anthracite
  • white

Product Resource Centre

600mm HEIGHT 1420mm WIDTH
600mm HEIGHT 1230mm WIDTH
600mm HEIGHT 1040mm WIDTH
600mm HEIGHT 850mm WIDTH
600mm HEIGHT 660mm WIDTH
600mm HEIGHT 470mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
600 1420 1420 57 87 - 30
600 1230 1230 57 87 - 26
600 1040 1040 57 87 - 22
600 850 850 57 87 - 18
600 660 660 57 87 - 14
600 470 470 57 87 - 10

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
A-CSL060142AD-LHD 600 1420 Anthracite 6756 1981 5278 1548 2692 789
A-CSL060142WD-LHD 600 1420 White 6756 1981 5278 1548 2692 789
A-CSL060123AD-LHD 600 1230 Anthracite 5855 1717 4574 1341 2333 684
A-CSL060123WD-LHD 600 1230 White 5855 1717 4574 1341 2333 684
A-CSL060104AD-LHD 600 1040 Anthracite 4954 1453 3870 1135 1974 579
A-CSL060104WD-LHD 600 1040 White 4954 1453 3870 1135 1974 579
A-CSL060085AD-LHD 600 850 Anthracite 4053 1189 3166 929 1615 474
A-CSL060085WD-LHD 600 850 White 4053 1189 3166 929 1615 474
A-CSL060066AD-LHD 600 660 Anthracite 3152 924 2463 722 1256 368
A-CSL060066WD-LHD 600 660 White 3152 924 2463 722 1256 368
A-CSL060047AD-LHD 600 470 Anthracite 2252 660 1759 516 897 263
A-CSL060047WD-LHD 600 470 White 2252 660 1759 516 897 263
Images

Cutout Product Images

600 x 1420 Anthracite
0.41 MB

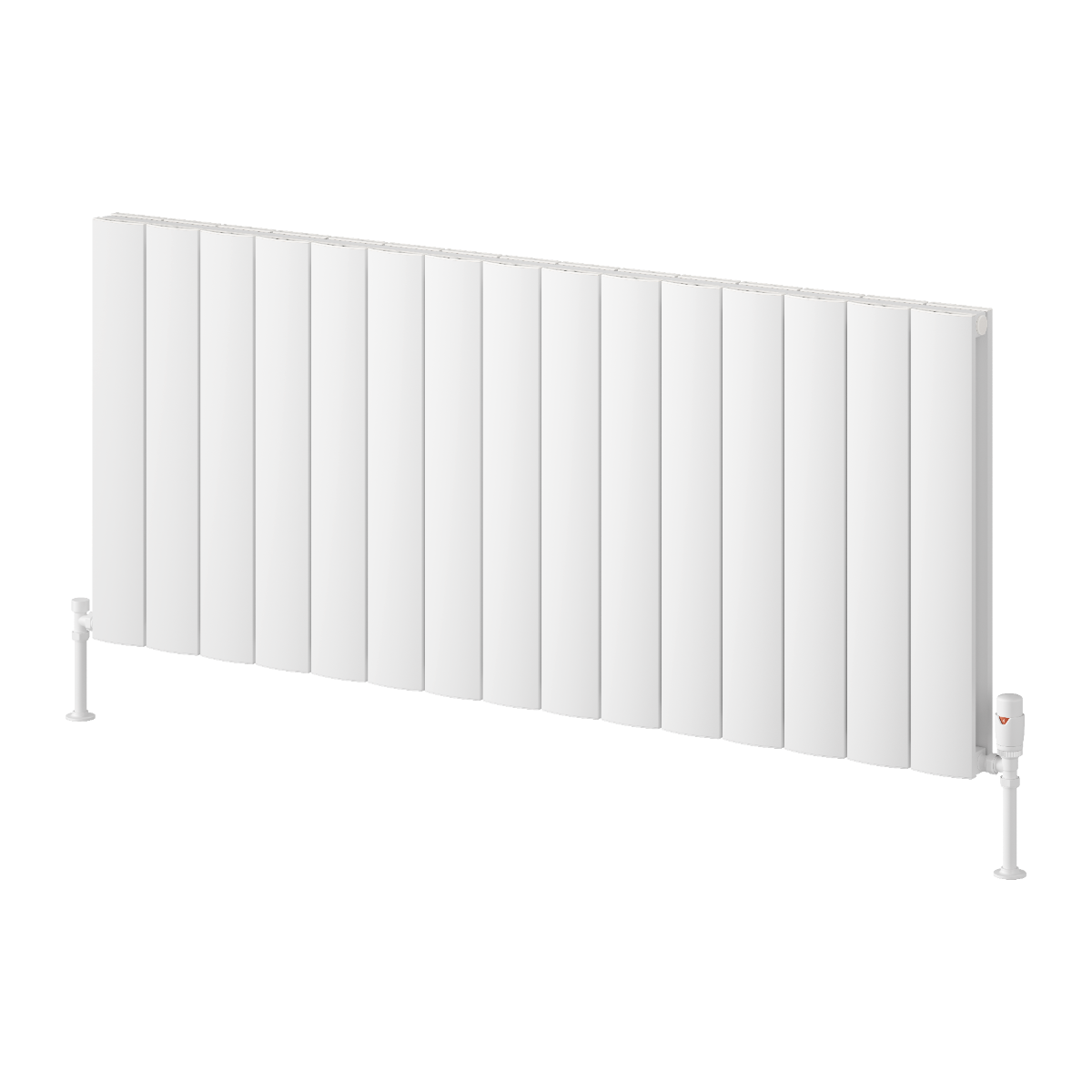

600 x 1420 White
0.34 MB

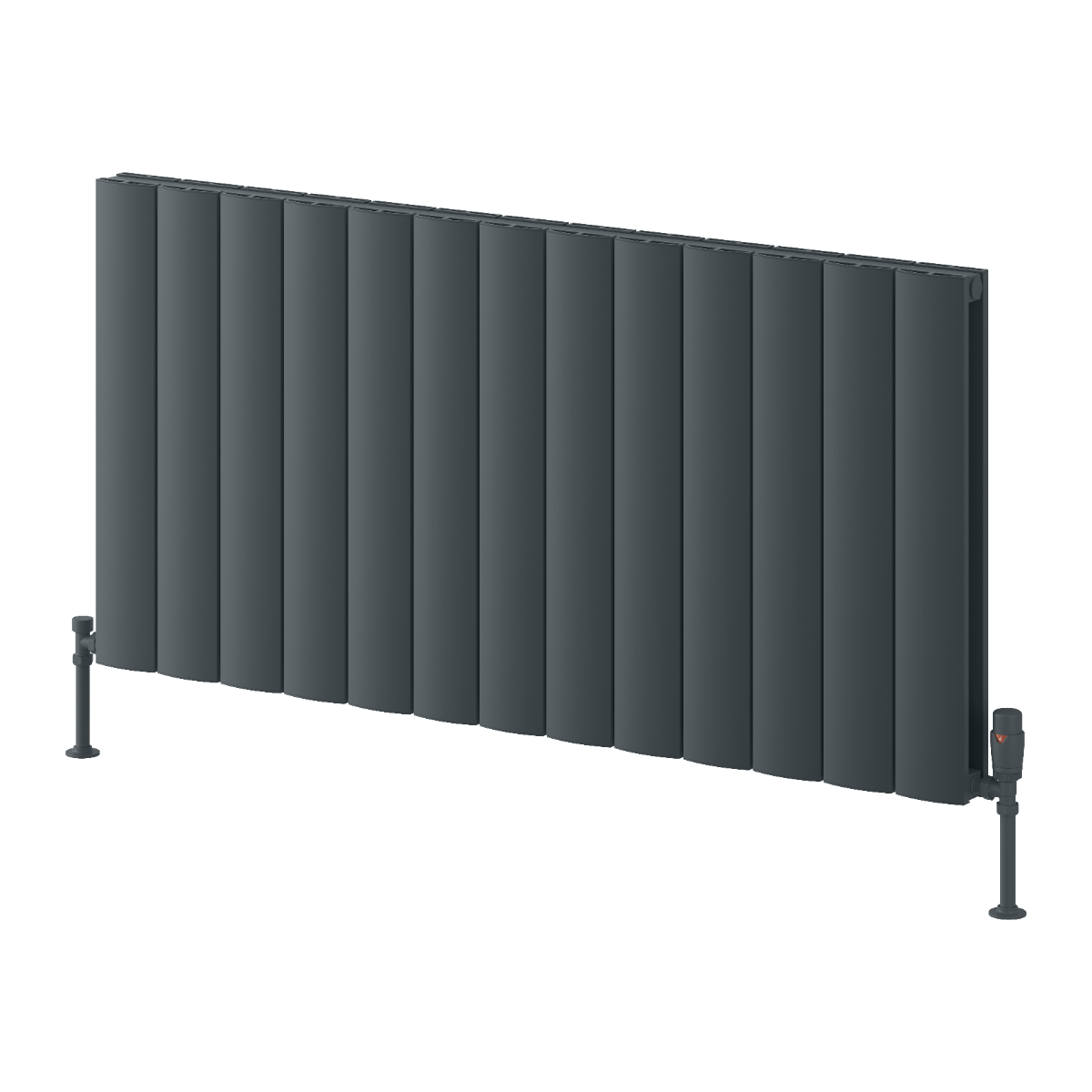

600 x 1230 Anthracite
0.47 MB
600 x 1230 White
0.39 MB

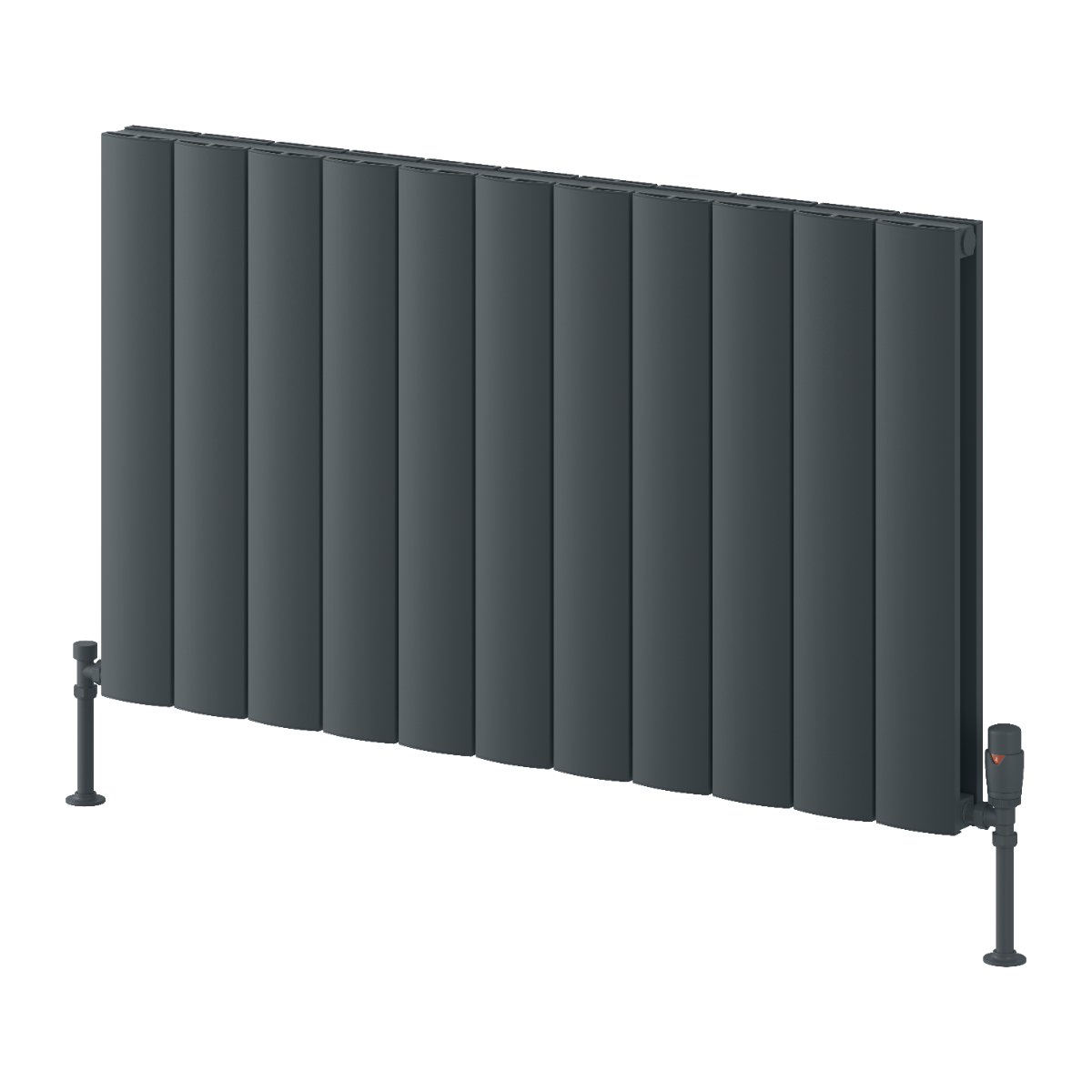

600 x 1040 Anthracite
0.51 MB
600 x 1040 White
0.42 MB

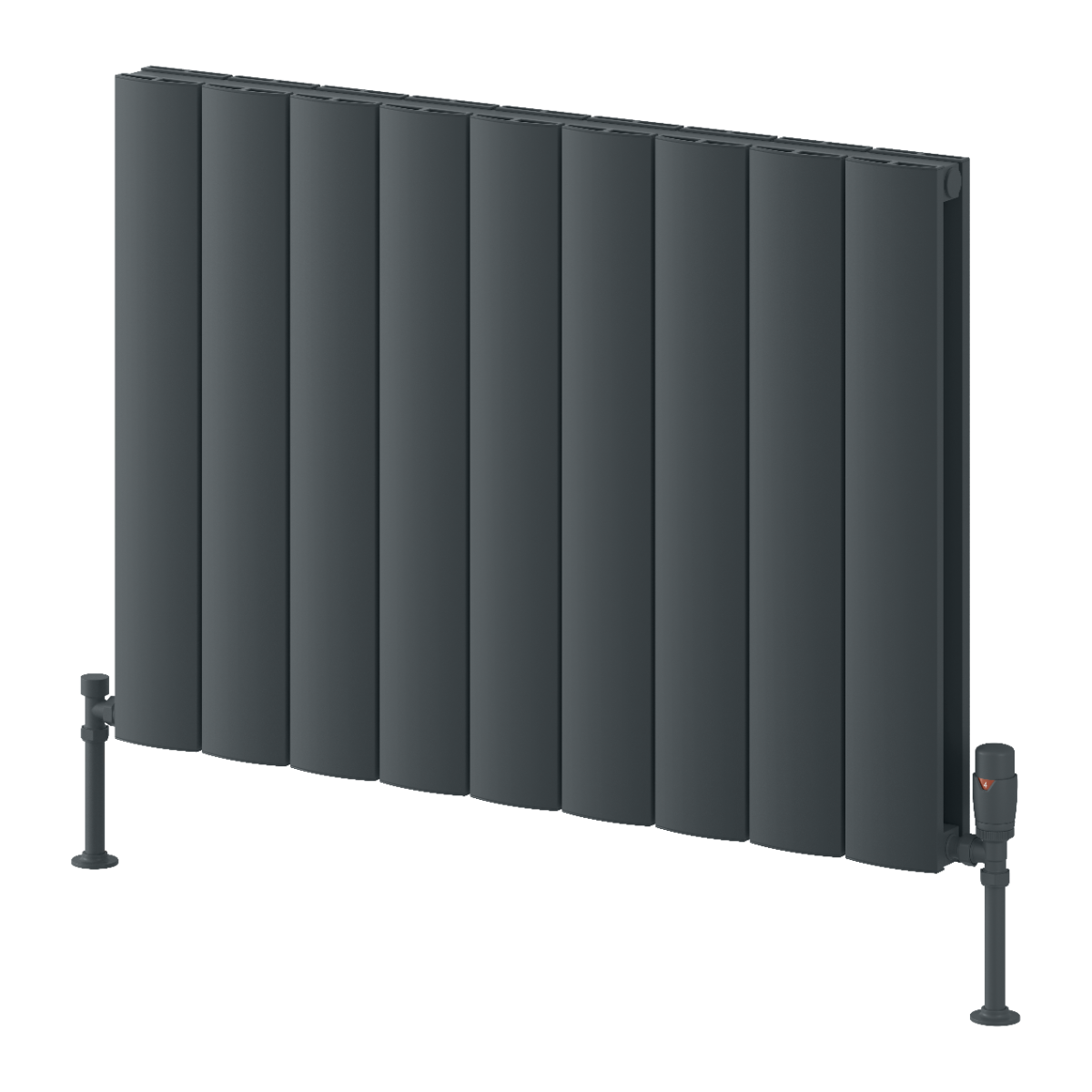

600 x 850 Anthracite
0.58 MB

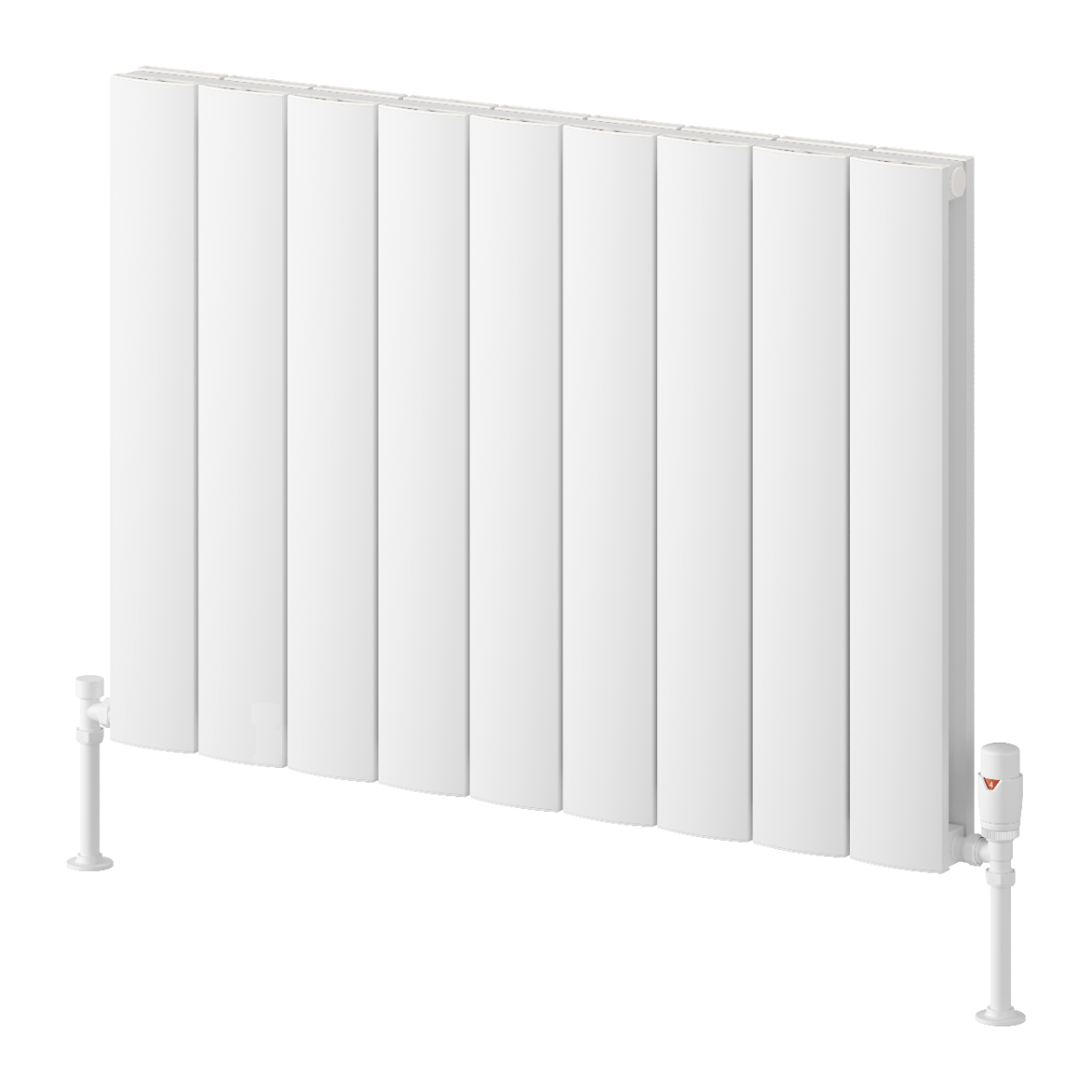

600 x 850 White
0.49 MB

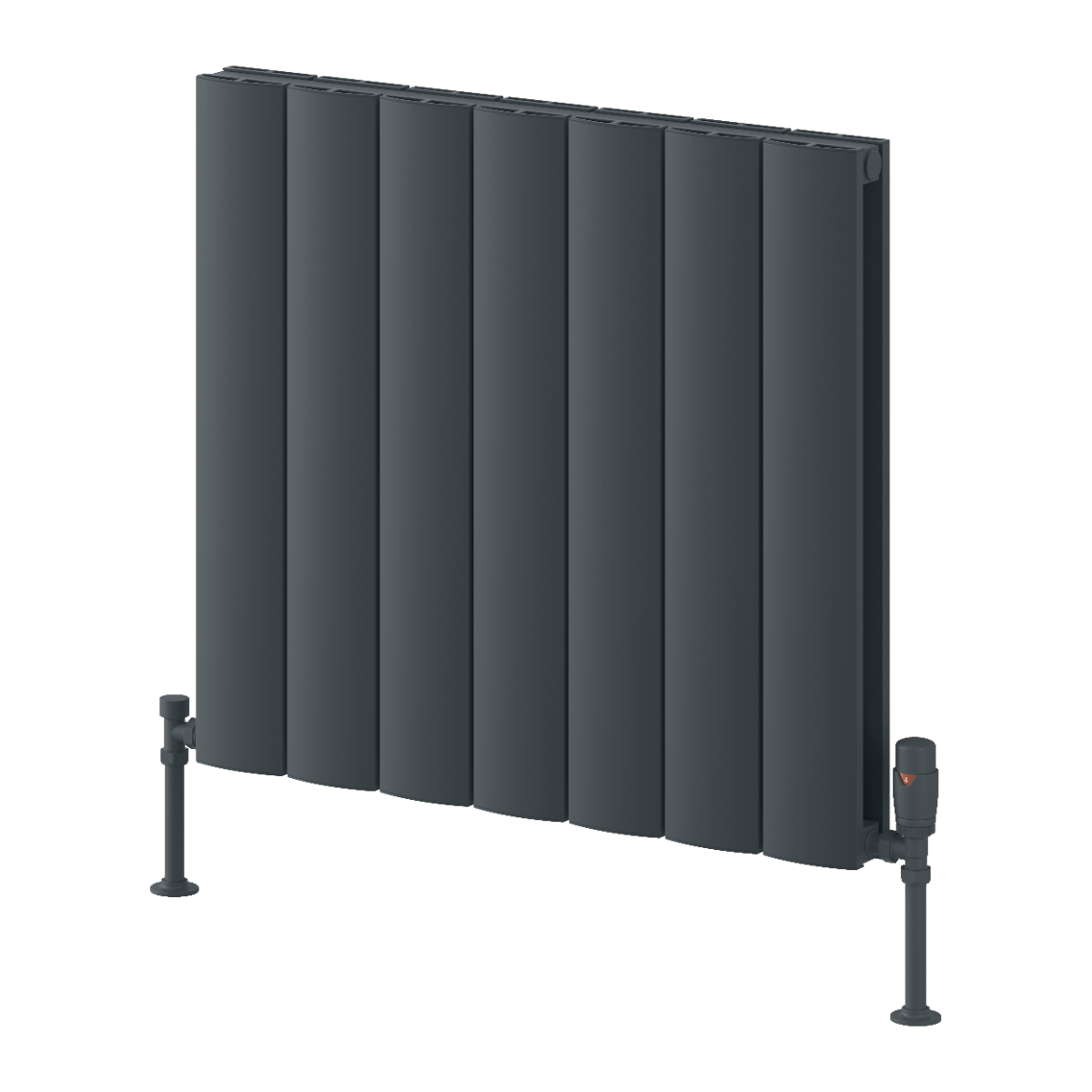

600 x 660 Anthracite
0.49 MB
600 x 660 White
0.44 MB

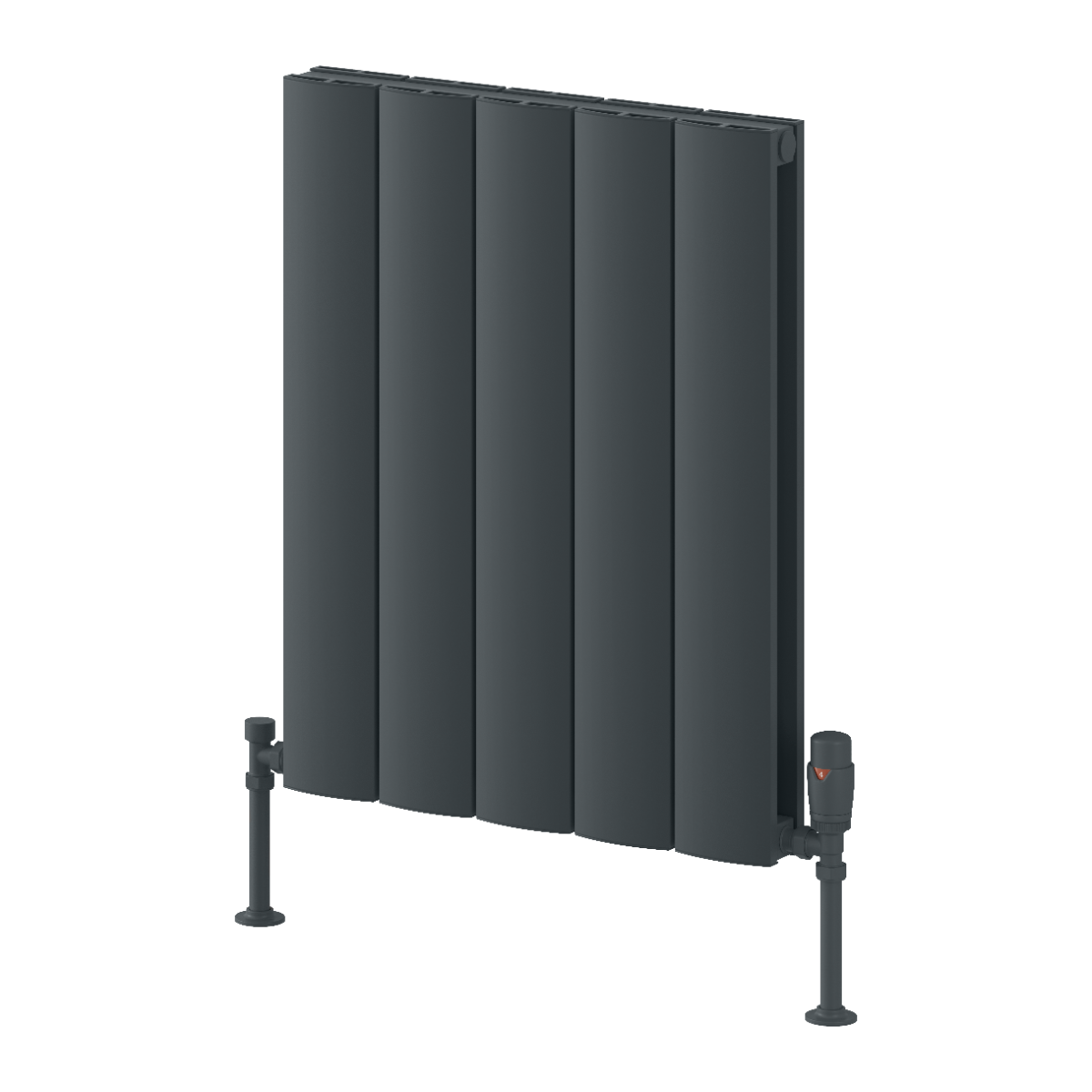

600 x 470 Anthracite
0.4 MB

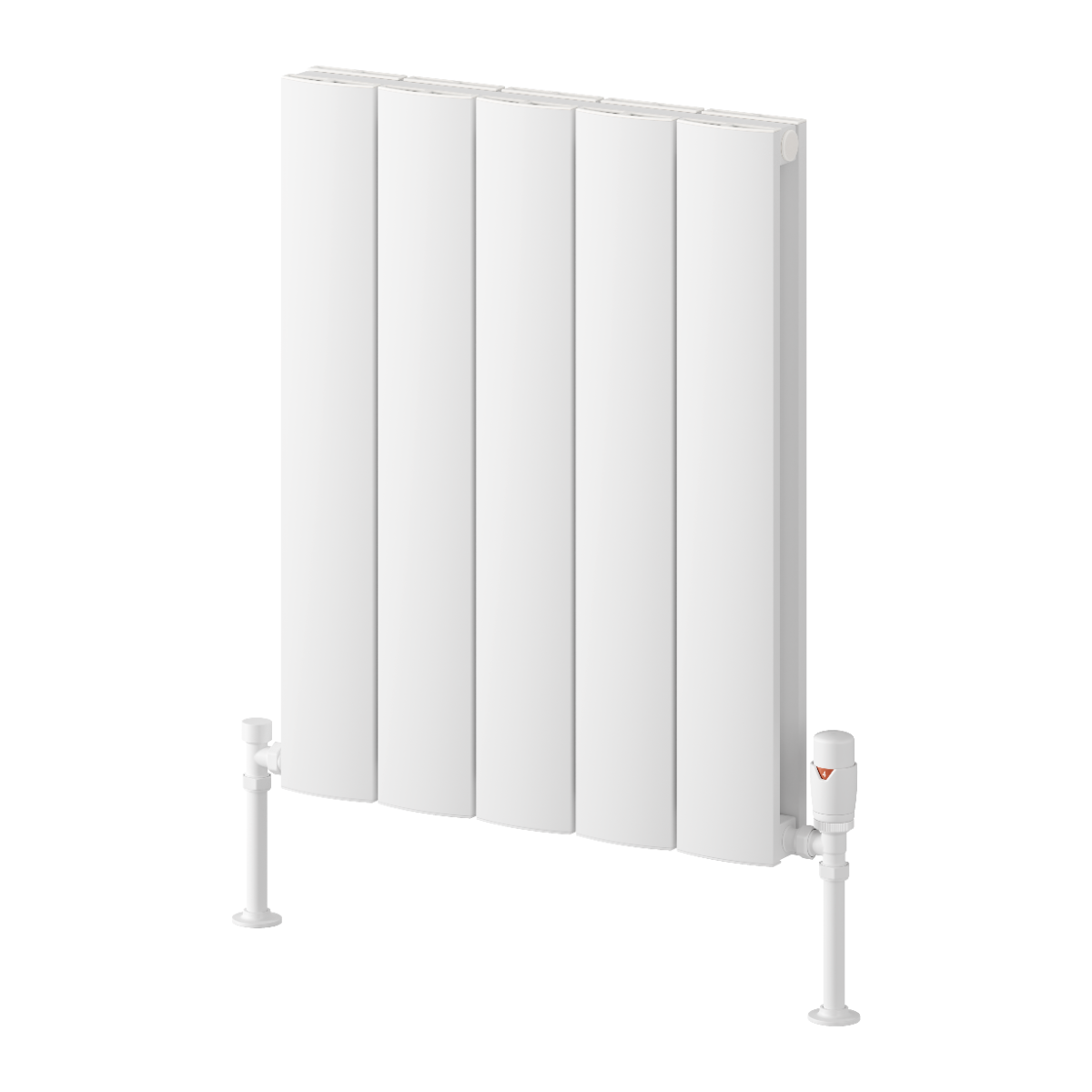

600 x 470 White
0.31 MB

Roomset Product Images

Loco Horizontal Double
0.11 MB
Loco Horizontal Double
0.1 MB
Loco Horizontal Double
0.08 MB

High Resolution Images

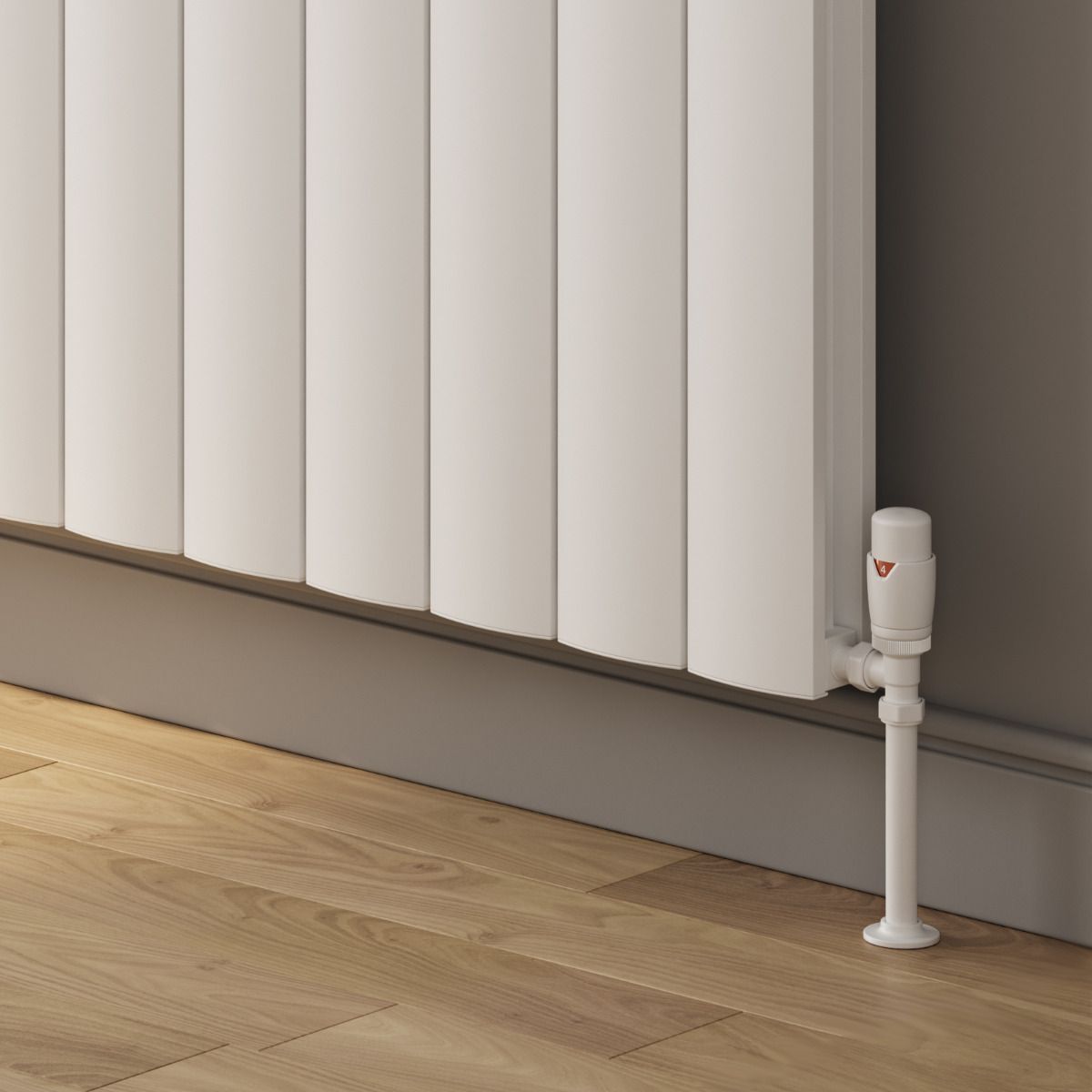

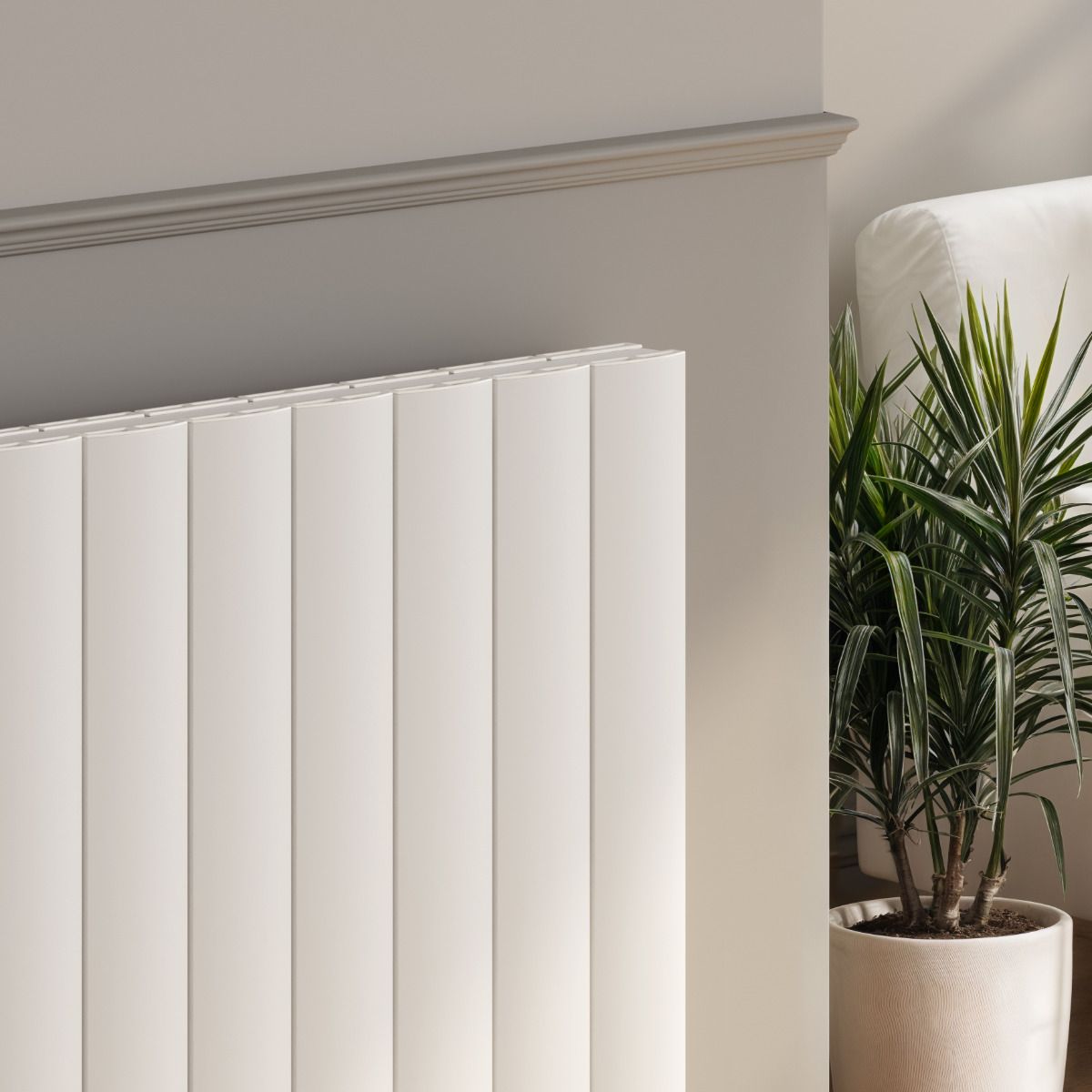

Reina Loco Horizontal Double 600x1230 White Roomset
20.84 MB
Tech Drawings

Technical Drawings

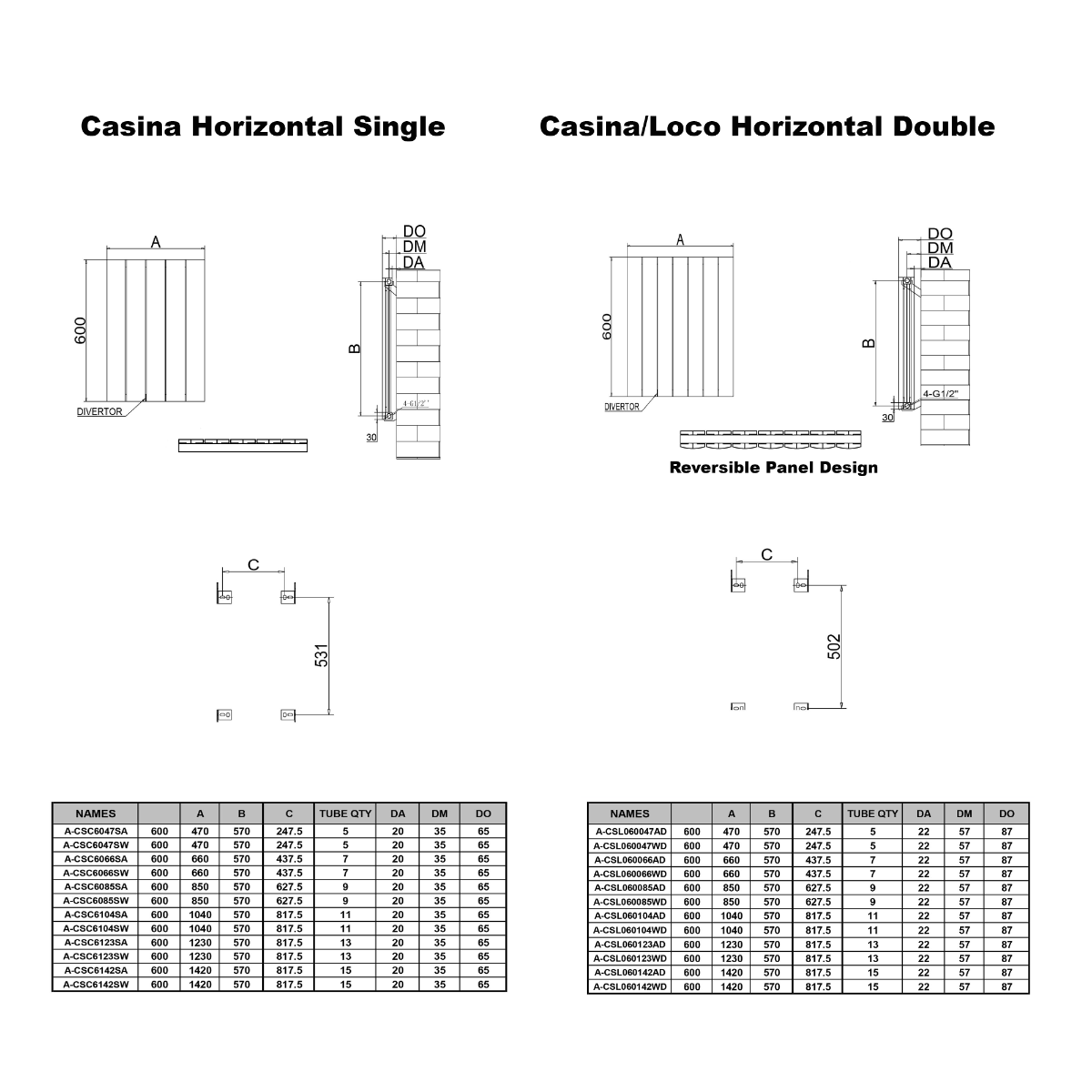

Loco Horizontal Double Technical Drawing
0.28 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
A-CSL060142AD-LHD 600 1420 Anthracite £740.00 Log in to see stock
A-CSL060142WD-LHD 600 1420 White £740.00 Log in to see stock
A-CSL060123AD-LHD 600 1230 Anthracite £650.00 Log in to see stock
A-CSL060123WD-LHD 600 1230 White £650.00 Log in to see stock
A-CSL060104AD-LHD 600 1040 Anthracite £520.00 Log in to see stock
A-CSL060104WD-LHD 600 1040 White £520.00 Log in to see stock
A-CSL060085AD-LHD 600 850 Anthracite £440.00 Log in to see stock
A-CSL060085WD-LHD 600 850 White £440.00 Log in to see stock
A-CSL060066AD-LHD 600 660 Anthracite £352.00 Log in to see stock
A-CSL060066WD-LHD 600 660 White £352.00 Log in to see stock
A-CSL060047AD-LHD 600 470 Anthracite £270.00 Log in to see stock
A-CSL060047WD-LHD 600 470 White £270.00 Log in to see stock
