Neva Horizontal Mild Steel Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating
Electric
Dual Fuel

The Neva Modern Horizontal Radiator presents flexible installation possibilities, enabling it to be mounted either vertically or horizontally, with optional brackets available. Boasting stylish oval vertical tubes and offered as a single or double model, it is constructed from robust steel for outstanding heat distribution. With a wonderful array of color options and supported by a 5-year warranty, the Neva effortlessly combines elegance and functionality to enhance any room.

  • Available in 2 colours and 6 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white
  • anthracite

Product Resource Centre

550mm HEIGHT 413mm WIDTH
550mm HEIGHT 590mm WIDTH
550mm HEIGHT 826mm WIDTH
550mm HEIGHT 1003mm WIDTH
550mm HEIGHT 1180mm WIDTH
550mm HEIGHT 1416mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
550 413 Single 413 65 103 - 7
550 590 Single 590 65 103 - 10
550 826 Single 826 65 103 - 14
550 1003 Single 1003 65 103 - 17
550 1180 Single 1180 65 103 - 20
550 1416 Single 1416 65 103 - 24
550 413 Double 413 65 103 - 14
550 590 Double 590 65 103 - 20
550 826 Double 826 65 103 - 28
550 1003 Double 1003 65 103 - 34
550 1180 Double 1180 65 103 - 40
550 1416 Double 1416 65 103 - 48

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
RND-HNV7 550 413 White 1186 348 927 272 473 139
RND-HNV7A 550 413 Anthracite 1186 348 927 272 473 139
RND-HNV10 550 590 White 1693 496 1323 388 675 198
RND-HNV10A 550 590 Anthracite 1693 496 1323 388 675 198
RND-HNV14 550 826 White 2383 699 1862 546 949 278
RND-HNV14A 550 826 Anthracite 2383 699 1862 546 949 278
RND-HNV17 550 1003 White 2879 844 2249 660 1147 336
RND-HNV17A 550 1003 Anthracite 2879 844 2249 660 1147 336
RND-HNV20 550 1180 White 3386 993 2645 776 1349 396
RND-HNV20A 550 1180 Anthracite 3386 993 2645 776 1349 396
RND-HNV24 550 1416 White 4063 1191 3174 931 1619 475
RND-HNV24A 550 1416 Anthracite 4063 1191 3174 931 1619 475
RND-HNV7AD 550 413 Anthracite 1898 557 1483 435 756 222
RND-HNV7D 550 413 White 1898 557 1483 435 756 222
RND-HNV10AD 550 590 Anthracite 2710 795 2117 621 1080 317
RND-HNV10D 550 590 White 2710 795 2117 621 1080 317
RND-HNV14AD 550 826 Anthracite 3812 1118 2978 873 1519 445
RND-HNV14D 550 826 White 3812 1118 2978 873 1519 445
RND-HNV17AD 550 1003 Anthracite 4606 1351 3598 1055 1835 538
RND-HNV17D 550 1003 White 4606 1351 3598 1055 1835 538
RND-HNV20AD 550 1180 Anthracite 5418 1589 4233 1241 2159 633
RND-HNV20D 550 1180 White 5418 1589 4233 1241 2159 633
RND-HNV24AD 550 1416 Anthracite 6501 1906 5079 1489 2590 760
RND-HNV24D 550 1416 White 6501 1906 5079 1489 2590 760
Images

Cutout Product Images

550 x 413 White
0.24 MB
550 x 413 Anthracite
0.24 MB
550 x 590 White
0.34 MB
550 x 590 Anthracite
0.34 MB
550 x 826 White
0.35 MB

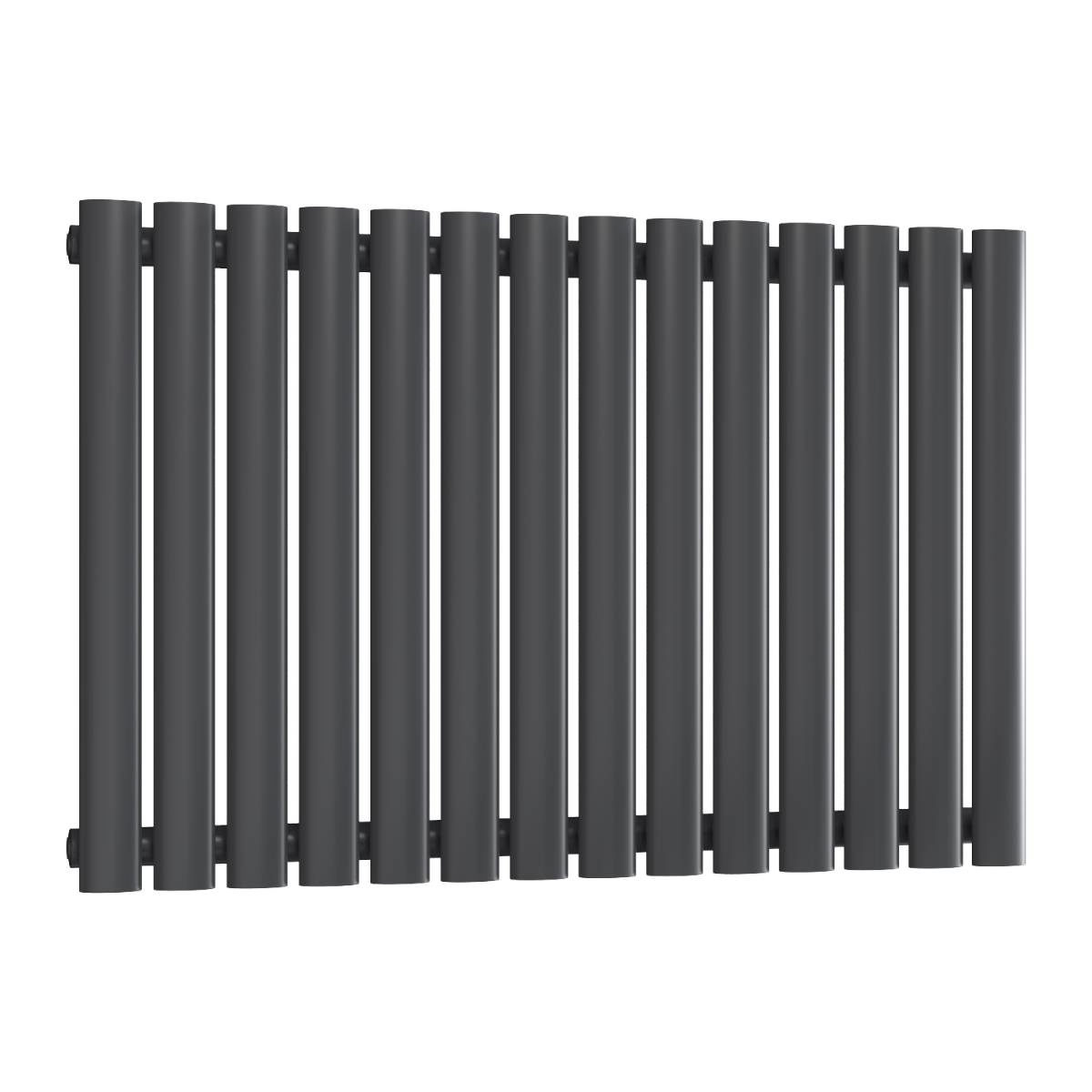

550 x 826 Anthracite
0.35 MB

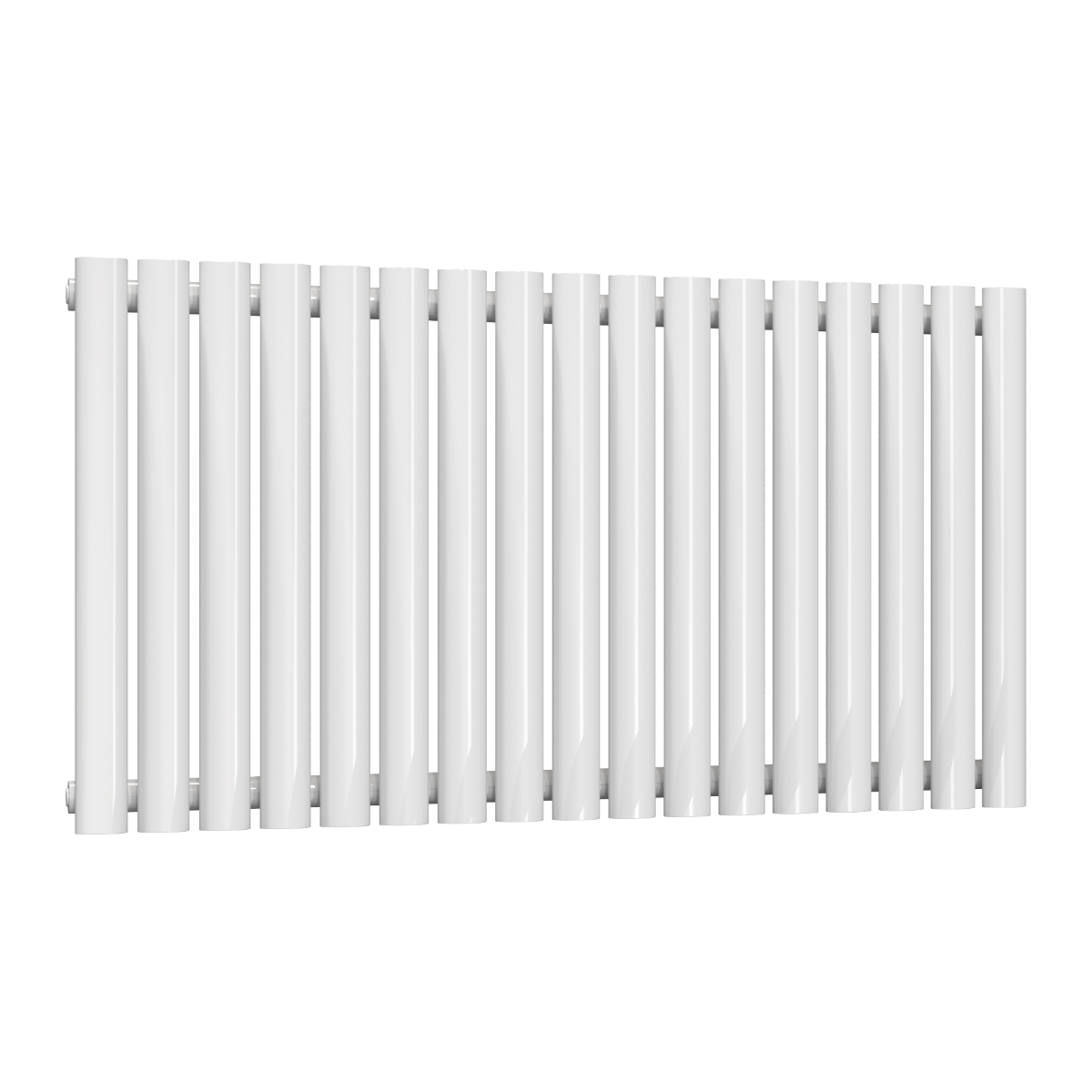

550 x 1003 White
0.31 MB

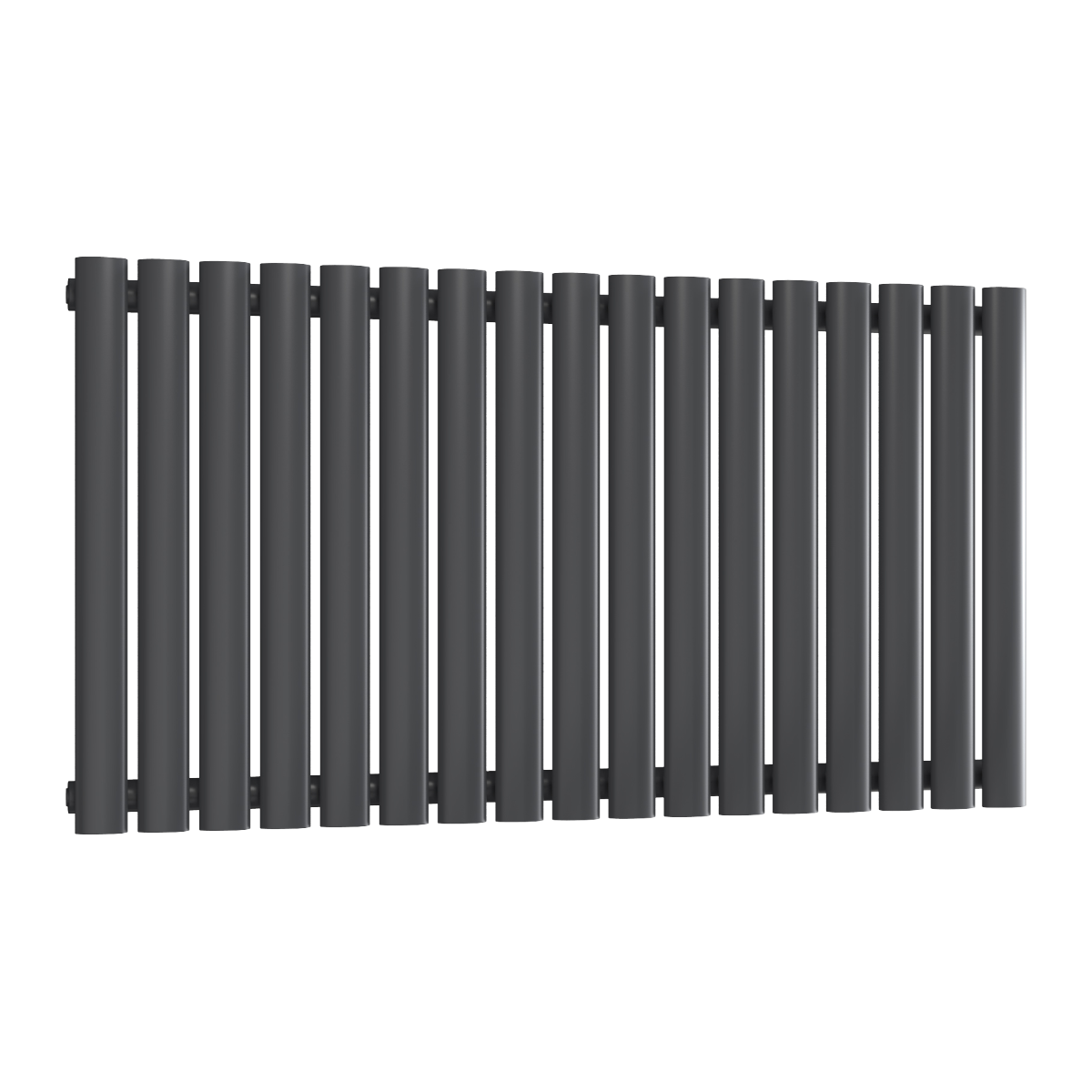

550 x 1003 Anthracite
0.3 MB

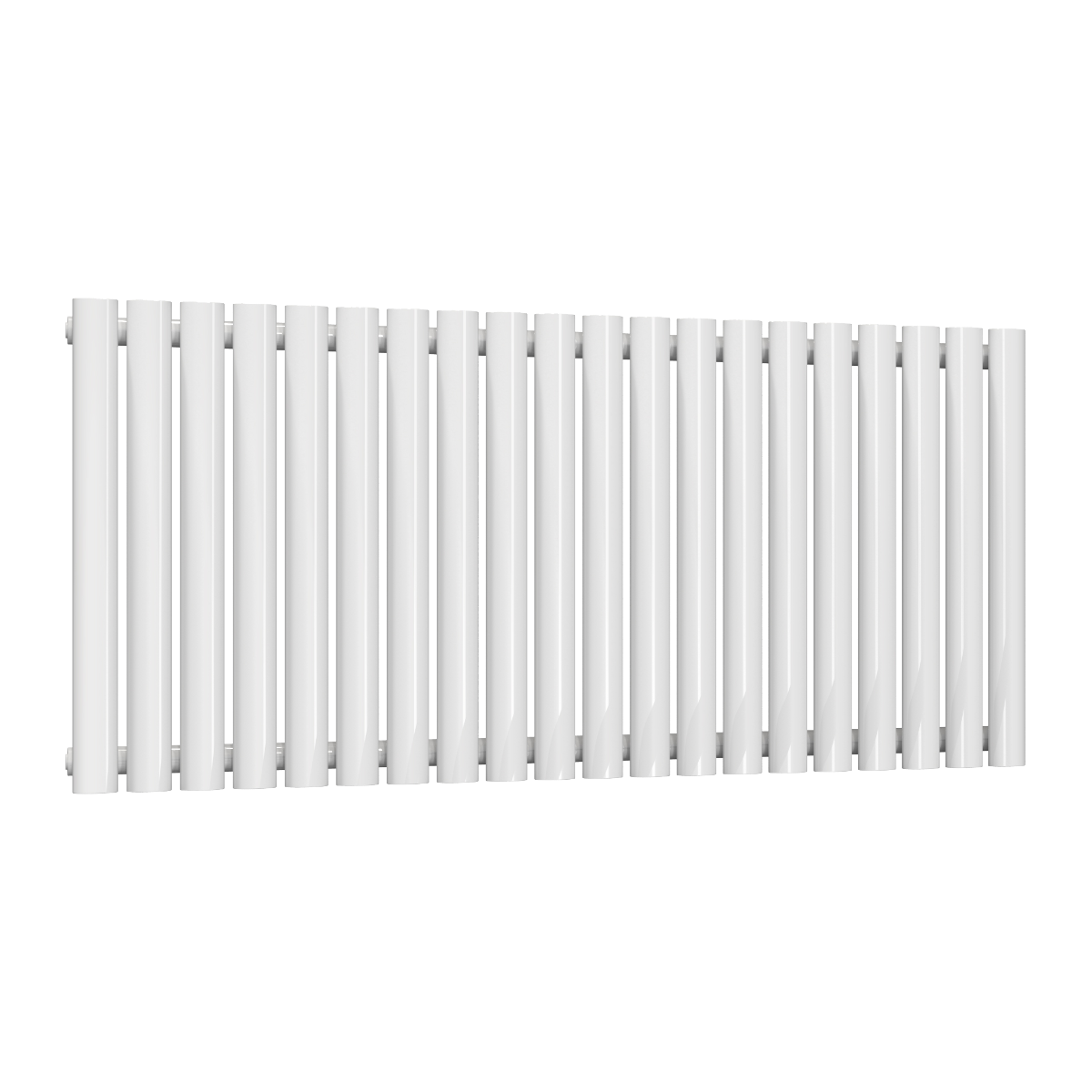

550 x 1180 White
0.28 MB

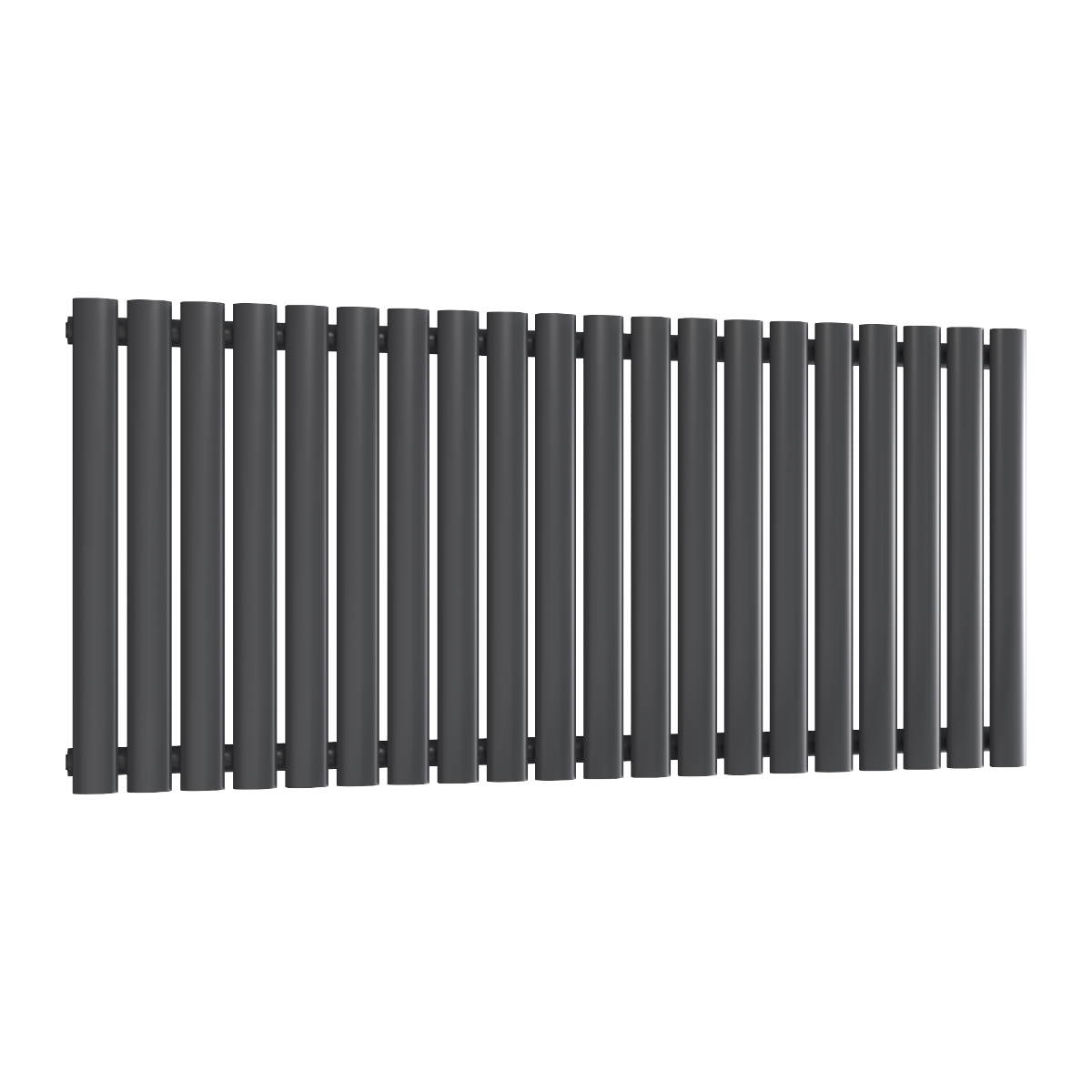

550 x 1180 Anthracite
0.28 MB
550 x 1416 White
0.26 MB
550 x 1416 Anthracite
0.26 MB

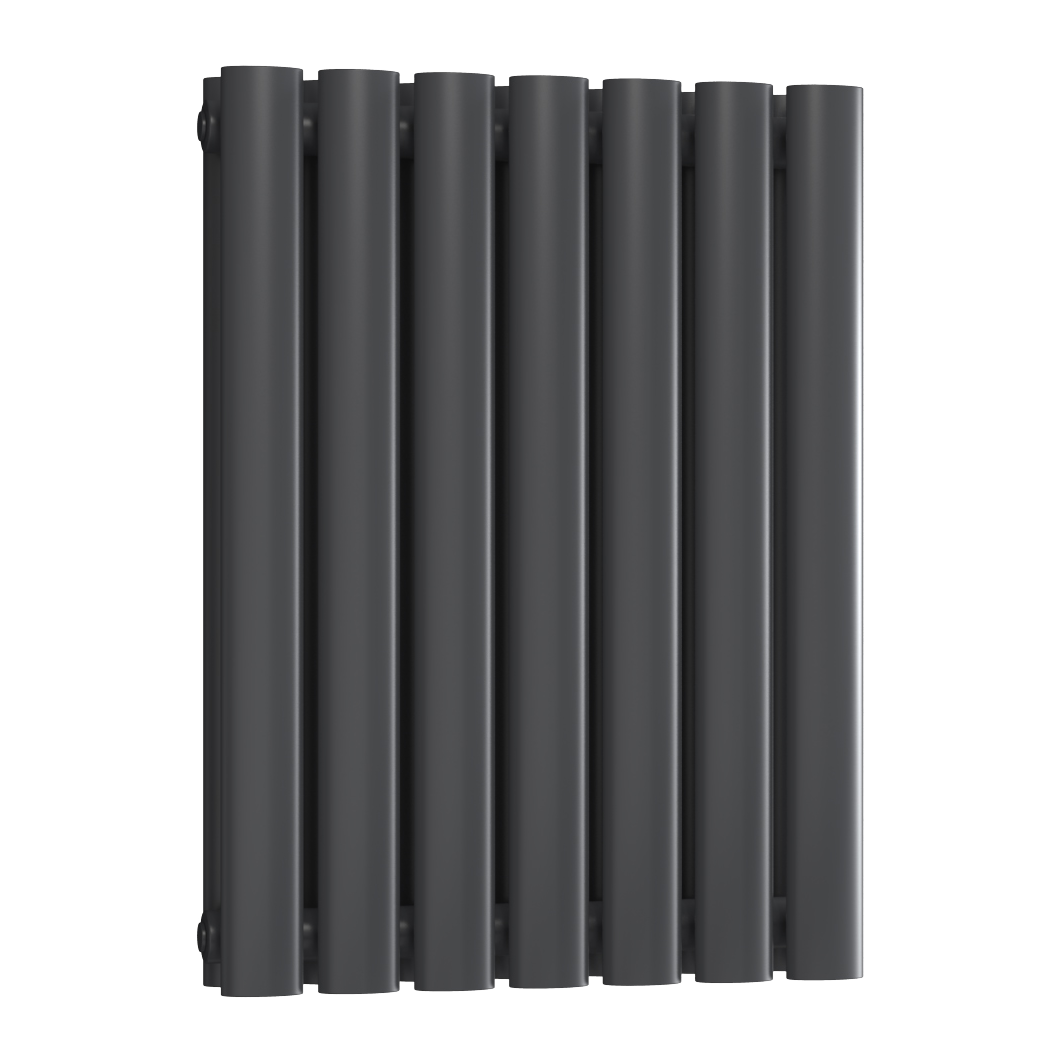

550 x 413 Anthracite
0.25 MB

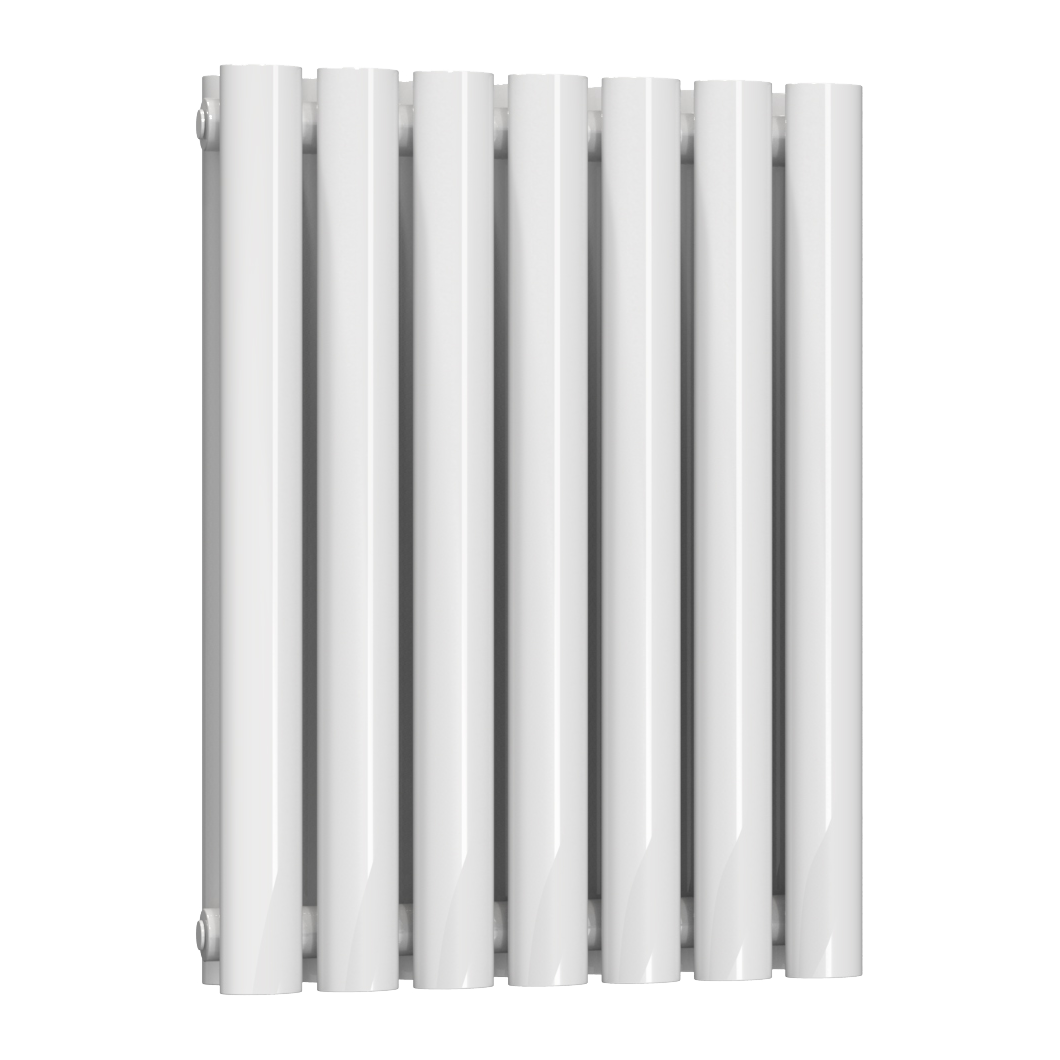

550 x 413 White
0.27 MB

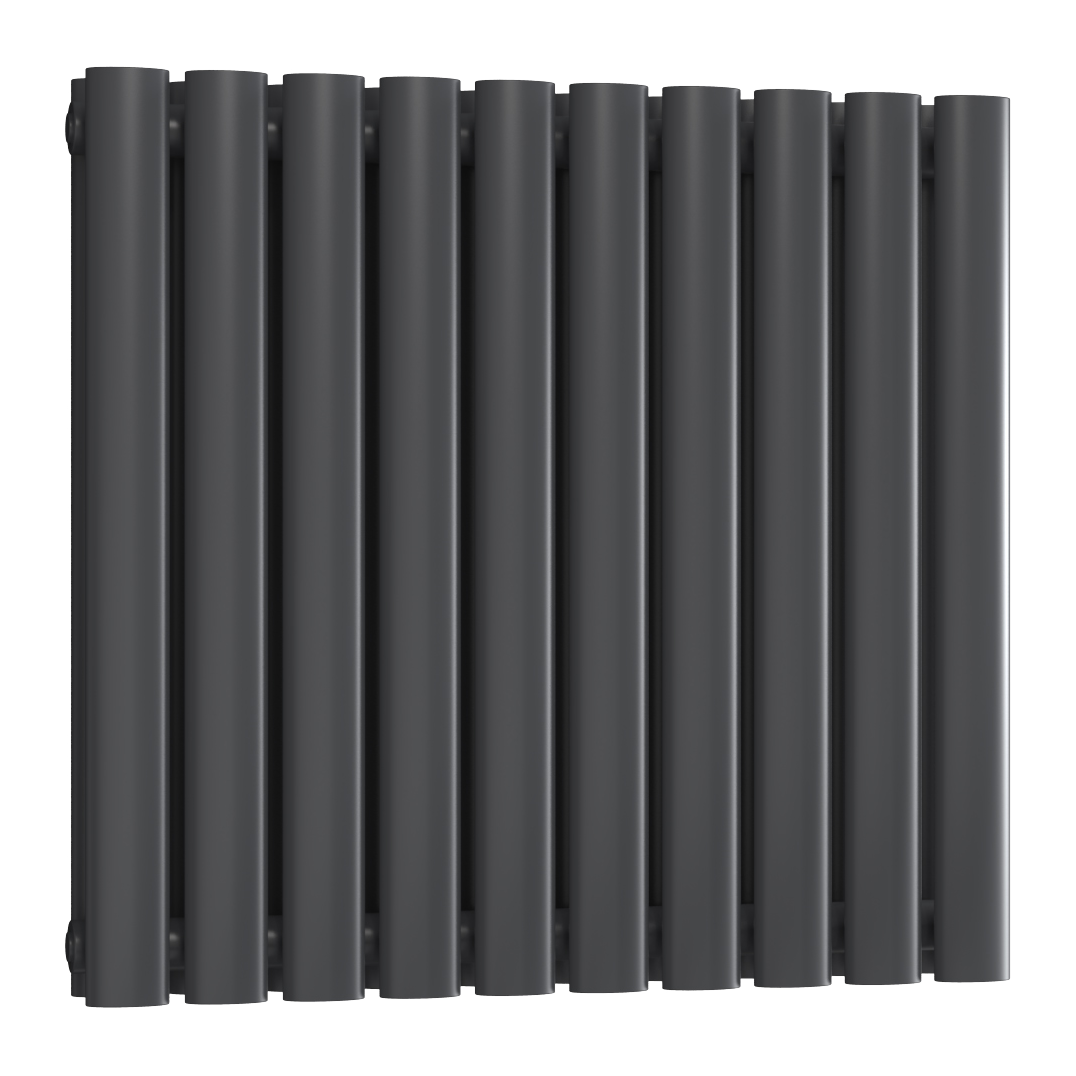

550 x 590 Anthracite
0.34 MB

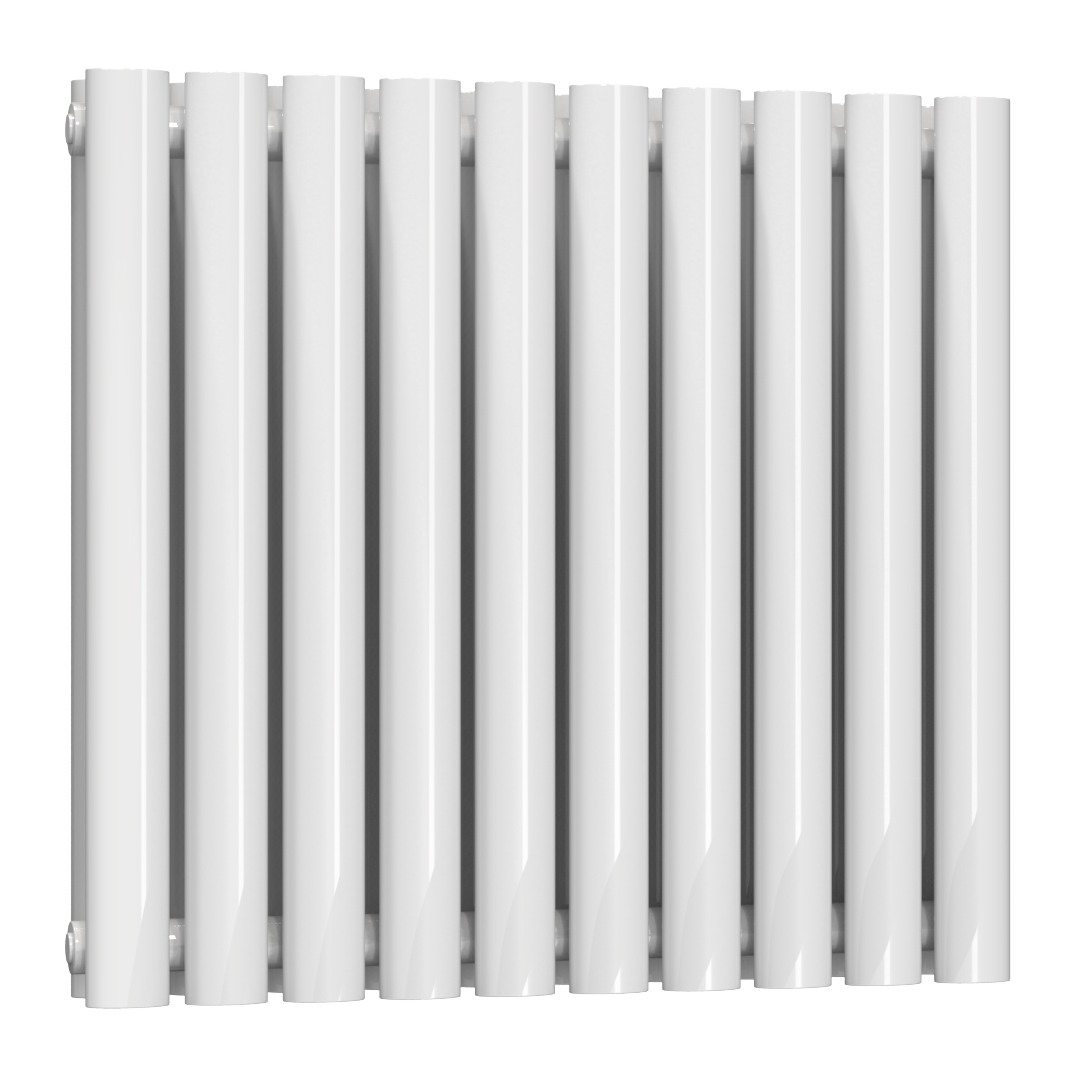

550 x 590 White
0.37 MB
550 x 826 Anthracite
0.35 MB

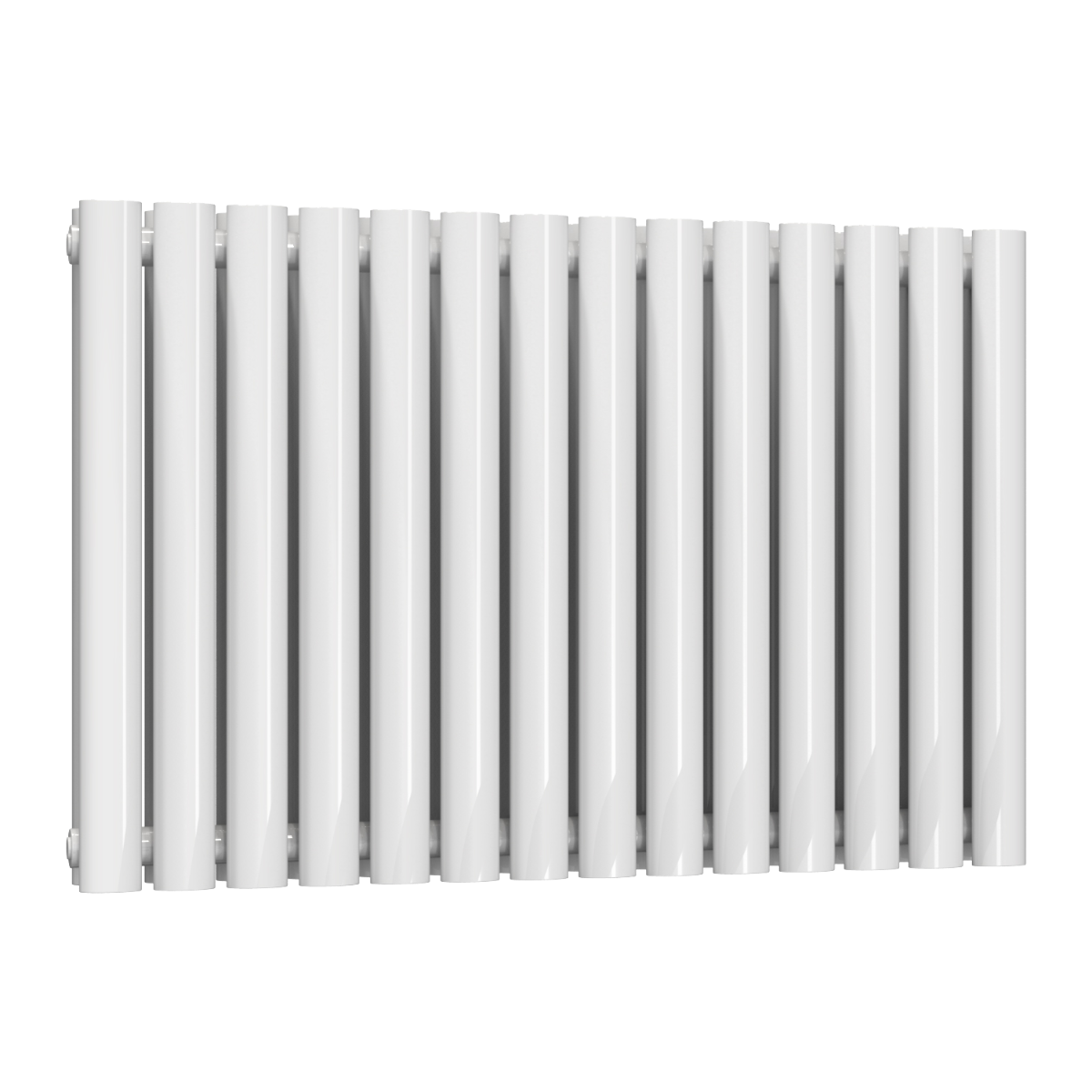

550 x 826 White
0.36 MB

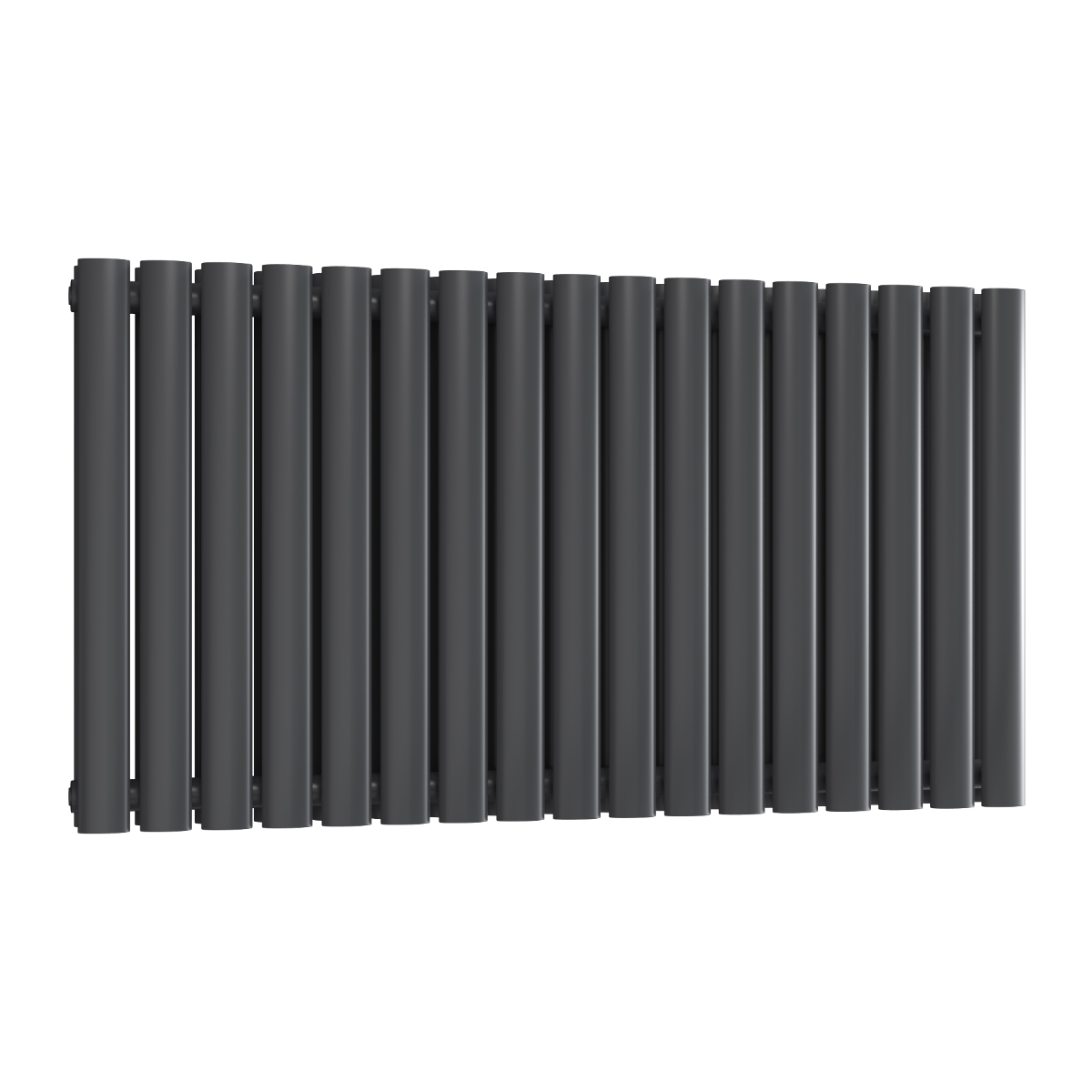

550 x 1003 Anthracite
0.3 MB

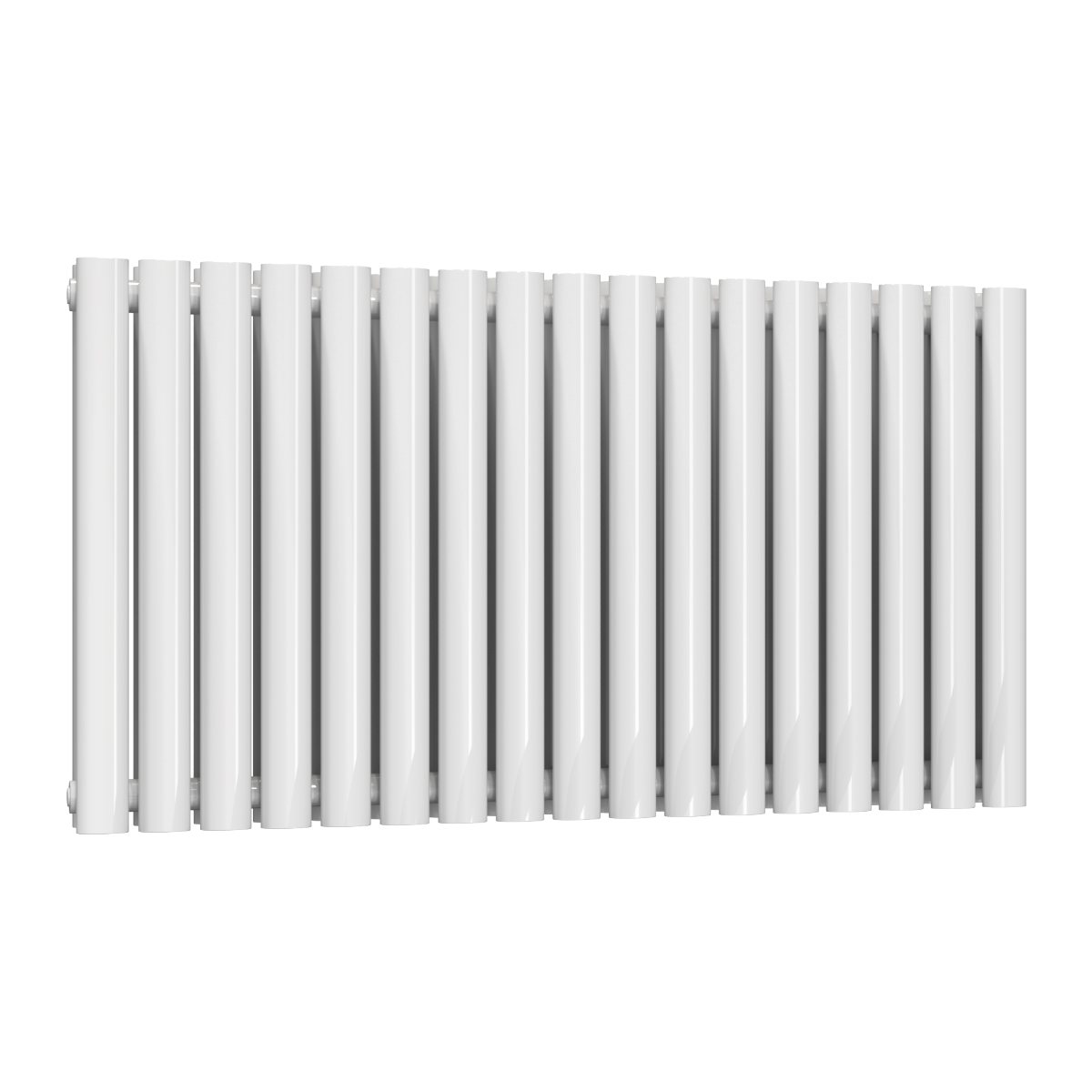

550 x 1003 White
0.32 MB

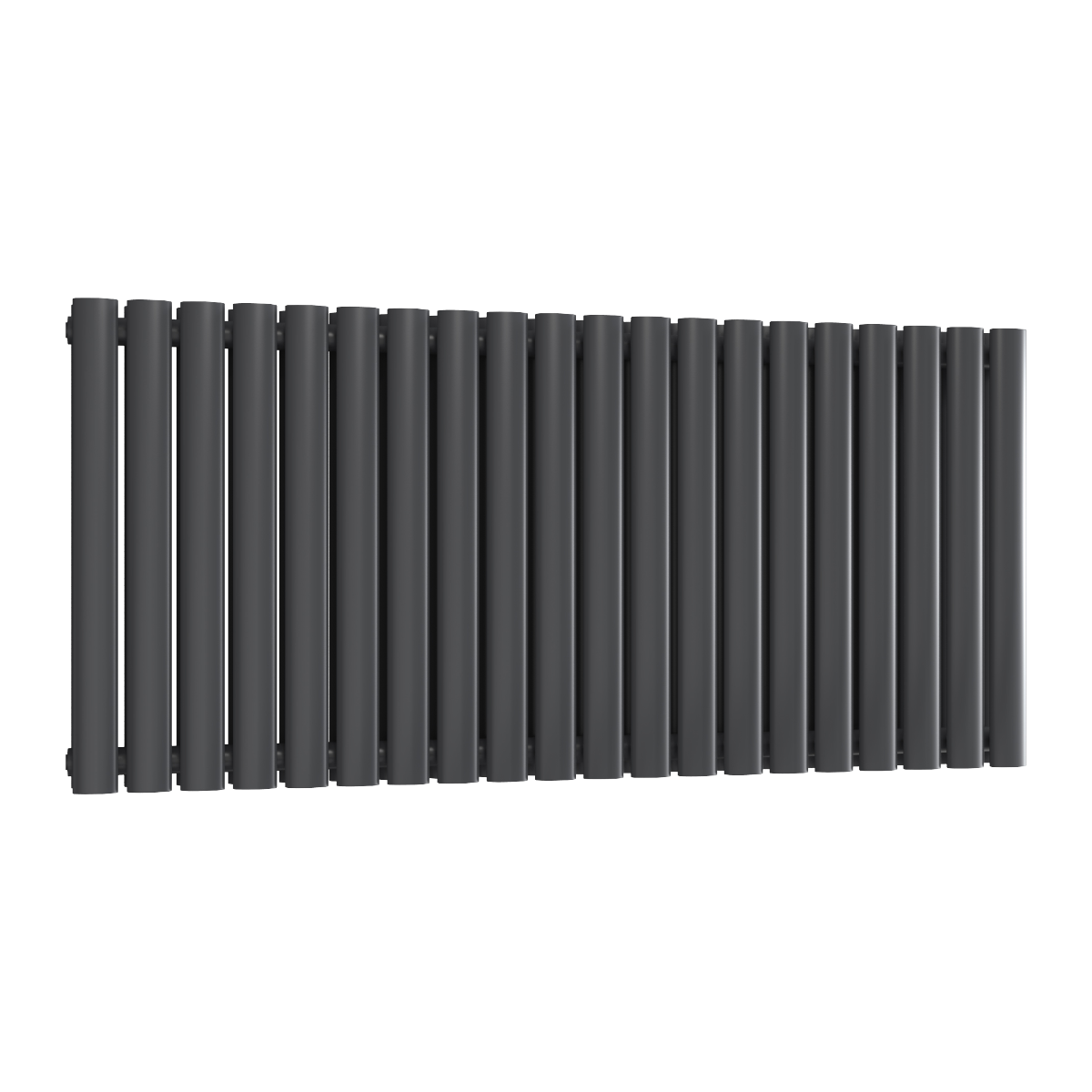

550 x 1180 Anthracite
0.28 MB

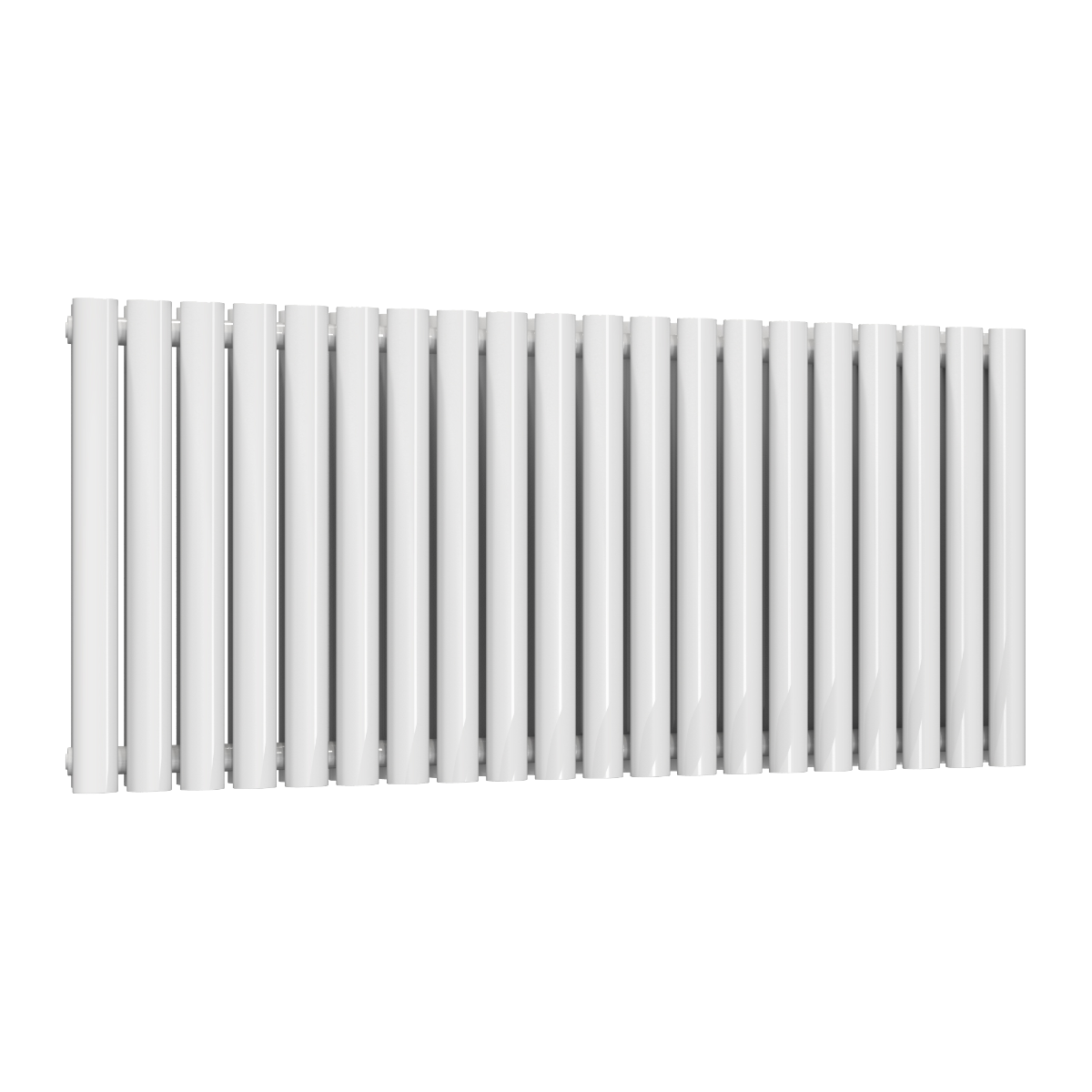

550 x 1180 White
0.29 MB

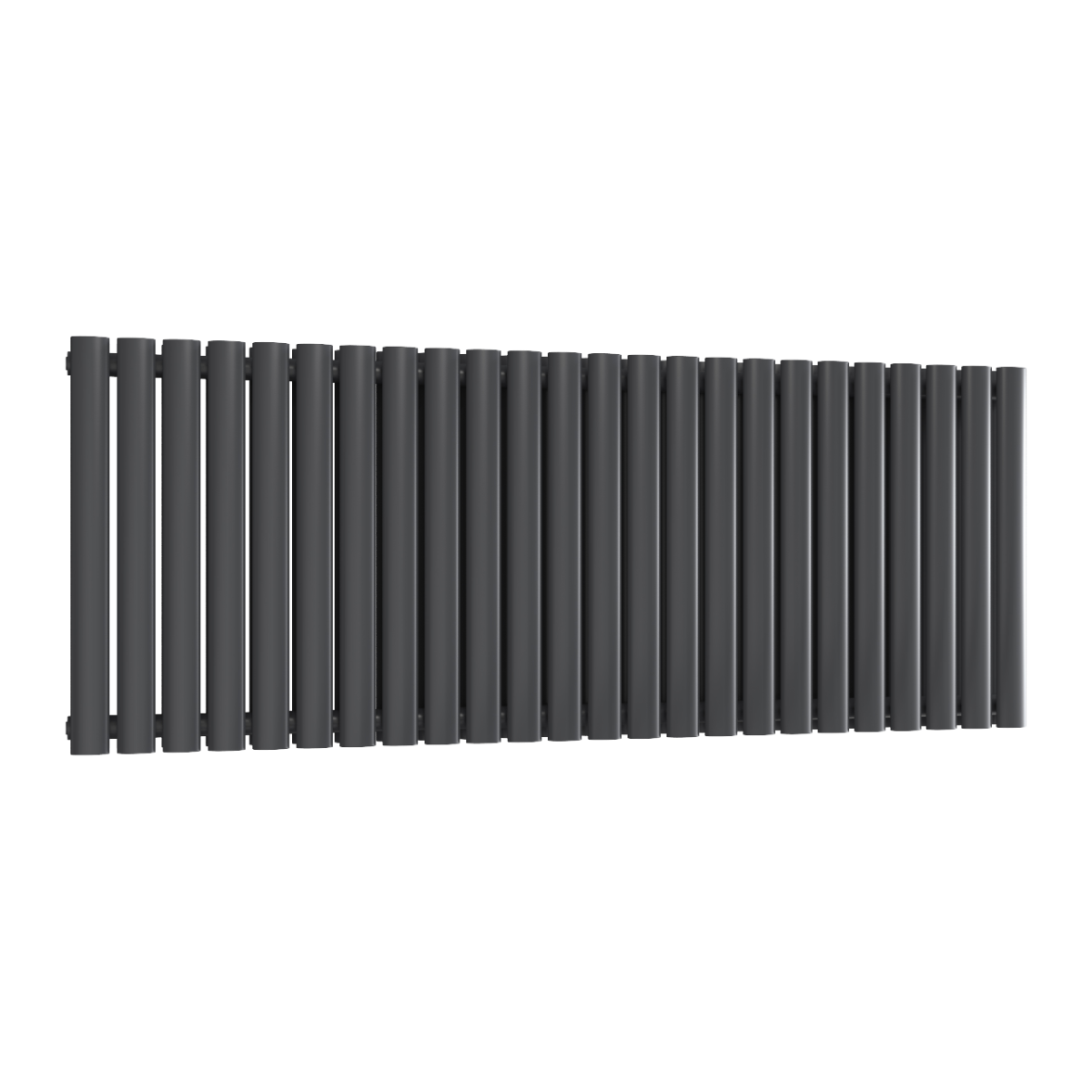

550 x 1416 Anthracite
0.26 MB

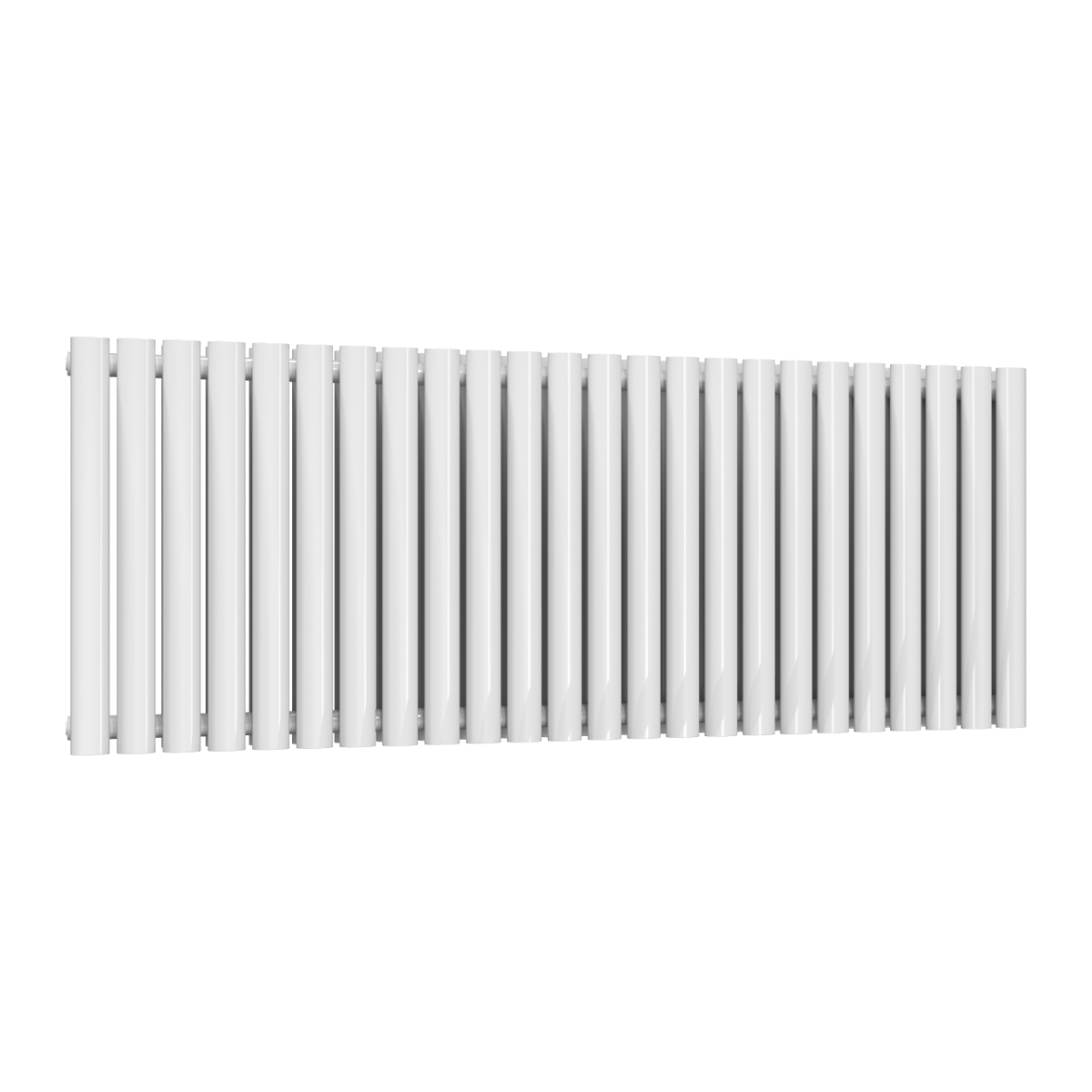

550 x 1416 White
0.25 MB

Roomset Product Images

Neva Horizontal
0.15 MB
Neva Horizontal
0.16 MB

High Resolution Images

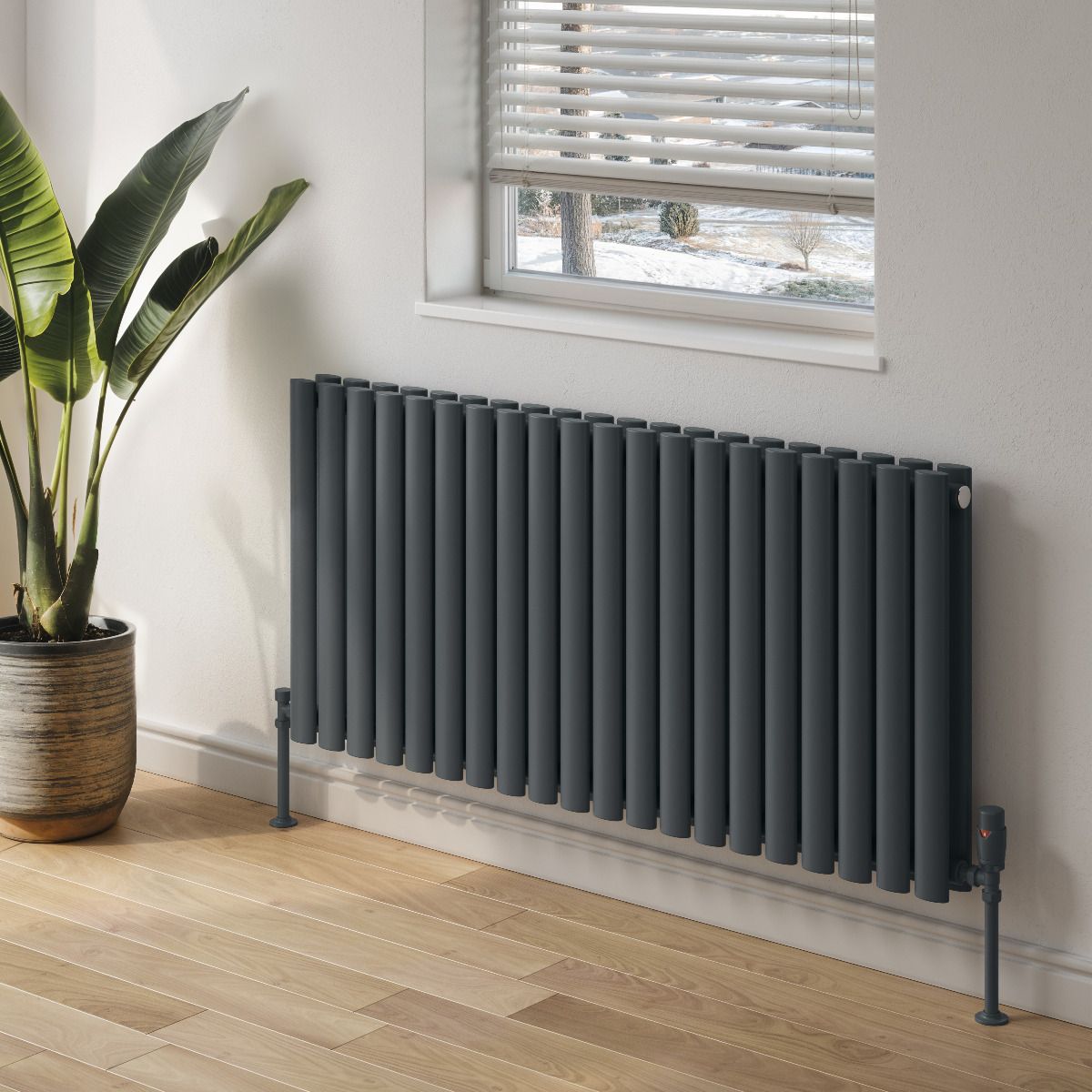

Reina Neva Horizontal Double 550x1180 Anthracite Roomset
27.5 MB

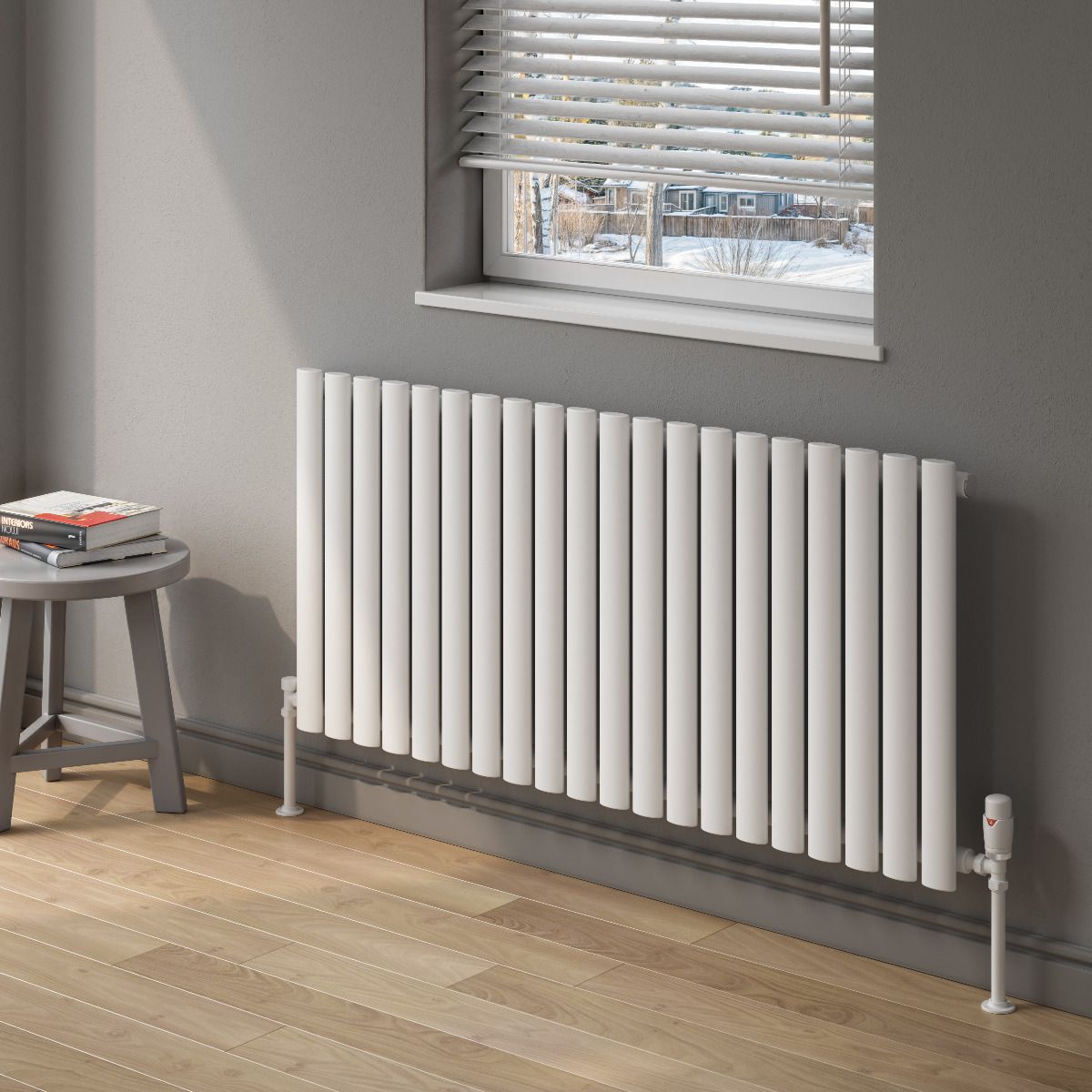

Reina Neva Horizontal Single 550x1180 White Roomset
26.32 MB
Tech Drawings

Technical Drawings

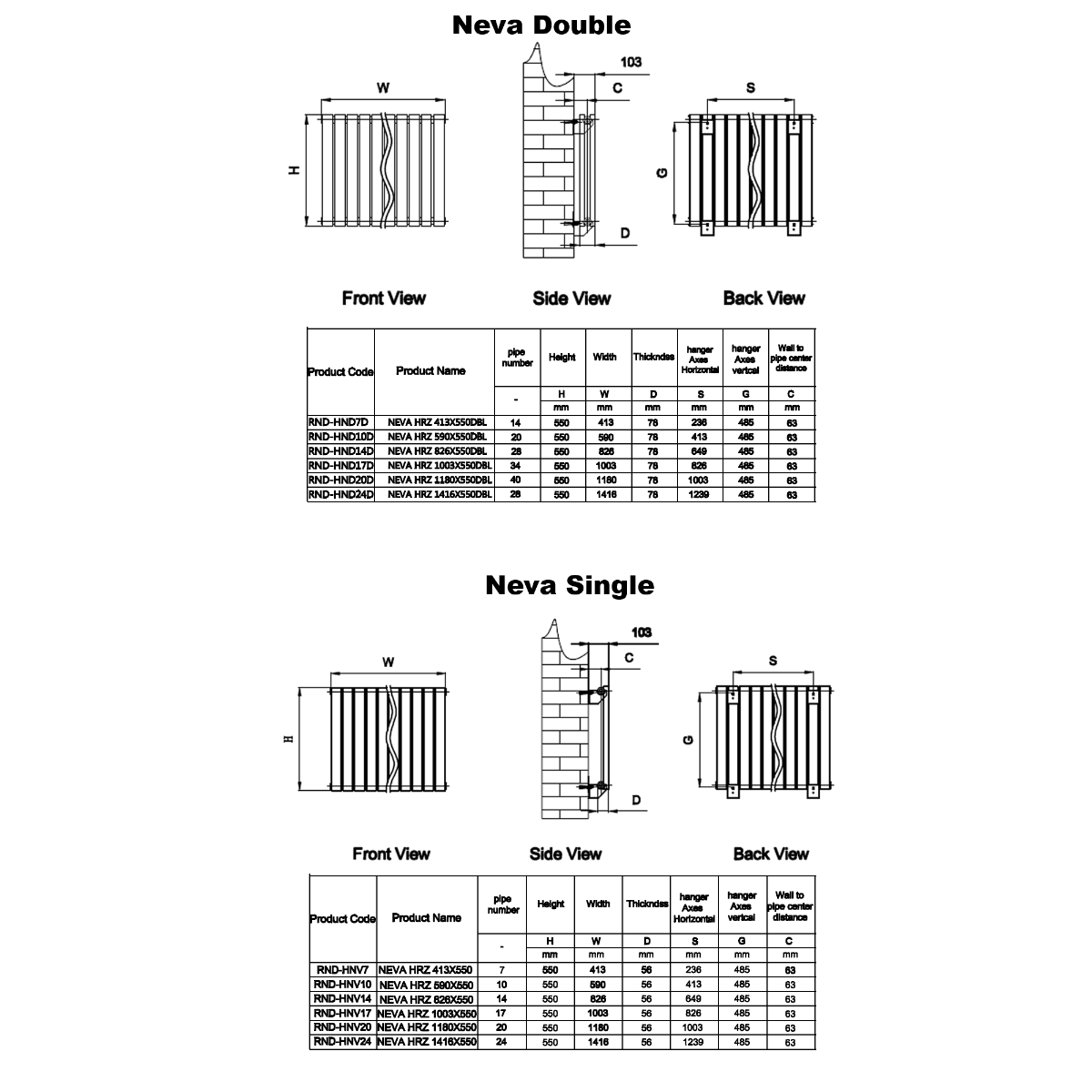

Neva Horizontal Technical Drawing
0.23 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
RND-HNV7 550 413 White £122.00 Log in to see stock
RND-HNV7A 550 413 Anthracite £122.00 Log in to see stock
RND-HNV10 550 590 White £150.00 Log in to see stock
RND-HNV10A 550 590 Anthracite £150.00 Log in to see stock
RND-HNV14 550 826 White £196.00 Log in to see stock
RND-HNV14A 550 826 Anthracite £196.00 Log in to see stock
RND-HNV17 550 1003 White £230.00 Log in to see stock
RND-HNV17A 550 1003 Anthracite £230.00 Log in to see stock
RND-HNV20 550 1180 White £264.00 Log in to see stock
RND-HNV20A 550 1180 Anthracite £264.00 Log in to see stock
RND-HNV24 550 1416 White £340.00 Log in to see stock
RND-HNV24A 550 1416 Anthracite £340.00 Log in to see stock
RND-HNV7AD 550 413 Anthracite £165.00 Log in to see stock
RND-HNV7D 550 413 White £165.00 Log in to see stock
RND-HNV10AD 550 590 Anthracite £215.00 Log in to see stock
RND-HNV10D 550 590 White £215.00 Log in to see stock
RND-HNV14AD 550 826 Anthracite £320.00 Log in to see stock
RND-HNV14D 550 826 White £320.00 Log in to see stock
RND-HNV17AD 550 1003 Anthracite £360.00 Log in to see stock
RND-HNV17D 550 1003 White £360.00 Log in to see stock
RND-HNV20AD 550 1180 Anthracite £415.00 Log in to see stock
RND-HNV20D 550 1180 White £415.00 Log in to see stock
RND-HNV24AD 550 1416 Anthracite £484.00 Log in to see stock
RND-HNV24D 550 1416 White £484.00 Log in to see stock
