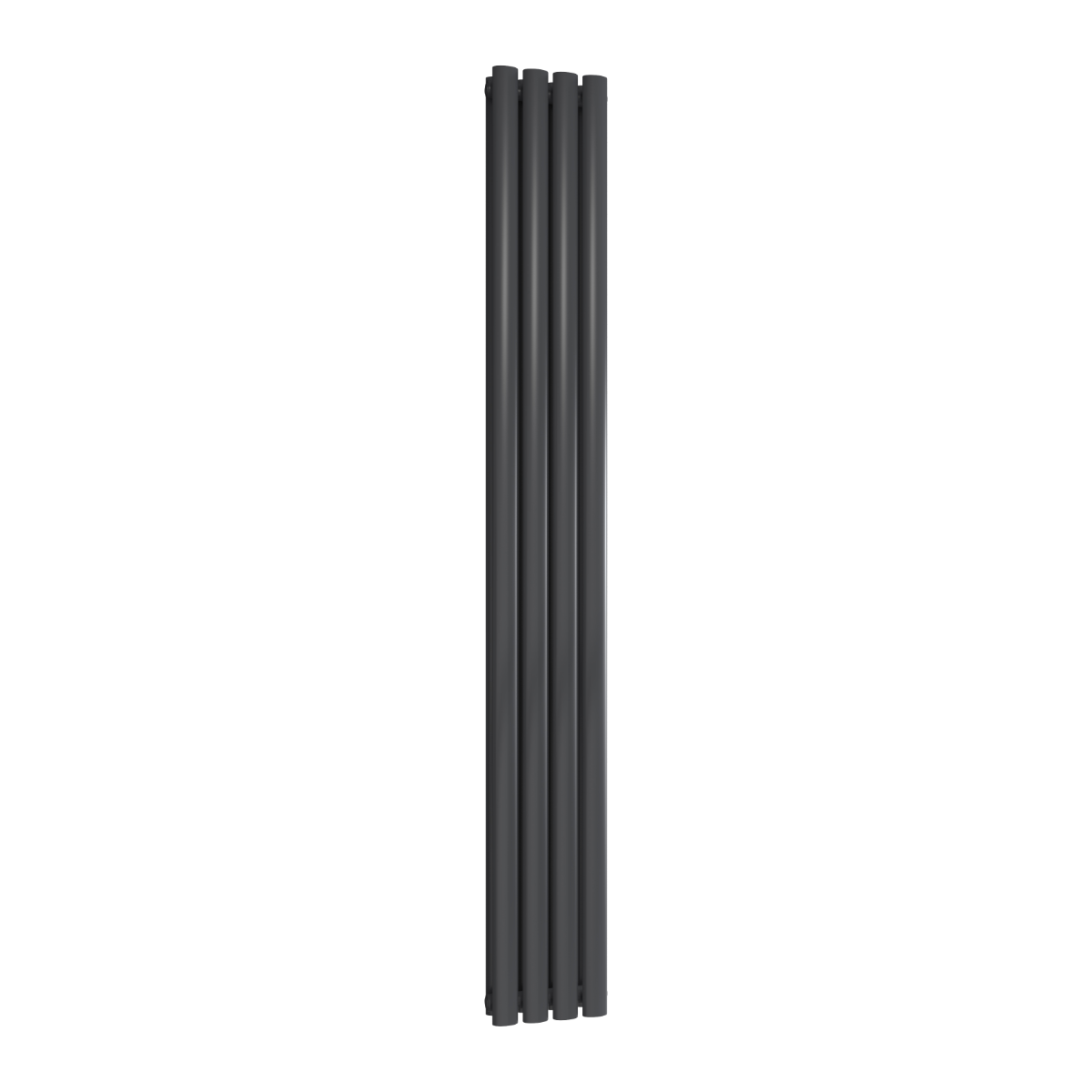

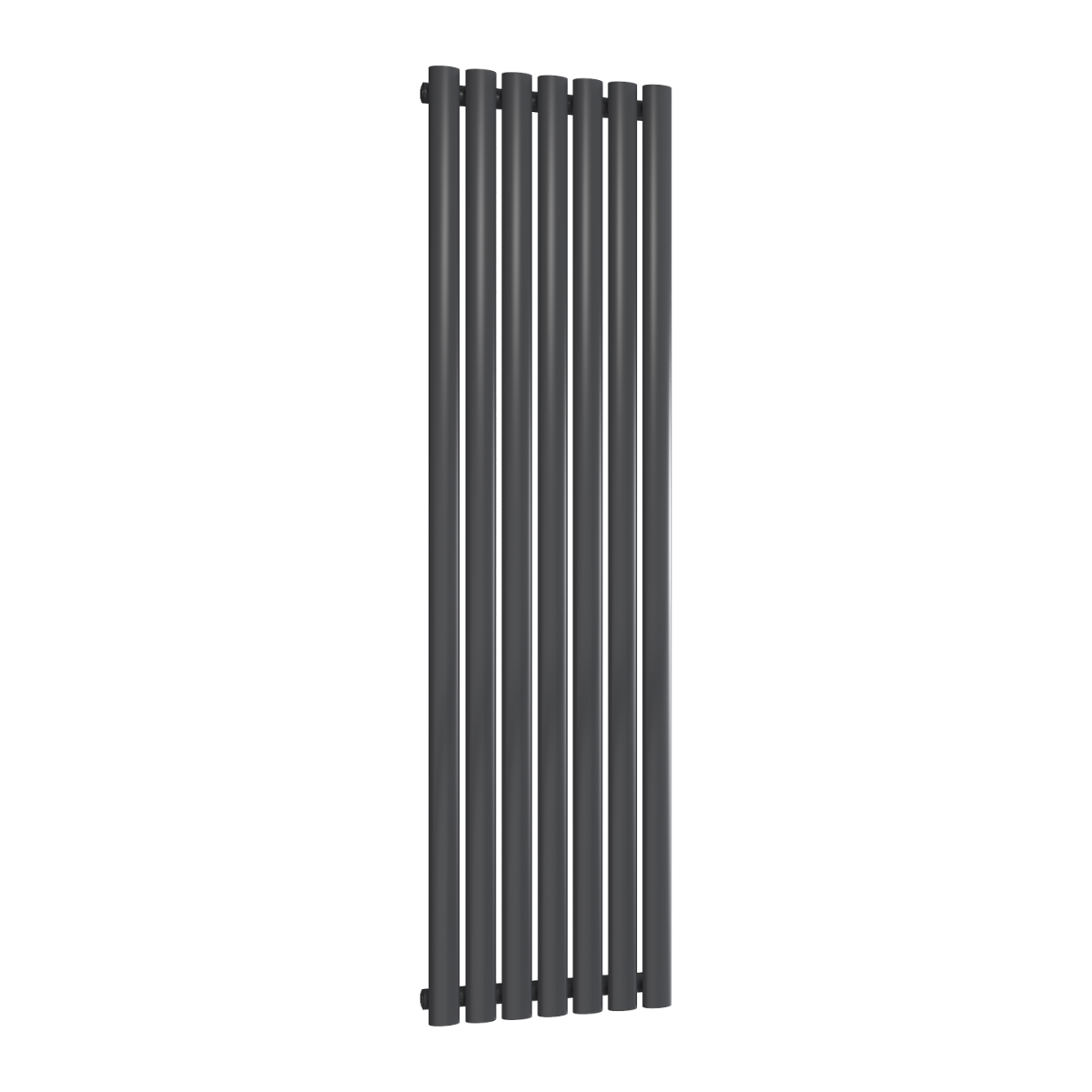

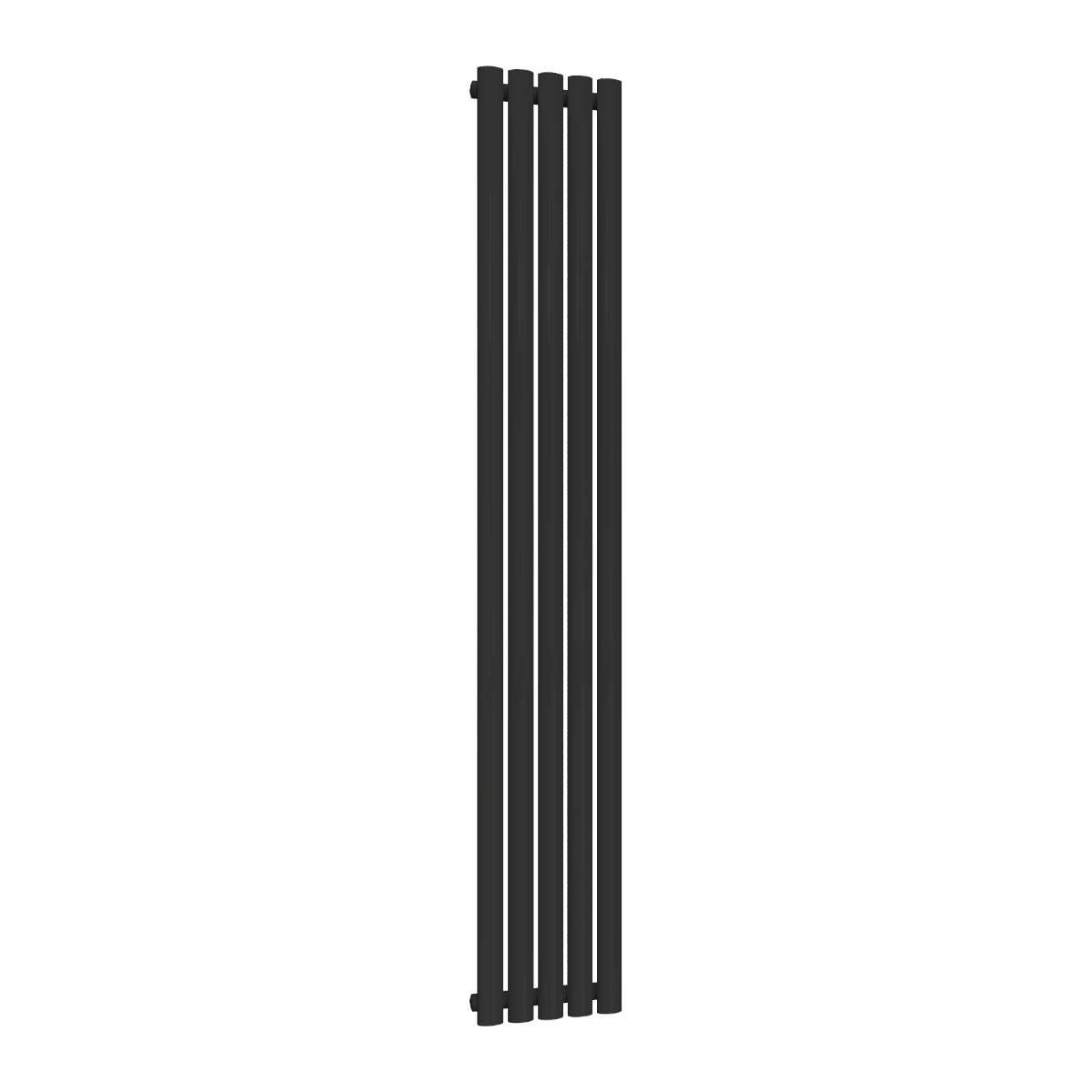

Neva Vertical Mild Steel Radiator

5 Years Guarantee
Material: Mild Steel
Central Heating

The Neva Modern Vertical Radiator presents flexible installation possibilities, enabling it to be mounted either vertically or horizontally, with optional brackets available. Boasting stylish oval vertical tubes and offered as a single or double model, it is constructed from robust steel for outstanding heat distribution. With a wonderful array of color options and supported by a 5-year warranty, the Neva effortlessly combines elegance and functionality to enhance any room.

  • Available in 2 colours and 12 sizes
  • Durable Mild Steel Construction
  • 5 Years Guarantee
  • white
  • anthracite

Product Resource Centre

1500mm HEIGHT 236mm WIDTH
1800mm HEIGHT 236mm WIDTH
1500mm HEIGHT 295mm WIDTH
1800mm HEIGHT 295mm WIDTH
1500mm HEIGHT 354mm WIDTH
1800mm HEIGHT 354mm WIDTH
1500mm HEIGHT 413mm WIDTH
1800mm HEIGHT 413mm WIDTH
1500mm HEIGHT 472mm WIDTH
1800mm HEIGHT 472mm WIDTH
1500mm HEIGHT 531mm WIDTH
1800mm HEIGHT 531mm WIDTH

3D & AR Visualiser

The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical

Measurements

Height (mm) Width (mm) Panels Pipe Centres (mm) Wall to Pipe Centres (mm) Wall Distance (mm) Dry Weight No. Bars
1500 236 Single 236 65 103 - 4
1800 236 Single 236 65 103 - 4
1500 295 Single 295 65 103 - 5
1800 295 Single 295 65 103 - 5
1500 354 Single 354 65 103 - 6
1500 236 Double 236 65 103 - 8
1800 236 Double 236 65 103 - 8
1500 295 Double 295 65 103 - 10
1800 295 Double 295 65 103 - 10
1500 354 Double 354 65 103 - 12
1800 354 Single 354 65 103 - 6
1800 354 Double 354 65 103 - 12
1500 413 Single 413 65 103 - 7
1500 413 Double 413 65 103 - 14
1800 413 Single 413 65 103 - 7
1800 413 Double 413 65 103 - 14
1500 472 Single 472 65 103 - 8
1500 472 Double 472 65 103 - 16
1800 472 Single 472 65 103 - 8
1800 472 Double 472 65 103 - 16
1500 531 Single 531 65 103 - 9
1500 531 Double 531 65 103 - 18
1800 531 Single 531 65 103 - 9
1800 531 Double 531 65 103 - 18

For pipe centre measurement including valves, add 90mm

Technical Drawing

Heat Outputs

Central Heating Heat Outputs

Model/SKU Height (mm) Width (mm) Colour Heat Outputs ΔT60°C Heat Outputs ΔT50°C Heat Outputs ΔT30°C
BTU Watts BTU Watts BTU Watts
RND-NV2315W 1500 236 White 1857 545 1451 425 740 217
RND-NV2315A 1500 236 Anthracite 1857 545 1451 425 740 217
RND-NV2318W 1800 236 White 2227 653 1740 510 887 260
RND-NV2318A 1800 236 Anthracite 2227 653 1740 510 887 260
RND-NV2915W 1500 295 White 2308 677 1803 529 920 270
RND-NV2915A 1500 295 Anthracite 2308 677 1803 529 920 270
RND-NV2918W 1800 295 White 2770 812 2164 635 1104 324
RND-NV2918A 1800 295 Anthracite 2770 812 2164 635 1104 324
RND-NV3515W 1500 354 White 2770 812 2164 635 1104 324
RND-NV3515A 1500 354 Anthracite 2770 812 2164 635 1104 324
RND-NV2315AD 1500 236 Anthracite 2803 822 2190 642 1117 328
RND-NV2315WD 1500 236 White 2803 822 2190 642 1117 328
RND-NV2318AD 1800 236 Anthracite 3363 986 2627 770 1340 393
RND-NV2318WD 1800 236 White 3363 986 2627 770 1340 393
RND-NV2915AD 1500 295 Anthracite 3485 1022 2723 798 1389 407
RND-NV2915WD 1500 295 White 3485 1022 2723 798 1389 407
RND-NV2918AD 1800 295 Anthracite 4183 1227 3268 958 1667 489
RND-NV2918WD 1800 295 White 4183 1227 3268 958 1667 489
RND-NV3515AD 1500 354 Anthracite 4183 1227 3268 958 1667 489
RND-NV3515WD 1500 354 White 4183 1227 3268 958 1667 489
RND-NV3518A 1800 354 Anthracite 3324 975 2597 762 1324 388
RND-NV3518AD 1800 354 Anthracite 5019 1472 3921 1150 2000 586
RND-NV3518W 1800 354 White 3324 975 2597 762 1324 388
RND-NV3518WD 1800 354 White 5019 1472 3921 1150 2000 586
RND-NV4115A 1500 413 Anthracite 3233 948 2526 741 1288 378
RND-NV4115AD 1500 413 Anthracite 4882 1432 3814 1118 1945 570
RND-NV4115W 1500 413 White 3233 948 2526 741 1288 378
RND-NV4115WD 1500 413 White 4882 1432 3814 1118 1945 570
RND-NV4118A 1800 413 Anthracite 3879 1138 3030 889 1546 453
RND-NV4118AD 1800 413 Anthracite 5857 1718 4576 1342 2334 684
RND-NV4118W 1800 413 White 3879 1138 3030 889 1546 453
RND-NV4118WD 1800 413 White 5857 1718 4576 1342 2334 684
RND-NV4715A 1500 472 Anthracite 3695 1084 2887 847 1472 432
RND-NV4715AD 1500 472 Anthracite 5580 1636 4359 1278 2223 652
RND-NV4715W 1500 472 White 3695 1084 2887 847 1472 432
RND-NV4715WD 1500 472 White 5580 1636 4359 1278 2223 652
RND-NV4718A 1800 472 Anthracite 4433 1300 3463 1016 1766 518
RND-NV4718AD 1800 472 Anthracite 6694 1963 5230 1534 2667 782
RND-NV4718W 1800 472 White 4433 1300 3463 1016 1766 518
RND-NV4718WD 1800 472 White 6694 1963 5230 1534 2667 782
RND-NV5315A 1500 531 Anthracite 4156 1219 3247 952 1656 486
RND-NV5315AD 1500 531 Anthracite 6275 1840 4902 1438 2500 733
RND-NV5315W 1500 531 White 4156 1219 3247 952 1656 486
RND-NV5315WD 1500 531 White 6275 1840 4902 1438 2500 733
RND-NV5318A 1800 531 Anthracite 5643 1655 4409 1293 2248 659
RND-NV5318AD 1800 531 Anthracite 7530 2208 5883 1725 3000 880
RND-NV5318W 1800 531 White 5643 1655 4409 1293 2248 659
RND-NV5318WD 1800 531 White 7530 2208 5883 1725 3000 880
Images

Cutout Product Images

1500 x 236 White
0.11 MB
1500 x 236 Anthracite
0.11 MB
1800 x 236 White
0.1 MB
1800 x 236 Anthracite
0.11 MB
1500 x 295 White
0.13 MB
1500 x 295 Anthracite
0.13 MB
1800 x 295 White
0.12 MB
1800 x 295 Anthracite
0.06 MB
1500 x 354 White
0.15 MB
1500 x 354 Anthracite
0.16 MB
1500 x 236 Anthracite
0.12 MB
1500 x 236 White
0.12 MB
1800 x 236 Anthracite
0.11 MB
1800 x 236 White
0.1 MB
1500 x 295 Anthracite
0.08 MB
1500 x 295 White
0.14 MB
1800 x 295 Anthracite
0.12 MB
1800 x 295 White
0.12 MB
1500 x 354 Anthracite
0.13 MB
1500 x 354 White
0.15 MB
1800 x 354 Anthracite
0.14 MB
1800 x 354 Anthracite
0.14 MB
1800 x 354 White
0.14 MB
1800 x 354 White
0.14 MB
1500 x 413 Anthracite
0.17 MB
1500 x 413 Anthracite
0.18 MB
1500 x 413 White
0.17 MB
1500 x 413 White
0.19 MB
1800 x 413 Anthracite
0.15 MB
1800 x 413 Anthracite
0.17 MB
1800 x 413 White
0.15 MB
1800 x 413 White
0.18 MB
1500 x 472 Anthracite
0.23 MB
1500 x 472 Anthracite
0.2 MB
1500 x 472 White
0.2 MB
1500 x 472 White
0.19 MB
1800 x 472 Anthracite
0.18 MB
1800 x 472 Anthracite
0.17 MB
1800 x 472 White
0.17 MB
1800 x 472 White
0.18 MB
1500 x 531 Anthracite
0.21 MB
1500 x 531 Anthracite
0.21 MB
1500 x 531 White
0.22 MB
1500 x 531 White
0.22 MB
1800 x 531 Anthracite
0.18 MB
1800 x 531 Anthracite
0.19 MB
1800 x 531 White
0.19 MB
1800 x 531 White
0.18 MB

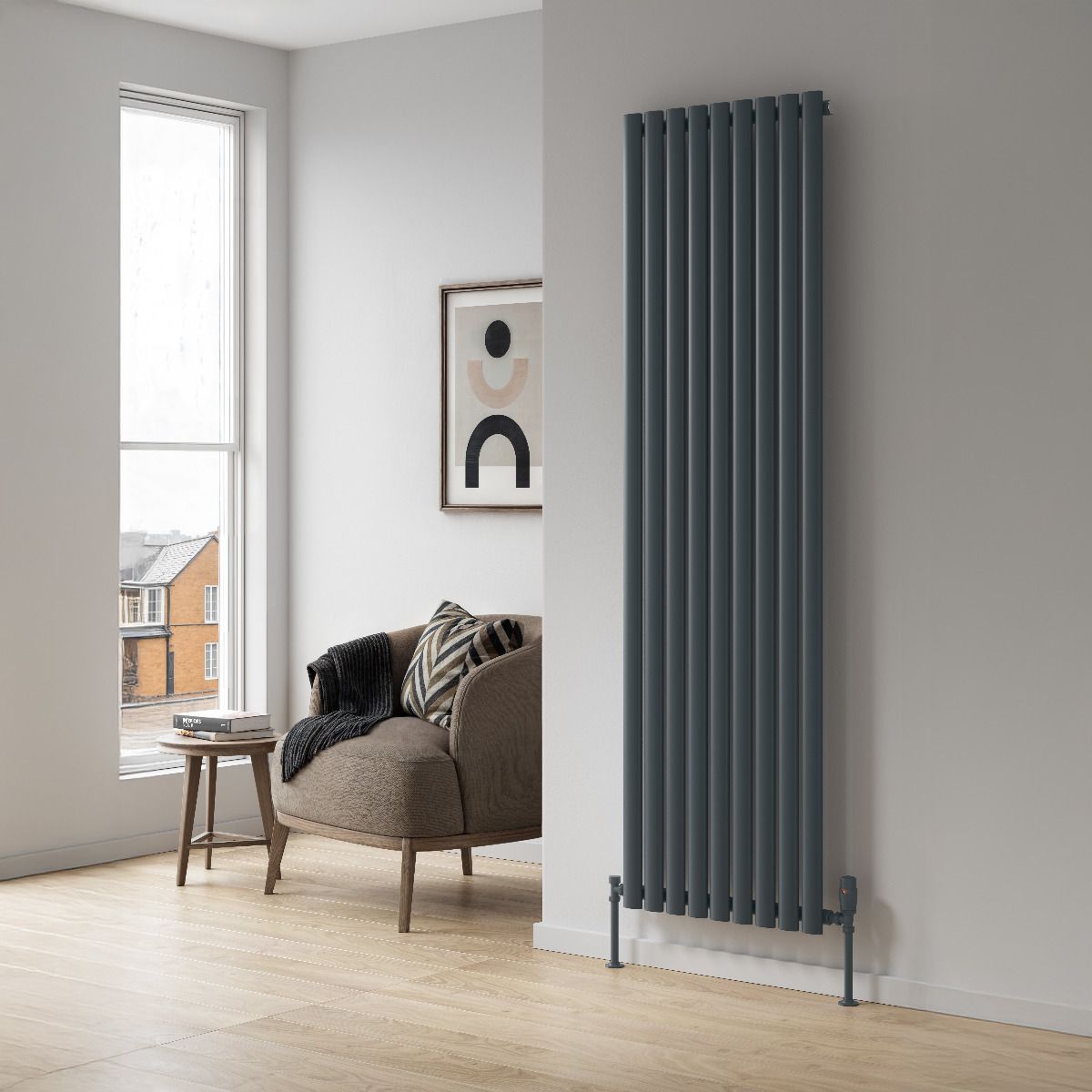

Roomset Product Images

Neva Vertical
0.11 MB
Neva Vertical
0.11 MB

High Resolution Images

Reina Neva Vertical Double 1800x531 White Roomset
23.55 MB
Reina Neva Vertical Single 1800x531 White Roomset
23.55 MB
Tech Drawings

Technical Drawings

Neva Vertical Technical Drawing
0.5 MB
Guides

PDF

Product Datasheet
Brochures

PDF

Reina Brochure 2025
16.25 MB
Reina Electric Brochure 2025
2.72 MB
Stock Availability
Model/SKU Height (mm) Width (mm) Colour RRP Ex. VAT Available Stock
RND-NV2315W 1500 236 White £140.00 Log in to see stock
RND-NV2315A 1500 236 Anthracite £140.00 Log in to see stock
RND-NV2318W 1800 236 White £150.00 Log in to see stock
RND-NV2318A 1800 236 Anthracite £150.00 Log in to see stock
RND-NV2915W 1500 295 White £155.00 Log in to see stock
RND-NV2915A 1500 295 Anthracite £155.00 Log in to see stock
RND-NV2918W 1800 295 White £172.00 Log in to see stock
RND-NV2918A 1800 295 Anthracite £172.00 Log in to see stock
RND-NV3515W 1500 354 White £174.00 Log in to see stock
RND-NV3515A 1500 354 Anthracite £174.00 Log in to see stock
RND-NV2315AD 1500 236 Anthracite £215.00 Log in to see stock
RND-NV2315WD 1500 236 White £215.00 Log in to see stock
RND-NV2318AD 1800 236 Anthracite £234.00 Log in to see stock
RND-NV2318WD 1800 236 White £234.00 Log in to see stock
RND-NV2915AD 1500 295 Anthracite £254.00 Log in to see stock
RND-NV2915WD 1500 295 White £254.00 Log in to see stock
RND-NV2918AD 1800 295 Anthracite £280.00 Log in to see stock
RND-NV2918WD 1800 295 White £280.00 Log in to see stock
RND-NV3515AD 1500 354 Anthracite £280.00 Log in to see stock
RND-NV3515WD 1500 354 White £280.00 Log in to see stock
RND-NV3518A 1800 354 Anthracite £198.00 Log in to see stock
RND-NV3518AD 1800 354 Anthracite £324.00 Log in to see stock
RND-NV3518W 1800 354 White £198.00 Log in to see stock
RND-NV3518WD 1800 354 White £324.00 Log in to see stock
RND-NV4115A 1500 413 Anthracite £200.00 Log in to see stock
RND-NV4115AD 1500 413 Anthracite £306.00 Log in to see stock
RND-NV4115W 1500 413 White £200.00 Log in to see stock
RND-NV4115WD 1500 413 White £306.00 Log in to see stock
RND-NV4118A 1800 413 Anthracite £225.00 Log in to see stock
RND-NV4118AD 1800 413 Anthracite £360.00 Log in to see stock
RND-NV4118W 1800 413 White £225.00 Log in to see stock
RND-NV4118WD 1800 413 White £360.00 Log in to see stock
RND-NV4715A 1500 472 Anthracite £220.00 Log in to see stock
RND-NV4715AD 1500 472 Anthracite £336.00 Log in to see stock
RND-NV4715W 1500 472 White £220.00 Log in to see stock
RND-NV4715WD 1500 472 White £336.00 Log in to see stock
RND-NV4718A 1800 472 Anthracite £253.00 Log in to see stock
RND-NV4718AD 1800 472 Anthracite £410.00 Log in to see stock
RND-NV4718W 1800 472 White £253.00 Log in to see stock
RND-NV4718WD 1800 472 White £410.00 Log in to see stock
RND-NV5315A 1500 531 Anthracite £247.00 Log in to see stock
RND-NV5315AD 1500 531 Anthracite £370.00 Log in to see stock
RND-NV5315W 1500 531 White £247.00 Log in to see stock
RND-NV5315WD 1500 531 White £370.00 Log in to see stock
RND-NV5318A 1800 531 Anthracite £284.00 Log in to see stock
RND-NV5318AD 1800 531 Anthracite £450.00 Log in to see stock
RND-NV5318W 1800 531 White £284.00 Log in to see stock
RND-NV5318WD 1800 531 White £450.00 Log in to see stock
