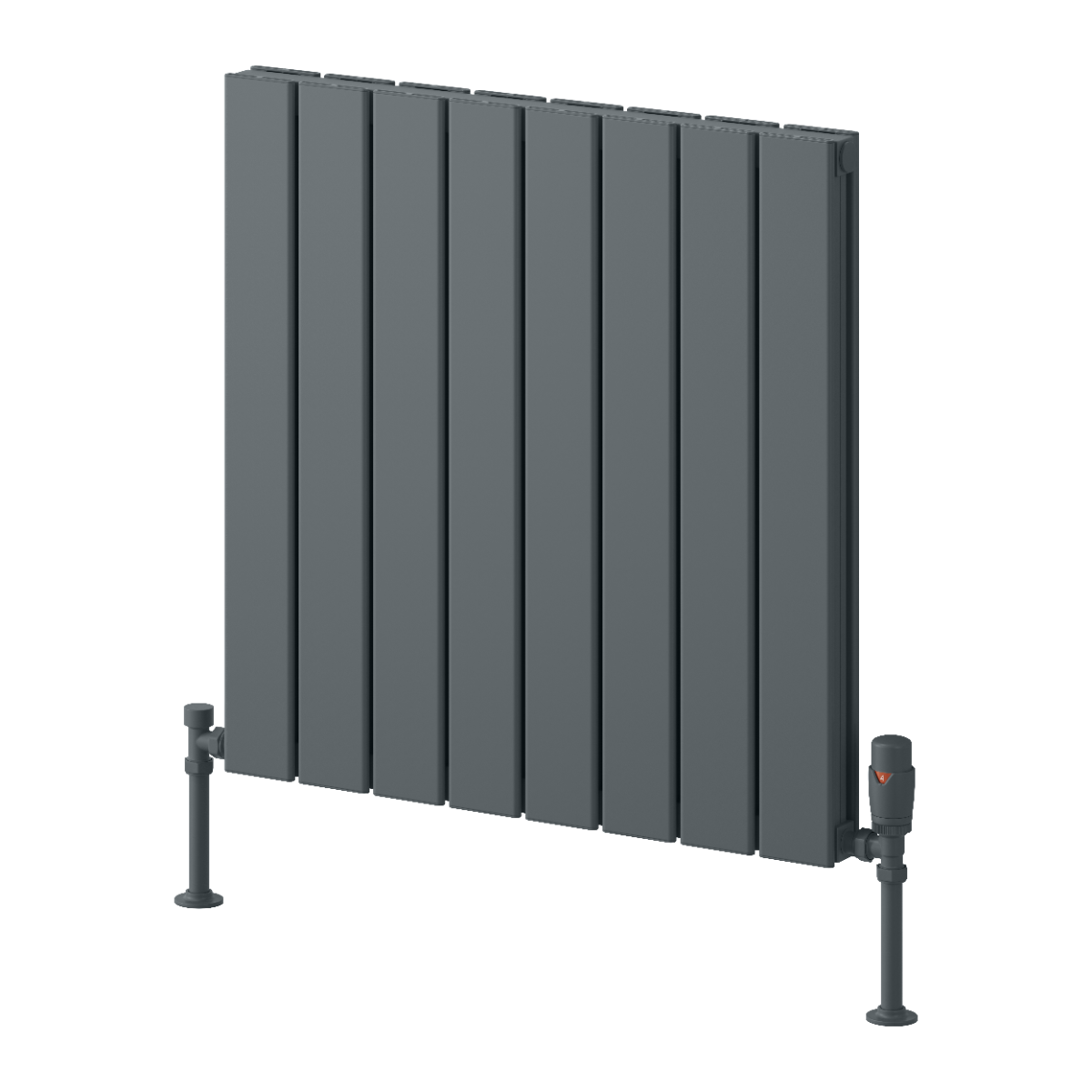

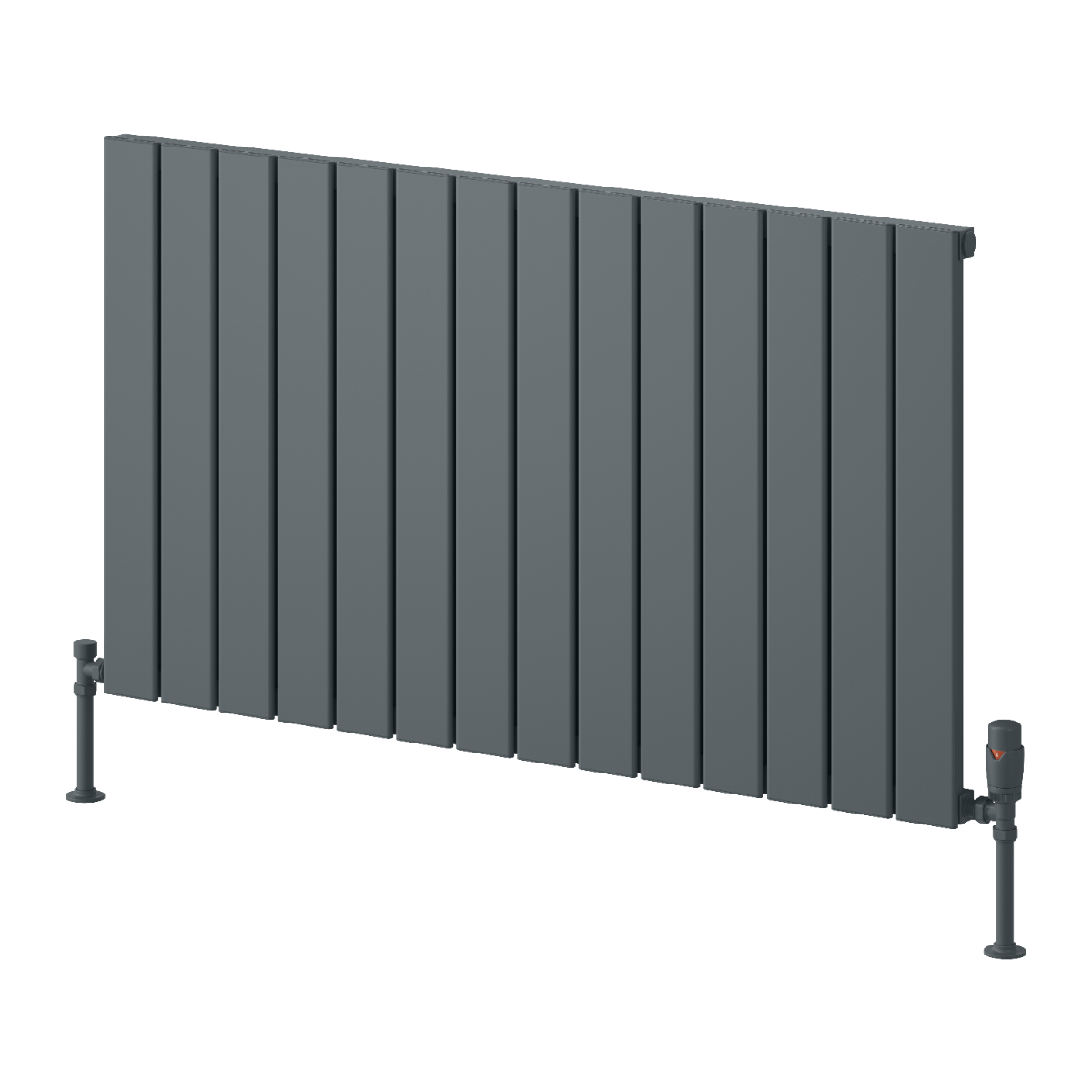

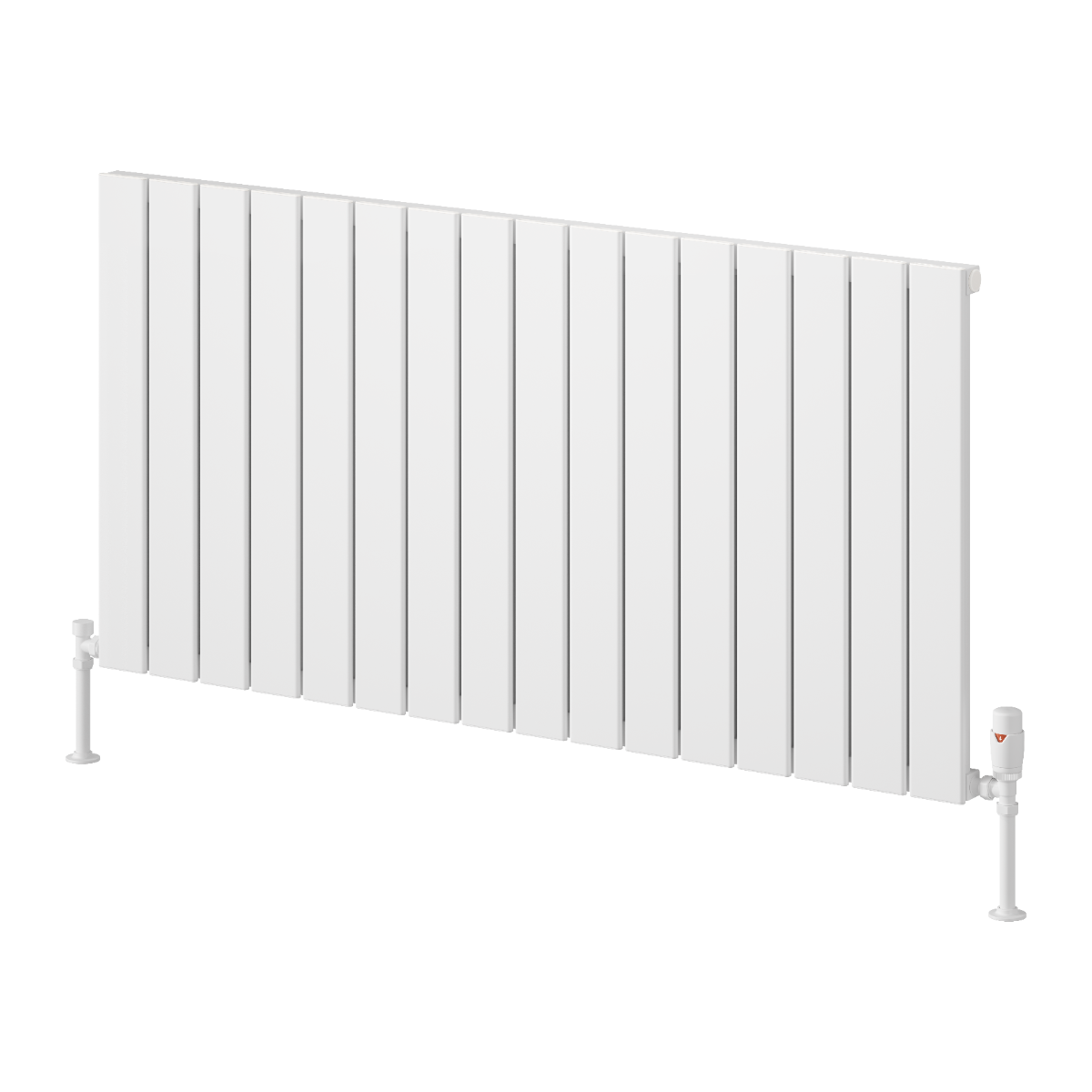

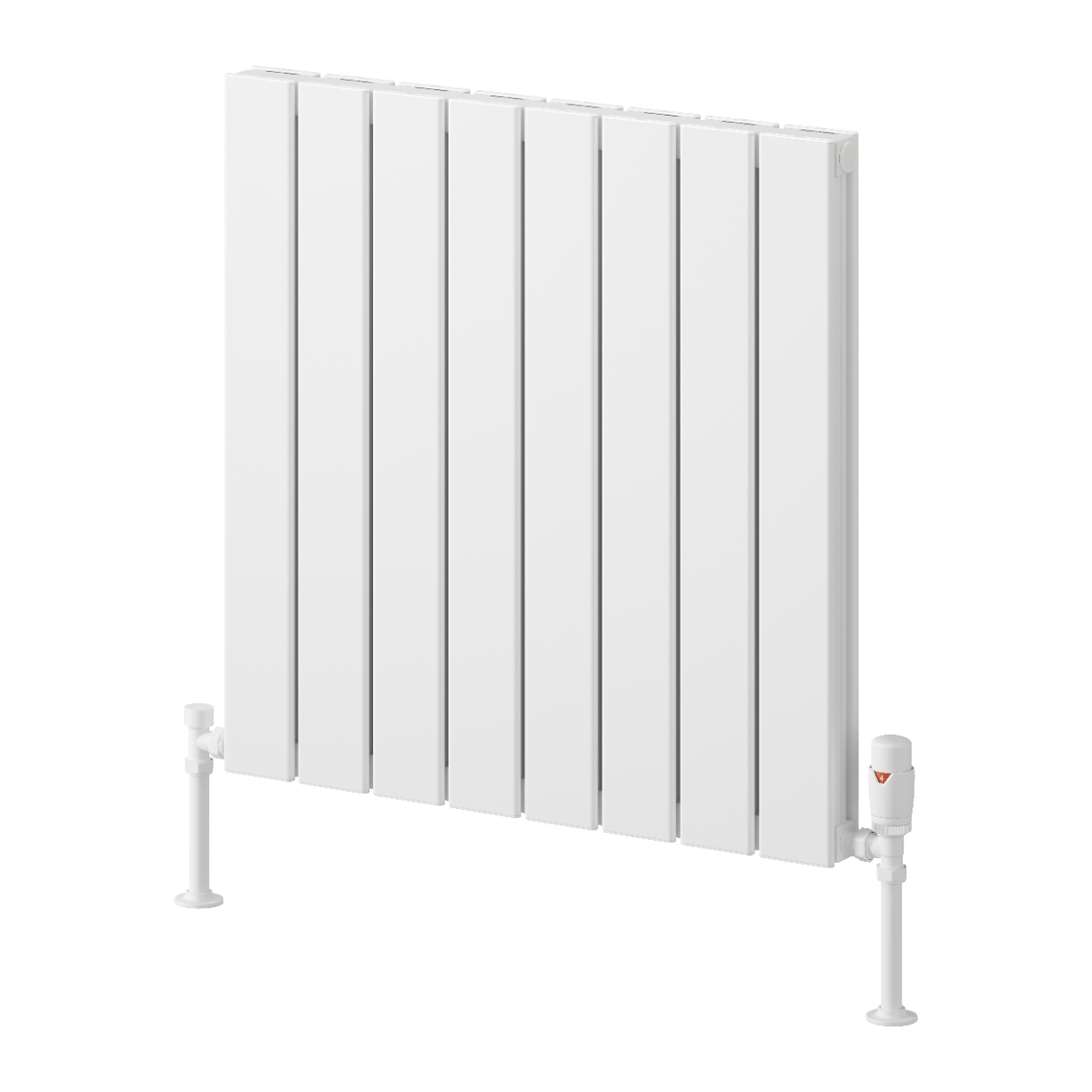

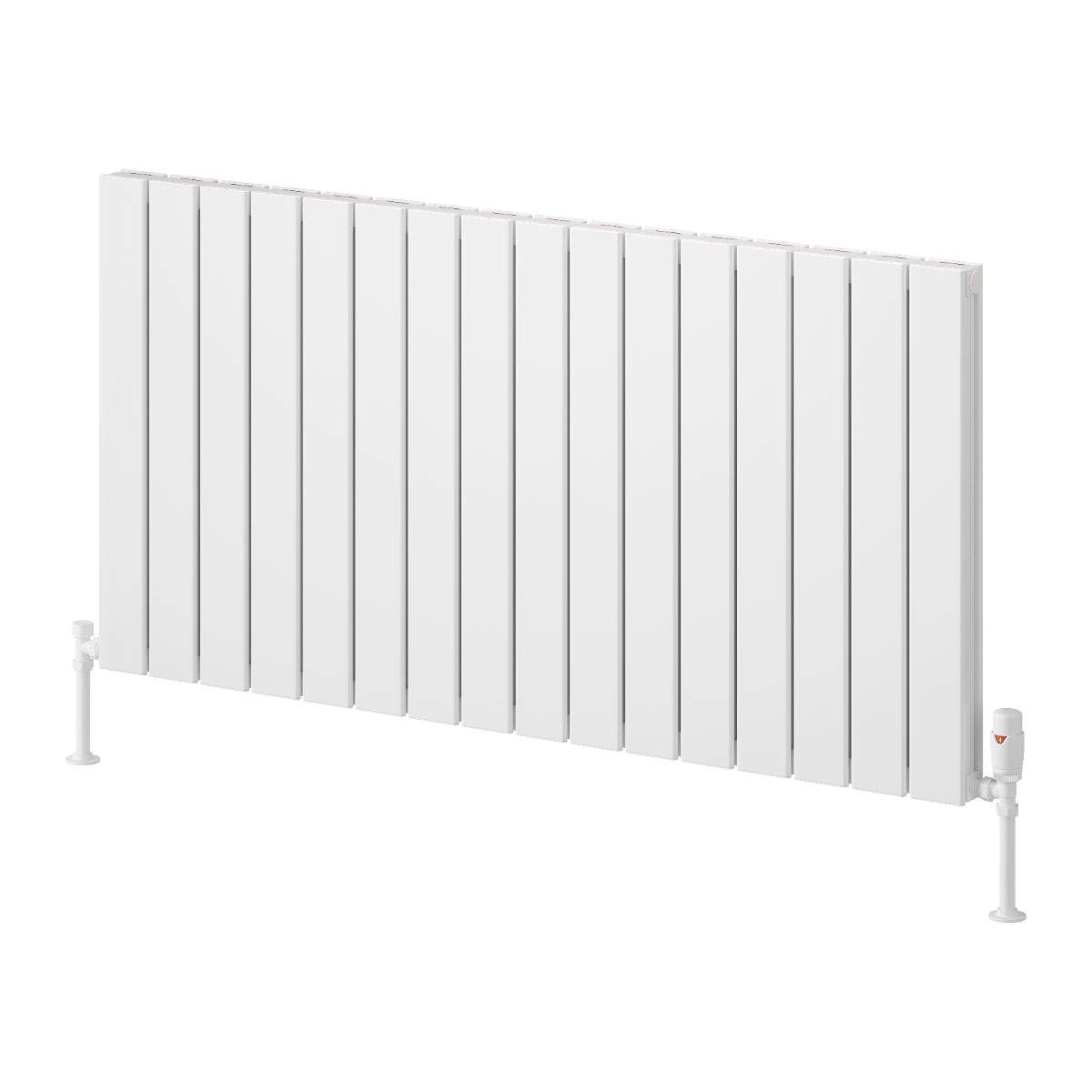

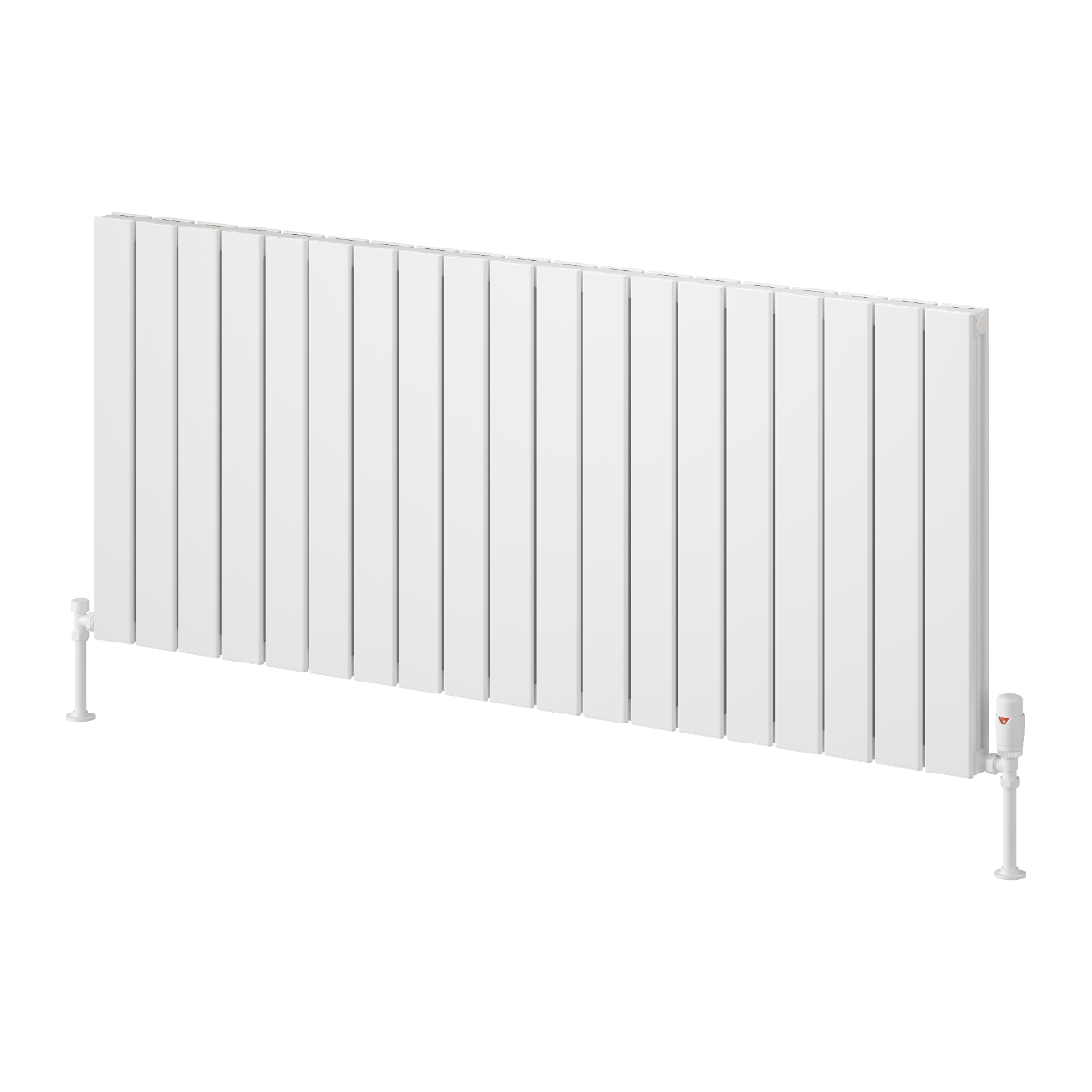

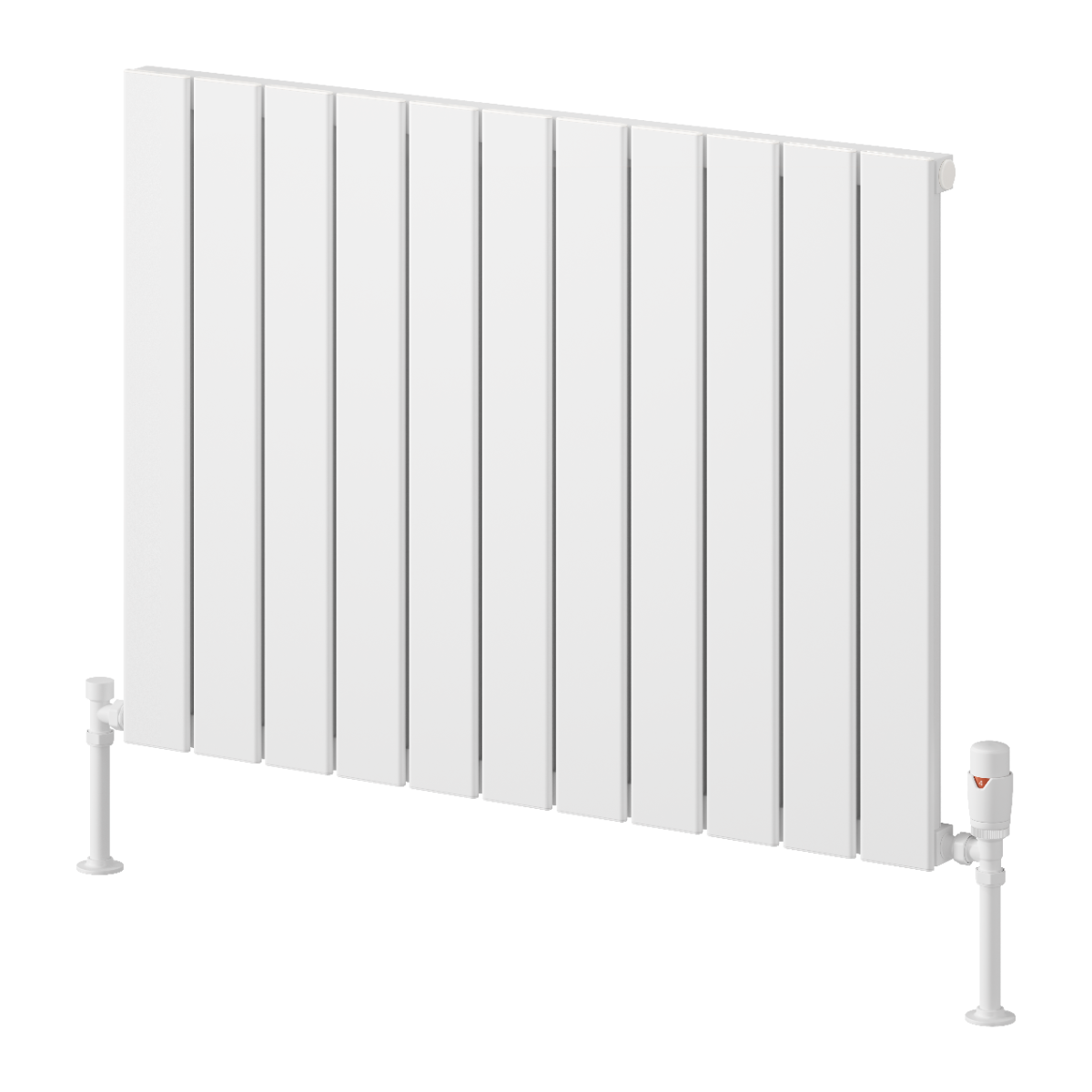

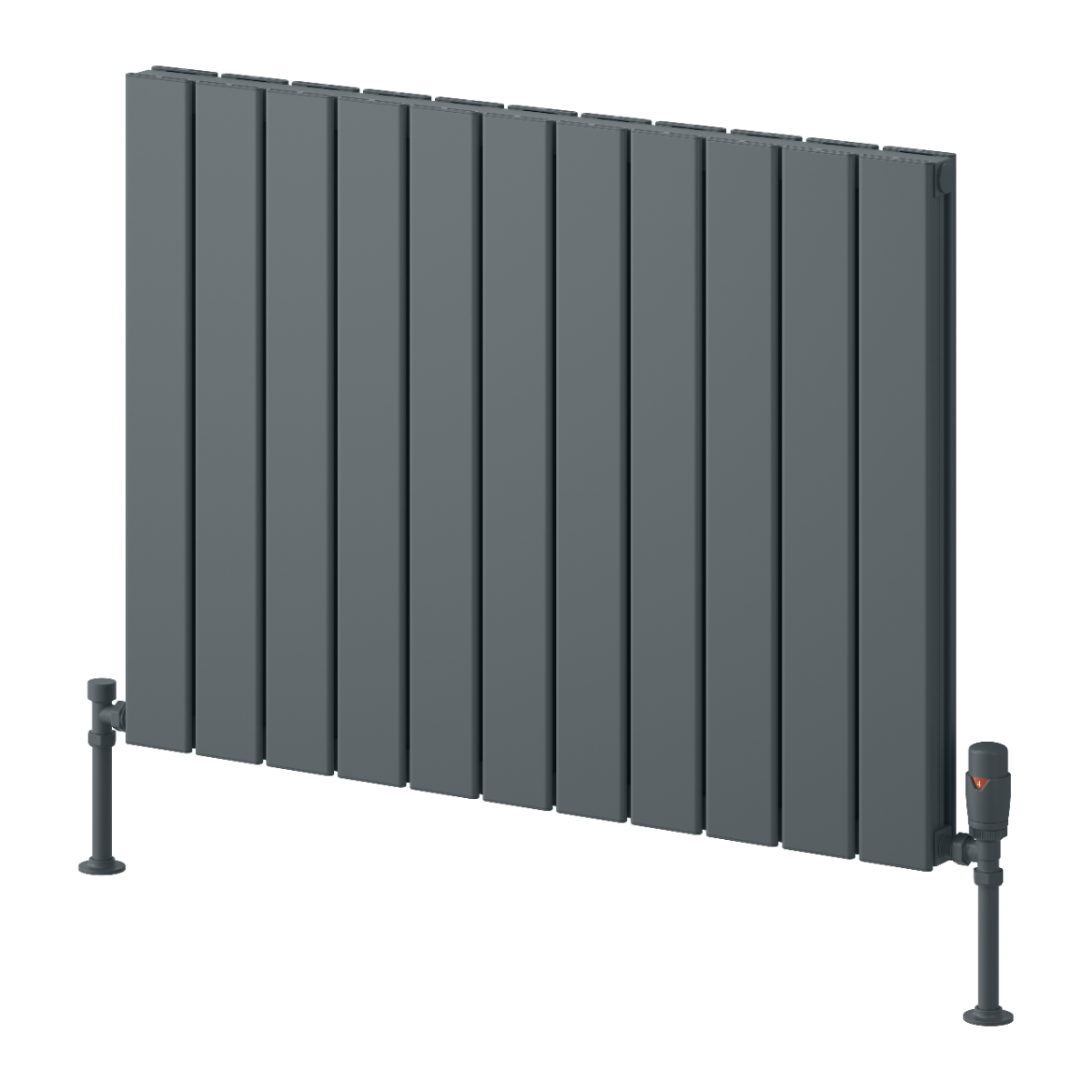

Piatto Horizontal Aluminium Radiator
5 Years Guarantee
Material: Aluminium
Central Heating
Electric
Dual Fuel
The Piatto Horizontal Radiator is a durable and highly efficient heating solution, crafted from premium aluminum to deliver maximum heat output. Its sleek column design offers a contemporary aesthetic, available in bold white or striking anthracite finishes. Offered as a single or double radiator, the Piatto seamlessly combines performance and style to complement any home.
- Available in 2 colours and 6 sizes
- Durable Aluminium Construction
- 5 Years Guarantee
-
white
-
anthracite
600mm HEIGHT 445mm WIDTH
600mm HEIGHT 595mm WIDTH
600mm HEIGHT 820mm WIDTH
600mm HEIGHT 1045mm WIDTH
600mm HEIGHT 1420mm WIDTH
600mm HEIGHT 1195mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.

Technical
Measurements
Height (mm) | Width (mm) | Panels | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
---|---|---|---|---|---|---|---|
600 | 445 | Single | 445 | 35 | 62 | - | 6 |
600 | 595 | Single | 595 | 35 | 62 | - | 8 |
600 | 820 | Single | 820 | 35 | 62 | - | 11 |
600 | 1045 | Single | 1045 | 35 | 62 | - | 14 |
600 | 1420 | Single | 1420 | 35 | 62 | - | 19 |
600 | 820 | Double | 820 | 57 | 83 | - | 22 |
600 | 1420 | Double | 1420 | 57 | 83 | - | 38 |
600 | 445 | Double | 445 | 57 | 83 | - | 12 |
600 | 595 | Double | 595 | 57 | 83 | - | 16 |
600 | 1045 | Double | 1045 | 57 | 83 | - | 28 |
600 | 1195 | Single | 1195 | 35 | 62 | - | 16 |
600 | 1195 | Double | 1195 | 57 | 83 | - | 32 |
For pipe centre measurement including valves, add 90mm
Technical Drawing

Heat Outputs
Central Heating Heat Outputs
Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
---|---|---|---|---|---|---|---|
BTU | Watts | BTU | Watts | ||||
A-PTO060044SW | 600 | 445 | ![]() |
1148 | 337 | 1470 | 431 |
A-PTO060044SA | 600 | 445 | ![]() |
1148 | 337 | 1470 | 431 |
A-PTO060059SW | 600 | 595 | ![]() |
1531 | 449 | 1960 | 575 |
A-PTO060059SA | 600 | 595 | ![]() |
1531 | 449 | 1960 | 575 |
A-PTO060082SW | 600 | 820 | ![]() |
2105 | 617 | 2694 | 790 |
A-PTO060082SA | 600 | 820 | ![]() |
2105 | 617 | 2694 | 790 |
A-PTO060104SW | 600 | 1045 | ![]() |
2680 | 786 | 3430 | 1006 |
A-PTO060104SA | 600 | 1045 | ![]() |
2680 | 786 | 3430 | 1006 |
A-PTO060142SW | 600 | 1420 | ![]() |
3636 | 1066 | 4654 | 1365 |
A-PTO060142SA | 600 | 1420 | ![]() |
3636 | 1066 | 4654 | 1365 |
A-PTO060082DA | 600 | 820 | ![]() |
3010 | 883 | 3853 | 1130 |
A-PTO060082DW | 600 | 820 | ![]() |
3010 | 883 | 3853 | 1130 |
A-PTO060142DA | 600 | 1420 | ![]() |
5199 | 1525 | 6655 | 1952 |
A-PTO060142DW | 600 | 1420 | ![]() |
5199 | 1525 | 6655 | 1952 |
A-PTO060044DA | 600 | 445 | ![]() |
1642 | 482 | 2102 | 616 |
A-PTO060044DW | 600 | 445 | ![]() |
1642 | 482 | 2102 | 616 |
A-PTO060059DA | 600 | 595 | ![]() |
2189 | 642 | 2802 | 822 |
A-PTO060059DW | 600 | 595 | ![]() |
2189 | 642 | 2802 | 822 |
A-PTO060104DA | 600 | 1045 | ![]() |
3831 | 1124 | 4904 | 1438 |
A-PTO060104DW | 600 | 1045 | ![]() |
3831 | 1124 | 4904 | 1438 |
A-PTO060119SA | 600 | 1195 | ![]() |
3062 | 898 | 3919 | 1149 |
A-PTO060119DA | 600 | 1195 | ![]() |
4378 | 1284 | 5604 | 1643 |
A-PTO060119SW | 600 | 1195 | ![]() |
3062 | 898 | 3919 | 1149 |
A-PTO060119DW | 600 | 1195 | ![]() |
4378 | 1284 | 5604 | 1643 |
Downloads
Technical Drawings
Cutout Product Images

600 x 445 White
0.29 MB

600 x 445 Anthracite
0.23 MB

600 x 595 White
0.32 MB

600 x 595 Anthracite
0.27 MB

600 x 820 White
0.45 MB

600 x 820 Anthracite
0.31 MB

600 x 1045 White
0.41 MB

600 x 1045 Anthracite
0.29 MB

600 x 1420 White
0.32 MB

600 x 1420 Anthracite
0.23 MB

600 x 820 Anthracite
0.3 MB

600 x 820 White
0.48 MB

600 x 1420 Anthracite
0.24 MB

600 x 1420 White
0.34 MB

600 x 445 Anthracite
0.25 MB

600 x 445 White
0.34 MB

600 x 595 Anthracite
0.28 MB

600 x 595 White
0.39 MB

600 x 1045 Anthracite
0.3 MB

600 x 1045 White
0.43 MB

600 x 1195 Anthracite
0.23 MB

600 x 1195 Anthracite
0.24 MB

600 x 1195 White
0.36 MB

600 x 1195 White
0.38 MB

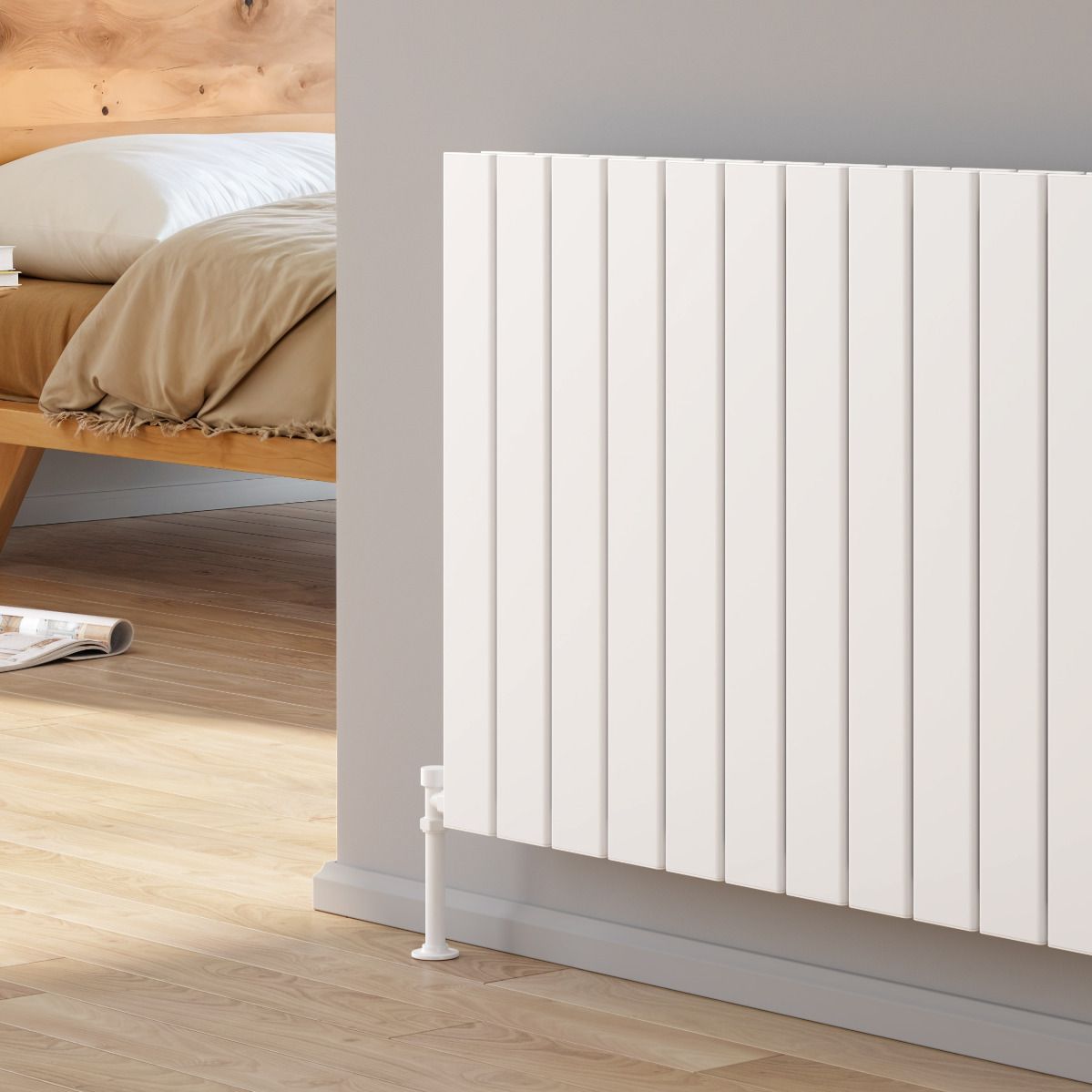

Roomset Product Images
High Resolution Images
Stock Availability
Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
---|---|---|---|---|---|
A-PTO060044SW | 600 | 445 |
![]() |
£204.00 | Log in to see stock |
A-PTO060044SA | 600 | 445 |
![]() |
£204.00 | Log in to see stock |
A-PTO060059SW | 600 | 595 |
![]() |
£254.00 | Log in to see stock |
A-PTO060059SA | 600 | 595 |
![]() |
£254.00 | Log in to see stock |
A-PTO060082SW | 600 | 820 |
![]() |
£328.00 | Log in to see stock |
A-PTO060082SA | 600 | 820 |
![]() |
£328.00 | Log in to see stock |
A-PTO060104SW | 600 | 1045 |
![]() |
£408.00 | Log in to see stock |
A-PTO060104SA | 600 | 1045 |
![]() |
£408.00 | Log in to see stock |
A-PTO060142SW | 600 | 1420 |
![]() |
£580.00 | Log in to see stock |
A-PTO060142SA | 600 | 1420 |
![]() |
£580.00 | Log in to see stock |
A-PTO060082DA | 600 | 820 |
![]() |
£480.00 | Log in to see stock |
A-PTO060082DW | 600 | 820 |
![]() |
£480.00 | Log in to see stock |
A-PTO060142DA | 600 | 1420 |
![]() |
£810.00 | Log in to see stock |
A-PTO060142DW | 600 | 1420 |
![]() |
£810.00 | Log in to see stock |
A-PTO060044DA | 600 | 445 |
![]() |
£290.00 | Log in to see stock |
A-PTO060044DW | 600 | 445 |
![]() |
£290.00 | Log in to see stock |
A-PTO060059DA | 600 | 595 |
![]() |
£368.00 | Log in to see stock |
A-PTO060059DW | 600 | 595 |
![]() |
£368.00 | Log in to see stock |
A-PTO060104DA | 600 | 1045 |
![]() |
£598.00 | Log in to see stock |
A-PTO060104DW | 600 | 1045 |
![]() |
£598.00 | Log in to see stock |
A-PTO060119SA | 600 | 1195 |
![]() |
£456.00 | Log in to see stock |
A-PTO060119DA | 600 | 1195 |
![]() |
£700.00 | Log in to see stock |
A-PTO060119SW | 600 | 1195 |
![]() |
£456.00 | Log in to see stock |
A-PTO060119DW | 600 | 1195 |
![]() |
£700.00 | Log in to see stock |
