Rione Single Mild Steel Radiator
5 Years Guarantee
Material: Mild Steel
Central Heating
Electric
Dual Fuel
The Rione Modern Horizontal Flat Panel Radiator features an elegant design with smooth flat segments and offers both single and double models for flexible heating. Made from robust steel, it provides excellent warmth and comes in a vibrant range of colors to suit any interior. With a 5-year warranty, it blends modern aesthetics with reliable functionality, enhancing your home environment.
- Available in 1 colour and 6 sizes
- Durable Mild Steel Construction
- 5 Years Guarantee
-
white

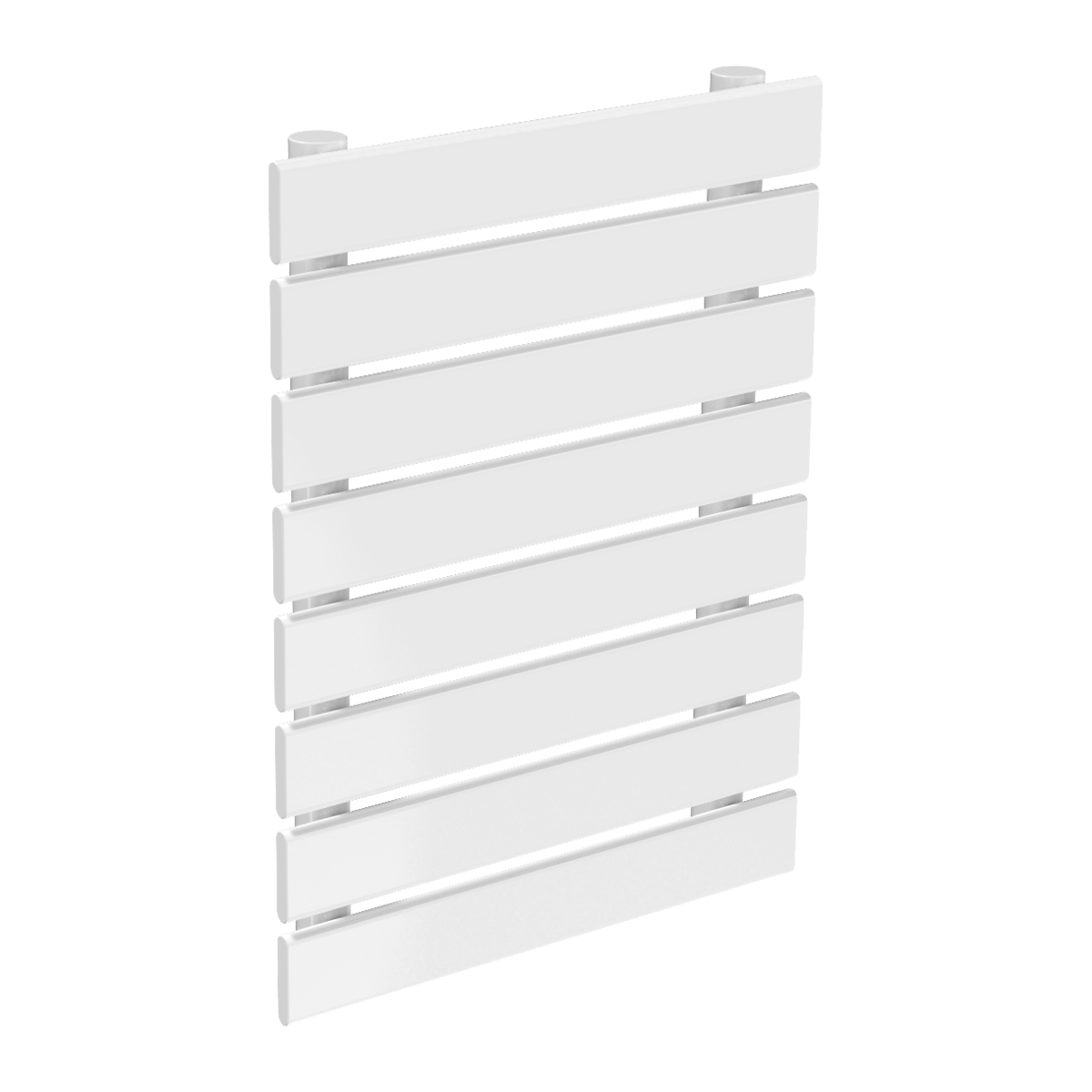

544mm HEIGHT 400mm WIDTH

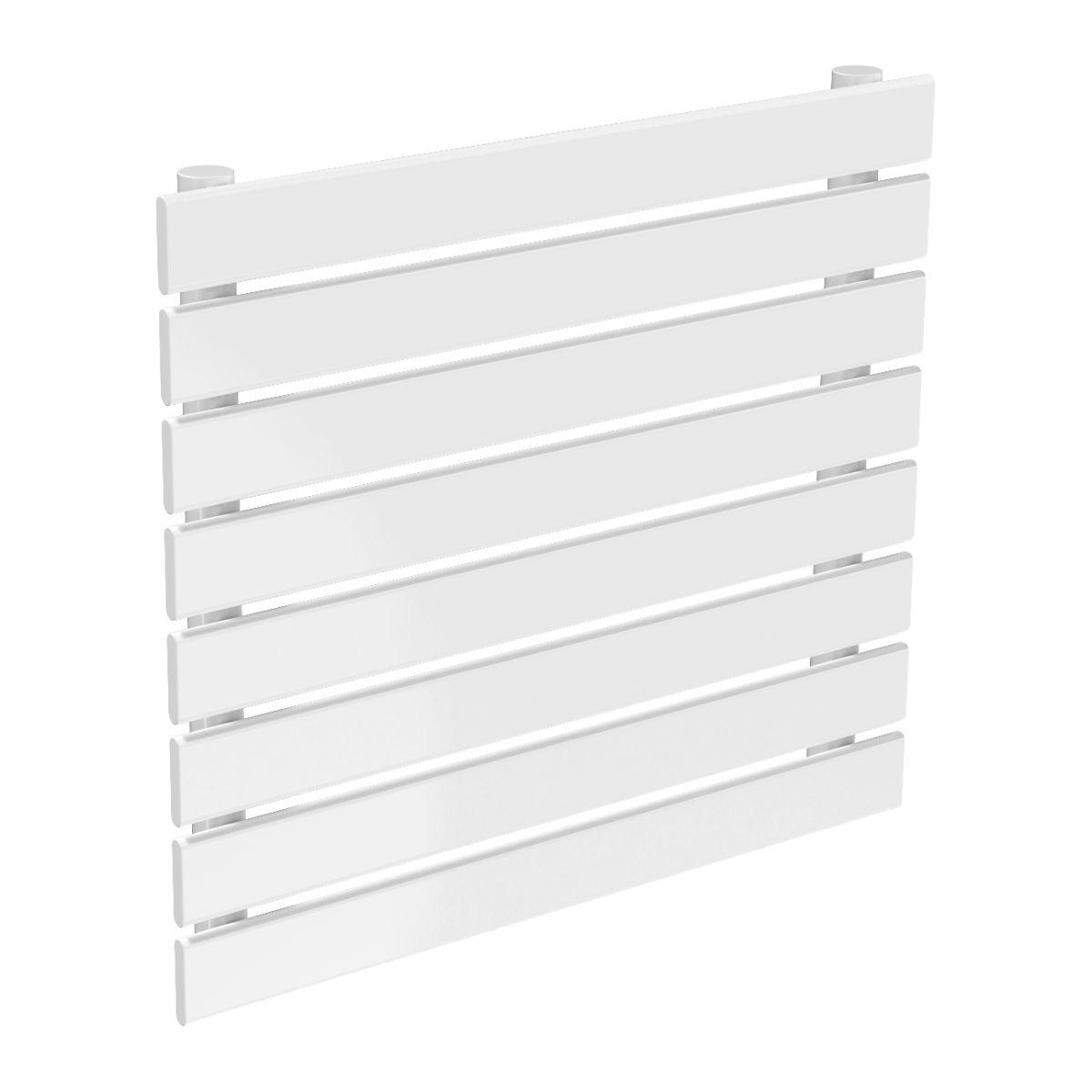

544mm HEIGHT 600mm WIDTH

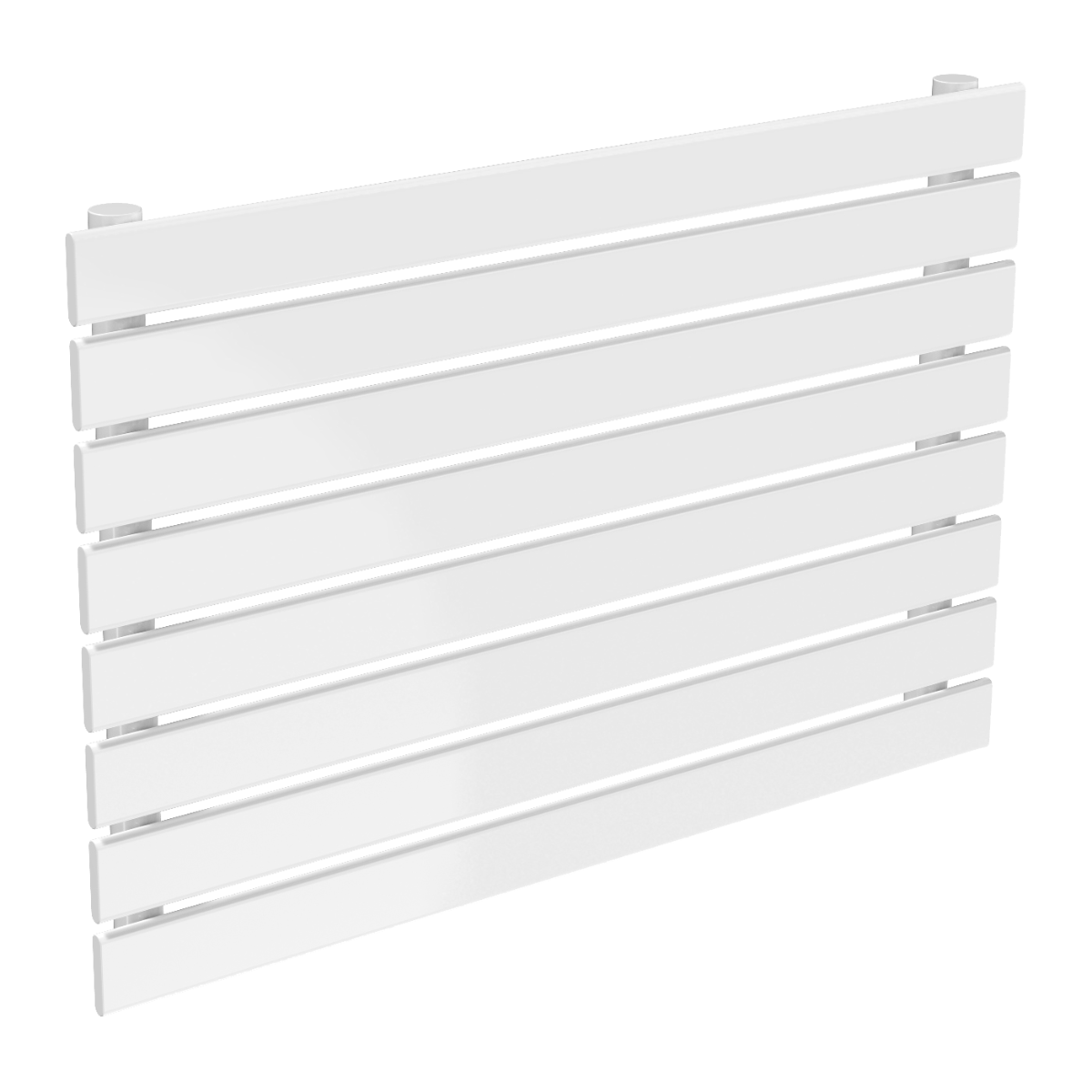

544mm HEIGHT 800mm WIDTH

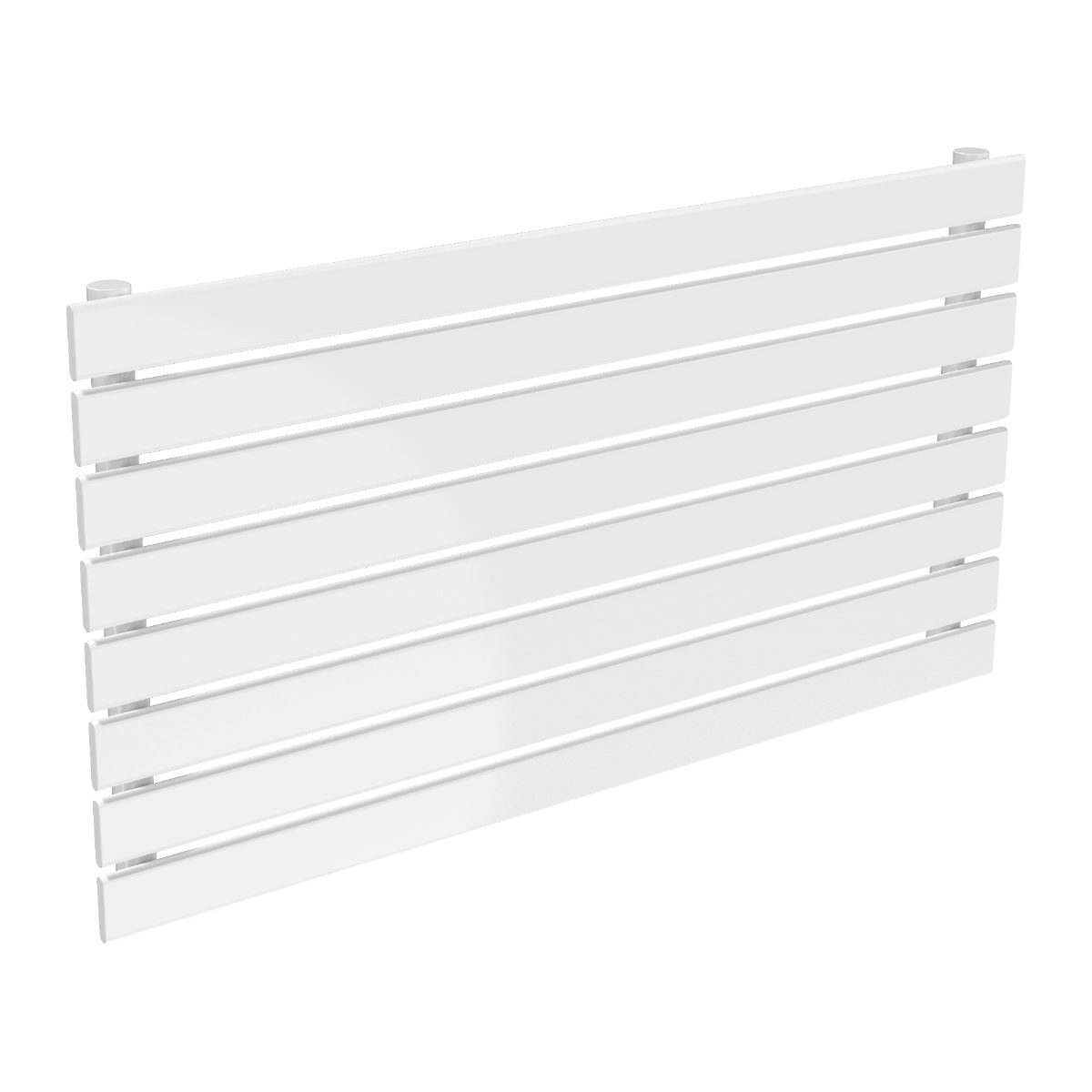

544mm HEIGHT 1000mm WIDTH
544mm HEIGHT 1200mm WIDTH

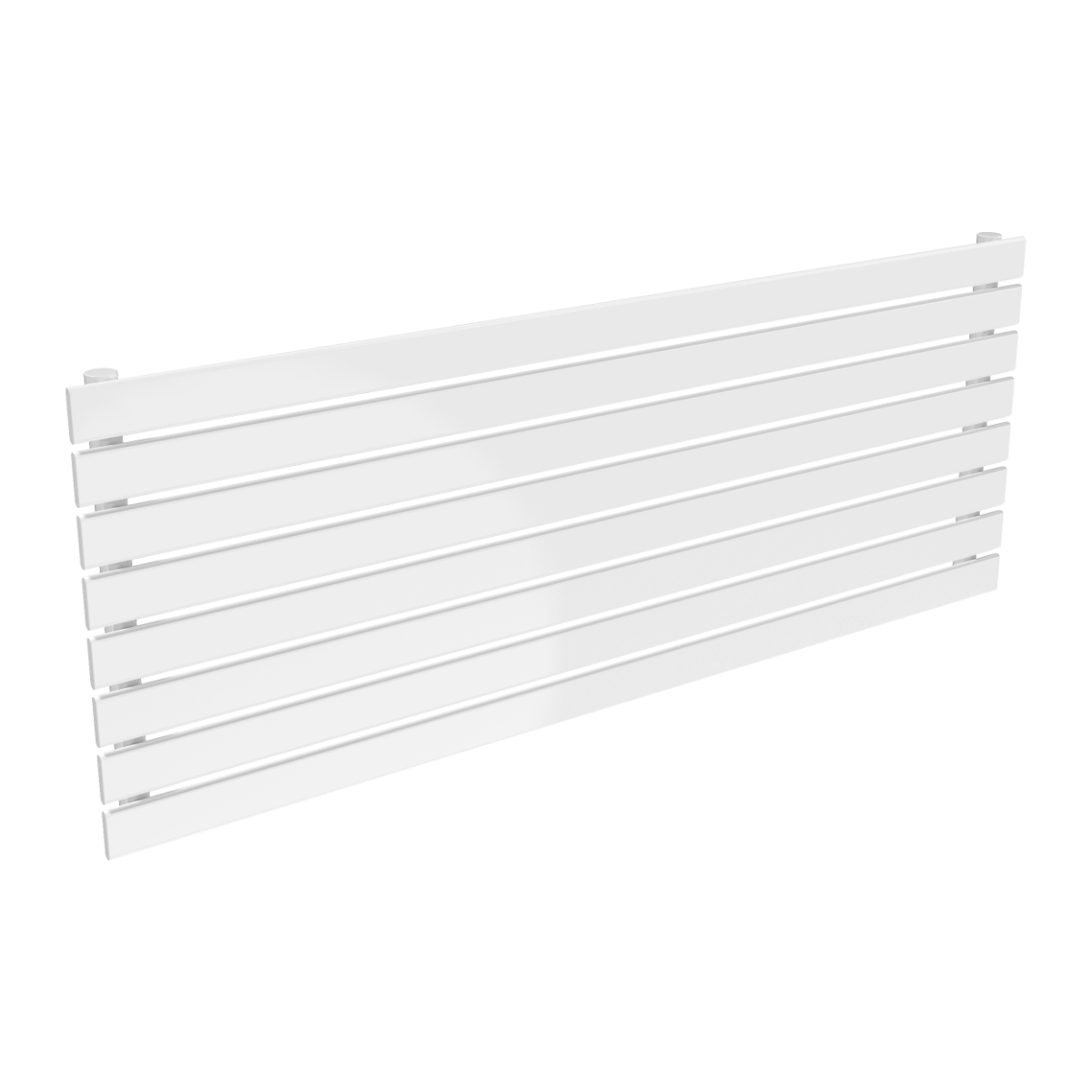

544mm HEIGHT 1400mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 544 | 400 | 355 | 67-77 | 96-106 | - | 8 |
| 544 | 600 | 555 | 67-77 | 96-106 | - | 8 |
| 544 | 800 | 755 | 67-77 | 96-106 | - | 8 |
| 544 | 1000 | 955 | 67-77 | 96-106 | - | 8 |
| 544 | 1200 | 1155 | 67-77 | 96-106 | - | 8 |
| 544 | 1400 | 1355 | 67-77 | 96-106 | - | 8 |
Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| RND-RNE400 | 544 | 400 | White |
889 | 261 | 1138 | 334 |
| RND-RNE600 | 544 | 600 | White |
1334 | 391 | 1707 | 501 |
| RND-RNE800 | 544 | 800 | White |
1778 | 521 | 2276 | 667 |
| RND-RNE1000 | 544 | 1000 | White |
2223 | 652 | 2845 | 834 |
| RND-RNE1200 | 544 | 1200 | White |
2669 | 783 | 3416 | 1002 |
| RND-RNE1400 | 544 | 1400 | White |
3113 | 913 | 3984 | 1168 |
Downloads
Technical Drawings
Cutout Product Images
544 x 400 White
0.26 MB
544 x 600 White
0.34 MB
544 x 800 White
0.38 MB
544 x 1000 White
0.33 MB
544 x 1200 White
0.33 MB
544 x 1400 White
0.28 MB
Roomset Product Images
High Resolution Images
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| RND-RNE400 | 544 | 400 |
White |
£156.00 | Log in to see stock |
| RND-RNE600 | 544 | 600 |
White |
£186.00 | Log in to see stock |
| RND-RNE800 | 544 | 800 |
White |
£202.00 | Log in to see stock |
| RND-RNE1000 | 544 | 1000 |
White |
£218.00 | Log in to see stock |
| RND-RNE1200 | 544 | 1200 |
White |
£250.00 | Log in to see stock |
| RND-RNE1400 | 544 | 1400 |
White |
£290.00 | Log in to see stock |
