Slimline Horizontal Mild Steel Radiator
5 Years Guarantee
Material: Mild Steel
Central Heating
- Available in 2 colours and 6 sizes
- Durable Mild Steel Construction
- 5 Years Guarantee
-

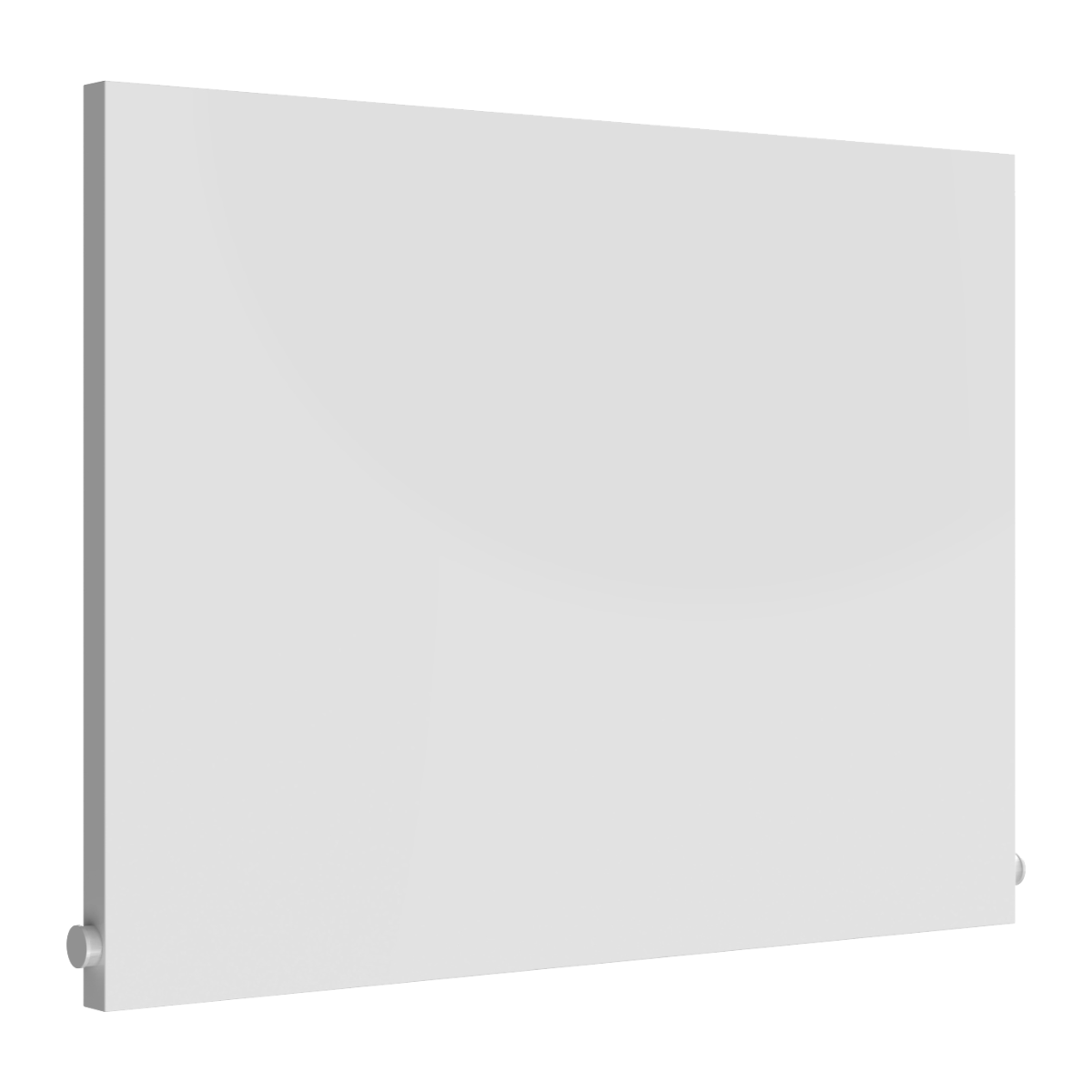

white
-

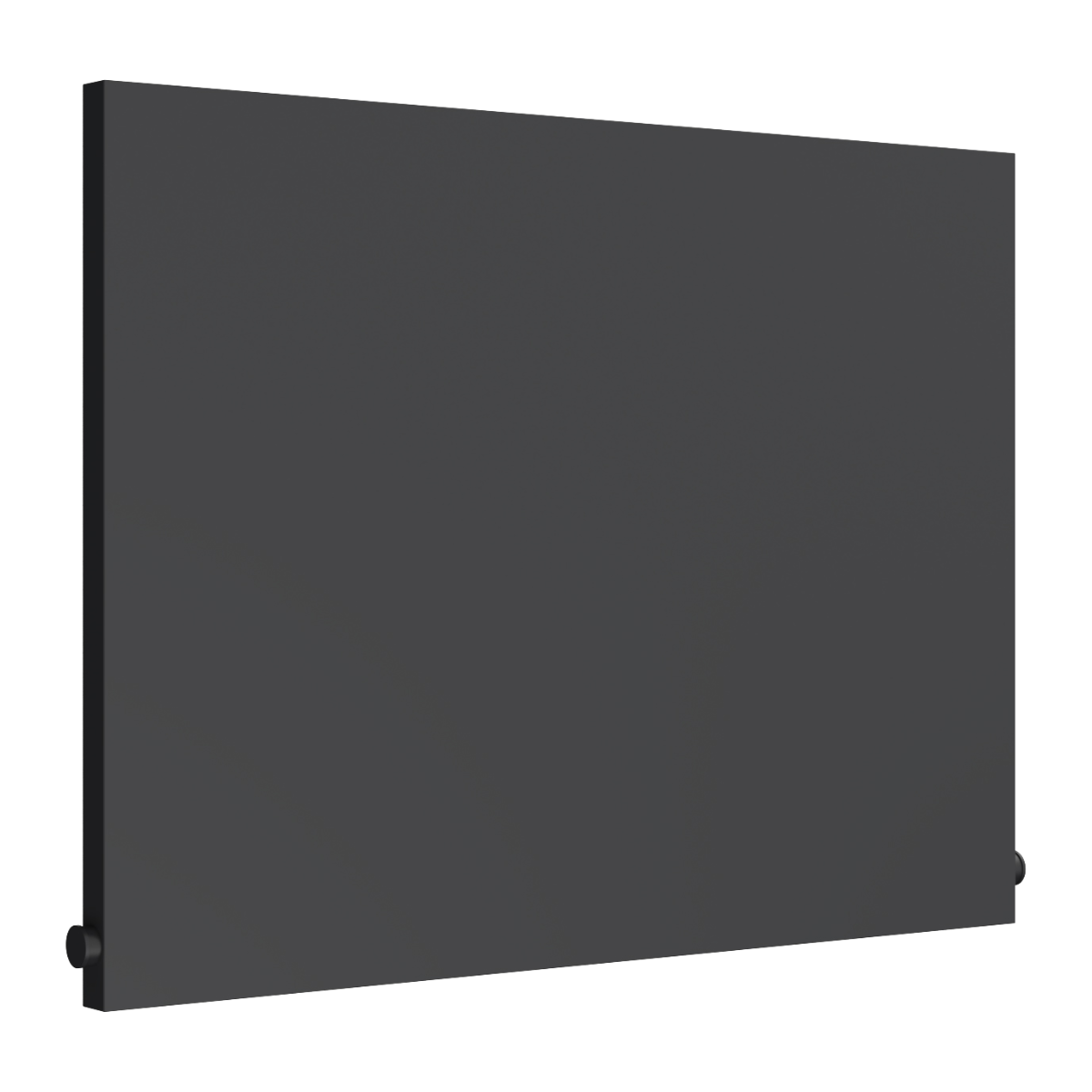

anthracite
600mm HEIGHT 400mm WIDTH
600mm HEIGHT 600mm WIDTH
600mm HEIGHT 800mm WIDTH
600mm HEIGHT 1000mm WIDTH
600mm HEIGHT 1200mm WIDTH
600mm HEIGHT 1400mm WIDTH
3D & AR Visualiser
The colours, textures, and models shown in our visualiser are for illustration purposes only, and due to factors such as your screen type and how your device renders the model, it may not be a complete accurate representation of the actual physical product.
Technical
Measurements
| Height (mm) | Width (mm) | Pipe Centres (mm) | Wall to Pipe Centres (mm) | Wall Distance (mm) | Dry Weight | No. Bars |
|---|---|---|---|---|---|---|
| 600 | 400 | 400 | 30-55 | 62-87 | - | |
| 600 | 600 | 600 | 30-55 | 62-87 | - | |
| 600 | 800 | 800 | 30-55 | 62-87 | - | |
| 600 | 1000 | 1000 | 30-55 | 62-87 | - | |
| 600 | 1200 | 1200 | 30-55 | 62-87 | - | |
| 600 | 1400 | 1400 | 30-55 | 62-87 | - |
For pipe centre measurement including valves, add 90mm

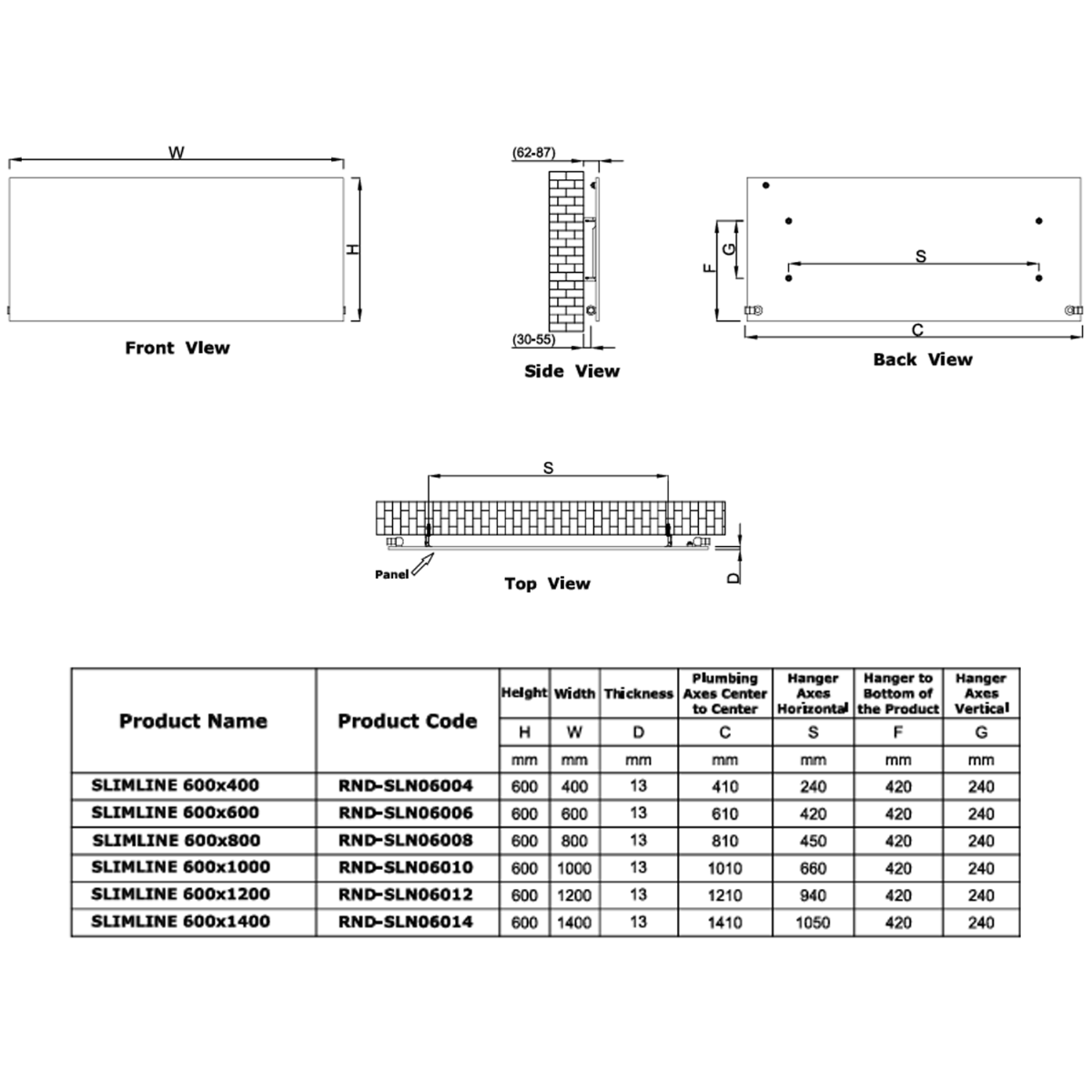

Technical Drawing
Heat Outputs
Central Heating Heat Outputs
| Model/SKU | Height (mm) | Width (mm) | Colour | Heat Outputs ΔT50°C | Heat Outputs ΔT60°C | ||
|---|---|---|---|---|---|---|---|
| BTU | Watts | BTU | Watts | ||||
| RND-SLN06004W | 600 | 400 | White |
1068 | 313 | 1367 | 401 |
| RND-SLN06004A | 600 | 400 | Anthracite |
1068 | 313 | 1367 | 401 |
| RND-SLN06006W | 600 | 600 | White |
1605 | 471 | 2054 | 602 |
| RND-SLN06006A | 600 | 600 | Anthracite |
1605 | 471 | 2054 | 602 |
| RND-SLN06008W | 600 | 800 | White |
2137 | 627 | 2735 | 802 |
| RND-SLN06008A | 600 | 800 | Anthracite |
2137 | 627 | 2735 | 802 |
| RND-SLN06010W | 600 | 1000 | White |
2673 | 784 | 3422 | 1004 |
| RND-SLN06010A | 600 | 1000 | Anthracite |
2673 | 784 | 3422 | 1004 |
| RND-SLN06012W | 600 | 1200 | White |
3205 | 940 | 4102 | 1203 |
| RND-SLN06012A | 600 | 1200 | Anthracite |
3205 | 940 | 4102 | 1203 |
| RND-SLN06014W | 600 | 1400 | White |
3741 | 1097 | 4789 | 1404 |
| RND-SLN06014A | 600 | 1400 | Anthracite |
3741 | 1097 | 4789 | 1404 |
Downloads
Technical Drawings
Cutout Product Images
600 x 400 White
0.04 MB
600 x 400 Anthracite
0.21 MB

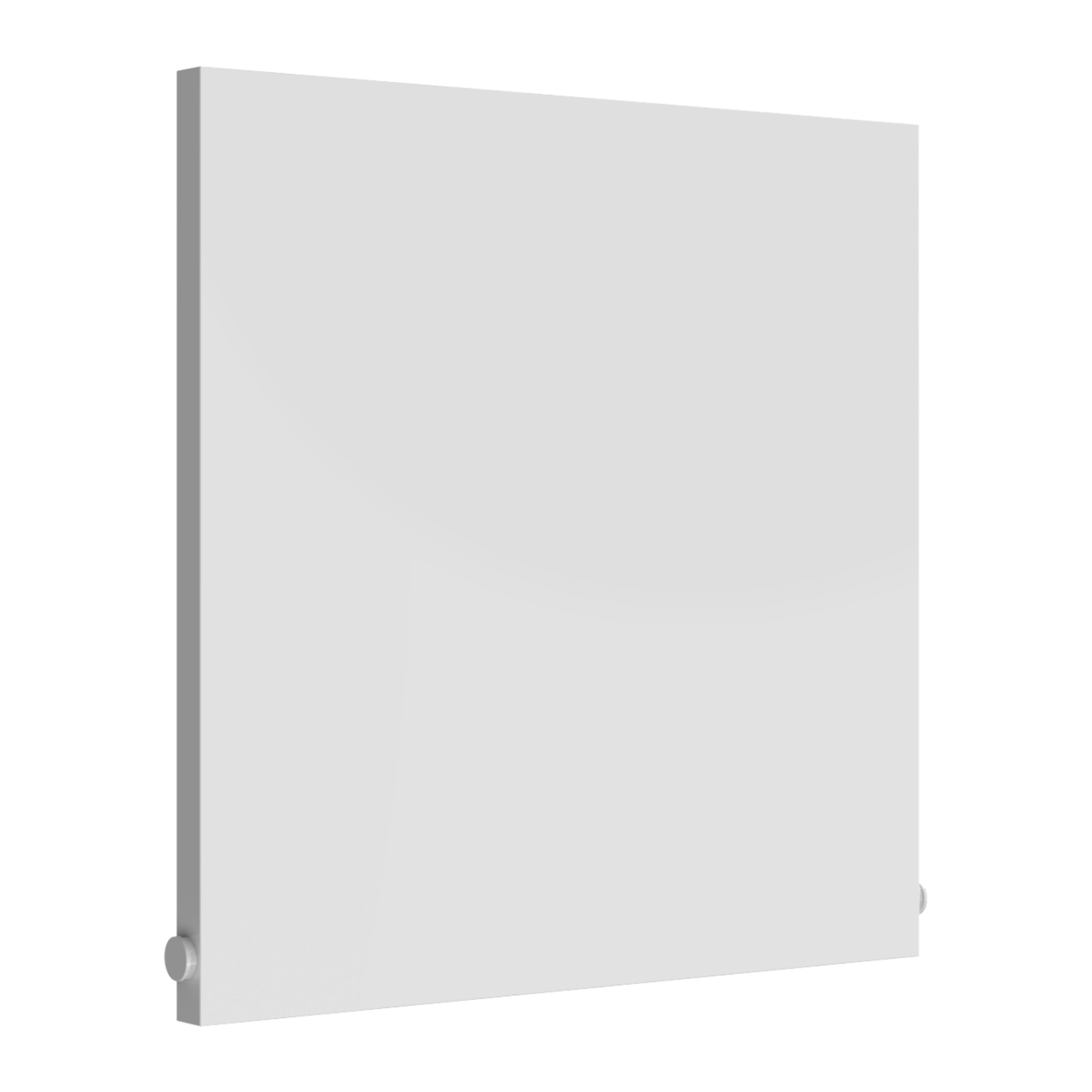

600 x 600 White
0.05 MB
600 x 600 Anthracite
0.25 MB
600 x 800 White
0.07 MB
600 x 800 Anthracite
0.29 MB
600 x 1000 White
0.07 MB

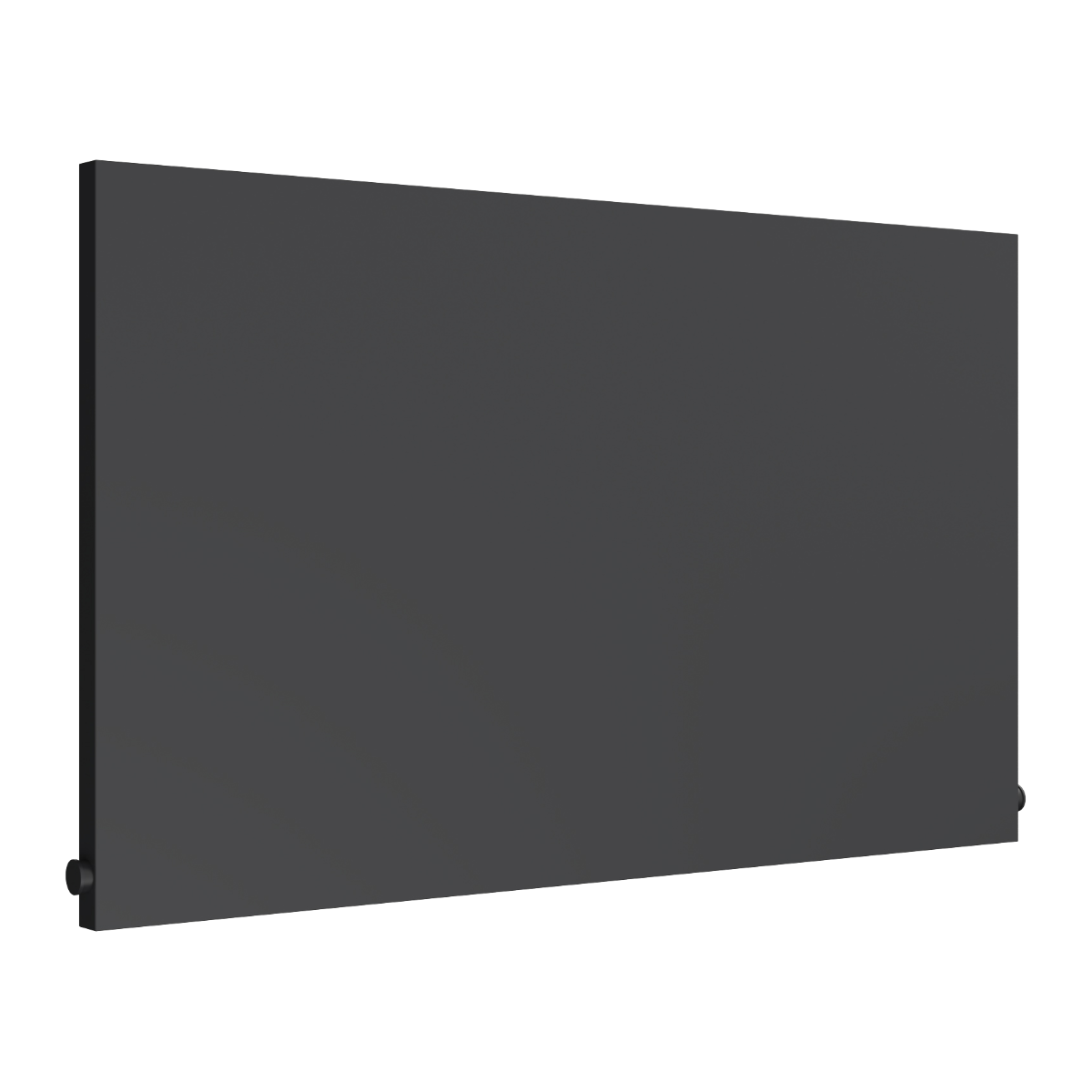

600 x 1000 Anthracite
0.25 MB

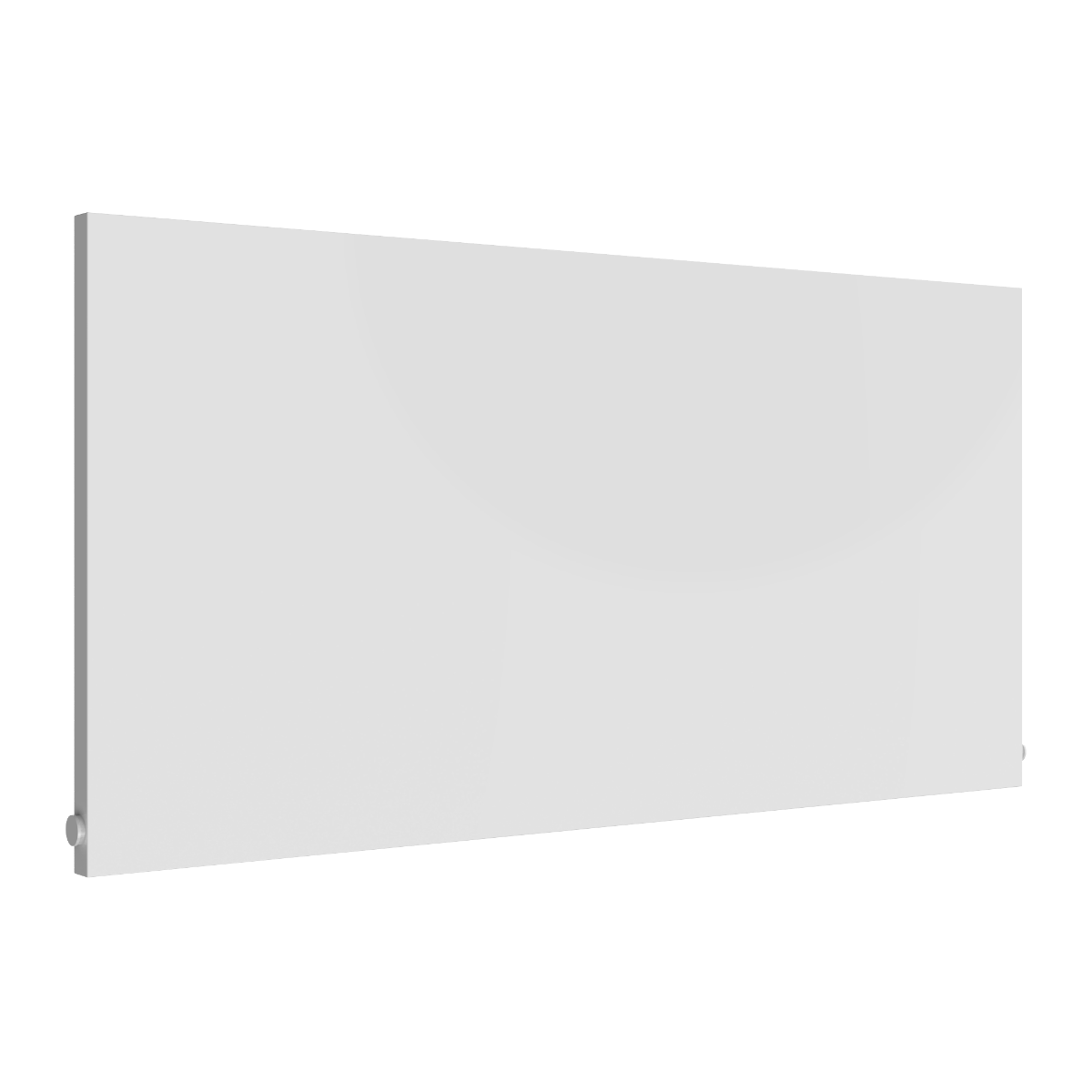

600 x 1200 White
0.06 MB
600 x 1200 Anthracite
0.23 MB

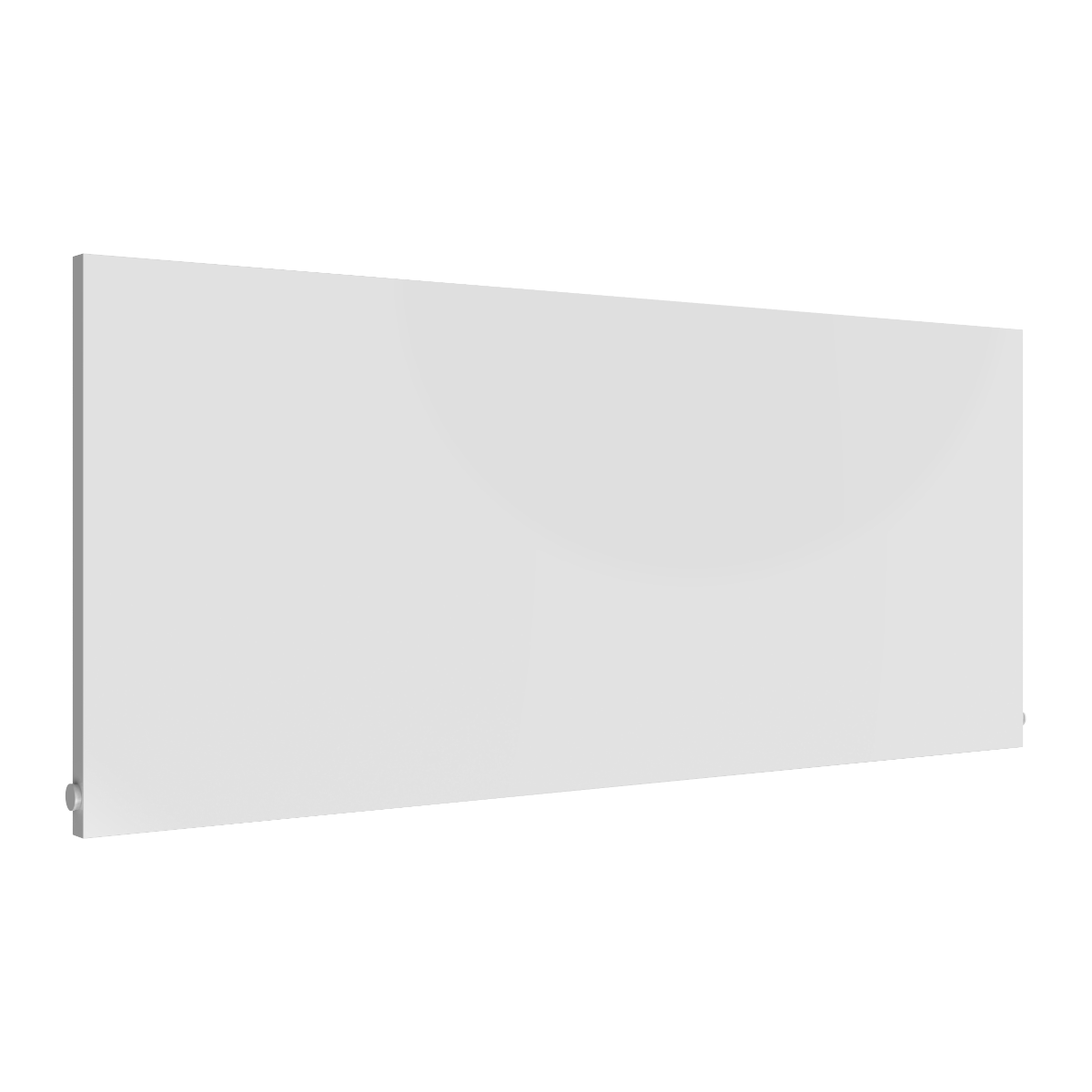

600 x 1400 White
0.06 MB

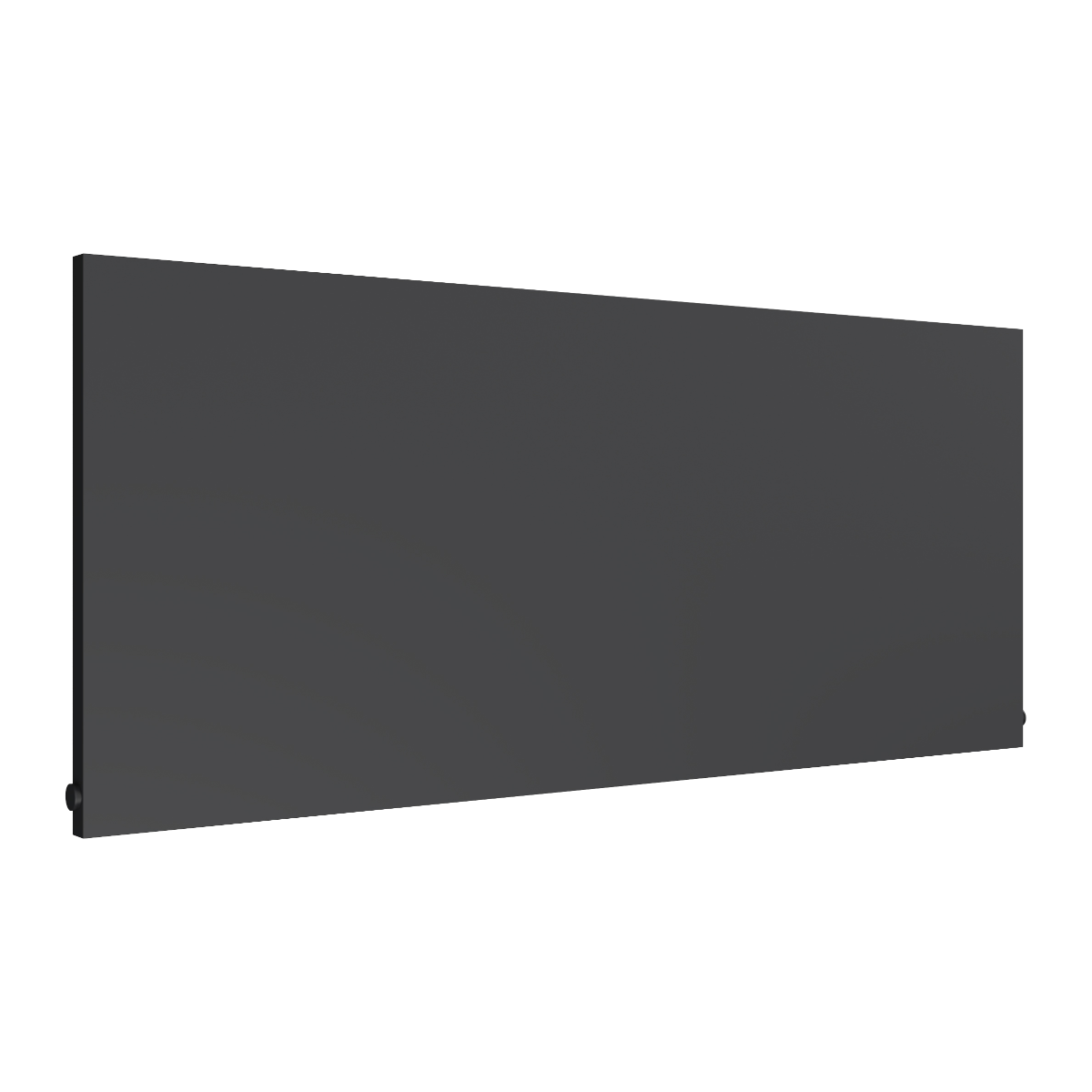

600 x 1400 Anthracite
0.21 MB

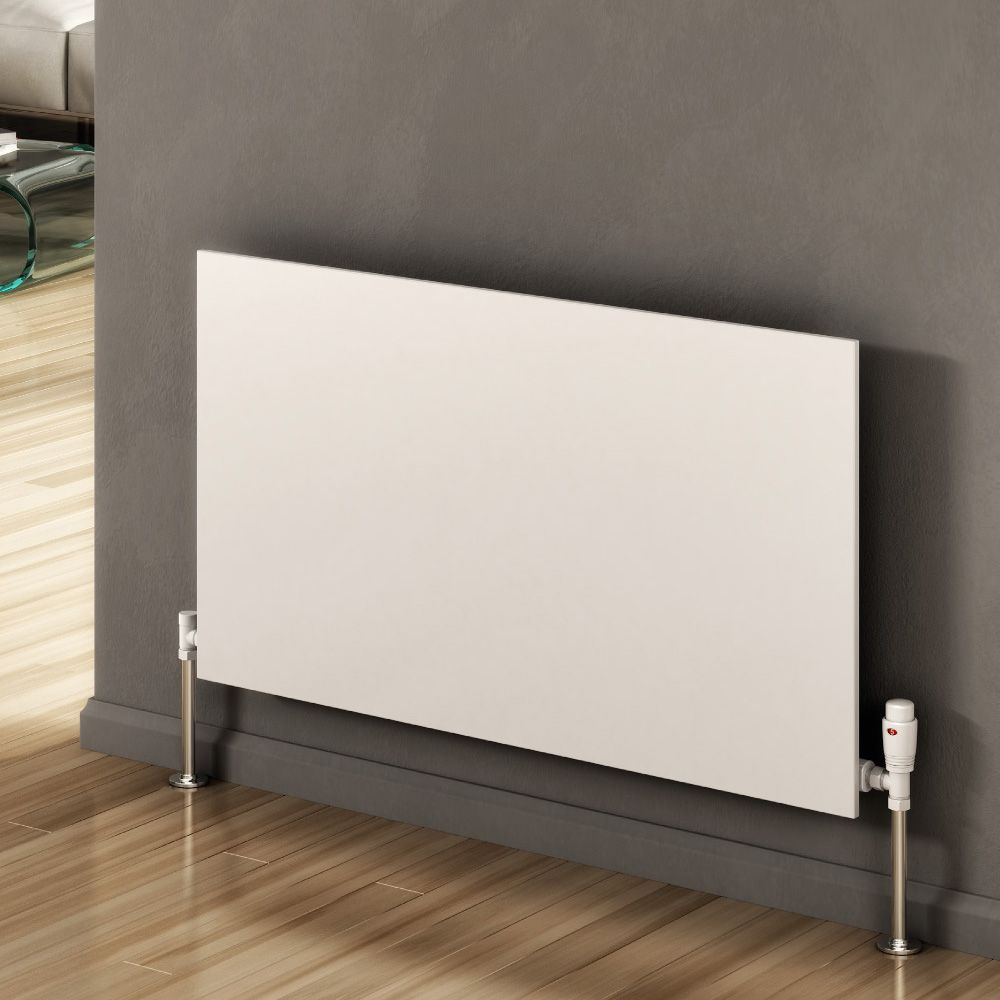

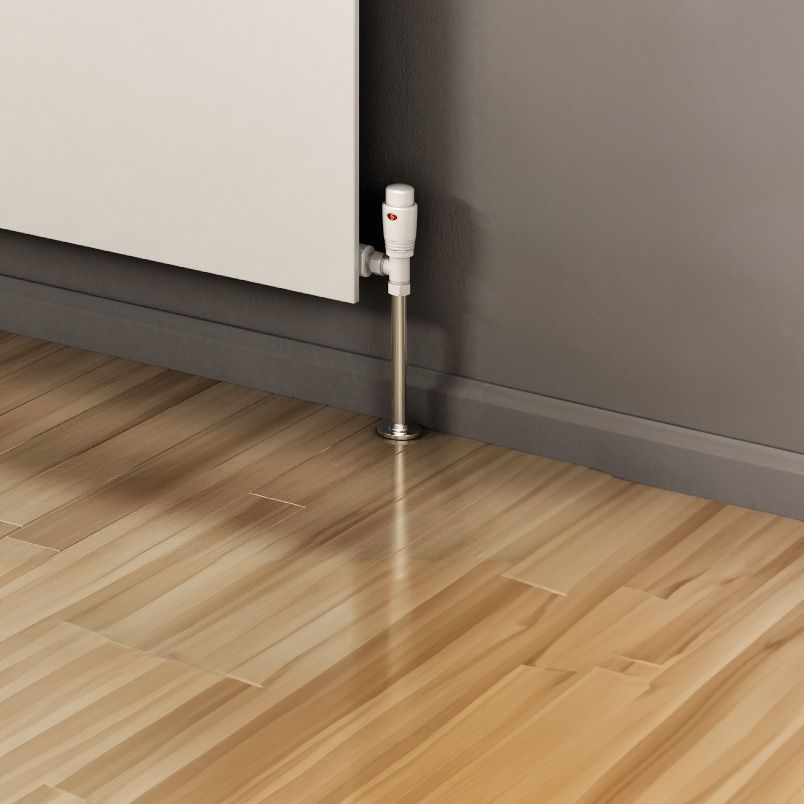

Roomset Product Images
High Resolution Images
Stock Availability
| Model/SKU | Height (mm) | Width (mm) | Colour | RRP Ex. VAT | Available Stock |
|---|---|---|---|---|---|
| RND-SLN06004W | 600 | 400 |
White |
£240.00 | Log in to see stock |
| RND-SLN06004A | 600 | 400 |
Anthracite |
£240.00 | Log in to see stock |
| RND-SLN06006W | 600 | 600 |
White |
£280.00 | Log in to see stock |
| RND-SLN06006A | 600 | 600 |
Anthracite |
£280.00 | Log in to see stock |
| RND-SLN06008W | 600 | 800 |
White |
£330.00 | Log in to see stock |
| RND-SLN06008A | 600 | 800 |
Anthracite |
£330.00 | Log in to see stock |
| RND-SLN06010W | 600 | 1000 |
White |
£378.00 | Log in to see stock |
| RND-SLN06010A | 600 | 1000 |
Anthracite |
£378.00 | Log in to see stock |
| RND-SLN06012W | 600 | 1200 |
White |
£450.00 | Log in to see stock |
| RND-SLN06012A | 600 | 1200 |
Anthracite |
£450.00 | Log in to see stock |
| RND-SLN06014W | 600 | 1400 |
White |
£486.00 | Log in to see stock |
| RND-SLN06014A | 600 | 1400 |
Anthracite |
£486.00 | Log in to see stock |
